* In-house comparison of M18 Shielded Long-distance Models
Immunity against aluminum chips has enabled achieving long-distance detection of aluminum workpieces. The same detection has also been achieved for iron, allowing the E2V-X[] to be separated from workpieces made of either metal farther than any other Proximity Sensor.
An operation indicator that is visible from any direction is provided as a standard feature.
This indicator flashes under unstable conditions for easy installation condition verification at a glance.
The first Long-distance Sensor that is shielded. Possible to be completely embedded in metal.
last update: February 12, 2015
If you have just landed here, this product OMRON E2V-X[] Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2V-X[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2V-X[]Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
UM, MC3 Safety Mat/Safety Mat Controller/Features
NY5[][]-1 Industrial PC Platform NY-series IPC Machine Controller/Features
K6CM Motor Condition Monitoring Device/Features
H5CX Digital Timer/Features
Cobra 450 SCARA Robots/Features
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | - [4423KB] | Mar 19, 201520150319 | E2V Data Sheet |
![]() | D107-E1-01 [1004KB] | Mar 19, 201520150319 | E2V-X[] Catalog |
last update: May 23, 2013
Appearance | Sensing distance | Output | Model | ||
---|---|---|---|---|---|
Operation mode NO | Operation mode NC | ||||
Shielded![]() | M12 | 2 mm | PNP | E2V-X2B1 2M | E2V-X2B2 2M |
NPN | E2V-X2C1 2M | E2V-X2C2 2M | |||
M18 | 5 mm | PNP | E2V-X5B1 2M | E2V-X5B2 2M | |
NPN | E2V-X5C1 2M | E2V-X5C2 2M | |||
M30 | 10 mm | PNP | E2V-X10B1 2M | E2V-X10B2 2M | |
NPN | E2V-X10C1 2M | E2V-X10C2 2M |
Appearance | Sensing distance | Output | Model | ||
---|---|---|---|---|---|
Operation mode NO | Operation mode NC | ||||
Shielded![]() | M12 | 4 mm | PNP | E2V-X4B1 2M | E2V-X4B2 2M |
NPN | E2V-X4C1 2M | E2V-X4C2 2M | |||
M18 | 8 mm | PNP | E2V-X8B1 2M | E2V-X8B2 2M | |
NPN | E2V-X8C1 2M | E2V-X8C2 2M | |||
M30 | 15 mm | PNP | E2V-X15B1 2M | E2V-X15B2 2M | |
NPN | E2V-X15C1 2M | E2V-X15C2 2M |
Appearance | Sensing distance | Output | Model | ||
---|---|---|---|---|---|
Operation mode NO | Operation mode NC | ||||
Shielded![]() | M12 | 4 mm | PNP | E2V-X4B1-M1 | E2V-X4B2-M1 |
NPN | E2V-X4C1-M1 | E2V-X4C2-M1 | |||
M18 | 8 mm | PNP | E2V-X8B1-M1 | E2V-X8B2-M1 | |
NPN | E2V-X8C1-M1 | E2V-X8C2-M1 | |||
M30 | 15 mm | PNP | E2V-X15B1-M1 | E2V-X15B2-M1 | |
NPN | E2V-X15C1-M1 | E2V-X15C2-M1 |
Appearance | Sensing distance | Output | Model | |
---|---|---|---|---|
Operation mode NO | ||||
Shielded![]() | M12 | 4 mm | PNP | E2V-X4B1-M1TJ 0.3M |
NPN | E2V-X4C1-M1TJ 0.3M | |||
M18 | 8 mm | PNP | E2V-X8B1-M1TJ 0.3M | |
NPN | E2V-X8C1-M1TJ 0.3M | |||
M30 | 15 mm | PNP | E2V-X15B1-M1TJ 0.3M | |
NPN | E2V-X15C1-M1TJ 0.3M |
(Required for models with Pre-wired Connectors.) A Connector is not provided with the Sensor. Be sure to order a Connector separately.
Appearance | Type | Cable length | Model | Applicable Proximity Sensor Models | |
---|---|---|---|---|---|
Smartclick Connector, Straight | ![]() | Standard cable | 2 m | XS5F-D421-D80-F | E2V-X[]B1-M1TJ E2V-X[]C1-M1TJ |
5 m | XS5F-D421-G80-F | ||||
Oil-resistant polyurethane cable | 2 m | XS5F-D421-D80-P | |||
5 m | XS5F-D421-G80-P |
(Required for models for Connectors.) A Connector is not provided with the Sensor. Be sure to order a Connector separately.
Appearance | Cable length | Sensor I/O Connector model number | Applicable Proximity Sensor Models | |
---|---|---|---|---|
Straight | ![]() | 2 m | XS2F-D421-DC0-F | E2V-X[]C1-M1 E2V-X[]B1-M1 |
5 m | XS2F-D421-GC0-F | |||
2 m | XS2F-D421-D80-F | E2V-X[]C[]-M1 E2V-X[]B[]-M1 | ||
5 m | XS2F-D421-G80-F | |||
L-shape | ![]() | 2 m | XS2F-D422-DC0-F | E2V-X[]C1-M1 E2V-X[]B1-M1 |
5 m | XS2F-D422-GC0-F | |||
2 m | XS2F-D422-D80-F | E2V-X[]C[]-M1 E2V-X[]B[]-M1 | ||
5 m | XS2F-D422-G80-F |
last update: May 23, 2013
last update: May 23, 2013
Size | M12 | M18 | M30 | ||||
---|---|---|---|---|---|---|---|
Model | E2V-X2[][] | E2V-X4[][] | E2V-X5[][] | E2V-X8[][] | E2V-X10[][] | E2V-X15[][] | |
Sensing distance | 2 mm±10% | 4 mm±10% | 5 mm±10% | 8 mm±10% | 10 mm±10% | 15 mm±10% | |
Set distance | 0 to 1.6 mm | 0 to 3.2 mm | 0 to 4.0 mm | 0 to 6.4 mm | 0 to 8.0 mm | 0 to 12.0 mm | |
Differential travel | 10% max. of sensing distance | ||||||
Detectable object | Ferrous metals and non-ferrous metals (The sensing distance depends on the material of the sensing object. Refer to Engineering Data (Reference value).) | ||||||
Standard sensing object | Aluminum: 12 × 12 × 3 mm | Aluminum: 12 × 12 × 3 mm | Aluminum: 18 × 18 × 3 mm | Aluminum: 24 × 24 × 3 mm | Aluminum: 30 × 30 × 3 mm | Aluminum: 45 × 45 × 3 mm | |
Response frequency * | 150 Hz | 40 Hz | 70 Hz | 40 Hz | 70 Hz | 30 Hz | |
Power supply voltage (operating voltage range) | 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. | ||||||
Current consumption | 450 mW max. (Current consumption: 15 mA max. at power supply voltage of 30 V) | ||||||
Control output | Load current | Open-collector output, 100 mA max. | |||||
Residual voltage | 2 V max. (Load current: 100 mA, Cable length: 2 m) | ||||||
Indicators | NO Models: Operation indicator (yellow) (flashing), Setting indicator (yellow) (lit); NC Models: Operation indicator (yellow) (lit) | ||||||
Operation mode | B1/C1 Models: NO B2/C2 Models: NC (Refer to the timing charts under I/O Circuit Diagrams for details.) | ||||||
Protection circuits | Power supply reverse polarity protection, reversed output polarity protection, load short- circuit protection, surge suppressor | ||||||
Ambient temperature | Operating/Storage: -25 to 70°C (with no icing or condensation) | ||||||
Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) | ||||||
Temperature influence | Based on the sensing distance at 23°C in the temperature range of -25 to 70°C | ||||||
±10% max. | ±15% max. | ±10% max. | ±15% max. | ±10% max. | ±15% max. | ||
Voltage influence | ±1.5% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||||
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||||
Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions | ||||||
Degree of protection | IEC IP67 (Pre-wired Models and Pre-wired Connector Models are oil-resistant to the OMRON in-house standard.) | ||||||
Connection method | Pre-wired Models (Standard cable length: 2 m), Connector Models, Pre-wired Connector Models (Standard cable length: 300 mm) | ||||||
Weight (packed state) | Cable | Approx. 120 g | Approx. 150 g | Approx. 200 g | |||
Connector | Approx. 30 g | Approx. 45 g | Approx. 120 g | ||||
Pre-wired Connector Models | Approx. 50 g | Approx. 70 g | Approx. 140 g | ||||
Materials | Case | Nickel-plated brass | |||||
Sensing surface | Heat-resistant ABS | ||||||
Clamping nuts | Nickel-plated brass | ||||||
Toothed washer | Zinc-plated iron | ||||||
Accessories | Instruction manual |
* The response frequency is an average value.
Measurement conditions are as follows: Standard sensing object, a distance between target objects of twice the
size of the standard sensing object, and a set distance of half the sensing distance.
last update: May 23, 2013
last update: May 23, 2013
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

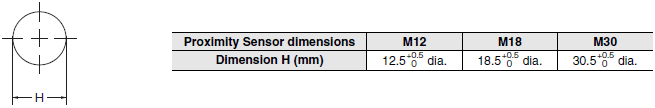

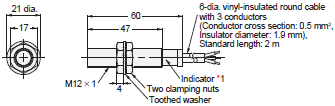

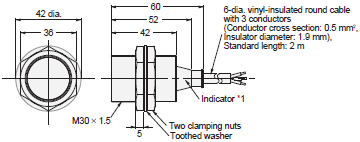

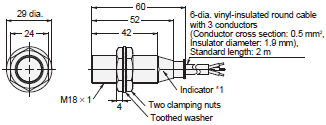

*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)

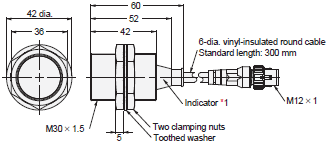

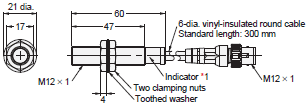

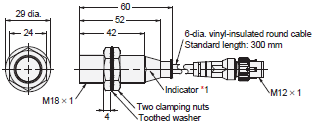

*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
