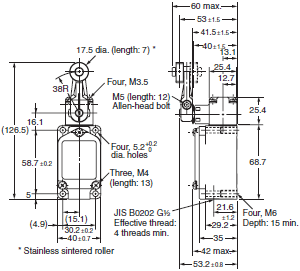

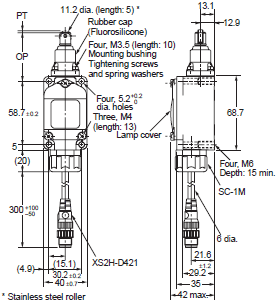

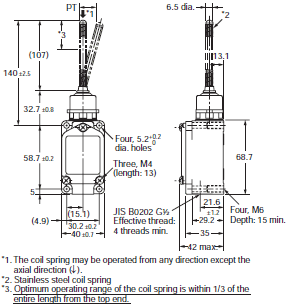

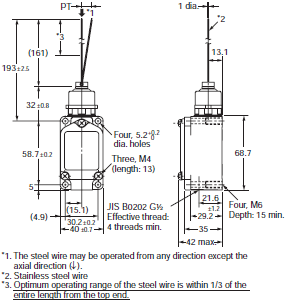

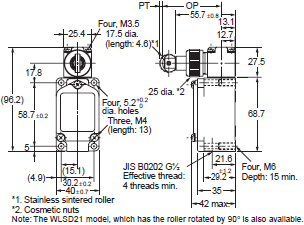

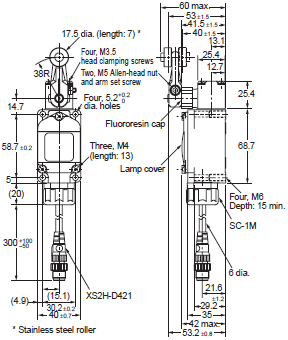

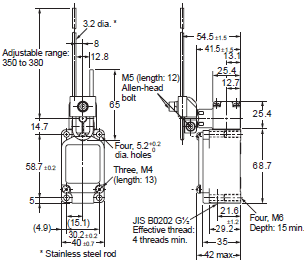

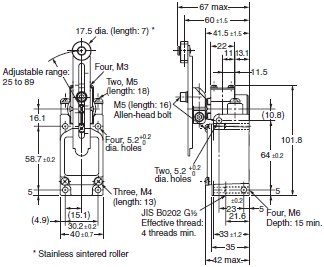

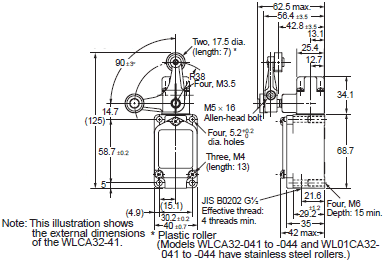

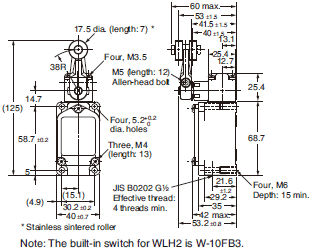

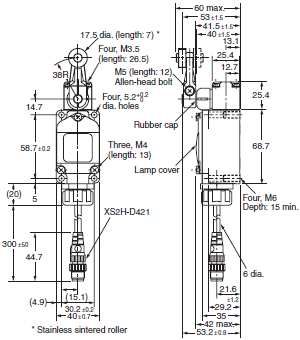

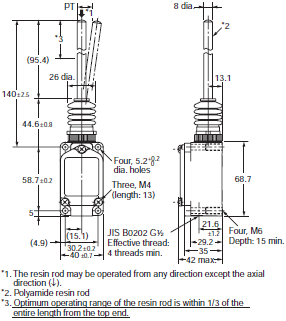

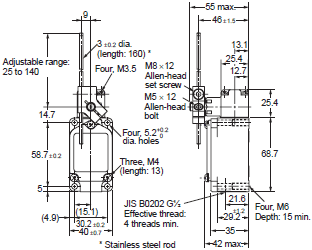

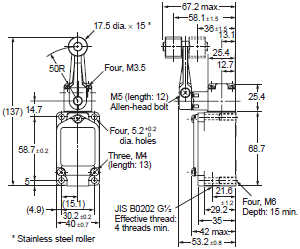

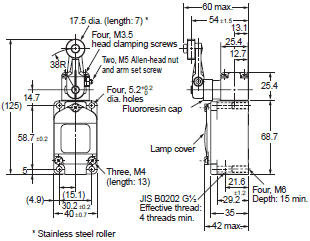

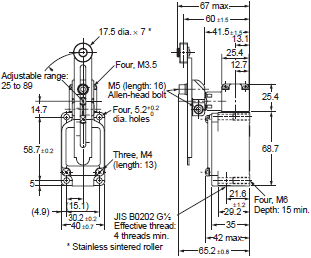

OMRON WL, WLM Dimensions

/Images/l_326-25-119050-198x198.jpg

last update: December 3, 2018

Standard Models

Many Variations in Standard Limit Switches
A Wide Range of Models

The WL Series provides a complete range of Limit Switches with a long history of meeting user needs. Select environment-resistant specifications, actuators for essentially any workpiece, operating sensitivity matched to the workpiece, operation indicators to aid operation and maintenance, and various wiring specifications.

Environment-resistant Models

Select from Six Types of Environment Resistance

The series includes Airtight Switches, Hermetic Switches, Heat-resistant Switches, Low-temperature Switches, Corrosion-proof switches, and Weather-proof Switches. Select the one required by the onsite environment.

Spatter-prevention Models

Excellent Performance on Arc Welding Lines or Sites with Spattering Cutting Powder
Ideal for Welding Sites

Stainless steel and resins that resist adhesion of spatters are used to prevent troubles caused by zinc powder generated during welding.

Long-life Models

Mechanical Endurance of 30 Million Operations
Long-life Models for High-frequency Applications

Long life has been achieved by increasing the resistance to friction and creating better sliding properties in the head mechanism. Greater visibility is provided when setting with a fluorescent display for setting the stroke.

Features Common to All Models

DPDB Operation

The double-pole, double-break structure ensures circuit braking.

Degree of Protection; IP67

O-rings, cover seals, and other measures provide a water-proof, drip-proof structure (IP67).

Approved Standards to Aid Export Machines

Various WL/WLM switches are approved by UL, CSA, TÜV, EN/IEC, and CCC making them ideal for export machines.

Operation Indicators for Easier Daily Inspections*

Confirm operation with a neon lamp or LED for easier startup confirmations and maintenance.
* Operation indicators are provided on Indicator-equipped switches, Spatter-prevention Basic Switches, and Long-life Basic Switches.

Models with Connectors to Reduce Wiring

Reduce wiring with one-touch connection. Models with direct-wired and prewired connectors that make Switch replacement easier are also available.

last update: December 3, 2018

Purchase the OMRON General-purpose Vertical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON WL, WLM Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the WL, WLM We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON WL, WLMSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NY53[]-5[]00 NY-series NC lntegrated Controller/Features
R88M-G, R88D-GN[]-ML2 G-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communic...
E3Z-[]-IL[] IO-Link Photoelectric Sensor/Features
ES1-N Infrared Thermosensor/Features
CJ1G-CPU4[]P CJ Series Loop CPU Unit/Features

OMRON WL, WLM specification
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Specifications
last update: December 3, 2018
Approved Standards

Agency Standard File No. Approved models
UL UL508 E76675 Contact your OMRON representative for information on
approved models.
CSA CSA C22.2 No.14 LR45746
TÜV Rheinland EN60947-5-1 J50022353,
J9950023, J9950959
CCC (CQC) GB14048.5 2004010305128675

General-purpose/Weather-proof Switches
Ratings
Standard-load Switches

Item Rated voltage
(V) Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
Basic models,
overtravel models 125 VAC
250 VAC
500 VAC 10
10
10 3
2
1.5 1.5
1
0.8 10
10
3 5
3
1.5 2.5
1.5
0.8
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC 10
10
6
0.8
0.4 6
6
4
0.2
0.1 3
3
3
0.2
0.1 10
10
6
0.8
0.4 6
6
4
0.2
0.1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
Note: 1. The above figures are for steady-state currents.
   2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
   3. A lamp load has an inrush current of 10 times the steady-state current.
   4. A motor load has an inrush current of 6 times the steady-state current.
   5. For PC loads, use the microload models.

Inrush current NC 30 A max.
NO 20 A max.

Minimum applicable load 5 VDC 160 mA

Microload Switches (Refer to these ratings before using the product.)

Rated voltage (V) Rated current (A) - Resistive load
AC 125 0.1
DC 30

Operation in the following ranges will produce optimum performance.

Recommended load range 5 to 30 VDC
0.5 to 100 mA

Recommended load range 5 VDC 1 mA

Approved Standard Ratings
UL/CSA
Standard-load Switches: A600, NEMA

Rated voltage Carry current Current (A) Volt-amperes (VA)
Make Break Make Break
120 VAC
240 VAC
480 VAC
600 VAC 10 A 60
30
15
12 6
3
1.5
1.2 7,200 720

Microload Switches

0.1 A 125 VAC, 0.1 A 30 VDC

TÜV (EN60947-5-1) (Only models with ground terminals are approved.)

Model Application category and ratings Thermal current (Ithe) Indicator
WL[] AC-15: 2 A/250 V
DC-12: 2 A/48 V 10 A —
WL01[] AC-14: 0.1 A/125V
DC-12: 0.1 A/48 V 0.5 A —
WL[]-LE AC-15: 2 A/250 V 10 A Neon lamp
WL01[]-LE AC-14: 0.1 A/125 V 0.5 A Neon lamp
WL[]-LD AC-15: 2 A/115 V
DC-12: 2 A/48 V 10 A LED
WL01[]-LD AC-14: 0.1 A/115 V
DC-12: 0.1 A/48 V 0.5 A LED

Note: As an example, AC-15: 2 A/250 V means the following:

Application category AC-15
Rated operating current (Ie) 2A
Rated operating voltage (Ue) 250V

Indicator-equipped Switches

Item Max. rated voltage (V) Leakage current (mA)
WL-LE Neon lamp 125 AC Approx. 0.6
250 AC Approx. 1.9
WL-LD LED 115 AC/DC Approx. 0.5
10 to 24 AC/DC Approx. 0.4

Characteristics

Degree of protection IP67
Durability
*1 Mechanical 15,000,000 operations min. *2
Electrical 750,000 operations min. *3
Operating speed 1 mm/s to 1 m/s (in case of WLCA2)
Operating
frequency Mechanical 120 operations/minute min.
Electrical 30 operations/minute min.
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 25 mΩ max. (initial value for the built-in switch when tested alone) *6
Dielectric
strength Between terminals of the same
polarity 1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal
part and ground 2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Between each terminal and non-
current-carrying metal part 2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Rated insulation voltage (Ui) 250 V (EN60947-5-1)
Pollution degree (operating environment) 3 (EN60947-5-1)
Short-circuit protective device (SCPD) 10 A, fuse type gG or gI (IEC60269)
Conditional short-circuit current 100 A (EN60947-5-1)
Conventional enclosed thermal current (Ithe) 10 A, 0.5 A (EN60947-5-1)
Protection against electric shock Class I
Vibration
resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude *4
Shock
resistance Destruction 1,000 m/s² max.
Malfunction 300 m/s² max. *4
Ambient operating temperature -10°C to +80°C (with no icing) *5
Ambient operating humidity 35% to 95% RH
Weight Approx. 275 g (in case of WLCA2)

Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the microload models.
*1. The values are calculated at an operating temperature of +5°C to +35°C and an operating humidity of 40% to
     70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Durability is 10,000,000 operations min. for general-purpose overtravel models, and for flexible rod models.
      500,000 operations min. for weather-proof models.
*3. Microload models are 1,000,000 operations min. 500,000 operations min. for weather-proof models.
*4. Except flexible rod models. The shock resistance (malfunction) for microload models is 200 m/s2 max.
*5. For low-temperature models this is –40°C to +40°C (with no icing). For heatresistant models the range is +5°C to
     +120°C.
*6. For microload models, the contact resistance is 50 mΩ max. (initial value for built-in switch).

Spatter-prevention Switches
Ratings
Screw terminals

Item Rated
voltage
(V) Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
WL[]-LES 125 VAC
250 VAC 10
10 3
2 1.5
1 10
10 5
5 2.5
1.5
WL[]-LDS 115 VAC 10 3 1.5 10 5 2.5
12 VDC
24 VDC
48 VDC 10
6
3 6
4
2 3
3
1.5 10
6
3 6
4
2

Note: 1. The above figures are for steady-state currents.
   2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
   3. A lamp load has an inrush current of 10 times the steady-state current.
   4. A motor load has an inrush current of 6 times the steady-state current.

Inrush current NC 30 A max.
NO 20 A max.
Operating temperature -10°C to +80°C (with no icing)
Operating humidity 35% to 95%RH max.

Approved Standard Ratings
UL/CSA
LE Switches (Neon lamp): A300

Rated voltage Carry current Current (A) Volt-amperes (VA)
Make Break Make Break
120 VAC
240 VAC 10 A 60
30 6
3 7,200 720

LD Switches (LED)

Rated voltage Carry current
115 VAC 10 A
115 VDC 0.8 A

CCC (GB14048.5)

Model Application category and ratings
WL[] AC-15: 2 A/250 V
DC-12: 2 A/48 V
WL01[] AC-14: 0.1 A/125V
DC-12: 0.1 A/48 V
WL[]-LE AC-15: 2 A/250 V
WL01[]-LE AC-14: 0.1 A/125 V
WL[]-LD AC-15: 2 A/115 V
DC-12: 2 A/48 V
WL01[]-LD AC-14: 0.1 A/115 V
DC-12: 0.1 A/48 V

Note: As an example, AC-15: 2 A/250 V means the following:

Application category AC-15
Rated operating current (Ie) 2 A
Rated operating voltage (Ue) 250 V

Characteristics

Degree of protection IP67
Durability
*1 Mechanical 15,000,000 operations min. *2
Electrical 750,000 operations min. *3
Operating speed 1 mm/s to 1 m/s (in case of WLCA2)
Operating
frequency Mechanical 120 operations/minute min.
Electrical 30 operations/minute min.
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 25 mΩ max. (initial value for the built-in switch when tested alone)
Dielectric
strength Between terminals of the same
polarity 1,000 VAC, 50/60 Hz for 1 min
Between current-carrying
metal part and ground 2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Between each terminal and non-
current-carrying metal part 2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Rated insulation voltage (Ui) 250 V (EN60947-5-1)
Pollution degree (operating environment) 3 (EN60947-5-1)
Short-circuit protective device (SCPD) 10 A, fuse type gG or gI (IEC60269)
Conditional short-circuit current 100 A (EN60947-5-1)
Conventional enclosed thermal current (Ithe) 10 A, 0.5 A (EN60947-5-1)
Protection against electric shock Class I
Vibration
resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock
resistance Destruction 1,000 m/s² max.
Malfunction 300 m/s² max.
Ambient operating temperature -10°C to +80°C (with no icing)
Ambient operating humidity 35% to 95%RH
Weight Approx. 275 g (in case of WLCA2)

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C and an operating humidity of 40% to 70%RH.
     Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Durability is 10,000,000 operations min. for general-purpose overtravel models.
*3. Microload models are 1,000,000 operations min.

Long-life Switches
Ratings
General Ratings (Refer to these ratings before using the product.)
Screw Terminal Switches

Item Rated
voltage
(V) Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
Basic models,
overtravel models 115 AC 10 3 1.5 10 5 2.5
12 DC
24 DC
48 DC
115 DC 10
6
3
0.8 6
4
2
0.2 3
3
1.5
0.2 10
6
3
0.8 6
4
2
0.2

Inrush current NC 30 A max.
NO 20 A max.

Direct-wired Connector and Pre-wired Connector Switches

Model Rated
voltage
(V) Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
DC 12 DC 3 3 3 3 3 3 3 3
24 DC 3 3 3 3 3 3 3 3
48 DC 3 3 3 3 3 3 3 3
115 DC 0.8 0.8 0.2 0.2 0.8 0.8 0.2 0.2
AC 115 AC 3 3 3 1.5 3 3 3 2.5

Note: 1. The above figures are for steady-state currents.
   2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
   3. A lamp load has an inrush current of 10 times the steady-state current.
   4. A motor load has an inrush current of 6 times the steady-state current.

Characteristics

Degree of protection IP67
Durability
* Mechanical 30,000,000 operations min.
Electrical 30,000,000 operations min. (10 mA at 24 VDC, resistive load)
750,000 operations min. (10 A at 115 VAC, resistive load)
Operating speed 1 mm/s to 1 m/s (in case of WLCA2)
Operating
frequency Mechanical 120 operations/minute
Electrical 30 operations/minute
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 25 mΩ max. (initial value for the built-in switch when tested alone)
Dielectric
strength
(50/60 Hz
for 1 min) Between terminals of the
same polarity 1,000 VAC (except connector models)
Between current-carrying
metal part and ground 2,200 VAC (1,500 V)
Between each terminal
and non-current-
carrying metal part 2,200 VAC (1,500 V)
Vibration
resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock
resistance Destruction 1,000 m/s² max.
Malfunction 300 m/s² max.
Ambient operating temperature -10°C to +80°C (with no icing)
Ambient operating humidity 35% to 95%RH
Weight Approx. 275 g (in case of WLCA2)

Note: The figures in parentheses for dielectric strength, are those for connector models.
* The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
   Contact your OMRON sales representative for more detailed information on other operating environments.

last update: December 3, 2018

OMRON WL, WLM lineup
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Lineup
last update: December 3, 2018
General-purpose Switches
Standard Switches

Note: Models are also available with ground terminals.

Lever

Actuator Roller lever R38 Roller lever R50 Roller lever R63
Item Model Model Model
Basic Standard load WLCA2 WLCA2-7 WLCA2-8
Microload WL01CA2 WL01CA2-7 WL01CA2-8
Overtravel General-
purpose Standard load WLH2 - -
Microload WL01H2 - -
90°
operation Standard load WLCA2-2 - -
Microload WL01CA2-2 - -
Standard load WLCA2-2N - -
Microload WL01CA2-2N - -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Adjustable
roller lever Adjustable rod
lever
25 to 140mm Adjustable rod
lever
350 to 380mm Rod
spring
lever
Item Model Model Model Model
Basic Standard load WLCA12 WLCL - -
Microload WL01CA12 WL01CL - -
Overtravel General-
purpose Standard load WLH12 WLHL WLHAL4 WLHAL5
Microload WL01H12 WL01HL - -
90°
operation Standard load WLCA12-2 WLCL-2 - -
Microload WL01CA12-2 - - -
Standard load WLCA12-2N WLCL-2N - -
Microload WL01CA12-2N WL01CL-2N - -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Fork lever lock
(with WL-5A100
plastic roller lever) Fork lever lock
(with WL-5A102
plastic roller lever) Fork lever lock
(with WL-5A104
plastic roller lever) Fork lever lock
(with WL-5A104
plastic roller lever)
Item Model Model Model Model
Maintained Standard load WLCA32-41 WLCA32-42 WLCA32-43 WLCA32-44
Microload WL01CA32-41 - WL01CA32-43 WL01CA32-44

Plunger

Actuator Top plunger Top-roller plunger Top-ball plunger Sealed top-roller
plunger
Item Model Model Model Model
Top plunger Standard load WLD WLD2 WLD3 WLD28
Microload WL01D WL01D2 WL01D3 WL01D28

Actuator Horizontal plunger Horizontal-roller plunger Horizontal-ball plunger
Item Model Model Model
Side plunger Standard load WLSD WLSD2 WLSD3
Microload WL01SD WL01SD2 WL01SD3

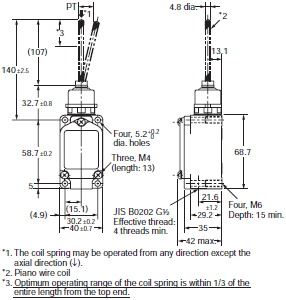

Flexible Rod

Actuator Coil spring (spring
diameter: 6.5) Coil spring (spring
diameter: 4.8) Coil spring (resin
rod diameter: 8) Steel wire (wire
diameter: 1)
Item Model Model Model Model
Flexible rod Standard load WLNJ WLNJ-30 WLNJ-2 WLNJ-S2
Microload WL01NJ WL01NJ-30 WL01NJ-2 WL01NJ-S2

Indicator-equipped Switches
Lever

Actuator Roller lever
R38 Roller lever
R50 Roller lever
R63 Adjustable roller
lever
Item Model Model Model Model
Basic Neon lamp WLCA2-LE WLCA2-7LE WLCA2-8LE WLCA12-LE
LED WLCA2-LD WLCA2-7LD WLCA2-8LD WLCA12-LD
Overtravel General-
purpose Neon lamp WLH2-LE - - WLH12-LE
LED WLH2-LD - - WLH12-LD
90°
operation Neon lamp WLCA2-2LE - - WLCA12-2LE
LED WLCA2-2LD - - WLCA12-2LD
Neon lamp WLCA2-2NLE - - WLCA12-2NLE
LED WLCA2-2NLD - - WLCA12-2NLD

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Adjustable rod lever
25 to 140 mm Adjustable rod lever
350 to 380 mm Rod spring lever
Item Model Model Model
Basic Neon lamp WLCL-LE - -
LED WLCL-LD - -
Overtravel General-
purpose Neon lamp WLHL-LE WLHAL4-LE WLHAL5-LE
LED WLHL-LD WLHAL4-LD WLHAL5-LD
90°
operation Neon lamp WLCL-2LE - -
LED WLCL-2LD - -
Neon lamp WLCL-2NLE - -
LED WLCL-2NLD - -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Fork lever lock (with
WL-5A100 Plastic
Roller Lever) Fork lever lock (with
WL-5A102 Plastic
Roller Lever) Fork lever lock (with
WL-5A104 Plastic
Roller Lever)
Item Model Model Model
Maintained Neon lamp WLCA32-41LE WLCA32-42LE WLCA32-43LE
LED WLCA32-41LD - WLCA32-43LD

Plunger

Actuator Top plunger Top-roller plunger Top-ball plunger Sealed top-roller plunger
Item Model Model Model Model
Top plunger Neon lamp WLD-LE WLD2-LE WLD3-LE WLD28-LE
LED WLD-LD WLD2-LD WLD3-LD WLD28-LD

Actuator Horizontal plunger Horizontal-roller plunger Horizontal-ball plunger
Item Model Model Model
Side plunger Neon lamp WLSD-LE WLSD2-LE WLSD3-LE
LED WLSD-LD WLSD2-LD WLSD3-LD

Flexible Rod

Actuator Coil spring (spring
diameter: 6.5) Coil spring (spring
diameter: 4.8) Coil spring (resin
rod diameter: 8) Steel wire (wire
diameter: 1)
Item Model Model Model Model
Flexible rod Neon lamp WLNJ-LE WLNJ-30LE WLNJ-2LE WLNJ-S2LE
LED WLNJ-LD WLNJ-30LD WLNJ-2LD WLNJ-S2LD

Sensor I/O Connector Switches
Direct-wired Connectors

Actuator Item Basic Overtravel
General-purpose
Wiring Built-in switch
specification Model Model
Roller lever
2-conductor DC NO connector pins
No. 3, 4 Standard WLCA2-LDK13 WLH2-LDK13
Airtight seal WLCA2-55LDK13 WLH2-55LDK13
4-conductor DC Standard WLCA2-LDK43 WLH2-LDK43
Airtight seal WLCA2-55LDK43 WLH2-55LDK43
Top-roller
plunger
2-conductor DC NO connector pins
No. 3, 4 Standard WLD2-LDK13 -
Airtight seal WLD2-55LDK13 -
4-conductor DC Standard WLD2-LDK43 -
Airtight seal WLD2-55LDK43 -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Pre-wired Connectors

Actu-
ator Item Basic Overtravel
General-purpose
Wiring Built-in
switch
specification Model Model
Roller
lever
2-
conductor DC NO connector pins
No. 3, 4 Standard WLCA2-LD-M1J WLH2-LD-M1J
Airtight seal WLCA2-55LD-M1J -
connector pins
No. 1, 4 Standard WLCA2-LD-M1GJ WLH2-LD-M1GJ
Airtight seal WLCA2-55LD-M1GJ -
NC connector pins
No. 3, 2 Standard - -
Airtight seal WLCA2-55LD-M1JB -
4-
conductor DC Standard WLCA2-LD-DGJ03 WLH2-LD-DGJ03
Airtight seal WLCA2-55LD-DGJ03 -
3-
conductor DC connector pins
No. 2, 3, 4 Standard WLCA2-LD-DK1EJ03 -
Airtight seal WLCA2-55LD-DK1EJ03 -
Top-
roller
plunger
2-
conductor DC NO connector pins
No. 3, 4 Standard WLD2-LD-M1J -
Airtight seal WLD2-55LD-M1J -
connector pins
No. 1, 4 Standard WLD2-LD-M1GJ -
Airtight seal WLD2-55LD-M1GJ -
NC connector pins
No. 3, 2 Standard - -
Airtight seal WLD2-55LD-M1JB -
4-
conductor DC Standard WLD2-LD-DGJ03 -
Airtight seal - -
3-
conductor DC connector pins
No. 2, 3, 4 Standard WLD2-LD-DK1EJ03 -
Airtight seal WLD2-55LD-DK1EJ03 -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Environment-resistant Switches

Note: Models are also available with ground terminals.

Actuator Roller lever R38
Item Basic Overtravel
General-purpose
Model Model
Airtight seal No indicator WLCA2-55 WLH2-55
Indicator LED WLCA2-55LD WLH2-55LD
Neon WLCA2-55LE WLH2-55LE
Hermetic seal Molded terminals -139 No indicator WLCA2-139 WLH2-139
Indicator NC wiring WLCA2-139LD2 -
NO wiring WLCA2-139LD3 -
-140 No indicator WLCA2-140 WLH2-140
Indicator NC wiring WLCA2-140LD2 -
NO wiring WLCA2-140LD3 -
-141 No indicator WLCA2-141 WLH2-141
Indicator NC wiring WLCA2-141LD2 -
NO wiring WLCA2-141LD3 WLH2-141LD3
Anti-coolant No indicator WLCA2-RP60 WLH2-RP60
Indicator NC wiring WLCA2-RP60LD2 -
NO wiring WLCA2-RP60LD3 WLH2-RP60LD3
Heat-resistant No indicator WLCA2-TH WLH2-TH
Low-temperature WLCA2-TC WLH2-TC
Corrosion-proof WLCA2-RP WLH2-RP
Weather-proof WLCA2-P1 WLH2-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Roller lever R38
Item Overtravel
90° (-2 model) 90° (-2N model)
Model Model
Airtight seal No indicator WLCA2-255 WLCA2-2N55
Indicator LED WLCA2-255LD WLCA2-2N55LD
Neon WLCA2-255LE WLCA2-2N55LE
Hermetic seal Molded terminals -139 No indicator WLCA2-2139 WLCA2-2N139
Indicator NC wiring WLCA2-2139LD2 -
NO wiring WLCA2-2139LD3 -
-140 No indicator - WLCA2-2N140
Indicator NC wiring - -
NO wiring - -
-141 No indicator - -
Indicator NC wiring - -
NO wiring - -
Anti-coolant No indicator WLCA2-2RP60 -
Indicator NC wiring WLCA2-2RP60LD2 -
NO wiring WLCA2-2RP60LD3 -
Heat-resistant No indicator WLCA2-2TH WLCA2-2NTH
Low-temperature WLCA2-2TC WLCA2-2NTC
Corrosion-proof - -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Adjustable roller lever
Item Basic Overtravel
General-purpose
Model Model
Airtight seal No indicator WLCA12-55 -
Indicator LED WLCA12-55LD -
Neon WLCA12-55LE -
Hermetic seal Molded terminals -139 No indicator WLCA12-139 -
-140 WLCA12-140 -
-141 WLCA12-141 -
Anti-coolant WLCA12-RP60 -
Heat-resistant No indicator WLCA12-TH WLH12-TH
Low-temperature WLCA12-TC WLH12-TC
Corrosion-proof WLCA12-RP WLH12-RP
Weather-proof WLCA12-P1 WLH12-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Adjustable roller lever
Item Overtravel
90° (-2 model) 90° (-2N model)
Model Model
Heat-resistant No indicator WLCA12-2TH WLCA12-2NTH
Low-temperature WLCA12-2TC WLCA12-2NTC

Actuator Adjustable rod lever 25 to 140 mm
Item Basic Overtravel
General-purpose
Model Model
Airtight seal No indicator WLCL-55 -
Indicator LED WLCL-55LD -
Neon - -
Hermetic seal Molded terminals -139 No indicator WLCL-139 -
-140 WLCL-140 -
-141 - -
Anti-coolant WLCL-RP60 -
Heat-resistant No indicator WLCL-TH WLHL-TH
Low-temperature WLCL-TC WLHL-TC
Corrosion-proof WLCL-RP WLHL-RP
Weather-proof WLCL-P1 WLHL-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator Adjustable rod lever 25 to 140 mm
Item Overtravel
90° (-2 model) 90° (-2N model)
Model Model
Heat-resistant No indicator WLCL-2TH WLCL-2NTH
Low-temperature WLCL-2TC WLCL-2NTC
Corrosion-proof WLCL-2RP -

Actuator Top-roller plunger Sealed top-roller plunger Horizontal plunger
Item Model Model Model
Airtight seal No indicator WLD2-55 WLD28-55 WLSD-55
Indicator LED WLD2-55LD WLD28-55LD WLSD-55LD
Neon WLD2-55LE WLD28-55LE -
Hermetic
seal Molded
terminals -139 No indicator WLD2-139 WLD28-139 WLSD-139
-140 - WLD28-140 -
Anti-coolant WLD2-RP60 WLD28-RP60 WLSD-RP60
Heat-resistant No indicator WLD2-TH WLD28-TH WLSD-TH
Low-temperature WLD2-TC - WLSD-TC
Corrosion-proof WLD2-RP WLD28-RP WLSD-RP

Note: The standard cable length for models with airtight seals is 5 m.

Actuator Horizontal-roller
plunger Coil spring (spring
diameter: 6.5) Coil spring (resin
rod diameter: 8)
Item Model Model Model
Airtight seal No indicator WLSD2-55 WLNJ-55 WLNJ-255
Indicator LED WLSD2-55LD WLNJ-55LD WLNJ-255LD
Neon - - -
Hermetic
seal Molded
terminals -139 No indicator WLSD2-139 WLNJ-139 -
-140 WLSD2-140 WLNJ-140 WLNJ-2140
Anti-coolant WLSD2-RP60 WLNJ-RP60 WLNJ-2RP60
Heat-resistant No indicator WLSD2-TH WLNJ-TH -
Low-temperature WLSD2-TC WLNJ-TC WLNJ-2TC
Corrosion-proof WLSD2-RP WLNJ-RP WLNJ-2RP

Note: The standard cable length for models with airtight seals is 5 m.

Spatter-prevention Switches

Actuator Roller lever
Sealed top-roller
plunger
Item Double nut lever Allen-head lever
Model Model Model
Neon lamp
operation
indicator Basic WLCA2-LEAS WLCA2-LES WLD28-LES
Overtravel General-purpose WLH2-LEAS WLH2-LES -
LED
operation
indicator Basic WLCA2-LDAS WLCA2-LDS WLD28-LDS
Overtravel General-purpose WLH2-LDAS WLH2-LDS -

Note: 1. For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
2. Ask your OMRON representative about WL01[]-[]S Microload Switches.

Long-life Switches

Item LED operation indicator *1
Basic Overtravel
General-purpose
Actuator Model Model
Roller lever, screw terminal WLMCA2-LD WLMH2-LD
Roller lever,
direct-wired connector 2-conductor AC WLMCA2-LDK13A WLMH2-LDK13A
DC WLMCA2-LDK13 WLMH2-LDK13
4-conductor AC WLMCA2-LDK43A WLMH2-LDK43A
DC WLMCA2-LDK43 WLMH2-LDK43
Roller lever,
pre-wired connector *2 2-conductor DC WLMCA2-LD-M1J WLMH2-LD-M1J
4-conductor DC WLMCA2-LD-DGJ03 WLMH2-LD-DGJ03

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
*1. The default setting is "light-ON when not operating."
Turn the lamp holder by 180° to change the setting to "light-ON when operating". (Ask your OMRON representative
     about 2-conductor models.)
*2. With 0.3-m cable attached.

Connecting Cables

Voltage specification Number of conductors Cable length Model
AC 2 2 m XS2F-A421-DB0-F
5 m XS2F-A421-GB0-F
4 2 m XS2F-A421-D90-F
5 m XS2F-A421-G90-F
DC 2 2 m XS2F-D421-DD0
5 m XS2F-D421-GD0
4 2 m XS2F-D421-D80-F
5 m XS2F-D421-G80-F

Individual Parts
Heads

Actuator type Set model Head model (with Actuator)
Roller lever WLCA2 WL-1H1100
WLH2 WL-2H1100-1 *
WLCA2-2 WL-3H1100
WLCA2-2N WL-6H1100
Adjustable roller lever WLCA12 WL-1H2100
WLH12 WL-2H2100-1 *
WLCA12-2 WL-3H2100
WLCA12-2N WL-6H2100
Adjustable rod lever WLCL WL-4H4100
WLCL-2 WL-3H4100
WLCL-2N WL-6H4100
Top plunger WLD WL-7H100
WLD2 WL-7H200
WLD3 WL-7H300
WLD28 WL-7H400
Horizontal plunger WLSD WL-8H100
WLSD2 WL-8H200
WLSD3 WL-8H300
Fork lever lock WLCA32-41 WL-5H5100
WLCA32-42 WL-5H5102
WLCA32-43 WL-5H5104
WLCA32-44 WL-5H5104
Coil spring WLNJ WL-9H100
WLNJ-30 WL-9H200
WLNJ-2 WL-9H300
WLNJ-S2 WL-9H400

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
* The model number of Heads without levers are same as those of Heads with levers without the numbers at the end.
   Example: WL-1H1100 becomes WL-1H without the lever.
   However, the WLH2 and WLH12 become WL-2H-1 for the Heads without levers.
   Other Heads are also available. Ask your OMRON representative.

Switches without levers

Actuator type Switches without levers
Model
Switches for roller levers Basic R38 WLRCA2
General-purpose overtravel, 80° WLRH2
Overtravel, 90° operation WLRCA2-2
Overtravel, 90° operation WLRCA2-2N
Switches for adjustable roller levers Basic WLRCA2
General-purpose overtravel, 80° WLRH2
Overtravel, 90° operation WLRCA2-2
Overtravel, 90° operation WLRCA2-2N
Switches for adjustable rod lever Basic, 25 to 140 mm WLRCL
Overtravel, 90° operation, 25 to 140 mm WLRCA2-2
Overtravel, 90° operation, 25 to 140 mm WLRCA2-2N
Switches for top plungers - -
Switches for horizontal plungers - -
Switches for fork lever locks Maintained, WL-5A100
Maintained, WL-5A102
Maintained, WL-5A104 WLRCA32
Switches for coil springs - -

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Covers with Operation Indicators

Cover Cover only with indicator
Item Model
Neon lamp WL-LE
LED WL-LD

Note: The default setting is "light-ON when not operating."
Turn the lamp holder by 180° to change the setting to "light-ON when operating."

Spatter-prevention Products

Head (with actuator) Lever Cover with
indicator Switches without
Levers
Complete Heads
with allen-head
levers Double
Nut
Lever Allen-
head
Lever Double
Nut
Lever Cover with
Indicator Switches
without levers
Model Model Model Model Model Model
WL-1H1100S
(for WLCA2-[]) WL-2H1100S
(for WLH2-[]) WL-1A103S
Roller lever WL-1A105S
Roller Lever Neon lamp
WL-LES WLRCA2-LDS
WLRH2-LES
WLRH2-LDS
LED (LED)
WL-LDS

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

WL Head Replacement

Heads can be replaced within the same model group. They cannot be replaced between different model groups.

Group No. Set model number Head model number (with Actuator)
1 WLCA2 WL-1H1100
WLCA2-7 WL-1H1200
WLCA2-8 WL-1H1300
WLCA12 WL-1H2100
2 WLCL WL-4H4100 *
3 WLH2 WL-2H1100-1
WLH12 WL-2H2100-1
WLHL WL-2H4100
WLHAL4 WL-2H4106
WLHAL5 WL-2H4107
4 WLCA2-2N WL-6H1100
WLCA12-2N WL-6H2100
WLCL-2N WL-6H4100
5 WLCA2-2 WL-3H1100
WLCA12-2 WL-3H2100
WLCL-2 WL-3H4100
6 WLCA32-41 WL-5H5100
WLCA32-42 WL-5H5102
WLCA32-43 WL-5H5104
WLCA32-44 WL-5H5104
7 WLD WL-7H100
WLD2 WL-7H200
WLD3 WL-7H300
8 WLD28 WL-7H400 *
9 WLSD WL-8H100
WLSD2 WL-8H200
WLSD3 WL-8H300
10 WLNJ WL-9H100
WLNJ-30 WL-9H200
11 WLNJ-2 WL-9H300 *
12 WLNJ-S2 WL-9H400 *

* This Heads are special and must be used. Do not use any other Head.

last update: December 3, 2018

OMRON WL, WLM download
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Manual

Manual

CAD

If you Login / Signup, you can download the PDF of the Manual.

English
Global Edition

Please note some product models not sold in Singapore may be included in the following manual(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of manual PDF data.
*The manual which name begins with "Instruction Sheet" is a simplified manual supplied with the product.

Type

All

Clear

Manual Name Catalog Number
[size] Last Update

Instruction Manual WL
Two-circuit Limit Switch Instruction Sheet (ENG/JPN/CHI) 0685886-9I
[908KB] Apr 23, 201820180423 0030 031_Instruction Manual WL Two-circuit Limit Switch Instruction Sheet (ENG/JPN/CHI)

OMRON WL, WLM dimension
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Dimensions
last update: December 3, 2018

(Unit: mm)

General-purpose Models
Standard Models
Basic
Rotating Lever

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Roller lever R38
WLCA2
WL01CA2

Roller lever R50
WLCA2-7
WL01CA2-7

Roller lever R63
WLCA2-8
WL01CA2-8

Adjustable Roller Lever
WLCA12
WL01CA12

Adjustable Rod Lever (25 to 140 mm)
WLCL
WL01CL

Fork Lever Lock
WLCA32-41 to 44
WL01CA32-41 to 44

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Plunger

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Top Plunger
WLD
WL01D

Horizontal Plunger
WLSD
WL01SD

Top-roller Plunger
WLD2
WL01D2

Horizontal-roller Plunger
WLSD2
WL01SD2

Top-ball Plunger
WLD3
WL01D3

Horizontal-ball Plunger
WLSD3
WL01SD3

Sealed Top-roller Plunger
WLD28
WL01D28

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Flexible Rod

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Coil Spring
WLNJ
WL01NJ

Coil Spring (Multi-wire)
WLNJ-30
WL01NJ-30

Coil Spring (Resin Rod)
WLNJ-2
WL01NJ-2

Steel Wire
WLNJ-S2
WL01NJ-S2

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

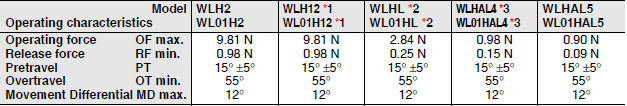

Overtravel
General-purpose Models

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

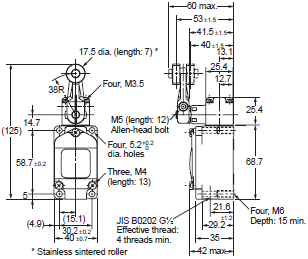

Roller Lever R38
WLH2
WL01H2

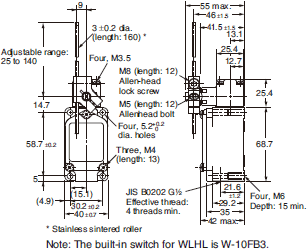

Adjustable Rod Lever
WLHL
WL01HL

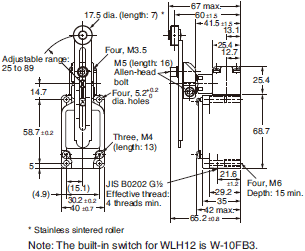

Adjustable Roller Lever
WLH12
WL01H12

Adjustable Rod Lever
WLHAL4
WL01HAL4

Rod Spring Lever
WLHAL5
WL01HAL5

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Note: With WLHAL4, WL01HAL4, WLHAL5, and WL01HAL5, the actuator's tare is large, so depending on the installation
         direction, they may not be properly reset.
         Always install so that the actuator is facing downwards.
*1. The operating characteristics of WLH12, and WL01HL12 are measured at the lever length of 38 mm.
*2. The operating characteristics of WLHL, and WL01HL are measured at the rod length of 140 mm.
*3. The operating characteristics of WLHAL4, and WL01HAL4 are measured at the rod length of 380 mm.

OF and RF for WLH12 and WL01H12, with a lever length of 89 mm.

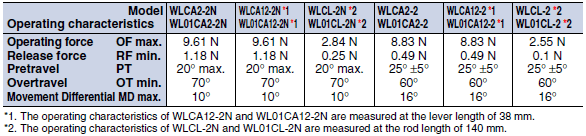

Side-installation Models

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Roller Lever
WLCA2-2N
WL01CA2-2N

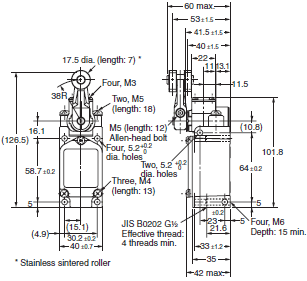

Roller Lever
WLCA2-2
WL01CA2-2

Adjustable Roller Lever
WLCA12-2N
WL01CA12-2N

Adjustable Roller Lever
WLCA12-2
WL01CA12-2

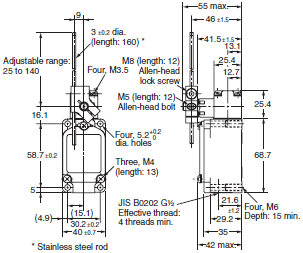

Adjustable Rod Lever
WLCL-2N
WL01CL-2N

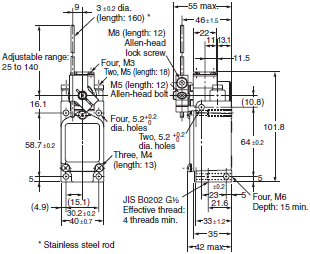

Adjustable Rod Lever
WLCL-2
WL01CL-2

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

OF and RF for WLCA12-2N and WL01CA12-2N, with a lever length of 89 mm.

Sensor I/O Connector Switches
Direct-wired Connector/Pre-wired Connector Models

Refer to Data Sheet for the connecting cable.

Roller Lever Plungers

WL[] are Standard Models and WL01[] are Microload Models.

Standard Models (WLCA2), Overtravel General-purpose Models (WLH2)
Connector Models

Pre-wired Connector Models

Note: 1. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
   2. The models with operation indicators are shown in the above diagrams.

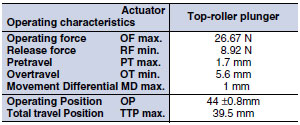

Top-roller Plunger (WLD2)
Direct-wired Connector Models

Pre-wired Connector Models

Note: 1. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
2. The following diagrams are for a indicator-equipped models.

Indicator-equipped Models

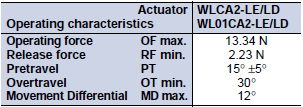

Roller Lever
WLCA2-LE/LD
WL01CA2-LE/LD

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

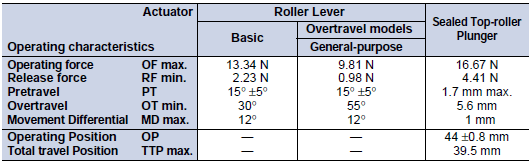

Spatter-prevention Models

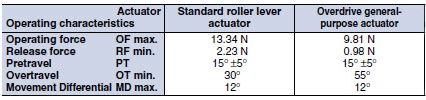

Roller Lever (Screw Terminals)
WLCA2-[]S/WL01[]-[]S
WLH2-[]S

Roller Lever (Pre-wired connectors)
WLCA2-[]S-M1J*/WL01[]-[]S-M1J*
WLH2-[]S-M1J*

* External dimensions are the same even for different core wires.

Sealed Top-roller Plunger (Screw Terminals)
WLD28-[]S

Sealed Top-roller Plunger (Pre-wired connectors)
WLD28-[]S-M1J*

* External dimensions are the same even for different core wires.

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

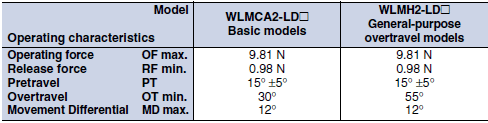

Long-life Models
Rotating Lever Models
Roller Lever (Screw Terminals)
WLM[]-LD

Roller Lever (Direct-wired Connectors)
WLM[]-LD[]

Roller Lever (Pre-wired Connectors)
WLM[]-LD[]

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Actuators (Levers Only)
Lever: Only rotating lever models are illustrated.

WL-1A100
Standard Lever

WL-1A115
Resin Roller

WL-1A400
Bearing Roller

WL-1A118
Nylon Roller:
Roller Width: 30 mm

WL-1A105
Double Nuts

WL-1A103S
Spatter Prevention

WL-1A200
Lever Length: 50
Roller Width: 15

WL-1A300
Lever Length: 63

WL-2A100

WL-2A111
Resin Roller

WL-2A107
Double Nuts

WL-2A108
Resin Roller

WL-2A122

WL-2A106

WL-2A130

WL-2A104

WL-2A110

WL-2A105

WL-1A106

WL-1A110

WL-4A100

WL-4A201

WL-3A100

WL-3A106
Double Nut

WL-3A108

WL-3A200

WL-3A203

WL-4A112

WL-2A129

WL-5A101
WL-5A100 has a plastic roller

WL-5A103
WL-5A102 has a plastic roller

WL-5A105
WL-5A104 has a plastic roller

Note: 1. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
2. When using the adjustable roller (rod) lever, make sure that the lever is facing downwards. Use caution,
as telegraphing (the Switch turns ON and OFF repeatedly due to inertia) may occur.

last update: December 3, 2018

NO. WL, WLM

TYPE:Limit Switches General-purpose Vertical Copyright Statement

DATE:2021-06-10

Associated products:
D4A-[]N General-purpose Limit Switch/Features D4ER-[]N Oil-resistant Limit Switch/Features

Agency	Standard	File No.	Approved models
UL	UL508	E76675	Contact your OMRON representative for information on approved models.
CSA	CSA C22.2 No.14	LR45746
TÜV Rheinland	EN60947-5-1	J50022353, J9950023, J9950959
CCC (CQC)	GB14048.5	2004010305128675

Item	Rated voltage (V)	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
Basic models, overtravel models	125 VAC 250 VAC 500 VAC	10 10 10	3 2 1.5	1.5 1 0.8	10 10 3	5 3 1.5	2.5 1.5 0.8
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC	10 10 6 0.8 0.4	6 6 4 0.2 0.1	3 3 3 0.2 0.1	10 10 6 0.8 0.4	6 6 4 0.2 0.1

Inrush current	NC	30 A max.
NO	20 A max.

Minimum applicable load	5 VDC 160 mA

Rated voltage (V)	Rated current (A) - Resistive load
AC 125	0.1
DC 30

Recommended load range	5 to 30 VDC 0.5 to 100 mA

Recommended load range	5 VDC 1 mA

Rated voltage	Carry current	Current (A)	Volt-amperes (VA)
Make	Break	Make	Break
120 VAC 240 VAC 480 VAC 600 VAC	10 A	60 30 15 12	6 3 1.5 1.2	7,200	720

Model	Application category and ratings	Thermal current (Ithe)	Indicator
WL[]	AC-15: 2 A/250 V DC-12: 2 A/48 V	10 A	—
WL01[]	AC-14: 0.1 A/125V DC-12: 0.1 A/48 V	0.5 A	—
WL[]-LE	AC-15: 2 A/250 V	10 A	Neon lamp
WL01[]-LE	AC-14: 0.1 A/125 V	0.5 A	Neon lamp
WL[]-LD	AC-15: 2 A/115 V DC-12: 2 A/48 V	10 A	LED
WL01[]-LD	AC-14: 0.1 A/115 V DC-12: 0.1 A/48 V	0.5 A	LED

Application category	AC-15
Rated operating current (Ie)	2A
Rated operating voltage (Ue)	250V

Item	Max. rated voltage (V)	Leakage current (mA)
WL-LE	Neon lamp	125 AC	Approx. 0.6
250 AC	Approx. 1.9
WL-LD	LED	115 AC/DC	Approx. 0.5
10 to 24 AC/DC	Approx. 0.4

Degree of protection	IP67
Durability *1	Mechanical	15,000,000 operations min. *2
Electrical	750,000 operations min. *3
Operating speed	1 mm/s to 1 m/s (in case of WLCA2)
Operating frequency	Mechanical	120 operations/minute min.
Electrical	30 operations/minute min.
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value for the built-in switch when tested alone) *6
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Between each terminal and non- current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Rated insulation voltage (Ui)	250 V (EN60947-5-1)
Pollution degree (operating environment)	3 (EN60947-5-1)
Short-circuit protective device (SCPD)	10 A, fuse type gG or gI (IEC60269)
Conditional short-circuit current	100 A (EN60947-5-1)
Conventional enclosed thermal current (Ithe)	10 A, 0.5 A (EN60947-5-1)
Protection against electric shock	Class I
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude *4
Shock resistance	Destruction	1,000 m/s² max.
Malfunction	300 m/s² max. *4
Ambient operating temperature	-10°C to +80°C (with no icing) *5
Ambient operating humidity	35% to 95% RH
Weight	Approx. 275 g (in case of WLCA2)

Item	Rated voltage (V)	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
WL[]-LES	125 VAC 250 VAC	10 10	3 2	1.5 1	10 10	5 5	2.5 1.5
WL[]-LDS	115 VAC	10	3	1.5	10	5	2.5
12 VDC 24 VDC 48 VDC	10 6 3	6 4 2	3 3 1.5	10 6 3	6 4 2

Inrush current	NC	30 A max.
NO	20 A max.
Operating temperature	-10°C to +80°C (with no icing)
Operating humidity	35% to 95%RH max.

Rated voltage	Carry current	Current (A)	Volt-amperes (VA)
Make	Break	Make	Break
120 VAC 240 VAC	10 A	60 30	6 3	7,200	720

Rated voltage	Carry current
115 VAC	10 A
115 VDC	0.8 A

Model	Application category and ratings
WL[]	AC-15: 2 A/250 V DC-12: 2 A/48 V
WL01[]	AC-14: 0.1 A/125V DC-12: 0.1 A/48 V
WL[]-LE	AC-15: 2 A/250 V
WL01[]-LE	AC-14: 0.1 A/125 V
WL[]-LD	AC-15: 2 A/115 V DC-12: 2 A/48 V
WL01[]-LD	AC-14: 0.1 A/115 V DC-12: 0.1 A/48 V

Application category	AC-15
Rated operating current (Ie)	2 A
Rated operating voltage (Ue)	250 V

Degree of protection	IP67
Durability *1	Mechanical	15,000,000 operations min. *2
Electrical	750,000 operations min. *3
Operating speed	1 mm/s to 1 m/s (in case of WLCA2)
Operating frequency	Mechanical	120 operations/minute min.
Electrical	30 operations/minute min.
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value for the built-in switch when tested alone)
Dielectric strength	Between terminals of the same polarity	1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal part and ground	2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Between each terminal and non- current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min/Uimp 2.5 kV
Rated insulation voltage (Ui)	250 V (EN60947-5-1)
Pollution degree (operating environment)	3 (EN60947-5-1)
Short-circuit protective device (SCPD)	10 A, fuse type gG or gI (IEC60269)
Conditional short-circuit current	100 A (EN60947-5-1)
Conventional enclosed thermal current (Ithe)	10 A, 0.5 A (EN60947-5-1)
Protection against electric shock	Class I
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s² max.
Malfunction	300 m/s² max.
Ambient operating temperature	-10°C to +80°C (with no icing)
Ambient operating humidity	35% to 95%RH
Weight	Approx. 275 g (in case of WLCA2)

Item	Rated voltage (V)	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
Basic models, overtravel models	115 AC	10	3	1.5	10	5	2.5
12 DC 24 DC 48 DC 115 DC	10 6 3 0.8	6 4 2 0.2	3 3 1.5 0.2	10 6 3 0.8	6 4 2 0.2

Inrush current	NC	30 A max.
NO	20 A max.

Model	Rated voltage (V)	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
DC	12 DC	3	3	3	3	3	3	3	3
24 DC	3	3	3	3	3	3	3	3
48 DC	3	3	3	3	3	3	3	3
115 DC	0.8	0.8	0.2	0.2	0.8	0.8	0.2	0.2
AC	115 AC	3	3	3	1.5	3	3	3	2.5

Degree of protection	IP67
Durability *	Mechanical	30,000,000 operations min.
Electrical	30,000,000 operations min. (10 mA at 24 VDC, resistive load) 750,000 operations min. (10 A at 115 VAC, resistive load)
Operating speed	1 mm/s to 1 m/s (in case of WLCA2)
Operating frequency	Mechanical	120 operations/minute
Electrical	30 operations/minute
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value for the built-in switch when tested alone)
Dielectric strength (50/60 Hz for 1 min)	Between terminals of the same polarity	1,000 VAC (except connector models)
Between current-carrying metal part and ground	2,200 VAC (1,500 V)
Between each terminal and non-current- carrying metal part	2,200 VAC (1,500 V)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s² max.
Malfunction	300 m/s² max.
Ambient operating temperature	-10°C to +80°C (with no icing)
Ambient operating humidity	35% to 95%RH
Weight	Approx. 275 g (in case of WLCA2)

Actuator	Roller lever R38		Roller lever R50		Roller lever R63
Item	Model	Model	Model
Basic	Standard load	WLCA2	WLCA2-7	WLCA2-8
Microload	WL01CA2	WL01CA2-7	WL01CA2-8
Overtravel	General- purpose	Standard load	WLH2	-	-
Microload	WL01H2	-	-
90° operation	Standard load	WLCA2-2	-	-
Microload	WL01CA2-2	-	-
Standard load	WLCA2-2N	-	-
Microload	WL01CA2-2N	-	-

Actuator	Adjustable roller lever		Adjustable rod lever 25 to 140mm		Adjustable rod lever 350 to 380mm		Rod spring lever
Item	Model	Model	Model	Model
Basic	Standard load	WLCA12	WLCL	-	-
Microload	WL01CA12	WL01CL	-	-
Overtravel	General- purpose	Standard load	WLH12	WLHL	WLHAL4	WLHAL5
Microload	WL01H12	WL01HL	-	-
90° operation	Standard load	WLCA12-2	WLCL-2	-	-
Microload	WL01CA12-2	-	-	-
Standard load	WLCA12-2N	WLCL-2N	-	-
Microload	WL01CA12-2N	WL01CL-2N	-	-

Actuator	Fork lever lock (with WL-5A100 plastic roller lever)		Fork lever lock (with WL-5A102 plastic roller lever)		Fork lever lock (with WL-5A104 plastic roller lever)	Fork lever lock (with WL-5A104 plastic roller lever)
Item	Model	Model	Model	Model
Maintained	Standard load	WLCA32-41	WLCA32-42	WLCA32-43	WLCA32-44
Microload	WL01CA32-41	-	WL01CA32-43	WL01CA32-44

Actuator	Top plunger		Top-roller plunger		Top-ball plunger	Sealed top-roller plunger
Item	Model	Model	Model	Model
Top plunger	Standard load	WLD	WLD2	WLD3	WLD28
Microload	WL01D	WL01D2	WL01D3	WL01D28

Actuator	Horizontal plunger		Horizontal-roller plunger		Horizontal-ball plunger
Item	Model	Model	Model
Side plunger	Standard load	WLSD	WLSD2	WLSD3
Microload	WL01SD	WL01SD2	WL01SD3

Actuator	Coil spring (spring diameter: 6.5)		Coil spring (spring diameter: 4.8)		Coil spring (resin rod diameter: 8)	Steel wire (wire diameter: 1)
Item	Model	Model	Model	Model
Flexible rod	Standard load	WLNJ	WLNJ-30	WLNJ-2	WLNJ-S2
Microload	WL01NJ	WL01NJ-30	WL01NJ-2	WL01NJ-S2

Actuator	Roller lever R38		Roller lever R50		Roller lever R63		Adjustable roller lever
Item	Model	Model	Model	Model
Basic	Neon lamp	WLCA2-LE	WLCA2-7LE	WLCA2-8LE	WLCA12-LE
LED	WLCA2-LD	WLCA2-7LD	WLCA2-8LD	WLCA12-LD
Overtravel	General- purpose	Neon lamp	WLH2-LE	-	-	WLH12-LE
LED	WLH2-LD	-	-	WLH12-LD
90° operation	Neon lamp	WLCA2-2LE	-	-	WLCA12-2LE
LED	WLCA2-2LD	-	-	WLCA12-2LD
Neon lamp	WLCA2-2NLE	-	-	WLCA12-2NLE
LED	WLCA2-2NLD	-	-	WLCA12-2NLD

Actuator	Adjustable rod lever 25 to 140 mm		Adjustable rod lever 350 to 380 mm		Rod spring lever
Item	Model	Model	Model
Basic	Neon lamp	WLCL-LE	-	-
LED	WLCL-LD	-	-
Overtravel	General- purpose	Neon lamp	WLHL-LE	WLHAL4-LE	WLHAL5-LE
LED	WLHL-LD	WLHAL4-LD	WLHAL5-LD
90° operation	Neon lamp	WLCL-2LE	-	-
LED	WLCL-2LD	-	-
Neon lamp	WLCL-2NLE	-	-
LED	WLCL-2NLD	-	-

Actuator	Fork lever lock (with WL-5A100 Plastic Roller Lever)		Fork lever lock (with WL-5A102 Plastic Roller Lever)		Fork lever lock (with WL-5A104 Plastic Roller Lever)
Item	Model	Model	Model
Maintained	Neon lamp	WLCA32-41LE	WLCA32-42LE	WLCA32-43LE
LED	WLCA32-41LD	-	WLCA32-43LD

Actuator	Top plunger		Top-roller plunger		Top-ball plunger	Sealed top-roller plunger
Item	Model	Model	Model	Model
Top plunger	Neon lamp	WLD-LE	WLD2-LE	WLD3-LE	WLD28-LE
LED	WLD-LD	WLD2-LD	WLD3-LD	WLD28-LD

Actuator	Horizontal plunger		Horizontal-roller plunger		Horizontal-ball plunger
Item	Model	Model	Model
Side plunger	Neon lamp	WLSD-LE	WLSD2-LE	WLSD3-LE
LED	WLSD-LD	WLSD2-LD	WLSD3-LD

Actuator	Coil spring (spring diameter: 6.5)		Coil spring (spring diameter: 4.8)		Coil spring (resin rod diameter: 8)	Steel wire (wire diameter: 1)
Item	Model	Model	Model	Model
Flexible rod	Neon lamp	WLNJ-LE	WLNJ-30LE	WLNJ-2LE	WLNJ-S2LE
LED	WLNJ-LD	WLNJ-30LD	WLNJ-2LD	WLNJ-S2LD

Actuator	Item	Basic	Overtravel
General-purpose
Wiring	Built-in switch specification	Model	Model
Roller lever	2-conductor	DC	NO	connector pins No. 3, 4	Standard	WLCA2-LDK13	WLH2-LDK13
Airtight seal	WLCA2-55LDK13	WLH2-55LDK13
4-conductor	DC			Standard	WLCA2-LDK43	WLH2-LDK43
Airtight seal	WLCA2-55LDK43	WLH2-55LDK43
Top-roller plunger	2-conductor	DC	NO	connector pins No. 3, 4	Standard	WLD2-LDK13	-
Airtight seal	WLD2-55LDK13	-
4-conductor	DC			Standard	WLD2-LDK43	-
Airtight seal	WLD2-55LDK43	-

Actu- ator	Item	Basic	Overtravel
General-purpose
Wiring	Built-in switch specification	Model	Model
Roller lever	2- conductor	DC	NO	connector pins No. 3, 4	Standard	WLCA2-LD-M1J	WLH2-LD-M1J
Airtight seal	WLCA2-55LD-M1J	-
connector pins No. 1, 4	Standard	WLCA2-LD-M1GJ	WLH2-LD-M1GJ
Airtight seal	WLCA2-55LD-M1GJ	-
NC	connector pins No. 3, 2	Standard	-	-
Airtight seal	WLCA2-55LD-M1JB	-
4- conductor	DC			Standard	WLCA2-LD-DGJ03	WLH2-LD-DGJ03
Airtight seal	WLCA2-55LD-DGJ03	-
3- conductor	DC		connector pins No. 2, 3, 4	Standard	WLCA2-LD-DK1EJ03	-
Airtight seal	WLCA2-55LD-DK1EJ03	-
Top- roller plunger	2- conductor	DC	NO	connector pins No. 3, 4	Standard	WLD2-LD-M1J	-
Airtight seal	WLD2-55LD-M1J	-
connector pins No. 1, 4	Standard	WLD2-LD-M1GJ	-
Airtight seal	WLD2-55LD-M1GJ	-
NC	connector pins No. 3, 2	Standard	-	-
Airtight seal	WLD2-55LD-M1JB	-
4- conductor	DC			Standard	WLD2-LD-DGJ03	-
Airtight seal	-	-
3- conductor	DC		connector pins No. 2, 3, 4	Standard	WLD2-LD-DK1EJ03	-
Airtight seal	WLD2-55LD-DK1EJ03	-

Actuator	Roller lever R38
Item	Basic	Overtravel
General-purpose
Model	Model
Airtight seal	No indicator	WLCA2-55	WLH2-55
Indicator	LED	WLCA2-55LD	WLH2-55LD
Neon	WLCA2-55LE	WLH2-55LE
Hermetic seal	Molded terminals	-139	No indicator	WLCA2-139	WLH2-139
Indicator	NC wiring	WLCA2-139LD2	-
NO wiring	WLCA2-139LD3	-
-140	No indicator	WLCA2-140	WLH2-140
Indicator	NC wiring	WLCA2-140LD2	-
NO wiring	WLCA2-140LD3	-
-141	No indicator	WLCA2-141	WLH2-141
Indicator	NC wiring	WLCA2-141LD2	-
NO wiring	WLCA2-141LD3	WLH2-141LD3
Anti-coolant	No indicator	WLCA2-RP60	WLH2-RP60
Indicator	NC wiring	WLCA2-RP60LD2	-
NO wiring	WLCA2-RP60LD3	WLH2-RP60LD3
Heat-resistant	No indicator	WLCA2-TH	WLH2-TH
Low-temperature	WLCA2-TC	WLH2-TC
Corrosion-proof	WLCA2-RP	WLH2-RP
Weather-proof	WLCA2-P1	WLH2-P1

Actuator	Roller lever R38
Item	Overtravel
90° (-2 model)	90° (-2N model)
Model	Model
Airtight seal	No indicator	WLCA2-255	WLCA2-2N55
Indicator	LED	WLCA2-255LD	WLCA2-2N55LD
Neon	WLCA2-255LE	WLCA2-2N55LE
Hermetic seal	Molded terminals	-139	No indicator	WLCA2-2139	WLCA2-2N139
Indicator	NC wiring	WLCA2-2139LD2	-
NO wiring	WLCA2-2139LD3	-
-140	No indicator	-	WLCA2-2N140
Indicator	NC wiring	-	-
NO wiring	-	-
-141	No indicator	-	-
Indicator	NC wiring	-	-
NO wiring	-	-
Anti-coolant	No indicator	WLCA2-2RP60	-
Indicator	NC wiring	WLCA2-2RP60LD2	-
NO wiring	WLCA2-2RP60LD3	-
Heat-resistant	No indicator	WLCA2-2TH	WLCA2-2NTH
Low-temperature	WLCA2-2TC	WLCA2-2NTC
Corrosion-proof	-	-

Actuator	Adjustable roller lever
Item	Basic	Overtravel
General-purpose
Model	Model
Airtight seal	No indicator	WLCA12-55	-
Indicator	LED	WLCA12-55LD	-
Neon	WLCA12-55LE	-
Hermetic seal	Molded terminals	-139	No indicator	WLCA12-139	-
-140	WLCA12-140	-
-141	WLCA12-141	-
Anti-coolant	WLCA12-RP60	-
Heat-resistant	No indicator	WLCA12-TH	WLH12-TH
Low-temperature	WLCA12-TC	WLH12-TC
Corrosion-proof	WLCA12-RP	WLH12-RP
Weather-proof	WLCA12-P1	WLH12-P1

Actuator	Adjustable roller lever
Item	Overtravel
90° (-2 model)	90° (-2N model)
Model	Model
Heat-resistant	No indicator	WLCA12-2TH	WLCA12-2NTH
Low-temperature	WLCA12-2TC	WLCA12-2NTC

Actuator	Adjustable rod lever 25 to 140 mm
Item	Basic	Overtravel
General-purpose
Model	Model
Airtight seal	No indicator	WLCL-55	-
Indicator	LED	WLCL-55LD	-
Neon	-	-
Hermetic seal	Molded terminals	-139	No indicator	WLCL-139	-
-140	WLCL-140	-
-141	-	-
Anti-coolant	WLCL-RP60	-
Heat-resistant	No indicator	WLCL-TH	WLHL-TH
Low-temperature	WLCL-TC	WLHL-TC
Corrosion-proof	WLCL-RP	WLHL-RP
Weather-proof	WLCL-P1	WLHL-P1

Actuator	Adjustable rod lever 25 to 140 mm
Item	Overtravel
90° (-2 model)	90° (-2N model)
Model	Model
Heat-resistant	No indicator	WLCL-2TH	WLCL-2NTH
Low-temperature	WLCL-2TC	WLCL-2NTC
Corrosion-proof	WLCL-2RP	-

Actuator	Top-roller plunger		Sealed top-roller plunger		Horizontal plunger
Item	Model	Model	Model
Airtight seal	No indicator	WLD2-55	WLD28-55	WLSD-55
Indicator	LED	WLD2-55LD	WLD28-55LD	WLSD-55LD
Neon	WLD2-55LE	WLD28-55LE	-
Hermetic seal	Molded terminals	-139	No indicator	WLD2-139	WLD28-139	WLSD-139
-140	-	WLD28-140	-
Anti-coolant	WLD2-RP60	WLD28-RP60	WLSD-RP60
Heat-resistant	No indicator	WLD2-TH	WLD28-TH	WLSD-TH
Low-temperature	WLD2-TC	-	WLSD-TC
Corrosion-proof	WLD2-RP	WLD28-RP	WLSD-RP

Actuator	Horizontal-roller plunger		Coil spring (spring diameter: 6.5)		Coil spring (resin rod diameter: 8)
Item	Model	Model	Model
Airtight seal	No indicator	WLSD2-55	WLNJ-55	WLNJ-255
Indicator	LED	WLSD2-55LD	WLNJ-55LD	WLNJ-255LD
Neon	-	-	-
Hermetic seal	Molded terminals	-139	No indicator	WLSD2-139	WLNJ-139	-
-140	WLSD2-140	WLNJ-140	WLNJ-2140
Anti-coolant	WLSD2-RP60	WLNJ-RP60	WLNJ-2RP60
Heat-resistant	No indicator	WLSD2-TH	WLNJ-TH	-
Low-temperature	WLSD2-TC	WLNJ-TC	WLNJ-2TC
Corrosion-proof	WLSD2-RP	WLNJ-RP	WLNJ-2RP

Actuator	Roller lever	Sealed top-roller plunger
Item	Double nut lever		Allen-head lever
Model	Model	Model
Neon lamp operation indicator	Basic	WLCA2-LEAS	WLCA2-LES	WLD28-LES
Overtravel	General-purpose	WLH2-LEAS	WLH2-LES	-
LED operation indicator	Basic	WLCA2-LDAS	WLCA2-LDS	WLD28-LDS
Overtravel	General-purpose	WLH2-LDAS	WLH2-LDS	-

Item	*LED operation indicator 1**
Basic	Overtravel
General-purpose
Actuator	Model	Model
	Roller lever, screw terminal	WLMCA2-LD	WLMH2-LD
	Roller lever, direct-wired connector	2-conductor	AC	WLMCA2-LDK13A	WLMH2-LDK13A
DC	WLMCA2-LDK13	WLMH2-LDK13
4-conductor	AC	WLMCA2-LDK43A	WLMH2-LDK43A
DC	WLMCA2-LDK43	WLMH2-LDK43
	Roller lever, pre-wired connector *2	2-conductor	DC	WLMCA2-LD-M1J	WLMH2-LD-M1J
4-conductor	DC	WLMCA2-LD-DGJ03	WLMH2-LD-DGJ03

Voltage specification	Number of conductors	Cable length	Model
AC	2	2 m	XS2F-A421-DB0-F
5 m	XS2F-A421-GB0-F
4	2 m	XS2F-A421-D90-F
5 m	XS2F-A421-G90-F
DC	2	2 m	XS2F-D421-DD0
5 m	XS2F-D421-GD0
4	2 m	XS2F-D421-D80-F
5 m	XS2F-D421-G80-F

Actuator type	Set model	Head model (with Actuator)
Roller lever		WLCA2	WL-1H1100
WLH2	WL-2H1100-1 *
WLCA2-2	WL-3H1100
WLCA2-2N	WL-6H1100
Adjustable roller lever		WLCA12	WL-1H2100
WLH12	WL-2H2100-1 *
WLCA12-2	WL-3H2100
WLCA12-2N	WL-6H2100
Adjustable rod lever		WLCL	WL-4H4100
WLCL-2	WL-3H4100
WLCL-2N	WL-6H4100
Top plunger		WLD	WL-7H100
WLD2	WL-7H200
WLD3	WL-7H300
WLD28	WL-7H400
Horizontal plunger		WLSD	WL-8H100
WLSD2	WL-8H200
WLSD3	WL-8H300
Fork lever lock		WLCA32-41	WL-5H5100
WLCA32-42	WL-5H5102
WLCA32-43	WL-5H5104
WLCA32-44	WL-5H5104
Coil spring		WLNJ	WL-9H100
WLNJ-30	WL-9H200
WLNJ-2	WL-9H300
WLNJ-S2	WL-9H400

Actuator type	Switches without levers
Model
Switches for roller levers		Basic R38	WLRCA2
General-purpose overtravel, 80°	WLRH2
Overtravel, 90° operation	WLRCA2-2
Overtravel, 90° operation	WLRCA2-2N
Switches for adjustable roller levers		Basic	WLRCA2
General-purpose overtravel, 80°	WLRH2
Overtravel, 90° operation	WLRCA2-2
Overtravel, 90° operation	WLRCA2-2N
Switches for adjustable rod lever		Basic, 25 to 140 mm	WLRCL
Overtravel, 90° operation, 25 to 140 mm	WLRCA2-2
Overtravel, 90° operation, 25 to 140 mm	WLRCA2-2N
Switches for top plungers		-	-
Switches for horizontal plungers		-	-
Switches for fork lever locks		Maintained, WL-5A100 Maintained, WL-5A102 Maintained, WL-5A104	WLRCA32
Switches for coil springs		-	-

Return to OMRON

Cover	Cover only with indicator
Item	Model
Neon lamp	WL-LE
LED	WL-LD

Head (with actuator)		Lever		Cover with indicator	Switches without Levers
Complete Heads with allen-head levers	Double Nut Lever	Allen- head Lever	Double Nut Lever	Cover with Indicator	Switches without levers
Model	Model	Model	Model	Model	Model
WL-1H1100S (for WLCA2-[])	WL-2H1100S (for WLH2-[])	WL-1A103S Roller lever	WL-1A105S Roller Lever	Neon lamp WL-LES	WLRCA2-LDS
				Neon lamp WL-LES	WLRH2-LES WLRH2-LDS
				LED (LED) WL-LDS

Group No.	Set model number	Head model number (with Actuator)
1	WLCA2	WL-1H1100
	WLCA2-7	WL-1H1200
	WLCA2-8	WL-1H1300
	WLCA12	WL-1H2100
2	WLCL	WL-4H4100 *
3	WLH2	WL-2H1100-1
	WLH12	WL-2H2100-1
	WLHL	WL-2H4100
	WLHAL4	WL-2H4106
	WLHAL5	WL-2H4107
4	WLCA2-2N	WL-6H1100
	WLCA12-2N	WL-6H2100
	WLCL-2N	WL-6H4100
5	WLCA2-2	WL-3H1100
	WLCA12-2	WL-3H2100
	WLCL-2	WL-3H4100
6	WLCA32-41	WL-5H5100
	WLCA32-42	WL-5H5102
	WLCA32-43	WL-5H5104
	WLCA32-44	WL-5H5104
7	WLD	WL-7H100
	WLD2	WL-7H200
	WLD3	WL-7H300
8	WLD28	WL-7H400 *
9	WLSD	WL-8H100
	WLSD2	WL-8H200
	WLSD3	WL-8H300
10	WLNJ	WL-9H100
10	WLNJ-30	WL-9H200
11	WLNJ-2	WL-9H300 *
12	WLNJ-S2	WL-9H400 *

OMRON WL, WLMSwitches/ Limit Switches/General-purpose Vertical

OMRON WL, WLM Dimensions

Standard Models

Many Variations in Standard Limit SwitchesA Wide Range of Models

Environment-resistant Models

Select from Six Types of Environment Resistance

Spatter-prevention Models

Excellent Performance on Arc Welding Lines or Sites with Spattering Cutting PowderIdeal for Welding Sites

Long-life Models

Mechanical Endurance of 30 Million OperationsLong-life Models for High-frequency Applications

Features Common to All Models

DPDB Operation

Degree of Protection; IP67

Approved Standards to Aid Export Machines

Operation Indicators for Easier Daily Inspections*

Models with Connectors to Reduce Wiring

Purchase the OMRON General-purpose Vertical Please fill in the following

OMRON WL, WLM specification

Approved Standards

General-purpose/Weather-proof Switches

Ratings

Standard-load Switches

Microload Switches (Refer to these ratings before using the product.)

Approved Standard Ratings

UL/CSA

Standard-load Switches: A600, NEMA

Microload Switches

TÜV (EN60947-5-1) (Only models with ground terminals are approved.)

Indicator-equipped Switches

Characteristics

Spatter-prevention Switches

Ratings

Screw terminals

Approved Standard Ratings

UL/CSA

LE Switches (Neon lamp): A300

LD Switches (LED)

CCC (GB14048.5)

Characteristics

Long-life Switches

Ratings

General Ratings (Refer to these ratings before using the product.)

Screw Terminal Switches

Direct-wired Connector and Pre-wired Connector Switches

Characteristics

OMRON WL, WLM lineup

General-purpose Switches

Standard Switches

Lever

Plunger

Flexible Rod

Indicator-equipped Switches

Lever

Plunger

Flexible Rod

Sensor I/O Connector Switches

Direct-wired Connectors

Pre-wired Connectors

Environment-resistant Switches

Spatter-prevention Switches

Long-life Switches

Connecting Cables

Individual Parts

Heads

Switches without levers

Covers with Operation Indicators

Spatter-prevention Products

WL Head Replacement

OMRON WL, WLM download

English

Global Edition

OMRON WL, WLM dimension

General-purpose Models

Standard Models

Basic

Rotating Lever

Roller lever R38WLCA2WL01CA2

Roller lever R50WLCA2-7WL01CA2-7

Roller lever R63WLCA2-8WL01CA2-8

Adjustable Roller LeverWLCA12WL01CA12

Many Variations in Standard Limit Switches
A Wide Range of Models

Excellent Performance on Arc Welding Lines or Sites with Spattering Cutting Powder
Ideal for Welding Sites

Mechanical Endurance of 30 Million Operations
Long-life Models for High-frequency Applications

Roller lever R38
WLCA2
WL01CA2

Roller lever R50
WLCA2-7
WL01CA2-7

Roller lever R63
WLCA2-8
WL01CA2-8

Adjustable Roller Lever
WLCA12
WL01CA12

Adjustable Rod Lever (25 to 140 mm)
WLCL
WL01CL

Fork Lever Lock
WLCA32-41 to 44
WL01CA32-41 to 44

Top Plunger
WLD
WL01D

Horizontal Plunger
WLSD
WL01SD

Top-roller Plunger
WLD2
WL01D2

Horizontal-roller Plunger
WLSD2
WL01SD2

Top-ball Plunger
WLD3
WL01D3

Horizontal-ball Plunger
WLSD3
WL01SD3

Sealed Top-roller Plunger
WLD28
WL01D28

Coil Spring
WLNJ
WL01NJ

Coil Spring (Multi-wire)
WLNJ-30
WL01NJ-30

Coil Spring (Resin Rod)
WLNJ-2
WL01NJ-2

Steel Wire
WLNJ-S2
WL01NJ-S2

Roller Lever R38
WLH2
WL01H2

Adjustable Rod Lever
WLHL
WL01HL

Adjustable Roller Lever
WLH12
WL01H12

Adjustable Rod Lever
WLHAL4
WL01HAL4

Rod Spring Lever
WLHAL5
WL01HAL5

Roller Lever
WLCA2-2N
WL01CA2-2N

Roller Lever
WLCA2-2
WL01CA2-2

Adjustable Roller Lever
WLCA12-2N
WL01CA12-2N

Adjustable Roller Lever
WLCA12-2
WL01CA12-2

Adjustable Rod Lever
WLCL-2N
WL01CL-2N

Adjustable Rod Lever
WLCL-2
WL01CL-2

Roller Lever
WLCA2-LE/LD
WL01CA2-LE/LD

Roller Lever (Screw Terminals)
WLCA2-[]S/WL01[]-[]S
WLH2-[]S

Roller Lever (Pre-wired connectors)
WLCA2-[]S-M1J/WL01[]-[]S-M1J
WLH2-[]S-M1J*

Sealed Top-roller Plunger (Screw Terminals)
WLD28-[]S

Sealed Top-roller Plunger (Pre-wired connectors)
WLD28-[]S-M1J*

Roller Lever (Screw Terminals)
WLM[]-LD

Roller Lever (Direct-wired Connectors)
WLM[]-LD[]

Roller Lever (Pre-wired Connectors)
WLM[]-LD[]
