Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.
1. Alarms do not occur before equipment is damaged.
2. Protection is necessary because of poor power supply quality
overseas.
3. Preventing excessive temperature increases in heaters is
necessary.
4. Control panels for electrode-based water level control must
be downsized.
5. Measuring and Monitoring Relays that conform to international
safety standards are necessary.
[Input signal*] A voltage, current, temperature (thermocouple or platinum resistance thermometer), or water level
(electrode) can be input.
[Alarm output] You can select a relay or transistor output.
*There are different models for different inputs.
*According to OMRON investigation in November 2015.
The operating frequency of Measuring and Monitoring Relays is low, which means the surfaces of relay contacts can deteriorate and reduces reliability. Particularly for microcomputer board and PLC inputs, a microcurrent of 5 mA or less for switching reliability is required, making transistor outputs superior.
A lower power consumption means that internal heat generation is suppressed, which enables side-by-side mounting.
• The slim body is only 17.5 mm wide to enable control panel downsizing.
• To simplify wiring, Push-In Plus terminal blocks are positioned at the front.
• To simplify changing settings, the setting switches were placed on the front.
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
You can insert wires with pin terminals or ferrules, or you can also insert solid wires or stranded wires.
[Application] Ideal for monitoring for error trends in motors and other equipment
(e.g., equipment with three-phase motors, expensive equipment, and equipment with compressors).
[Features] High reliability for worry-free application.
last update: April 01, 2016
If you have just landed here, this product OMRON K8DT-PM Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the K8DT-PM We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON K8DT-PMPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
SYSMAC-SE2[][][] Automation Software Sysmac Studio/Features
G3F / G3FD Solid State Relays G3[]-VD/Features
E5ER-T Programmable Digital Controller/Features
CJ1W-ETN21 CJ-series Ethernet Unit/Features
CPM1A-SRT21 I/O Link Unit/Features
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | N207-E1-01 [3360KB] | Jul 10, 201720170710 | K8DT-PM Data Sheet |
![]() | N210-E1-01 [5229KB] | Oct 11, 201620161011 | K8DT Brochure |
![]() | Y218-E1-03 [13592KB] | Oct 02, 201720171002 | Innovation in Control Panel Building |
![]() | N222-E1-01 [1649KB] | Jun 01, 201820180601 | Measuring and Monitoring Relays Application Guide |
last update: September 01, 2016
Rated input voltage * | Relay output | Model |
---|---|---|
3-phase 3-wire 200, 220, 230, 240 VAC | Relay: SPDT contact output | K8DT-PM1CN |
Transistor | K8DT-PM1TN | |
3-phase 3-wire 380, 400, 415, 480 VAC | Relay: SPDT contact output | K8DT-PM2CN |
Transistor | K8DT-PM2TN |
Note: The input range is set with a DIP switch.
* The power supply voltage is the same as the rated input voltage.
Appearance | Model |
---|---|
![]() | Y92A-D1A |
last update: September 01, 2016
last update: April 3, 2017
Rated input voltage | K8DT-PM1[]N: Three-phase, three-wire Mode: 200, 220, 230, or 240 VAC K8DT-PM2[]N: Three-phase, three-wire Mode: 380, 400, 415, or 480 VAC | |
---|---|---|
Input load | K8DT-PM1: Approx. 1.7 VA K8DT-PM2: Approx. 2.7 VA | |
Rated insulation voltage | 528 VAC | |
Operating value setting range | Overvoltage -30% to 30% of rated input voltage Undervoltage -30% to 30% of rated input voltage Note: The rated input voltage can be switched by using the DIP switches. | |
Operating value | Operates at 100% of set value. | |
Reset value | 5% of operating value (fixed) | |
Reset method | Automatic reset | |
Operating time setting range | Overvoltage/ Undervoltage | 0.1 to 30 s |
Phase sequence | 0.1 s±0.05 s | |
Phase loss | 0.1 s max. | |
Power ON lock time | 1 s/5 s (switched by using the DIP switch) | |
Indicators | Power (PWR): Green, Output (OUT): Yellow, OVER: Red, UNDR: Red | |
Output form | Relay Output: SPDT contact Transistor Output: 1 | |
Output relay ratings | Rated load 5 A at 250 VAC (Resistive load) 5 A at 30 VDC (Resistive load) 1 A at 250 VAC (Inductive load) 0.2 A at 48 VDC (Inductive load) Minimum load: 5 VDC, 10 mA (reference values) Mechanical life: 10 million operations min. Electrical life: 5 A at 250 VAC or 30 VDC: 50,000 operations 3 A at 250 VAC or 30 VDC: 100,000 operations | |
Transistor output ratings | Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC | |
Ambient operating temperature | -20 to 60°C (with no condensation or icing) | |
Storage temperature | -25 to 65°C (with no condensation or icing) | |
Ambient operating humidity | 25% to 85% RH (with no condensation) | |
Storage humidity | 25% to 85% RH (with no condensation) | |
Altitude | 2,000 m max. | |
Applicable wires | Stranded wires, solid wires, or ferrules | |
Applicable wire size | 0.25 to 1.5 mm2 (AWG24 to AWG16) | |
Wire insertion force | 8 N max. for AWG20 wire | |
Screwdriver insertion force | 15 N max. | |
Wire stripping length | 8 mm | |
Ferrule length | 8 mm | |
Recommended flatblade screwdriver | XW4Z-00B (Omron) SZF 0.4 × 2.5 (Phoenix Contact) 210-719 (Wago) SDI 0.4 × 2.5 × 75 (Weidmuller) | |
Current capacity | 10 A (per pole) | |
Number of insertions | 50 times | |
Case color | N1.5 | |
Case material | PC, UL 94 V-0 | |
Weight | Approx. 100 g | |
Mounting | Mounts to DIN Track, or screw mounting | |
Dimensions | 17.5 × 90 × 90 mm (W×D×H) |
Input frequency | 50/60 Hz | |
---|---|---|
Overload capacity | Continuous 528 V | |
Repeat accuracy | Operating value | ±0.5% full scale (at 25°C and 65% humidity, rated power supply voltage) |
Operating time | ±50 ms (at 25°C and 65% humidity, rated power supply voltage) | |
Applicable standards | Conforming standards | EN 60947-5-1 Installation environment (pollution level 2, Overvoltage category III) |
EMC | EN 60947-5-1 | |
Safety standards | UL 60947-5-1 (Listing), Korean Radio Waves Act (Act 10564), CCC (GB14048.5), LR (Category ENV1.2) | |
Insulation resistance | 20 MΩ min. Between external terminals and case Between input terminals and output terminals | |
Dielectric strength | 2,000 VAC for one minute Between external terminals and case Between input terminals and output terminals | |
Noise immunity | 1,500 V power supply terminal common/normal mode Square-wave noise of 1 μs/100 ns pulse width with 1-ns rise time | |
Impulse withstand voltage | 6 kV (between live terminals and exposed, noncharged metal parts) | |
Vibration resistance | Frequency: 10 to 55 Hz, 0.35-mm single amplitude 10 sweeps of 5 min each in X,Y, and Z directions | |
Shock resistance | 100 m/s2, 3 times each in 6 directions along 3 axes | |
Degree of protection | Terminals: IP20 |
last update: April 3, 2017
last update: April 01, 2016

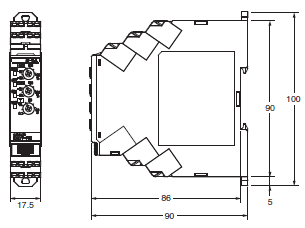

K8DT-PM1
K8DT-PM2
Y92A-D1A

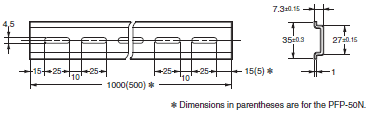

PFP-100N
