OMRON V780 SeriesAutomation Systems/ RFID Systems/UHF Band RFID (920MHz)
OMRON V780 Series Automation Systems
OMRON V780 Series Dimensions
/Images/l_3630-25-265880-198x198.jpglast update: October 1, 2018
[Stable communications even in high-mix production lines] Reliable long distance communications
Stable detection of objects with different heights
The UHF RFID system with a wide communication range can identify the objects in various sizes on a line or the carts which take different routs.
Focus Mode prevents misreads and reads only target tags [PATENT PENDING]
Even when two or more RF tags exist in the communication range, the reader/writer can read the target tag just in front of it. It reads RF tags in the order in which they are conveyed while ignoring RF tags on pallets around the line.
Multi-Reader/Writer function*1 for high-mix production [PATENTED/PATENT PENDING *2]
This function enables up to eight reader/writers to communicate as if they are one reader/ writer. If you want to inspect all stacked pallets at the same time when they pass through a gate, you can install the reader/writers on both the left and right sides of the gate to read an RF tag placed on either the left or right side of each pallet. The host device sends commands only to the master reader/writer to communicate.
*1.Patent status as of June 2018 US:US9727758, Europe:Pending, China:ZL201410004978.5, Japan:JP6098260
*2.Version 3 or later provides this function.
[No RFID expertise required for installation] Automatic setting adjustment according to environment
Automatic transmission power tuning
The transmission power required for communications between the reader/writer and RF tags are measured and automatically set to appropriate values. The set power will be large enough to communicate with RF tags and minimize interference with other reader/writers.
This function is useful when multiple reader/writers are installed in one factory. The transmission power can be easily set via the web browser.
Reception Level Monitor shows reception levels over time for installation/adjustment
This function visualizes reception levels, helping adjust installation positions of reader/writers and RF tags and check communication ranges.
When RF tags on two or more objects are read for adjustment, connect your PC with the reader/writer to check a time series graph of the reception levels via the web browser.
LED indicators help you adjust installation positions
In addition to the web browser, the flashing speed of the LED indicators on the reader/writer provides a visual indication of the reception level. This makes it easier to install and adjust a reader/writer or RF tag at a production site.
[Easy troubleshooting during operation] Visualizing causes from 8,000 logged results
Monitor communication status via the web browser
By connecting a PC, you can set parameters and monitor communication status, noise levels, and communication log via the web browser. This facilitates maintenance and troubleshooting.
RF communications diagnostics log (displayed as a list or graph)
The latest 8,000 communication diagnostic results are listed in a table. When communications are unstable, the probable causes and workarounds are displayed to make troubleshooting easier. Also, a graph shows RSSI levels and noise levels to aid identify the causes of unstable communications. The diagnostic results can be output to CSV files.
Channel monitor
Noise levels in the operating environment are displayed to allow you to check radio interference. You can identify noise sources and take measures to stabilize operation.
Real-time communication status indication
You can immediately check the communication status with the indicators of the reader/writer.
The indicators using high-brightness LED can be easily seen even from a distance.
Applications
Automotive body assembly
Introduce unique identification of bodies to high-mix production lines
The wide communication range and focus mode enable bodyworks to be reliably detected from several meters away.
Parts transportation
Accurately supply parts even in high-mix production
The passing pallets can be detected correctly.
The LED indicators show in real time whether the pallet is detected.
Handling materials in containers
Quickly set up detection of individual containers
Reception Level Monitor that shows reception levels over time helps installation. No special knowledge required.
Hanging conveyance
Introduce unique identification for high-mix production Facilitate maintenance work at heights
High-brightness LED indicators that provide clear status indication can be seen from a distance.
Paper roll management
Introduce unique identification for high-mix production Reduce effects of noise from other devices
The causes are visualized from 8,000 logged results. Channel monitor shows noise levels in the web browser to help identify the causes.
Regulations for UHF wireless (radio regulations) will be complied with
RFID systems as well as mobile phones and TVs must comply with national radio regulations.
The V780 Series currently complies with radio regulations in many countries and will comply with them in other countries. For the list of countries where the V780 is available, please contact your Omron representative for details.
last update: October 1, 2018
Purchase the OMRON UHF Band RFID (920MHz) Please fill in the following
If you have just landed here, this product OMRON V780 Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the V780 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON V780 SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E8FC IoT Flow Sensors/Features
E2A Cylindrical Proximity Sensor/Features
D40A / G9SX-NS Compact Non-Contact Door Switch/Non-Contact Door Switch Controller/Features
G3J-T Soft-start/stop Solid State Contactors/Features
CS1W-CT021 / 041 SYSMAC CS-series High-speed Counter Units/Features
OMRON V780 Series catalog
V780 Series UHF RFID System/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 V780 Series Catalog | Q256-E1-09 [7127KB] | Jan 15, 201920190115 | V780 Series Catalog |
OMRON V780 Series lineup
V780 Series UHF RFID System/Lineuplast update: January 15, 2019
Reader/Writer
| Appearance | Size (mm) | Network | Applicable countries * | Model |
|---|---|---|---|---|
 | 250 × 250 × 70 | Modbus/TCP base (TCP/IP) | Japan | V780-HMD68-ETN-JP |
| Korea | V780-HMD68-ETN-KR | |||
| China | V780-HMD68-ETN-CN | |||
| Taiwan | V780-HMD68-ETN-TW | |||
| India | V780-HMD68-ETN-IN | |||
| Indonesia | V780-HMD68-ETN-ID | |||
| Malaysia | V780-HMD68-ETN-MY | |||
| Singapore and Thailand | V780-HMD68-ETN-SG | |||
| Under RE direct. | V780-HMD68-ETN-EU | |||
| Russia | V780-HMD68-ETN-RU | |||
| United States and Canada | V780-HMD68-ETN-US | |||
| Mexico | V780-HMD68-ETN-MX | |||
| EtherNet/IP | Japan | V780-HMD68-EIP-JP | ||
| Korea | V780-HMD68-EIP-KR | |||
| China | V780-HMD68-EIP-CN | |||
| Taiwan | V780-HMD68-EIP-TW | |||
| India | V780-HMD68-EIP-IN | |||
| Malaysia | V780-HMD68-EIP-MY | |||
| Under RE direct. | V780-HMD68-EIP-EU | |||
| Russia | V780-HMD68-EIP-RU | |||
| United States and Canada | V780-HMD68-EIP-US | |||
| Mexico | V780-HMD68-EIP-MX |
* Contact your Omron representative for details on products for other countries.
RF Tag
| Appearance | Memory capacity | Size (mm) | Model |
|---|---|---|---|
 | 1 KB | 150 × 14 × 6 | V780-A-JIME-Z3BLI-10 * |
* Contains 10 RF Tags per package.
RF Tag Attachment
| Appearance | Material | Size (mm) | Model |
|---|---|---|---|
 | Polycarbonate plastic | 180 × 50 × 30 | V780-A-TA-133-10 * |
* Contains 10 RF Tag Attachments per package.
Note: 1. Use the RF Tag Attachment when mounting on metal surface. Refer to the User's Manual for how to mount.
2. Toppan Forms Co., Ltd. manufactures RF Tags and Attachments. For more information, visit the following website:
http://www.toppan-f.co.jp/english/
Cables
Recommended Ethernet Cables (Connection between Host Device and Reader/Writer)
Use STP (shielded twisted-pair) cable of category 5 or higher.
| Specifications | Cable length (m) * | Model | |
|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45)  | 0.5 | XS5W-T421-BME-K |
| 1 | XS5W-T421-CME-K | ||
| 2 | XS5W-T421-DME-K | ||
| 5 | XS5W-T421-GME-K | ||
| 10 | XS5W-T421-JME-K | ||
* 3- and 15-m cables are also available.
Note: For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
Other cable lengths, robot cables, and extension cables are available. Contact your Omron representative for details.
Recommended Power Cables (Connection between Power Supply and Reader/Writer)
XS5F-D42[]-[]80-F
| Specifications | Cable length (m) | Cable outer diameter (mm) | Straight Connectors | Angled Connectors |
|---|---|---|---|---|
| Model | Model | |||
| Fire-retardant, Robot Cable | 1 | 6 | XS5F-D421-C80-F | XS5F-D422-C80-F |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | ||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | ||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | ||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F |
Note: For details, refer to the XS5 datasheet.
Other cable lengths and extension cables are available. Contact your Omron representative for details.
Recommended Industrial Switching Hubs
| Appearance | Specifications | Model | ||
|---|---|---|---|---|
| Functions | No. of ports | Failure detection | ||
 | Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B |
 | 5 | No | W4S1-05B | |
| 5 | Yes | W4S1-05C | ||
last update: January 15, 2019
OMRON V780 Series dimension
V780 Series UHF RFID System/Dimensionslast update: July 2, 2018
(Unit: mm)
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

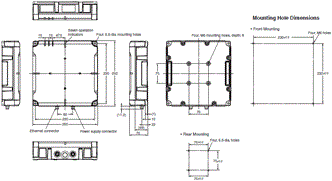

Reader/Writer
V780-HMD68-ETN-[][]/V780-HMD68-EIP-[][]

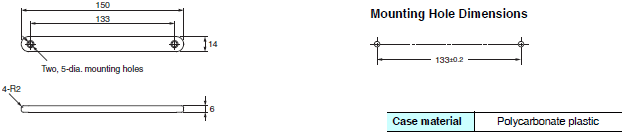

RF Tag
V780-A-JIME-Z3BLI-10 (Toppan Forms Co., Ltd. Model Number: JIME-Z3BLI)
RF Tag Attachment
V780-A-TA-133-10 (Toppan Forms Co., Ltd. Model Number: TA-133)
last update: July 2, 2018
OMRON V780 Series specification
V780 Series UHF RFID System/Specificationslast update: January 15, 2019
Reader/Writer
General Specifications
| Item | V780-HMD68-ETN-[][] | V780-HMD68-EIP-[][] |
|---|---|---|
| Dimensions | 250 × 250 × 70 mm (D × H × W, excluding protruding parts and cables) | |
| Supply voltage | 24 VDC (-15% to +10%) Class2 | |
| Power consumption | 10 W max. | |
| Ambient operating temperature | -10 to 55°C (with no icing) | |
| Ambient operating humidity | 25% to 85% (with no condensation) | |
| Ambient storage temperature | -25 to 70°C (with no icing) | |
| Ambient storage humidity | 25% to 85% (with no condensation) | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between cable terminals and case | |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between cable terminals and case | |
| Vibration resistance | No abnormality after application of 10 to 500 Hz, double amplitude: 1.5 mm, acceleration: 100 m/s2, 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each | |
| Shock resistance | No abnormality after application of 500 m/s2, 3 times each in 6 directions (Total: 18 times) | |
| Degree of protection | IP54 (IEC 60529:2001) | |
| Materials | Plastic case: PBT Metal case: Die-cast aluminum (ADC12) | |
| Weight | Approx. 3 kg | |
| Mounting method | Four M6 bolts | |
| Host communications interface | Ethernet 10BASE-T/100BASE-TX | |
| Host communications protocol | Modbus/TCP base | EtherNet/IP |
| Accessories | Instruction Sheet (1), IP address label (1), Startup Guide (1), Ferrite core (2) *1, and EU DECLARATION OF CONFORMITY (1) *2 | |
| Regulations | See Regulations on below for the regulations. | |
*1. A ferrite core is packaged with Model V780-HMD68-ETN-EU/-IN.
*2. A EU DECLARATION OF CONFORMITY is packaged with Model V780-HMD68-ETN-EU.
Regulations
| Model | Regulations |
|---|---|
| V780-HMD68-ETN-JP V780-HMD68-EIP-JP | Premises Radio Station (920-MHz-band Moving Object Differentiation Wireless Facilities), ARIB STD-T106 |
| V780-HMD68-ETN-KR V780-HMD68-EIP-KR |  |
| V780-HMD68-ETN-CN V780-HMD68-EIP-CN | Ministry of Information Industry No. 205 (2007) |
| V780-HMD68-ETN-TW V780-HMD68-EIP-TW | NCC LP0002 4.8 RFID |
| V780-HMD68-ETN-IN V780-HMD68-EIP-IN | the G.S.R.36 (E) |
| V780-HMD68-ETN-ID | PERDIRJEN POSTEL Nomor: 221/DIRJEN/2007 |
| V780-HMD68-ETN-MY V780-HMD68-EIP-MY | MCMC MTSFB TC T007:2014 |
| V780-HMD68-ETN-SG | Singapore: IMDA TS SRD2 Thailand: NTC TS 1010-2550 (RFID 920-925 MHz) |
| V780-HMD68-ETN-EU V780-HMD68-EIP-EU | 2014/53EU (RE Directive) |
| V780-HMD68-ETN-RU V780-HMD68-EIP-RU | к решению ГКРЧ от 07.05.2007 № 07-20-03-001 |
| V780-HMD68-ETN-US V780-HMD68-EIP-US | FCC 15.247 (United states) ISED RSS-247 (Canada) |
| V780-HMD68-ETN-MX V780-HMD68-EIP-MX | IFT-008 NYCE NOM-208 |
Tag Communications Specifications
V780-HMD68-ETN-JP/V780-HMD68-EIP-JP
| Item | V780-HMD68-ETN-JP/V780-HMD68-EIP-JP |
|---|---|
| Applicable countries | Japan |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 20 kbps (Standard Mode) * |
| Used frequencies (Described at the center frequency of each channel) | 3 channels (916.8/918.0/919.2 MHz) License station |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-KR/V780-HMD68-EIP-KR
| Item | V780-HMD68-ETN-KR/V780-HMD68-EIP-KR |
|---|---|
| Applicable countries | Korea |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 6 channels (917.3/917.9/918.5/919.1/919.7/920.3 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-CN/V780-HMD68-EIP-CN
| Item | V780-HMD68-ETN-CN/V780-HMD68-EIP-CN |
|---|---|
| Applicable countries | China |
| Maximum Radiated power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 20 kbps (Standard Mode) * |
| Used frequencies | 16 channels (920.625 to 924.375 MHz) FHSS |
| Channel interval | 250 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-TW/V780-HMD68-EIP-TW
| Item | V780-HMD68-ETN-TW/V780-HMD68-EIP-TW |
|---|---|
| Applicable countries | Taiwan |
| Maximum Radiated power | 4 W e.i.r.p (indoor use only) |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 10 channels (922.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-IN/V780-HMD68-EIP-IN
| Item | V780-HMD68-ETN-IN/V780-HMD68-EIP-IN |
|---|---|
| Applicable countries | India |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 3 channels (865.7/866.3/866.9 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-ID
| Item | V780-HMD68-ETN-ID |
|---|---|
| Applicable countries | Indonesia |
| Maximum Radiated power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 4 channels (923.25/923.75/924.25/924.75 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-MY/V780-HMD68-EIP-MY
| Item | V780-HMD68-ETN-MY/V780-HMD68-EIP-MY |
|---|---|
| Applicable countries | Malaysia |
| Maximum Radiated power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 8 channels (919.25 to 922.75 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-SG
| Item | V780-HMD68-ETN-SG |
|---|---|
| Applicable countries | Singapore and Thailand |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 8 channels (920.75 to 924.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-EU/V780-HMD68-EIP-EU
| Item | V780-HMD68-ETN-EU/V780-HMD68-EIP-EU |
|---|---|
| Applicable countries | Under RE direct |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 4 channels (865.7/866.3/866.9/867.5 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-RU/V780-HMD68-EIP-RU
| Item | V780-HMD68-ETN-RU/V780-HMD68-EIP-RU |
|---|---|
| Applicable countries | Russia |
| Maximum Radiated Power | 2 W e.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 3 channels (866.3/866.9/867.5 MHz) FHSS |
| Channel interval | 200 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-US/V780-HMD68-EIP-US
| Item | V780-HMD68-ETN-US/V780-HMD68-EIP-US |
|---|---|
| Applicable countries | United States and Canada |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 50 channels (902.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
V780-HMD68-ETN-MX/V780-HMD68-EIP-MX
| Item | V780-HMD68-ETN-MX/V780-HMD68-EIP-MX |
|---|---|
| Applicable countries | Mexico |
| Maximum Radiated Power | 4 W e.i.r.p |
| Output power | 15 to 27 dBm (Switchable in 1-dB increments.) |
| RSSI detection range | Signal level: -35 to -61 dBm Noise level: -35 to -70 dBm (at end of antenna cable) |
| Transmission speed from Reader/ Writer to RF Tag | 40 kbps (fixed) |
| Transmission speed from RF Tag to Reader/Writer | • 80 kbps (High-speed Mode) * • 31.25 kbps (Standard Mode) * |
| Used frequencies | 50 channels (902.75 to 927.25 MHz) FHSS |
| Channel interval | 500 kHz |
| Communications method with RF Tags | Miller-modulated subcarrier |
| Tag communications protocol | ISO/IEC 18000-63: 2013 (EPCglobal Class-1 Generation-2) |
| Polarization characteristic | RHCP |
| Multiaccess communications | Up to 64 RF Tags can be read. |
* The default setting is for Automatic Mode. The Reader/Writer will automatically change to High-speed Mode or Standard
Mode depending on the interference waves.
Recommended Power Supply (24 VDC)
| Item | Condition |
|---|---|
| Supply voltage | 24 VDC -15% to +10% |
| Output current | 500 mA min. |
| Safety standard | SELV (Safety Extra Low Voltage) |
RF Tag (Recommended)
| Model | V780-A-JIME-Z3BLI-10 (made by Toppan Forms Co., Ltd.) |
|---|---|
| Dimensions | 150 × 14 × 6 mm (W × H × D) |
| IC chip, memory | Monza X 8K UII (EPC): 128 bits User memory: 8,192 bits |
| Write life / Data retention | 10,000 writes / 10 years |
| 100,000 writes / 1 year | |
| Operating temperature | -20 to 65°C |
| Operating humidity | 5% to 95% |
| Storage temperature | -30 to 70°C |
| Storage humidity | 5% to 95% |
| Material | Polycarbonate plastic |
| Weight | Tag: Approx. 15 g |
| Degree of protection | IP68 (IEC 60529: 2001) |
RF Tag Attachment (Recommended)
| Model | V780-A-TA-133 (made by Toppan Forms Co., Ltd.) |
|---|---|
| Dimensions | 180 × 50 × 30 mm (W × H × D) |
| Operating temperature | -20 to 65°C |
| Operating humidity | 5% to 95% |
| Storage temperature | -30 to 70°C |
| Storage humidity | 5% to 95% |
| Material | Polycarbonate plastic |
| Weight | Approx. 128 g |
last update: January 15, 2019
- NO. V780 Series
- TYPE:RFID Systems UHF Band RFID (920MHz)
Copyright Statement - DATE:2021-06-08
- Associated products:
S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features XS5, XS6 Industrial Ethernet Cables/Features
