OMRON EE-SPX301 / 401, EE-SPY30 / 40 specification

last update: September 24, 2012

Sensing method		Through-beam type (with slot)	Reflective type
Models		EE-SPX301, EE-SPX401	EE-SPY301, EE-SPY401 EE-SPY302, EE-SPY402
Sensing distance		3.6 mm (slot width)	5 mm (Reflection factor: 90%; white paper 15 × 15 mm) *1
Sensing object		Opaque: 1 × 0.5 mm min.	---
Differential distance		0.05 mm max.	0.2 mm max. (with a sensing distance of 3 mm, horizontally)
Light source		GaAs infrared LED with a peak wavelength of 940 nm
Indicator *2		Light indicator (red)
Supply voltage		5 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption		Average: 15 mA max., Peak: 50 mA max.
Control output		NPN voltage output: Load power supply voltage: 5 to 24 VDC Load current: 80 mA max. OFF current: 0.5 mA max. 80 mA load current with a residual voltage of 1.0 V max. 10 mA load current with a residual voltage of 0.4 V max.
Response frequency *3		500 Hz min.	100 Hz min.
Ambient illumination		3,000 lx max. with incandescent light or sunlight on the surface of the receiver
Ambient temperature range		Operating: - 10 to +55 ° C Storage: - 25 to +65 ° C (with no icing)
Ambient humidity range		Operating: 5% to 85% Storage: 5% to 95% (with no condensation)
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC IP50
Connecting method		Special connector (soldering not possible)
Weight		Approx. 2.6 g
Material	Case	Polycarbonate

*1. Operation may not be possible near the Sensor.
*2. The indicator is a GaP red LED (peak wavelength: 700 nm).

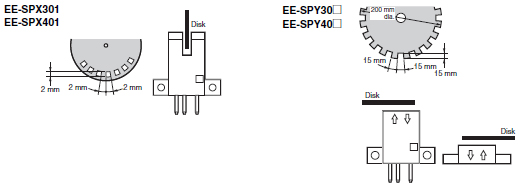

*3. The response frequency was measured by detecting the following rotating disk.

last update: September 24, 2012

OMRON EE-SPX301 / 401, EE-SPY30 / 40 lineup

last update: September 23, 2012

Sensors

Appearance	Sensing method	Sensing distance	Output type	Output configuration	Model
	Through-beam type (with slot)	3.6 mm (slot width) (Infrared light)	NPN output	Dark-ON	EE-SPX301
				Light-ON	EE-SPX401
Horizontal type	Reflective type	5 mm (Infrared light)		Dark-ON	EE-SPY301
				Light-ON	EE-SPY401
Vertical type	Reflective type	5 mm (Infrared light)		Dark-ON	EE-SPY302
				Light-ON	EE-SPY40

Accessories (Order Separately)

Type		Cable length	Model	Remarks
Connector			EE-1002
Connector	Connector with Cable	1 m	EE-1003
NPN/PNP Conversion Connector		0.46 m ( total length)	EE-2001
Connector Hold-down Clip			EE-1003A	For EE-1003 only.

* Refer to Accessories for details.

last update: September 23, 2012

OMRON EE-SPX301 / 401, EE-SPY30 / 40 dimension

last update: October 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

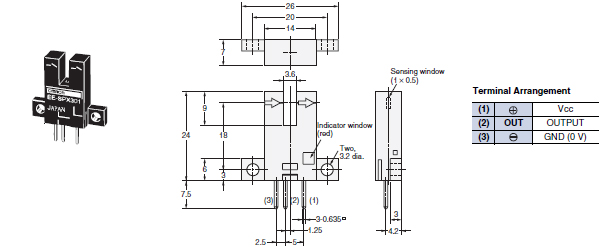

EE-SPX301, EE-SPX401

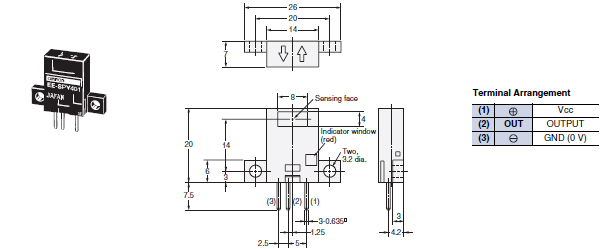

EE-SPY301, EE-SPY401

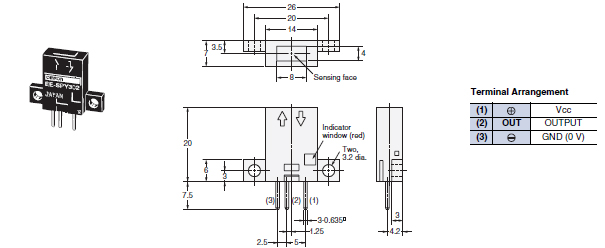

EE-SPY302, EE-SPY402

last update: October 12, 2012
