OMRON E3C-VS / VM specification

last update: September 24, 2012

Sensor Head

Sensing method		Reflective model (for mark detection)
Model		E3C-VS1G	E3C-VS3R	E3C-VM35R	E3C-VS7R
Sensing distance		10±2 mm	30±5 mm	35±5 mm	7±10 mm
Minimum detectable object (black mark on white)		0.7 mm at central sensing distance	2 mm at central sensing distance	0.2 mm at central sensing distance	0.6 mm at central sensing distance
Light source (wavelength)		Green LED (565 nm)	Red LED (680 nm)	Red LED (660 nm)
Ambient illumination		Incandescent lamp: 1,000 lx max. (on light-receiving side) Sunlight: 3,000 lx max. (on light-receiving side)
Ambient temperature range		Operating: - 10 to 70 ° C (with no icing or condensation) Storage: - 25 to 70 ° C (with no icing or condensation)		Operating/storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		500 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 3 times each in X, Y, and Z directions
Degree of protection		IEC IP64 (indoors only)		IEC IP50 (indoors only)
Connection method		Pre-wired cable (standard length: 2 m)
Weight (packed state)		Approx. 50 g		Approx. 60 g
Material	Case	Polycarbonate		Heat-resistant ABS
	Lens	Polycarbonate		Glass
	Mounting Bracket	---		Steel
Accessories		Instruction manual		Mounting Bracket, Slotted/Phillips screws M3 × 16, Spring washer, Flat washer, M3 nuts	Mounting Bracket, Slotted/Phillips screws M3 × 16, Spring washer, Flat washer, M3 nuts, Instruction manual

last update: September 24, 2012

OMRON E3C-VS / VM dimension

last update: November 12, 2012

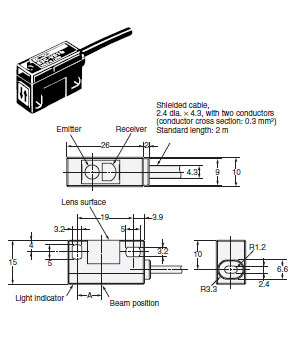

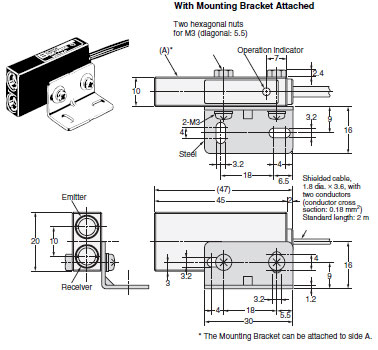

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Sensor Heads

E3C-VS1G
E3C-VS3R

E3C-VM35R
E3C-VS7R

last update: November 12, 2012

OMRON E3C-VS / VM catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E3C-VS/VM Data Sheet	- [311KB]	Jun 26, 201420140626	E3C-VS/VM Data Sheet

OMRON E3C-VS / VM lineup

last update: September 24, 2012

Sensors

Sensor Heads

Sensing method	Appearance	Connection method	Sensing distance	Model
Reflective model (for mark detection)		Pre-wired (2 m)	10±2 mm (Green light)	E3C-VS1G 2M
			30±5 mm (Red light)	E3C-VS3R 2M
			35±5 mm (Red light)	E3C-VM35R 2M
			70±10 mm (Red light)	E3C-VS7R 2M

Amplifier Units

Power supply	Application	Appearance	Function	Model
AC	General-purpose models		---	E3C-A
				E3C-C
DC	Slim body			E3C-JC4P 2M
	Compact body		---	E3C-GE4

Accessories (Order Separately)

Mounting Brackets

Appearance	Model	Quantity	Remarks
	E39-L42	2	Can be used with the E3C-VS1G, or E3C-VS3R.

Refer to Mounting Brackets on E39-L/F39-L/E39-S/E39-R for details.
* If a through-beam model is used, order two Mounting Brackets; one for the Emitter and one for the Receiver.

last update: September 24, 2012
