OMRON D5B specification

last update: September 24, 2012

Ratings

Electrical ratings	1 mA at 5 VDC to 30 mA at 30 VDC (resistive load)

Characteristics

Degree of protection		IP67
Durability *1	Mechanical	10,000,000 operations min.
	Electrical	5,000,000 operations min. (at 30 mA 30 VDC resistive load)
Operating speed		5 to 500 mm/s
Operating frequency	Mechanical	120 operations/min.
	Electrical	60 operations/min.
Insulation resistance		100 MΩ min. at 250 VDC between each terminal and non-current-carrying metal parts
Contact resistance		With 1 m cable:700 mΩ max. (initial value) With 3 m cable:1.9 Ω max. (initial value) With 5 m cable:3.1 Ω max. (initial value)
Dielectric strength (50/60 Hz 1 min)	Between terminals of same polarity	250 VAC (at TTP)
	Between each terminal and non-current- carrying metal parts	1,000 VAC (600 VAC for M5 model)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude *2
Shock resistance	Mechanical	1,000 m/s2 max.
	Malfunction	300 m/s2 max. *3
Ambient operating temperature		-10°C to +70°C (with no icing)
Ambient operating humidity		35% to 95% RH
Actuator strength		14.7 N *4
Weight	Switch	M5: Approx. 14 g, M8: Approx. 20 g, M10: Approx. 21 g
	Cable	Approx. 10 g/m

Note:The above figures are initial values.

Note:Durability values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH.
Contact your OMRON sales representative for more detailed information on other operating environments.

Note:16.7 Hz, 1-mm double amplitude for wobble stick models.

Note:50 m/s² max. for wobble stick models.

Note:Excluding the wobble stick models.

last update: September 24, 2012

OMRON D5B lineup

last update: September 24, 2012

List of Models

Type			M5	M8	M10
Actuator	Cable length (m)		Model		Model
Hemispheric actuator		1	D5B-5011	D5B-8011	D5B-1011
		3	D5B-5013	D5B-8013	D5B-1013
		5	D5B-5015	D5B-8015	D5B-1015
Cone-shaped actuator		1	D5B-5021	D5B-8021	D5B-1021
		3	D5B-5023	D5B-8023	D5B-1023
		5	D5B-5025	D5B-8025	D5B-1025
Wobble stick actuator	Short spring	1	D5B-5511	D5B-8511	D5B-1511
		3	D5B-5513	D5B-8513	D5B-1513
		5	D5B-5515	D5B-8515	D5B-1515
	Long spring	1	---	---	D5B-1531
		3			D5B-1533
		5			D5B-1535

last update: September 24, 2012

OMRON D5B dimension

last update: September 24, 2012

Dimensions

M5 Type

(The square [] in the models represents the cable length. Refer to Lineup.)

D5B-501[]

D5B-502[]

D5B-551[]

M8 Type

D5B-801[]

D5B-802[]

D5B-851[]

M10 Type

D5B-101[]

D5B-151[]

D5B-102[]

D5B-153[]

Note:Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible for mounting.

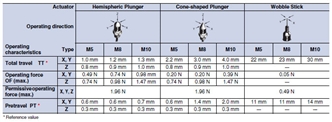

Operating Characteristics

last update: September 24, 2012
