OMRON DRT2-[]D08(-1) / []D16(-1)Automation Systems/ Networks/DeviceNet

OMRON DRT2-[]D08(-1) / []D16(-1) Automation Systems

DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Dimensions
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Lineup
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Specifications
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Catalog
Purchase the OMRON DRT2-[]D08(-1) / []D16(-1) DeviceNet

OMRON DRT2-[]D08(-1) / []D16(-1) Dimensions

/Images/l_146-25-118678-198x198.jpg

last update: December 19, 2013

• Wide variety of data, such as maintenance system data, can be collected without affecting the productivity of the control system.

• Valuable information can be collected and managed through the network, including information on the communications power supply voltage levels, Unit wear and tear, and equipment operating information.

• Expansion via Expansion I/O Units

• With no communications baud rate settings required and detachable terminal blocks, maintenance is easier.

last update: December 19, 2013

Purchase the OMRON DeviceNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON DRT2-[]D08(-1) / []D16(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the DRT2-[]D08(-1) / []D16(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON DRT2-[]D08(-1) / []D16(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NT20, NT31(C)-EV3, NT631C-EV3 Programmable Terminals/Features
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
H5CX Digital Timer/Features
NJ-PA / PD NJ-Series Power Supply Unit/Features
GRT1-DRT DeviceNet Communications Unit/Features

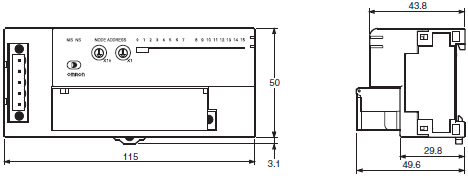

OMRON DRT2-[]D08(-1) / []D16(-1) dimension
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Dimensions
last update: September 24, 2012
DRT2-ID16(-1)
DRT2-OD16(-1)
DRT2-ID08(-1)
DRT2-OD08(-1)
DRT2-MD16(-1)

last update: September 24, 2012

OMRON DRT2-[]D08(-1) / []D16(-1) lineup
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Lineup
last update: September 24, 2012

Specifications I/O connections Rated internal circuit
power supply voltage Rated I/O power
supply voltage Model

Inputs NPN (+ common) 16 points M3
Screw terminals Supplied from the
communications
connector 24 VDC DRT2-ID16

PNP (- common) DRT2-ID16-1

Outputs NPN (- common) DRT2-OD16

PNP (+ common) DRT2-OD16-1

I/O NPN (input: + common,
output: - common) Input: 8 points/
Output: 8 points DRT2-MD16

PNP (input: - common,
output: + common) DRT2-MD16-1

Inputs NPN (+ common) 8 points DRT2-ID08

PNP (- common) DRT2-ID08-1

Outputs NPN (- common) 8 points DRT2-OD08

PNP (+ common) DRT2-OD08-1

Expansion Units

One Expansion Unit can be added to each DRT2-ID16(-1)/-OD16(-1) or DRT2-ROS16 I/O Slave.
The following Expansion Units are available to enable flexible expansion with combinations for the required number of points.

Model Number of I/O points

XWT-ID08 8-point inputs (NPN)

XWT-ID08-1 8-point inputs (PNP)

XWT-OD08 8-point outputs (NPN)

XWT-OD08-1 8-point outputs (PNP)

XWT-ID16 16-point inputs (NPN)

XWT-ID16-1 16-point inputs (PNP)

XWT-OD16 16-point outputs (NPN)

XWT-OD16-1 16-point outputs (PNP)

last update: September 24, 2012

OMRON DRT2-[]D08(-1) / []D16(-1) specification
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Specifications
last update: May 19, 2017
General Specifications

Communications power supply voltage 11 to 25 VDC
Unit power supply voltage Not required (Supplied from the communications connector.)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Communications power supply current
consumption DRT2-ID08(-1): 40 mA max. (24 VDC), 70 mA max. (11 VDC)
DRT2-OD08: 40 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-OD08-1: 35 mA max. (24 VDC), 55 mA max. (11 VDC)
DRT2-ID16(-1): 40 mA max. (24 VDC), 65 mA max. (11 VDC)
DRT2-OD16(-1): 35 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-MD16(-1): 40 mA max. (24 VDC), 65 mA max. (11 VDC)
Dielectric strength 500 VAC (between isolated circuits)
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min each
in the X, Y, and Z directions
Shock resistance 150m/s², 6 directions, 3 times each
Mounting method DIN 35 mm-track mounting
Screw tightening torque M3 (power, I/O terminal): 0.5 N·m
Ambient operating temperature -10°C to 55°C
Ambient operating humidity 25 to 85% (with no condensation)
Ambient storage temperature -25°C to 65°C
Weight DRT2-ID08(-1)/OD08(-1): 135 g max.
DRT2-MD16(-1): 145 g max.
DRT2-ID16(-1)/OD16(-1): 140 g max.

Input Specifications
8-point Inputs Terminals with Transistors

Model DRT2-ID08 DRT2-ID08-1
Internal I/O common NPN PNP
Number of I/O points 8 inputs
ON voltage 15 VDC min.
(between each input terminal and V) 15 VDC min.
(between each input terminal and G)
OFF voltage 5 VDC max.
(between each input terminal and V) 5 VDC min.
(between each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common

16-point Inputs Terminals with Transistors

Model DRT2-ID16 DRT2-ID16-1
Internal I/O common NPN PNP
Number of I/O points 16 inputs
ON voltage 15 VDC min.
(between each input terminal and V) 15 VDC min.
(between each input terminal and G)
OFF voltage 5 VDC max.
(between each input terminal and V) 5 VDC min.
(between each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 16 per common

8-point Inputs/8-point Outputs Terminals with Transistors

Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Number of I/O points 8 inputs
ON voltage 15 VDC min.
(between each input terminal and V) 15 VDC min.
(between each input terminal and G)
OFF voltage 5 VDC max.
(between each input terminal and V) 5 VDC min.
(between each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common

Output Specifications
8-point Outputs Terminals with Transistors

Model DRT2-OD08 DRT2-OD08-1
Internal I/O common NPN PNP
Number of I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common

16-point Outputs Terminals with Transistors

Model DRT2-OD16 DRT2-OD16-1
Internal I/O common NPN PNP
Number of I/O points 16 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 16 per common

8-point Inputs/8-point Outputs Terminals with Transistors

Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Number of I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 ms max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of points per common 8 per common

last update: May 19, 2017

OMRON DRT2-[]D08(-1) / []D16(-1) catalog
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

DeviceNet Catalog Q102-E1-14
[30569KB] Aug 03, 201820180803 DeviceNet Catalog

NO. DRT2-[]D08(-1) / []D16(-1)

TYPE:Networks DeviceNet Slaves

DATE:2021-06-18

Associated products:
3G8F7-DRM21-E DeviceNet Board (PCI Board)/Features DRT2-[]D16TA(-1) Transistor Remote I/O Terminals with 3-tier Terminal Blocks/Features

Specifications	I/O connections	Rated internal circuit power supply voltage	Rated I/O power supply voltage	Model
Inputs	NPN (+ common)	16 points	M3 Screw terminals	Supplied from the communications connector	24 VDC	DRT2-ID16
PNP (- common)	DRT2-ID16-1
Outputs	NPN (- common)	DRT2-OD16
PNP (+ common)	DRT2-OD16-1
I/O	NPN (input: + common, output: - common)	Input: 8 points/ Output: 8 points	DRT2-MD16
PNP (input: - common, output: + common)	DRT2-MD16-1
Inputs	NPN (+ common)	8 points	DRT2-ID08
PNP (- common)	DRT2-ID08-1
Outputs	NPN (- common)	8 points	DRT2-OD08
PNP (+ common)	DRT2-OD08-1

Model	Number of I/O points
XWT-ID08	8-point inputs (NPN)
XWT-ID08-1	8-point inputs (PNP)
XWT-OD08	8-point outputs (NPN)
XWT-OD08-1	8-point outputs (PNP)
XWT-ID16	16-point inputs (NPN)
XWT-ID16-1	16-point inputs (PNP)
XWT-OD16	16-point outputs (NPN)
XWT-OD16-1	16-point outputs (PNP)

Communications power supply voltage	11 to 25 VDC
Unit power supply voltage	Not required (Supplied from the communications connector.)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Communications power supply current consumption	DRT2-ID08(-1): 40 mA max. (24 VDC), 70 mA max. (11 VDC) DRT2-OD08: 40 mA max. (24 VDC), 60 mA max. (11 VDC) DRT2-OD08-1: 35 mA max. (24 VDC), 55 mA max. (11 VDC) DRT2-ID16(-1): 40 mA max. (24 VDC), 65 mA max. (11 VDC) DRT2-OD16(-1): 35 mA max. (24 VDC), 60 mA max. (11 VDC) DRT2-MD16(-1): 40 mA max. (24 VDC), 65 mA max. (11 VDC)
Dielectric strength	500 VAC (between isolated circuits)
Noise immunity	Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance	10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min each in the X, Y, and Z directions
Shock resistance	150m/s², 6 directions, 3 times each
Mounting method	DIN 35 mm-track mounting
Screw tightening torque	M3 (power, I/O terminal): 0.5 N·m
Ambient operating temperature	-10°C to 55°C
Ambient operating humidity	25 to 85% (with no condensation)
Ambient storage temperature	-25°C to 65°C
Weight	DRT2-ID08(-1)/OD08(-1): 135 g max. DRT2-MD16(-1): 145 g max. DRT2-ID16(-1)/OD16(-1): 140 g max.

Model	DRT2-ID08	DRT2-ID08-1
Internal I/O common	NPN	PNP
Number of I/O points	8 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC min. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	8 per common

Model	DRT2-ID16	DRT2-ID16-1
Internal I/O common	NPN	PNP
Number of I/O points	16 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC min. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	16 per common

Model	DRT2-MD16	DRT2-MD16-1
Internal I/O common	NPN	PNP
Number of I/O points	8 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC min. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	8 per common

Model	DRT2-OD08	DRT2-OD08-1
Internal I/O common	NPN	PNP
Number of I/O points	8 outputs
Rated output current	0.5 A per point, 4 A per common
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 ms max.
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	8 per common

Model	DRT2-OD16	DRT2-OD16-1
Internal I/O common	NPN	PNP
Number of I/O points	16 outputs
Rated output current	0.5 A per point, 4 A per common
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 ms max.
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	16 per common

Model	DRT2-MD16	DRT2-MD16-1
Internal I/O common	NPN	PNP
Number of I/O points	8 outputs
Rated output current	0.5 A per point, 4 A per common
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 ms max.
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of points per common	8 per common
