OMRON ZN-A Dimensions

/Images/l_1828-25-119093-198x198.jpg

last update: August 21, 2013

Unique Twin-fan Construction

A unique ZNA2502 Twin-Fan construction enables both a slimmer body and a greater air volume. Downsizing is possible with a greater level of capacity than previous models.

HEPA Filter with High Filtration

The HEPA filter used with the ZN Series has the capacity to filter 99.99% of 0.3μm particles.

Laminar Airflow Design

The smaller fan section and the unique ventilation construction design provides a more uniform laminar airflow. Uniform air is provided over a wide area.

Airflow Switching Function

The air volume can be set to 5 different levels,from 0.3 to 1.8 m³/min for the ZN-A2502 and 1.0 to 5.0 m³/min for the ZN-A4105. The air volume can be checked with the large indicators in the middle.

Self-diagnosis Function

The LED indicators indicate operation errors (e.g.,stopped fans) and when HEPA filter replacement is required. Located on two corners of the Unit, the LED indicators are visible from many angles.

External I/O

An I/O interface is built in. An AC adapter or 24-VDC input can be selected for the power supply.
An alarm signal is output if the self-diagnosis function indicates HEPA filter replacement or error operation.

Ultra-Easy Maintenance

HEPA filters can be replaced without tools thanks to the use of buckles. Onsite maintenance time is reduced because filters can be replaced in a one-step operation.

last update: August 21, 2013

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON ZN-A Energy Conservation Support / Environment Measure Equipment,Energy Conservation Support / Environment Measure Equipment is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Energy Conservation Support / Environment Measure Equipment at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZN-A We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZN-AEnergy Conservation Support / Environment Measure Equipment tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

J7TKN Thermal Overload Relay/Features
E2J Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor/Features
CJ1W-MD CJ-series Mixed I/O Units/Features
CJ1W-ECT21 CJ-series EtherCAT® Slave Unit/Features
K8AK-TH Temperature Monitoring Relay/Features

OMRON ZN-A catalog
ZN-A Air Clean Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

ZN-A Data Sheet -
[1083KB] May 30, 201320130530 ZN-A Data Sheet

ZN Series Catalog E383-E1-01
[2417KB] Jul 03, 201720170703 ZN Series Catalog

OMRON ZN-A specification
ZN-A Air Clean Units/Specifications
last update: June 17, 2013
Air Clean Units

Model ZN-A2502D ZN-A4105D ZN-A6112 ZN-A6112P
Air outlet dimension 225 × 205 mm 360 × 360 mm 578 × 568 mm
Main filter/
Removal rate HEPA filter/ 99.99% of particles 0.3- μm and larger
Air volume (m³/min) 0.3 to 1.8 m³/min
(typical) 1.0 to 5.0 m³/min
(typical) 4 to 12 m³/min (typical)
Power supply
voltage 24 VDC ± 10%, Ripple (p-p): 10% max.
Current
consumption Airflow level 5:
2.1 A max. (RMS value)
(Peak: 3 A) Airflow level 5:
3.5 A max. (RMS value)
(Peak: 5.5 A) Airflow level 5:
24 VDC: 4.3 A max. (RMS value) (Peak: 8 A)
Airflow levels 5 levels
Settable by button operation
Settable by serial (RS-422 or RS-485 *1)
communications 5 levels
Settable by button operation
Settable by serial (RS-422 or RS-485 *1)
communications
Settable by ON/OFF signal input (3 levels) *2
Running noise Airflow level 3: 53 dB (typical) Airflow level 3: 53 dB (typical)
Fan motor Compact DC brushless
centrifugal blower x 2 DC brushless turbo
fan x 1 DC brushless turbo fan x 1
Indicators Operating status: Green/Red
Air volume: Blue
Filter clogging
detection Yes No Yes
External output Alarm output 1:
Alarm output 1 turns OFF when one of the
following events occurs.
(Normally alarm output 1 is ON.)
(Check indicator to find out which event
occurred.)
Filter is clogged.
Fan error
Cleaning alarm for discharge needle (when ZN-
J-series Ionizer (sold separately) is connected)
Discharge error (when ZN-J-series Ionizer
(sold separately) is connected)
Alarm output 2:
Enabled only when ZN-J-series Ionizer (sold
separately) is connected.
Alarm output 2 turns OFF to indicate that
cleaning is necessary for ZN-J Series
discharge needles.
(Normally alarm output 2 is ON.) Fan operation alarm output
Alarm output OFF in below cases (ON during
normal operation)
Fan not rotating (Including when power is
OFF or on standby)
Trouble
Clogged filter (ZN-A6112P only)
30 VDC, 50 mA max.
Residual voltage: 1 V max. with load current of 10 mA, 2 V max. with load current of 50 mA.
Applicable Ionizer
Unit (Optional) ZN-J25A ZN-J41A None
Ambient
temperature range Operating and storage: 0 to 40 °C (with no icing or condensation)
Ambient humidity
range Operating and storage: 35% to 85% (with no condensation)
Applicable
contamination
degree Pollution degree 2
Material Top: Antistatic plastic, bottom: SECC Top: ABS resin, HEPA filter frame: aluminum
Dimensions (mm) 250 × 250 × 97.5
mm (W × D × H) 410 × 410 × 129.5
mm (W × D × H) 714.4 × 654.4 × 174.3 mm (W × D × H)
(Height from attachment surface: 117.3)
Weight (Packaged) Approx. 2 kg
(Approx. 3.3 kg) Approx. 5.2 kg
(Approx. 8.6 kg) Approx. 12.5 kg (Approx. 17 kg)
Accessories Instruction Sheet, Sealing parts,
Mounting screws,
I/O connector (XW4B-06B1-H1) Instruction Sheet, Sealing parts,
Mounting screws,
I/O connector (XW4B-10B1-H1)

*1. Use the dip switches on the unit surface (connector surface) to switch between RS-422 and RS-485.
*2. Contact input: 5 mA max. ON current. Use input device of 30 V or higher withstand voltage.

Ionizer

Model ZN-J25A ZN-J41A
Applicable Air Clean Units ZN-A2502D ZN-4105D
Power supply voltage 24 VDC ± 10%, Ripple (p-p): 10% max.
Current consumption 300 mA max
Discharge voltage ± 7 kV max
Discharge method Variable DC discharge
Static electricity removal
time (typical) *1 5 s max.
Ion balance (typical) *2 ± 30 V max.
Indicators Power (green), Cleaning notice (orange flashing), Cleaning alarm (orange), High voltage
error (red)
External output High voltage error, cleaning outputs: Output from photo MOS relay (30V DC, 300 mA
max.)
Functions Manual adjustment of ion balance, cleaning required detection, high voltage detection
Ambient temperature range Operating and storage: 0 to 40 °C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 65% (with no condensation)
Materials Unit: ABS, Discharge needles: Tungsten
Dimensions (mm) 248 × 310 × 45 mm (W × D × H) 408 × 470 × 45 mm (W × D × H)
Weight (Packaged) Approx. 0.6 kg (Approx. 1.4 kg) Approx. 1.5 kg (Approx. 2.7 kg)
Accessories Instruction Sheet
Sealing parts
Mounting screws
Connector cable for Air Clean Unit
English warning label

*1. Measurement conditions:
Distance: 300 mm
Air Clean Unit: ZN-A Series with airflow level 5 at center of air outlet
Discharging from ±1000 V to ±100 V with a Charge Plate Monitor (150 × 150 mm, 20 pF)
Temperature: 18 to 28°C, Humidity: 35% to 55%
Performance may not be satisfied if gases such as from solvents are in the measurement area.
*2. Measurement conditions:
Distance: 300 mm
Air Clean Unit: ZN-A Series with airflow level 5 at center of air outlet
Measured for 10 sec by a charge plate monitor (150 × 150mm, 20pF)
Temperature: 18 to 28°C, Humidity: 35% to 55%
Performance may not be satisfied if gases such as from solvents are in the measurement area.

last update: June 17, 2013

OMRON ZN-A dimension
ZN-A Air Clean Units/Dimensions
last update: June 17, 2013

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Air Clean Units

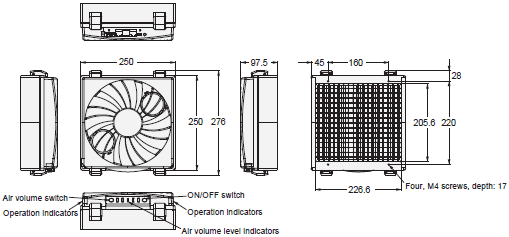

ZN-A2502D

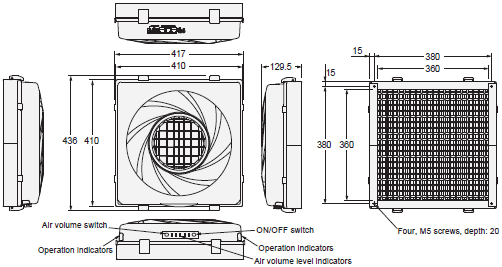

ZN-A4105D

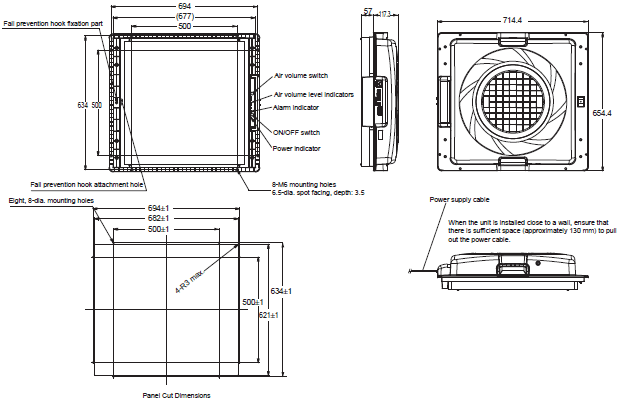

ZN-A6112/A6112P

Ionizers
ZN-J25A

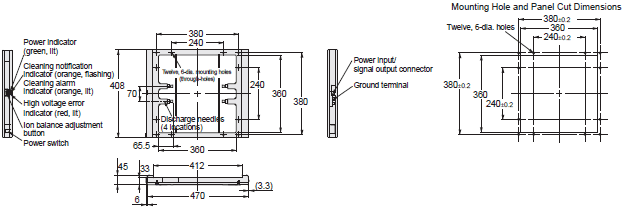

ZN-J41A

last update: June 17, 2013

OMRON ZN-A lineup
ZN-A Air Clean Units/Lineup
last update: June 17, 2013
Air Clean Units
Air Clean Units

Appearance Application Power supply Model
250 × 250 mm 24 VDC ZN-A2502D
410 × 410 mm ZN-A4105D
610 × 610 mm ZN-A6112
ZN-A6112P *

* This type is equipped with a clog detection function.

Accessories

Application Model Qty.
Replacement HEPA Filters For 250 × 250 mm ZN9-AHP25 1
For 410 × 410 mm ZN9-AHP41 1
For 610 × 610 mm ZN9-AHP61 1
Replacement Pre-filters For 250 × 250 mm ZN9-APF25 2
For 410 × 410 mm ZN9-APF41 1
For 610 × 610 mm ZN9-APF61 1

Ionizers Units
Ionizers

Appearance Application Power supply Model
250 × 250 mm Supplied from the Air Clean Unit. ZN-J25A
410 × 410 mm ZN-J41A

Accessories

Model Qty.
Replacement Discharge Needles ZN9-JH04 4 per pack

Single-sided Connector Cables (for DC power supply or I/O connection)

Cable length Model Qty.
2 m ZN9-JC02 1

last update: June 17, 2013
