OMRON ZN-PD-S Energy Conservation Support / Environment Measure Equipment
OMRON ZN-PD-S Dimensions
/Images/l_2067-25-137238-198x198.jpglast update: August 03, 2016
Dust fallout and airborne particles detract from product quality.
Continuously monitor these two factors to minimize their effects.
Airborne particles and dust fallout are not correlated due to differences in their behavior.
Therefore, it is necessary to measure both of them separately and accurately.
Putting the particle type on the wall of the room, and the dust type in the vicinity of product processing equipment, is recommended.
[Particle measurement type]
Highly accurate measurement comparable to particle counters
A high power suction fan and the internal structure designed to rectify airflow ensure a suction rate of 2.83 ℓ/min .*1 Accuracy is close to purpose-specific particle counters thanks to laser optics design technology that Omron has cultivated with high precision displacement sensors .*2
Particles are counted by irradiating the incoming airflow with a laser and detecting the scattering light from the particles.
*1. Suction rate detected by particle measuring sensor.
Suction rate for dust measuring sensors is 6.0 ℓ/min.
*2. Use the Sensor in a class 1,000 or higher environment.
The influence of measurement error will be too large in a class 100 or
lower environment. To manage absolute quantities, use a particle
counter (a measuring instrument), and use the Sensor to monitor trends.
[Dust measurement type]
One unit for measuring dust fallout and identifying dust sources
Funnel-shaped intake and powerful suction fan efficiently capture falling dust. Large diameter dust is trapped by a built-in filter. Moreover, trapped dust can be collected using two-sided tape attached inside of the pull-out trap box. The dust can then be analyzed under microscope to identify the source.
* The larger the size, the more dust it traps.
Some types of dust may penetrate the trap box.
Compact design and reduced maintenance costs
The Sensor is small enough to fit in the palm of your hand, which makes it easy to mount on a wall or other convenient locations. Maintenance costs are also reduced because the product does not use an external pump that would normally require frequent replacement.
Wide range of interfaces allow for extension
Inputs and outputs include trigger input, alarm output x 2, and error output, which can be used for a variety of purposes including dust level setting, alarm output, timed measurement, and so forth.
Triggers can be input to initiate monitoring when necessary and alarms can be output at desired control levels.
Integrated airborne particle sensor and thermo-humidity sensor also available. Achieve your ideal temperature and humidity measurement.
Temperature, humidity and simple dew point can be easily displayed when connected to an Air Particle Sensor*. And, the unit delivers the highest class of sensing performance. You will benefit from wide measurement ranges and highly accurate humidity measuring.* There are limitations on the particle sensors that can be connected to the Air Thermo Sensor. Please refer to the
“Specifications/Performance” information.
The dew point can be handily calculated by using the measured values for temperature and humidity.
Calibration service also available
A Certificate of Calibration can be issued upon request. (It is necessary to ship the product back to OMRON.)
To obtain a Certificate of Calibration at time of purchase, please select a type that includes a Certificate of Calibration.
* When a ZN-PD[][]-S-series particle sensor is received for the calibration service, parts with a limited service life will be replaced and adjusted before the sensor is returned.
However, it may be determined that the sensor is not repairable due to internal contamination, board corrosion, or other reasons.
If inspection shows that the sensor is not repairable, only a certificate for the inspection results will be issued.
(The same fee as for repairs will apply.)
last update: August 03, 2016
Purchase the OMRON Air Particle Sensor Please fill in the following
If you have just landed here, this product OMRON ZN-PD-S Energy Conservation Support / Environment Measure Equipment,Energy Conservation Support / Environment Measure Equipment is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Energy Conservation Support / Environment Measure Equipment at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZN-PD-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZN-PD-SEnergy Conservation Support / Environment Measure Equipment tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CJ1W-NC[]71 CJ-series Position Control Unit with MECHATROLINK-II interface/Features
E2EY Aluminum-detecting Proximity Sensor/Features
NX-SL Safety CPU Unit/Features
CJ1W-V680C11 / V680C12 CJ Series ID Sensor Unit/Features
K8AK-PW Three-phase Voltage Relay/Features
OMRON ZN-PD-S catalog
ZN-PD-S Air Particle Sensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZN-PD-SA/THX21-SA/DPX21-SA Catalog | E411-E1-02 [4342KB] | Feb 01, 201920190201 | ZN-PD-SA/THX21-SA/DPX21-SA Catalog |
OMRON ZN-PD-S dimension
ZN-PD-S Air Particle Sensor/Dimensionslast update: May 09, 2013
Tolerance class IT16 applies to the dimensions unless otherwise specified.

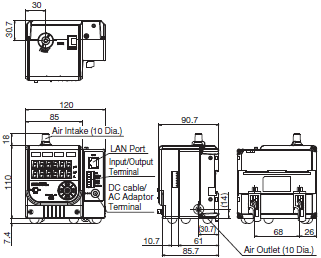

ZN-PD03-SA

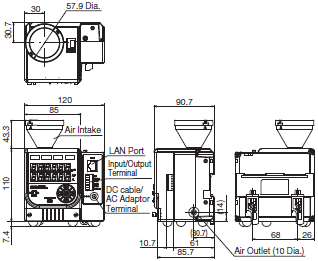

ZN-PD50-SA
ZN-TH11-S
last update: May 09, 2013
OMRON ZN-PD-S specification
ZN-PD-S Air Particle Sensor/Specificationslast update: May 10, 2017
Air Particle Sensor
| Item | Particle measurement type (ZN-PD03-SA) | Dust measurement type (ZN-PD50-SA) |
|---|---|---|
| Measurement method | 90° sideways light-scattering method | |
| Light source | Semiconductor laser | |
| Measured particle diameter | 0.3, 0.5, or 1.0 μm min. | 5 μm (10 μm), 20μm (30 μm), 50 μm min. *1 |
| Counting efficiency | Error of ±30% max. with a standard measuring instrument for 0.3 μm reference particles | Error of ±35% max. with a standard measuring instrument for 0.5 μm reference particles |
| Particle concentration | 0 to 100,000 particles/cf (Recommended application environment: Class 1,000 to 100,000) | 0 to 50,000 particles/cf |
| Sample flow rate | More than 2.8 Liter/min | More than 6.0 Liter/min |
| Status outputs (2 outputs) | Photocoupler output (Status outputs linked with clean levels) | |
| System error status output | ||
| Trigger Input | Photocoupler input | |
| Communications interface | Ethernet (10BASE-T, 100BASE-TX) | |
| Communications protocol | Socket (TCP), original protocol | |
| Indicators | Clean Level: 4 steps display according to clean level (adjustable) 7-segment main display (red): Measurement value (For particle count, the three type displays are selectable; particles/cf, particles/liter and particles/measurement time With ZN-TH11-S; temperature, humidity and dew point) 7-segment sub-display (green): Threshold particle diameter, With ZN-TH11-S; t (temperature), rh (humidity), dp (dew point) | |
| Measure Mode | Real-time mode (by second)/Cycle mode (by set cycle)/Trigger mode (by trigger) | |
| Current consumption | DC 18 V - 25 V AC Adaptor: 100 to 240 V/50 to 60 Hz *2 | |
| Power supply voltage | 1A MAX | |
| Ambient temperature range | Operating: 0 to 35°C | Operating: 0 to 40°C |
| Storage: -15 to 50°C(with no icing or condensation) | ||
| Ambient humidity range | Operating and storage: 35% to 85% (with no icing or condensation) | |
| Insulation resistance | 20 MΩ min. at 500 VDC | |
| Withstand voltage | 1,000 VAC, 50/60 Hz for 1 min | |
| Vibration resistance | 110 to 55 Hz, 0.3 mm double amplitude, 50 min | |
| Materials | ABS | |
| Degree of protection | IP20 | |
| Installation method | DIN track mount/Self standing | |
| Weight (Packed state) | Approx. 1.7 kg | |
| Accessories | Instruction Sheet, DC cable | |
| Air-intake tube (Tubing ID: 10 dia., Length 1 m) ×1 | Air filter ×1 Funnel ×1 | |
*1. ( ) is selectable.
*2. AC adaptor is not bundled.
Air Thermo Sensor
| Item | ZN-TH11-S | |
|---|---|---|
| Supply voltage | 12 to 24 VDC ±10% Ripple (p-p): 10% max. | |
| Current consumption | 40 mA max. | |
| Temperature | Range | -25 to 60°C |
| Measurement accuracy | ±0.3°C (at 25°C) | |
| Resolution | 0.1°C | |
| Humidity | Range | 0% to 99% |
| Measurement accuracy | ±2.5% (at 25°C, 10% to 85%) | |
| Resolution | 0.1% | |
| Indicator | Alarm LED on the body | |
| Alarm threshold | Threshold can be set for temperature, humidity or dew point. | |
| Data update cycle | 10 s | |
・Connection cable (Type ZN9-TL[][]) is needed to connect with ZN-PD-S.
・After ZN-TH11-S is kept in high humidity environment (more than 80%) for a long time, humidity measurement
values might shift (approx +3% with 60 hrs).
In that case, the ZN-TH11-S needs to be kept in room temperature and humidity for more than 1 day.
last update: May 10, 2017
OMRON ZN-PD-S lineup
ZN-PD-S Air Particle Sensor/Lineuplast update: July 2, 2018
Sensor
| Appearance | Item (Measured particle diameter) | Model |
|---|---|---|
 | Air Particle Sensor Particle measurement type 0.3, 0.5, or 1.0 μm min. | ZN-PD03-SA |
| ZN-PD03C-SA *1 | ||
| ZN-PD03F-SA *1 *2 | ||
 | Air Particle Sensor Dust measurement type 5 μm (10 μm), 20 μm (30 μm), 50 μm min. | ZN-PD50-SA |
| ZN-PD50C-SA *1 | ||
 | Air Thermo Sensor For temperature/humidity measurement | ZN-TH11-S |
Please choose this form when you buy with the calibration certificate.
*1 Contents of Certificate of Calibration Set: Calibration Certificate, Inspection Result (ZN-PD03C-SA: 0.3 μm inspection
data, ZN-PD50C-SA: 5 μm inspection data), and Traceability Chart
*2 For the ZN-PD03F-SA, both 0.3 μm and 0.5 μm inspection data will be given in the Inspection Results.
Accessories (Order separately)
| Shape | Item (Applicable Standards) | Rated Voltage | Model |
|---|---|---|---|
 | AC adaptor (PSE) | 100 to 125 VAC | ZN9-ACP02-PSE |
 | AC adaptor (CCC) | 100 to 240 VAC | ZN9-ACP02-CCC |
 | AC adaptor (KC) | 100 to 240 VAC | ZN9-ACP02-KC |
 | AC adaptor (CE) | 100 to 240 VAC | ZN9-ACP02-CE |
 | AC adaptor (UL) | 100 to 125 VAC | ZN9-ACP02-UL |
| Appearance | Item | Model | |
|---|---|---|---|
 | Change filter set for Particle measurement type | ZN9-PF1-S | |
 | Change filter set for Dust measurement type | ZN9-PF2-S | |
 | Change funnel for Dust measurement type | ZN9-PG1-S | |
 | Exhaust tube (4 m) | ZN9-PT4-S | |
| Exhaust tube (8 m) | ZN9-PT8-S | ||
 | Filter for cleaning | ZN9-PC1-S | |
 | DC cable (2 m) (ZN9-ED02-S comes with ZN-PD[][]-SA) | Straight type | ZN9-ED01-S |
| Right angle type | ZN9-ED02-S | ||
| Appearance | Item | Model |
|---|---|---|
 | Connection cable for air particle sensor (With RJ-45 connectors at both ends, length: 0.1 m) | ZN9-TL01-S |
| Connection cable for air particle sensor (With RJ-45 connectors at both ends, length: 2 m) | ZN9-TL20-S | |
 | Connection cable for external device (With a RJ-45 connector at one end, length: 2 m) | ZN9-TC20-S |
PC Software
| Appearance | Item | Model |
|---|---|---|
 | Wave Inspire ES | ZN-SW11-S |
* System requirements OS: Microsoft Windows 7 (32 bit/64 bit)/Microsoft Windows 10 (32 bit/64 bit)
CPU: compatible Intel processors, 1 GHz or higher.
Memory: 1 GB or more (2 GB or more recommended)
The maximum number of connectable sensors is 95.
(When one PC is connected with a leased line network . The sampling period is set to 10 minutes.)
The number of possible sensor connections changes by a sampling period, connected number of PC or PLC, and the
network load situation.
Calibration service
| Subject to calibration | Content | Model |
|---|---|---|
| Air Particle Sensor Particle measurement type | Calibration Certificate, Inspection Result (0.3 μm inspection data), Traceability chart | ZN9-PD03C-S |
| Calibration Certificate, Inspection Results (0.3 μm and 0.5 μm inspection data), and Traceability Chart | ZN9-PD03F-S | |
| Air Particle Sensor Dust measurement type | Calibration Certificate, Inspection Result Traceability chart | ZN9-PD50C-S |
| Air Thermo Sensor | Calibration Certificate, Inspection Result, Traceability chart | ZN9-TH11C-S |
If a Certificate of Calibration is required after you purchase the sensor head, use the above model number to order one.
It is necessary to ship the product back to OMRON in Japan.
* When a ZN-PD[][]-S-series particle sensor is received for the calibration service, parts with a limited service life will be
replaced and adjusted before the sensor is returned.
However, it may be determined that the sensor is not repairable due to internal contamination, board corrosion, or other
reasons. If inspection shows that the sensor is not repairable, only a certificate for the inspection results will be issued.
(The same fee as for repairs will apply.)
last update: July 2, 2018
