E2EY Data Sheet	- [388KB]	Jul 13, 201720170713	E2EY Data Sheet

OMRON E2EY specification

last update: September 24, 2012

Ratings and Specifications

Model		E2EY-X4C1	E2EY-X8C1
Sensing distance		4 mm ±10%	8 mm ±10%
Set distance		0 to 2.8 mm	0 to 5.6 mm
Differential travel		20% max. of sensing distance
Detectable object		Non-ferrous metal (Does not detect ferrous metal.)
Standard sensing object		Aluminum: 18 × 18 × 1 mm	Aluminum: 30 × 30 × 1 mm
Response frequency *		70 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption		20 mA max.
Control output	Load current	NPN open-collector output, 100 mA max. (at 30 VDC)
	Residual voltage	2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators		Detection indicator (red)
Operation mode (with sensing object approaching)		Load ON: NO (Refer to Datasheet.)
Protection circuits		Reverse polarity protection, Load short-circuit protection, Surge suppressor
Ambient temperature range		Operating/Storage: -10 to 55°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of -10 to 55°C
Voltage influence		±2.5% max. of sensing distance at rated voltage in rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67, in-house standards: oil-resistant
Connection method		Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)		Approx. 140 g	Approx. 190 g
Materials	Case	Nickel-plated brass
	Sensing surface	Heat-resistant ABS
	Clamping nuts	Nickel-plated brass
	Toothed washer	Zinc-plated iron
Accessories		---

Note:* The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.

last update: September 24, 2012

OMRON E2EY lineup

last update: September 24, 2012

Sensors

Appearance		Sensing distance	Output configuration/ Operation mode	Model
	M18	4 mm	DC 3-wire, NPN NO	E2EY-X4C1 2M
	M30	8 mm		E2EY-X8C1 2M

last update: September 24, 2012

OMRON E2EY dimension

last update: October 15, 2012

Note:Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

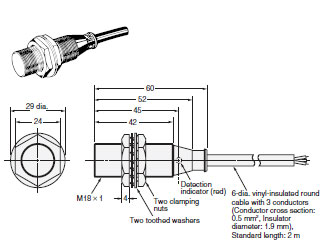

E2EY-X4C1

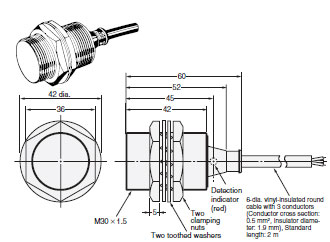

E2EY-X8C1

Mounting Hole Dimensions

last update: October 15, 2012
