OMRON H7GP dimension

last update: October 15, 2012

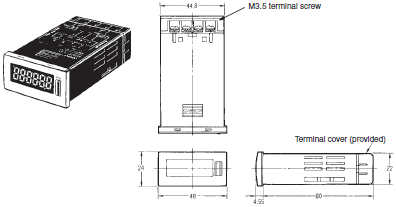

H7GP-C
H7GP-T

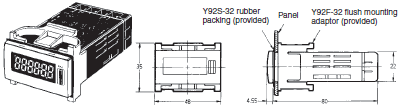

With Flush Mounting Bracket

Panel Cutouts

Panel cutouts are as shown below (according to DIN43700).

Note:Note:

Note:The mounting panel thickness should be 1 to 6 mm.

Note:Water resistance will be lost if Counters are mounted side-by-side.

Note:The terminal screws are M3.5.
(Theeffective thread length is 6 mm.)

Note:When horizontally mounting Counters side-by-side, leave at least 50 mm between any two Counters.

last update: October 15, 2012

OMRON H7GP specification

last update: August 01, 2016

Ratings

Item		6-digit total counter		6-digit time counter
		H7GP-C	H7GP-CD	H7GP-T	H7GP-TD
Rated supply voltage		100 to 240 VAC (50/60 Hz)	12 to 24 VDC *1	100 to 240 VAC (50/60 Hz)	12 to 24 VDC *1
External power supply		50 mA at 12 VDC	---	50 mA at 12 VDC	---
Operating voltage range		85% to 110% of rated supply voltage
Power consumption		100 to 240 VAC: 6.5 VA max. 12 to 24 VDC: 0.6 W max.
Dimensions		48 x 24 x 80 mm (W x H x D)
Mounting method		Flush mounting
External connections		Screw terminals
Degree of protection		Panel surface: IP66 with oil resistance and NEMA Type 4 (indoors).
Display		7-segment, negative transmissive LCD (with red backlight)
Digits		6 digits (8.5-mm-high characters)
Input mode		Up (increment)		Accumulative
Max. counting speeds		30 Hz or 5 kHz (selected via DIP switch)		---
Counting range		0 to 999999		---
Time specification		---		0.1 to 99999.9 h/1 s to 99 h 59 min 59 s (selected via DIP switch)
Timing accuracy		---		±100 ppm (-10°C to 55°C)
Memory backup		EEP-ROM (overwrites: 200,000 times min.) that can store data for 20 years min.
Input	Input signals	Count, reset, and key protection *2		Start, reset, and key protection *2
	Input method	No-voltage input (NPN transistor input) or voltage input (PNP transistor input) (selected via DIP switch)
	Count, reset, start	No-voltage input (NPN transistor input) Short-circuit (ON) impedance: 1 kΩ max. Short-circuit (ON) residual voltage:2 VDC max. Open (OFF) impedance: 100 kΩ min. Voltage input (PNP transistor input) Short-circuit (ON) impedance: 1 kΩ max. ON voltage: 9 to 24 VDC OFF voltage: 5 VDC max. Open (OFF) impedance: 100 kΩ min.
	Key protection	No-voltage input (NPN transistor input) Short-circuit (ON) impedance: 1 kΩ max. Short-circuit (ON) residual voltage:0.5 VDC max. Open (OFF) impedance: 100 kΩ min.
Input response speed	Reset	20 or 1 ms (automatically switched according to counting speed)		20 ms
	Start	---		20 ms
	Key protection	Approx. 1 s		Approx. 1 s
Reset system		External and manual resets

*1. Contains 20% ripple (p-p) max.
*2. Only a non-voltage input (NPN transistor) is possible for the key protection input. The key protection input will be a
       non-voltage input even if the NPN/PNP input mode is set to PNP. Key protection is used to prohibit operating the
       Reset Key. The reset input terminals will still be functional.

Characteristics

Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current- carrying metal parts (AC model) 1,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current- carrying metal parts (DC model) 2,000 VAC, 50/60 Hz for 1 min between power terminals and control input terminals (AC model)
Impulse withstand voltage	3 kV (between power terminals) (1 kV for 12-to-24-VDC models) 4.5 kV (between current-carrying terminal and exposed non-current-carrying metal parts) (1.5 kV for 12-to-24-VDC models)
Noise immunity	±1.5 kV (between AC power terminals), ±480 V (between DC power terminals), ±480 V (between input terminals); square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity	Display: Malfunction: 8 kV, Destruction: 15 kV DIP switch: Malfunction: 4 kV, Destruction: 8 kV
Vibration resistance	Destruction: 10 to 55 Hz with 0.75-mm single amplitude, 2 hours each in three directions Malfunction: 10 to 55 Hz with 0.5-mm single amplitude, 10 minutes each in three directions
Shock resistance	Destruction: 294 m/s2 each in three directions Malfunction: 196 m/s2 each in three directions
Ambient temperature	Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing)
Ambient humidity	Operating: 35% to 85%
EMC	(EMI) EN61326-1 (note 1.) Emission Enclosure: EN55011 Group 1 class A Emission AC Mains: EN55011 Group 1 class A (EMS) EN61326-1 (note 1.) Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2); 8 kV air discharge (level 3) Immunity RF-interference: EN61000-4-3: 10 V/m (Amplitude-modulated, 80 MHz to 1 GHz) (level 3); 10 V/m (Pulse-modulated, 900 MHz ±5 MHz) (level 3) Immunity Conducted Disturbance: EN61000-4-6: 10 V (0.15 to 80 MHz) (according to EN61000-6-2) Immunity Burst: EN61000-4-4: 2 kV power-line (level 3); 2 kV I/O signal-line (level 4) Immunity Surge: EN61000-4-5: 1 kV line to lines (power and output lines) (level 2); 2 kV line to ground (power and output lines) (level 3) Immunity Voltage Dip/Interruption: EN61000-4-11: 0.5 cycle, 100% (rated voltage)
Approved standards	UL508 (note 2), CSA C22.2 No.14 (note 2), conforms to EN61010-1, VDE0106/P100
Case color	Rear section: Gray smoke; Front section: 5Y7/1 (light gray) or N1.5 (black)
Weight	Approx. 75 g

Note: 1. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
          2. UL508 and CAN/CSA-C22.2 No.14 certification conditions
               • Power supply 100 to 240VAC types
                      Ambient temperature 30°C Single mounting
               • Power supply 12 to 24VDC types
                      Ambient temperature 40°C Single mounting

last update: August 01, 2016

OMRON H7GP lineup

last update: September 24, 2012

Total counter

Supply voltage	6-digit total counter
	Light gray	Black
100 to 240 VAC	H7GP-C	H7GP-CB
12 to 24 VDC	H7GP-CD	H7GP-CDB

Time counter

Supply voltage	6-digit time counter
	Light gray	Black
100 to 240 VAC	H7GP-T	H7GP-TB
12 to 24 VDC	H7GP-TD	H7GP-TDB

last update: September 24, 2012

OMRON H7GP catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
H7GP Data Sheet	- [434KB]	Aug 01, 201620160801	H7GP Data Sheet
