OMRON 61F-GP-N[] lineup

last update: December 14, 2018

Type	General-purpose	Long-distance (for 2 km)	Long-distance (for 4 km)
	Model	Model	Model
11-pin	61F-GP-N	61F-GP-NL 2KM	61F-GP-NL 4KM

Type	High-sensitivity	Low-sensitivity	Two-wire
	Model	Model	Model
11-pin	61F-GP-NH	61F-GP-ND	61F-GP-NR

Type	Tropical environments	High-temperature
	Model	Model
11-pin	61F-GP-N-TDL	61F-GP-NT

Type	General-purpose	Long-distance (for 2 km)	Long-distance (for 4 km)
	Model	Model	Model
8-pin	61F-GP-N8	61F-GP-N8L 2KM	61F-GP-N8L 4KM

Type	High-sensitivity	Low-sensitivity	Two-wire
	Model	Model	Model
8-pin	61F-GP-N8H	61F-GP-N8D	61F-GP-N8R
	61F-GP-N8HY

Note: When ordering, specify the desired operating voltage at the end of the model number.

last update: December 14, 2018

OMRON 61F-GP-N[] dimension

last update: October 15, 2014

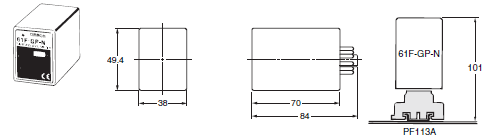

61F-GP-N, -NT, -NL, -NH, -ND, -NR, -N -TDL, -N14, -N15, -NH3

When mounting a Display Unit to a PF113A Surface-mounting Socket, secure the PF113A with the groove facing toward the bottom and then connect the 61F-GP-N the PFC-N8 accessory.

PFC-N8

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)

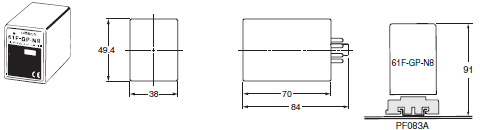

61F-GP-N8, -N8L, -N8H, -N8HY, -N8D, -N8R

Use a PFC-N8 Mounting Bracket to mount the Level Controller to a PF083A Rail-mounted Socket.

PFC-N8

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)

last update: October 15, 2014

OMRON 61F-GP-N[] specification

last update: August 06, 2015

Compact Plug-in Models (11-pin Type)

Item	General-purpose Controller 61F-GP-N	High-temperature Controller 61F-GP-NT	Long-distance Controllers 61F-GP-NL 2KM (for 2 km) 61F-GP-NL 4KM (for 4 km)
Controlling materials and operating conditions	For control of ordinary purified water or sewage water	For control of ordinary purified water or sewage where operating ambient temperature is high.	For control of ordinary purified water in cases where the distance between sewage pumps and water tanks or between receiver tanks and supply tanks is long or where remote control is required.
Supply voltage	24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
Operating voltage range	85% to 110% of rated voltage
Interelectrode voltage	8 VAC
Interelectrode current	Approx. 1 mA AC max.
Power consumption	Approx. 3.5 VA max.
Interelectrode operate resistance	0 to approx. 4 kΩ	0 to approx. 4 kΩ	0 to approx. 1.3 kΩ (for 2 km) 0 to approx. 0.5 kΩ (for 4 km)
Interelectrode release resistance	Approx. 15 k to ∞ Ω	Approx. 15 k to ∞ Ω	4 k to ∞ Ω (for 2 km) 2.5 k to ∞ Ω (for 4 km)
Response time	Operate:80 ms max. Release:160 ms max.
Cable length *1	1 km max.	600 m max.	2 km max. 4 km max.
Control output	1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load)
Ambient temperature	Operating:-10 to 55°C (-10 to 70°C for high-temperature controller)
Ambient humidity	Operating:45% to 85% RH
Insulation resistance *2	100 MΩ min. (at 500 VDC)
Dielectric strength *2	2000 VAC, 50/60 Hz for 1 min.
Life expectancy	Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min.
Weight	Approx. 155 g
Accessories	Hold-down clip PFC-N8
Approved standards	UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment

Item	High-sensitivity Controller 61F-GP-NH *4	Low-sensitivity Controller 61F-GP-ND	Two-wire Controller 61F-GP-NR
Controlling materials and operating conditions	For control of liquids with high specific resistance such as distilled water	For control of liquids with low specific resistance such as salt water, sewage water, acid chemicals, alkali chemicals	For control of ordinary purified water or sewage water used in combination with Two-wire Electrode Holder (incorporating a resistor of 6.8 kΩ)
Supply voltage	24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
Operating voltage range	85% to 110% of rated voltage
Interelectrode voltage	8 VAC
Interelectrode current	Approx. 0.12 mA AC max.	Approx. 1 mA AC max.
Power consumption	Approx. 3.5 VA max.
Interelectrode operate resistance	Approx. 10 kΩ to approx. 40 kΩ *3	0 to approx. 1.3 kΩ	0 to approx. 2 kΩ
Interelectrode release resistance	Approx. 100 k to ∞ Ω	Approx. 4 k to ∞ Ω	Approx. 15 k to ∞ Ω
Response time	Operate:80 ms max. Release:160 ms max.
Cable length *1	50 m max.	1 km max.	800 m max.
Control output	1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load)
Ambient temperature	Operating:-10 to 55°C (-10 to 70°C for high-temperature controller)
Ambient humidity	Operating:45% to 85% RH
Insulation resistance *2	100 MΩ min. (at 500 VDC)
Dielectric strength *2	2000 VAC, 50/60 Hz for 1 min.
Life expectancy	Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min.
Weight	Approx. 155 g
Accessories	Hold-down clip PFC-N8
Approved standards	UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment

*1. The length when using completely insulated, 600-V, 3-conductor (0.75 mm²) cabtire cables. Usable cable lengths will
       become shorter as the cable diameter or number of conductors becomes larger. For details, refer to Safety
       Precautions for Floatless Level Controllers.
*2. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals,
       between power terminals and contact terminals, and between Electrode terminals and contact terminals. For details,
       refer to Safety Precautions for Floatless Level Controllers.
*3. Possible to use with 15 kΩ or less, however, this may cause reset failure.
*4. 61F-GP-NH High-sensitivity Controller uses advanced operation.
       When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation
       electrodes), the internal relay will not operate.
       When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation
       electrodes), the internal relay will operate.
       If the advanced operation does not satisfy applications, consider using 61F-N8HY controller which uses sequential
       operation.

Compact Plug-in Models (8-pin Type)

Item	General-purpose Controller 61F-GP-N8 61F-GP-N8Y *4	Long-distance Controllers 61F-GP-N8L 2KM (for 2 km) 61F-GP-N8L 4KM (for 4 km)	High-sensitivity Controllers 61F-GP-N8H 61F-GP-N8HY *4
Controlling materials and operating conditions	For control of ordinary purified water or sewage water	For control of ordinary purified water in cases where the distance between sewage pumps and water tanks or between receiver tanks and supply tanks is long or where remote control is required.	For control of liquids with high specific resistance such as distilled water
Supply voltage	24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
Operating voltage range	85% to 110% of rated voltage
Interelectrode voltage	8 VAC		24 VAC
Interelectrode current	Approx. 1 mA AC max.		Approx. 0.4 mA AC max.
Power consumption	Approx. 3.5 VA max.
Interelectrode operate resistance	0 to approx. 4 kΩ	0 to 1.3 kΩ (for 2 km) 0 to 0.5 kΩ (for 4 km)	Approx. 15 kΩ to approx. 70 kΩ *3
Interelectrode release resistance	Approx. 15 k to ∞ Ω	4 k to ∞ Ω (for 2 km) 2.5 k to ∞ Ω (for 4 km)	Approx. 300 k to ∞ Ω
Response time	Operate: 80 ms max. Release: 160 ms max.
Cable length *1	1 km max.	2 km max. 4 km max.	50 m max.
Control output	1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load)
Ambient temperature	Operating: -10 to 55°C
Ambient humidity	Operating: 45% to 85% RH
Insulation resistance *2	100 MΩ min. (at 500 VDC)
Dielectric strength *2	2000 VAC, 50/60 Hz for 1 min.
Life expectancy	Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min.
Weight	Approx. 155 g
Accessories	Hold-down clip PFC-N8
Approved standards	UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment

Item	Low-sensitivity Controller 61F-GP-N8D	Two-wire Controller 61F-GP-N8R	Variable Sensitivity Controller 61F-GP-N8-V50
Controlling materials and operating conditions	For control of liquids with low specific resistance such as salt water, sewage water, acid chemicals, alkali chemicals	For control of ordinary purified water or sewage water used in combination with Two-wire Electrode Holder (incorporating a resistor of 6.8 kΩ)	For control of cases where variable sensitivity control is required such as detection of froth on the surface of a liquid, control of soil moisture content, or detection of degree of water pollution
Supply voltage	24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz		24, 110, 220 or 240 VAC; 50/60 Hz
Operating voltage range	85% to 110% of rated voltage
Interelectrode voltage	8 VAC		24 VAC
Interelectrode current	Approx. 1 mA AC max.		Approx. 3 mA AC max.
Power consumption	Approx. 3.5 VA max.
Interelectrode operate resistance	0 to approx. 1.3 kΩ	0 to approx. 2 kΩ	0 to 50 kΩ (Variable)
Interelectrode release resistance	Approx. 4 k to ∞ Ω	Approx. 15 k to ∞ Ω	Operating resistance +50 kΩ max.
Response time	Operate: 80 ms max. Release: 160 ms max.
Cable length *1	1 km max.	800 m max.	50 m max.
Control output	1 A, 250 VAC (Inductive load: cosφ = 0.4) 3 A, 250 VAC (Resistive load)
Ambient temperature	Operating: -10 to 55°C
Ambient humidity	Operating: 45% to 85% RH
Insulation resistance *2	100 MΩ min. (at 500 VDC)
Dielectric strength *2	2000 VAC, 50/60 Hz for 1 min.
Life expectancy	Electrical: 100,000 operations min. Mechanical: 5,000,000 operations min.
Weight	Approx. 155 g
Accessories	Hold-down clip PFC-N8
Approved standards	UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment

*1. The length when using completely-insulated, 600-V, 3-conductor (0.75 mm²) cabtire cables. Usable cable lengths will
       become shorter as the cable diameter or number of conductors becomes larger.
*2. The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals,
       between power terminals and contact terminals, and between Electrode terminals and contact terminals.
*3. Possible to use with 15 kΩ or less, however, this may cause reset failure.
*4. 61F-GP-N8H/-N8Y High-sensitivity Controllers use advanced operation.
       When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation
       electrodes), the internal relay will not operate.
       When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation
       electrodes), the internal relay will operate.
       If the advanced operation does not satisfy applications, consider using 61F-N8HY controller which uses sequential
       operation.

last update: August 06, 2015
