OMRON Z / A / X / DZ Common Accessories Dimensions
/Images/l_294-25-119076-198x198.jpglast update: November 6, 2012
Common to Z, A, X, and DZ Models
Terminal Covers
The Terminal Covers can be attached to Z, A, X, and DZ Switches.The Terminal Cover is secured with mounting screws and protects the casing and terminal wires from dust, vibration, or fingers, thus preventing terminal short-circuiting, ground faults, wire disconnection or improper connection, and electric shock accidents.Terminal Covers made of phenol resin have five or six thin wall sections. These sections can betorn open for providing holes for lead cables at desired points.A terminal cover can’t be used in the case of using an actuator sold separately.
Separator
Use a Separator when it is difficult to provide a sufficient insulation distance or when using the Switch near metal parts or copper wires.
Common to Z, X, and DZ Models
Actuators
A Switch can be actuated by a cam or an appropriate object, in which case, use one of the following Actuators according to the application.
last update: November 6, 2012
Purchase the OMRON Basic Switches (Z-Size) Please fill in the following
If you have just landed here, this product OMRON Z / A / X / DZ Common Accessories Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Z / A / X / DZ Common Accessories We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Z / A / X / DZ Common AccessoriesSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G7Z Power Relays/Features
ES1-N Infrared Thermosensor/Features
CJ1W-PDC15 CJ-series Process Analog I/O Unit/Features
WS02-NX[]C1 NX-Server/Features
S8VK-R Redundancy Unit/Features
OMRON Z / A / X / DZ Common Accessories catalog
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Z/A/X/DZ Common Accessories Data Sheet | - [352KB] | Dec 02, 201520151202 | Z/A/X/DZ Common Accessories Data Sheet |
| Z/X/DZ Common Accessories Data Sheet | - [248KB] | Apr 10, 200720070410 | Z/X/DZ Common Accessories Data Sheet |
OMRON Z / A / X / DZ Common Accessories dimension
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Dimensionslast update: December 02, 2015
Common to Z, A, X, and DZ Models
Terminal Covers
AP-A
Soldering Terminal Use (Phenol Resin)
Note: The Cover has five thin, easy-to-separate portions for easy lead wire connections.
AP-B
Screw Terminal Use (Phenol Resin)
Note: The Cover has six thin, easy-to-separate portions for easy lead wire connections.
AP1-A
Soldering Terminal Use (Metal Press Mold)
Note: The Cover has five holes for easy lead wire connections.
AP1-B
Screw Terminal Use (Metal Press Mold)
Note: The Cover has six holes for easy lead wire connections.

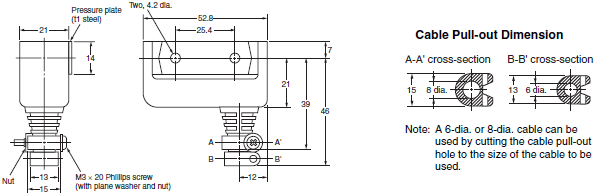

AP-Z
Soldering or Screw Terminal Use (Vinyl Chloride)
Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)
Separator
Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified. 2. The material is EAVTC (Epoxide Alkyd Varnished Tetron Cloth) and its heat-resisting temperature is 130°C.
Common to Z, X, and DZ Models
Note: These Actuators are not provided with Switches.

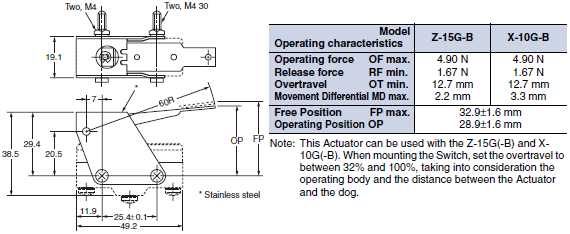

Hinge Lever
XAA-1

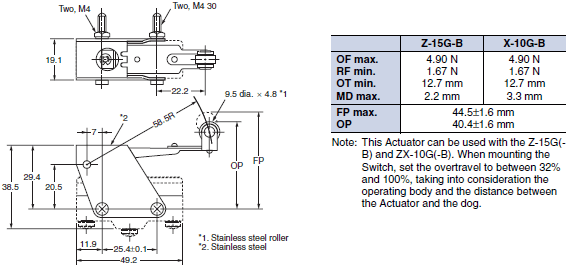

Hinge Roller Lever
ZAA-2

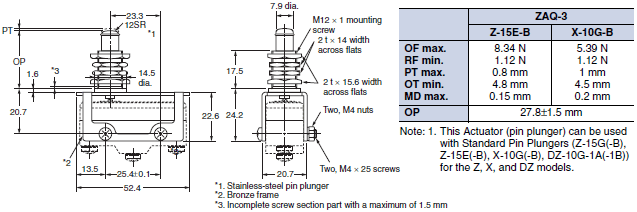

Short Panel Mount Plunger
ZAQ-3

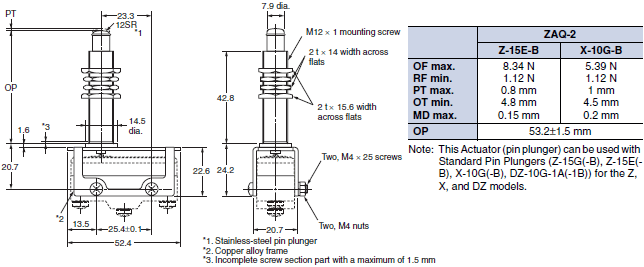

Medium Panel Mount Plunger
ZAQ-2

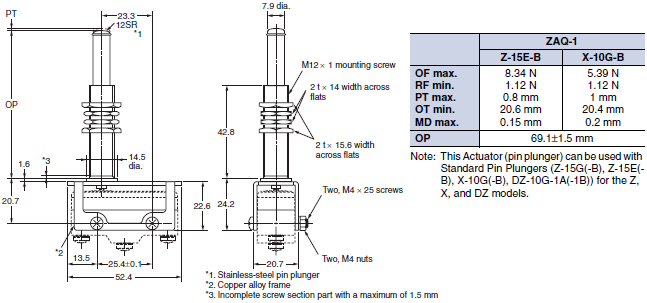

Long Panel Mount Plunger
ZAQ-1

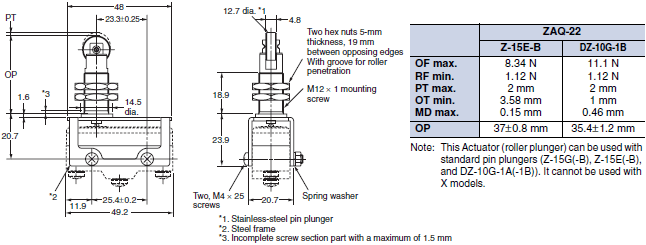

Panel Mount Roller Plunger
ZAQ-22
Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
last update: December 02, 2015
OMRON Z / A / X / DZ Common Accessories lineup
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Lineuplast update: November 06, 2012
Common to Z, A, X, and DZ Models
Terminal Covers (Sold Separately)
| Application | Soldering terminal use | Screw terminal use | Remarks | |
|---|---|---|---|---|
| Material | Mounting direction | Model | ||
| Phenol resin | Side mounting | AP-A | AP-B | --- |
| Metal press mold | Side mounting | AP1-A | AP1-B | Used for AP-A and AP-B |
| Vinyl chloride | Side mounting | AP-Z | --- | |
Note: Use a Terminal Cover for screw terminals fir DZ-series Switches with soldering terminals.
Separator (Sold Separately)
| Model |
|---|
| SEPARATOR FOR Z |
Common to Z, X, and DZ Models
Actuators (Sold Separately)
| Actuator | Common to Z and X models | ||
|---|---|---|---|
| Hinge lever |  | XAA-1 | |
| Hinge roller lever |  | ZAA-2 | |
| Panel mount plunger |  | Short | ZAQ-3 |
| Medium | ZAQ-2 | ||
| Long | ZAQ-1 | ||
| Panel mount roller plunger |  | ZAQ-22 | |
last update: November 06, 2012
OMRON Z / A / X / DZ Common Accessories specification
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Specificationslast update: September 24, 2012
No information is provided on the ratings and specifications of this product.
last update: September 24, 2012
