• One pole carries 40 A. UL 508 and UL 840 NO contacts (resistive 40 A 480 VAC, 60 Hz, 80,000 operations). EN 60947-4-1 NO contacts (AC1 40 A 440 VAC, 50/60 Hz, 80,000 operations).

• Ideal for supply power to industrial inverters, servo drivers, and other devices, and switching power to motors and other equipment.

• The maximum load capacity of 160 A when using 4-pole parallel connections.

• EN 60947-4-1 certification for mirror contact mechanism obtained by combining the Relay with an Auxiliary Contact Block.

• Conforms to European PV standard (VDE0126).

• Approx. 30% less operation noise than a standard electromagnetic contactor.* (Approx. 100 dB reduced to approx. 70 dB.)

• Approx. 50% the volume of a standard electromagnetic contactor* to help downsize control panels.

* According to OMRON investigation of IIEC-AC1 50 A specifications.

High Capacity and High Insulation

Continuously apply 40 A at 440 VAC, or apply up to a maximum of 160 A by using 4-pole parallel connections for full power application.*
The Relays are highly insulated to support load switching of 40 A at 440 VAC.
* Always consult with your OMRON representative before using the maximum current of 160 A.

Compact Size

Downsizing of approximately 40% volume compared with contactors.*
Contributes to space savings in control panels.
* IEC-AC1 50-A specifications

DIN Track Mountable

Safety Function with Mirror Contacts

EN 60947-4-1 certification for mirror contact mechanisms has been obtained by using a combination of a relay and auxiliary contact blocks (5 VDC, 1 mA), enabling application in feedback circuits of safety circuits.

Low Noise and Low Power Consumption

Low noise of approx. 70 dB compared with the approx. 100 dB for contactors.*
Low power consumption of less than 4 W DC. Environmentally friendly specifications.
* IEC-AC1 50-A specifications

Saving Space and Energy (Applications)

last update: April 2, 2018

Purchase the OMRON For Built-in Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G7Z Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G7Z We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G7ZRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

K3SC Interface Converter/Features
EE-SPW321 / 421 Photomicrosensor with Amplifier and Cable/Features
E63-WF Direct Discrimination Unit/Features
H5CX Digital Timer/Features
H8BM-R Multi-maintenance Counter/Timer (DIN 72 x 72)/Features

OMRON G7Z specification
G7Z Power Relays/Specifications
last update: January 7, 2019
Ratings
Coil

Item Rated
current
(mA) Coil
resistance
(Ω) Must operate
voltage Must release
voltage Maximum
voltage Power
consumption
(W)
Rated voltage Percentage of rated voltage
12 VDC 308 39 75% max. 10% min. 110% Approx. 3.7
24 VDC 154 156

Note: 1. Rated current and coil resistance were measured at a coil temperature of 23°C with coil resistance of ±15%.
2. Operating characteristics were measured at a coil temperature of 23°C.
3. The maximum allowable voltage is the maximum value of the fluctuation range for the Relay coil operating
power supply and was measured at an ambient temperature of 23°C.
There is, however, no continuous allowance.

Contacts
Relay, Relay with Auxiliary Contact Block

Model G7Z-4A-[]Z(-R), G7Z-3A1B-[]Z(-R), G7Z-2A2B-[]Z(-R)
Load Resistive load Inductive load cosφ = 0.3 Resistive load L/R = 1 ms
Contact structure Double break
Contact material Ag alloy
Rated load NO 40 A at 440 VAC 22 A at 440 VAC 5 A at 110 VDC
NC 25 A at 440 VAC 10 A at 440 VAC 5 A at 110 VDC
Rated carry current NO 40 A *
NC 25 A
Maximum contact voltage 480 VAC 125 VDC
Maximum contact current NO 40 A 22 A 5 A
NC 25 A 10 A 5 A
Maximum switching capacity NO 17,600 VA 9,680 VA 550 W
NC 11,000 VA 4,400 VA 550 W
Failure rate P value (reference value) 2 A at 24 VDC

Note: The ratings for the auxiliary contact block mounted on the G7Z are the same as those for the G73Z auxiliary
contact block.
* Set of Relay and Auxiliary Contact Block: 45 to 60°C; for the continuous carry current, reduce 40 A by 0.7 A/°C.

Auxiliary Contact Block

Item G73Z-20Z-R, G73Z-11Z-R, G73Z-02Z-R G73Z-20Z, G73Z-11Z, G73Z-02Z
Resistive
load Inductive
load
cosφ = 0.3 Resistive
load
L/R = 1 ms Resistive
load Inductive
load
cosφ = 0.3 Resistive
load
L/R = 1 ms
Contact structure Single break Double break
Contact material Au clad + AgNi Au clad + Ag
Rated load 1 A at
440 VAC 0.5 A at
440 VAC 0.5 A at
110 VDC 1 A at
440 VAC 0.5 A at
440 VAC 0.5 A at
110 VDC
Rated carry current 1A 1A
Maximum
contact voltage 480 VAC 125 VDC 480 VAC 125 VDC
Maximum
contact current 1A 0.5 A 1A 0.5 A
Maximum
switching capacity 440 VA 220 VA 55 W 440 VA 220 VA 55 W
Failure rate P value
(reference value) 1 mA at 1 VDC 1 mA at 5 VDC

Characteristics

Classification Relay with
auxiliary contact
block *5 Auxiliary contact block
Model G7Z-4A-[]Z(-R),
G7Z-3A1B-[]Z(-R),
G7Z-2A2B-[]Z(-R) G73Z-20Z-R,
G73Z-11Z-R,
G73Z-02Z-R G73Z-20Z,
G73Z-11Z,
G73Z-02Z
Contact resistance *1 400 mΩ max. 100 mΩ max.
Operating time *2 50 ms max.
Release time *2 50 ms max.
Maximum
operating
frequency Mechanical 1,800 operations/h
Rated load 1,200 operations/h
Insulation resistance *3 1,000 MΩ min.
Dielectric
strength Between coil
and contacts 4,000 VAC, 50/60 Hz for 1 min ---
Between contacts
of different polarity 4,000 VAC, 50/60 Hz for 1 min
Between contacts
of the same polarity 2,000 VAC, 50/60 Hz for 1 min
Impulse
withstand
voltage Between coil
and contacts 10 kV, 1.2 × 50 μs ---
Between contacts
of different polarity 10 kV, 1.2 × 50 μs
Between contacts
of the same polarity 4.5 kV, 1.2 × 50 μs 3.0 kV, 1.2 × 50 μs 4.5 kV, 1.2 × 50 μs
Vibration
resistance Destruction 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Malfunction NO: 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
NC: 10 to 32 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Shock resistance Destruction Screw mounting: 700 m/s², DIN Track mounting: 500 m/s²
Malfunction NO: 100 m/s²
NC: 25 m/s²
Durability Mechanical 1,000,000 operations min. (at 1,800 operations/h, contact no load)
Electrical *4 AC resistive load: 80,000 operations
AC inductive load: 80,000 operations
DC resistive load: 100,000 operations
(at 1,200 operations/h, rated load)
Failure rate (P level)
(reference value) *6 2 A at 24 VDC 1 mA at 1 VDC 1 mA at 5 VDC
Ambient operating temperature -25 to 60°C (with no icing or condensation)
Ambient operating humidity 5% to 85%
Weight Approx. 330 g Approx. 18 g

Note: The above values are initial values.
*1. The contact resistance for the Relay (G7Z) was measured with 1 A at 5 VDC using the voltage drop method.
The contact resistance for the auxiliary contact block (G73Z) was measured with 0.1 A at 5 VDC using the voltage
drop method.
*2. The operate time was measured with the rated voltage imposed with any contact bounce ignored at the ambient
temperature of 23℃.
*3. The insulation resistance was measured with a 1,000-VDC megohmmeter applied to the same places as those used
for checking the dielectric strength.
*4. The electrical endurance was measured at an ambient temperature of 23℃.
*5. The specifications for the auxiliary contact block mounted on the G7Z are the same as those for the G73Z auxiliary
contact block.
*6. The failure rate is based on an operating frequency of 1,800 operations/h.

Approved Standards
UL Standard: UL508, UL840 (File No. E41643)

Classifi-cation Con-tact
Mecha-nism
of
Auxi-liary
Con-tacts Model Num-ber
of
poles Contact ratings Number
of
test
opera-tions Coil
ratings Category Listed/
Recog-nized
Relay
with
Auxiliary
Contact
Block Single-break
models G7Z-4A-20Z-R
G7Z-4A-11Z-R
G7Z-4A-02Z-R
G7Z-3A1B-20Z-R
G7Z-3A1B-11Z-R
G7Z-3A1B-02Z-R
G7Z-2A2B-20Z-R
G7Z-2A2B-11Z-R
G7Z-2A2B-02Z-R 4 poles
+
2 poles
(Relay
unit +
auxi-liary
con-tact) NO
contact Relay 40 A,
480 VAC,
60 Hz
(Resistive) 80,000 12, 24
VDC NLDX2,
NLDX8 Recog-nized
5 A,
120 VDC (Resistive) 100,000
22 A,
480 VAC,
60 Hz
(General
Use) 100,000
Auxiliary
Contact D300
(1-A
current
applied) ---
NC
contact Relay 25 A,
480 VAC,
60 Hz
(Resistive)
5 A,
120 VDC
(Resistive)
10 A,
480 VAC,
60 Hz
(General Use) 100,000
Auxiliary
Contact D300
(1-A
current
applied) ---
Double-break
models G7Z-4A-20Z
G7Z-4A-11Z
G7Z-4A-02Z
G7Z-3A1B-20Z
G7Z-3A1B-11Z
G7Z-3A1B-02Z
G7Z-2A2B-20Z
G7Z-2A2B-11Z
G7Z-2A2B-02Z NO
contact Relay 40 A,
480 VAC,
60 Hz
(Resistive) 80,000 12, 24
VDC NLDX2,
NLDX8 Recog-nized
5 A,
120 VDC
(Resistive) 100,000
22 A,
480 VAC,
60 Hz
(General
Use) 100,000
Auxiliary
Contact D300
(1-A
current
applied) ---
NC
contact Relay 25 A,
480 VAC,
60 Hz
(Resistive)
5 A,
120 VDC
(Resistive)
10 A,
480 VAC,
60 Hz
(General
Use) 100,000
Auxiliary
Contact D300
(1-A
current
applied) ---
Relay --- G7Z-4A
G7Z-3A1B
G7Z-2A2B 4 poles
(Relay) NO
contact (Relay) 40 A,
480 VAC,
60 Hz
(Resistive) 80,000 12, 24
VDC NLDX2,
NLDX8 Recog-nized
5 A,
120 VDC
(Resistive) 100,000
22 A,
480 VAC,
60 Hz
(General Use) 100,000
NC
contact 25 A,
480 VAC,
60 Hz
(General Use) 100,000
5 A,
120 VDC
(Resistive)
10 A,
480 VAC,
60 Hz
(General
Use)
Auxiliary
Contact
Block Single-break
models G73Z-20Z-R
G73Z-11Z-R
G73Z-02Z-R 2 poles
(Auxi-liary
Con-tact
Block) NO
contact (Auxiliary
Contact) D300
(1-A
current
applied) --- --- NLDX2,
NLDX8 Recog-nized
NC
contact D300
(1-A
current
applied)
Double-break
models G73Z-20Z
G73Z-11Z
G73Z-02Z NO
contact D300
(1-A
current
applied) --- NLDX2,
NLDX8
NC
contact D300
(1-A
current
applied)

CSA Standard: CSA Certification by cUL: CSA C22.2 No. 14
EN Standard/TÜV Certification: EN 60947-4-1 (Certification No. R50079155)

Category Contact
Mechanism
of Auxiliary
Contacts Model Number of
poles Contact ratings
Relay with
Auxiliary
Contact
Block Single-break
models G7Z-4A-20Z-R
G7Z-4A-11Z-R
G7Z-4A-02Z-R
G7Z-3A1B-20Z-R
G7Z-3A1B-11Z-R
G7Z-3A1B-02Z-R
G7Z-2A2B-20Z-R
G7Z-2A2B-11Z-R
G7Z-2A2B-02Z-R 4 poles + 2 poles
(Relay unit +
auxiliary contact) NO contact Relay AC-1: 40 A 440 V 50/60 Hz
AC-3: 16 A 440 V 50/60 Hz
DC-1: 5 A 110 V
Auxiliary
Contact AC-15: 0.3 A 440 V 50/60 Hz
DC-13: 0.3 A 110 V
NC contact Relay AC-1: 25 A 440 V 50/60 Hz
DC-1: 5 A 110 V
Auxiliary
Contact AC-15: 0.3 A 440 V 50/60 Hz
DC-13: 0.3 A 110 V
Double-break
models G7Z-4A-20Z
G7Z-4A-11Z
G7Z-4A-02Z
G7Z-3A1B-20Z
G7Z-3A1B-11Z
G7Z-3A1B-02Z
G7Z-2A2B-20Z
G7Z-2A2B-11Z
G7Z-2A2B-02Z NO contact Relay AC-1: 40 A 440 V 50/60 Hz
AC-3: 16 A 440 V 50/60 Hz
DC-1: 5 A 110 V
Auxiliary
Contact AC-15: 0.5 A 440 V 50/60 Hz
DC-13: 0.5 A 110 V
NC contact Relay AC-1: 25 A 440 V 50/60 Hz
DC-1: 5 A 110 V
Auxiliary
Contact AC-15: 0.5 A 440 V 50/60 Hz
DC-13: 0.5 A 110 V
Relay --- G7Z-4A
G7Z-3A1B
G7Z-2A2B 4 poles
(Relay) NO contact (Relay) AC-1: 40 A 440 V 50/60 Hz
AC-3: 16 A 440 V 50/60 Hz
DC-1: 5 A 110 V
NC contact AC-1: 25 A 440 V 50/60 Hz
DC-1: 5 A 110 V
Auxiliary
Contact
Block Single-break
models G73Z-20Z-R
G73Z-11Z-R
G73Z-02Z-R 2 poles
(Auxiliary Contact
Block) NO contact (Auxiliary
Contact) AC-15: 0.3 A 440 V 50/60 Hz
DC-13: 0.3 A 110 V
NC contact AC-15: 0.3 A 440 V 50/60 Hz
DC-13: 0.3 A 110 V
Double-break
models G73Z-20Z
G73Z-11Z
G73Z-02Z NO contact AC-15: 0.5 A 440 V 50/60 Hz
DC-13: 0.5 A 110 V
NC contact AC-15: 0.5 A 440 V 50/60 Hz
DC-13: 0.5 A 110 V

CCC Certification

Classification Contact Mechanism
of Auxiliary Contacts Model Standard No. Certification No.
Relay with Auxiliary
Contact Block Single-break models G7Z-4A-20Z-R
G7Z-4A-11Z-R
G7Z-4A-02Z-R
G7Z-3A1B-20Z-R
G7Z-3A1B-11Z-R
G7Z-3A1B-02Z-R
G7Z-2A2B-20Z-R
G7Z-2A2B-11Z-R
G7Z-2A2B-02Z-R GB/T 14048.4 2009010304361493
Double-break models G7Z-4A-20Z
G7Z-4A-11Z
G7Z-4A-02Z
G7Z-3A1B-20Z
G7Z-3A1B-20Z
G7Z-3A1B-11Z
G7Z-3A1B-02Z
G7Z-2A2B-20Z
G7Z-2A2B-11Z
G7Z-2A2B-02Z GB 14048.4
Relay --- G7Z-4A
G7Z-3A1B
G7Z-2A2B GB/T 14048.4

last update: January 7, 2019

OMRON G7Z lineup
G7Z Power Relays/Lineup
last update: August 1, 2018

When your order, specify the rated voltage.

Relay with Auxiliary Contact Block

Number of
poles
(Relay with
Auxiliary
Contact) Contact configuration Contact Mechanism of Auxiliary Contacts
Single-break models Double-break models *
Relay Auxiliary Contact
Block Rated
Voltage Rated
Voltage
4 poles +
2 poles 4PST-NO DPST-NO G7Z-4A-20Z-R 12, 24 VDC G7Z-4A-20Z 12, 24 VDC
SPST-NO/SPST-NC G7Z-4A-11Z-R 12, 24 VDC G7Z-4A-11Z 12, 24 VDC
DPST-NC G7Z-4A-02Z-R 12, 24 VDC G7Z-4A-02Z 12, 24 VDC
3PST-NO/
SPST-NC DPST-NO G7Z-3A1B-20Z-R 12, 24 VDC G7Z-3A1B-20Z 12, 24 VDC
SPST-NO/SPST-NC G7Z-3A1B-11Z-R 12, 24 VDC G7Z-3A1B-11Z 12, 24 VDC
DPST-NC G7Z-3A1B-02Z-R 12, 24 VDC G7Z-3A1B-02Z 12, 24 VDC
DPST-NO/
DPST-NC DPST-NO G7Z-2A2B-20Z-R 12, 24 VDC G7Z-2A2B-20Z 12, 24 VDC
SPST-NO/SPST-NC G7Z-2A2B-11Z-R 12, 24 VDC G7Z-2A2B-11Z 12, 24 VDC
DPST-NC G7Z-2A2B-02Z-R 12, 24 VDC G7Z-2A2B-02Z 12, 24 VDC

Note: 1. Relay contact terminals are M5, and the coil terminals are M3.5.
2. Auxiliary contact block terminals are M3.5.
3. When placing an order, specify the model number and rated supply voltage (12 VDC or 24 VDC).
* Scheduled to close the order at the end of March 2019.

Relay

Number of poles Contact configuration Model Rated Voltage
4 poles 4PST-NO G7Z-4A 12, 24 VDC
3PST-NO/SPST-NC G7Z-3A1B
DPST-NO/DPST-NC G7Z-2A2B

Note: 1. Relay contact terminals are M5, and the coil terminals are M3.5.
2. When placing an order, specify the model number and rated supply voltage (12 VDC or 24 VDC).

Accessories (Order Separately)
Auxiliary Contact Block

Number of poles Contact configuration Contact Mechanism of Auxiliary Contacts
Single-break models Double-break models *
2 poles DPST-NO G73Z-20Z-R G73Z-20Z
SPST-NO/SPST-NC G73Z-11Z-R G73Z-11Z
DPST-NC G73Z-02Z-R G73Z-02Z

Note: Auxiliary contact block terminals are M3.5.
* Scheduled to close the order at the end of March 2019.

last update: August 1, 2018

OMRON G7Z catalog
G7Z Power Relays/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G7Z Data Sheet J160-E1-04
[2592KB] Jan 07, 201920190107 G7Z Data Sheet

OMRON G7Z dimension
G7Z Power Relays/Dimensions
last update: April 2, 2018

(Unit: mm)

Relay (12 VDC, 24 VDC) with Auxiliary Contact Block

4 Poles+ 2 poles (Relay with Auxiliary Contact)
Double-break models

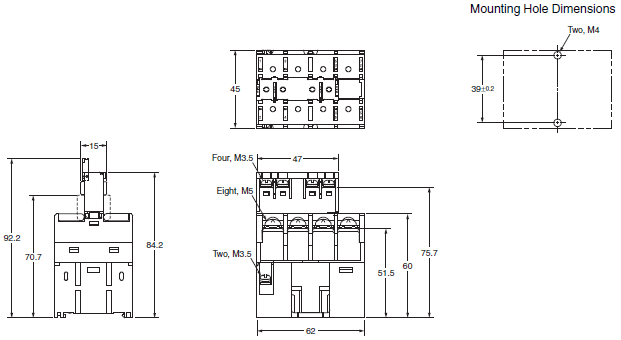

G7Z-4A-[]Z
G7Z-3A1B-[]Z
G7Z-2A2B-[]Z

Note: The dimensions are typical values.

4 poles + 2 poles (Relay with Auxiliary Contact)
Single-break models

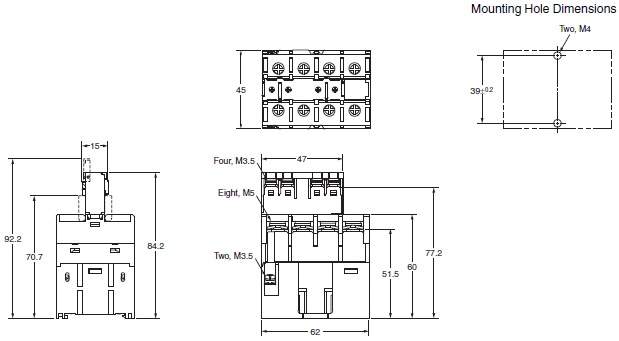

G7Z-4A-[]Z-R
G7Z-3A1B-[]Z-R
G7Z-2A2B-[]Z-R

Note: The dimensions are typical values.

Relay (12 VDC, 24 VDC)

4 Poles

Note: The dimensions are typical values.

Contact Block

Double-break models
G73Z-[]Z

Note: The dimensions are typical values.

Single-break models
G73Z-[]Z-R

Note: The dimensions are typical values.

Auxiliary DIN Track Mounting Height (when using the PFP-100N or PFP-50N mounting rail)

Note: The dimensions are typical values.

last update: April 2, 2018

NO. G7Z

TYPE:General Purpose Relays For Built-in Power Relay

DATE:2021-06-09

Associated products:
G7S-[]-E Relays with Forcibly Guided Contacts/Features R88M-1[] / R88D-1SN[]-ECT AC Servo System 1S-series/Features

Item	Rated current (mA)	Coil resistance (Ω)	Must operate voltage	Must release voltage	Maximum voltage	Power consumption (W)
Rated voltage	Percentage of rated voltage
12 VDC	308	39	75% max.	10% min.	110%	Approx. 3.7
24 VDC	154	156

Model	G7Z-4A-[]Z(-R), G7Z-3A1B-[]Z(-R), G7Z-2A2B-[]Z(-R)
Load	Resistive load	Inductive load cosφ = 0.3	Resistive load L/R = 1 ms
Contact structure	Double break
Contact material	Ag alloy
Rated load	NO	40 A at 440 VAC	22 A at 440 VAC	5 A at 110 VDC
NC	25 A at 440 VAC	10 A at 440 VAC	5 A at 110 VDC
Rated carry current	NO	40 A *
NC	25 A
Maximum contact voltage	480 VAC	125 VDC
Maximum contact current	NO	40 A	22 A	5 A
NC	25 A	10 A	5 A
Maximum switching capacity	NO	17,600 VA	9,680 VA	550 W
NC	11,000 VA	4,400 VA	550 W
Failure rate P value (reference value)	2 A at 24 VDC

Item	G73Z-20Z-R, G73Z-11Z-R, G73Z-02Z-R	G73Z-20Z, G73Z-11Z, G73Z-02Z
Resistive load	Inductive load cosφ = 0.3	Resistive load L/R = 1 ms	Resistive load	Inductive load cosφ = 0.3	Resistive load L/R = 1 ms
Contact structure	Single break	Double break
Contact material	Au clad + AgNi	Au clad + Ag
Rated load	1 A at 440 VAC	0.5 A at 440 VAC	0.5 A at 110 VDC	1 A at 440 VAC	0.5 A at 440 VAC	0.5 A at 110 VDC
Rated carry current	1A	1A
Maximum contact voltage	480 VAC	125 VDC	480 VAC	125 VDC
Maximum contact current	1A	0.5 A	1A	0.5 A
Maximum switching capacity	440 VA	220 VA	55 W	440 VA	220 VA	55 W
Failure rate P value (reference value)	1 mA at 1 VDC	1 mA at 5 VDC

Classification	Relay with auxiliary contact block *5	Auxiliary contact block
Model	G7Z-4A-[]Z(-R), G7Z-3A1B-[]Z(-R), G7Z-2A2B-[]Z(-R)	G73Z-20Z-R, G73Z-11Z-R, G73Z-02Z-R	G73Z-20Z, G73Z-11Z, G73Z-02Z
*Contact resistance 1**	400 mΩ max.	100 mΩ max.
*Operating time 2**	50 ms max.
*Release time 2**	50 ms max.
Maximum operating frequency	Mechanical	1,800 operations/h
Rated load	1,200 operations/h
*Insulation resistance 3**	1,000 MΩ min.
Dielectric strength	Between coil and contacts	4,000 VAC, 50/60 Hz for 1 min	---
Between contacts of different polarity	4,000 VAC, 50/60 Hz for 1 min
Between contacts of the same polarity	2,000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage	Between coil and contacts	10 kV, 1.2 × 50 μs	---
Between contacts of different polarity	10 kV, 1.2 × 50 μs
Between contacts of the same polarity	4.5 kV, 1.2 × 50 μs	3.0 kV, 1.2 × 50 μs	4.5 kV, 1.2 × 50 μs
Vibration resistance	Destruction	10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Malfunction	NO: 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) NC: 10 to 32 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Shock resistance	Destruction	Screw mounting: 700 m/s², DIN Track mounting: 500 m/s²
Malfunction	NO: 100 m/s² NC: 25 m/s²
Durability	Mechanical	1,000,000 operations min. (at 1,800 operations/h, contact no load)
*Electrical 4**	AC resistive load: 80,000 operations AC inductive load: 80,000 operations DC resistive load: 100,000 operations (at 1,200 operations/h, rated load)
Failure rate (P level) (reference value) *6	2 A at 24 VDC	1 mA at 1 VDC	1 mA at 5 VDC
Ambient operating temperature	-25 to 60°C (with no icing or condensation)
Ambient operating humidity	5% to 85%
Weight	Approx. 330 g	Approx. 18 g

Classifi-cation	Con-tact Mecha-nism of Auxi-liary Con-tacts	Model	Num-ber of poles	Contact ratings	Number of test opera-tions	Coil ratings	Category	Listed/ Recog-nized
Relay with Auxiliary Contact Block	Single-break models	G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R	4 poles + 2 poles (Relay unit + auxi-liary con-tact)	NO contact	Relay	40 A, 480 VAC, 60 Hz (Resistive)	80,000	12, 24 VDC	NLDX2, NLDX8	Recog-nized
5 A, 120 VDC (Resistive)	100,000
22 A, 480 VAC, 60 Hz (General Use)	100,000
Auxiliary Contact	D300 (1-A current applied)	---
NC contact	Relay	25 A, 480 VAC, 60 Hz (Resistive) 5 A, 120 VDC (Resistive) 10 A, 480 VAC, 60 Hz (General Use)	100,000
Auxiliary Contact	D300 (1-A current applied)	---
Double-break models	G7Z-4A-20Z G7Z-4A-11Z G7Z-4A-02Z G7Z-3A1B-20Z G7Z-3A1B-11Z G7Z-3A1B-02Z G7Z-2A2B-20Z G7Z-2A2B-11Z G7Z-2A2B-02Z	NO contact	Relay	40 A, 480 VAC, 60 Hz (Resistive)	80,000	12, 24 VDC	NLDX2, NLDX8	Recog-nized
5 A, 120 VDC (Resistive)	100,000
22 A, 480 VAC, 60 Hz (General Use)	100,000
Auxiliary Contact	D300 (1-A current applied)	---
NC contact	Relay	25 A, 480 VAC, 60 Hz (Resistive) 5 A, 120 VDC (Resistive) 10 A, 480 VAC, 60 Hz (General Use)	100,000
Auxiliary Contact	D300 (1-A current applied)	---
Relay	---	G7Z-4A G7Z-3A1B G7Z-2A2B	4 poles (Relay)	NO contact	(Relay)	40 A, 480 VAC, 60 Hz (Resistive)	80,000	12, 24 VDC	NLDX2, NLDX8	Recog-nized
5 A, 120 VDC (Resistive)	100,000
22 A, 480 VAC, 60 Hz (General Use)	100,000
NC contact	25 A, 480 VAC, 60 Hz (General Use)	100,000
5 A, 120 VDC (Resistive)
10 A, 480 VAC, 60 Hz (General Use)
Auxiliary Contact Block	Single-break models	G73Z-20Z-R G73Z-11Z-R G73Z-02Z-R	2 poles (Auxi-liary Con-tact Block)	NO contact	(Auxiliary Contact)	D300 (1-A current applied)	---	---	NLDX2, NLDX8	Recog-nized
NC contact	D300 (1-A current applied)
Double-break models	G73Z-20Z G73Z-11Z G73Z-02Z	NO contact	D300 (1-A current applied)	---	NLDX2, NLDX8
NC contact	D300 (1-A current applied)

Category	Contact Mechanism of Auxiliary Contacts	Model	Number of poles	Contact ratings
Relay with Auxiliary Contact Block	Single-break models	G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R	4 poles + 2 poles (Relay unit + auxiliary contact)	NO contact	Relay	AC-1: 40 A 440 V 50/60 Hz AC-3: 16 A 440 V 50/60 Hz DC-1: 5 A 110 V
Auxiliary Contact	AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V
NC contact	Relay	AC-1: 25 A 440 V 50/60 Hz DC-1: 5 A 110 V
Auxiliary Contact	AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V
Double-break models	G7Z-4A-20Z G7Z-4A-11Z G7Z-4A-02Z G7Z-3A1B-20Z G7Z-3A1B-11Z G7Z-3A1B-02Z G7Z-2A2B-20Z G7Z-2A2B-11Z G7Z-2A2B-02Z	NO contact	Relay	AC-1: 40 A 440 V 50/60 Hz AC-3: 16 A 440 V 50/60 Hz DC-1: 5 A 110 V
Auxiliary Contact	AC-15: 0.5 A 440 V 50/60 Hz DC-13: 0.5 A 110 V
NC contact	Relay	AC-1: 25 A 440 V 50/60 Hz DC-1: 5 A 110 V
Auxiliary Contact	AC-15: 0.5 A 440 V 50/60 Hz DC-13: 0.5 A 110 V
Relay	---	G7Z-4A G7Z-3A1B G7Z-2A2B	4 poles (Relay)	NO contact	(Relay)	AC-1: 40 A 440 V 50/60 Hz AC-3: 16 A 440 V 50/60 Hz DC-1: 5 A 110 V
NC contact	AC-1: 25 A 440 V 50/60 Hz DC-1: 5 A 110 V
Auxiliary Contact Block	Single-break models	G73Z-20Z-R G73Z-11Z-R G73Z-02Z-R	2 poles (Auxiliary Contact Block)	NO contact	(Auxiliary Contact)	AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V
NC contact	AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V
Double-break models	G73Z-20Z G73Z-11Z G73Z-02Z	NO contact	AC-15: 0.5 A 440 V 50/60 Hz DC-13: 0.5 A 110 V
NC contact	AC-15: 0.5 A 440 V 50/60 Hz DC-13: 0.5 A 110 V

Classification	Contact Mechanism of Auxiliary Contacts	Model	Standard No.	Certification No.
Relay with Auxiliary Contact Block	Single-break models	G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R	GB/T 14048.4	2009010304361493
Double-break models	G7Z-4A-20Z G7Z-4A-11Z G7Z-4A-02Z G7Z-3A1B-20Z G7Z-3A1B-20Z G7Z-3A1B-11Z G7Z-3A1B-02Z G7Z-2A2B-20Z G7Z-2A2B-11Z G7Z-2A2B-02Z	GB 14048.4
Relay	---	G7Z-4A G7Z-3A1B G7Z-2A2B	GB/T 14048.4

Number of poles (Relay with Auxiliary Contact)	Contact configuration	Contact Mechanism of Auxiliary Contacts
Single-break models	Double-break models *
Relay	Auxiliary Contact Block		Rated Voltage		Rated Voltage
4 poles + 2 poles	4PST-NO	DPST-NO	G7Z-4A-20Z-R	12, 24 VDC	G7Z-4A-20Z	12, 24 VDC
SPST-NO/SPST-NC	G7Z-4A-11Z-R	12, 24 VDC	G7Z-4A-11Z	12, 24 VDC
DPST-NC	G7Z-4A-02Z-R	12, 24 VDC	G7Z-4A-02Z	12, 24 VDC
3PST-NO/ SPST-NC	DPST-NO	G7Z-3A1B-20Z-R	12, 24 VDC	G7Z-3A1B-20Z	12, 24 VDC
SPST-NO/SPST-NC	G7Z-3A1B-11Z-R	12, 24 VDC	G7Z-3A1B-11Z	12, 24 VDC
DPST-NC	G7Z-3A1B-02Z-R	12, 24 VDC	G7Z-3A1B-02Z	12, 24 VDC
DPST-NO/ DPST-NC	DPST-NO	G7Z-2A2B-20Z-R	12, 24 VDC	G7Z-2A2B-20Z	12, 24 VDC
SPST-NO/SPST-NC	G7Z-2A2B-11Z-R	12, 24 VDC	G7Z-2A2B-11Z	12, 24 VDC
DPST-NC	G7Z-2A2B-02Z-R	12, 24 VDC	G7Z-2A2B-02Z	12, 24 VDC

Number of poles	Contact configuration	Model	Rated Voltage
4 poles	4PST-NO	G7Z-4A	12, 24 VDC
3PST-NO/SPST-NC	G7Z-3A1B
DPST-NO/DPST-NC	G7Z-2A2B

Number of poles	Contact configuration	Contact Mechanism of Auxiliary Contacts
Single-break models	Double-break models *
2 poles	DPST-NO	G73Z-20Z-R	G73Z-20Z
SPST-NO/SPST-NC	G73Z-11Z-R	G73Z-11Z
DPST-NC	G73Z-02Z-R	G73Z-02Z

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G7Z Data Sheet	J160-E1-04 [2592KB]	Jan 07, 201920190107	G7Z Data Sheet

Return to OMRON
