• Compact new design approximately 1/3 the size of OMRON vertical Limit Switches.
• Structure enables the terminal section to be fully opened for easy wiring.
• RoHS complaint.
• Degree of protection: IP65
last update: December 27, 2013
Purchase the OMRON General-purpose Vertical Please fill in the following
If you have just landed here, this product OMRON D4V Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4V We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4VSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
D4ER-[]N Oil-resistant Limit Switch/Features
K3HB-H Temperature Indicator/Features
NX-ECS[][][] NX-series SSI Input Unit/Features
SRT2-DA02 Analog Output Terminal/Features
D6FZ-FGS Series Air Flow Sensor/Features
OMRON D4V dimension
D4V Small Limit Switch/Dimensionslast update: December 27, 2013
Roller Lever
D4V-8104Z
Rod Lever
D4V-8107Z

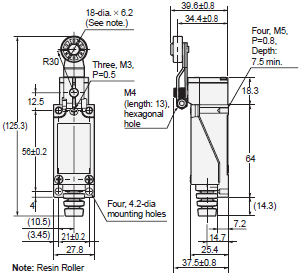

Adjustable Roller Lever
D4V-8108Z

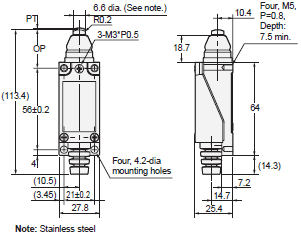

Push Plunger
D4V-8111Z

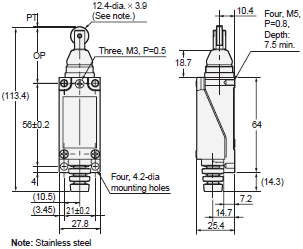

Roller Plunger
D4V-8112Z

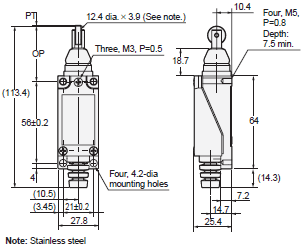

Crossroller Plunger
D4V-8122Z

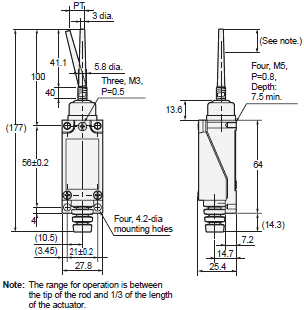

Coil Spring
D4V-8166Z

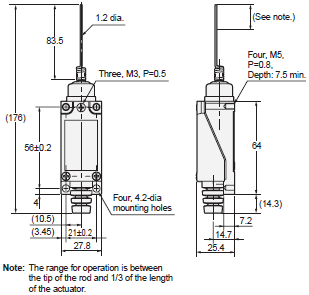

Wire Spring
D4V-8169Z
Note: Unless otherwise specified, the tolerances are ±0.4 mm for the above dimensions for each model.
last update: December 27, 2013
OMRON D4V catalog
D4V Small Limit Switch/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 D4V Data Sheet | C139-E1-01 [386KB] | Apr 28, 200620060428 | D4V Data Sheet |
OMRON D4V lineup
D4V Small Limit Switch/Lineuplast update: December 27, 2013
| Actuator type | Model | |
|---|---|---|
| Roller lever |  | D4V-8104Z |
| Rod lever |  | D4V-8107Z |
| Adjustable roller lever |  | D4V-8108Z |
| Push plunger |  | D4V-8111Z |
| Roller plunger |  | D4V-8112Z |
| Crossroller plunger |  | D4V-8122Z |
| Coil spring |  | D4V-8166Z |
| Wire spring |  | D4V-8169Z |
Note: Metallic roller levers and metallic variable roller levers can also be manufactured.
last update: December 27, 2013
OMRON D4V specification
D4V Small Limit Switch/Specificationslast update: December 27, 2013
Certified Standards
| Certification body | Standard | File No. |
|---|---|---|
| CCC | GB14048.5 | Consult your OMRON representative for details. |
| UL * | UL508, CSA C22.2 No. 14 | |
| TÜV | IEC60947-5-1 |
* Certification equivalent to CSA C22.2 No. 14 has been obtained from UL.
Ratings
| Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | ||||||
|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125 VAC 250 VAC | 5 5 | 1.5 1 | 0.7 0.5 | 3 3 | 2 1.5 | 1 0.8 | ||
| 12 VDC 24 VDC | 5 5 | 3 3 | 4 4 | 3 3 | ||||
| 125 VDC 250 VDC | 0.4 0.4 | 0.2 0.2 | --- --- | --- --- | --- --- | |||
Note: 1. The above current ratings are for steady-state current.
2. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 24 A max. |
|---|---|---|
| NO | 12 A max. |
Ratings for Safety Standard Certification
CCC (GB14048.5), TÜV (EN60947-5-1)
| Category and rating |
|---|
| AC-12: 250 VAC at 5 A, resistive load DC-12: 125 VDC at 0.4 A, resistive load |
UL (UL508, CSA C22.2 No. 14)
| Ratings |
|---|
| 5 A, 250 VAC 0.4 A, 125 VDC |
Characteristics
| Degree of protection | IP65 | |
|---|---|---|
| Durability (See note 3.) | Mechanical | 10,000,000 operations min. |
| Electrical | 300,000 operations min. (5 A at 250 VAC, resistive load) | |
| Operating speed | 5 mm to 0.5 m/s | |
| Operating frequency | Mechanical | 120 operations/min |
| Electrical | 30 operations/min | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 25 mΩ max. (initial value) | |
| Dielectric strength | Between terminals of the same polarity | 1,000 VAC, 50/60 Hz for 1 min |
| Between currentcarrying metal parts and ground | 1,500 VAC, 50/60 Hz for 1 min | |
| Rated insulation voltage (Ui) | 250 V | |
| Pollution degree (application environment) | 3 (EN 60947-5-1) | |
| Short-circuit protection device | 10-A fuse, gG or gI (IEC 269) | |
| Conditional short-circuit current | 100 A (EN 60947-5-1) | |
| Rated open thermal current (lth) | 5 A (EN 60947-5-1) | |
| Electric shock protection class | Class I | |
| Rated frequency | 50/60 Hz | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude (See note 4.) |
| Shock resistance | Destruction | 1,000 m/s2 (free position) min. |
| Malfunction | 300 m/s2 (operation limit position) min. (See note 4.) | |
| Ambient operating temperature range | -20°C to 60°C (with no icing) | |
| Ambient operating humidity range | 90% max. | |
| Weight | Approx. 130 to 190 g | |
Note: 1. The above values are initial values.
2. The above characteristics may vary depending on the model. Contact your OMRON representative for further
details.
3. Durability values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40%
to 70%.
4. Except for the coil spring model and wire spring model
Operating Characteristics
| Model | D4V-8104Z | D4V-8107Z | D4V-8108Z | D4V-8111Z | |
|---|---|---|---|---|---|
| Operating characteristics | |||||
| Operating force | OF max. | 5.88 N | 5.88 N | 7.84 N | 9.8 N |
| Release force | RF min. | 0.49 N | 0.69 N | 0.49 N | 2.94 N |
| Pretravel | PT max. | 20° | 20° | 20° | 1.5 mm |
| Overtravel | OT min. | 75° | 75° | 75° | 4 mm |
| Movement differential | MD max. | 10° | 10° | 10° | 1.2 mm |
| Total travel | TT min. | 95° | 95° | 95° | 5.5 mm |
| Operating position | OP | --- | --- | --- | 26±0.8 mm |
| Model | D4V-8112Z | D4V-8122Z | D4V-8166Z | D4V-8169Z | |
|---|---|---|---|---|---|
| Operating characteristics | |||||
| Operating force | OF max. | 9.8 N | 9.8 N | 0.88 N | 0.88 N |
| Release force | RF min. | 2.94 N | 2.94 N | --- | --- |
| Pretravel | PT max. | 1.5 mm | 1.5 mm | 30 mm | 30 mm |
| Overtravel | OT min. | 4 mm | 4 mm | --- | --- |
| Movement differential | MD max. | 1.2 mm | 1.2 mm | --- | --- |
| Total travel | TT min. | 5.5 mm | 5.5 mm | --- | --- |
| Operating position | OP | 37±0.8 mm | 37±0.8 mm | --- | --- |
Note: The operating characteristics of the D4V-8107 are measured with a lever length of 30 mm. The operating
characteristics of the D4V-8108 are measured with a lever length of R30.
last update: December 27, 2013
