• New center roller lever models that enable ganged mounting of up to 6 Switches.
• Cable connectors for easy Switch replacement.
• Triple-seal construction to provide IEC IP67 degree of protection.
• Operation indicators available for easy monitoring (standard indicator is lit when Switch is not operating).
• Approved by UL and CSA. (Ask your OMRON representative for Information on approved models.)
last update: December 19, 2013
Purchase the OMRON General-purpose Vertical Please fill in the following
If you have just landed here, this product OMRON D4CC Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4CC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4CCSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
LVS-9510 Series Code Verification System/Features
G7SA Relays with Forcibly Guided Contacts/Features
CJ1M-CPU2[] CJ-series CJ1M CPU Units (with Built-in I/O)/Features
CJ1W-FLN22 CJ-series FL-net Unit/Features
K8DT-VW Single-phase Overvoltage/Undervoltage Relay/Features
OMRON D4CC lineup
D4CC Miniature Limit Switch/Lineuplast update: May 17, 2017
Switches
Limit Switches
| Ratings | 1 A at 125 VAC | 1 A at 30 VDC | |||
|---|---|---|---|---|---|
| LED indicator | Without indicator | With indicator | Without indicator | With indicator | |
| Actuator | Model | Model | Model | Model | |
| Pin plunger |  | D4CC-1001 | D4CC-2001 | D4CC-3001 | D4CC-4001 |
| Roller plunger |  | D4CC-1002 | D4CC-2002 | D4CC-3002 | D4CC-4002 |
| Crossroller plunger |  | D4CC-1003 | D4CC-2003 | D4CC-3003 | D4CC-4003 |
| High-sensitivity roller lever |  | D4CC-1024 | D4CC-2024 | D4CC-3024 | D4CC-4024 |
| Sealed pin plunger |  | D4CC-1031 | D4CC-2031 | D4CC-3031 | D4CC-4031 |
| Sealed roller plunger |  | D4CC-1032 | D4CC-2032 | D4CC-3032 | D4CC-4032 |
| Sealed crossroller plunger |  | D4CC-1033 | --- | D4CC-3033 | D4CC-4033 |
| Plastic rod |  | D4CC-1050 | D4CC-2050 | D4CC-3050 | D4CC-4050 |
| Center roller lever |  | D4CC-1060 | D4CC-2060 | D4CC-3060 | D4CC-4060 |
Note: 1. Ask your OMRON representative for Information on approved models.
2. The meaning of suffix codes in the D4CC model numbers is different from that in the D4C model numbers.
3. Refer to the following table for cable plugs.
Applicable Cables
| Type | For AC | For DC | ||
|---|---|---|---|---|
| Appearance | No. of conductors | Cable length | Model | Model |
Straight | 4 | 1 m | XS2F-A421-C90-F | XS2F-D421-C80-F |
| 2 m | XS2F-A421-D90-F | XS2F-D421-D80-F | ||
| 5 m | XS2F-A421-G90-F | XS2F-D421-G80-F | ||
| 10 m | XS2F-A421-J90-F | XS2F-D421-J80-F | ||
Special Mounting Plate (Order Separately)
It is possible to replace an WL/WL-N Limit Switch with a D4CC Limit Switch mounted on this plate without changing the position of the dog or cam.
List of Replaceable Models
| WL/WL-N model (Actuator) | D4CC model (Actuator) | Plate |
|---|---|---|
| WLD WLD18-N (Top plunger) | D4CC- [] 001 (Plunger) | D4C-P001 |
| WLD2 WLD28-N (Top roller plunger) | D4CC- [] 002 (Roller plunger) | D4C-P002 |
| WLCA2 WLCA2-N (Roller lever) | D4CC- [] 024 (Roller lever) | D4C-P020 |

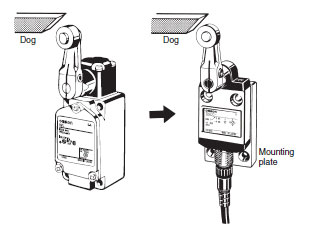

Example of Replacement
Note: The position of the dog remains unchanged.
last update: May 17, 2017
OMRON D4CC specification
D4CC Miniature Limit Switch/Specificationslast update: November 15, 2012
Ratings
| Rated voltage | Non-inductive load (A) | Inductive load (A) | ||||||
|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125 VAC | 1 | 1 | 1 | 0.7 | 1 | 1 | 1 | 1 |
| 30 VDC | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp loads have an inrush current of 10 times the steady-state current.
4. Motor loads have an inrush current of 6 times the steady-state current.
D4CC-3, D4CC-4, 1 A at 30 VDC
| Inrush current | NC | 5 A max. |
|---|---|---|
| NO | 2.5 A max. |
Characteristics
| Degree of protection | IP67 | |
|---|---|---|
| Durability *1 | Mechanical | 10,000,000 operations min. |
| Electrical | 200,000 operations min. (1 A at 125 VAC, resistive load) | |
| Operating speed | 0.1 mm/s to 0.5 m/s (in case of plunger) 1 mm/s to 1 m/s (in case of roller lever) | |
| Operating frequency | Mechanical | 120 operations/min |
| Electrical | 30 operations/min | |
| Rated frequency | 50/60 Hz | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance (initial) | 100 mΩ max. | |
| Dielectric strength | Between terminals of same polarity | 1,000 VAC, 50/60 Hz for 1 min |
| Between current-carrying metal parts and ground | 1,500 VAC, 50/60 Hz for 1 min | |
| Between each termi-nal and non- current-carrying metal part | 1,500 VAC, 50/60 Hz for 1 min | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude *2 |
| Shock resistance | Destruction | 1,000 m/s2 max. |
| Malfunction | 500 m/s2 max. *2 | |
| Ambient operating temperature | -10°C to +70°C (with no icing) | |
| Ambient operating humidity | 35% to 95%RH | |
| Weight | Approx. 120 g (in the case of D4CC-1002) | |
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to
70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Excluding plastic rod models.
Leakage Current for Switches with Indicators
The leakage current and resistance of Switches with indicators are as follows:
| Item Model | D4CC-2[][][] | D4CC-4[][][] |
|---|---|---|
| Voltage | 125 VAC | 30 VDC |
| Leakage current | 1.0 mA | 1.0 mA |
| Resistive value | 150 k Ω | 30 k Ω |
last update: November 15, 2012
OMRON D4CC dimension
D4CC Miniature Limit Switch/Dimensionslast update: May 17, 2017
(Unit: mm)
Switches
Limit Switches
The [] in each model number is replaced with the code expressing the rated load of the model. Refer to Model Number Legend.
Pin Plunger

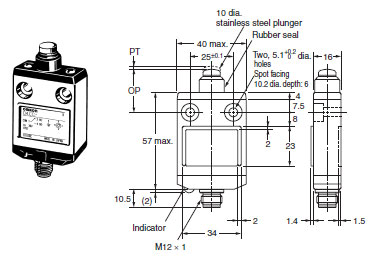

D4CC-[]001

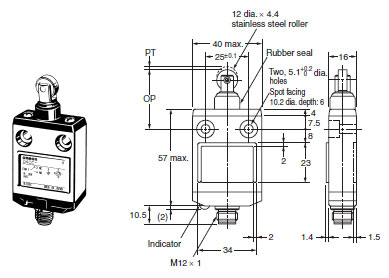

Roller Plunger

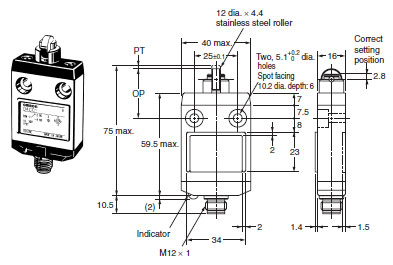

D4CC-[]002
Crossroller Plunger

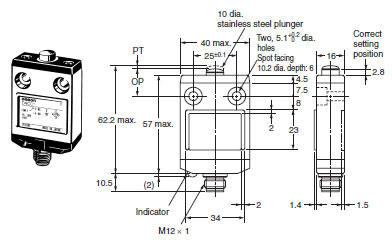

D4CC-[]003

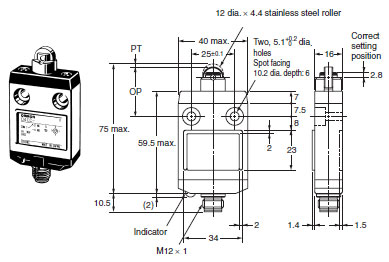

Roller Lever

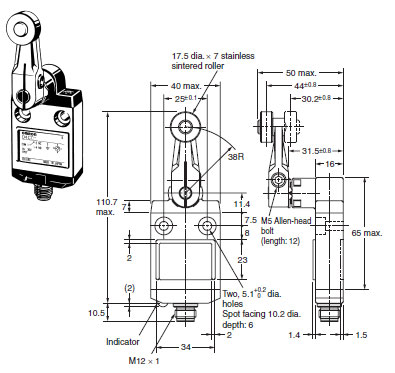

D4CC-[]024
Sealed Pin Plunger
D4CC-[]031
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Sealed Roller Plunger

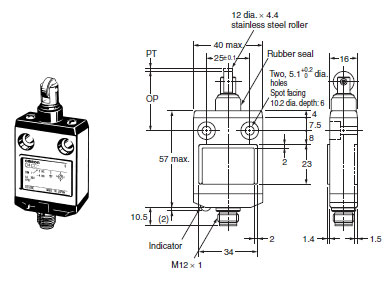

D4CC-[]032
Sealed Crossroller Plunger
D4CC-[]033
Plastic Rod

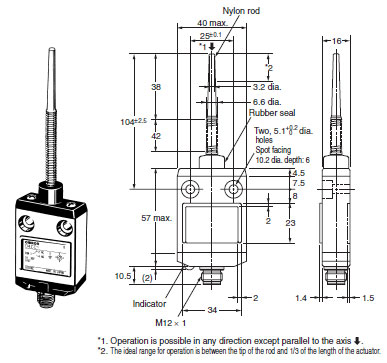

D4CC-[][]50
Center Roller Lever
D4CC-[][]60

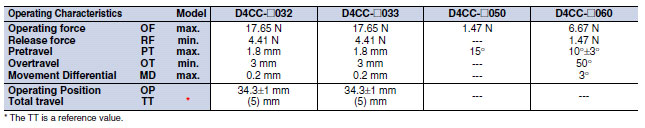

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

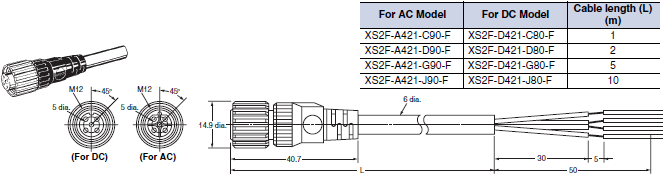

Applicable Cables
Select one of the specified Connector Plugs from the following table.
XS2F-D421-[]80-F (For DC)
XS2F-A421-[]90-F (For AC)
Special Mounting Plates (Limit Switches are not attached to the Plates.)

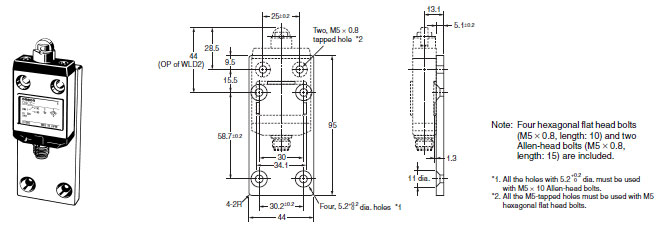

D4C-P001 (For D4CC-[]001)

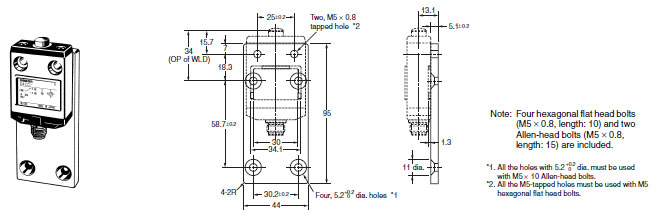

D4C-P002 (For D4CC-[]002)
