General-purpose Switches
A Wide Range of Models
You can select the optimum product for the workpiece shape and movement from a variety of actuators, including Roller Lever, Plunger, Flexible Rod, and Fork Lock Lever Switches.
Environment-resistant Switches
Six environment resistant models are available
Airtight Switches, Hermetic Switches, Heat-resistant Switches, Low-temperature Switches, Corrosion-proof Switches, and Weather-proof Switches are available.
You can select the model based on the onsite environment.
Spatter-prevention Switches
Ideal for Welding Sites
Uses stainless steel and plastic materials that prevent the adhesion of spatter.
They can be used to reduce problems caused by zinc power generated during welding.
Long-life Switches
Long-life Models for High-frequency Applications
A mechanical durability of over 30 million cycles is achieved by improving slidability and the wear resistance of the head.
Features Common
DPDB Operation
The two-circuit double-break structure ensures circuit braking.
• Basic/Retention type Switches (WL-N)
• High-sensitivity/High-precision Switches (WL)
Degree of Protection; IP67
Models with Connectors to Reduce Wiring
A neon lamp or LED indicates the operating status. This makes startup checks and maintenance easy.
Sensor I/O Connector Models to Match Wiring Specifications
Direct-wire types and pre-wired types are available for easy replacement of limit switches.
last update: April 10, 2017
Purchase the OMRON General-purpose Vertical Please fill in the following
If you have just landed here, this product OMRON WL-N / WL Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the WL-N / WL We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON WL-N / WLSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3NX-FA Smart Fiber Amplifier Units/Features
Z4W-V LED Displacement Sensor/Features
E2EC Cable Amplifier Proximity Sensor/Features
G9SX Flexible Safety Unit/Features
H3DT-F Twin Timer/Features
OMRON WL-N / WL dimension
WL-N / WL Two-circuit Limit Switch/Dimensionslast update: December 11, 2017
(Unit: mm)
Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
General-purpose and Environment-resistant Switches
Standard Switches
Switches with Roller Lever Actuators
Basic Switches

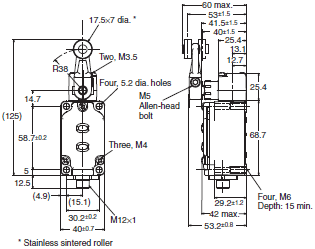

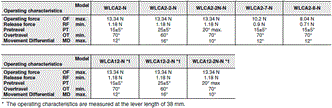

Roller lever R38
WLCA2-N
WLCA2-2-N
WLCA2-2N-N

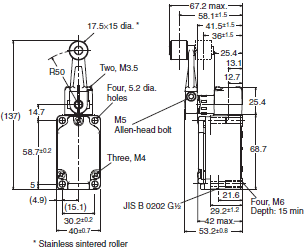

Roller lever R50
WLCA2-7-N

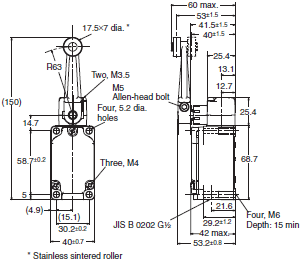

Roller lever R63
WLCA2-8-N

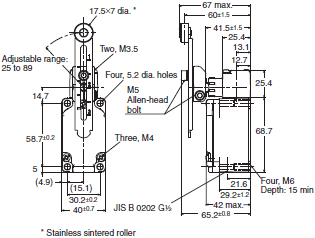

Adjustable roller lever
WLCA12-N
WLCA12-2-N
WLCA12-2N-N

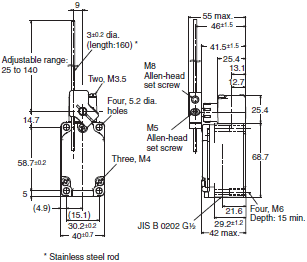

Adjustable rod lever 25 to 140 mm
WLCL-N
WLCL-2-N
WLCL-2N-N

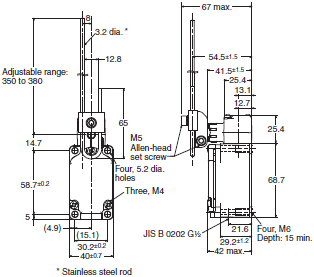

Adjustable rod lever
WLCAL4-N
Rod spring lever
WLCAL5-N

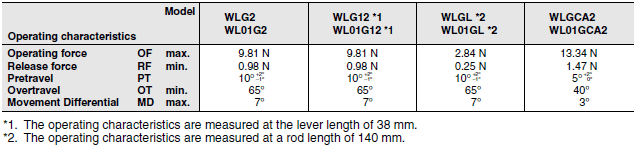

High-sensitivity Switches
Roller lever R38
WLG2
WL01G2
Adjustable rod lever 25 to 140 mm
WLGL
WL01GL
Adjustable Roller Lever
WLG12
WL01G12
Switches with High-precision Actuators
Roller lever R38
WLGCA2
WL01GCA2
Switches with Plunger Actuators
Basic Switches

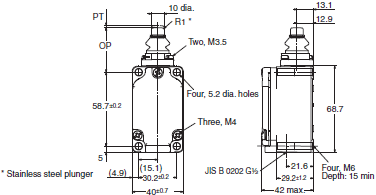

Sealed top plunger
WLD18-N
Horizontal plunger
WLSD-N
Sealed top-roller plunger
WLD28-N

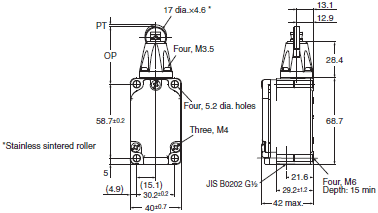

Horizontal-roller plunger
WLSD2-N
Sealed top-ball plunger
WLD38-N

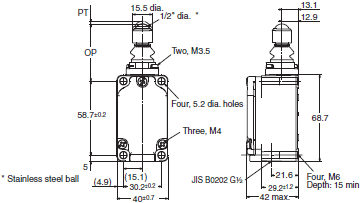

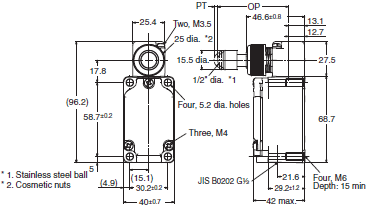

Horizontal-ball plunger
WLSD3-N
Top-roller plunger
WLD2-N
Switches with Flexible Rod Actuators
Basic Switches

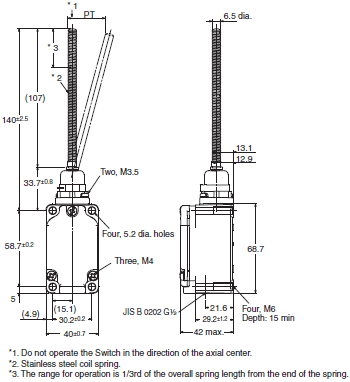

Coil spring
WLNJ-N
Coil Spring (Multi-wire)
WLNJ-30-N

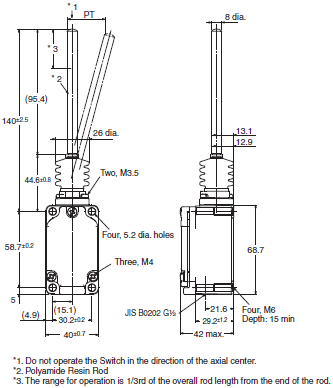

Resin rod
WLNJ-2-N

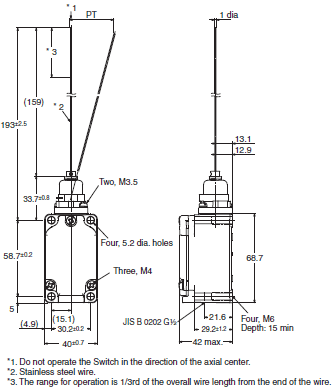

Steel wire
WLNJ-S2-N
Switches with Fork Lock Lever Actuators
Retention type Switches
General-purpose
WLCA32-41-N
WLCA32-42-N
WLCA32-43-N
WLCA32-44-N

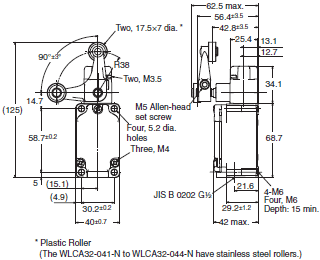

The WLCA32-41-N is shown in the following diagram.
Operation indicator Switches
Switches with Roller Lever Actuators
Basic Switches
Roller lever R38
General-purpose Models
WLCA2-LD-N
WLCA2-LE-N
Sensor I/O Connector Switches
(For details about applicable cables, refer to Connecting Sensor I/O Connectors Cable and Socket on Data Sheet.)
Switches with Roller Lever Actuators
Basic Switches
Roller lever R38
Direct-wire Connector type
WLCA2-LDK13-N

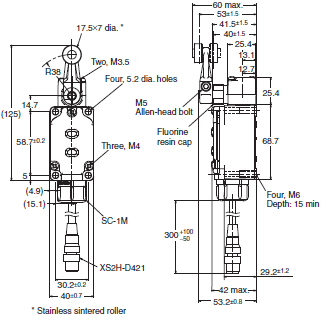

Roller lever R38

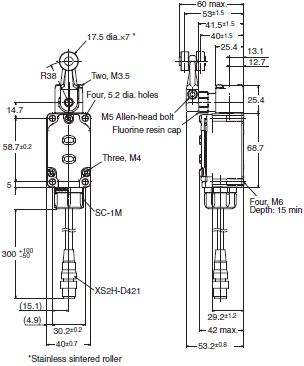

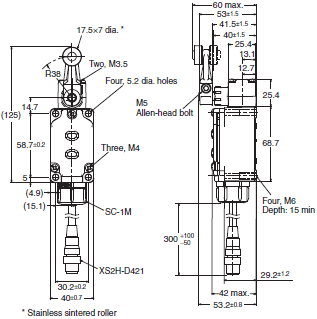

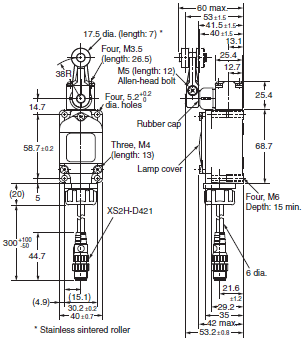

Pre-wired Connector type
WLCA2-LD-M1J-N
Note: The models with operation indicators are shown in the above diagrams.
High-sensitivity and High-precision Switches
Roller lever R38
Direct-wire Connector type
High-sensitivity: WLG2
High-precision: WLGCA2
Roller lever R38
Pre-wired Connector type
High-sensitivity: WLG2
High-precision: WLGCA2

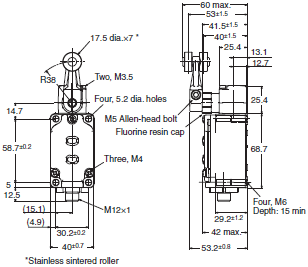

Spatter-prevention Switches
Switches with Roller Lever Actuators
Basic Switches

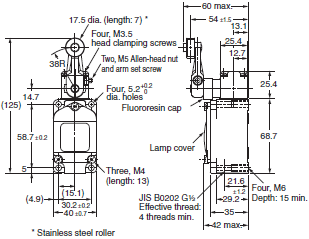

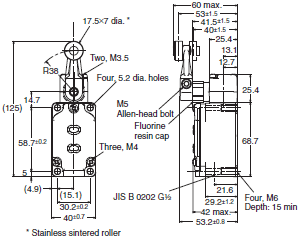

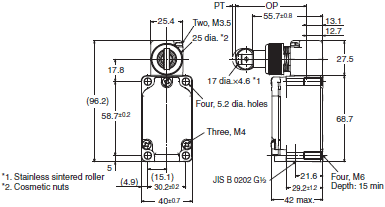

Roller lever R38
Screw terminal type
WLCA2-[]S-N

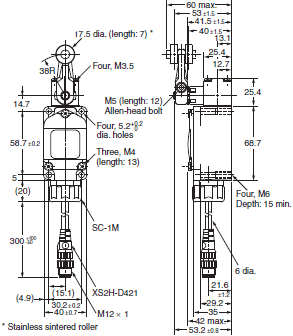

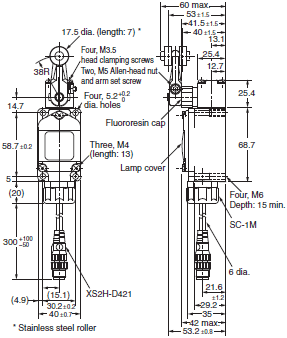

Roller lever R38
Pre-wired Connector type
WLCA2-[]S-M1J-1-N
Note: The models with operation indicators are shown in the above diagrams.
High-sensitivity/High-precision Switches
Roller lever R38
Screw terminal type
WLG2-[]S
WLGCA2-[]S
Roller lever R38
Pre-wired Connector type
WLG2-[]S-M1J *
WLGCA2-[]S-M1J *
* External dimensions are the same even for different core wires.
Switches with Plunger Actuators
Basic Switches

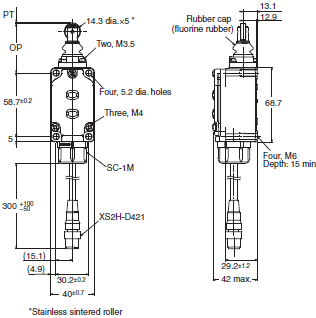

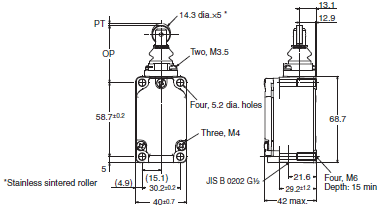

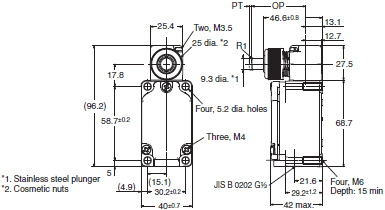

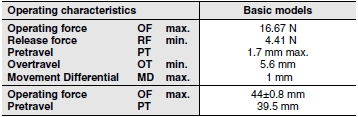

Sealed top-roller plunger
Screw terminal type
WLD28-[]S-N
Sealed top-roller plunger
Pre-wired Connector type
WLD28-[]S-M1J-1-N
Note: The models with operation indicators are shown in the above diagrams.
Long-life Switches
Switches with Roller Lever Actuators
Basic Switches
Roller lever R38
Screw terminal type
WLMCA2-LD-N
Roller lever R38
Direct-wire Connector type
WLMCA2-LDK13-N
Roller lever R38
Pre-wired Connector type
WLMCA2-LD-M1J-N
Note: The models with operation indicators are shown in the above diagrams.
High-sensitivity and High-precision Switches
Roller lever R38
Screw terminal type
WLMG[]-LD
Roller lever R38
Direct-wire Connector type
WLMG[]-LD[]
Roller lever R38
Pre-wired Connector type
WLMG[]-LD[]
Actuators (Levers Only)
Lever: Only rotating lever models are illustrated.
WL-1A100
Standard Lever
WL-1A115
Resin Roller
WL-1A400
Bearing Roller
WL-1A118
Nylon Roller:
Roller Width: 30 mm
WL-1A105
Double Nuts
WL-1A103S
Spatter Prevention
WL-1A200
Lever Length: 50
Roller Width: 15
WL-1A300
Lever Length: 63
WL-2A100
WL-2A111
Resin Roller
WL-2A107
Double Nuts
WL-2A108
Resin Roller
WL-2A122
WL-2A106
WL-2A130
WL-2A104
WL-2A110
WL-2A105
WL-1A106
WL-1A110
WL-4A100
WL-4A201
WL-3A100
WL-3A106
Double Nut
WL-3A108
WL-3A200
WL-3A203
WL-4A112
WL-2A129
WL-5A101
WL-5A103
WL-5A105
Note: When using the adjustable roller (rod) lever, make sure that the lever is facing downwards.
Use caution, as telegraphing (the Switch turns ON and OFF repeatedly due to inertia) may occur.

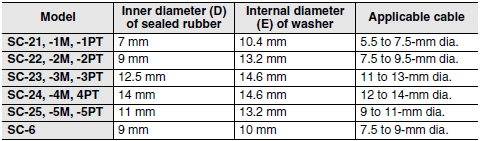

Limit Switch Connectors
Connectors for Cabtire Cable
As for models without an O-ring, please use sealing tape with SC Connectors.
Metal Models without O-ring
G½
SC-21 to 25
Metal Models with O-ring
G½
SC-1M to 5M
Metal Models without O-ring
½-14NPT
(U.S.-standard screws)
SC-1PT to 5PT
Simple Connectors (Not Suitable for Locations Subject to Oil or Water)
Resin Models
G½
SC-P2
Resin Models
Pg13.5
SC-P3
Resin Models
G½
SC-6
* Diameter of Part Marked with Asterisk
last update: December 11, 2017
OMRON WL-N / WL specification
WL-N / WL Two-circuit Limit Switch/Specificationslast update: April 2, 2018
General-purpose/Environment-resistant Switches
Ratings
Wiring Specifications
Screw terminal types
Standard-load Switches (excluding micro-load Switches)
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |||
| Basic | AC | 125 250 500 | 10 10 10 | 3 2 1.5 | 1.5 1 0.8 | 10 10 3 | 5 3 1.5 | 2.5 1.5 0.8 | ||
| DC | 8 14 30 125 250 | 10 10 6 0.8 0.4 | 6 6 4 0.2 0.1 | 3 3 3 0.2 0.1 | 10 10 6 0.8 0.4 | 6 6 4 0.2 0.1 | ||||
| High-sensitivity High-precision *1 | AC | 125 250 | 5 5 | ---- | ---- | ---- | ||||
| DC | 125 250 | 0.4 0.2 | ---- | ---- | ---- | |||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 30 A max. (15 A max. *1) |
|---|---|---|
| NO | 20 A max. (10 A max. *1) |
*1. For High-sensitivity and High-precision Switches.
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, resistive load, N level reference value |
Micro-load Switches (Refer to these ratings before using the product.)
| Rated voltage (V) | Rated current (A) - Resistive load |
|---|---|
| AC125 | 0.1 |
| DC 30 |
Note: The load is a resistive load.
Operation in the following ranges will produce optimum performance.
| Recommended load range | 5 to 30 VDC 0.16 to 100 mA |
|---|
| Operating characteristics | Minimum applicable load |
|---|---|
| High-sensitivity, High-precision | 5 VDC 1 mA N level reference value |
Direct-wired connector and Pre-wired Connector type
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| Basic | AC 115 | 3 | 3 | 1.5 | 3 | 3 | 2.5 | ||
| DC 12 DC 24 DC 115 | 3 3 0.8 | 3 3 0.2 | 3 3 0.8 | 3 3 0.2 | |||||
| High-sensitivity High-precision *1 | AC 115 | 3 | ---- | ---- | ---- | ||||
| DC 115 | 0.4 | ---- | ---- | ---- | |||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 3 A max. |
|---|---|---|
| NO | 3 A max. |
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, RESISTIVE Load, N level reference value |
Operation indicator Switches
Operation Indicator
| Model | Max. rated voltage | Leakage current (Reference value) | |
|---|---|---|---|
| WL-LE-N WL-LE | Neon lamp | 125 to 250 VAC | Approx. 0.6 mA at 125 VAC; Approx. 1.9 mA at 250 VAC |
| WL-LD-N WL-LW-N WL-LD | LED | 10 to 115 VAC/DC | Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC |
Characteristics
| Degree of protection | IP67 | |
|---|---|---|
| Durability *1 | Mechanical | 15,000,000 operations min. *2 |
| Electrical | 750,000 operations min. (3 A at 250 VAC, resistive load) *3 | |
| Operating speed | 1 mm to 1 m/s (for WLCA2-N) | |
| Operating frequency | Mechanical | 120 operations/minute min. |
| Electrical | 30 operations/minute min. | |
| Rated frequency | 50/60 Hz | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 25 mΩ max. (initial value for the built-in switch when tested alone) | |
| Dielectric strength | Between terminals of the same polarity | 1,000 VAC (600 VAC) 50/60 Hz 1 min |
| Between currentcarrying metal part and ground | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *5 | |
| Between each terminal and non-currentcarrying metal part | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *5 | |
| Vibration resistance | Malfunction | 10 to 55 hz, 1.5-mm double amplitude *6 |
| Shock resistance | Destruction | 1,000 m/s2 max. |
| Malfunction | 300 m/s2 *6 | |
| Ambient operating temperature | -10 to +80°C (with no icing) *7 | |
| Ambient operating humidity | 35% to 95% RH | |
| Weight | Approx. 255 g (for WLCA2-N) | |
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the high-sensitivity and high-precision switches
models.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70% RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. High-sensitivity models and Flexible Rod models: 10 million operations min.
500,000 operations min. for Weather-resistant models.
*3. High-sensitivity models, High-precision models, and Weatherproof models are 500,000 operations min.
Micro-load models are 1 million operations min.
Contact your OMRON representative for information on Airtight models and Hermetic models.
*4. Micro-load models and Weather-proof models are 50 mΩ or less (default value, built-in switch only).
*5. Sensor I/O connector type is 1,500 V.
*6. Except Flexible Rod models. Micro-load models are 200 m/s2 max.
*7. For low-temperature models this is –40°C to +40°C (with no icing).
For heat-resistant models the range is +5°C to +120°C.
Spatter-prevention Switches
Ratings
Wiring Specifications
Screw terminal types
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |||
| WL[]-LES-N | AC | 125 250 | 10 (5) 10 (5) | 3 2 | 1.5 1 | 10 10 | 5 3 | 2.5 1.5 | ||
| WL[]-LDS-N | AC | 115 | 10 (5) | 3 | 1.5 | 10 | 5 | 2.5 | ||
| DC | 12 24 115 | 10 6 0.8 (0.4) | 6 4 0.2 | 3 3 0.2 | 10 6 0.8 | 6 4 0.2 | ||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.
5. The figures in parentheses for resistive load are those for the high-sensitivity and high-precision switches models.
| Inrush current | NC | 30 A max. (15 A max. *) |
|---|---|---|
| NO | 20 A max. (10 A max. *) |
* For High-sensitivity and High-precision Switches.
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, Resistive load, N level reference value |
Direct-wired connector and Pre-wired Connector type
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |||
| Basic | AC | 115 | 3 | 3 | 1.5 | 3 | 3 | 2.5 | ||
| DC | 12 24 115 | 3 3 0.8 | 3 3 0.2 | 3 3 0.8 | 3 3 0.2 | |||||
| High-sensitivity High-precision *1 | AC | 115 | 3 | ---- | ---- | ---- | ||||
| DC | 115 | 0.4 | ---- | ---- | ---- | |||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 3 A max. |
|---|---|---|
| NO | 3 A max. |
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, Resistive load, N level reference value |
Operation indicator Switches
Operation Indicator
| Model | Max. rated voltage | Leakage current (Reference value) | |
|---|---|---|---|
| WL-LES-N WL-LE | Neon lamp | 125 to 250 VAC | Approx. 0.6 mA at 125 VAC; Approx. 1.9 mA at 250 VAC |
| WL-LDS-N WL-LD | LED | 10 to 115 VAC/DC | Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC |
Characteristics
| Degree of protection | IP67 | |
|---|---|---|
| Durability *1 | Mechanical | 15,000,000 operations min. *2 |
| Electrical | 750,000 operations min. (3 A at 250 VAC, resistive load) *3 | |
| Operating speed | 1 mm to 1 m/s (in case of WLCA2-LDS-N) | |
| Operating frequency | Mechanical | 120 operations/minute min. |
| Electrical | 30 operations/minute min. | |
| Rated frequency | 50/60 Hz | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 25 mΩ max. (initial value for the built-in switch) | |
| Dielectric strength | Between terminals of the same polarity | 1,000 VAC (600 VAC) 50/60 Hz 1 min |
| Between currentcarrying metal part and ground | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *4 | |
| Between each terminal and non- currentcarrying metal part | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *4 | |
| Vibration resistance | Malfunction | 10 to 55 hz, 1.5-mm double amplitude |
| Shock resistance | Destruction | 1,000 m/s2 max. |
| Malfunction | 300 m/s2 max. | |
| Ambient operating temperature | -10 to +80°C (with no icing) | |
| Ambient operating humidity | 35% to 95% RH | |
| Weight | Approx. 255 g (in case of WLCA2-LDS-N) | |
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the high-sensitivity and high-precision switches
models.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70% RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. High-sensitivity models are 10 million operations min.
*3. High-sensitivity models and High-precision models are 500,000 operations min.
Micro-load models are 10 million operations min.
Contact your OMRON representative for information on Airtight switches.
*4. Sensor I/O connector type is 1,500 V.
Long-life Switches
Ratings
Wiring Specifications
Screw terminal type
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |||
| Basic | AC | 115 | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||
| DC | 12 24 115 | 10 6 0.8 | 6 4 0.2 | 3 3 0.2 | 10 6 0.8 | 6 4 0.2 | ||||
| High-sensitivity High-precision * | AC | 115 | 5 | — | — | — | ||||
| DC | 115 | 0.4 | — | — | — | |||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
A motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 30 A max. (15 A max. *) |
|---|---|---|
| NO | 20 A max. (10 A max. *) |
* For High-sensitivity and High-precision Switches.
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, Resistive load, N level reference value |
Direct-wired connector and Pre-wired Connector type
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |||
| Basic | AC | 115 | 3 | 3 | 1.5 | 3 | 3 | 2.5 | ||
| DC | 12 24 115 | 3 3 0.8 | 3 3 0.2 | 3 3 0.8 | 3 3 0.2 | |||||
| High-sensitivity High-precision *1 | AC | 115 | 3 | ---- | ---- | ---- | ||||
| DC | 115 | 0.4 | ---- | ---- | ---- | |||||
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. A lamp load has an inrush current of 10 times the steady-state current.
4. A motor load has an inrush current of 6 times the steady-state current.
| Inrush current | NC | 3 A max. |
|---|---|---|
| NO | 3 A max. |
| Operating characteristics | Minimum applicable load |
|---|---|
| Basic | 5 VDC 1 mA, resistive load, P level |
| High-sensitivity, High-precision | 5 VDC 160 mA, Resistive load, N level reference value |
Operation indicator Switches
Operation Indicator
| Model | Max. rated voltage | Leakage current (Reference value) | |
|---|---|---|---|
| WL-LD-N WL-LW-N WL-LD | LED | 10 to 115 VAC/DC | Approx. 0.4 mA at 10 VAC/DC; Approx. 0.5 mA at 115 VAC/DC |
Characteristics
| Degree of protection | IP67 | |
|---|---|---|
| Durability *1 | Mechanical | 30,000,000 operations min. |
| Electrical | 30,000,000 operations min. (10 mA at 24 VDC, resistive load) 750,000 operations min. (3 A at 115 VAC, resistive load), but for high- precision models: High-sensitivity and High-precision Switches: 500,000 operations min. | |
| Operating speed | 1 mm to 1 m/s (in case of WLMCA2-LD-N) | |
| Operating frequency | Mechanical | 120 operations/min. |
| Electrical | 30 operations/min. | |
| Rated frequency | 50/60 Hz | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 25 mΩ max. (initial value for the built-in switch when tested alone) *2 | |
| Dielectric strength (50/60 Hz for 1 min) | Between terminals of the same polarity | 1,000 VAC (600 VAC), 50/60 Hz 1 min |
| Between currentcarrying metal part and ground | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *3 | |
| Between each terminal and non-currentcarrying metal part | 2,200 VAC (1,500 VAC) 50/60 Hz 1 min *3 | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction | 1,000 m/s2 max. |
| Malfunction | 300 m/s2 max. *4 | |
| Ambient operating temperature | -10 to +80°C (with no icing) | |
| Ambient operating humidity | 35% to 95% RH | |
| Weight | Approx. 255 g (in case of WLMCA2-LD-N) | |
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the high-sensitivity and high-precision switches
models.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70% RH.
Contact your OMRON sales representative for more detailed information on other operating environments.
*2. For microload models, the contact resistance is 50 mΩ max. (initial value for built-in switch).
*3. Sensor I/O connector models are 1,500 V.
*4. Micro-load models are 200 m/s2 max.
General-purpose/Environment-resistant/Spatter-prevention/Long-life Switches
Approved Standards
| Agency | Standard | File No. | Approved models |
|---|---|---|---|
| UL | UL508 | Contact your OMRON representative for information | Contact your OMRON representative for information |
| CSA cUL | CSA C22.2 No.14 | ||
| TÜV Rheinland | EN60947-5-1 | ||
| CCC (CQC) | GB14048.5 |
Approved Standard Ratings
UL/cUL, CSA (UL508, CSA C22.2 No.14)
| Specifications | Approved Standards | ||
|---|---|---|---|
| Indicator | Sensor I/O connectors | Item | |
| No indicator | No Connector | Basic Switches | A600 1 A, 125 VDC |
| High-sensitivity or high-precision | A600 | ||
| Pre-wired Connector (AC) | Basic, high-sensitivity or high-precision | C300 3 A, 250 VAC | |
| Pre-wired Connector (DC) Direct-wired Connector (DC) | Basic Switches | 1 A, 125 VDC | |
| High-sensitivity or high-precision | 0.8 A, 125 VDC | ||
| Neon lamp | No Connector | Basic Switches | A300 10 A, 250 VAC |
| High-sensitivity or high-precision | |||
| Pre-wired Connector (AC) | Basic, high-sensitivity or high-precision | C300 3 A, 250 VAC | |
| LED | No Connector | Basic Switches | A150 10 A, 115 VAC 1 A, 115 VDC |
| High-sensitivity or high-precision | A150 10 A, 115 VAC 0.8 A, 115 VDC | ||
| Pre-wired Connector (AC) | Basic, high-sensitivity or high-precision | C150 3 A, 115 VAC | |
| Pre-wired Connector (DC) Direct-wired Connector (DC) | Basic Switches | 1 A, 115 VDC | |
| High-sensitivity or high-precision | 0.8 A, 115 VDC | ||
A600 Authentication conditions
| Rated voltage | Energizing current | Current (A) | Volt-ampere (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC 240 VAC 480 VAC 600 VAC | 10 A | 60 30 15 12 | 6 3 1.5 1.2 | 7,200 | 720 |
C300 Authentication conditions
| Rated voltage | Energizing current | Current (A) | Volt-ampere (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC 240 VAC | 2.5 A | 15 7.5 | 1.5 0.75 | 1,800 | 180 |
A300 Authentication conditions
| Rated voltage | Energizing current | Current (A) | Volt-ampere (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC 240 VAC | 10 A | 60 30 | 6 3 | 7,200 | 720 |
A150 Authentication conditions
| Rated voltage | Energizing current | Current (A) | Volt-ampere (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC | 10 A | 60 | 6 | 7,200 | 720 |
C150 Authentication conditions
| Rated voltage | Energizing current | Current (A) | Volt-ampere (VA) | ||
|---|---|---|---|---|---|
| Make | Break | Make | Break | ||
| 120 VAC | 2.5 A | 15 | 1.5 | 1,800 | 180 |
TÜV (EN 60947-5-1)
(Certification Only for Switches with Ground Terminals and DC Switches with Connectors)
| Authentication conditions | Specification | |||||
|---|---|---|---|---|---|---|
| With ground terminals | With DC Connector | |||||
| No indicator | Neon lamp | LED | ||||
| Working load category | AC-15 | DC-12 | AC-15 | AC-15 | DC-12 | DC-12 |
| Rated working voltage (Ue) | 250 V | 48 V | 250 V | 115 V | 48 V | 48 V |
| Rated working current (Ie) | 2 A | |||||
| Conditional short-circuit current | 100 A | |||||
| Short-circuit protective device (SCPD) | 10 A, fuse type gG | |||||
| Rated insulation voltage (Ui) | 250 V | 48 V | ||||
| Rated impulse dielectric strength (Uimp) | 4 kV | 800 V | ||||
| Pollution degree | 3 | |||||
| Electric shock protection class | Class I | Class III | ||||
CCC (GB14048.5)
| Authentication conditions | Specification | ||||||
|---|---|---|---|---|---|---|---|
| No indicator | Neon lamp | LED | With DC Connector | With AC Connector | |||
| Working load category | AC-15 | DC-13 | AC-15 | AC-15 | DC-13 | DC-13 | AC-15 |
| Rated working voltage (Ue) | 250 V | 48 V | 250 V | 250 V | 48 V | 48 V | 250 V |
| Rated working current (Ie) | 2 A | ||||||
| Conditional short-circuit current | 1000 A | ||||||
| Short-circuit protective device (SCPD) | 10 A, fuse type gG | ||||||
| Rated insulation voltage (Ui) | 250 V | ||||||
last update: April 2, 2018
OMRON WL-N / WL catalog
WL-N / WL Two-circuit Limit Switch/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 WL-N/WL Data Sheet | C151-E1-02 [11438KB] | Oct 15, 201820181015 | WL-N/WL Data Sheet |
OMRON WL-N / WL lineup
WL-N / WL Two-circuit Limit Switch/Lineuplast update: October 15, 2018
General-purpose Switches
Standard Switches
Switches with Roller Lever Actuators
Basic Switches
| Actuator | Roller lever: R38 | Roller lever: R50 | Roller lever: R63 |
|---|---|---|---|
| Pretravel (PT) | Model | Model | Model |
| 15±5° | WLCA2-N | WLCA2-7-N | WLCA2-8-N |
| 25±5° | WLCA2-2-N | --- | --- |
| 20° max. | WLCA2-2N-N | --- | --- |
| Actuator | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm  | Adjustable rod lever: 350 to 380 mm  | Rod spring lever |
|---|---|---|---|---|
| Pretravel (PT) | Model | Model | Model | Model |
| 15±5° | WLCA12-N | WLCL-N | WLCAL4-N | WLCAL5-N |
| 25±5° | WLCA12-2-N | WLCL-2-N | --- | --- |
| 20° max. | WLCA12-2N-N | WLCL-2N-N | --- | --- |
High-sensitivity Switches
| Actuator | Roller lever: R38 | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm |
|---|---|---|---|
| Load | Model | Model | Model |
| Standard load | WLG2 | WLG12 | WLGL |
| Microload | WL01G2 | WL01G12 | WL01GL |
High-precision Switches
| Actuator | Roller lever: R38 |
|---|---|
| Load | Model |
| Standard load | WLGCA2 |
| Microload | WL01GCA2 |
Switches with Plunger Actuators
Basic Switches
| Actuator | Sealed Top Plunger | Sealed Top-roller plunger  | Sealed Top-ball plunger | Top-roller plunger |
|---|---|---|---|---|
| Pretravel (PT) | Model | Model | Model | Model |
| 1.7 mm max. | WLD18-N | WLD28-N | WLD38-N | WLD2-N |
| Actuator | Horizontal plunger | Horizontal-roller plunger | Horizontal-ball plunger |
|---|---|---|---|
| Pretravel (PT) | Model | Model | Model |
| 2.8 mm max. | WLSD-N | WLSD2-N | WLSD3-N |
Switches with Flexible Rod Actuators
Basic Switches
| Actuator | Coil spring (spring diameter: 6.5) | Coil spring (spring diameter: 4.8) |
|---|---|---|
| Pretravel (PT) | Model | Model |
| 20±10 mm | WLNJ-N | WLNJ-30-N |
| Actuator | Resin rod (rod diameter: 8) | Steel wire (wire diameter: 1) |
|---|---|---|
| Pretravel (PT) | Model | Model |
| 40±20 mm | WLNJ-2-N | WLNJ-S2-N |
Switches with Fork Lock Lever Actuator
Retention type Switches
| Actuator | Fork lock lever | Fork lock lever | Fork lock lever | Fork lock lever |
|---|---|---|---|---|
| Pretravel (PT) | Model | Model | Model | Model |
| 55° max. | WLCA32-41-N | WLCA32-42-N | WLCA32-43-N | WLCA32-44-N |
Operation indicator Switches
* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring).
Switches with Roller Lever Actuators
Basic Switches
| Actuator | Roller lever: R38 | Roller lever: R50 | Roller lever: R63 | |
|---|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model | Model |
| Neon lamp | 15±5° | WLCA2-LE-N | WLCA2-7LE-N | WLCA2-8LE-N |
| 25±5° | WLCA2-2LE-N | --- | --- | |
| 20° max. | WLCA2-2NLE-N | --- | --- | |
| LED | 15±5° | WLCA2-LD-N | WLCA2-7LD-N | WLCA2-8LD-N |
| 25±5° | WLCA2-2LD-N | --- | --- | |
| 20° max. | WLCA2-2NLD-N | --- | --- | |
| Actuator | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm | Adjustable rod lever: 350 to 380 mm | Rod Spring Lever | |
|---|---|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model | Model | Model |
| Neon lamp | 15±5° | WLCA12-LE-N | WLCL-LE-N | WLCAL4-LE-N | WLCAL5-LE-N |
| 25±5° | WLCA12-2LE-N | WLCL-2LE-N | --- | --- | |
| 20° max. | WLCA12-2NLE-N | WLCL-2NLE-N | --- | --- | |
| LED | 15±5° | WLCA12-LD-N | WLCL-LD-N | WLCAL4-LD-N | WLCAL5-LD-N |
| 25±5° | WLCA12-2LD-N | WLCL-2LD-N | --- | --- | |
| 20° max. | WLCA12-2NLD-N | WLCL-2NLD-N | --- | --- | |
High-sensitivity Switches
| Actuator | Roller lever R38 | |
|---|---|---|
| Indicator * | Pretravel (PT) | Model |
| Neon lamp | 10° +2°, -1° | WLG2-LE |
| LED | WLG2-LD | |
| Actuator | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm | |
|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model |
| Neon lamp | 10° +2°, -1° | WLG12-LE | WLGL-LE |
| LED | WLG12-LD | WLGL-LD | |
High-precision Switches
| Actuator | Roller lever: R38 | |
|---|---|---|
| Indicator * | Pretravel (PT) | Model |
| Neon lamp | 5° +2°, 0° | WLGCA2-LE |
| LED | WLGCA2-LD | |
Switches with Fork Lock Lever Actuator
Retention type Switches
| Actuator | Fork lock lever | Fork lock lever | Fork lock lever | |
|---|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model | Model |
| Neon lamp | 55° max. | WLCA32-41LE-N | WLCA32-42LE-N | WLCA32-43LE-N |
| LED | WLCA32-41LD-N | --- | WLCA32-43LD-N | |
Switches with Plunger Actuators
Basic Switches
| Actuator | Sealed Top plunger | Sealed Top-roller plunger | Sealed Top-ball plunger | Top-roller plunger | |
|---|---|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model | Model | Model |
| Neon lamp | 1.7 mm max. | WLD18-LE-N | WLD28-LE-N | WLD38-LE-N | WLD2-LE-N |
| LED | WLD18-LD-N | WLD28-LD-N | WLD38-LD-N | WLD2-LD-N | |
| Actuator | Horizontal plunger | Horizontal-roller plunger | Horizontal-ball plunger | |
|---|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model | Model |
| Neon lamp | 2.8 mm max. | WLSD-LE-N | WLSD2-LE-N | WLSD3-LE-N |
| LED | WLSD-LD-N | WLSD2-LD-N | WLSD3-LD-N | |
Switches with Flexible Rod Actuators
Basic Switches
| Actuator | Coil spring (spring diameter: 6.5) | Coil spring (spring diameter: 8) | |
|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model |
| Neon lamp | 20±10 mm | WLNJ-LE-N | WLNJ-30LE-N |
| LED | WLNJ-LD-N | WLNJ-30LD-N | |
| Actuator | Resin rod (rod diameter: 8) | Steel wire (wire diameter: 1) | |
|---|---|---|---|
| Indicator * | Pretravel (PT) | Model | Model |
| Neon lamp | 40±20 mm | WLNJ-2LE-N | WLNJ-S2LE-N |
| LED | WLNJ-2LD-N | WLNJ-S2LD-N | |
Sensor I/O Connector Switches
Switches with Direct-wired Connectors
Basic Switches
| Actuator | Roller lever: R38 | |||||
|---|---|---|---|---|---|---|
| Connector shape | Built-in switch specification | Voltage | Wiring Specifications | Connector pin No. | Pretravel (PT) | Model |
| Threaded | General- purpose | AC | NO only 2 core | NO (3) (4) | 15±5° | WLCA2-LDK13A-N |
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LDK43A-N | ||||
| DC | NO only 2 core | NO (3) (4) | WLCA2-LDK13-N | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LDK43-N | ||||
| Airtight | DC | NO only 2 core | NO (3) (4) | WLCA2-55LDK13-N | ||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-55LDK43-N | ||||
| Actuator | Sealed Top-roller plunger | |||||
|---|---|---|---|---|---|---|
| Connector shape | Built-in switch specification | Volt- age | Wiring Specifications | Connector pin No. | Pretravel (PT) | Model |
| Threaded | General- purpose | DC | NO only 2 core | NO (3) (4) | 1.7 mm max. | WLD28-LDK13-N |
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLD28-LDK43-N | ||||
| Airtight | DC | NO only 2 core | NO (3) (4) | WLD28-55LDK13-N | ||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLD28-55LDK43-N | ||||
High-sensitivity Switches
| Actuator | Roller lever: R38 | |||||
|---|---|---|---|---|---|---|
| Connector shape | Built-in switch specification | Voltage | Wiring Specifications | Connector pin No. | Pretravel (PT) | Model |
| Threaded | General- purpose | DC | NO only 2 core | NO (3) (4) | 10° +2°, -1° | WLG2-LDK13 |
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-LDK43 | ||||
| Airtight | NO only 2 core | NO (3) (4) | WLG2-55LDK13 | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-55LDK43 | ||||
High-precision Switches
| Actuator | Roller lever: R38 | |||||
|---|---|---|---|---|---|---|
| Connector shape | Built-in switch specification | Voltage | Wiring Specifications | Connector pin No. | Pretravel (PT) | Model |
| Threaded | General- purpose | DC | NO only 2 core | NO (3) (4) | 5° +2°, 0° | WLGCA2-LDK13 |
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLGCA2-LDK43 | ||||
| Airtight | NO only 2 core | NO (3) (4) | WLGCA2-55LDK13 | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLGCA2-55LDK43 | ||||
Note: The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(However, Four-core Switches cannot be switched to light-ON when operating (NC wiring).)
Switches with Pre-wired Connectors *
Basic Switches
| Actuator | Roller lever: R38 | Sealed Top-roller Plunger | ||||
|---|---|---|---|---|---|---|
| Pretravel (PT) | 15±5° | 1.7 mm max. | ||||
| Connector shape | Built-in switch specifi- cation | Volt- age | Wiring Specifications | Connector pin No. | Model | |
| Threaded (M12) | General- purpose | DC | NO only 2 core | NO (3) (4) | WLCA2-LD-M1J-N | WLD28-LD-M1J-N |
| NO (1) (4) | WLCA2-LD-M1GJ-N | WLD28-LD-M1GJ-N | ||||
| NC only 2 core | NC (3) (2) | WLCA2-LD-M1JB-N | --- | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LD-DGJ-N | WLD28-LD-DGJ-N | |||
| NO only 3 core | NO (3) (4) NC (2) | WLCA2-LD-DK1EJ-N | WLD28-LD-DK1EJ-N | |||
| Airtight | NO only 2 core | NO (3) (4) | WLCA2-55LD-M1J-N | WLD28-55LD-M1J-N | ||
| NO (1) (4) | WLCA2-55LD-M1GJ-N | WLD28-55LD-M1GJ-N | ||||
| NC only 2 core | NC (3) (2) | WLCA2-55LD-M1JB-N | WLD28-55LD-M1JB-N | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-55LD-DGJ-N | WLD28-55LD-DGJ-N | |||
| NO only 3 core | NO (3) (4) NC (2) | WLCA2-55LD-DK1EJ-N | WLD28-55LD-DK1EJ-N | |||
| Smartclick | General- purpose | NO only 2 core | NO (3) (4) | --- | --- | |
| NO (1) (4) | --- | --- | ||||
| NC only 2 core | NC (3) (2) | --- | --- | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LD-DTGJ-N | --- | |||
| NO only 3 core | NO (3) (4) NC (2) | WLCA2-LD-DTK1EJ-N | --- | |||
| Airtight | NO only 2 core | NO (3) (4) | --- | --- | ||
| NO (1) (4) | --- | --- | ||||
| NC only 2 core | NC (3) (2) | --- | --- | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-55LD-DTGJ-N | --- | |||
| NO only 3 core | NO (3) (4) NC (2) | --- | --- | |||
High-sensitivity Switches
| Actuator | Roller lever: R38 | ||||
|---|---|---|---|---|---|
| Pretravel (PT) | 10° +2°, -1° | ||||
| Connector shape | Built-in switch specification | Voltage | Wiring Specifications | Connector pin No. | Model |
| Threaded (M12) | General-purpose | DC | NO only 2 core | NO (3) (4) | WLG2-LD-M1J |
| NO (1) (4) | WLG2-LD-M1GJ | ||||
| NC only 2 core | NO (3) (2) | WLG2-LD-M1JB | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLG2-LD-DGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | WLG2-LD-DK1EJ03 | |||
| Airtight | NO only 2 core | NO (3) (4) | WLG2-55LD-M1J | ||
| NO (1) (4) | WLG2-55LD-M1GJ | ||||
| NC only 2 core | NO (3) (2) | WLG2-55LD-M1JB | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-55LD-DGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | WLG2-55LD-DK1EJ03 | |||
| Smartclick | General-purpose | NO only 2 core | NO (3) (4) | WLG2-LD-M1TJ | |
| NO (1) (4) | WLG2-LD-M1TGJ | ||||
| NC only 2 core | NO (3) (2) | WLG2-LD-M1TJB | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLG2-LD-DTGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | WLG2-LD-DTK1EJ03 | |||
| Airtight | NO only 2 core | NO (3) (4) | WLG2-55LD-M1TJ | ||
| NO (1) (4) | WLG2-55LD-M1TGJ | ||||
| NC only 2 core | NO (3) (2) | WLG2-55LD-M1TJB | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLG2-55LD-DTGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | WLG2-55LD-DTK1EJ03 | |||
High-precision Switches
| Actuator | Roller lever: R38 | ||||
|---|---|---|---|---|---|
| Pretravel (PT) | 5° +2°, 0° | ||||
| Connector shape | Built-in switch specification | Voltage | Wiring Specifications | Connector pin No. | Model |
| Threaded (M12) | General-purpose | DC | NO only 2 core | NO (3) (4) | WLGCA2-LD-M1J |
| NO (1) (4) | WLGCA2-LD-M1GJ | ||||
| NC only 2 core | NO (3) (2) | WLGCA2-LD-M1JB | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLGCA2-LD-DGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | --- | |||
| Airtight | NO only 2 core | NO (3) (4) | WLGCA2-55LD-M1J | ||
| NO (1) (4) | WLGCA2-55LD-M1GJ | ||||
| NC only 2 core | NO (3) (2) | WLGCA2-55LD-M1JB | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLGCA2-55LD-DGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | --- | |||
| Smartclick | General-purpose | NO only 2 core | NO (3) (4) | --- | |
| NO (1) (4) | --- | ||||
| NC only 2 core | NO (3) (2) | --- | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLGCA2-LD-DTGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | WLGCA2-LD-DTK1EJ03 | |||
| Airtight | NO only 2 core | NO (3) (4) | --- | ||
| NO (1) (4) | --- | ||||
| NC only 2 core | NO (3) (2) | --- | |||
| NC + NO 4 core | NC (1) (2) NC (3) (4) | WLGCA2-55LD-DTGJ03 | |||
| NO only 3 core | NO (3) (4) NO (2) | --- | |||
* The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information on
other cable lengths.
Note: The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(However, Three-core and Four-core Switches cannot be switched to light-ON when operating (NC wiring).)
Connecting Sensor I/O connector cable (Socket)
| Type | AC/DC Type | Number of cable cores | Cable length L (m) | Model | Applicable limit switch models |
|---|---|---|---|---|---|
M12 Screw (Straight) | AC | 2 | 2 m | XS2F-A421-DB0-F | WL[]-[]K13A-N WLG[]-[]K13A |
| 5 m | XS2F-A421-GB0-F | ||||
| 4 | 2 m | XS2F-A421-D90-F | WL[]-[]K43A-N WL[]-[]-AGJ-N WLG[]-[]K43A WLG[]-[]-AGJ03 | ||
| 5 m | XS2F-A421-G90-F | ||||
| DC | 2 | 2 m | XS2F-D421-DD0 | WL[]-[]K13-N WL[]-[]-M1J-N WLG[]-[]K13 WLG[]-[]-M1J | |
| 5 m | XS2F-D421-GD0 | ||||
| 2 m | XS2F-D421-DA0-F | WL[]-[]-M1GJ[]-N WLG[]-[]-M1GJ[] | |||
| 5 m | XS2F-D421-GA0-F | ||||
| 4 | 2 m | XS2F-D421-D80-F | WL[]-[]K43-N WL[]-[]-M1JB-N WL[]-[]-DGJ-N WL[]-[]-DK1EJ-N WLG[]-[]K43 WLG[]-[]-M1JB WLG[]-[]-DGJ03 WLG[]-[]-DK1EJ03 | ||
| 5 m | XS2F-D421-G80-F | ||||
| M12 Smart click type (Straight)  | DC | 4 | 2 m | XS5F-D421-D80-F | WL[]-[]-M1TJ-N WL[]-[]-M1TGJ-N WL[]-[]-M1TJB-N WL[]-[]-DTGJ-N WL[]-[]-DTK1EJ-N WLG[]-[]-M1TJ WLG[]-[]-M1TGJ WLG[]-[]-M1TJB WLG[]-[]-DTGJ03 WLG[]-[]-DTK1EJ03 |
| 5 m | XS5F-D421-G80-F |
Note: For models other than the above, or for detailed specifications, refer to the data sheet for XS2 Round Water-resistant
Connectors (M12 Threads) or XS5 Round Water-resistant Connectors (M12 Smartclick).
Environment-resistant Switches
Switches with Roller Lever Actuators
Basic Switches
| Actuator | Roller lever: R38 | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm | |
|---|---|---|---|---|
| Built-in switch specification | Model | Model | Model | |
| Airtight seal | WLCA2-55-N | WLCA12-55-N | WLCL-55-N | |
| WLCA2-255-N | --- | --- | ||
| WLCA2-2N55-N | --- | --- | ||
| Hermetic seal * | Molded terminals, -139 models | WLCA2-139-N | WLCA12-139-N | WLCL-139-N |
| WLCA2-2139-N | --- | --- | ||
| WLCA2-2N139-N | --- | --- | ||
| Molded terminals, -140 models | WLCA2-140-N | WLCA12-140-N | WLCL-140-N | |
| --- | --- | --- | ||
| WLCA2-2N140-N | --- | --- | ||
| Molded terminals, -141 models | WLCA2-141-N | WLCA12-141-N | --- | |
| --- | --- | --- | ||
| --- | --- | --- | ||
| Anti-coolant | WLCA2-RP60-N | WLCA12-RP60-N | WLCL-RP60-N | |
| WLCA2-2RP60-N | --- | --- | ||
| --- | --- | --- | ||
| Heat-resistant | WLCA2-TH-N | WLCA12-TH-N | WLCL-TH-N | |
| WLCA2-2TH-N | WLCA12-2TH-N | WLCL-2TH-N | ||
| WLCA2-2NTH-N | WLCA12-2NTH-N | WLCL-2NTH-N | ||
| Low-temperature | WLCA2-TC-N | WLCA12-TC-N | WLCL-TC-N | |
| WLCA2-2TC-N | WLCA12-2TC-N | WLCL-2TC-N | ||
| WLCA2-2NTC-N | WLCA12-2NTC-N | WLCL-2NTC-N | ||
| Corrosion-proof | WLCA2-RP-N | WLCA12-RP-N | WLCL-RP-N | |
| Weather-proof | WLCA2-P1-N | WLCA12-P1-N | WLCL-P1-N | |
* The maximum cable length for a Hermetic Switch is 5 m.
High-sensitivity Switches
| Actuator | Roller lever: R38 | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm | |
|---|---|---|---|---|
| Built-in switch specification | Model | Model | Model | |
| Airtight seal | WLG2-55 | --- | --- | |
| Hermetic seal * | Molded terminals, -139 models | WLG2-139 | --- | --- |
| Molded terminals, -140 models | WLG2-140 | --- | --- | |
| Molded terminals, -141 models | WLG2-141 | --- | --- | |
| Anti-coolant | WLG2-RP60 | --- | --- | |
| Heat-resistant | WLG2-TH | WLG12-TH | WLGL-TH | |
| Low-temperature | WLG2-TC | WLG12-TC | WLGL-TC | |
| Corrosion-proof | WLG2-RP | WLG12-RP | WLGL-RP | |
| Weather-proof | WLG2-P1 | WLG12-P1 | WLGL-P1 | |
* The maximum cable length for a Hermetic Switch is 5 m.
High-precision Switches
| Actuator | Roller lever: R38 | |
|---|---|---|
| Built-in switch specification | Model | |
| Airtight seal | WLGCA2-55 | |
| Hermetic seal * | Molded terminals, -139 models | WLGCA2-139 |
| Molded terminals, -141 models | WLGCA2-141 | |
| Anti-coolant | WLGCA2-RP60 | |
| Heat-resistant | WLGCA2-TH | |
| Low-temperature | WLGCA2-TC | |
| Corrosion-proof | WLGCA2-RP | |
| Weather-proof | --- | |
* The maximum cable length for a Hermetic Switch is 5 m.
Switches with Plunger Actuators
Basic Switches
| Actuator | Sealed Top-roller plunger | Top-roller plunger | Horizontal plunger | Horizontal-roller plunger | |
|---|---|---|---|---|---|
| Built-in switch specification | Model | Model | Model | Model | |
| Airtight seal | WLD28-55-N | WLD2-55-N | WLSD-55-N | WLSD2-55-N | |
| Hermetic seal * | Molded terminals, -139 models | WLD28-139-N | WLD2-139-N | WLSD-139-N | WLSD2-139-N |
| Molded terminals, -140 models | WLD28-140-N | --- | --- | WLSD2-140-N | |
| Anti-coolant | WLD28-RP60-N | WLD2-RP60-N | WLSD-RP60-N | WLSD2-RP60-N | |
| Heat-resistant | WLD28-TH-N | WLD2-TH-N | WLSD-TH-N | WLSD2-TH-N | |
| Low-temperature | WLD28-TC-N | --- | WLSD-TC-N | WLSD2-TC-N | |
| Corrosion-proof | WLD28-RP-N | --- | WLSD-RP-N | WLSD2-RP-N | |
* The maximum cable length for a Hermetic Switch is 5 m.
Switches with Flexible Rod Actuators
Basic Switches
| Actuator | Coil spring (spring diameter: 6.5) | Resin rod (rod diameter: 8) | |
|---|---|---|---|
| Built-in switch specification | Model | Model | |
| Airtight seal | WLNJ-55-N | WLNJ-255-N | |
| Hermetic seal * | Molded terminals, -139 models | WLNJ-139-N | WLNJ-2139-N |
| Molded terminals, -140 models | WLNJ-140-N | WLNJ-2140-N | |
| Anti-coolant | WLNJ-RP60-N | WLNJ-2RP60-N | |
| Heat-resistant | WLNJ-TH-N | --- | |
| Low-temperature | WLNJ-TC-N | --- | |
| Corrosion-proof | WLNJ-RP-N | WLNJ-2RP-N | |
* The maximum cable length for a Hermetic Switch is 5 m.
Operation indicator Switches
Switches with Roller Lever Actuators
Basic Switches
| Actuator | Roller lever: R38 | Adjustable roller lever | Adjustable rod lever: 25 to 140 mm | |||
|---|---|---|---|---|---|---|
| Built-in switch specification | Indi- cator * | Wiring Specifi- cations | Model | Model | Model | |
| Airtight seal | Neon lamp | NO wiring | WLCA2-55LE-N | WLCA12-55LE-N | --- | |
| NO wiring | WLCA2-255LE-N | --- | --- | |||
| NO wiring | WLCA2-2N55LE-N | --- | --- | |||
| LED | NO wiring | WLCA2-55LD-N | WLCA12-55LD-N | WLCL-55LD-N | ||
| NO wiring | WLCA2-255LD-N | --- | --- | |||
| NO wiring | WLCA2-2N55LD-N | --- | --- | |||
| Hermetic seal | Molded terminals, -139 models | LED | NC wiring | WLCA2-139LD2-N | --- | --- |
| NO wiring | WLCA2-139LD3-N | --- | --- | |||
| NC wiring | WLCA2-2139LD2-N | --- | --- | |||
| NO wiring | WLCA2-2139LD3-N | --- | --- | |||
| Molded terminals, -140 models | NC wiring | WLCA2-141LD2-N | --- | --- | ||
| NO wiring | WLCA2-141LD3-N | --- | --- | |||
| Anti-coolant | NC wiring | WLCA2-RP60LD2-N | --- | --- | ||
| NO wiring | WLCA2-RP60LD3-N | --- | --- | |||
| NC wiring | WLCA2-2RP60LD2-N | --- | --- | |||
| NO wiring | WLCA2-2RP60LD3-N | --- | --- | |||
High-sensitivity Switches
| Actuator | Roller lever: R38 | |||
|---|---|---|---|---|
| Built-in switch specification | Indicator * | Wiring Specifications | Model | |
| Airtight seal | Neon lamp | NO wiring | WLG2-55LE | |
| LED | NO wiring | WLG2-55LD | ||
| Hermetic seal | Molded terminals, -139 models | LED | NC wiring | --- |
| NO wiring | WLG2-139LD3 | |||
| Molded terminals, -140 models | NC wiring | WLG2-140LD2 | ||
| NO wiring | WLG2-140LD3 | |||
| Molded terminals, -141 models | NC wiring | WLG2-141LD2 | ||
| NO wiring | WLG2-141LD3 | |||
| Anti-coolant | NC wiring | WLG2-RP60LD2 | ||
| NO wiring | WLG2-RP60LD3 | |||
High-precision Switches
| Actuator | Roller lever: R38 | |||
|---|---|---|---|---|
| Built-in switch specification | Indicator * | Wiring Specifications | Model | |
| Airtight seal | Neon lamp | NO wiring | WLGCA2-55LE | |
| LED | NO wiring | WLGCA2-55LD | ||
| Hermetic seal | Molded terminals, -139 models | LED | NC wiring | WLGCA2-139LD2 |
| NO wiring | WLGCA2-139LD3 | |||
| Molded terminals, -140 models | NC wiring | WLGCA2-140LD2 | ||
| NO wiring | WLGCA2-140LD3 | |||
| Molded terminals, -141 models | NC wiring | --- | ||
| NO wiring | WLGCA2-141LD3 | |||
| Anti-coolant | NC wiring | WLGCA2-RP60LD2 | ||
| NO wiring | WLGCA2-RP60LD3 | |||
* The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(Note that the lamp holder cannot be replaced on hermetic models.)
Switches with Plunger Actuators
Basic Switches
| Actuator | Sealed top-roller plunger | Top-roller plunger | Horizontal plunger | Horizontal-roller plunger | ||
|---|---|---|---|---|---|---|
| Internal switch Specifications | Indi- cator * | Wiring Specifi- cations | Model | Model | Model | Model |
| Airtight seal | Neon lamp | NO wiring | WLD28-55LE-N | WLD2-55LE-N | --- | --- |
| LED | NO wiring | WLD28-55LD-N | WLD2-55LD-N | WLSD-55LD-N | WLSD2-55LD-N | |
* The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
Switches with Flexible Rod Actuators
Basic Switches
| Actuator | Coil spring (spring diameter: 6.5) | Resin rod (rod diameter: 8) | ||
|---|---|---|---|---|
| Internal switch Specifications | Indicator * | Wiring Specifications | Model | Model |
| Airtight seal | Neon lamp | NO wiring | --- | --- |
| LED | NO wiring | WLNJ-55LD-N | WLNJ-255LD-N | |
* The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
Spatter-prevention Switches
Screw terminal types
Basic Switches
| Actuator | Roller lever: R38 | Sealed Top-roller plunger | |
|---|---|---|---|
Double nut lever | Allen-head lever | ||
| Indicator * | Model | Model | Model |
| Neon lamp | WLCA2-LEAS-N | WLCA2-LES-N | WLD28-LES-N |
| LED | WLCA2-LDAS-N | WLCA2-LDS-N | WLD28-LDS-N |
High-sensitivity Switches
| Actuator | Roller lever: R38 | |
|---|---|---|
| Double nut lever | Allen-head lever | |
| Indicator * | Model | Model |
| Neon lamp | WLG2-LEAS | WLG2-LES |
| LED | WLG2-LDAS | WLG2-LDS |
High-precision Switches
| Actuator | Roller lever: R38 | |
|---|---|---|
| Double nut lever | Allen-head lever | |
| Indicator * | Model | Model |
| Neon lamp | --- | WLGCA2-LES |
| LED | --- | WLGCA2-LDS |
* The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
Switches with Pre-wired Connectors
Basic Switches
| Actuator | Roller lever: R38 | Sealed Top-roller Plunger | ||||
|---|---|---|---|---|---|---|
| Pretravel (PT) | 15±5° | 1.7 mm max. | ||||
| Connector shape | Built-in switch specifi- cation | Volt- age | Wiring Specifications | Connector pin No. | Model | |
| Threaded (M12) | General- purpose | DC | NO only 2 core | NO (3) (4) | WLCA2-LDS-M1J-1-N | WLD28-LDS-M1J-1-N |
| NO (1) (4) | --- | WLD28-LDS-M1GJ-1-N | ||||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LDS-DGJS-N | WLD28-LDS-DGJS-N | |||
| Airtight | NO only 2 core | NO (3) (4) | --- | --- | ||
| NO (1) (4) | --- | --- | ||||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | --- | --- | |||
| Smartclick | General- purpose | NC + NO 4 core | NC (1) (2) NO (3) (4) | WLCA2-LDS-DTGJS-N | WLD28-LDS-DTGJS-N | |
| Airtight | NC + NO 4 core | NC (1) (2) NO (3) (4) | --- | --- | ||
High-sensitivity/High-precision Switches
| Actuator | Roller lever: R38 | |||||
|---|---|---|---|---|---|---|
| Pretravel (PT) | 10° +2°, -1° High-sensitivity | 5° +2°, -0° High-precision Switches | ||||
| Connector shape | Built-in switch specifi- cation | Volt- age | Wiring Specifications | Connector pin No. | Model | |
| Threaded (M12) | General- purpose | DC | NO only 2 core | NO (3) (4) | WLG2-LDS-M1J-1 | WLGCA2-LDS-M1J-1 |
| NO (1) (4) | WLG2-LDS-M1GJ-1 | WLGCA2-LDS-M1GJ-1 | ||||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-LDS-DGJS03 | --- | |||
| NO only 3 core | NO (3) (4) NC (2) | WLG2-LDS-DK1EJ03 | --- | |||
| Airtight | NO only 2 core | NO (3) (4) | WLG2-55LDS-M1J-1 | --- | ||
| NO (1) (4) | WLG2-55LDS-M1GJ-1 | --- | ||||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-55LDS-DGJS03 | --- | |||
| Smartclick | General- purpose | NC + NO 4 core | NC (1) (2) NO (3) (4) | WLG2-LDS-DTGJS03 | --- | |
| Airtight | NO only 2 core | NO (1) (4) | WLG2-55LDS-M1TGJ | --- | ||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | --- | --- | |||
Note: 1. The default setting of Indicator is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(However, Three-core and Four-core Switches cannot be switched to light-ON when operating (NC wiring).)
2. The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information
on other cable lengths.
Long-life Switches
Switches with Screw terminal types/Switches with Direct-wired Connectors
Basic Switches
| Actuator | AC/DC Type | Wiring Specifications | Connectors pin No. | Model | |
|---|---|---|---|---|---|
 | Roller lever Screw terminal type | AC/DC | --- | --- | WLMCA2-LD-N |
 | Roller lever Direct-wire Connector type | AC | 2-conductor | NO (3) (4) | WLMCA2-LDK13A-N |
| 4-conductor | NC (1) (2) NO (3) (4) | WLMCA2-LDK43A-N | |||
| DC | 2-conductor | NO (3) (4) | WLMCA2-LDK13-N | ||
| 4-conductor | NC (1) (2) NO (3) (4) | WLMCA2-LDK43-N | |||
High-sensitivity/High-precision Switches
| Actuator | AC/DC Type | Wiring Specifications | Connectors pin No. | High-sensitivity | High-precision Models | |
|---|---|---|---|---|---|---|
| Model | Model | |||||
| Roller lever Screw terminal type | AC/ DC | --- | --- | WLMG2-LD | WLMGCA2-LD |
| Roller lever Direct-wire Connector type | AC | 2-conductor | NO (3) (4) | WLMG2-LDK13A | WLMGCA2-LDK13A |
| 4-conductor | NC (1) (2) NO (3) (4) | WLMG2-LDK43A | WLMGCA2-LDK43A | |||
| DC | 2-conductor | NO (3) (4) | WLMG2-LDK13 | WLMGCA2-LDK13 | ||
| 4-conductor | NC (1) (2) NO (3) (4) | WLMG2-LDK43 | WLMGCA2-LDK43 | |||
Note: The default setting of Indicator is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(However, Four-core Switch cannot be switched to light-ON when operating (NC wiring).)
Switches with Pre-wired Connectors
Basic Switches
| Actuator | Connector shape | AC/DC Type | Wiring Specifications | Connectors pin No. | Model | |
|---|---|---|---|---|---|---|
 | Roller lever Pre-wired Connector type | Threaded (M12) | AC | NC + NO 4 core | NC (1) (2) NO (3) (4) | WLMCA2-LD-AGJ-N |
| NO only 2 core | NO (3) (4) | WLMCA2-LD-M1J-N | ||||
| DC | NC + NO 4 core | NC (1) (2) NO (3) (4) | WLMCA2-LD-DGJ-N | |||
| Smartclick | NO only 2 core | NO (3) (4) | --- | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLMCA2-LD-DTGJ-N | ||||
High-sensitivity/High-precision Switches
| Actuator | Connector shape | AC/ DC Type | Wiring Specifi- cations | Connectors pin No. | High-sensitivity | High-precision Models | |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| Roller lever Pre-wired Connector type | Threaded (M12) | AC | NC + NO 4 core | NC (1) (2) NO (3) (4) | --- | --- |
| DC | NO only 2 core | NO (3) (4) | WLMG2-LD-M1J | WLMGCA2-LD-M1J | |||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLMG2-LD-DGJ03 | --- | ||||
| Smartclick | DC | NO only 2 core | NO (3) (4) | --- | --- | ||
| NC + NO 4 core | NC (1) (2) NO (3) (4) | WLMG2-LD-DTGJ03 | WLMGCA2-LD-DTGJ03 | ||||
Note: 1. The default setting of Indicator is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
(However, Four-core Switch cannot be switched to light-ON when operating (NC wiring).)
2. The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information
on other cable lengths.
Individual Parts
Switches without Levers, Heads, and Actuators
General-purpose Parts
| Actuator | Operating characteristics | Set | Switches without levers | Heads (with Actuators) | Actuator only * |
|---|---|---|---|---|---|
| Model | Model | Model | |||
Roller lever | Basic | WLCA2-N | WLRCA2-N | WL-1H1100-N | WL-1A100 |
| WLCA2-2-N | WLRCA2-2-N | WL-3H1100-N | |||
| WLCA2-2N-N | WLRCA2-2N-N | WL-1H1100-N | |||
| High-sensitivity | WLG2 | WLRG2 | WL-2H1100 | ||
| Adjustable roller lever  | Basic | WLCA12-N | WLRCA2-N | WL-1H2100-N | WL-2A100 |
| WLCA12-2-N | WLRCA2-2-N | WL-3H2100-N | |||
| WLCA12-2N-N | WLRCA2-2N-N | WL-1H2100-N | |||
| High-sensitivity | WLG12 | WLRG2 | WL-2H2100 | ||
Variable rod lever | Basic | WLCL-N | WLRCL-N | WL-4H4100-N | WL-4A100 |
| WLCL-2-N | WLRCA2-2-N | WL-3H4100-N | |||
| WLCL-2N-N | WLRCA2-2N-N | WL-1H4100-N | |||
| High-sensitivity | WLGL | WLRG2 | WL-2H4100 | ||
Fork lock lever | Retention type | WLCA32-41-N | WLRCA32-N | WL-5H5100-N | WL-5A100 |
| WLCA32-42-N | WL-5H5102-N | WL-5A102 | |||
| WLCA32-43-N | WL-5H5104-N | WL-5A104 | |||
| WLCA32-44-N | WL-5H5104-N | WL-5A104 | |||
Top plunger | Basic | WLD18-N | --- | WL-7H100-N | --- |
| WLD28-N | WL-7H400-N | --- | |||
| WLD38-N | WL-7H300-N | --- | |||
Horizontal plunger | Basic | WLSD-N | --- | WL-8H100-N | --- |
| WLSD2-N | WL-8H200-N | --- | |||
| WLSD3-N | WL-8H300-N | --- | |||
Flexible rod | Basic | WLNJ-N | --- | WL-9H100-N | --- |
| WLNJ-30-N | WL-9H200-N | --- | |||
| WLNJ-2-N | WL-9H300-N | --- | |||
| WLNJ-S2-N | WL-9H400-N | --- |
* The same Actuators can be used for both WL and WL-N Switches.
Spatter-prevention Parts
| Actuator | Lever Specifi- cations | Item | Set Model Numbers | Switches without levers | Heads (with Actuators) | Actuator only * |
|---|---|---|---|---|---|---|
| Model | Model | Model | ||||
| Roller lever | Allen-head bolt lever | Basic | WLCA2-LES-N | WLRCA2-LES-N | --- | WL-1A103S |
| WLCA2-LDS-N | WLRCA2-LDS-N | |||||
| High-sensitivity | WLG2-LDS | WLRG2-LDS | ||||
| Double nut lever | Basic | WLCA2-LEAS-N | WLRCA2-LES-N | --- | WL-1A105S | |
| WLCA2-LDAS-N | WLRCA2-LDS-N | |||||
| High-sensitivity | WLG2-LDAS | WLRG2-LDS |
* The same Actuators can be used for both WL and WL-N Switches.
Covers with Indicators (See Note.)
General-purpose/Long-life Parts
Basic Parts
| Cover | Cover only *1 | |
|---|---|---|
| Indicator *2 | Color | Model |
| Neon lamp | Orange | WL-LE-N *3 |
| LED | Red | WL-LD-N |
| Yellow | WL-LW-N *3 | |
High-sensitivity/High-precision Parts
| Cover | Cover only *1 | |
|---|---|---|
| Indicator *2 | Color | Model |
| Neon lamp | Orange | WL-LE |
| LED | Red | WL-LD |
*1. The Covers are not compatible with Basic Switches (WL-N), or High-sensitivity/High-precision Switches (WL).
*2. The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
*3. The Color Universal Design structure is certified by an NPO.
Certification conditions: Ambient illumination of 500 lx max. (JIS Z 9110)
Color Universal Design was developed in consideration of people with various types of color vision to allow information to be accurately conveyed to as many individuals as possible.
Spatter-prevention Parts
Basic Parts
| Cover | Cover only | |
|---|---|---|
| Indicator * | Color | Model |
| Neon lamp | Orange | WL-LES-N |
| LED | Red | WL-LDS-N |
* The default setting is light-ON when not operating (NO wiring).
Turn the lamp holder by 180° to change the setting to light-ON when operating (NC wiring).
Limit Switch Connectors
Connectors (SC Series)
Cabtire cables and flexible tubes with various diameters are used to connect machine tools and controllers with Limit Switches. To ensure the watertightness of the edges of the conduits, use an SC Connector that is suitable for the external diameter of cable and model of Limit Switch.
Connector for Cabtire Cable
| Conduit | Applicable cable | Inner diameter (D) of seal rubber | External diameter of cable | Model | Applicable model | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| JIS B 0202 G1/2 | Cabtire cable (general-purpose) | 7 mm | 5.5 mm | 7.5 mm | SC-1M | WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2 |
| 9 mm | 7.5 mm | 9.5 mm | SC-2M | |||
| 12.5 mm | 11 mm | 13 mm | SC-3M | |||
| 14 mm | 12 mm | 14 mm | SC-4M | |||
| 11 mm | 9 mm | 11 mm | SC-5M | |||
| Cabtire cable (anti-corrosive) | 7 mm | 5.5 mm | 7.5 mm | SC-21 | ||
| 9 mm | 7.5 mm | 9.5 mm | SC-22 | |||
| 12.5 mm | 11 mm | 13 mm | SC-23 | |||
| 14 mm | 12 mm | 14 mm | SC-24 | |||
| 11 mm | 9 mm | 11 mm | SC-25 | |||
| 1/2-14NPT | Cabtire cable | 7 mm | 5.5 mm | 7.5 mm | SC-1PT | D4A-[]N |
| 9 mm | 7.5 mm | 9.5 mm | SC-2PT | |||
| 12.5 mm | 11 mm | 13 mm | SC-3PT | |||
| 14 mm | 12 mm | 14 mm | SC-4PT | |||
| 11 mm | 9 mm | 11 mm | SC-5PT | |||
Note: Please use sealing tape with SC Connectors. SC-1M to SC-5M, however, are provided with an O-ring (NBR) and
therefore sealing tape is not necessary to ensure a proper seal.
Simple Connectors (Not Suitable for Locations Subject to Oil or Water)
| Conduit | Applicable cable | Inner diameter (D) of seal rubber | External diameter of cable | Model | Applicable model | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| JIS B 0202 G1/2 | Cabtire cable | 10.6 mm | 8.5 mm | 10.5 mm | SC-P2 | WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2 |
| Pg13.5 | 9.6 mm | 7.5 mm | 9.5 mm | SC-P3 | WL[]-G-N | |
| JIS B 0202 G1/2 | 9 mm | 7.5 mm | 9 mm | SC-6 | WL-N, WL, D4A-[]N, D4N *, D4N-[]R *, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2 | |
Note: Simple connector are made of resin. If more sealing capability is required, use one of SC-1M to SC-5M, which have
metal casings. Models marked with an asterisk (*) however, can only be used with resin connectors.
last update: October 15, 2018
- NO. WL-N / WL
- TYPE:Limit Switches General-purpose Vertical
Copyright Statement - DATE:2021-06-11
- Associated products:
Z / A / X / DZ Common Accessories Z/A/X/DZ Common Accessories/Features D4C Enclosed Switch/Features
