Ultra-stable

The No. 1 Performance Worldwide*1 for Even More Applications

Best Performance in the World*1

Three Technologies That Support High Performance

*1. For performance (sensing distance and minimum sensing object) based on November 2013 OMRON investigation.
*2. Compared with E3X-HD.
*3. Infrared models (E3NX-FAH) are not equipped with GIGA RAY2S.
*4. Compared with E3X-HD for normal operation processing.
*5. Model with 1 output: 30 μs, model with 2 outputs: 32 μs.

Ultra-easy

Easily Handle a Wide Range of Applications with the Press of a Single Button

Consistent Settings for All Users
Smart Tuning Settings [PAT]

Automatic Adjustment to Optimum Incident Level
Wide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Wider light intensity adjustment range of 40,000 times (Conventional models*2: 2,000 times) You can automatically adjust the light intensity to an optimum value for stable detection even with saturated or insufficient incident light.
*2. E3X-HD

Ultra-reliable

Two Decision Support Functions to Help You

Visual Displays of the Passing Time and Difference in Incident Levels.
Solution Viewer [PAT]

Selecting Fiber Units

Just about anyone can make a quantitative decision without special skills.

Setting Optimum Thresholds and Modes

You can see the passing time and difference in incident levels to facilitate manual setup.

Visual Information for Fast Workpieces
Change Finder [PAT]

You can confirm changes in displayed values for fast workpieces to accurately set the threshold.

Point
Advanced DPC (Dynamic Power Control) [PAT]

Predictive Maintenance to Reduce Downtime

An alarm output* has been added to the DPC that automatically compensates differences in the incident level. A maintenance signal is output when the incident level drops due to dirt or vibration for use in predictive maintenance. (We recommend DPC for through-beam or retro-reflective models.)
*An alarm output is supported only on models with two outputs.

last update: January 15, 2018

Purchase the OMRON Fiber Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3NX-FA Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3NX-FA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3NX-FASensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NX-SL Safety CPU Unit/Features
E5AN-HT, E5EN-HT Programmable Temperature Controller (Digital Controller) (96 x 96 mm and 48 x 96...
CJ1W-PTS CJ-series Process Analog I/O Unit/Features
CJ1W-ECT21 CJ-series EtherCAT® Slave Unit/Features
VT-S730-H PCB Inspection System/Features

OMRON E3NX-FA dimension

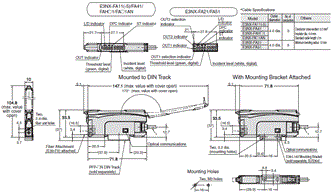

E3NX-FA Smart Fiber Amplifier Units/Dimensions
last update: August 1, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

Pre-wired Amplifier Units

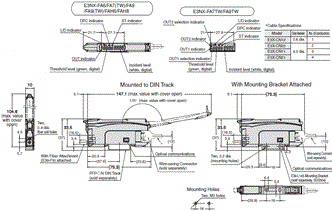

E3NX-FA[]1(-5)
E3NX-FAH[]1
E3NX-FA[]AN

Amplifier Units with Wire-saving Connectors
E3NX-FA6
E3NX-FA7(TW)
E3NX-FA8
E3NX-FA9(TW)
E3NX-FAH6
E3NX-FAH8

Amplifier Units with M8 Connectors

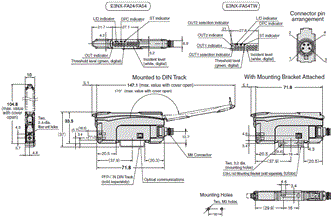

E3NX-FA24
E3NX-FA54
E3NX-FA54TW

Amplifier Unit with Connector for Sensor Communications Unit

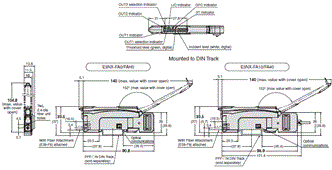

E3NX-FA0/FAH0

Accessories (Sold Separately)

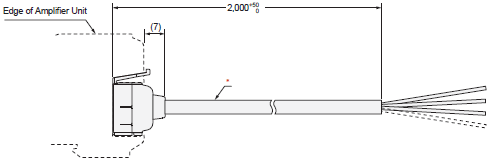

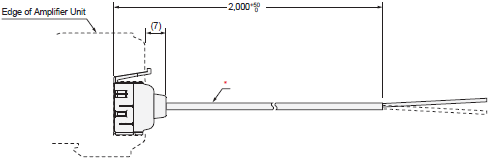

Wire-saving Connectors
Master Connector
E3X-CN11
E3X-CN21

* E3X-CN11: 4-dia. cable with 3 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)
E3X-CN21: 4-dia. cable with 4 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)

Slave Connector
E3X-CN12
E3X-CN22

* E3X-CN12: 2.6-dia. cable with 1 conductor, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)
E3X-CN22: 4-dia. cable with 2 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)

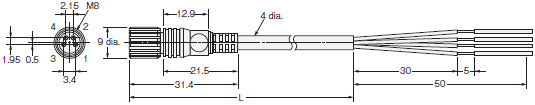

Sensor I/O Connectors

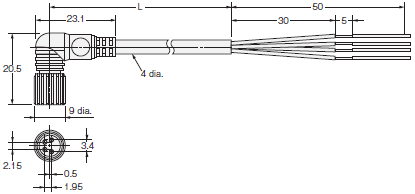

Straight
XS3F-M421-40[]-A

L-shaped
XS3F-M422-40[]-A

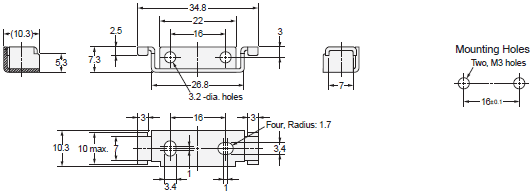

Mounting Bracket
E39-L143

Material: Stainless steel (SUS304)

DIN Track
PFP-100N
PFP-50N

Material: Aluminum
* Dimensions in parentheses are for the PFP-50N.

PFP-100N2

Material: Aluminum

End Plate
PFP-M

Materials: Iron, zinc plating

last update: August 1, 2018

OMRON E3NX-FA lineup
E3NX-FA Smart Fiber Amplifier Units/Lineup
last update: August 1, 2018
Fiber Amplifier Units

Type Connecting
method Appearance Inputs/
outputs Model
NPN output PNP output
Standard
models Pre-wired (2 m) 1 output E3NX-FA11 2M E3NX-FA41 2M
E3NX-FA11-5 2M *1 ---
Wire-saving Connector 1 output E3NX-FA6 E3NX-FA8
Advanced
models Pre-wired (2 m) 2 outputs
+ 1 input E3NX-FA21 2M E3NX-FA51 2M
Wire-saving Connector 1 output
+ 1 input E3NX-FA7 E3NX-FA9
2 outputs E3NX-FA7TW E3NX-FA9TW
M8 Connector 1 output
+ 1 input E3NX-FA24 E3NX-FA54
2 outputs --- E3NX-FA54TW
Infrared
models Pre-wired (2 m) 1 output E3NX-FAH11 2M E3NX-FAH41 2M
Wire-saving Connector 1 output E3NX-FAH6 E3NX-FAH8
Analog output
models Pre-wired (2 m) 2 outputs E3NX-FA11AN 2M E3NX-FA41AN 2M
Model for Sensor
Communications
Unit *2 Connector for Sensor
Communications Unit --- E3NX-FA0
E3NX-FAH0
Connector for Sensor
Communications Unit
Pre-wired (2 m) 1 output E3NX-FA10 2M E3NX-FA40 2M

*1. This type can prevent mutual interference for two units in the SHS2 mode.
*2. A Sensor Communications Unit is required if you want to use the Fiber Amplifier Unit on a network.

Accessories (Sold Separately)
Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately.
Note: Protective stickers are provided.

Type Appearance Cable
length No. of
conductors Model Applicable Fiber Amplifier Units
Master Connector 2 m 4 E3X-CN21 E3NX-FA7
E3NX-FA7TW
E3NX-FA9
E3NX-FA9TW
Slave Connector 2 E3X-CN22
Master Connector 3 E3X-CN11 E3NX-FA6
E3NX-FA8
Slave Connector 1 E3X-CN12

Sensor I/O Connectors (Required for models for M8 Connectors.)

Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately.

Size Cable Appearance Cable type Model
M8 Standard cable Straight 2m 4-wire XS3F-M421-402-A
5m XS3F-M421-405-A
L-shaped 2m XS3F-M422-402-A
5m XS3F-M422-405-A

Mounting Bracket

A Mounting Bracket is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

Appearance Model Quantity
E39-L143 1

DIN Track

A DIN Track is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

Appearance Type Model Quantity
Shallow type, total length: 1 m PFP-100N 1
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m PFP-100N2

End Plate

Two End Plates are provided with the Sensor Communications Unit.
End Plates are not provided with the Fiber Amplifier Unit. They must be ordered separately as required.

Appearance Model Quantity
PFP-M 1

Cover

Attach these Covers to Amplifier Units.
Order a Cover when required, e.g., if you lose the covers.

Appearance Model Quantity
E39-G25 FOR E3NX-FA 1

Related Products
Sensor Communications Units

Type Appearance Model
Sensor Communications Unit for EtherCAT E3NW-ECT
Sensor Communications Unit for CompoNet E3NW-CRT *1
Sensor Communications Unit for CC-Link E3NW-CCL
Distributed Sensor Unit *2 E3NW-DS

Refer to your OMRON website for details.
*1. E3NX-FAH0 can not be connected.
*2. The Distributed Sensor Unit can be connected to any of the Sensor Communications Units.

EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
CompoNet is a registered trademark of the ODVA.
CC-Link is a registered trademark of Mitsubishi Electric Corporation. The trademark is managed by the CC-Link Partner Association.

last update: August 1, 2018

OMRON E3NX-FA specification
E3NX-FA Smart Fiber Amplifier Units/Specifications
last update: November 1, 2018
Standard models/ Advanced models/ Infrared models

Type Standard models
NPN output E3NX-FA11 E3NX-FA6 E3NX-FA11-5 *1
PNP output E3NX-FA41 E3NX-FA8 ---
Connecting method Pre-wired Wire-saving Connector Pre-wired
Inputs/
outputs Outputs 1 output
External inputs ---
Light source (wavelength) Red, 4-element LED (625 nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p)
Power consumption *2 At Power supply voltage of 24 VDC
Standard Models:
　Normal mode: 840 mW max. (Current consumption at 35 mA max.)
　Eco function ON: 650 mW max. (Current consumption at 27 mA max.)
　Eco function LO: 750 mW max. (Current consumption at 31 mA max.)

Advanced Models or Model for Sensor Communications Unit:
　Normal mode: 920 mW max. (Current consumption at 38 mA max.)
　Eco function ON: 680 mW max. (Current consumption at 28 mA max.)
　Eco function LO: 800 mW max. (Current consumption at 33 mA max.)

Infrared models:
　Normal mode: 1080 mW max. (Current consumption at 45 mA max.)
　Eco function ON: 920 mW max. (Current consumption at 38 mA max.)
　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output Load power supply voltage: 30 VDC max., open-collector output
(depends on the NPN/PNP output format)
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max.,
Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
External inputs ---
Indicators 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue),
DPC indicator (green), and OUT selection indicator
(orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response
time Super-high-speed mode (SHS) Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS) Operate or reset: 250 μs
Standard mode (Stnd) Operate or reset: 1 ms
Giga-power mode (GIGA) Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30
No. of
Units for
mutual
interference
prevention
*4 Super-high-speed mode (SHS) 0
Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS) 10
Standard mode (Stnd) 10
Giga-power mode (GIGA) 10
Functions Automatic power control
(APC) Always enabled.
Dynamic power control
(DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay
+ OFF-delay timer: 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *5 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode *6 Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching Select from banks 1 to 4.
Power tuning Select from ON, OFF or Execution on power-up.
Output 1 Select from normal detection mode, area detection mode or differential detection mode.
Output 2 ---
External input ---
Hysteresis width Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range *7 Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C,
Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C,
Groups of 17 to 30 Amplifier Units: -25 to 40°C
Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation)
within the surrounding air temperature range shown above
Altitude 2,000 m max.
Installation environment Pollution degree 3
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only) Approx. 115 g/
approx. 75 g Approx. 60 g/
approx. 20 g Approx. 115 g/
approx. 75 g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

Type Advanced models
NPN output E3NX-FA21 E3NX-FA7 E3NX-FA7TW E3NX-FA24 ---
PNP output E3NX-FA51 E3NX-FA9 E3NX-FA9TW E3NX-FA54 E3NX-FA54TW
Connecting method Pre-wired Wire-saving Connector M8 Connector
Inputs/
outputs Outputs 2 outputs 1 output 2 outputs 1 output 2 outputs
External inputs 1 input 1 input --- 1 input ---
Light source (wavelength) Red, 4-element LED (625 nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p)
Power consumption *2 At Power supply voltage of 24 VDC
Standard Models:
　Normal mode: 840 mW max. (Current consumption at 35 mA max.)
　Eco function ON: 650 mW max. (Current consumption at 27 mA max.)
　Eco function LO: 750 mW max. (Current consumption at 31 mA max.)

Advanced Models or Model for Sensor Communications Unit:
　Normal mode: 920 mW max. (Current consumption at 38 mA max.)
　Eco function ON: 680 mW max. (Current consumption at 28 mA max.)
　Eco function LO: 800 mW max. (Current consumption at 33 mA max.)

Infrared models:
　Normal mode: 1080 mW max. (Current consumption at 45 mA max.)
　Eco function ON: 920 mW max. (Current consumption at 38 mA max.)
　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output Load power supply voltage: 30 VDC max., open-collector output
(depends on the NPN/PNP output format)
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max.,
Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
External inputs Refer to *3. --- Refer to *3. ---
Indicators 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue),
DPC indicator (green), and OUT selection indicator
(orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection, output short-circuit protection,
and output reverse polarity protection
Response
time Super-high-speed mode (SHS) Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS) Operate or reset: 250 μs
Standard mode (Stnd) Operate or reset: 1 ms
Giga-power mode (GIGA) Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30
No. of
Units for
mutual
interference
prevention
*4 Super-high-speed mode (SHS) 0
Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS) 10
Standard mode (Stnd) 10
Giga-power mode (GIGA) 10
Functions Automatic power control
(APC) Always enabled.
Dynamic power control
(DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay
+ OFF-delay timer: 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *5 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode *6 Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching Select from banks 1 to 4.
Power tuning Select from ON, OFF or Execution on power-up.
Output 1 Select from normal detection mode, area detection mode or differential detection mode.
Output 2 Select from
normal
detection
mode,
alarm
output
mode, error
output
mode or
differential
detection
mode. --- Select from
normal
detection
mode,
alarm
output
mode, error
output
mode or
differential
detection
mode. --- Select from
normal
detection
mode,
alarm
output
mode, error
output
mode or
differential
detection
mode.
External input Select from input OFF,
tuning, power tuning,
emission OFF, zero
reset, or bank switching. --- Select
from input
OFF,
tuning,
power
tuning,
emission
OFF, zero
reset, or
bank
switching. ---
Hysteresis width Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range *7 Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C,
Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C,
Groups of 17 to 30 Amplifier Units: -25 to 40°C
Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation)
within the surrounding air temperature range shown above
Altitude 2,000 m max.
Installation environment Pollution degree 3
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only) Approx. 115 g/
approx. 75 g Approx. 60g/approx. 20g Approx. 65 g/
approx. 25 g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

Type Infrared models
NPN output E3NX-FAH11 E3NX-FAH6
PNP output E3NX-FAH41 E3NX-FAH8
Connecting method Pre-wired Wire-saving
Connector
Inputs/
outputs Outputs 1 outputs
External inputs ---
Light source (wavelength) Infrared LED (870nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p)
Power consumption *2 At Power supply voltage of 24 VDC
Standard Models:
　Normal mode: 840 mW max. (Current consumption at 35 mA max.)
　Eco function ON: 650 mW max. (Current consumption at 27 mA max.)
　Eco function LO: 750 mW max. (Current consumption at 31 mA max.)

Advanced Models or Model for Sensor Communications Unit:
　Normal mode: 920 mW max. (Current consumption at 38 mA max.)
　Eco function ON: 680 mW max. (Current consumption at 28 mA max.)
　Eco function LO: 800 mW max. (Current consumption at 33 mA max.)

Infrared models:
　Normal mode: 1080 mW max. (Current consumption at 45 mA max.)
　Eco function ON: 920 mW max. (Current consumption at 38 mA max.)
　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output Load power supply voltage: 30 VDC max., open-collector output
(depends on the NPN/PNP output format)
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max.,
Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
External inputs ---
Indicators 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue),
DPC indicator (green), and OUT selection indicator
(orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response
time Super-high-speed mode (SHS) Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS) Operate or reset: 250 μs
Standard mode (Stnd) Operate or reset: 1 ms
Giga-power mode (GIGA) Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30
No. of
Units for
mutual
interference
prevention
*4 Super-high-speed mode (SHS) 0
Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS) 10
Standard mode (Stnd) 10
Giga-power mode (GIGA) 10
Functions Automatic power control
(APC) Always enabled.
Dynamic power control
(DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay
+ OFF-delay timer: 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *5 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode *6 Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching Select from banks 1 to 4.
Power tuning Select from ON or OFF.
Output 1 Select from normal detection mode or area detection mode.
Output 2 ---
External input ---
Hysteresis width Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range *7 Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C,
Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C,
Groups of 17 to 30 Amplifier Units: -25 to 40°C
Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation)
within the surrounding air temperature range shown above
Altitude 2,000 m max.
Installation environment Pollution degree 3
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only) Approx. 115 g/approx. 75 g Approx. 60g/approx. 20g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

*1. This type can prevent mutual interference for two units in the SHS2 mode.
*2. At Power supply voltage of 10 to 30 VDC
Standard Models:
Normal mode : 990 mW max. (Current consumption: 33 mA max. at 30 VDC, 65 mA max. at 10 VDC)
Eco function ON : 780 mW max. (Current consumption: 26 mA max. at 30 VDC, 42 mA max. at 10 VDC)
Eco function LO : 840 mW max. (Current consumption: 28 mA max. at 30 VDC, 45 mA max. at 10 VDC)
Advanced Models:
Normal mode : 1,020 mW max. (Current consumption: 34 mA max. at 30 VDC, 67 mA max. at 10 VDC)
Eco function ON : 810 mW max. (Current consumption: 27 mA max. at 30 VDC, 44 mA max. at 10 VDC)
Eco function LO : 870 mW max. (Current consumption: 29 mA max. at 30 VDC, 48 mA max. at 10 VDC)
Infrared models:
Normal mode : 1,260 mW max. (Current consumption: 42 mA max. at 30 VDC, 80 mA max. at 10 VDC)
Eco function ON : 1,050 mW max. (Current consumption: 35 mA max. at 30 VDC, 60 mA max. at 10 VDC)
Eco function LO : 1,140 mW max. (Current consumption: 38 mA max. at 30 VDC, 70 mA max. at 10 VDC)
*3. The following details apply to the input.

Contact input (relay or switch) Non-contact input (transistor) Input time*3-1
NPN ON: Shorted to 0 V (Sourcing current: 1 mA
max.).
OFF: Open or shorted to Vcc. ON: 1.5 V max. (Sourcing current: 1 mA max.)
OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1
mA max.) ON: 9 ms min.
OFF: 20 ms min.
PNP ON: Shorted to Vcc (Sinking current: 3 mA
max.).
OFF: Open or shorted to 0 V. ON: Vcc - 1.5 V to Vcc (Sinking current: 3 mA
max.)
OFF: 1.5 V max. (Leakage current: 0.1 mA max.)
*3-1.Input time is 25 ms (ON)/(OFF) only when (in tUnE) or (in PtUn) input is selected.

*4. The tuning will not change the number of units. The least unit count among the mutual interference prevention units of E3NX and E3NC. Check the mutual interference prevention unit count and response speed of each model.
*5. The bank is not reset by the user reset function or saved by the user save function.
*6. Eco LO is supported for Amplifier Units manufactured in July 2014 or later.
*7. When the number of connected units is 11 or more, the ambient temperature is less than 50°C.

Analog output models/ Model for Sensor Communications Unit

Type Analog output
models Model for Sensor Communications Unit
NPN output E3NX-FA11AN E3NX-FA10 E3NX-FA0 E3NX-FAH0
PNP output E3NX-FA41AN E3NX-FA40
Connecting method Pre-wired Connector for
Sensor
Communications
Unit Pre-wired Connector for Sensor
Communications Unit
Inputs/
outputs Outputs 2 outputs 1 outputs --- *1
External
inputs --- ---
Light source
(wavelength) Red, 4-element LED (625 nm) Infrared LED (870nm)
Power supply voltage 10 to 30 VDC, including
10% ripple (p-p) Supplied from the connector through the communication units.
Power consumption *2 At Power supply
voltage of 24 VDC
Normal mode: 960 mW
max.
(Current consumption at
40 mA max.)
Eco function ON: 770
mW max.
(Current consumption at
32 mA max.)
Eco function LO: 870
mW max.
(Current consumption at
36 mA max.) At Power supply voltage of 24
VDC
Normal mode: 920 mW max.
(Current consumption at 38 mA
max.)
Eco function ON: 680 mW max.
(Current consumption at 26 mA
max.)
Eco function LO: 800 mW max.
(Current consumption at 33 mA
max.) At Power supply voltage
of 24 VDC
Normal mode: 1,080
mW max.
(Current consumption at
45 mA max.)
Eco function ON: 920
mW max.
(Current consumption at
38 mA max.)
Eco function LO: 1,020
mW max.
(Current consumption at
42 mA max.)
Control output Load power supply voltage:
30 VDC max., open-collector output
(depends on the NPN/PNP output format)
Load current: Groups of 1 to 3 Amplifier Units:
100 mA max., Groups of 4 to 30 Amplifier Units:
20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max. ---
Analog output
(reference value) Voltage output: 1-5 VDC
(10 kΩ or more
connected load),
temperature
characteristics: 0.3%
F.S. / °C ---
Indicators 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green),
and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection,
output short-circuit protection, and output
reverse polarity protection Power supply reverse polarity
protection and output short-circuit
protection
Control
output
Response
time Super-high-
speed mode
(SHS) Operate or reset:
80 μs Operate or reset: 32 μs
High-speed
mode (HS) Operate or reset:
250μs Operate or reset: 250 μs
Standard
mode (Stnd) Operate or reset:
1 ms Operate or reset: 1 ms
Giga-power
mode (GIGA) Operate or reset:
16 ms Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning,
power tuning, percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30 16 With E3NW-ECT: 30 units
(When connected to an OMRON NJ-
series Controller.)
With E3NW-CRT: 16 units
(Note: E3NX-FAH0 can not be
connected.)
With E3NW-CCL: 16 units
No. of
Units for
mutual
inter-
ference
preven-
tion *3 Super-high-
speed mode
(SHS) 0 (The mutual interference prevention function is disabled if the detection mode is set to
super-high-speed mode.)
High-speed
mode (HS) 10
Standard
mode (Stnd) 10
Giga-power
mode (GIGA) 10
Func-
tions Automatic
power
control
(APC) Always enabled.
Dynamic
power
control
(DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer:
1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting
settings *4 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display
dimmed).
Bank
switching Select from banks 1 to 4.
Power
tuning Select from ON or OFF.
Output 1 Select from normal detection mode, area detection mode or differential detection mode
(E3NX-FA10/40 only).
Output 2 Select from Analog
scaling or Analog offset --- Select from normal detection mode,
alarm output mode, error output mode
or differential detection mode (E3NX-
FA0 only).
Hysteresis
width Select from standard setting or user setting. For a user setting, the hysteresis width can
be set from 0 to 9,999.
Ambient illumination
(Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature
range *5 Operating:
Groups of 1 or 2
Amplifier Units: -25 to
55°C,
Groups of 3 to 10
Amplifier Units: -25 to
50°C,
Groups of 11 to 16
Amplifier Units: -25 to
45°C,
Groups of 17 to 30
Amplifier Units: -25 to
40°C
Storage: -30 to 70°C
(with no icing or
condensation) Operating:
Groups of 1 or 2
Amplifier Units: 0 to
55°C,
Groups of 3 to 10
Amplifier Units: 0 to
50°C,
Groups of 11 to 16
Amplifier Units: 0 to
45°C
Storage: -30 to 70°C
(with no icing or
condensation) Operating:
Groups of 1 or 2 Amplifier Units: 0 to
55°C,
Groups of 3 to 10 Amplifier Units: 0 to
50°C,
Groups of 11 to 16 Amplifier Units: 0 to
45°C,
Groups of 17 to 30 Amplifier Units: 0 to
40°C
Storage: -30 to 70°C (with no icing or
condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation) within the surrounding air
temperature range shown above
Altitude 2,000 m max.
Installation environment Pollution degree 3
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance
(destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
(destruction) 500 m/s² for 3 times
each in X, Y, and Z
directions 150 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/
Sensor only) Approx. 115 g/
approx. 75 g Approx. 95 g/
approx. 45 g Approx. 65 g/
approx. 25 g Approx. 65 g/
approx. 25 g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

*1. Two sensor outputs are allocated in the programmable logic controller PLC I/O table.
PLC operation via Communications Unit enables reading detected values and changing settings.
*2. At Power supply voltage of 10 to 30 VDC
Analog output models:
Normal mode : 1,080 mW max. (Current consumption: 36 mA max. at 30 VDC, 75 mA max. at 10 VDC)
Eco function ON : 840 mW max. (Current consumption: 28 mA max. at 30 VDC, 55 mA max. at 10 VDC)
Eco function LO : 960 mW max. (Current consumption: 32 mA max. at 30 VDC, 65 mA max. at 10 VDC)
*3. The tuning will not change the number of units.
The least unit count among the mutual interference prevention units of E3NX and E3NC.
Check the mutual interference prevention unit count and response speed of each model.
*4. The bank is not reset by the user reset function or saved by the user save function.
*5. When the number of connected units is 11 or more, the ambient temperature is less than 50°C.

Sensing Distances
Standard models/ Advanced models/ Analog output models
Threaded Models

Sensing
method Sensing
direction Size Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-beam Right-angle M4 E32-T11N 2M 3,000 1,500 1,050 280
E32-LT11N 2M 4,000*1 4,000*1 3,450 920
Straight E32-T11R 2M 3,000 1,500 1,050 280
E32-LT11 2M 4,000*1 4,000*1 4,000*1 1,080
E32-LT11R 2M 4,000*1 4,000*1 3,450 920
Reflective Right-angle M3 E32-C31N 2M 160 75 69 14
E32-C21N 2M 440 190 130 39
M4 E32-D21N 2M 1,260 520 360 100
M6 E32-C11N 2M 1,170 520 480 100
E32-LD11N 2M 1,260 520 360 100
Straight M3 E32-D21R 2M 210 90 60 16
E32-C31 2M 490 220 150 44
E32-C31M 1M
M4 E32-D211R 2M 210 90 60 16
M6 E32-D11R 2M 1,260 520 360 100
E32-CC200 2M 2,100 900 600 180
E32-LD11 2M 1,290 540 370 110
E32-LD11R 2M 1,260 520 360 100

Cylindrical Models

Sensing
method Size Sensing
direction Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam 1 dia. Top-view E32-T223R 2M 670 370 220 60
1.5 dia. E32-T22B 2M 1,020 600 330 90
3 dia. E32-T12R 2M 3,000 1,500 1,050 280
Side-view E32-T14LR 2M 1,120 670 390 100
Reflective 1.5 dia. Top-view E32-D22B 2M 210 90 60 16
1.5 dia. + 0.5 dia. E32-D43M 1M 42 18 12 4
3 dia. E32-D22R 2M 210 90 60 16
E32-D221B 2M 450 210 130 40
E32-D32L 2M 1,050 450 300 90
3 dia. + 0.8 dia. E32-D33 2M 100 45 30 8

Flat Models

Sensing
method Sensing direction Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-beam Top-view E32-T15XR 2M 3,000 1,500 1,050 280
Side-view E32-T15YR 2M 1,120 670 390 100
Flat-view E32-T15ZR 2M
Reflective Top-view E32-D15XR 2M 1,260 520 360 100
Side-view E32-D15YR 2M 300 150 78 24
Flat-view E32-D15ZR 2M

Sleeve Models

Sensing
method Sensing direction Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-beam Side-view E32-T24R 2M 250 150 75 20
E32-T24E 2M 670 370 220 60
Top-view E32-T33 1M 220 130 75 20
E32-T21-S1 2M 760 450 250 68
E32-TC200BR 2M 3,000 1,500 1,050 280
Reflective Side-view E32-D24R 2M 100 45 30 8
E32-D24-S2 2M 180 79 67 14
Top-view E32-D43M 1M 42 18 12 4
E32-D331 2M 21 9 6 2
E32-D33 2M 100 45 30 8
E32-D32-S1 0.5M 94 40 27 7
E32-D31-S1 0.5M
E32-DC200F4R 2M 210 90 60 16
E32-D22-S1 2M 370 160 100 30
E32-D21-S3 2M
E32-DC200BR 2M 1,260 520 360 100
E32-D25-S3 2M 370 160 100 30

Small-spot, Reflective Models

Type Spot
diameter Center
distance
(mm) Models Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Variable
spot 0.1 to 0.6 dia. 6 to 15 E32-C42 1M + E39-F3A Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to 1.6 dia. 10 to 30 E32-C42 1M + E39-F17 Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel
light 4 dia. 0 to 20 E32-C31 2M + E39-F3C Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C31N 2M + E39-F3C
Integrated
lens 0.1 dia. 5 E32-C42S 1M Spot diameter of 0.1 mm at 5 mm.
6 dia. 50 E32-L15 2M Spot diameter of 6 mm at 50 mm.
Small-
spot 0.1 dia. 7 E32-C41 1M + E39-F3A-5 Spot diameter of 0.1 mm at 7 mm.
0.5 dia. E32-C31 2M + E39-F3A-5 Spot diameter of 0.5 mm at 7 mm.
E32-C31N 2M + E39-F3A-5
0.2 dia. 17 E32-C41 1M + E39-F3B Spot diameter of 0.2 mm at 17 mm.
0.5 dia. E32-C31 2M + E39-F3B Spot diameter of 0.5 mm at 17 mm.
E32-C31N 2M + E39-F3B
3 dia. 50 E32-CC200 2M + E39-F18 Spot diameter of 3 mm at 50 mm.
E32-C11N 2M + E39-F18

High-power Beam Models

Type Sensing
direction Center
distance
(mm) Models Sensing distance (mm)
Giga
mode Standard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam
models with
integrated
lens Right-angle 15° E32-LT11N 2M 4,000*2 4,000*2 3,450 920
Top-view 10° E32-T17L 10M 20,000 *1 20,000 *1 20,000 *1 8,000
15° E32-LT11 2M 4,000 *2 4,000 *2 4,000 *2 1,080
E32-LT11R 2M 4,000 *2 4,000 *2 3,450 920
Side-view 30° E32-T14 2M 4,000 *2 4,000 *2 4,000 *2 1,800
Through-beam
models with
lenses Right-angle 12° E32-T11N 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 2,000
6° E32-T11N 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 3,600
Top-view 12° E32-T11R 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 2,000
6° E32-T11R 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 3,600
Side-view 60° E32-T11R 2M + E39-F2 2,170 1,200 750 200
Top-view 12° E32-T11 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,860
6° E32-T11 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 4,000 *2
Side-view 60° E32-T11 2M + E39-F2 3,450 1,980 1,290 320
Top-view 12° E32-T51R 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,500
6° E32-T51R 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 4,000 *2
Side-view 60° E32-T51R 2M + E39-F2 2,100 1,080 750 200
Top-view 12° E32-T81R-S 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,000
6° E32-T81R-S 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 1,800
Side-view 60° E32-T81R-S 2M + E39-F2 1,500 820 540 140
Top-view 12° E32-T61-S 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,800
6° E32-T61-S 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 3,100
Side-view 60° E32-T61-S 2M + E39-F2 2,520 1,350 900 240
Top-view 12° E32-T51 2M + E39-F1-33 4,000 *2 4,000 *2 3,450 1,400
6° E32-T51 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 4,000 *2
Reflective
models with
integrated lens Top-view 4° E32-D16 2M 40 to
4,000 *2 40 to
2,100 40 to
1,350 40 to 480

*1. The fiber length is 10 m on each side, so the sensing distance is given as 20,000 mm.
*2. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Narrow View Models

Sensing
method Sensing
direction Aperture
angle Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-beam Side-view 1.5° E32-A03 2M 4,000 *1 2,670 1,800 500
E32-A03-1 2M
3.4° E32-A04 2M 1,920 1,020 670 200
4° E32-T24SR 2M 4,000 *1 3,300 2,190 580
E32-T24S 2M 4,000 *1 3,900 2,610 700
E32-T22S 2M 4,000 *1 4,000 *1 3,750 1,000
*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Models for Detection without Background Interference

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-speed
mode
Limited-
reflective Flat-view E32-L16-N 2M 0 to 15 0 to 12
E32-L24S 2M 0 to 4
Side-view E32-L25L 2M 5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective Models)

Sensing
method Feature Size Models Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Retro-
reflective Film detection M3 E32-C31 2M + E39-F3R +
E39-RP37 370 300 ---
Square --- E32-R16 5M 150 to 1,500
Threaded M6 E32-R21 2M 10 to 370 10 to 250
Hex-shaped E32-LR11NP 2M +
E39-RP1 2,020 1,800 1,500 550

Transparent Object Detection (Limited-reflective Models)

Sensing
method Feature Sensing
direction Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Limited-
reflective Small size Flat-view E32-L24S 2M 0 to 4
Standard E32-L16-N 2M 0 to 15 0 to 12
Glass substrate
alignment, 70°C E32-A08 2M 10 to 20 ---
Standard/long-distance E32-A12 2M 12 to 30 ---
Side-view form Side-view E32-L25L 2M 5.4 to 9 (center 7.2)
Glass substrate
mapping, 70°C Top-view E32-A09 2M 15 to 38 ---

Chemical-resistant, Oil-resistant Models

Sensing
method Type Sensing
direction Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam Oil-resistant Right-angle E32-T11NF 2M 4,000 *1 4,000 *1 4,000 *1 2,200
Chemical/
oil-resistant Top-view E32-T12F 2M 4,000 *1 4,000 *1 4,000 *1 1,600
E32-T11F 2M 4,000 *1 4,000 *1 3,900 1,000
Side-view E32-T14F 2M 2,100 1,200 750 200
Chemical/
oil-resistant at
150°C Top-view E32-T51F 2M 4,000 *1 4,000 *1 2,700 700
Reflective Semiconductors:
Cleaning,
developing, and
etching; 60°C Top-view E32-L11FP 5M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm),
19 to 31 mm from center of mounting hole A
(Recommended sensing distance: 22 mm)
Semiconductors:
Resist stripping;
85°C E32-L11FS 5M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm),
32 to 44 mm from center of mounting hole A
(Recommended sensing distance: 35 mm)
Chemical/
oil-resistant E32-D12F 2M --- *2 280 190 60
Chemical-
resistant cable E32-D11U 2M 1,260 520 360 100
*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.
*2. Even if there is no sensing object, the Sensor will detect light that is reflected by the fluororesin.

Bending-resistant Models

Sensing
method Size Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-speed
mode
Through-beam 1.5 dia. E32-T22B 2M 1,020 600 330 90
M3 E32-T21 2M
M4 E32-T11 2M 3,750 2,020 1,350 360
Square 32-T25XB 2M 750 450 250 70
Reflective 1.5 dia. E32-D22B 2M 210 90 60 16
M3 E32-D21 2M
3 dia. E32-D221B 2M 450 210 130 40
M4 E32-D21B 2M
M6 E32-D11 2M 1,260 520 360 100
Square E32-D25XB 2M 360 150 90 30

Heat-resistant Models

Sensing
method Heat-resistant
temperature Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-beam 100°C E32-T51R 2M 2,400 1,200 840 225
150°C E32-T51 2M 4,000 *1 2,250 1,500 400
200°C E32-T81R-S 2M 1,500 820 540 140
350°C E32-T61-S 2M 2,520 1,350 900 240
Reflective 100°C E32-D51R 2M 1,000 420 280 80
150°C E32-D51 2M 1,680 670 480 144
200°C E32-D81R-S 2M 630 270 180 54
300°C E32-A08H2 2M 10 to 20 ---
E32-A09H2 2M 20 to 30 (center 25) ---
350°C E32-D611-S 2M 630 270 180 54
E32-D61-S 2M
400°C E32-D73-S 2M 420 180 120 36
*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Area Detection Models

Sensing
method Type Sensing width Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-beam Area 11 mm E32-T16PR 2M 4,000 *1 2,550 1,680 440
E32-T16JR 2M 4,000 *1 2,250 1,440 380
30 mm E32-T16WR 2M 4,000 *1 3,900 2,550 680
Reflective Array 11 mm E32-D36P1 2M 1,050 450 300 90
*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Liquid-level Detection Models

Sensing
method Tube
diameter Feature Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Tube-
mounting 3.2, 6.4, or
9.5 dia Stable
residual
quantity
detection E32-A01 5M Applicable tube: Transparent tube with a diameter of 3.2,
6.4, or 9.5 mm, Recommended wall thickness: 1 mm
8 to 10 dia Mounting at
multiple
levels E32-L25T 2M Applicable tube: Transparent tube with a diameter of 8 to
10 mm, Recommended wall thickness: 1 mm
No
restrictions Large tubes E32-D36T 5M Applicable tube: Transparent tube (no restrictions on
diameter)
Liquid contact
(heat-resistant
up to 200°C) --- --- E32-D82F1 4M Liquid-contact type

Vacuum-resistant Models

Sensing
method Heat-resistant
temperature Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Through-beam 120 °C E32-T51V 1M 1,080 600 390 100
E32-T51V 1M + E39-F1V 2,000 *1 2,000 *1 2,000 *1 520
200 °C E32-T84SV 1M 2,000*1 1,420 960 260
*1. The fiber length is 1 m on each side, so the sensing distance is given as 2,000 mm.

Models for FPD, Semiconductors, and Solar Cells

Sensing
method Application Operating
temperature Model Sensing distance (mm)
Giga mode Standard
mode High-speed
mode Super-high-
speed mode
Limited-
reflective Glass presence
detection 70°C E32-L16-N 2M 0 to 15 0 to 12
E32-A08 2M 10 to 20 ---
Glass substrate
alignment 300°C E32-A08H2 3M
70°C E32-A12 2M 12 to 30 ---
Glass substrate
mapping E32-A09 2M 15 to 38 ---
300°C E32-A09H2 2M 20 to 30 (center 25) ---
Wet processes:
Cleaning, Resist
developing and
etching 60°C E32-L11FP 5M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm),
19 to 31 mm from center of mounting hole A
(Recommended sensing distance: 22 mm)
Wet process:
Resist stripping 85°C E32-L11FS 5M 8 to 20 mm from tip of lens (Recommended sensing
distance: 11 mm),
32 to 44 mm from center of mounting hole A
(Recommended sensing distance: 35 mm)
Through-
beam Wafer mapping 70°C E32-A03 2M 4,000 *1 2,670 1,800 500
E32-A03-1 2M
E32-A04 2M 1,920 1,020 670 200
E32-T24SR 2M 4,000 *1 3,300 2,190 580
E32-T24S 2M 4,000 *1 3,900 2,610 700
*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Infrared models
Threaded Models

Sensing
method Sensing
direction Size Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-
beam Right-angle M4 E32-T11N 2M 280 190 130 55
Straight E32-T11R 2M
Reflective Straight M3 E32-C31 2M 50 37 25 8.5
M6 E32-D11R 2M 120 90 60 21
E32-CC200 2M 200 150 100 35

Cylindrical Models

Sensing
method Size Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-
beam 3 dia. Top-view E32-T12R 2M 280 190 130 55
Side-view E32-T14LR 2M 100 75 80 21
Reflective 3 dia. Top-view E32-D32L 2M 100 75 50 17

Flat Models

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-
beam Top-view E32-T15XR 2M 280 190 130 55
Side-view E32-T15YR 2M 100 75 80 21
Flat-view E32-T15ZR 2M
Reflective Top-view E32-D15XR 2M 120 90 60 21
Side-view E32-D15YR 2M 28 20 13 5
Flat-view E32-D15ZR 2M

Sleeve Models

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-
beam Top-view E32-TC200BR 2M 280 190 130 55
Reflective Top-view E32-DC200BR 2M 120 90 60 21

High-power Beam Models

Type Sensing
direction Aperture
angle Models Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-beam
models with
integrated lens Side-view 30° E32-T14 2M 1800 1200 820 360

last update: November 1, 2018

OMRON E3NX-FA catalog
E3NX-FA Smart Fiber Amplifier Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E3NX-FA Data Sheet -
[4359KB] Nov 01, 201820181101 E3NX-FA Data Sheet

E3NX-FA Catalog E426-E1-06
[2657KB] Nov 01, 201820181101 E3NX-FA Catalog

NO. E3NX-FA

TYPE:Fiber Sensors Fiber Amplifier Copyright Statement

DATE:2021-06-12

Associated products:
E3NX-CA Color Fiber Amplifier Unit/Features E3NX-MA Smart Fiber Amplifier Units/Features

Type	Connecting method	Appearance	Inputs/ outputs	Model
NPN output	PNP output
Standard models	Pre-wired (2 m)		1 output	E3NX-FA11 2M	E3NX-FA41 2M
*E3NX-FA11-5 2M 1**	---
Wire-saving Connector		1 output	E3NX-FA6	E3NX-FA8
Advanced models	Pre-wired (2 m)		2 outputs + 1 input	E3NX-FA21 2M	E3NX-FA51 2M
Wire-saving Connector		1 output + 1 input	E3NX-FA7	E3NX-FA9
2 outputs	E3NX-FA7TW	E3NX-FA9TW
M8 Connector		1 output + 1 input	E3NX-FA24	E3NX-FA54
2 outputs	---	E3NX-FA54TW
Infrared models	Pre-wired (2 m)		1 output	E3NX-FAH11 2M	E3NX-FAH41 2M
Wire-saving Connector		1 output	E3NX-FAH6	E3NX-FAH8
Analog output models	Pre-wired (2 m)		2 outputs	E3NX-FA11AN 2M	E3NX-FA41AN 2M
Model for Sensor Communications Unit *2	Connector for Sensor Communications Unit		---	E3NX-FA0
E3NX-FAH0
Connector for Sensor Communications Unit Pre-wired (2 m)		1 output	E3NX-FA10 2M	E3NX-FA40 2M

Type	Cable length	No. of conductors	Model	Applicable Fiber Amplifier Units
Master Connector	2 m	4	E3X-CN21	E3NX-FA7 E3NX-FA7TW E3NX-FA9 E3NX-FA9TW
Slave Connector	2	E3X-CN22
Master Connector	3	E3X-CN11	E3NX-FA6 E3NX-FA8
Slave Connector	1	E3X-CN12

Size	Cable	Appearance	Cable type	Model
M8	Standard cable	Straight		2m	4-wire	XS3F-M421-402-A
5m	XS3F-M421-405-A
L-shaped		2m	XS3F-M422-402-A
5m	XS3F-M422-405-A

Appearance	Model	Quantity
	E39-L143	1

Appearance	Type	Model	Quantity
	Shallow type, total length: 1 m	PFP-100N	1
Shallow type, total length: 0.5 m	PFP-50N
Deep type, total length: 1 m	PFP-100N2

Appearance	Model	Quantity
	PFP-M	1

Appearance	Model	Quantity
	E39-G25 FOR E3NX-FA	1

Type	Appearance	Model
Sensor Communications Unit for EtherCAT		E3NW-ECT
Sensor Communications Unit for CompoNet		*E3NW-CRT 1**
Sensor Communications Unit for CC-Link		E3NW-CCL
Distributed Sensor Unit *2		E3NW-DS

Type	Standard models
NPN output	E3NX-FA11	E3NX-FA6	*E3NX-FA11-5 1**
PNP output	E3NX-FA41	E3NX-FA8	---
Connecting method	Pre-wired	Wire-saving Connector	Pre-wired
Inputs/ outputs	Outputs	1 output
External inputs	---
Light source (wavelength)	Red, 4-element LED (625 nm)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)
*Power consumption 2**	At Power supply voltage of 24 VDC Standard Models: 　Normal mode: 840 mW max. (Current consumption at 35 mA max.) 　Eco function ON: 650 mW max. (Current consumption at 27 mA max.) 　Eco function LO: 750 mW max. (Current consumption at 31 mA max.) Advanced Models or Model for Sensor Communications Unit: 　Normal mode: 920 mW max. (Current consumption at 38 mA max.) 　Eco function ON: 680 mW max. (Current consumption at 28 mA max.) 　Eco function LO: 800 mW max. (Current consumption at 33 mA max.) Infrared models: 　Normal mode: 1080 mW max. (Current consumption at 45 mA max.) 　Eco function ON: 920 mW max. (Current consumption at 38 mA max.) 　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output	Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format) Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.
External inputs	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response time	Super-high-speed mode (SHS)	Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS)	Operate or reset: 250 μs
Standard mode (Stnd)	Operate or reset: 1 ms
Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units	30
No. of Units for mutual interference prevention *4	Super-high-speed mode (SHS)	0 Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS)	10
Standard mode (Stnd)	10
Giga-power mode (GIGA)	10
Functions	Automatic power control (APC)	Always enabled.
Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
*Resetting settings 5**	Select from initial reset (factory defaults) or user reset (saved settings).
*Eco mode 6**	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON, OFF or Execution on power-up.
Output 1	Select from normal detection mode, area detection mode or differential detection mode.
Output 2	---
External input	---
Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)	Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
*Ambient temperature range 7**	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude	2,000 m max.
Installation environment	Pollution degree 3
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only)	Approx. 115 g/ approx. 75 g	Approx. 60 g/ approx. 20 g	Approx. 115 g/ approx. 75 g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

Type	Advanced models
NPN output	E3NX-FA21	E3NX-FA7	E3NX-FA7TW	E3NX-FA24	---
PNP output	E3NX-FA51	E3NX-FA9	E3NX-FA9TW	E3NX-FA54	E3NX-FA54TW
Connecting method	Pre-wired	Wire-saving Connector	M8 Connector
Inputs/ outputs	Outputs	2 outputs	1 output	2 outputs	1 output	2 outputs
External inputs	1 input	1 input	---	1 input	---
Light source (wavelength)	Red, 4-element LED (625 nm)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)
*Power consumption 2**	At Power supply voltage of 24 VDC Standard Models: 　Normal mode: 840 mW max. (Current consumption at 35 mA max.) 　Eco function ON: 650 mW max. (Current consumption at 27 mA max.) 　Eco function LO: 750 mW max. (Current consumption at 31 mA max.) Advanced Models or Model for Sensor Communications Unit: 　Normal mode: 920 mW max. (Current consumption at 38 mA max.) 　Eco function ON: 680 mW max. (Current consumption at 28 mA max.) 　Eco function LO: 800 mW max. (Current consumption at 33 mA max.) Infrared models: 　Normal mode: 1080 mW max. (Current consumption at 45 mA max.) 　Eco function ON: 920 mW max. (Current consumption at 38 mA max.) 　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output	Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format) Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.
External inputs	Refer to *3.	---	Refer to *3.	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response time	Super-high-speed mode (SHS)	Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS)	Operate or reset: 250 μs
Standard mode (Stnd)	Operate or reset: 1 ms
Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units	30
No. of Units for mutual interference prevention *4	Super-high-speed mode (SHS)	0 Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS)	10
Standard mode (Stnd)	10
Giga-power mode (GIGA)	10
Functions	Automatic power control (APC)	Always enabled.
Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
*Resetting settings 5**	Select from initial reset (factory defaults) or user reset (saved settings).
*Eco mode 6**	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON, OFF or Execution on power-up.
Output 1	Select from normal detection mode, area detection mode or differential detection mode.
Output 2	Select from normal detection mode, alarm output mode, error output mode or differential detection mode.	---	Select from normal detection mode, alarm output mode, error output mode or differential detection mode.	---	Select from normal detection mode, alarm output mode, error output mode or differential detection mode.
External input	Select from input OFF, tuning, power tuning, emission OFF, zero reset, or bank switching.	---	Select from input OFF, tuning, power tuning, emission OFF, zero reset, or bank switching.	---
Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)	Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
*Ambient temperature range 7**	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude	2,000 m max.
Installation environment	Pollution degree 3
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only)	Approx. 115 g/ approx. 75 g	Approx. 60g/approx. 20g	Approx. 65 g/ approx. 25 g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

Type	Infrared models
NPN output	E3NX-FAH11	E3NX-FAH6
PNP output	E3NX-FAH41	E3NX-FAH8
Connecting method	Pre-wired	Wire-saving Connector
Inputs/ outputs	Outputs	1 outputs
External inputs	---
Light source (wavelength)	Infrared LED (870nm)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)
*Power consumption 2**	At Power supply voltage of 24 VDC Standard Models: 　Normal mode: 840 mW max. (Current consumption at 35 mA max.) 　Eco function ON: 650 mW max. (Current consumption at 27 mA max.) 　Eco function LO: 750 mW max. (Current consumption at 31 mA max.) Advanced Models or Model for Sensor Communications Unit: 　Normal mode: 920 mW max. (Current consumption at 38 mA max.) 　Eco function ON: 680 mW max. (Current consumption at 28 mA max.) 　Eco function LO: 800 mW max. (Current consumption at 33 mA max.) Infrared models: 　Normal mode: 1080 mW max. (Current consumption at 45 mA max.) 　Eco function ON: 920 mW max. (Current consumption at 38 mA max.) 　Eco function LO: 1020 mW max. (Current consumption at 42 mA max.)
Control output	Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format) Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.
External inputs	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response time	Super-high-speed mode (SHS)	Operate or reset for model with 1 output: 30 μs (Super High Speed mode (SHS2) of E3NX-FA11-5 is 60 μs each), with 2 outputs: 32 μs
High-speed mode (HS)	Operate or reset: 250 μs
Standard mode (Stnd)	Operate or reset: 1 ms
Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units	30
No. of Units for mutual interference prevention *4	Super-high-speed mode (SHS)	0 Note: 2 units when the detection mode is set to Super High Speed mode (SHS2), and for other models, the mutual interference prevention function is disabled.
High-speed mode (HS)	10
Standard mode (Stnd)	10
Giga-power mode (GIGA)	10
Functions	Automatic power control (APC)	Always enabled.
Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
*Resetting settings 5**	Select from initial reset (factory defaults) or user reset (saved settings).
*Eco mode 6**	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON or OFF.
Output 1	Select from normal detection mode or area detection mode.
Output 2	---
External input	---
Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)	Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
*Ambient temperature range 7**	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude	2,000 m max.
Installation environment	Pollution degree 3
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only)	Approx. 115 g/approx. 75 g	Approx. 60g/approx. 20g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

	Contact input (relay or switch)	Non-contact input (transistor)	*Input time3-1**
NPN	ON: Shorted to 0 V (Sourcing current: 1 mA max.). OFF: Open or shorted to Vcc.	ON: 1.5 V max. (Sourcing current: 1 mA max.) OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1 mA max.)	ON: 9 ms min. OFF: 20 ms min.
PNP	ON: Shorted to Vcc (Sinking current: 3 mA max.). OFF: Open or shorted to 0 V.	ON: Vcc - 1.5 V to Vcc (Sinking current: 3 mA max.) OFF: 1.5 V max. (Leakage current: 0.1 mA max.)

Type	Analog output models	Model for Sensor Communications Unit
NPN output	E3NX-FA11AN	E3NX-FA10	E3NX-FA0	E3NX-FAH0
PNP output	E3NX-FA41AN	E3NX-FA40
Connecting method	Pre-wired	Connector for Sensor Communications Unit Pre-wired	Connector for Sensor Communications Unit
Inputs/ outputs	Outputs	2 outputs	1 outputs	--- *1
External inputs	---	---
Light source (wavelength)	Red, 4-element LED (625 nm)	Infrared LED (870nm)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)	Supplied from the connector through the communication units.
*Power consumption 2**	At Power supply voltage of 24 VDC Normal mode: 960 mW max. (Current consumption at 40 mA max.) Eco function ON: 770 mW max. (Current consumption at 32 mA max.) Eco function LO: 870 mW max. (Current consumption at 36 mA max.)	At Power supply voltage of 24 VDC Normal mode: 920 mW max. (Current consumption at 38 mA max.) Eco function ON: 680 mW max. (Current consumption at 26 mA max.) Eco function LO: 800 mW max. (Current consumption at 33 mA max.)	At Power supply voltage of 24 VDC Normal mode: 1,080 mW max. (Current consumption at 45 mA max.) Eco function ON: 920 mW max. (Current consumption at 38 mA max.) Eco function LO: 1,020 mW max. (Current consumption at 42 mA max.)
Control output	Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format) Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.	---
Analog output (reference value)	Voltage output: 1-5 VDC (10 kΩ or more connected load), temperature characteristics: 0.3% F.S. / °C	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection	Power supply reverse polarity protection and output short-circuit protection
Control output Response time	Super-high- speed mode (SHS)	Operate or reset: 80 μs	Operate or reset: 32 μs
High-speed mode (HS)	Operate or reset: 250μs	Operate or reset: 250 μs
Standard mode (Stnd)	Operate or reset: 1 ms	Operate or reset: 1 ms
Giga-power mode (GIGA)	Operate or reset: 16 ms	Operate or reset: 16 ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units	30	16	With E3NW-ECT: 30 units (When connected to an OMRON NJ- series Controller.) With E3NW-CRT: 16 units (Note: E3NX-FAH0 can not be connected.) With E3NW-CCL: 16 units
No. of Units for mutual inter- ference preven- tion *3	Super-high- speed mode (SHS)	0 (The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.)
High-speed mode (HS)	10
Standard mode (Stnd)	10
Giga-power mode (GIGA)	10
Func- tions	Automatic power control (APC)	Always enabled.
Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *4	Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON or OFF.
Output 1	Select from normal detection mode, area detection mode or differential detection mode (E3NX-FA10/40 only).
Output 2	Select from Analog scaling or Analog offset	---	Select from normal detection mode, alarm output mode, error output mode or differential detection mode (E3NX- FA0 only).
Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)	Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range *5	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)	Operating: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C, Groups of 11 to 16 Amplifier Units: 0 to 45°C Storage: -30 to 70°C (with no icing or condensation)	Operating: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C, Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units: 0 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude	2,000 m max.
Installation environment	Pollution degree 3
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions	150 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/ Sensor only)	Approx. 115 g/ approx. 75 g	Approx. 95 g/ approx. 45 g	Approx. 65 g/ approx. 25 g	Approx. 65 g/ approx. 25 g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

Sensing method	Sensing direction	Size	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Right-angle	M4	E32-T11N 2M	3,000	1,500	1,050	280
E32-LT11N 2M	4,000*1	4,000*1	3,450	920
Straight	E32-T11R 2M	3,000	1,500	1,050	280
E32-LT11 2M	4,000*1	4,000*1	4,000*1	1,080
E32-LT11R 2M	4,000*1	4,000*1	3,450	920
Reflective	Right-angle	M3	E32-C31N 2M	160	75	69	14
E32-C21N 2M	440	190	130	39
M4	E32-D21N 2M	1,260	520	360	100
M6	E32-C11N 2M	1,170	520	480	100
E32-LD11N 2M	1,260	520	360	100
Straight	M3	E32-D21R 2M	210	90	60	16
E32-C31 2M	490	220	150	44
E32-C31M 1M
M4	E32-D211R 2M	210	90	60	16
M6	E32-D11R 2M	1,260	520	360	100
E32-CC200 2M	2,100	900	600	180
E32-LD11 2M	1,290	540	370	110
E32-LD11R 2M	1,260	520	360	100

Sensing method	Size	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	1 dia.	Top-view	E32-T223R 2M	670	370	220	60
1.5 dia.	E32-T22B 2M	1,020	600	330	90
3 dia.	E32-T12R 2M	3,000	1,500	1,050	280
Side-view	E32-T14LR 2M	1,120	670	390	100
Reflective	1.5 dia.	Top-view	E32-D22B 2M	210	90	60	16
1.5 dia. + 0.5 dia.	E32-D43M 1M	42	18	12	4
3 dia.	E32-D22R 2M	210	90	60	16
E32-D221B 2M	450	210	130	40
E32-D32L 2M	1,050	450	300	90
3 dia. + 0.8 dia.	E32-D33 2M	100	45	30	8

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Top-view	E32-T15XR 2M	3,000	1,500	1,050	280
Side-view	E32-T15YR 2M	1,120	670	390	100
Flat-view	E32-T15ZR 2M
Reflective	Top-view	E32-D15XR 2M	1,260	520	360	100
Side-view	E32-D15YR 2M	300	150	78	24
Flat-view	E32-D15ZR 2M

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Side-view	E32-T24R 2M	250	150	75	20
E32-T24E 2M	670	370	220	60
Top-view	E32-T33 1M	220	130	75	20
E32-T21-S1 2M	760	450	250	68
E32-TC200BR 2M	3,000	1,500	1,050	280
Reflective	Side-view	E32-D24R 2M	100	45	30	8
E32-D24-S2 2M	180	79	67	14
Top-view	E32-D43M 1M	42	18	12	4
E32-D331 2M	21	9	6	2
E32-D33 2M	100	45	30	8
E32-D32-S1 0.5M	94	40	27	7
E32-D31-S1 0.5M
E32-DC200F4R 2M	210	90	60	16
E32-D22-S1 2M	370	160	100	30
E32-D21-S3 2M
E32-DC200BR 2M	1,260	520	360	100
E32-D25-S3 2M	370	160	100	30

Type	Spot diameter	Center distance (mm)	Models	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Variable spot	0.1 to 0.6 dia.	6 to 15	E32-C42 1M + E39-F3A	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to 1.6 dia.	10 to 30	E32-C42 1M + E39-F17	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel light	4 dia.	0 to 20	E32-C31 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C31N 2M + E39-F3C
Integrated lens	0.1 dia.	5	E32-C42S 1M	Spot diameter of 0.1 mm at 5 mm.
6 dia.	50	E32-L15 2M	Spot diameter of 6 mm at 50 mm.
Small- spot	0.1 dia.	7	E32-C41 1M + E39-F3A-5	Spot diameter of 0.1 mm at 7 mm.
0.5 dia.	E32-C31 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.
E32-C31N 2M + E39-F3A-5
0.2 dia.	17	E32-C41 1M + E39-F3B	Spot diameter of 0.2 mm at 17 mm.
0.5 dia.	E32-C31 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.
E32-C31N 2M + E39-F3B
3 dia.	50	E32-CC200 2M + E39-F18	Spot diameter of 3 mm at 50 mm.
E32-C11N 2M + E39-F18

Type	Sensing direction	Center distance (mm)	Models	Sensing distance (mm)
Giga mode	Standard mode	High- speed mode	Super- high- speed mode
Through-beam models with integrated lens	Right-angle	15°	E32-LT11N 2M	4,000*2	4,000*2	3,450	920
Top-view	10°	E32-T17L 10M	20,000 *1	20,000 *1	20,000 *1	8,000
15°	E32-LT11 2M	4,000 *2	4,000 *2	4,000 *2	1,080
E32-LT11R 2M	4,000 *2	4,000 *2	3,450	920
Side-view	30°	E32-T14 2M	4,000 *2	4,000 *2	4,000 *2	1,800
Through-beam models with lenses	Right-angle	12°	E32-T11N 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	2,000
6°	E32-T11N 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,600
Top-view	12°	E32-T11R 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	2,000
6°	E32-T11R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,600
Side-view	60°	E32-T11R 2M + E39-F2	2,170	1,200	750	200
Top-view	12°	E32-T11 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,860
6°	E32-T11 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
Side-view	60°	E32-T11 2M + E39-F2	3,450	1,980	1,290	320
Top-view	12°	E32-T51R 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,500
6°	E32-T51R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
Side-view	60°	E32-T51R 2M + E39-F2	2,100	1,080	750	200
Top-view	12°	E32-T81R-S 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,000
6°	E32-T81R-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,800
Side-view	60°	E32-T81R-S 2M + E39-F2	1,500	820	540	140
Top-view	12°	E32-T61-S 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,800
6°	E32-T61-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,100
Side-view	60°	E32-T61-S 2M + E39-F2	2,520	1,350	900	240
Top-view	12°	E32-T51 2M + E39-F1-33	4,000 *2	4,000 *2	3,450	1,400
6°	E32-T51 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
Reflective models with integrated lens	Top-view	4°	E32-D16 2M	40 to 4,000 *2	40 to 2,100	40 to 1,350	40 to 480

Sensing method	Sensing direction	Aperture angle	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Side-view	1.5°	E32-A03 2M	4,000 *1	2,670	1,800	500
E32-A03-1 2M
3.4°	E32-A04 2M	1,920	1,020	670	200
4°	E32-T24SR 2M	4,000 *1	3,300	2,190	580
E32-T24S 2M	4,000 *1	3,900	2,610	700
E32-T22S 2M	4,000 *1	4,000 *1	3,750	1,000

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high-speed mode
Limited- reflective	Flat-view	E32-L16-N 2M	0 to 15	0 to 12
E32-L24S 2M	0 to 4
Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)

Sensing method	Feature	Size	Models	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Retro- reflective	Film detection	M3	E32-C31 2M + E39-F3R + E39-RP37	370	300	---
Square	---	E32-R16 5M	150 to 1,500
Threaded	M6	E32-R21 2M	10 to 370	10 to 250
Hex-shaped	E32-LR11NP 2M + E39-RP1	2,020	1,800	1,500	550

Sensing method	Feature	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Small size	Flat-view	E32-L24S 2M	0 to 4
Standard	E32-L16-N 2M	0 to 15	0 to 12
Glass substrate alignment, 70°C	E32-A08 2M	10 to 20	---
Standard/long-distance	E32-A12 2M	12 to 30	---
Side-view form	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)
Glass substrate mapping, 70°C	Top-view	E32-A09 2M	15 to 38	---

Sensing method	Type	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Oil-resistant	Right-angle	E32-T11NF 2M	4,000 *1	4,000 *1	4,000 *1	2,200
Chemical/ oil-resistant	Top-view	E32-T12F 2M	4,000 *1	4,000 *1	4,000 *1	1,600
E32-T11F 2M	4,000 *1	4,000 *1	3,900	1,000
Side-view	E32-T14F 2M	2,100	1,200	750	200
Chemical/ oil-resistant at 150°C	Top-view	E32-T51F 2M	4,000 *1	4,000 *1	2,700	700
Reflective	Semiconductors: Cleaning, developing, and etching; 60°C	Top-view	E32-L11FP 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
Semiconductors: Resist stripping; 85°C	E32-L11FS 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
Chemical/ oil-resistant	E32-D12F 2M	--- *2	280	190	60
Chemical- resistant cable	E32-D11U 2M	1,260	520	360	100

Sensing method	Size	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high-speed mode
Through-beam	1.5 dia.	E32-T22B 2M	1,020	600	330	90
M3	E32-T21 2M
M4	E32-T11 2M	3,750	2,020	1,350	360
Square	32-T25XB 2M	750	450	250	70
Reflective	1.5 dia.	E32-D22B 2M	210	90	60	16
M3	E32-D21 2M
3 dia.	E32-D221B 2M	450	210	130	40
M4	E32-D21B 2M
M6	E32-D11 2M	1,260	520	360	100
Square	E32-D25XB 2M	360	150	90	30

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	100°C	E32-T51R 2M	2,400	1,200	840	225
150°C	E32-T51 2M	4,000 *1	2,250	1,500	400
200°C	E32-T81R-S 2M	1,500	820	540	140
350°C	E32-T61-S 2M	2,520	1,350	900	240
Reflective	100°C	E32-D51R 2M	1,000	420	280	80
150°C	E32-D51 2M	1,680	670	480	144
200°C	E32-D81R-S 2M	630	270	180	54
300°C	E32-A08H2 2M	10 to 20	---
E32-A09H2 2M	20 to 30 (center 25)	---
350°C	E32-D611-S 2M	630	270	180	54
E32-D61-S 2M
400°C	E32-D73-S 2M	420	180	120	36

Sensing method	Type	Sensing width	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Area	11 mm	E32-T16PR 2M	4,000 *1	2,550	1,680	440
E32-T16JR 2M	4,000 *1	2,250	1,440	380
30 mm	E32-T16WR 2M	4,000 *1	3,900	2,550	680
Reflective	Array	11 mm	E32-D36P1 2M	1,050	450	300	90

Sensing method	Tube diameter	Feature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Tube- mounting	3.2, 6.4, or 9.5 dia	Stable residual quantity detection	E32-A01 5M	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm
8 to 10 dia	Mounting at multiple levels	E32-L25T 2M	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm
No restrictions	Large tubes	E32-D36T 5M	Applicable tube: Transparent tube (no restrictions on diameter)
Liquid contact (heat-resistant up to 200°C)	---	---	E32-D82F1 4M	Liquid-contact type

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	120 °C	E32-T51V 1M	1,080	600	390	100
E32-T51V 1M + E39-F1V	2,000 *1	2,000 *1	2,000 *1	520
200 °C	E32-T84SV 1M	2,000*1	1,420	960	260

Sensing method	Application	Operating temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Glass presence detection	70°C	E32-L16-N 2M	0 to 15	0 to 12
E32-A08 2M	10 to 20	---
Glass substrate alignment	300°C	E32-A08H2 3M
70°C	E32-A12 2M	12 to 30	---
Glass substrate mapping	E32-A09 2M	15 to 38	---
300°C	E32-A09H2 2M	20 to 30 (center 25)	---
Wet processes: Cleaning, Resist developing and etching	60°C	E32-L11FP 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
Wet process: Resist stripping	85°C	E32-L11FS 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
Through- beam	Wafer mapping	70°C	E32-A03 2M	4,000 *1	2,670	1,800	500
E32-A03-1 2M
E32-A04 2M	1,920	1,020	670	200
E32-T24SR 2M	4,000 *1	3,300	2,190	580
E32-T24S 2M	4,000 *1	3,900	2,610	700

Sensing method	Sensing direction	Size	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Right-angle	M4	E32-T11N 2M	280	190	130	55
Straight	E32-T11R 2M
Reflective	Straight	M3	E32-C31 2M	50	37	25	8.5
M6	E32-D11R 2M	120	90	60	21
E32-CC200 2M	200	150	100	35

Sensing method	Size	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	3 dia.	Top-view	E32-T12R 2M	280	190	130	55
Side-view	E32-T14LR 2M	100	75	80	21
Reflective	3 dia.	Top-view	E32-D32L 2M	100	75	50	17

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Top-view	E32-T15XR 2M	280	190	130	55
Side-view	E32-T15YR 2M	100	75	80	21
Flat-view	E32-T15ZR 2M
Reflective	Top-view	E32-D15XR 2M	120	90	60	21
Side-view	E32-D15YR 2M	28	20	13	5
Flat-view	E32-D15ZR 2M

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Top-view	E32-TC200BR 2M	280	190	130	55
Reflective	Top-view	E32-DC200BR 2M	120	90	60	21

Type	Sensing direction	Aperture angle	Models	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam models with integrated lens	Side-view	30°	E32-T14 2M	1800	1200	820	360

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E3NX-FA Data Sheet	- [4359KB]	Nov 01, 201820181101	E3NX-FA Data Sheet
E3NX-FA Catalog	E426-E1-06 [2657KB]	Nov 01, 201820181101	E3NX-FA Catalog

Return to OMRON

OMRON E3NX-FASensors/ Fiber Sensors/Fiber Amplifier

OMRON E3NX-FA Dimensions

Ultra-stable

The No. 1 Performance Worldwide*1 for Even More Applications

Best Performance in the World*1

Three Technologies That Support High Performance

Ultra-easy

Easily Handle a Wide Range of Applications with the Press of a Single Button

Consistent Settings for All UsersSmart Tuning Settings [PAT]

Automatic Adjustment to Optimum Incident LevelWide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Ultra-reliable

Two Decision Support Functions to Help You

Visual Displays of the Passing Time and Difference in Incident Levels.Solution Viewer [PAT]

Selecting Fiber Units

Setting Optimum Thresholds and Modes

Visual Information for Fast WorkpiecesChange Finder [PAT]

PointAdvanced DPC (Dynamic Power Control) [PAT]

Predictive Maintenance to Reduce Downtime

Purchase the OMRON Fiber Amplifier Please fill in the following

OMRON E3NX-FA dimension

Fiber Amplifier Units

Accessories (Sold Separately)

Wire-saving Connectors

Master ConnectorE3X-CN11E3X-CN21

Slave ConnectorE3X-CN12E3X-CN22

Sensor I/O Connectors

StraightXS3F-M421-40[]-A

L-shapedXS3F-M422-40[]-A

Mounting BracketE39-L143

DIN TrackPFP-100NPFP-50N

PFP-100N2

End PlatePFP-M

OMRON E3NX-FA lineup

Fiber Amplifier Units

Accessories (Sold Separately)

Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Sensor I/O Connectors (Required for models for M8 Connectors.)

Mounting Bracket

DIN Track

End Plate

Cover

Related Products

Sensor Communications Units

OMRON E3NX-FA specification

Standard models/ Advanced models/ Infrared models

Analog output models/ Model for Sensor Communications Unit

Sensing Distances

Standard models/ Advanced models/ Analog output models

Threaded Models

Cylindrical Models

Flat Models

Sleeve Models

Small-spot, Reflective Models

High-power Beam Models

Narrow View Models

Models for Detection without Background Interference

Transparent Object Detection (Retro-reflective Models)

Transparent Object Detection (Limited-reflective Models)

Chemical-resistant, Oil-resistant Models

Bending-resistant Models

Heat-resistant Models

Area Detection Models

Liquid-level Detection Models

Vacuum-resistant Models

Models for FPD, Semiconductors, and Solar Cells

Infrared models

Threaded Models

Cylindrical Models

Flat Models

Sleeve Models

High-power Beam Models

OMRON E3NX-FA catalog

English

Global Edition

Consistent Settings for All Users
Smart Tuning Settings [PAT]

Automatic Adjustment to Optimum Incident Level
Wide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Visual Displays of the Passing Time and Difference in Incident Levels.
Solution Viewer [PAT]

Visual Information for Fast Workpieces
Change Finder [PAT]

Point
Advanced DPC (Dynamic Power Control) [PAT]

Master Connector
E3X-CN11
E3X-CN21

Slave Connector
E3X-CN12
E3X-CN22

Straight
XS3F-M421-40[]-A

L-shaped
XS3F-M422-40[]-A

Mounting Bracket
E39-L143

DIN Track
PFP-100N
PFP-50N

End Plate
PFP-M
