OMRON NX-PA / PD dimension

last update: April 01, 2015

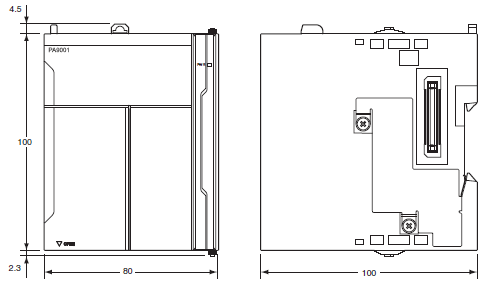

NX-PA9001

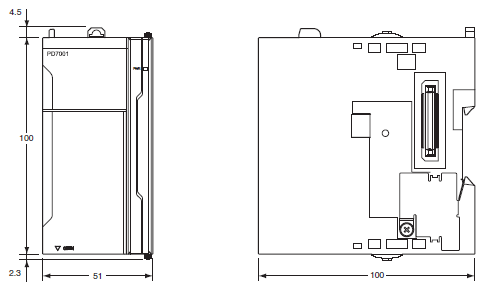

NX-PD7001

last update: April 01, 2015

OMRON NX-PA / PD specification

last update: April 01, 2015

General Specification

Item	Specifications
Model	NX-PA9001	NX-PD7001
Dimensions	80 × 100 × 100 mm (W × H × D)	51 × 100 ×100 mm (W × H × D)
Weight	570 g	290 g
Power supply voltage	100 to 240 VAC (wide-range), 50/60 Hz (85 to 264 VAC, 47 to 63 Hz)	24 VDC (20.4 to 28.8 VDC)
Power consumption	150 VA max.	85 W max.
Inrush current *1	At 100 VAC: 20 A *2/8 ms max. for cold start at room temperature At 200 VAC: 40 A *2/8 ms max. for cold start at room temperature	At 24 VDC: 30 A/2 ms max. for cold start at room temperature 7 A *3/3 s max. for cold start at room temperature
Output capacity *4	Total: 90 W max.	Total: 70 W max.
Output terminal (service supply)	Not provided.
RUN Output	Contact configuration: SPST-NO Switch capacity: 250 VAC, 2 A (resistive load) 120 VAC, 0.5 A (inductive load), 24 VDC, 2A (resistive load)
Replacement notification function	Not provided.
Insulation resistance	20 MΩ min. (at 500 VDC) between AC external and GR terminals *5	--- *6
Dielectric strength	2,300 VAC 50/60 Hz for 1 min between AC external and GR terminals *5 *7 Leakage current: 5 mA max.	--- *6

*1. The inrush current may vary depending on the operating condition and other conditions. Therefore, select fuses,
       breakers, and external power supply devices that have enough margin in characteristic and capacity,
       considering the condition under which the devices are used.
*2. If the ambient temperature is higher or the Controller is hot-started, the inrush current given in the table may be
       exceeded by up to twice the given value because the thermistor element with a low-temperature current control
       characteristic is not sufficiently cool.
*3. Of the inrush current values, the latter value varies depending on the input voltage and may rise to approx. 8.3 A
       at 20.4 VDC.
*4. Internal components in the Power Supply Unit will deteriorate or be damaged if the Power Supply Unit is used for an
       extended period of time exceeding the power supply output capacity or if the outputs are shorted.
*5. Apply the voltage between the Power Supply Unit’s L1 or L2 terminal and the GR terminal when testing insulation and
       dielectric strength. The tests can also be performed with the LG terminal and GR terminal connected to each other.
       In this case, the leakage current will be 10 mA or less.
*6. The primary DC power supply and the secondary DC power supply are not isolated.
*7. Change the applied voltage gradually using the adjuster on the Tester. If the full dielectric strength voltage is applied
       or turned OFF using the switch on the Tester, the generated impulse voltage may damage the Power Supply Unit.

last update: April 01, 2015

OMRON NX-PA / PD catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
NX-PA/PD Data Sheet	- [421KB]	Nov 02, 201720171102	NX-PA/PD Data Sheet

OMRON NX-PA / PD lineup

last update: November 2, 2017

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA,
    UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK,
    L: Lloyd, CE: EC Directives, C-Tick: C-Tick mark, and KC: KC Registration.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Power Supply Units

Product Name	Power supply voltage	Output capacity	Options			Model	Standards
		Total power consumption	24-VDC service power supply	RUN output	Maintenance forecast monitor
AC Power Supply Unit	100 to 240 VAC	90 W	No	Yes	No	NX-PA9001	UC1, N, L, CE, RCM, KC
DC Power Supply Unit	24 VDC	70 W				NX-PD7001

Accessories

There is no accessory for the NX-series Power Supply Unit.
