OMRON G70D-SOC08 specification

last update: April 10, 2017

Ratings

Relay Specifications (G6D Relay)

The following specifications apply to G6D Relays mounted in a G70D Relay Terminal and not the G6D Relay itself.

Coil Ratings (per G6D Relay)

Rated voltage	24 V DC
Rated current	10.5 mA
Coil resistance	2,880 Ω
Must-operate voltage	70% max. of rated voltage
Must release voltage	10% min. of rated voltage
Max. voltage	130% of rated voltage
Power consumption	Approx. 200 mW

Note: 1. The must-operate voltage is 75% or less of the rated voltage if the relay is mounted upside down.
         2. Rated current and coil resistance were measured at a coil temperature of 23° C with a tolerance of ±10%.
         3. Operating characteristics were measured at a coil temperature of 23° C.
         4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating
             power supply. There is no continuous allowance.
         5. The rated current includes the terminal’s LED current.

Contact Ratings (per G6D Relay)

Load		Resistive load (cosφ = 1)
Rated load		5 A at 250 V AC, 5 A at 30 V DC
Rated carry current		5 A
Max. switching voltage		250 V AC, 30 V DC
Max. switching current		5 A
Max. switching capacity (reference value)		1,250 VA, 150 W
Min. permissible load (reference value) *		10 mA at 5 V DC
Endurance	Electrical	70,000 operations min. (under and at the rated load at 1,800 operations/h)
	Mechanical	20,000,000 operations min. (at 18,000 operations/h)

* This value is for a switching frequency of 120 times per minute.

Characteristics

Model		G70D-SOC08
Classification		Relay outputs
Contact configuration		8 points (SPST-NO × 8)
Contact structure		Single
Contact resistance *1		100 mΩ max.
Must-operate time *2		10 ms max.
Release time *2		10 ms max.
Max. switching frequency	Mechanical	18,000 operations/h
	Rated load	1,800 operations/h
Insulation resistance		100 MΩ min. (at 500 V DC)
Dielectric strength	Between coil and contact	2,000 V AC for 1 min between coil and contact
	Between contacts of same polarity	750 V AC for 1 min
	Between contacts of different polarity	1,500 V AC for 1 min
Vibration resistance	Destruction	10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double)
	Malfunction	10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double)
Shock resistance	Destruction	300 m/s2
	Malfunction	100 m/s2
Noise immunity	Power input (normal mode)	600 V for 10 min with a pulse width of 100 ns to 1 μs
	Power input (common mode)	1.5 kV for 10 min with a pulse width of 100 ns to 1 μs
	Input cable (coiling)	1.5 kV for 10 min with a pulse width of 100 ns to 1 μs
	Unit body (coiling)	600 V for 10 min with a pulse width of 100 ns to 1 μs
Operating voltage range		24 V DC +10%/-15%
Current consumption *3		Approx. 170 mA at 24 V DC
Cable length	Between block and controller	5 m max. (reference value for AWG28)
	Between block and external device	Determine appropriate length for the connected load.
LED indicator color		Orange
Coil surge absorber		Diode
Ambient operating temperature		-10 to 55°C
Ambient storage temperature		35% to 85%
Ambient operating humidity		-20 to 65°C
Mounting strength		No damage when 49 N pull load was applied for 1 s in all directions (except for 9.8 N in direction of rail)
Terminal strength	Tightening torque	9.8 N·m
	Pull strength	49 N for 1 min
Weight		Approx. 145 g

Note: These values are initial values.
*1. Measurement: 1 A at 5 V DC
*2. Ambient temperature: 23°C
*3. The current consumption is the value when all points are ON and includes the G6D Relay coil current.

last update: April 10, 2017

OMRON G70D-SOC08 lineup

last update: April 10, 2017

Relay Terminal

Classification	Points	Internal I/O common	Rated voltage	Model
Relay outputs	8 points (SPST-NO × 8)	NPN (+common)	24 V DC	G70D-SOC08

Note: This is all non-standard model and require a special order. Contact your OMRON representative for details on
         availability.

Accessories (Order Separately)

Short Bar

Applicable Output Relay Terminals	Model
G70D-SOC08 G70R-SOC08	G6B-4-SB

Cables for I/O Relay Terminals XW2Z-R

• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu connectors (1:1): XW2Z-R[]C
• Fujitsu connectors (1:2):
XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
• Fujitsu connectors (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1):
XW2Z-RI[]C
XW2Z-RO[]C
• MIL connectors (1:2):
XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Check the internal circuit before use and confirm the pins to be used.
Refer to the XW2Z-R Datasheet (Cat. No. G126) for details.

Replacement Relay

Applicable Output Relay Terminal	Rated voltage	Model
G70D-SOC08	24 V DC	G6D-1A-ASI DC24

Accessories for DIN Track Mounting

Refer to your OMRON website for details on the PFP-[].

last update: April 10, 2017

OMRON G70D-SOC08 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
G70D-SOC08 Data Sheet	- [633KB]	Sep 06, 201720170906	G70D-SOC08 Data Sheet
XW2Z-R Data Sheet	G126-E1-02 [2435KB]	Apr 03, 201720170403	XW2Z-R Data Sheet
G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations	J217-E1-02 [1206KB]	Jun 01, 201820180601	G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations

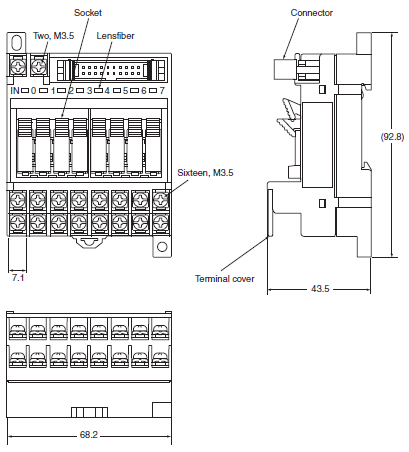

OMRON G70D-SOC08 dimension

last update: August 1, 2017

(Unit: mm)

Relay Terminal

G70D-SOC08

Accessories (Order Separately)

Short Bar

G6B-4-SB

last update: August 1, 2017

• NO. G70D-SOC08
