OMRON D4GS-N dimension

last update: March 1, 2018

(Unit: mm)

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. Dimensions in parentheses are
          reference values.

Switches

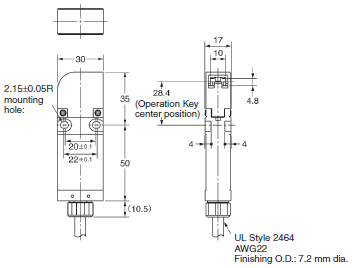

D4GS-N[]R-[]

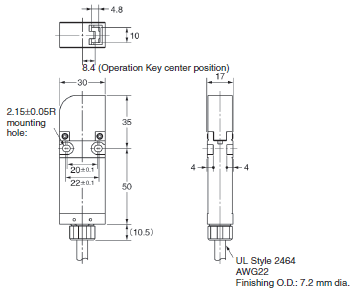

D4GS-N[]T-[]

Operating characteristics

Note: There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
          Confirm performance before application.

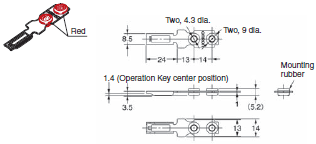

Operation Keys

D4GS-NK1

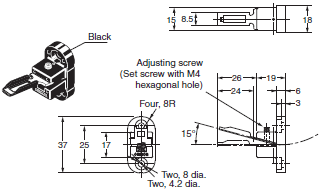

D4GS-NK2

D4GS-NK4

D4GS-NK4-2

With Operation Key Inserted

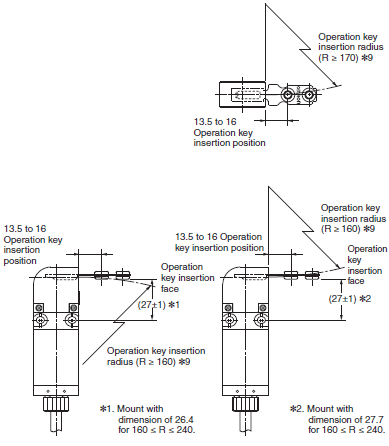

D4GS-N[]R-[] + D4GS-NK1

D4GS-N[]T-[] + D4GS-NK1

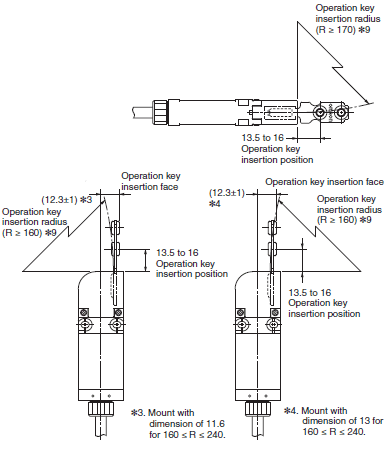

D4GS-N[]R-[] + D4GS-NK2

D4GS-N[]T-[] + D4GS-NK2

*9. Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.

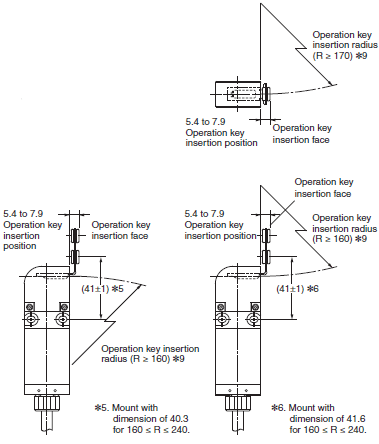

D4GS-N[]R-[] + D4GS-NK4

Note 1. When determining the operation key insertion radius, adjust the adjusting screw so that the tip of the operation
             key is positioned to the center of the key insertion hole of the Switch.
         2. The operation key cannot be inserted or adjusted in a direction different from the one shown above.
              Use the D4GS-NK1 or D4GS-NK2 if necessary.

D4GS-N[]T-[] + D4GS-NK4

Note 1. When determining the operation key insertion radius, adjust the adjusting screw so that the tip of the operation
             key is positioned to the center of the key insertion hole of the Switch.
         2. The operation key cannot be inserted or adjusted in a direction different from the one shown above.
              Use the D4GS-NK1 or D4GS-NK2 if necessary.

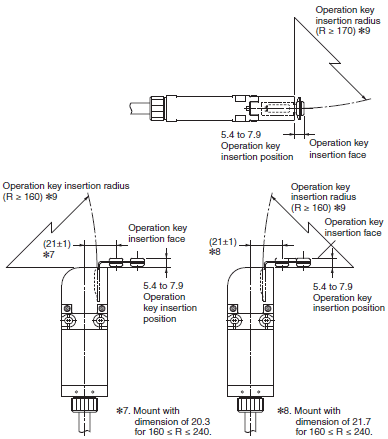

D4GS-N[]R-[] + D4GS-NK4-2

D4GS-N[]T-[] + D4GS-NK4-2

* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.

last update: March 1, 2018

OMRON D4GS-N catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D4GS-N Data Sheet	- [2702KB]	Oct 05, 201820181005	D4GS-N Data Sheet

OMRON D4GS-N specification

last update: October 5, 2018

Standards and EC Directives

Conforms to the following EC Directives:

• Machinery Directive
• Low Voltage Directive
• EN ISO 14119
• EN60204-1
• GS-ET-15

Certified Standards

Certification body	Standard	File No.
TÜV SÜD	EN60947-5-1 (certified direct opening)	Consult your OMRON representative for details.
UL *	UL508 CSA C22.2 No. 14	E76675
CQC (CCC)	GB/T 14048.5	Consult your OMRON representative for details.

* Certification for CSA C22.2 No. 14 is authorized by the UL mark.

Certified Standard Ratings

TÜV (EN60947-5-1), CCC (GB/T 14048.5)

Utilization category	AC-15	DC-13
Rated operating current (Ie)	0.75 A	0.27 A
Rated operating voltage (Ue)	240 V	250 V

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device.

UL/CSA (UL508, CSA C22.2 No. 14)

C300

Rated voltage	Carry current	Current (A)		Volt-amperes (VA)
		Make	Break	Make	Break
120 VAC	2.5 A	15	1.5	1,800	180
240 VAC		7.5	0.75

Q300

Rated voltage	Carry current	Current (A)		Volt-amperes (VA)
		Make	Break	Make	Break
125 VDC	2.5 A	0.55	0.55	69	69
250 VDC		0.27	0.27

Characteristics

Interlock type		Type 2 (EN ISO 14119)
Coding level		Low level coded (EN ISO 14119)
Degree of protection *1		IP67 (EN60947-5-1)
Durability *2	Mechanical	1,000,000 operations min.
	Electrical	100,000 operations min. (1 A resistive load at 125 VAC) *3
Operating speed		0.1 to 0.5 m/s
Operating frequency		30 operations/minute max.
Direct opening force *4		60 N min.
Direct opening travel *4		10 mm min.
Contact resistance		300 mΩ max. (with 1 m cable) 500 mΩ max. (with 3 m cable) 700 mΩ max. (with 5 m cable)
Minimum applicable load *5		Resistive load of 4 mA at 24 VDC (N-level reference value)
Rated insulation voltage (Ui)		250 V
Rated frequency		50/60 Hz
Protection against electric shock		Class II (double insulation)
Pollution degree (operating environment)		3 (EN60947-5-1)
Impulse withstand voltage (Uimp) (EN60947-5-1)	Between terminals of same polarity	2.5 kV
	Between terminals of different polarity	4 kV
	Between each terminal and non- current carrying metallic parts	6 kV
Insulation resistance		100 MΩ min. (at 500 VDC) between terminals of the same polarities, between terminals of different polarities, and between each terminal and non-current carrying metal parts
Contact gap		2 × 2 mm min.
Vibration resistance	Malfunction	10 to 55 Hz, 0.35 mm single amplitude
Shock resistance	Destruction	1,000 m/s2 min.
	Malfunction	300 m/s2 min.
Conditional short-circuit current		100 A (EN60947-5-1)
Conventional free air thermal current (Ith)		2.5 A (EN60947-5-1)
Ambient operating temperature		-30 to 70°C (with no icing)
Ambient operating humidity		95% max.
Cable		UL2464 No. 22 AWG, finishing O.D.: 7.2 mm
Weight		Approx. 120 g (D4GS-N1R, with 1 m cable)

Note: 1. The above values are initial values.
           2. The Switch contacts can be used with either standard loads or microloads. Once the contacts have been used to
                switch a load, however, they cannot be used to switch smaller loads. The contact surfaces will become rough
                once they have been used and contact reliability for smaller loads may be reduced.
*1. The degree of protection shown above is based on the test method specified in EN60947-5-1. Be sure to confirm in
       advance the sealing performance under the actual operating environment and conditions.
       Although the switch box is protected from dust, oil, or water penetration, do not use the D4GS-N in places where dust,
       oil, water, or chemicals may enter through the key hole on the head, otherwise Switch damage or malfunctioning may
       occur.
*2. The durability conditions are an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For more
       details, consult your OMRON representative.
*3. When the ambient temperature is 35°C or higher, do not apply 1 A at 125 VAC to more than one circuit.
*4. These figures are minimum requirements for safe operation.
*5. The value given for minimum applicable load is a reference value for microloads. The value will vary depending on
       factors such as the switching frequency, the ambient environment, and the reliability level. Be sure to confirm correct
       operation with the actual load before application.

last update: October 5, 2018

OMRON D4GS-N lineup

last update: March 1, 2018

Switches (Operation Keys are sold separately.)

Consult with your OMRON representative when ordering any models that are not listed in this table.

Appearance	Direction of Operation Key insertion	Cable length	1NC/1NO (Slow-action)	2NC (Slow-action)	2NC/1NO (Slow-action)	3NC (Slow-action)
	Horizontal	1 m	D4GS-N1R	D4GS-N2R	D4GS-N3R	D4GS-N4R
		3 m	D4GS-N1R-3	D4GS-N2R-3	D4GS-N3R-3	D4GS-N4R-3
		5 m	D4GS-N1R-5	D4GS-N2R-5	D4GS-N3R-5	D4GS-N4R-5
	Vertical	1 m	D4GS-N1T	D4GS-N2T	D4GS-N3T	D4GS-N4T
		3 m	D4GS-N1T-3	D4GS-N2T-3	D4GS-N3T-3	D4GS-N4T-3
