OMRON G2R-[]-S (S) Dimensions

/Images/l_1731-25-118848-198x198.jpg

last update: April 11, 2016

• Reduces wiring work by 60% when combined with the P2RF-[]-PU Push-In Plus Socket

(according to actual OMRON measurements).

• Lockable test button models available.

• Built-in mechanical operation indicator.

• Provided with nameplate.

• AC type is equipped with a coil-disconnection self-diagnostic function (LED type).

• High switching power (1-pole: 10 A).

last update: April 11, 2016

Purchase the OMRON For Control Panel Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G2R-[]-S (S) Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G2R-[]-S (S) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G2R-[]-S (S)Relays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

B7AP Power Couplers/Features
EE-SPY31 / 41 Light Convergent Reflective Photomicrosensor/Features
D4NS, D4NS-SK Safety-door Switch/Features
H3DT-N / -L Multi-range, Multi-mode Timer/Features
Cobra 450 SCARA Robots/Features

OMRON G2R-[]-S (S) dimension
G2R-[]-S (S) General-purpose Relay/Dimensions
last update: April 11, 2016

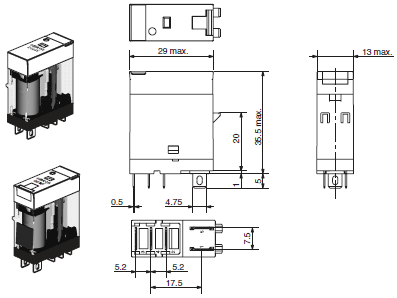

SPDT Relays

G2R-1-S (S), G2R-1-SN (S), G2R-1-SNI (S)
G2R-1-SD (S), G2R-1-SND (S), G2R-1-SNDI (S)

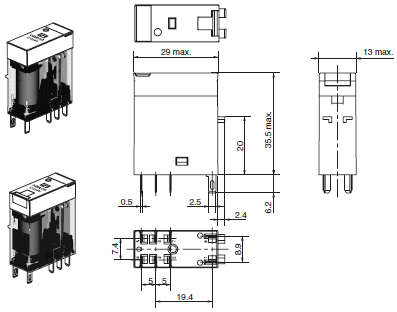

DPDT Relays

G2R-2-S (S), G2R-2-SN (S), G2R-2-SNI (S)
G2R-2-SD (S), G2R-2-SND (S), G2R-2-SNDI (S)

last update: April 11, 2016

OMRON G2R-[]-S (S) lineup
G2R-[]-S (S) General-purpose Relay/Lineup
last update: April 11, 2016

When your order, specify the rated voltage.

Classification Coil ratings Contact form
SPDT DPDT
General-purpose AC 24, 110, 120, 230, 240
DC 6, 12, 24, 48 G2R-1-S (S) G2R-2-S (S)
LED indicator G2R-1-SN (S) G2R-2-SN (S)
LED indicator with test button G2R-1-SNI (S) G2R-2-SNI (S)
Diode DC 6, 12, 24, 48 G2R-1-SD (S) G2R-2-SD (S)
LED indicator and diode G2R-1-SND (S) G2R-2-SND (S)
LED indicator and diode with test button G2R-1-SNDI (S) G2R-2-SNDI (S)

Note: 1. The standard models are compliant with UL/CSA and VDE standards. Also, an EC compliance declaration has
been made for combinations with the P2RF-[]-E, P2RF-[]-S and P2RF-[]-PU. The Relays bear the CE Marking.
2. Refer to Connecting Sockets, below, for applicable Socket models.
3. When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the
coil ratings table.

Accessories (Order Separately)
Connecting Sockets

Applicable Relay model Track/surface-mounting Socket Back-mounting Socket
Push-In Plus
Terminal Blocks Screw terminals * PCB terminals Solder terminals
Model Models Models Model
1 pole G2R-1-S (S) P2RF-05-PU P2RF-05
P2RF-05-E P2R-05P
P2R-057P P2R-05A
2 poles G2R-2-S (S) P2RF-08-PU P2RF-08
P2RF-08-E P2R-08P
P2R-087P P2R-08A

*The structure of P2RF-[]-E models provides finger protection. Round terminals cannot be used. Use forked crimp terminals.

Accessories for Push-In Plus Terminal Block Sockets (P2RF-[]-PU)
Short Bars

Pitch No. of poles Colors Model * Minimum order (quantity)
7.75 mm 2 Red (R)
Blue (S)
Yellow (Y) PYDN-7.75-020[] 10
3 PYDN-7.75-030[]
4 PYDN-7.75-040[]
20 PYDN-7.75-200[]
15.5 mm 8 PYDN-15.5-080[]

Note: Use the Short Bars for crossover wiring within one Socket or between Sockets.
* Replace the box ([]) in the model number with the code for the covering color.

Labels

Model Minimum order (sheet)
(quantity per sheet)
XW5Z-P4.0LB1 5
1 sheet (60 pieces)

Mounting Tracks

Applicable Socket Description Model Minimum order
(quantity)
Track-connecting Socket Mounting track 50 cm (l) × 7.3 mm (t): PFP-50N ---
1 m (l) × 7.3 mm (t): PFP-100N
1 m (l) × 16 mm (t): PFP-100N2
End plate *1 PFP-M 10
Spacer PFP-S
Back-connecting Socket Mounting plate *2 P2R-P 1

*1.When mounting DIN rail, please use End Plate (PFP-M).
*2.Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.

last update: April 11, 2016

OMRON G2R-[]-S (S) catalog
G2R-[]-S (S) General-purpose Relay/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G2R-[]-S (S) Data Sheet -
[1308KB] Nov 01, 201820181101 G2R-[]-S (S) Data Sheet

Push-In Plus Terminal Block Series Pamphlet J213-E1-05
[7147KB] Nov 01, 201820181101 Push-In Plus Terminal Block Series Pamphlet

OMRON G2R-[]-S (S) specification
G2R-[]-S (S) General-purpose Relay/Specifications
last update: November 8, 2017
Coil Ratings

Rated voltage Rated current* Coil
resistance Coil inductance (H)
(ref. value) Must
operate
voltage Must
release
voltage Max.
voltage Power
consumption
(approx.)
50 Hz 60 Hz Armature
OFF Armature
ON % of rated voltage
AC 24 V 43.5 mA 37.4 mA 253 Ω 0.81 1.55 80% max. 30% max. 110% 0.9 VA at 60 Hz
110 V 9.5 mA 8.2 mA 5,566 Ω 13.33 26.83
120 V 8.6 mA 7.5 mA 7,286 Ω 16.13 32.46
230 V 4.4 mA 3.8 mA 27,172 Ω 72.68 143.9
240 V 4.2 mA 3.7 mA 27,800 Ω 90.58 182.34

Rated voltage Rated current* Coil
resistance Coil inductance (H)
(ref. value) Must
operate
voltage Must
release
voltage Max.
voltage Power
consumption
(approx.)
Armature
OFF Armature
ON % of rated voltage
DC 6 V 87.0 mA 69 Ω 0.25 0.48 70% max. 15% min. 110% 0.53 W
12 V 43.2 mA 278 Ω 0.98 2.35
24 V 21.6 mA 1,113 Ω 3.6 8.25
48 V 11.4 mA 4,220 Ω 15.2 29.82

Note:
1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of
+15%/-20% for the AC rated current and ±10% for the DC coil resistance.
2. The AC coil resistance and inductance values are reference values only (at 60 Hz).
3. Operating characteristics were measured at a coil temperature of 23°C.
4. The maximum voltage is the maximum possible value of the voltage that can be applied to the relay coil.
It is not the maximum voltage that can be applied continuously.

Contact Ratings

Number of poles 1 pole 2 poles
Load Resistive load
(cosΦ = 1) Inductive load
(cosΦ = 0.4; L/R = 7 ms) Resistive load
(cosΦ = 1) Inductive load
(cosΦ = 0.4; L/R = 7 ms)
Rated load 10 A at 250 VAC;
10 A at 30 VDC 7.5 A at 250 VAC;
5 A at 30 VDC 5 A at 250 VAC;
5 A at 30 VDC 2 A at 250 VAC;
3 A at 30 VDC
Rated carry current 10 A 5 A
Max. switching voltage 440 VAC, 125 VDC 380 VAC, 125 VDC
Max. switching current 10 A 5 A
Max. switching power 2,500 VA, 300 W 1,875 VA, 150 W 1,250 VA, 150 W 500 VA, 90 W
Failure rate (reference value) * 100 mA at 5 VDC 10 mA at 5 VDC

Note: P level: λ₆₀ = 0.1 x 10^-6/operation
*This value was measured at a switching frequency of 120 operations per minute.

Characteristics

Item 1 pole 2 poles
Contact configration SPDT
Contact structure Single
Contact resistance 100 mΩ max.
Operate (set) time 15 ms max.
Release (reset) time AC: 10 ms max.; DC: 5 ms max.
(w/built-in diode: 20 ms max.) AC: 15 ms max.; DC: 10 ms max.
(w/built-in diode: 20 ms max.)
Max. operating
frequency Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength * 5,000 VAC, 50/60 Hz for 1 min between coil and
contacts;
1,000 VAC, 50/60 Hz for 1 min between contacts
of same polarity 5,000 VAC, 50/60 Hz for 1 min between coil and
contacts;
3,000 VAC, 50/60 Hz for 1 min between contacts
of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts
of same polarity
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance Destruction: 1,000 m/s²
Malfunction: 200 m/s² when energized; 100 m/s² when not energized
Endurance Mechanical:
AC coil: 10,000,000 operations min.;
DC coil: 20,000,000 operations min. (at 18,000 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load) (DC coil type)
Ambient temperature Operating: -40°C to 70°C (with no icing or condensation)
Ambient humidity Operating: 5% to 85%
Weight Approx. 20 g

Note: Values in the above table are the initial values.
*These values are relay only. Prease refer to the “Products Related to Common Sockets and DIN Tracks Data Sheet” for connecting sockets.

Approved Standards
UL 508 (File No. E41643)

Model Contact form Coil ratings Contact ratings Operations
G2R-1-S (S) SPDT 5 to 110 VDC
6 to 240 VAC 10 A, 30 VDC (resistive)
10 A, 250 VAC (general use) 100 × 10³
TV-3 (NO contact only) 25 × 10³
G2R-2-S (S) DPDT 5 A, 30 VDC (resistive)
5 A, 250 VAC (general use) 100 × 10³
TV-3 (NO contact only) 25 × 10³

IEC/VDE (Certificate No. 40015012 EN 61810-1)

Contact form Coil ratings Contact ratings Operations
1 pole 6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC 5 A, 440 VAC (cosφ = 1.0)
10 A, 250 VAC (cosφ = 1.0)
10 A, 30 VDC (0 ms) 100 × 10³
2 poles 6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC 5 A, 250 VAC (cosφ =1.0)
5 A, 30 VDC (0 ms) 100 × 10³

CSA 22.2 No.0, No.14 (File No. LR31928)

Model Contact form Coil ratings Contact ratings Operations
G2R-1-S (S) SPDT 5 to 110 VDC
6 to 240 VAC 10 A, 30 VDC (resistive)
10 A, 250 VAC (general use) 100 × 10³
TV-3 (NO contact only) 25 × 10³
G2R-2-S (S) DPDT 5 A, 30 VDC (resistive)
5 A, 250 VAC (general use) 100 × 10³
TV-3 (NO contact only) 25 × 10³

LR

Number of poles Coil ratings Contact ratings Operations
1 pole 5 to 110 VDC
6 to 240 VDC 10 A, 250 VAC (general use)
7.5 A, 250 VAC (PF0.4)
10 A, 30 VDC (resistive)
5A, 30VDC (L/R=7ms) 100 × 10³
2 poles 5 to 110 VDC
6 to 240 VDC 5 A, 250 VAC (general use)
2 A, 250 VAC (PF0.4)
5 A, 30 VDC (resistive)
3A, 30VDC (L/R=7ms) 100 × 10³

last update: November 8, 2017

NO. G2R-[]-S (S)

TYPE:General Purpose Relays For Control Panel Copyright Statement

DATE:2021-06-13

Associated products:
LY Bi-power Relays/Features G2RV Slim Relay/Features

Classification	Coil ratings	Contact form
SPDT	DPDT
General-purpose	AC 24, 110, 120, 230, 240 DC 6, 12, 24, 48	G2R-1-S (S)	G2R-2-S (S)
LED indicator	G2R-1-SN (S)	G2R-2-SN (S)
LED indicator with test button	G2R-1-SNI (S)	G2R-2-SNI (S)
Diode	DC 6, 12, 24, 48	G2R-1-SD (S)	G2R-2-SD (S)
LED indicator and diode	G2R-1-SND (S)	G2R-2-SND (S)
LED indicator and diode with test button	G2R-1-SNDI (S)	G2R-2-SNDI (S)

Applicable Relay model	Track/surface-mounting Socket	Back-mounting Socket
Push-In Plus Terminal Blocks	Screw terminals *	PCB terminals	Solder terminals
Model	Models	Models	Model
1 pole	G2R-1-S (S)	P2RF-05-PU	P2RF-05 P2RF-05-E	P2R-05P P2R-057P	P2R-05A
2 poles	G2R-2-S (S)	P2RF-08-PU	P2RF-08 P2RF-08-E	P2R-08P P2R-087P	P2R-08A

Pitch	No. of poles	Colors	Model *	Minimum order (quantity)
7.75 mm	2	Red (R) Blue (S) Yellow (Y)	PYDN-7.75-020[]	10
3	PYDN-7.75-030[]
4	PYDN-7.75-040[]
20	PYDN-7.75-200[]
15.5 mm	8	PYDN-15.5-080[]

Model	Minimum order (sheet) (quantity per sheet)
XW5Z-P4.0LB1	5 1 sheet (60 pieces)

Applicable Socket	Description	Model	Minimum order (quantity)
Track-connecting Socket	Mounting track	50 cm (l) × 7.3 mm (t):	PFP-50N	---
1 m (l) × 7.3 mm (t):	PFP-100N
1 m (l) × 16 mm (t):	PFP-100N2
End plate *1	PFP-M	10
Spacer	PFP-S
Back-connecting Socket	Mounting plate *2	P2R-P	1

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G2R-[]-S (S) Data Sheet	- [1308KB]	Nov 01, 201820181101	G2R-[]-S (S) Data Sheet
Push-In Plus Terminal Block Series Pamphlet	J213-E1-05 [7147KB]	Nov 01, 201820181101	Push-In Plus Terminal Block Series Pamphlet

Rated voltage	Rated current*	Coil resistance	Coil inductance (H) (ref. value)	Must operate voltage	Must release voltage	Max. voltage	Power consumption (approx.)
50 Hz	60 Hz	Armature OFF	Armature ON	% of rated voltage
AC	24 V	43.5 mA	37.4 mA	253 Ω	0.81	1.55	80% max.	30% max.	110%	0.9 VA at 60 Hz
110 V	9.5 mA	8.2 mA	5,566 Ω	13.33	26.83
120 V	8.6 mA	7.5 mA	7,286 Ω	16.13	32.46
230 V	4.4 mA	3.8 mA	27,172 Ω	72.68	143.9
240 V	4.2 mA	3.7 mA	27,800 Ω	90.58	182.34

Rated voltage	Rated current*	Coil resistance	Coil inductance (H) (ref. value)	Must operate voltage	Must release voltage	Max. voltage	Power consumption (approx.)
Armature OFF	Armature ON	% of rated voltage
DC	6 V	87.0 mA	69 Ω	0.25	0.48	70% max.	15% min.	110%	0.53 W
12 V	43.2 mA	278 Ω	0.98	2.35
24 V	21.6 mA	1,113 Ω	3.6	8.25
48 V	11.4 mA	4,220 Ω	15.2	29.82

Number of poles	1 pole	2 poles
Load	Resistive load (cosΦ = 1)	Inductive load (cosΦ = 0.4; L/R = 7 ms)	Resistive load (cosΦ = 1)	Inductive load (cosΦ = 0.4; L/R = 7 ms)
Rated load	10 A at 250 VAC; 10 A at 30 VDC	7.5 A at 250 VAC; 5 A at 30 VDC	5 A at 250 VAC; 5 A at 30 VDC	2 A at 250 VAC; 3 A at 30 VDC
Rated carry current	10 A	5 A
Max. switching voltage	440 VAC, 125 VDC	380 VAC, 125 VDC
Max. switching current	10 A	5 A
Max. switching power	2,500 VA, 300 W	1,875 VA, 150 W	1,250 VA, 150 W	500 VA, 90 W
Failure rate (reference value) *	100 mA at 5 VDC	10 mA at 5 VDC

Item	1 pole	2 poles
Contact configration	SPDT
Contact structure	Single
Contact resistance	100 mΩ max.
Operate (set) time	15 ms max.
Release (reset) time	AC: 10 ms max.; DC: 5 ms max. (w/built-in diode: 20 ms max.)	AC: 15 ms max.; DC: 10 ms max. (w/built-in diode: 20 ms max.)
Max. operating frequency	Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr (under rated load)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength *	5,000 VAC, 50/60 Hz for 1 min between coil and contacts; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity	5,000 VAC, 50/60 Hz for 1 min between coil and contacts; 3,000 VAC, 50/60 Hz for 1 min between contacts of different polarity 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance	Destruction: 1,000 m/s² Malfunction: 200 m/s² when energized; 100 m/s² when not energized
Endurance	Mechanical: AC coil: 10,000,000 operations min.; DC coil: 20,000,000 operations min. (at 18,000 operations/hr) Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load) (DC coil type)
Ambient temperature	Operating: -40°C to 70°C (with no icing or condensation)
Ambient humidity	Operating: 5% to 85%
Weight	Approx. 20 g

Model	Contact form	Coil ratings	Contact ratings	Operations
G2R-1-S (S)	SPDT	5 to 110 VDC 6 to 240 VAC	10 A, 30 VDC (resistive) 10 A, 250 VAC (general use)	100 × 10³
TV-3 (NO contact only)	25 × 10³
G2R-2-S (S)	DPDT	5 A, 30 VDC (resistive) 5 A, 250 VAC (general use)	100 × 10³
TV-3 (NO contact only)	25 × 10³

Contact form	Coil ratings	Contact ratings	Operations
1 pole	6, 12, 24, 48 VDC 24, 110, 120, 230, 240 VAC	5 A, 440 VAC (cosφ = 1.0) 10 A, 250 VAC (cosφ = 1.0) 10 A, 30 VDC (0 ms)	100 × 10³
2 poles	6, 12, 24, 48 VDC 24, 110, 120, 230, 240 VAC	5 A, 250 VAC (cosφ =1.0) 5 A, 30 VDC (0 ms)	100 × 10³

Model	Contact form	Coil ratings	Contact ratings	Operations
G2R-1-S (S)	SPDT	5 to 110 VDC 6 to 240 VAC	10 A, 30 VDC (resistive) 10 A, 250 VAC (general use)	100 × 10³
TV-3 (NO contact only)	25 × 10³
G2R-2-S (S)	DPDT	5 A, 30 VDC (resistive) 5 A, 250 VAC (general use)	100 × 10³
TV-3 (NO contact only)	25 × 10³

Number of poles	Coil ratings	Contact ratings	Operations
1 pole	5 to 110 VDC 6 to 240 VDC	10 A, 250 VAC (general use) 7.5 A, 250 VAC (PF0.4) 10 A, 30 VDC (resistive) 5A, 30VDC (L/R=7ms)	100 × 10³
2 poles	5 to 110 VDC 6 to 240 VDC	5 A, 250 VAC (general use) 2 A, 250 VAC (PF0.4) 5 A, 30 VDC (resistive) 3A, 30VDC (L/R=7ms)	100 × 10³

Return to OMRON
