OMRON E3X-DRT21 / SRT21 / CIF11 specification

last update: April 01, 2016

Communications Units

Model	E3X-DRT21	E3X-SRT21	E3X-CIF11
Communications method	DeviceNet	CompoBus/S	RS-422
Connectable Fiber Amplifiers *1	*2 E3X-DA6 *3, E3X-DA8 *3, E3X-DAB6, E3X-DAB8, E3X-DAG6, E3X-DAG8
	E3X-DA6TW *3, E3X-DA8TW *3, E3X-DA6-P *3, E39-TM1
Number of connectable Fiber Amplifiers	16 max.	14 max.	16 max.
Power supply voltage	11 to 25 VDC	14 to 26.4 VDC	11.4 to 26.4 VDC (12 VDC -5% to 24 VDC +10%)
Internal current consumption *4	70 mA max.	30 mA max.	40 mA max.
Ambient temperature	Operating: -20 to 55°C, Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity	35% to 85% (with no condensation)
Weight (packed state)	Approx. 150 g		Approx. 200 g

*1. Connection is not supported for Pre-wired Amplifiers (e.g., E3X-DA11-N) and water-resistant Amplifiers
       (e.g., E3X-DA11V).*2. Connection is supported for products manufactured on or after the date shown below (indicated with the lot number).
       Connection is also supported for models with "MADE IN JAPAN" on the cover underlined.

*3.Manufacturing of the E3X-DA[]TW Series was discontinued at the end of March 2012. Manufacture of the
     E3X-DA6/DA8/DA6-P will be discontinued in March 2017.
*4. Does not include the current supplied to the Fiber Amplifier.

Terminal-block Unit

Model	E39-TM1
Power supply voltage *1	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Sensor power supply	11 to 23 VDC (power supply voltage -1 V)
Current consumption	40 mA max. + Sensor current consumption (total: 100 mA max.)
Response speed	1.2 ms max.
Number of inputs	1 point
Input signals	NPN/PNP no-voltage input (contact and non-contact), switchable
Input operating configuration	N.O./ N.C., switchable
Indicators	Input signal display (orange)
Ambient temperature *2	Operating: Groups of 1 to 3 Units: -25 to 55°C (with no icing or condensation) Groups of 4 to 8 Units: -25 to 45°C (with no icing or condensation) Groups of 9 to 16 Units: -25 to 40°C (with no icing or condensation) Storage: -30 to 70°C

*1. The power supply for the E39-TM1 is provided from the Communications Unit (order separately). Use an E3X-CN02
       (order separately) Connector.
*2. When 4 or more Units are grouped together, the current consumption per Unit must not exceed 75 mA.
       When using together with the E3X-DA-N Fiber Amplifiers, connect the E39-TM1 Units at the end of the group.
       In this case, the upper limit for the ambient temperature for the E3X-DA-N Amplifiers is the rated upper limit -5°C.

last update: April 01, 2016

OMRON E3X-DRT21 / SRT21 / CIF11 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E3X-DRT21/SRT21/CIF11 Data Sheet	- [558KB]	Apr 01, 201620160401	E3X-DRT21/SRT21/CIF11 Data Sheet

OMRON E3X-DRT21 / SRT21 / CIF11 dimension

last update: September 24, 2012

Note:Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.

Communications Units

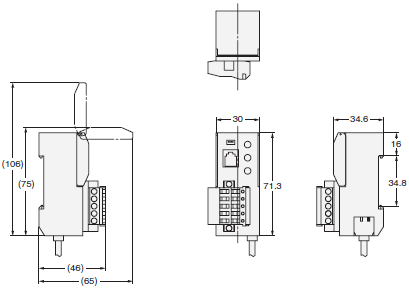

E3X-DRT21

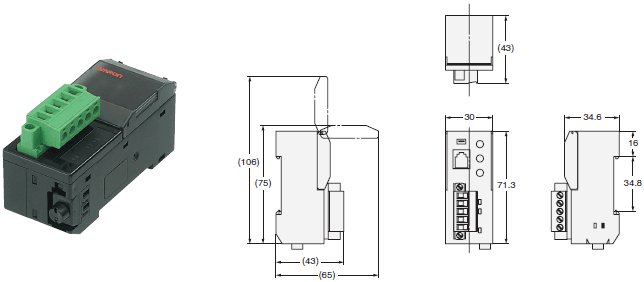

E3X-SRT21

E3X-CIF11

Terminal-block Unit

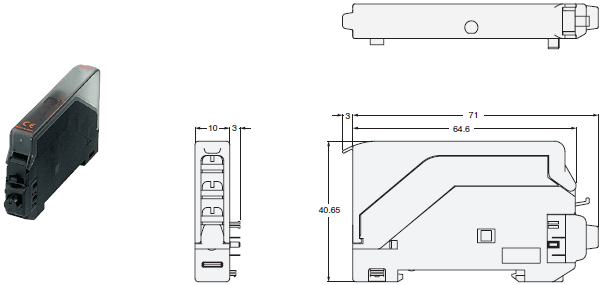

E39-TM1

last update: September 24, 2012

OMRON E3X-DRT21 / SRT21 / CIF11 lineup

last update: April 01, 2016

Communications Units

Communications method	Model
DeviceNet	E3X-DRT21
CompoBus/S	E3X-SRT21
RS-422	E3X-CIF11

Terminal-block Unit

Communications method	Model
All communications methods	E39-TM1

Fiber Amplifier with Incident Level Monitoring Function*1, 2

Communications method	Model
All communications methods	E3X-DA6-P

Wiring-reduction Connector*1

Communications method	Model
---	E3X-CN02

*1. Order Fiber Amplifiers and Wiring-reduction Connectors as sets.
*2. Manufacture of the E3X-DA6-P will be discontinued in March 2017.

last update: April 01, 2016
