OMRON XW2C-20G5-IN16 Dimensions
/Images/l_866-25-119064-198x198.jpglast update: December 19, 2013
• Power supply common provided for input devices.
• LEDs indicate at a glance whether input signals are ON or OFF.
• Mounts to DIN Track or via screws.
• Connecting Cable available (sold separately).
last update: December 19, 2013
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2C-20G5-IN16 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2C-20G5-IN16 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2C-20G5-IN16Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NT20, NT31(C)-EV3, NT631C-EV3 Programmable Terminals/Features
F3W-MA Smart Muting Actuator/Features
CS1G, CS1H CS1G, CS1H Overview/Features
SRT2-[]D0[]CL(-1) Waterproof Terminals/Features
XS3 Round Water-resistant Connectors (M8/S8)/Features
OMRON XW2C-20G5-IN16 catalog
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW2C-20G5-IN16 Data Sheet | - [445KB] | Mar 01, 201720170301 | XW2C-20G5-IN16 Data Sheet |

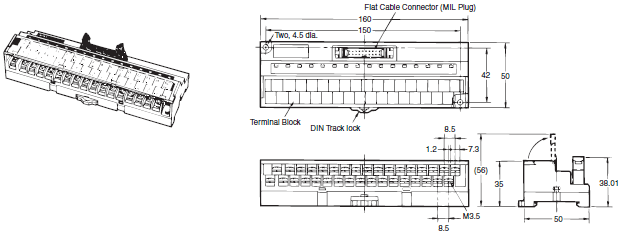

OMRON XW2C-20G5-IN16 dimension
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Dimensionslast update: September 24, 2012
XW2C-20G5-IN16
last update: September 24, 2012
OMRON XW2C-20G5-IN16 specification
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Specificationslast update: September 24, 2012
| Rated current | 1 A/common |
|---|---|
| Rated voltage | 12 to 24 VDC |
| No. of circuits | 16 |
| Input indicator | LED (orange) |
| Power supply voltage range | 12 to 24 VDC ± 5% |
| LED current | 24 VDC: 10 mA/point max. |
| Insulation resistance | 50 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min |
| Ambient operating temperature | 0 to 55 ° C |
last update: September 24, 2012
OMRON XW2C-20G5-IN16 lineup
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Lineuplast update: September 24, 2012
Connector-Terminal Block Conversion Unit
| No. of inputs | Input type | Model |
|---|---|---|
| 16 | NPN-compatible input (+ common) | XW2C-20G5-IN16 |
last update: September 24, 2012
