Simple, Low-cost Installation, Setup, and Operation

New Small Cylindrical Sensors

Sure Installation without Stress

Side-view and Flat Sensor Models for M3 Mounting

Small Cylindrical Sensors

Overall Features

Many Compact Shapes for Various Applications

Ideal for Rechargeable Battery Manufacturing Lines

All Metal Parts Are Stainless Steel. No Worries About Conductive Copper Intrusion.

The case, nuts, and washers of the Cylindrical Sensors are all stainless steel, as are the mounting plates and sleeves of the M3-mounting Sensors. Harmful copper, zinc, and nickel plating are not used, enabling reliable application in rechargeable battery manufacturing lines. Stainless-steel screws are also available, for immediate application for rechargeable batteries.

last update: December 19, 2013

Purchase the OMRON Built-in Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3T Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3T We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3TSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G70R-SOC08 Relay Terminal/Features
J7TKN Thermal Overload Relay/Features
NY5[][]-1 Industrial PC Platform NY-series IPC Machine Controller/Features
E3S-R Transparent Object Detection Sensor/Features
E63-WF Direct Discrimination Unit/Features

OMRON E3T catalog
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E3T Data Sheet E407-E1-02
[6353KB] Jul 06, 201820180706 E3T Data Sheet

E3T Catalog E408-E1-01
[1919KB] Jul 06, 201720170706 E3T Catalog

OMRON E3T lineup
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Lineup
last update: July 6, 2017
Sensors

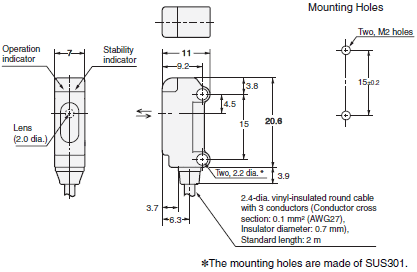

M2-mounting Sensors

A set of mounting screws is included with the Sensor.

Sensing
method Appearance Sensing distance
(Red light) Operation
mode Model
NPN output PNP output

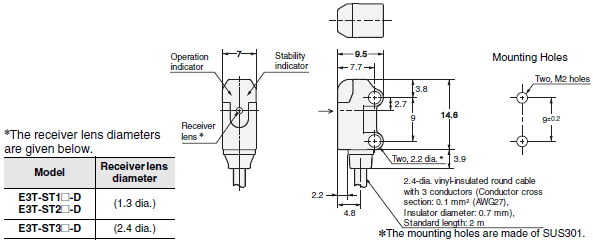

Through-beam
(Emitter
+
Receiver) *1 2 m (Red light)
(Sensitivity Adjustment
Unit can be used.) Light-ON E3T-ST31 2M *4 E3T-ST33 2M *4
Dark-ON E3T-ST32 2M *4 E3T-ST34 2M *4
1 m (Red light)
(Sensitivity Adjustment
Unit can be used.) Light-ON E3T-ST11 2M *4 E3T-ST13 2M *4
Dark-ON E3T-ST12 2M *4 E3T-ST14 2M *4
300 mm (Red light) Light-ON E3T-ST21 2M E3T-ST23 2M
Dark-ON E3T-ST22 2M E3T-ST24 2M
2 m (Infrared light) Light-ON E3T-ST31F 2M E3T-ST33F 2M
Dark-ON E3T-ST32F 2M E3T-ST34F 2M
1 m (Infrared light) Light-ON E3T-ST11F 2M E3T-ST13F 2M
Dark-ON E3T-ST12F 2M E3T-ST14F 2M
300 mm (Infrared light) Light-ON E3T-ST21F 2M E3T-ST23F 2M
Dark-ON E3T-ST22F 2M E3T-ST24F 2M

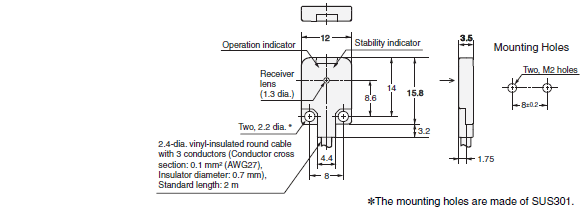

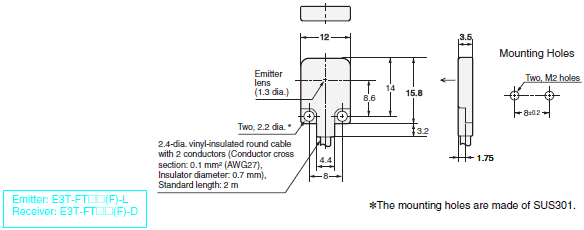

500 mm (Red light) Light-ON E3T-FT11 2M *4 E3T-FT13 2M *4
Dark-ON E3T-FT12 2M *4 E3T-FT14 2M *4
300 mm (Red light) Light-ON E3T-FT21 2M E3T-FT23 2M
Dark-ON E3T-FT22 2M E3T-FT24 2M
500 mm (Infrared light) Light-ON E3T-FT11F 2M E3T-FT13F 2M
Dark-ON E3T-FT12F 2M E3T-FT14F 2M
300 mm (Infrared light) Light-ON E3T-FT21F 2M E3T-FT23F 2M
Dark-ON E3T-FT22F 2M E3T-FT24F 2M

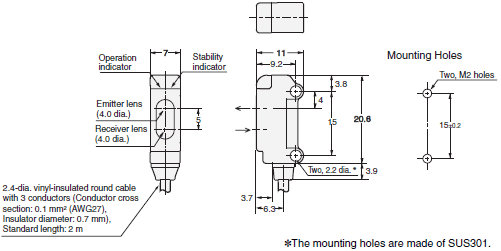

Retro-
reflective Using the E39-R4 Reflector
provided 200 mm [30 mm] *2
Using the E39-R37-CA
100 mm [10 mm] *2
(Red light) Light-ON E3T-SR41 2M *3 *4 E3T-SR43 2M *3 *4
Dark-ON E3T-SR42 2M *3 *4 E3T-SR44 2M *3 *4
Diffuse-
reflective 5 to 30 mm (Red light) Light-ON E3T-FD11 2M *4 E3T-FD13 2M *4
Dark-ON E3T-FD12 2M *4 E3T-FD14 2M *4

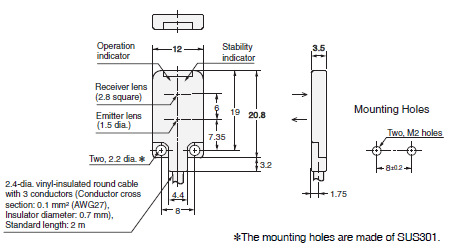

Limited-
reflective 5 to 15 mm (Red light) Light-ON E3T-SL11 2M *4 E3T-SL13 2M *4
Dark-ON E3T-SL12 2M *4 E3T-SL14 2M *4
5 to 30 mm (Red light) Light-ON E3T-SL21 2M *4 E3T-SL23 2M *4
Dark-ON E3T-SL22 2M *4 E3T-SL24 2M *4

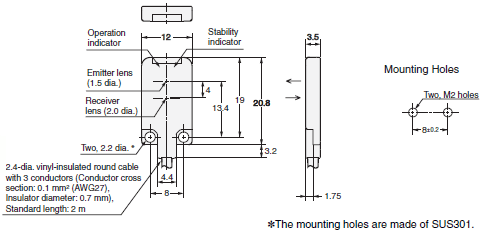

BGS-
reflective 1 to 15 mm (Red light) Light-ON E3T-FL11 2M *4 E3T-FL13 2M *4
Dark-ON E3T-FL12 2M *4 E3T-FL14 2M *4
1 to 30 mm (Red light) Light-ON E3T-FL21 2M *4 E3T-FL23 2M *4
Dark-ON E3T-FL22 2M *4 E3T-FL24 2M *4

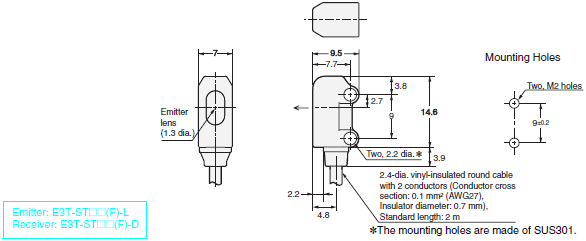

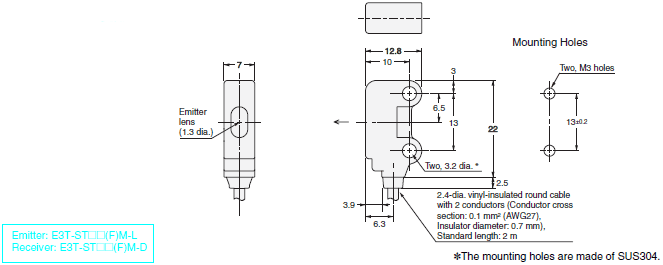

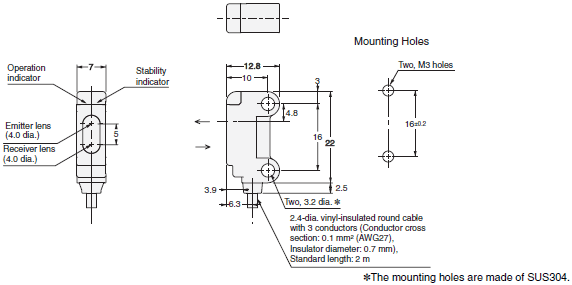

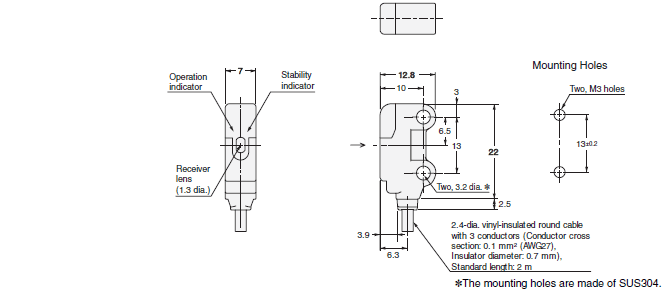

M3-mounting Sensors

A set of mounting screws is not included with the Sensor. Order a Screw Set separately if required.

Sensing
method Appearance Sensing distance
(Red light) Operation mode Model
NPN output PNP output
Through-beam
(Emitter
+
Receive) *1 1 m
(Red light) Light-ON E3T-ST11M 2M E3T-ST13M 2M
Dark-ON E3T-ST12M 2M E3T-ST14M 2M
300 mm
(Red light) Light-ON E3T-ST21M 2M E3T-ST23M 2M
Dark-ON E3T-ST22M 2M E3T-ST24M 2M
1 m
(Infrared light) Light-ON E3T-ST11MF 2M E3T-ST13MF 2M
Dark-ON E3T-ST12MF 2M E3T-ST14MF 2M
300 mm
(Infrared light) Light-ON E3T-ST21MF 2M E3T-ST23MF 2M
Dark-ON E3T-ST22MF 2M E3T-ST24MF 2M
Diffuse-
reflective 5 to 30 mm
(Red light) Light-ON E3T-FD11M 2M E3T-FD13M 2M
Dark-ON E3T-FD12M 2M E3T-FD14M 2M

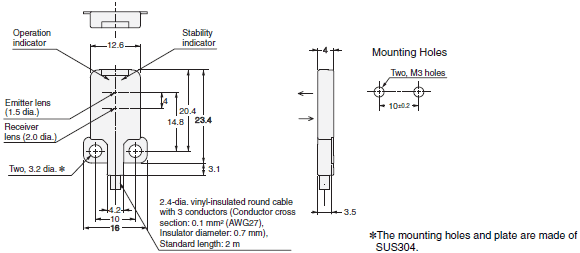

Limited-
reflective 5 to 15 mm
(Red light) Light-ON E3T-SL11M 2M E3T-SL13M 2M
Dark-ON E3T-SL12M 2M E3T-SL14M 2M
5 to 30 mm
(Red light) Light-ON E3T-SL21M 2M E3T-SL23M 2M
Dark-ON E3T-SL22M 2M E3T-SL24M 2M

*1. The model number of the Emitter is expressed by adding an "L" to the set model number in the table.
Example: E3T-ST11-L 2M
The model number of the Receiver is expressed by adding a "D" to the set model number in the table.
Example: E3T-ST11-D 2M
*2. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*3. Models are available either with or without the E39-R37-CA Reflector included.
Models with E39-R37-CA Reflector: E3T-SR4[]-S
Models without Reflector: E3T-SR4[]-C
*4. Models with robot (bending-resistant) cable are also available with “R” in the model number.
(Example: E3T-ST11R 2M)

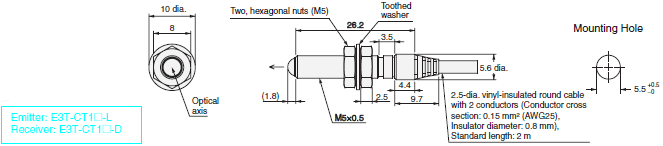

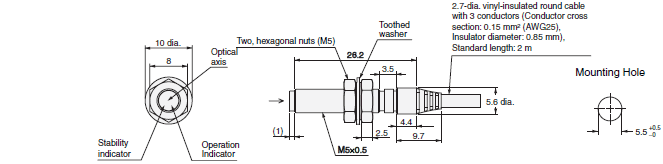

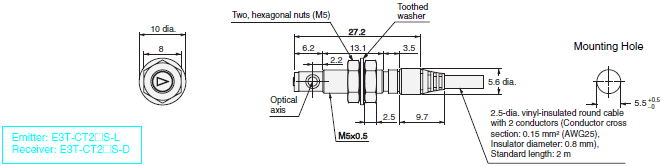

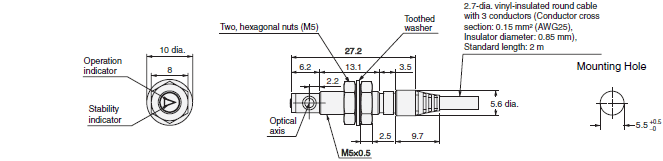

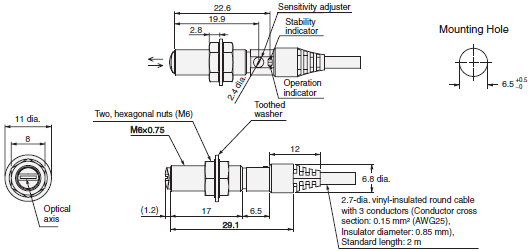

Small Cylindrical Sensors

A set of mounting nuts is included with the Sensor.

Sensing method Appearance Sensing distance Operation mode Model
NPN output PNP output
Through-beam
(Emitter
+
Receive) 1 m
(Red light) Light-ON --- ---
Dark-ON E3T-CT12 2M E3T-CT14 2M
500 mm
(Red light) Light-ON --- ---
Dark-ON E3T-CT22S 2M E3T-CT24S 2M
Diffuse-
reflective
(with adjuster) 3 to 50 mm
Infrared light Light-ON E3T-CD11 2M E3T-CD13 2M
Dark-ON --- ---

Accessories (Order Separately)
Accessories for M2-mounting Sensors

These accessories are not included with the Sensor. Order them separately if required.

Name Applicable
Sensor Model Quantity Remarks
Slit for Through-
beam Side-view
Sensors 0.5 dia. E3T-ST3[][] E39-S63 2
(One each for
Emitter and
Receiver;
common with
Slit widths of
1 dia. And
0.5 dia.) Sensing distance 200 mm,
Minimum detectable object (reference value)
0.5-mm dia.
E3T-ST1[][] Sensing distance 100 mm,
Minimum detectable object (reference value)
0.5-mm dia.
E3T-ST2[][] Sensing distance 30 mm,
Minimum detectable object (reference value)
0.5-mm dia.
1 dia. E3T-ST3[][] Sensing distance 600 mm,
Minimum detectable object (reference value)
1-mm dia.
E3T-ST1[][] Sensing distance 300 mm,
Minimum detectable object (reference value)
1-mm dia.
E3T-ST2[][] Sensing distance 100 mm,
Minimum detectable object (reference value)
1-mm dia.
Slit for Through-
beam Flat Sensors 0.5 dia. E3T-FT1[][] E39-S64 Sensing distance 50 mm,
Minimum detectable object (reference value)
0.5-mm dia.
E3T-FT2[][] Sensing distance 30 mm,
Minimum detectable object (reference value)
0.5-mm dia.
1 dia. E3T-FT1[][] Sensing distance 100 mm,
Minimum detectable object (reference value)
1-mm dia.
E3T-FT2[][] Sensing distance 50 mm,
Minimum detectable object (reference value)
1-mm dia.
Sensitivity Adjustment Unit
for Through-beam Side-view
Sensors with Red Light E3T-ST3[] E39-E10 1 Sensing distance (reference value)
1,200 to 1,800 mm
E3T-ST1[] Sensing distance (reference value)
300 to 800 mm

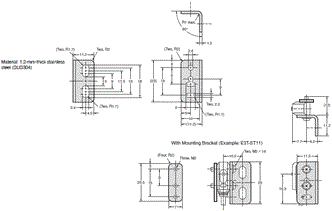

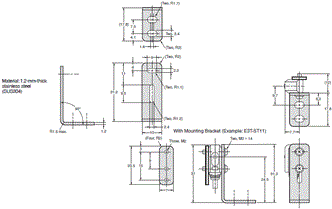

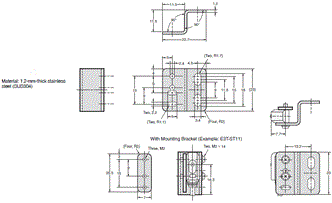

Mounting Brackets for Side-
view Sensors *1 E3T-S[][][][] E39-L116 1 Nut plate provided
E39-L117
E39-L118

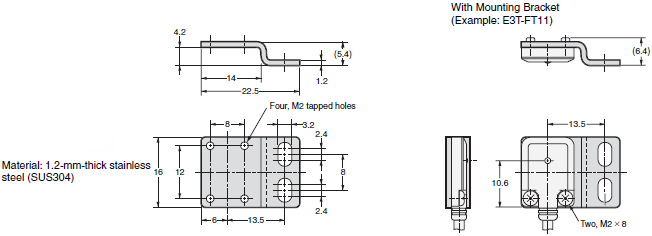

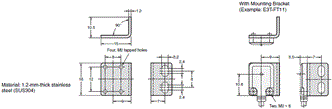

Mounting Brackets for Flat
Sensors *1 E3T-F[][][][] E39-L119 ---
E39-L120
Screw Set for Side-view
Sensors *2 *3 E3T-S[][][][] E39-L164 2 for each Material: Iron (Same type as provided with the
Sensor.)
Contents: Set screws (M2×14), Hexagonal nuts
Screw Set for Flat Sensors
*2 *3 E3T-F[][][][] E39-L165 Material: Iron (Same type as provided with the
Sensor.)
Contents: Set screws (M2×8), Hexagonal nuts
SUS Screw Set for Flat
Sensors *2 E3T-F[][][][] E39-L172 2 Material: SUS304
Contents: Bolt with hexagonal hole (M2×6)
SUS Screw Set for Side-
view Sensors *2 E3T-S[][][][] E39-L173 2 for each Material: SUS304
Contents: Bolt with hexagonal hole (M2×12),
Hexagonal nuts, Spring washers, Flat washers

*1. When using Through-beam Sensors (E3T-ST[][], E3T-FT[][]), order one Bracket for the Emitter and one for the
Receiver.
*2. Order two Sets, one for the Emitter and one for the Receiver, for Through-beam Sensors (E3T-ST[][] or E3T-FT[][]).
This is the Screw Set for mounting the Sensor to the Mounting Bracket. Order this Set if you lose the screws. Do not
use this Screw Set to mount the Mounting Bracket to the equipment.
*3. This is included with the Sensor.

Accessories for M3-mounting Sensors

These accessories are not included with the Sensor. Order them separately if required.

Name Applicable
Sensor Model Quantity Remarks
Slits for Through-
beam Side-view
Sensors 0.5 dia. E3T-ST1[]M[] E39-S76A 2
(One each for
Emitter and
Receiver) Sensing distance 100 mm,
Minimum detectable object (reference value)
0.5-mm dia.
E3T-ST2[]M[] Sensing distance 30 mm,
Minimum detectable object (reference value)
0.5-mm dia.
1 dia. E3T-ST1[]M[] E39-S76B Sensing distance 300 mm,
Minimum detectable object (reference value)
1-mm dia.
E3T-ST2[]M[] Sensing distance 100 mm,
Minimum detectable object (reference value)
1-mm dia.

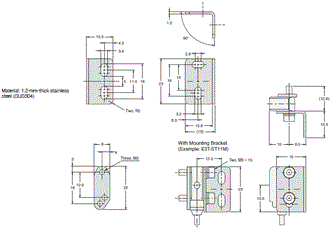

Mounting Bracket for Side-
view Sensors *1 E3T-S[][][]M[] E39-L166 1 Nut plate provided

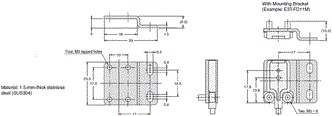

Mounting Bracket for Flat
Sensors E3T-FD[][]M E39-L167 ---

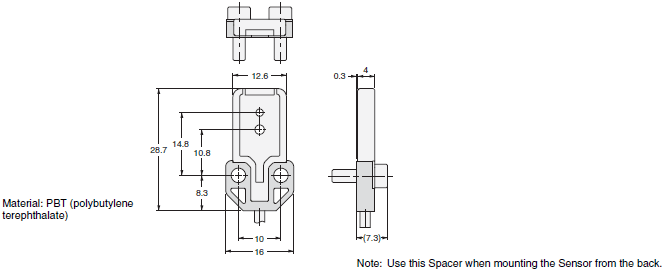

Back-mounting Spacer for
Flat Sensors E39-L168 Use this Spacer when mounting a Flat Sensor
(E3T-FD[][]M) from the back.
SUS Screw Set for Flat
Sensors *2 E3T-FD[][]M E39-L170 2 Material: SUS304
Contents: Bolt with hexagonal hole (M3×6)
SUS Screw Set for Side-
view Sensors *2 *3 E3T-S[][][]M[] E39-L171 2 for each Material: SUS304
Contents: Bolt with hexagonal hole (M3×15),
Hexagonal nuts, Spring washers, Flat washers

*1. When using Through-beam Sensors (E3T-ST[][]M[]), order one bracket for the Emitter and one for the Receiver.
*2. This is the Screw Set for mounting the Sensor to the Mounting Bracket. Order this Set if you loose the screws. Do not
use this Screw Set to mount the Mounting Bracket to the equipment.
*3. Order two Sets, one for the Emitter and one for the Receiver, for Through-beam Sensors (E3T-ST[][]M[]).

Accessories for Small Cylindrical Sensors

Name Applicable
Sensor Model Quantity Remarks
SUS Nut Set for Through-
beam Sensors * E3T-CT[][]
E3T-CT[][]S E39-M5 4 (Hexagonal nuts),
2 (Toothed washers) Material: SUS303
(Same type as provided with the Sensor.)
SUS Nut Set for Diffuse-
reflective Sensors E3T-CD[][] E39-M6 2 (Hexagonal nuts),
1 (Toothed washers)
Adjustment Driver for
Diffuse-reflective Sensors E39-G17 1 This Driver is used to turn the sensitivity
adjuster.
Provided with E3T-CD[][]

* This Nut Set is for the Emitter/Receiver. This is the Nut Set for mounting the Sensor. Order this Set if you lose the
screws.

Accessories for All Sensors

Name Applicable
Sensor Model Quantity Remarks

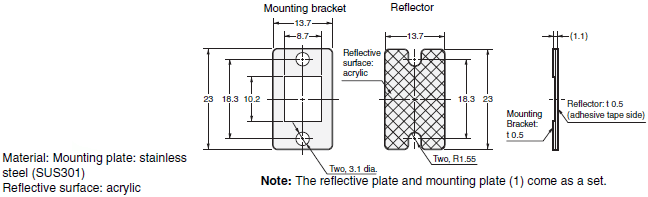

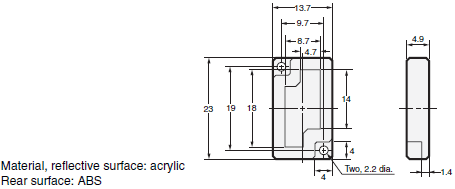

Small Reflectors
(for Retro-reflective Sensors) E3T-SR4[] E39-R4 1 Sensing distance 200 mm [30 mm] *1
Minimum detectable object 2-mm dia.
Provided with the E3T-SR4[]
E3T-SR4[]-S E39-R37-CA *2 Sensing distance 100 mm [10 mm] *1
Minimum detectable object 2-mm dia.
Provided with the E3T-SR4[]-S

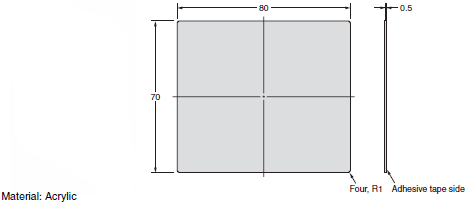

Tape Reflectors
(for Retro-reflective Sensors) E3T-SR4[]-C E39-RS1-CA *2 Sensing distance 100 mm [10 mm] *1
Minimum detectable object 2-mm dia.
Use Tape Reflectors in combination with
the E3T-SR4[]-C, which does not come
with a Reflector.
E39-RS2-CA *2
E39-RS3-CA *2

*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*2. The E3T-SR4[] cannot be used with the E39-R37 or E39-RS1/2/3 (without CA) Tape Reflectors.
The E39-[]-CA Reflector is for use only with the E3T-SR4[]. It cannot be used with other Sensors.

last update: July 6, 2017

OMRON E3T specification
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Specifications
last update: June 05, 2014

Sensing method Through-beam
Appearance Rectangular type (Side-view)
NPN
output Light-ON E3T-ST31 E3T-ST31F E3T-ST11
E3T-ST11M E3T-ST11F
E3T-ST11MF E3T-ST21
E3T-ST21M E3T-ST21F
E3T-ST21MF
Dark-ON E3T-ST32 E3T-ST32F E3T-ST12
E3T-ST12M E3T-ST12F
E3T-ST12MF E3T-ST22
E3T-ST22M E3T-ST22F
E3T-ST22MF
PNP
output Light-ON E3T-ST33 E3T-ST33F E3T-ST13
E3T-ST13M E3T-ST13F
E3T-ST13MF E3T-ST23
E3T-ST23M E3T-ST23F
E3T-ST23MF
Dark-ON E3T-ST34 E3T-ST34F E3T-ST14
E3T-ST14M E3T-ST14F
E3T-ST14MF E3T-ST24
E3T-ST24M E3T-ST24F
E3T-ST24MF
Sensing distance 2 m 1 m 300 mm
Standard sensing
object Opaque, 3-mm dia. min. Opaque, 2-mm dia. min.
Minimum detectable
object
(reference value) Opaque, 3-mm dia. Opaque, 2-mm dia.
Hysteresis (white
paper) ---
Black/white error ---
Directional angle Emitter: 2° to 20°
Receiver: 2° to 70°
Light source
(wavelength) Red LED
(650 nm) Infrared LED
(860 nm) Red LED
(650 nm) Infrared LED
(860 nm) Red LED
(650 nm) Infrared LED
(860 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.)
Control output Load power supply voltage: 26.4 VDC max.
Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA,
1 V max. for load current of less than 10 mA)
Open-collector output
Protection circuits Power supply and control output reverse polarity protection,
Output short-circuit protection
Response time Operate or reset: 1 ms max.
Ambient illumination Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature
range Operating: -25 to 55°C
Storage: -40 to 70°C
(with no icing or condensation)
Ambient humidity
range Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength AC1,000V, 50/60 Hz for 1 min.
Vibration resistance
(destruction) 10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and
Z directions
Shock resistance
(destruction) 1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 40 g
Materials Case PBT (polybutylene terephthalate)
Display
window Denatured polyarylate
Lens Denatured polyarylate
Hexagonal
nuts ---
Toothed
washers ---
Accessories * Instruction manual, Set screws for mounting (Side-view Sensors: M2 × 14,
Flat Sensors: M2 × 8), Nuts

* Only the Instruction Manual is included with an M3-mounting Sensor (E3T-ST[][]M(F)). Order the Set of Mounting Screws
separately if required.

Sensing method Through-beam
Appearance Rectangular type
NPN
output Light-ON E3T-FT11 E3T-FT11F E3T-FT21 E3T-FT21F
Dark-ON E3T-FT12 E3T-FT12F E3T-FT22 E3T-FT22F
PNP
output Light-ON E3T-FT13 E3T-FT13F E3T-FT23 E3T-FT23F
Dark-ON E3T-FT14 E3T-FT14F E3T-FT24 E3T-FT24F
Sensing distance 500 mm 300 mm
Standard sensing object Opaque, 1.3-mm dia. min.
Minimum detectable object
(reference value) Opaque, 1.3-mm dia.
Hysteresis (white paper) ---
Black/white error ---
Directional angle Emitter: 3° to 25°
Receiver: 3° min.
Light source (wavelength) Red LED (650 nm) Infrared LED
(860 nm) Red LED (650 nm) Infrared LED
(860 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 30 mA max. (Emitter 10 mA max., Receiver 20 mA max.)
Control output Load power supply voltage: 26.4 VDC max.
Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA,
1 V max. for load current of less than 10 mA)
Open-collector output
Protection circuits Power supply and control output reverse polarity protection,
Output short-circuit protection
Response time Operate or reset: 1 ms max.
Ambient illumination Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C
Storage: -40 to 70°C
(with no icing or condensation)
Ambient humidity range Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength AC1,000V, 50/60 Hz for 1 min.
Vibration resistance
(destruction) 10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and
Z directions
Shock resistance
(destruction) 1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 40 g
Materials Case PBT (polybutylene terephthalate)
Display window Denatured polyarylate
Lens Denatured polyarylate
Hexagonal nuts ---
Toothed washers ---
Accessories * Instruction manual, Set screws for mounting (Side-view Sensors: M2 × 14,
Flat Sensors: M2 × 8), Nuts

* Only the Instruction Manual is included with an M3-mounting Sensor (E3T-ST[][]M(F)). Order the Set of Mounting Screws
separately if required.

Sensing method Through-beam Retro-reflective
(without M.S.R. function)
Appearance Cylindrical
(Top-view)
Cylindrical
(Side-view)
Rectangular
(Side-view)
NPN
output Light-ON --- --- E3T-SR41
Dark-ON E3T-CT12 E3T-CT22S E3T-SR42
PNP
output Light-ON --- --- E3T-SR43
Dark-ON E3T-CT14 E3T-CT24S E3T-SR44
Sensing distance 1 m 500 mm 200 mm [30 mm] *
(Using the E39-R4)
100 mm [10 mm] *
(Using the E39-R37-CA)
Standard sensing object Opaque, 4-mm dia. min. Opaque, 5-mm dia. min. Opaque, 27-mm dia. min.
Minimum detectable object
(reference value) --- 2-mm dia. (Sensing
distance 100 mm)
Hysteresis (white paper) ---
Black/white error ---
Directional angle Receiver: 2° Receiver: 10° 2 to 20°
Light source (wavelength) Red LED (630 nm) Red LED (625 nm) Red LED (650 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 30 mA max. (Emitter 15 mA max., Receiver 15 mA
max.) 20 mA max.
Control output Load power supply voltage: 30 VDC max.
Load current: 80 mA max.
(residual voltage: 1 V max.)
Open-collector output Load power supply voltage: 26.4
VDC max.
Load current: 50 mA max.
(residual voltage: 2 V max. for load
current of 10 to 50 mA, 1 V max.
for load current of less than 10 mA)
Open-collector output
Protection circuits Power supply reverse polarity protection,
Output short-circuit protection Power supply and control output
reverse polarity protection,
Output short-circuit protection,
Mutual interference prevention
Response time Operate or reset: 0.5 ms max. Operate or reset: 1 ms max.
Ambient illumination Incandescent lamp: 3,000 lx max. Incandescent lamp: 5,000 lx max.,
Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C
Storage: -30 to 70°C
(with no icing or condensation) Operating: -25 to 55°C
Storage: -40 to 70°C
(with no icing or condensation)
Ambient humidity range Operating or Storage: 35% to 85%
(with no condensation) Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength AC500V, 50/60 Hz for 1 min. AC1,000V, 50/60 Hz for 1 min.
Vibration resistance
(destruction) 10 to 55Hz, 1.5-mm double amplitude for 2 hours
each in X, Y, and Z directions 10 to 2,000 Hz, 1.5-mm double
amplitude or 300 m/s² for 0.5
hours each in X, Y, and Z directions
Shock resistance
(destruction) 500 m/s² 3 times each in X, Y, and Z directions 1,000m/s² 3 times each in X, Y,
and Z directions
Degree of protection IEC 60529 IP65 IEC 60529 IP67
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 60 g Approx. 20 g
Materials Case SUS303 PBT (polybutylene terephthalate)
Display window Polysulfone Denatured polyarylate
Lens Polysulfone Methacrylc resin
Hexagonal nuts SUS303 ---
Toothed washers SUS303 ---
Accessories Instruction manual, Hexagonal nuts,
Toothed washers Instruction manual, Set screws
for mounting (M2×14), Nuts,
E39-R4 (E3T-SR4[] only),
E39-R37-CA (E3T-SR4[]-S only)

* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Sensing method Diffuse-reflective
Appearance Rectangular type (Flat)
Cylindrical type (Top-view)
NPN
output Light-ON E3T-FD11
E3T-FD11M E3T-CD11
Dark-ON E3T-FD12
E3T-FD12M ---
PNP
output Light-ON E3T-FD13
E3T-FD13M E3T-CD13
Dark-ON E3T-FD14
E3T-FD14M ---
Sensing distance 5 to 30 mm (50 × 50 mm white paper) 3 to 50 mm (100 × 100 mm white paper)
Standard sensing object ---
Minimum detectable object
(reference value) 0.15-mm dia. (sensing distance 10 mm) ---
Hysteresis (white paper) 6 mm max. 15% or less of the sensing distance
Black/white error ---
Directional angle ---
Light source (wavelength) Red LED (650 nm) Infrared LED (870 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 20 mA max.
Control output Load power supply voltage: 26.4 VDC max.
Load current: 50 mA max. (residual
voltage: 2 V max. for load current of 10
to 50 mA, 1 V max. for load current of
less than 10 mA)
Open-collector output Load power supply voltage: 30 VDC max.
Load current: 80 mA max. (residual
voltage: 1 V max.)
Open-collector output
Protection circuits Power supply and control output reverse
polarity protection,
Output short-circuit protection,
Mutual interference prevention Power supply reverse polarity protection,
Output short-circuit protection
Response time Operate or reset: 1 ms max. Operate or reset: 0.5 ms max.
Ambient illumination Incandescent lamp: 5,000 lx max.,
Sunlight: 10,000 lx max. Incandescent lamp: 3,000 lx max.
Ambient temperature range Operating: -25 to 55°C
Storage: -40 to 70°C
(with no icing or condensation) Operating: -25 to 55°C
Storage: -30 to 70°C
(with no icing or condensation)
Ambient humidity range Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation) Operating or Storage: 35% to 85%
(with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min. 500 VAC, 50/60 Hz for min.
Vibration resistance
(destruction) 10 to 2,000 Hz,
1.5-mm double amplitude or 300 m/s² for
0.5 hours each in X, Y, and Z directions 10 to 55Hz,
1.5-mm double amplitude for 2 hours each
in X, Y, and Z directions
Shock resistance
(destruction) 1,000 m/s² 3 times each in X, Y, and Z
directions 500 m/s² 3 times each in X, Y, and Z
directions
Degree of protection IEC 60529 IP67 IEC 60529 IP65
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 20 g Approx. 40 g
Materials Case PBT (polybutylene terephthalate) SUS303
Display window Denatured polyarylate Epoxy
Lens Denatured polyarylate Polysulfone
Hexagonal nuts --- SUS303
Toothed washers --- SUS303
Accessories Instruction manual, Set screws
for mounting (M2 × 8), Nuts * Instruction manual, Hexagonal nuts,
Toothed washers, Adjustment driver

* Only the Instruction Manual is included with an M3-mounting Sensor (E3T-FD[][]M or E3T-SL[][]M). Order the Set of
Mounting Screws separately if required.

Sensing method Limited-reflective BGS-reflective
Appearance Rectangular type (Side-view)
Rectangular type (Flat)
NPN
output Light-ON E3T-SL11
E3T-SL11M E3T-SL21
E3T-SL21M E3T-FL11 E3T-FL21
Dark-ON E3T-SL12
E3T-SL12M E3T-SL22
E3T-SL22M E3T-FL12 E3T-FL22
PNP
output Light-ON E3T-SL13
E3T-SL13M E3T-SL23
E3T-SL23M E3T-FL13 E3T-FL23
Dark-ON E3T-SL14
E3T-SL14M E3T-SL24
E3T-SL24M E3T-FL14 E3T-FL24
Sensing distance 5 to 15 mm
(50 × 50 mm white
paper) 5 to 30 mm
(50 × 50 mm white
paper) 1 to 15 mm
(50 × 50 mm white
paper) 1 to 30 mm
(50 × 50 mm white
paper)
Standard sensing object ---
Minimum detectable object
(reference value) 0.15-mm dia.
(sensing distance 10 mm) 0.15-mm dia. non-glossy object
(sensing distance 10 mm)
Hysteresis (white paper) 2 mm max. 6 mm max. 0.5 mm max. 2 mm max.
Black/white error --- 15% max.
Directional angle ---
Light source (wavelength) Red LED (650 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption 20 mA max.
Control output Load power supply voltage: 26.4 VDC max.
Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA,
1 V max. for load current of less than 10 mA)
Open-collector output
Protection circuits Power supply and control output reverse polarity protection,
Output short-circuit protection,
Mutual interference prevention
Response time Operate or reset: 1 ms max.
Ambient illumination Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C
Storage: -40 to 70°C
(with no icing or condensation)
Ambient humidity range Operating: 35% to 85%
Storage: 35% to 95%
(with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min.
Vibration resistance
(destruction) 10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and
Z directions
Shock resistance
(destruction) 1,000m/s² 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Pre-wired (standard length: 2 m)
Weight (packed state) Approx. 20 g
Materials Case PBT (polybutylene terephthalate)
Display window Denatured polyarylate
Lens Denatured polyarylate
Hexagonal nuts ---
Toothed washers ---
Accessories Instruction manual, Set screws for
mounting (M2 × 14), Nuts * Instruction manual, Set screws for
mounting (M2 × 8), Nuts

* Only the Instruction Manual is included with an M3-mounting Sensor (E3T-FD[][]M or E3T-SL[][]M). Order the Set of
Mounting Screws separately if required.

last update: June 05, 2014

OMRON E3T dimension
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Dimensions
last update: July 6, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors
M2-mounting Sensors
Through-beam Side-view Sensors

E3T-ST1[](F) (Emitter)
E3T-ST2[](F) (Emitter)
E3T-ST3[](F) (Emitter)

E3T-ST1[](F) (Receiver)
E3T-ST2[](F) (Receiver)
E3T-ST3[](F) (Receiver)

Through-beam Flat Sensors

E3T-FT1[](F) (Emitter)
E3T-FT2[](F) (Emitter)

E3T-FT1[](F) (Receiver)
E3T-FT2[](F) (Receiver)

Retro-reflective Side-view Sensors
E3T-SR4[]

Diffuse-reflective Flat Sensors
E3T-FD1[]

Limited-reflective Side-view Sensors

E3T-SL1[]
E3T-SL2[]

BGS-reflective Flat Sensors

E3T-FL1[]
E3T-FL2[]

M3-mounting Sensors
Through-beam Side-view Sensors

E3T-ST1[]M(F) (Emitter)
E3T-ST2[]M(F) (Emitter)

E3T-ST1[]M(F) (Receiver)
E3T-ST2[]M(F) (Receiver)

Diffuse-reflective Flat Sensors
E3T-FD1[]M

Limited-reflective Side-view Sensors

E3T-SL1[]M
E3T-SL2[]M

Small Cylindrical Sensors
Through-beam Top-view Sensors
E3T-CT1[] (Emitter)

E3T-CT1[] (Receiver)

Through-beam Side-view Sensors
E3T-CT2[]S (Emitter)

E3T-CT2[]S (Receiver)

Diffuse-reflective Top-view Sensors
E3T-CD1[]

Accessories
Reflector (Provided with E3T-SR4[])
E39-R4

Reflector (Provided with E3T-SR4[]-S)
E39-R37-CA

Accessories (Order Separately)
Tape Reflectors
E39-RS1-CA

E39-RS2-CA

E39-RS3-CA

Slit for E3T-ST[][](F) Through-beam Sensors
E39-S63

Slit for E3T-FT[][](F) Through-beam Sensors
E39-S64

0.5-dia Slit for E3T-ST[][]M(F) Through-beam Sensors
E39-S76A

1-dia Slit for E3T-ST[][]M(F) Through-beam Sensors
E39-S76B

Sensitivity Adjustment Unit for E3T-ST1[]/ST3[] Through-beam Sensors
E39-E10

Mounting Bracket for M2-mounting Side-view Sensors
E39-L116

Mounting Bracket for M2-mounting Side-view Sensors
E39-L117

Mounting Bracket for M2-mounting Side-view Sensors
E39-L118

Mounting Bracket for M2-mounting Flat Sensors
E39-L119

Mounting Bracket for M2-mounting Flat Sensors
E39-L120

Mounting Bracket for M3-mounting Side-view Sensors
E39-L166

Mounting Bracket for M3-mounting Flat Sensors
E39-L167

Back-mounting Spacer for M3-mounting Flat Sensors
E39-L168

last update: July 6, 2018

NO. E3T

TYPE:Photoelectric Sensors Built-in Amplifier Copyright Statement

DATE:2021-06-11

Associated products:
E3F3 Photoelectric Sensor/Features E3Z Compact Photoelectric Sensor with Built-in Amplifier/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E3T Data Sheet	E407-E1-02 [6353KB]	Jul 06, 201820180706	E3T Data Sheet
E3T Catalog	E408-E1-01 [1919KB]	Jul 06, 201720170706	E3T Catalog

Sensing method	Appearance	Sensing distance (Red light)	Operation mode	Model
NPN output	PNP output
Through-beam (Emitter + Receiver) *1		2 m (Red light) (Sensitivity Adjustment Unit can be used.)	Light-ON	*E3T-ST31 2M 4**	*E3T-ST33 2M 4**
Dark-ON	*E3T-ST32 2M 4**	*E3T-ST34 2M 4**
1 m (Red light) (Sensitivity Adjustment Unit can be used.)	Light-ON	*E3T-ST11 2M 4**	*E3T-ST13 2M 4**
Dark-ON	*E3T-ST12 2M 4**	*E3T-ST14 2M 4**
300 mm (Red light)	Light-ON	E3T-ST21 2M	E3T-ST23 2M
Dark-ON	E3T-ST22 2M	E3T-ST24 2M
2 m (Infrared light)	Light-ON	E3T-ST31F 2M	E3T-ST33F 2M
Dark-ON	E3T-ST32F 2M	E3T-ST34F 2M
1 m (Infrared light)	Light-ON	E3T-ST11F 2M	E3T-ST13F 2M
Dark-ON	E3T-ST12F 2M	E3T-ST14F 2M
300 mm (Infrared light)	Light-ON	E3T-ST21F 2M	E3T-ST23F 2M
Dark-ON	E3T-ST22F 2M	E3T-ST24F 2M
	500 mm (Red light)	Light-ON	*E3T-FT11 2M 4**	*E3T-FT13 2M 4**
Dark-ON	*E3T-FT12 2M 4**	*E3T-FT14 2M 4**
300 mm (Red light)	Light-ON	E3T-FT21 2M	E3T-FT23 2M
Dark-ON	E3T-FT22 2M	E3T-FT24 2M
500 mm (Infrared light)	Light-ON	E3T-FT11F 2M	E3T-FT13F 2M
Dark-ON	E3T-FT12F 2M	E3T-FT14F 2M
300 mm (Infrared light)	Light-ON	E3T-FT21F 2M	E3T-FT23F 2M
Dark-ON	E3T-FT22F 2M	E3T-FT24F 2M
Retro- reflective		Using the E39-R4 Reflector provided 200 mm [30 mm] 2 Using the E39-R37-CA 100 mm [10 mm] 2 (Red light)	Light-ON	*E3T-SR41 2M 3 4*	*E3T-SR43 2M 3 4*
Dark-ON	*E3T-SR42 2M 3 4*	*E3T-SR44 2M 3 4*
Diffuse- reflective		5 to 30 mm (Red light)	Light-ON	*E3T-FD11 2M 4**	*E3T-FD13 2M 4**
Dark-ON	*E3T-FD12 2M 4**	*E3T-FD14 2M 4**
Limited- reflective		5 to 15 mm (Red light)	Light-ON	*E3T-SL11 2M 4**	*E3T-SL13 2M 4**
Dark-ON	*E3T-SL12 2M 4**	*E3T-SL14 2M 4**
5 to 30 mm (Red light)	Light-ON	*E3T-SL21 2M 4**	*E3T-SL23 2M 4**
Dark-ON	*E3T-SL22 2M 4**	*E3T-SL24 2M 4**
BGS- reflective		1 to 15 mm (Red light)	Light-ON	*E3T-FL11 2M 4**	*E3T-FL13 2M 4**
Dark-ON	*E3T-FL12 2M 4**	*E3T-FL14 2M 4**
1 to 30 mm (Red light)	Light-ON	*E3T-FL21 2M 4**	*E3T-FL23 2M 4**
Dark-ON	*E3T-FL22 2M 4**	*E3T-FL24 2M 4**

Sensing method	Appearance	Sensing distance (Red light)	Operation mode	Model
NPN output	PNP output
Through-beam (Emitter + Receive) *1		1 m (Red light)	Light-ON	E3T-ST11M 2M	E3T-ST13M 2M
Dark-ON	E3T-ST12M 2M	E3T-ST14M 2M
300 mm (Red light)	Light-ON	E3T-ST21M 2M	E3T-ST23M 2M
Dark-ON	E3T-ST22M 2M	E3T-ST24M 2M
1 m (Infrared light)	Light-ON	E3T-ST11MF 2M	E3T-ST13MF 2M
Dark-ON	E3T-ST12MF 2M	E3T-ST14MF 2M
300 mm (Infrared light)	Light-ON	E3T-ST21MF 2M	E3T-ST23MF 2M
Dark-ON	E3T-ST22MF 2M	E3T-ST24MF 2M
Diffuse- reflective		5 to 30 mm (Red light)	Light-ON	E3T-FD11M 2M	E3T-FD13M 2M
Dark-ON	E3T-FD12M 2M	E3T-FD14M 2M
Limited- reflective		5 to 15 mm (Red light)	Light-ON	E3T-SL11M 2M	E3T-SL13M 2M
Dark-ON	E3T-SL12M 2M	E3T-SL14M 2M
5 to 30 mm (Red light)	Light-ON	E3T-SL21M 2M	E3T-SL23M 2M
Dark-ON	E3T-SL22M 2M	E3T-SL24M 2M

Sensing method	Appearance	Sensing distance	Operation mode	Model
NPN output	PNP output
Through-beam (Emitter + Receive)		1 m (Red light)	Light-ON	---	---
Dark-ON	E3T-CT12 2M	E3T-CT14 2M
	500 mm (Red light)	Light-ON	---	---
Dark-ON	E3T-CT22S 2M	E3T-CT24S 2M
Diffuse- reflective (with adjuster)		3 to 50 mm Infrared light	Light-ON	E3T-CD11 2M	E3T-CD13 2M
Dark-ON	---	---

Name	Applicable Sensor	Model	Quantity	Remarks
Slit for Through- beam Side-view Sensors	0.5 dia.	E3T-ST3[][]	E39-S63	2 (One each for Emitter and Receiver; common with Slit widths of 1 dia. And 0.5 dia.)	Sensing distance 200 mm, Minimum detectable object (reference value) 0.5-mm dia.
E3T-ST1[][]	Sensing distance 100 mm, Minimum detectable object (reference value) 0.5-mm dia.
E3T-ST2[][]	Sensing distance 30 mm, Minimum detectable object (reference value) 0.5-mm dia.
1 dia.	E3T-ST3[][]	Sensing distance 600 mm, Minimum detectable object (reference value) 1-mm dia.
E3T-ST1[][]	Sensing distance 300 mm, Minimum detectable object (reference value) 1-mm dia.
E3T-ST2[][]	Sensing distance 100 mm, Minimum detectable object (reference value) 1-mm dia.
Slit for Through- beam Flat Sensors	0.5 dia.	E3T-FT1[][]	E39-S64	Sensing distance 50 mm, Minimum detectable object (reference value) 0.5-mm dia.
E3T-FT2[][]	Sensing distance 30 mm, Minimum detectable object (reference value) 0.5-mm dia.
1 dia.	E3T-FT1[][]	Sensing distance 100 mm, Minimum detectable object (reference value) 1-mm dia.
E3T-FT2[][]	Sensing distance 50 mm, Minimum detectable object (reference value) 1-mm dia.
Sensitivity Adjustment Unit for Through-beam Side-view Sensors with Red Light	E3T-ST3[]	E39-E10	1	Sensing distance (reference value) 1,200 to 1,800 mm
E3T-ST1[]	Sensing distance (reference value) 300 to 800 mm
Mounting Brackets for Side- view Sensors *1	E3T-S[][][][]	E39-L116	1	Nut plate provided
E39-L117
E39-L118
Mounting Brackets for Flat Sensors *1	E3T-F[][][][]	E39-L119	---
E39-L120
Screw Set for Side-view Sensors 2 3	E3T-S[][][][]	E39-L164	2 for each	Material: Iron (Same type as provided with the Sensor.) Contents: Set screws (M2×14), Hexagonal nuts
Screw Set for Flat Sensors 2 3	E3T-F[][][][]	E39-L165	Material: Iron (Same type as provided with the Sensor.) Contents: Set screws (M2×8), Hexagonal nuts
SUS Screw Set for Flat Sensors *2	E3T-F[][][][]	E39-L172	2	Material: SUS304 Contents: Bolt with hexagonal hole (M2×6)
SUS Screw Set for Side- view Sensors *2	E3T-S[][][][]	E39-L173	2 for each	Material: SUS304 Contents: Bolt with hexagonal hole (M2×12), Hexagonal nuts, Spring washers, Flat washers

Name	Applicable Sensor	Model	Quantity	Remarks
Slits for Through- beam Side-view Sensors	0.5 dia.	E3T-ST1[]M[]	E39-S76A	2 (One each for Emitter and Receiver)	Sensing distance 100 mm, Minimum detectable object (reference value) 0.5-mm dia.
E3T-ST2[]M[]	Sensing distance 30 mm, Minimum detectable object (reference value) 0.5-mm dia.
1 dia.	E3T-ST1[]M[]	E39-S76B	Sensing distance 300 mm, Minimum detectable object (reference value) 1-mm dia.
E3T-ST2[]M[]	Sensing distance 100 mm, Minimum detectable object (reference value) 1-mm dia.
Mounting Bracket for Side- view Sensors *1	E3T-S[][][]M[]	E39-L166	1	Nut plate provided
Mounting Bracket for Flat Sensors	E3T-FD[][]M	E39-L167	---
Back-mounting Spacer for Flat Sensors	E39-L168	Use this Spacer when mounting a Flat Sensor (E3T-FD[][]M) from the back.
SUS Screw Set for Flat Sensors *2	E3T-FD[][]M	E39-L170	2	Material: SUS304 Contents: Bolt with hexagonal hole (M3×6)
SUS Screw Set for Side- view Sensors 2 3	E3T-S[][][]M[]	E39-L171	2 for each	Material: SUS304 Contents: Bolt with hexagonal hole (M3×15), Hexagonal nuts, Spring washers, Flat washers

Name	Applicable Sensor	Model	Quantity	Remarks
SUS Nut Set for Through- beam Sensors *	E3T-CT[][] E3T-CT[][]S	E39-M5	4 (Hexagonal nuts), 2 (Toothed washers)	Material: SUS303 (Same type as provided with the Sensor.)
SUS Nut Set for Diffuse- reflective Sensors	E3T-CD[][]	E39-M6	2 (Hexagonal nuts), 1 (Toothed washers)
Adjustment Driver for Diffuse-reflective Sensors	E39-G17	1	This Driver is used to turn the sensitivity adjuster. Provided with E3T-CD[][]

Name	Applicable Sensor	Model	Quantity	Remarks
Small Reflectors (for Retro-reflective Sensors)	E3T-SR4[]	E39-R4	1	Sensing distance 200 mm [30 mm] *1 Minimum detectable object 2-mm dia. Provided with the E3T-SR4[]
E3T-SR4[]-S	*E39-R37-CA 2**	Sensing distance 100 mm [10 mm] *1 Minimum detectable object 2-mm dia. Provided with the E3T-SR4[]-S
Tape Reflectors (for Retro-reflective Sensors)	E3T-SR4[]-C	*E39-RS1-CA 2**	Sensing distance 100 mm [10 mm] *1 Minimum detectable object 2-mm dia. Use Tape Reflectors in combination with the E3T-SR4[]-C, which does not come with a Reflector.
*E39-RS2-CA 2**
*E39-RS3-CA 2**

Sensing method	Through-beam
Appearance	Rectangular type (Side-view)
NPN output	Light-ON	E3T-ST31	E3T-ST31F	E3T-ST11 E3T-ST11M	E3T-ST11F E3T-ST11MF	E3T-ST21 E3T-ST21M	E3T-ST21F E3T-ST21MF
Dark-ON	E3T-ST32	E3T-ST32F	E3T-ST12 E3T-ST12M	E3T-ST12F E3T-ST12MF	E3T-ST22 E3T-ST22M	E3T-ST22F E3T-ST22MF
PNP output	Light-ON	E3T-ST33	E3T-ST33F	E3T-ST13 E3T-ST13M	E3T-ST13F E3T-ST13MF	E3T-ST23 E3T-ST23M	E3T-ST23F E3T-ST23MF
Dark-ON	E3T-ST34	E3T-ST34F	E3T-ST14 E3T-ST14M	E3T-ST14F E3T-ST14MF	E3T-ST24 E3T-ST24M	E3T-ST24F E3T-ST24MF
Sensing distance	2 m	1 m	300 mm
Standard sensing object	Opaque, 3-mm dia. min.	Opaque, 2-mm dia. min.
Minimum detectable object (reference value)	Opaque, 3-mm dia.	Opaque, 2-mm dia.
Hysteresis (white paper)	---
Black/white error	---
Directional angle	Emitter: 2° to 20° Receiver: 2° to 70°
Light source (wavelength)	Red LED (650 nm)	Infrared LED (860 nm)	Red LED (650 nm)	Infrared LED (860 nm)	Red LED (650 nm)	Infrared LED (860 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	30 mA max. (Emitter 10 mA max., Receiver 20 mA max.)
Control output	Load power supply voltage: 26.4 VDC max. Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA, 1 V max. for load current of less than 10 mA) Open-collector output
Protection circuits	Power supply and control output reverse polarity protection, Output short-circuit protection
Response time	Operate or reset: 1 ms max.
Ambient illumination	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85% Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	AC1,000V, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67
Connection method	Pre-wired (standard length: 2 m)
Weight (packed state)	Approx. 40 g
Materials	Case	PBT (polybutylene terephthalate)
Display window	Denatured polyarylate
Lens	Denatured polyarylate
Hexagonal nuts	---
Toothed washers	---
Accessories *	Instruction manual, Set screws for mounting (Side-view Sensors: M2 × 14, Flat Sensors: M2 × 8), Nuts

Sensing method	Through-beam
Appearance	Rectangular type
NPN output	Light-ON	E3T-FT11	E3T-FT11F	E3T-FT21	E3T-FT21F
Dark-ON	E3T-FT12	E3T-FT12F	E3T-FT22	E3T-FT22F
PNP output	Light-ON	E3T-FT13	E3T-FT13F	E3T-FT23	E3T-FT23F
Dark-ON	E3T-FT14	E3T-FT14F	E3T-FT24	E3T-FT24F
Sensing distance	500 mm	300 mm
Standard sensing object	Opaque, 1.3-mm dia. min.
Minimum detectable object (reference value)	Opaque, 1.3-mm dia.
Hysteresis (white paper)	---
Black/white error	---
Directional angle	Emitter: 3° to 25° Receiver: 3° min.
Light source (wavelength)	Red LED (650 nm)	Infrared LED (860 nm)	Red LED (650 nm)	Infrared LED (860 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	30 mA max. (Emitter 10 mA max., Receiver 20 mA max.)
Control output	Load power supply voltage: 26.4 VDC max. Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA, 1 V max. for load current of less than 10 mA) Open-collector output
Protection circuits	Power supply and control output reverse polarity protection, Output short-circuit protection
Response time	Operate or reset: 1 ms max.
Ambient illumination	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85% Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	AC1,000V, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67
Connection method	Pre-wired (standard length: 2 m)
Weight (packed state)	Approx. 40 g
Materials	Case	PBT (polybutylene terephthalate)
Display window	Denatured polyarylate
Lens	Denatured polyarylate
Hexagonal nuts	---
Toothed washers	---
Accessories *	Instruction manual, Set screws for mounting (Side-view Sensors: M2 × 14, Flat Sensors: M2 × 8), Nuts

Sensing method	Through-beam	Retro-reflective (without M.S.R. function)
Appearance	Cylindrical (Top-view)	Cylindrical (Side-view)	Rectangular (Side-view)
NPN output	Light-ON	---	---	E3T-SR41
Dark-ON	E3T-CT12	E3T-CT22S	E3T-SR42
PNP output	Light-ON	---	---	E3T-SR43
Dark-ON	E3T-CT14	E3T-CT24S	E3T-SR44
Sensing distance	1 m	500 mm	200 mm [30 mm] * (Using the E39-R4) 100 mm [10 mm] * (Using the E39-R37-CA)
Standard sensing object	Opaque, 4-mm dia. min.	Opaque, 5-mm dia. min.	Opaque, 27-mm dia. min.
Minimum detectable object (reference value)	---	2-mm dia. (Sensing distance 100 mm)
Hysteresis (white paper)	---
Black/white error	---
Directional angle	Receiver: 2°	Receiver: 10°	2 to 20°
Light source (wavelength)	Red LED (630 nm)	Red LED (625 nm)	Red LED (650 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	30 mA max. (Emitter 15 mA max., Receiver 15 mA max.)	20 mA max.
Control output	Load power supply voltage: 30 VDC max. Load current: 80 mA max. (residual voltage: 1 V max.) Open-collector output	Load power supply voltage: 26.4 VDC max. Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA, 1 V max. for load current of less than 10 mA) Open-collector output
Protection circuits	Power supply reverse polarity protection, Output short-circuit protection	Power supply and control output reverse polarity protection, Output short-circuit protection, Mutual interference prevention
Response time	Operate or reset: 0.5 ms max.	Operate or reset: 1 ms max.
Ambient illumination	Incandescent lamp: 3,000 lx max.	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C Storage: -30 to 70°C (with no icing or condensation)	Operating: -25 to 55°C Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating or Storage: 35% to 85% (with no condensation)	Operating: 35% to 85% Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	AC500V, 50/60 Hz for 1 min.	AC1,000V, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 55Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions	10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² 3 times each in X, Y, and Z directions	1,000m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP65	IEC 60529 IP67
Connection method	Pre-wired (standard length: 2 m)
Weight (packed state)	Approx. 60 g	Approx. 20 g
Materials	Case	SUS303	PBT (polybutylene terephthalate)
Display window	Polysulfone	Denatured polyarylate
Lens	Polysulfone	Methacrylc resin
Hexagonal nuts	SUS303	---
Toothed washers	SUS303	---
Accessories	Instruction manual, Hexagonal nuts, Toothed washers	Instruction manual, Set screws for mounting (M2×14), Nuts, E39-R4 (E3T-SR4[] only), E39-R37-CA (E3T-SR4[]-S only)

Sensing method	Diffuse-reflective
Appearance	Rectangular type (Flat)	Cylindrical type (Top-view)
NPN output	Light-ON	E3T-FD11 E3T-FD11M	E3T-CD11
Dark-ON	E3T-FD12 E3T-FD12M	---
PNP output	Light-ON	E3T-FD13 E3T-FD13M	E3T-CD13
Dark-ON	E3T-FD14 E3T-FD14M	---
Sensing distance	5 to 30 mm (50 × 50 mm white paper)	3 to 50 mm (100 × 100 mm white paper)
Standard sensing object	---
Minimum detectable object (reference value)	0.15-mm dia. (sensing distance 10 mm)	---
Hysteresis (white paper)	6 mm max.	15% or less of the sensing distance
Black/white error	---
Directional angle	---
Light source (wavelength)	Red LED (650 nm)	Infrared LED (870 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	20 mA max.
Control output	Load power supply voltage: 26.4 VDC max. Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA, 1 V max. for load current of less than 10 mA) Open-collector output	Load power supply voltage: 30 VDC max. Load current: 80 mA max. (residual voltage: 1 V max.) Open-collector output
Protection circuits	Power supply and control output reverse polarity protection, Output short-circuit protection, Mutual interference prevention	Power supply reverse polarity protection, Output short-circuit protection
Response time	Operate or reset: 1 ms max.	Operate or reset: 0.5 ms max.
Ambient illumination	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.	Incandescent lamp: 3,000 lx max.
Ambient temperature range	Operating: -25 to 55°C Storage: -40 to 70°C (with no icing or condensation)	Operating: -25 to 55°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85% Storage: 35% to 95% (with no condensation)	Operating or Storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min.	500 VAC, 50/60 Hz for min.
Vibration resistance (destruction)	10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and Z directions	10 to 55Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 3 times each in X, Y, and Z directions	500 m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67	IEC 60529 IP65
Connection method	Pre-wired (standard length: 2 m)
Weight (packed state)	Approx. 20 g	Approx. 40 g
Materials	Case	PBT (polybutylene terephthalate)	SUS303
Display window	Denatured polyarylate	Epoxy
Lens	Denatured polyarylate	Polysulfone
Hexagonal nuts	---	SUS303
Toothed washers	---	SUS303
Accessories	Instruction manual, Set screws for mounting (M2 × 8), Nuts *	Instruction manual, Hexagonal nuts, Toothed washers, Adjustment driver

Sensing method	Limited-reflective	BGS-reflective
Appearance	Rectangular type (Side-view)	Rectangular type (Flat)
NPN output	Light-ON	E3T-SL11 E3T-SL11M	E3T-SL21 E3T-SL21M	E3T-FL11	E3T-FL21
Dark-ON	E3T-SL12 E3T-SL12M	E3T-SL22 E3T-SL22M	E3T-FL12	E3T-FL22
PNP output	Light-ON	E3T-SL13 E3T-SL13M	E3T-SL23 E3T-SL23M	E3T-FL13	E3T-FL23
Dark-ON	E3T-SL14 E3T-SL14M	E3T-SL24 E3T-SL24M	E3T-FL14	E3T-FL24
Sensing distance	5 to 15 mm (50 × 50 mm white paper)	5 to 30 mm (50 × 50 mm white paper)	1 to 15 mm (50 × 50 mm white paper)	1 to 30 mm (50 × 50 mm white paper)
Standard sensing object	---
Minimum detectable object (reference value)	0.15-mm dia. (sensing distance 10 mm)	0.15-mm dia. non-glossy object (sensing distance 10 mm)
Hysteresis (white paper)	2 mm max.	6 mm max.	0.5 mm max.	2 mm max.
Black/white error	---	15% max.
Directional angle	---
Light source (wavelength)	Red LED (650 nm)
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current consumption	20 mA max.
Control output	Load power supply voltage: 26.4 VDC max. Load current: 50 mA max. (residual voltage: 2 V max. for load current of 10 to 50 mA, 1 V max. for load current of less than 10 mA) Open-collector output
Protection circuits	Power supply and control output reverse polarity protection, Output short-circuit protection, Mutual interference prevention
Response time	Operate or reset: 1 ms max.
Ambient illumination	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85% Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s² for 0.5 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000m/s² 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67
Connection method	Pre-wired (standard length: 2 m)
Weight (packed state)	Approx. 20 g
Materials	Case	PBT (polybutylene terephthalate)
Display window	Denatured polyarylate
Lens	Denatured polyarylate
Hexagonal nuts	---
Toothed washers	---
Accessories	Instruction manual, Set screws for mounting (M2 × 14), Nuts *	Instruction manual, Set screws for mounting (M2 × 8), Nuts

Return to OMRON
