OMRON E63-WF Dimensions

/Images/l_498-25-118782-198x198.jpg

last update: April 21, 2017

• Input phase difference signal from the Encoder to detect the direction of rotation.

• High-speed response at 120 kHz.

• Mounts to DIN Track. Thin design enables superb mounting efficiency.

• Front-panel switch enables reversing phase Z logic. Enables connecting either voltage outputs or open-collector outputs.

last update: April 21, 2017

Purchase the OMRON Direct Discrimination Unit Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E63-WF Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E63-WF We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E63-WFSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

R88M-K, R88D-KT G5-series AC Servomotors/Servo Drives with General-purpose Pulse Train or Analog ...
NY51[]-A Industrial PC Platform NY-series IPC Programmable Multi-Axis Controller/Features
R87F / R87T AC Axial Fans/Features
E2EM Long-distance Proximity Sensor/Features
CK3M-CPU1[]1 Programmable Multi-Axis Controller CK3M-series CPU Unit/Features

OMRON E63-WF catalog
E63-WF Direct Discrimination Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E63-WF Data Sheet -
[318KB] Aug 24, 201220120824 E63-WF Data Sheet

OMRON E63-WF specification
E63-WF Direct Discrimination Unit/Specifications
last update: September 24, 2012
Direct Discrimination Unit

Model E63-WF5C

Power supply voltage 12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.

Current consumption 50 mA max.

Input Input signal Phases A, B, and Z (phase difference signals)

Phase difference 90° ±45° max.

ON 6 mA max. at 0 to 2 V

OFF 1.5 mA max. at 8 to 24 V

Input short current 9 mA

Max. applied voltage 30 V max.

Input impedance Approx. 1 Ω

Output Output signal UP/DOWN (direction detection), COUNTS output (count), OUT Z

Output configuration Open-collector output

Output capacity Applied voltage: 30 VDC max.
Sink current: 80 mA max.
Residual voltage: 1 V max. (at sink current of 80 mA)
Residual voltage: 0.4 V max. (at sink current of 20 mA)

Maximum response frequency 120 kHz

Output response time 2 μs max.

Indicators Power indicator (red), Phase Z output indicator (green)

Ambient temperature range Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)

Ambient humidity range Operating/Storage: 35% to 85% (with no condensation)

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 300 m/s² 3 times each in X, Y, and Z directions

Connection method Terminal block

Material Case: ABS

Weight (packed state) Approx. 100 g

Accessories Instruction manual (S3D8 Connector is not provided.)

last update: September 24, 2012

OMRON E63-WF dimension

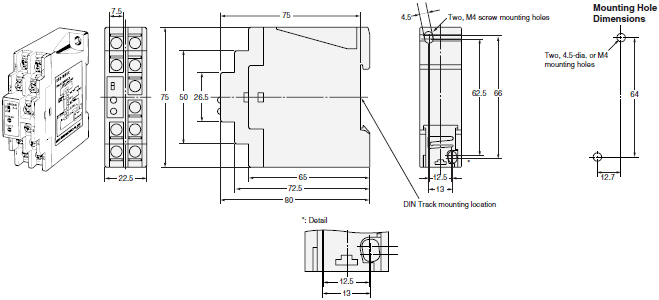

E63-WF Direct Discrimination Unit/Dimensions
last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

E63-WF

last update: November 12, 2012

OMRON E63-WF lineup
E63-WF Direct Discrimination Unit/Lineup
last update: September 24, 2012

Power supply voltage Output configuration Model

12 to 24 VDC Open-collector output E63-WF5C

last update: September 24, 2012

NO. E63-WF

TYPE:Rotary Encoders Direct Discrimination Unit Copyright Statement

DATE:2021-06-13

Associated products:
E6F-A Absolute 60-mm-dia. Rotary Encoder/Features E69-[] Rotary Encoders Accessories/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E63-WF Data Sheet	- [318KB]	Aug 24, 201220120824	E63-WF Data Sheet

Model	E63-WF5C
Power supply voltage	12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
Current consumption	50 mA max.
Input	Input signal	Phases A, B, and Z (phase difference signals)
Phase difference	90° ±45° max.
ON	6 mA max. at 0 to 2 V
OFF	1.5 mA max. at 8 to 24 V
Input short current	9 mA
Max. applied voltage	30 V max.
Input impedance	Approx. 1 Ω
Output	Output signal	UP/DOWN (direction detection), COUNTS output (count), OUT Z
Output configuration	Open-collector output
Output capacity	Applied voltage: 30 VDC max. Sink current: 80 mA max. Residual voltage: 1 V max. (at sink current of 80 mA) Residual voltage: 0.4 V max. (at sink current of 20 mA)
Maximum response frequency	120 kHz
Output response time	2 μs max.
Indicators	Power indicator (red), Phase Z output indicator (green)
Ambient temperature range	Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)
Ambient humidity range	Operating/Storage: 35% to 85% (with no condensation)
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 300 m/s² 3 times each in X, Y, and Z directions
Connection method	Terminal block
Material	Case: ABS
Weight (packed state)	Approx. 100 g
Accessories	Instruction manual (S3D8 Connector is not provided.)

Power supply voltage	Output configuration	Model
12 to 24 VDC	Open-collector output	E63-WF5C
