OMRON E3JM specification

last update: March 12, 2018

Sensing method		Through-beam model	Retro-reflective model (with MSR function)	Diffuse-reflective model
Model		E3JM-10[]4(T)-NN E3JM-10[]4(T)-G-NN E3JM-10[]4(T)-NN-US	E3JM-R4[]4(T) E3JM-R4[]4(T)-G E3JM-R4[]4(T)-US	E3JM-DS70[]4(T) E3JM-DS70[]4(T)-G E3JM-DS70[]4(T)-US
Sensing distance		10 m	4 m (When using E39-R1)	White paper (200 × 200 mm): 700 mm
Standard sensing object		Opaque: 14.8-mm dia. min.	Opaque: 75-mm dia. min.	---
Differential travel		---		20% max. of sensing distance
Directional angle		Both Emitter and Receiver 3° to 20°	1° to 5°	---
Light source (wavelength)		Infrared LED (950 nm)	Red LED (660 nm)	Infrared LED (950 nm)
Power supply voltage		12 to 240 VDC±10%, ripple (p-p): 10% max. 24 to 240 VAC±10%, 50/60 Hz
Power consump- tion	DC	3 W max. (Emitter 1 W max. Receiver 2 W max.)	2 W max.
	AC	3 W max. (Emitter 1 W max. Receiver 2 W max.)	2 W max.
Control output		Relay output (E3JM-[][]M4 (T)(-[]) model): SPDT, 250 VAC, 3A (cosφ=1) max., 5 VDC, 10 mA min. DC SSR output (E3JM-[][]S4 (T)(-[]) model): 48 VDC, 100 mA max. (residual voltage: 2 V max.) Light-ON/Dark-ON selectable
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time	Relay output	(E3JM-[][]M4 (T)(-[]) models) Operate or reset: 30 ms max.
	DC SSR output	(E3JM-[][]S4 (T)(-[]) models) Operate or reset: 5 ms max.
Sensitivity adjustment		---		One-turn adjuster
Timer function *		ON-delay/OFF-delay/One-shot delay switch selectable Delay time: 0.1 to 5 s (adjustable), only for E3JM-[][][]4T(-[])
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 45% to 85% (with no condensation), Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		2,000 VAC, 50/60 Hz for 1 min.
Vibration resistance	Destruction	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529: IP66
Connection method		Terminal block
Weight (packed state)		Approx. 270 g	Approx. 160 g
Material	Case	ABS (Acrylonitril Butadiene Styrene)
	Lens	Methacrylic resin
	Cover	Polycarbonate
	Mounting Bracket	Iron
Accessories		Mounting Bracket (with screw), Nuts, Terminal Protection Cover, One set of cable connection nuts (excluding -US Models), Instruction manual, Reflector (E39-R1: only for Retro-reflective Sensors)

*The timer cannot be disabled for models with timer functions (E3JM-[][][]4T(-[])).

last update: March 12, 2018

OMRON E3JM catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E3JM Data Sheet	- [1044KB]	Mar 12, 201820180312	E3JM Data Sheet
E3JM, E3JK Operating Procedures	- [98KB]	Jun 01, 201720170601	E3JM, E3JK Operating Procedures

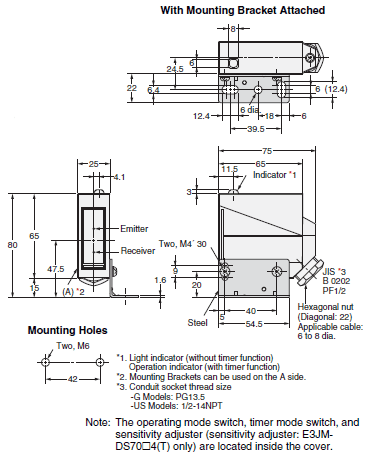

OMRON E3JM dimension

last update: March 12, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

E3JM-10[]4(T)-NN
E3JM-10[]4(T)-G-NN
E3JM-10[]4(T)-NN-US

E3JM-R4[]4(T)
E3JM-R4[]4(T)-G
E3JM-R4[]4(T)-US
E3JM-DS70[]4(T)
E3JM-DS70[]4(T)-G
E3JM-DS70[]4(T)-US

Note: Models numbers for Through-beam Sensors (E3JM-10[]4(T)(-G)-NN(-US)) are for sets that include both the Emitter and Receiver.

Accessories (Order separately)

Seal-type Long Slit
E39-S39

Mounting Brackets

Refer to E39-L/E39-S/E39-R on your OMRON website for details.

last update: March 12, 2018

OMRON E3JM lineup

last update: March 12, 2018

Caution for Through-beam Type of E3JM/E3JK

In order to get CCC and CE marks of certification, a design change was made for E3JM/E3JK. The receivers and emitters of the former product and the redesigned product are not interchangeable. Using these products together could lead to operation failure. When either a receiver or an emitter needs replacement, please change both as a set.
Look for the "N" suffix on the product code to indicate the new, redesigned version. Consult the table below for use of the former and redesigned receivers and emitters.

Emitter	Receiver	Operation
Former emitter	Former receiver	OK
Redesigned emitter	Redesigned receiver	OK
Redesigned emitter	Former receiver	OK
Former emitter	Redesigned receiver	NG

Sensors

Connection method: Terminal block
Operation mode: Light-ON, Dark-ON (switch selectable)

Sensing method	Appearance	Sen- sing dist- ance	Output config- uration	Func- tions	Model
					Conduit socket thread size: PF1/2	Conduit socket thread size: PG13.5	Conduit socket thread size: 1/2-14NPT UL-listed models
Through- beam (Emitter + Receiver) *		10 m (Infrared light)	Relay	---	E3JM-10M4-NN	E3JM-10M4-G-NN	E3JM-10M4-NN-US
					E3JM-10M4T-NN	E3JM-10M4T-G-NN	E3JM-10M4T-NN-US
			DC SSR	---	E3JM-10S4-NN	E3JM-10S4-G-NN	E3JM-10S4-NN-US
					E3JM-10S4T-NN	E3JM-10S4T-G-NN	E3JM-10S4T-NN-US
Retro- reflective with MSR function	E39-R1 (provided)	4 m (Red light)	Relay	---	E3JM-R4M4	E3JM-R4M4-G	E3JM-R4M4-US
					E3JM-R4M4T	E3JM-R4M4T-G	E3JM-R4M4T-US
			DC SSR	---	E3JM-R4S4	E3JM-R4S4-G	E3JM-R4S4-US
					E3JM-R4S4T	E3JM-R4S4T-G	E3JM-R4S4T-US
Diffuse- reflective		700 mm (Infrared light)	Relay	---	E3JM-DS70M4	E3JM-DS70M4-G	E3JM-DS70M4-US
					E3JM-DS70M4T	E3JM-DS70M4T-G	E3JM-DS70M4T-US
			DC SSR	---	E3JM-DS70S4	E3JM-DS70S4-G	E3JM-DS70S4-US
					E3JM-DS70S4T	E3JM-DS70S4T-G	E3JM-DS70S4T-US

*Through-beam Sensors are sold in sets that include both the Emitter and Receiver. An order for the Emitter or Receiver alone cannot be accepted. Note: Tightening nuts, washers, and rubber bushings are not provided with UL-listed models.

Accessories (Order Separately)

Slit

(A Slit is not provided with the Sensor for through-beam. Order a Slit separately if required.)

Slit width	Sensing distance		Minimum detectable object (reference value)	Model	Quantity	Remarks
1 mm × 20 mm	E3JM-10[]4(T)-NN	1.2 m	1-mm dia.	E39-S39	1 Slit each for the Emitter and Receiver (2 Slits total)	(Seal-type long slit) Can be used with the E3JM-10[]4(T)-NN, E3JM-10[]4(T)-G-NN and E3JM-10[]4(T)-NN-US Models.

Reflectors

(A Reflector is required for each Retro-reflective Sensor.)
The E39-R1 Reflector is provided with the Sensor. Order other Reflectors separately if required.

Name	Sensing distance		Model	Quantity	Remarks
Reflectors	E3JM-R4[]4(T)	4 m	E39-R1	1	Provided with the E3JM-R4[]4(T), E3JM-R4[]4(T)-G and E3JM-R4[]4(T)-US Models.

Note: Refer to Reflectors on E39-L/E39-S/E39-R on your OMRON website for details.

Mounting Bracket

Some Mounting Brackets are provided with the Sensor. Order other Mounting Brackets separately if required. (Refer to E39-L/E39-S/E39-R)

Appearance	Model	Quantity	Remarks
	E39-L53	1	Provided with the E3JM.
	E39-L51	1	Height of optical axis can be adjusted.

Note: 1. When using a Through-beam Sensor, order one Connector for the Receiver and one for the Emitter.
           2. Refer to Mounting Brackets on E39-L/E39-S/E39-R on your OMRON website for details.

last update: March 12, 2018
