Mounting Brackets
• Special resin mounting sleeves: Four different models available. Simply select the size that fits the outside diameter of the Sensor.
Mounting Sleeves (Quick Mounting)
• Once the Mounting Sleeve and Sensor have been set properly, readjustment is not required when replacing the Sensor.
Protective Covers
• Covers are available to protect the Sensing Head. Simply select the size that fits the outside diameter of the Sensor.
Sputter Protective Covers (Threaded on Inside of Cover)
• The cover uses Fluororesin, so that chips that adhere due to sputtering can be easily removed.
Sputter Protective Covers (Not Threaded on Inside of Cover)
• Chips that adhere due to sputtering can be easily removed.
last update: April 21, 2017
Purchase the OMRON Accessories Please fill in the following
If you have just landed here, this product OMRON Y92[] Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Y92[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Y92[]Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NT20, NT31(C)-EV3, NT631C-EV3 Programmable Terminals/Features
NJ501-[][][][] NJ-Series NJ501 CPU Units/Features
E2CY-SD Non-ferrous-metal-detecting Proximity Sensor (Separate Amplifier Type)/Features
GX-AD0471 / DA0271 Analog I/O Terminal 2-tier Terminal Block Type/Features
CJ2H-CPU6[] CJ-series CJ2H CPU Units/Features
OMRON Y92[] catalog
Y92[] Accessories/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Y92[] Data Sheet | - [384KB] | Jan 05, 201720170105 | Y92[] Data Sheet |
OMRON Y92[] dimension
Y92[] Accessories/Dimensionslast update: June 01, 2016

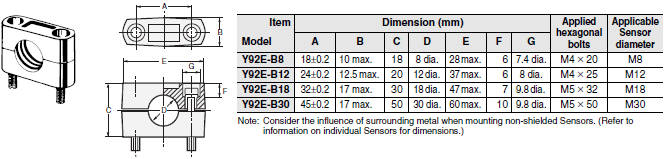

Mounting Brackets
![Y92[] Dimensions 1](/images/8767/484_dm_125-113119.gif)
Material:
Mounting Bracket: Polyacetal
Hexagonal bolt and spring washer: Nickel-plated iron

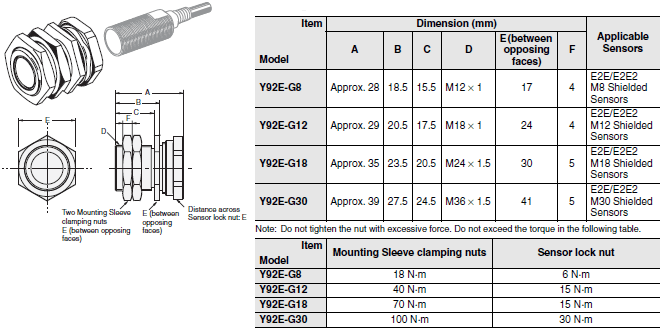

Mounting Sleeves (Quick Mounting)
![Y92[] Dimensions 2](/images/8767/484_dm_225-113120.gif)
Material:
Bracket: Nickel-plated iron
Nut: Nickel-plated brass
Mounting Sleeve: Polyacetal

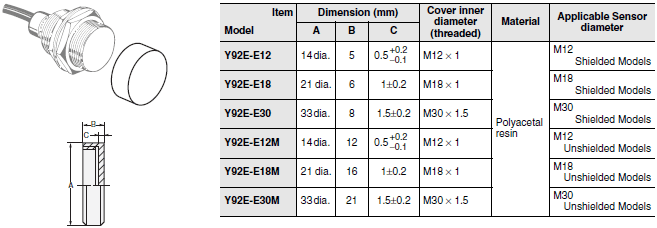

Protective Covers
![Y92[] Dimensions 3](/images/8767/484_dm_325-113123.gif)

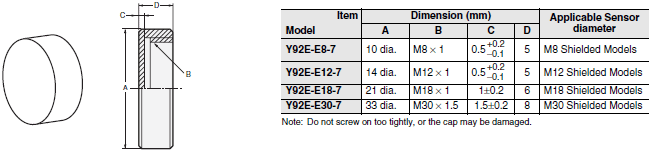

Sputter Protective Covers (Threaded on Inside of Cover)
![Y92[] Dimensions 4](/images/8767/484_dm_425-113125.gif)

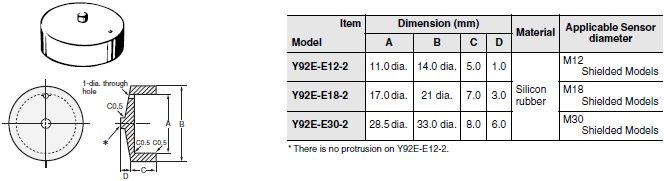

Sputter Protective Covers (Not Threaded on Inside of Cover)
![Y92[] Dimensions 5](/images/8767/484_dm_525-113127.gif)

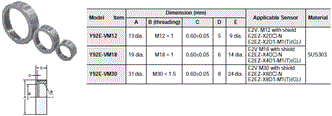

Protective Cover (Metal Cover for E2V and E2EZ Sensors)
![Y92[] Dimensions 6](/images/8767/484_dm_6-25-119225-332x116.gif)
last update: June 01, 2016
OMRON Y92[] lineup
Y92[] Accessories/Lineuplast update: January 05, 2017
Mounting Brackets
| Item | Applied hexagonal bolts | Applicable Sensor diameter |
|---|---|---|
| Y92E-B8 | M4 × 20 | M8 |
| Y92E-B12 | M4 × 25 | M12 |
| Y92E-B18 | M5 × 32 | M18 |
| Y92E-B30 | M5 × 50 | M30 |
Note: Consider the influence of surrounding metal when mounting non-shielded Sensors. (Refer to information on
individual Sensors for dimensions.)
Mounting Sleeves (Quick Mounting)
| Item | Applicable Sensors | Mounting Sleeve clamping nuts | Sensor lock nut |
|---|---|---|---|
| Y92E-G8 | E2E/E2E2 M8 Shielded Sensors | 18 Nm | 6 Nm |
| Y92E-G12 | E2E/E2E2 M12 Shielded Sensors | 40 Nm | 15 Nm |
| Y92E-G18 | E2E/E2E2 M18 Shielded Sensors | 70 Nm | 15 Nm |
| Y92E-G30 | E2E/E2E2 M30 Shielded Sensors | 100 Nm | 30 Nm |
Note: Do not tighten the nut with excessive force. Do not exceed the torque in the following table.
Protective Covers
(A Protective Cover cannot be used with a Capactive Proximity Sensor.)
| Item | Cover inner diameter (threaded) | Material | Applicable Sensor diameter |
|---|---|---|---|
| Y92E-E12 | M12 × 1 | Polyacetal resin | M12 Shielded Models |
| Y92E-E18 | M18 × 1 | M18 Shielded Models | |
| Y92E-E30 | M30 × 1.5 | M30 Shielded Models | |
| Y92E-E12M | M12 × 1 | M12 Unshielded Models | |
| Y92E-E18M | M18 × 1 | M18 Unshielded Models | |
| Y92E-E30M | M30 × 1.5 | M30 Unshielded Models |
Sputter Protective Covers (Threaded on Inside of Cover)
(A Sputter Protective Covers cannot be used with a Capactive Proximity Sensor.)
| Item | Applicable Sensor diameter |
|---|---|
| Y92E-E8-7 | M8 Shielded Models |
| Y92E-E12-7 | M12 Shielded Models |
| Y92E-E18-7 | M18 Shielded Models |
| Y92E-E30-7 | M30 Shielded Models |
Note: Do not screw on too tightly, or the cap may be damaged.
Sputter Protective Covers (Not Threaded on Inside of Cover)
(A Sputter Protective Covers cannot be used with a Capactive Proximity Sensor.)
| Item | Material | Applicable Sensor diameter |
|---|---|---|
| Y92E-E12-2 | Silicon rubber | M12 Shielded Models |
| Y92E-E18-2 | M18 Shielded Models | |
| Y92E-E30-2 | M30 Shielded Models |
Protective Cover (Metal Cover for E2V and E2EZ Sensors)
| Model | Applicable Sensor | Material |
|---|---|---|
| Y92E-VM12 | E2V, M12 with shield E2EZ-X2D[]-N E2EZ-X2D1-M1(T)(G)J | SUS303 |
| Y92E-VM18 | E2V M18 with shield E2EZ-X4D[]-N E2EZ-X4D1-M1(T)(G)J | |
| Y92E-VM30 | E2V M30 with shield E2EZ-X8D[]-N E2EZ-X8D1-M1(T)(G)J |
Nut Sets
| Model | Applicable Sensor | Applicable Sensor diameter | Set contents |
|---|---|---|---|
| Y92E-NWM08-E2E | E2E | M8 | Clamping nuts (bronze with nickel plating): 2 Toothed washer (iron with zinc plating): 1 |
| Y92E-NWM12-E2E | M12 | ||
| Y92E-NWM18-E2E | M18 | ||
| Y92E-NWM30-E2E | M30 | ||
| Y92E-NWM12-E2EQ | E2EQ | M12 | Clamping nuts (Fluororesin coating, Base material: brass): 2 Toothed washer (iron with zinc plating): 1 |
| Y92E-NWM18-E2EQ | M18 | ||
| Y92E-NWM30-E2EQ | M30 | ||
| Y92E-NWM8 | E2FM E2EF-X | M8 | Clamping nuts (SUS303): 2 Toothed washer (iron with zinc plating): 1 |
| Y92E-NWM12 | M12 | ||
| Y92E-NWM18 | M18 | ||
| Y92E-NWM30 | M30 | ||
| Y92E-NWM12-E2EH | E2EH | M12 | Clamping nuts (SUS316L): 2 |
| Y92E-NWM18-E2EH | M18 | ||
| Y92E-NWM30-E2EH | M30 | ||
| Y92E-NWM12-E2EZ | E2EZ | M12 | Clamping nuts (iron with zinc plating): 2 Toothed washer (iron with zinc plating): 1 |
| Y92E-NWM18-E2EZ | M18 | ||
| Y92E-NWM30-E2EZ | M30 | ||
| Y92E-NWM08-E2F | E2F | M8 | Clamping nuts (polyacetal): 2 |
| Y92E-NWM12-E2F | M12 | ||
| Y92E-NWM18-E2F | M18 | ||
| Y92E-NWM30-E2F | M30 |
last update: January 05, 2017
OMRON Y92[] specification
Y92[] Accessories/Specificationslast update: September 24, 2012
