OMRON GX-AD0471 / DA0271 specification

last update: December 20, 2012

General Specifications

Item	Specification
Unit power supply voltage	20.4 to 26.4 VDC (24 VDC - 15% to +10%)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC - 15% to +10%)
Noise resistance	Conforms to IEC 61000-4-4, 2 kV (power line)
Vibration resistance	Malfunction 10 to 60 Hz with amplitude of 0.7 mm, 60 to 150Hz and 50 m/s2 in X, Y, and Z　directions for 80 minutes ＜Relay Output Unit GX-OC1601 only＞ 10 to 55 Hz with double-amplitude of 0.7 mm
Impact resistance	150 m/s2 with amplitude of 0.7 mm ＜Relay Output Unit GX-OC1601 only＞ 100 m/s2 (3 times each in 6 directions on 3 axes)
Dielectric strength	600 VAC (between isolated circuits)
Isolation resistance	20 MΩ or more (between isolated circuits)
Ambient operating temperature	- 10 to 55 °C
Operating humidity	25% to 85% (with no condensation)
Operating atmosphere	No corrosive gases
Storage temperature	- 25 to 65 °C
Storage humidity	25% to 85% (with no condensation)
Terminal block screws tightening torque *	M3 wiring screws: 0.5 Nm M3 terminal block mounting screws: 0.5 Nm
Mounting method	35-mm DIN track mounting

* Applicable only to 2-tier terminal block and 3-tier terminal block type slaves.

Input Section Specifications

4-point Input Terminals

Item		Specification
		Voltage input	Current input
Input capacity		4 points (possible to set number of enabled channels)
Input range		0 to 5V 1 to 5V 0 to 10V - 10 to +10V	4 to 20mA
Input range setting method		Input range switch: Common to input CH1/CH2, common to input CH3/CH4 SDO communication: Possible to set input CH1 to CH4 individually
Maximum signal input		± 15 V	± 30 mA
Input impedance		1 MΩ min.	Approx. 250 Ω
Resolution		1/8000 (full scale)
Overall accuracy	25 ° C	± 0.3% FS	± 0.4% FS
	- 10 to 55 ° C	± 0.6% FS	± 0.8% FS
Analog conversion cycle		500 μs/input When 4 points are used: 2 ms max.
A/D converted data		Other than ± 10 V: 0000 to 1F40 Hex full scale (0 to 8000) ± 10 V: F060 to 0FA0 Hex full scale ( - 4000 to +4000) A/D conversion range: ± 5% FS of the above data ranges.
Isolation method		Photocoupler isolation (between input and communications lines) No isolation between input signals
Unit power supply current consumption		120 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight		180 g max.
Accessories		Four short-circuit metal fixtures (for current input) *

* Short-circuit metal fixtures are used for current input only, but store in a safe place when using for voltage inputs as well.

Output Section Specifications

2-point Output Terminals

Item		Specification
		Voltage output	Current output
Output capacity		2 points (possible to set number of enabled channels)
Output range		0 to 5V 1 to 5V 0 to 10V - 10 to +10V	4 to 20mA
Output range setting method		Output range switch, SDO communications: Possible to set outputs CH1 and CH2 separately.
External output allowable load resistance		5 kΩ min.	600 Ω max.
Resolution		1/8000 (full scale)
Overall accuracy	25 °C	± 0.4% FS
	- 10 to 55 °C	± 0.8%FS
Analog conversion cycle		500 μs/input When 2 points are used: 1 ms max.
D/A converted data		Other than ± 10 V: 0000 to 1F40 Hex full scale (0 to 8000) ± 10 V: F060 to 0FA0 Hex full scale ( - 4000 to +4000) D/A conversion range: ± 5% FS of the above data ranges
Isolation method		Photocoupler isolation (between output and communications lines) No isolation between output signals
Unit power supply current consumption		150 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight		190 g max.

last update: December 20, 2012

OMRON GX-AD0471 / DA0271 lineup

last update: January 06, 2017

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA,
   UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EU
   Directives, RCM: RCM mark, and KC: KC Registration.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Name	Specifications		Model	Standards
2-tier terminal block type	Analog inputs	4 inputs	GX-AD0471	CE
	Analog outputs	2 outputs	GX-DA0271	CE

last update: January 06, 2017

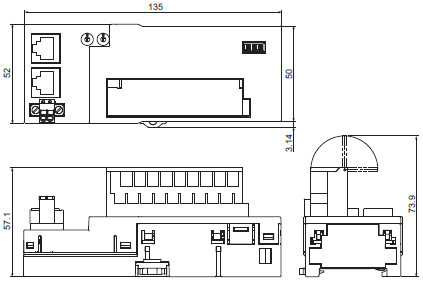

OMRON GX-AD0471 / DA0271 dimension

last update: December 20, 2012

GX-AD0471
GX-DA0271

last update: December 20, 2012
