OMRON R87F / R87T dimension
R87F / R87T AC Axial Fans/Dimensions
last update: January 7, 2019

(Unit: mm)

R87F-A[]A83

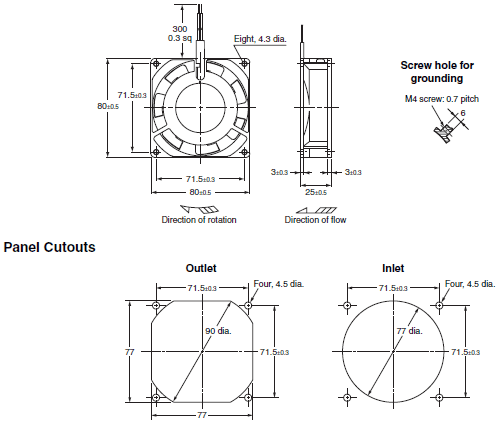

AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87F-A[]A85

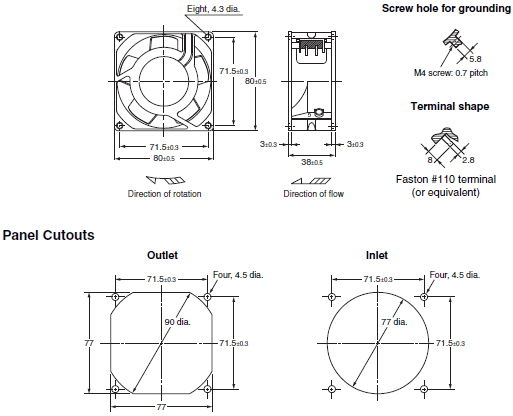

AC Axial Fans with Terminals (80 × 80 × t38 mm)

R87F-A[]A93

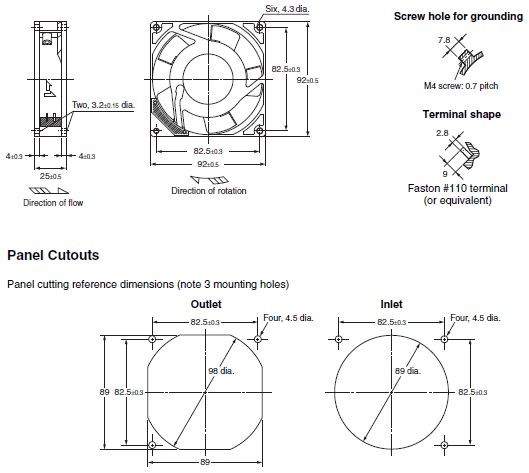

AC Axial Fans with Terminals (92 × 92 × t25 mm)

R87F-A[]A13

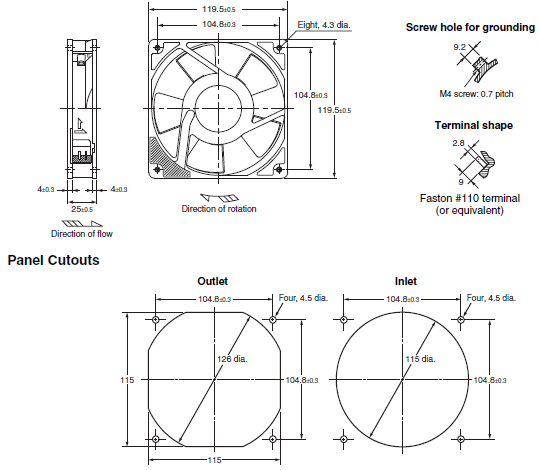

AC Axial Fans with Terminals (120 × 120 × t25 mm)

R87F-A[]A15

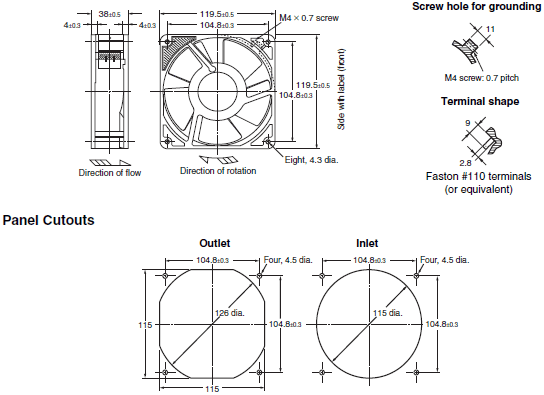

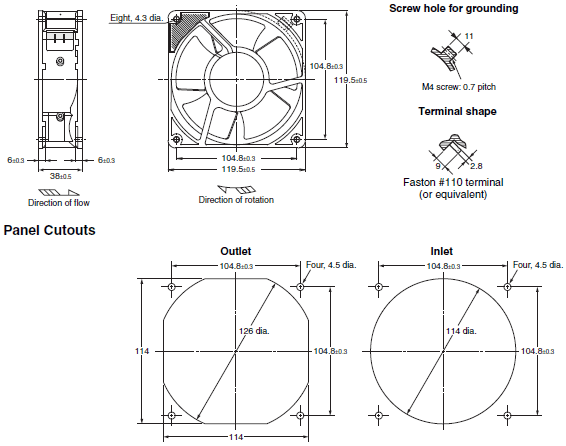

AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A83

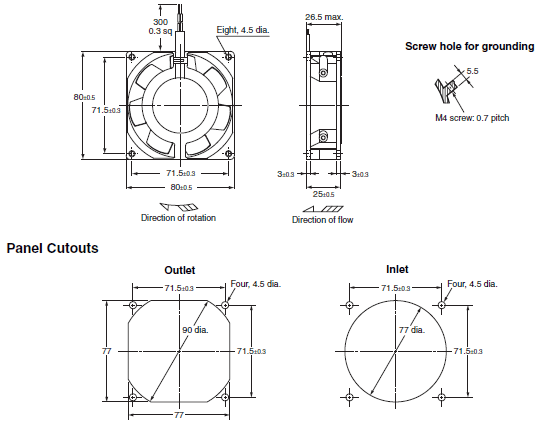

AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87T-A[]A85

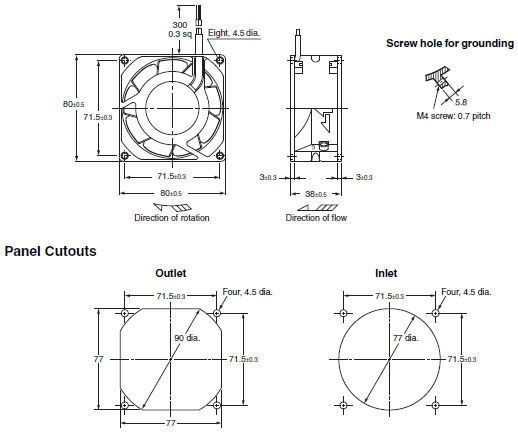

AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A05

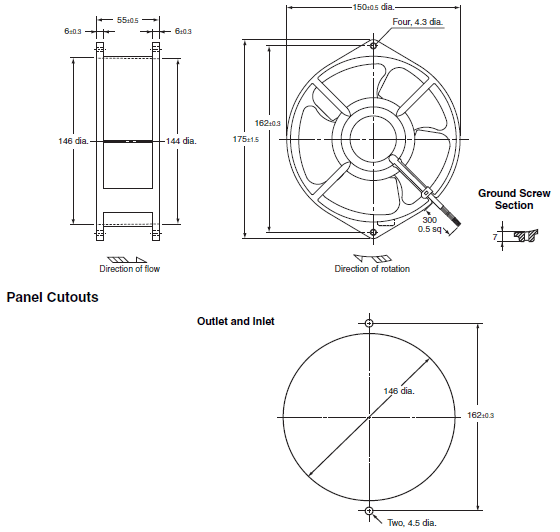

AC Axial Fans with Lead Wires (150-dia. × t38 mm)

R87T-A[]A07

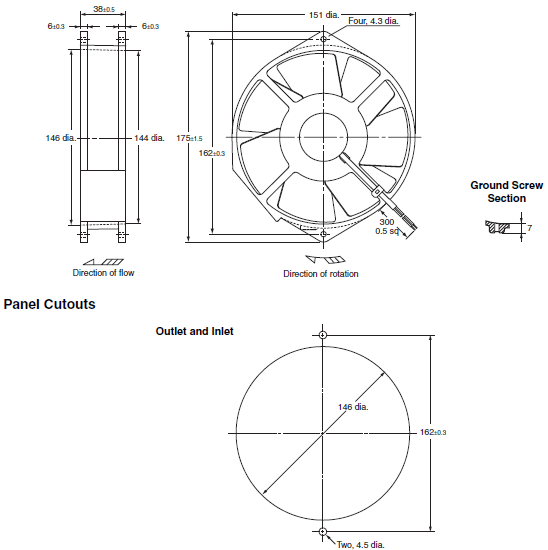

AC Axial Fans with Lead Wires (150-dia. × t55 mm)

R87T-A[]A15H-WR

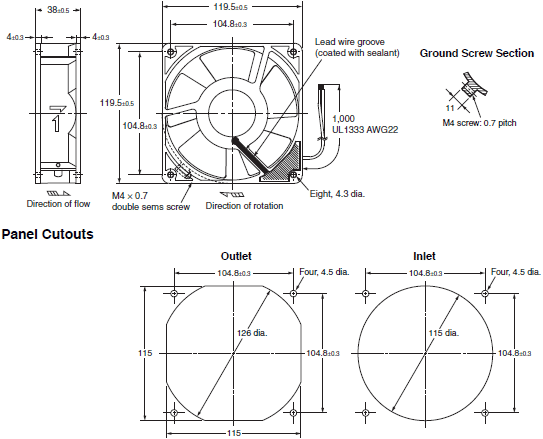

Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

Accessories (Order Separately)

R87F-PC

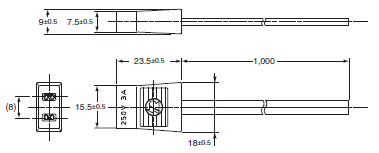

Plug Cord

Connectable to Faston #110 terminals (or equivalent).
Note: This Plug Cord is used for Axial Fans with terminals.

R87F-FG
Finger Guards

R87F-FG150

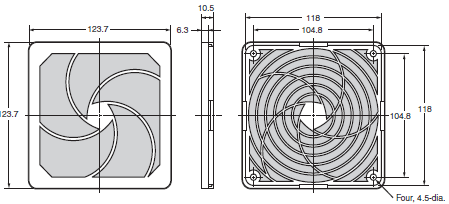

R87F-FG120

　

R87F-FG90

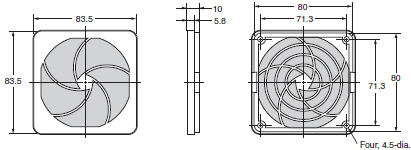

R87F-FG80

R87F-FL
Filters

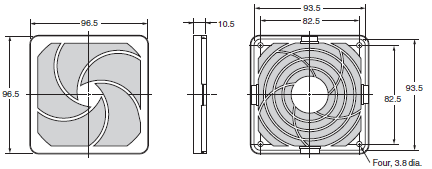

R87F-FL120

R87F-FL90

R87F-FL80

R87F-FL120S

Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)

last update: January 7, 2019

OMRON R87F / R87T specification
R87F / R87T AC Axial Fans/Specifications
last update: January 7, 2019
R87F-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Lead wires

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -30 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Glass polycarbonate

Bearings Ball bearings

Weight Approx. 230 g

Compliant standards EN/IEC 60335 (CE marking compliant)

Certified standards UL/CSA

R87F-A[]A85
AC Axial Fans with Terminals (80 × 80 × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -30 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Glass polycarbonate

Bearings Ball bearings

Weight Approx. 280 g

Compliant standards PSE, EN/IEC 60335 (CE marking compliant)

Certified standards UL/CSA

R87F-A[]A93
AC Axial Fans with Terminals (92 × 92 × t25 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -30 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Glass polycarbonate

Bearings Ball bearings

Weight Approx. 300 g

Compliant standards PSE, EN/IEC 60335 (CE marking compliant)

Certified standards UL/CSA

R87F-A[]A13
AC Axial Fans with Terminals (120 × 120 × t25 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -30 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Glass polycarbonate

Bearings Ball bearings

Weight Approx. 350 g

Compliant standards PSE, EN/IEC 60335 (CE marking compliant)

Certified standards UL/CSA

R87F-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -30 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Glass polycarbonate

Bearings Ball bearings

Weight Approx. 540 g

Compliant standards PSE, EN/IEC 60335 (CE marking compliant)

Certified standards UL/CSA

R87T-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Lead wires

Insulation class IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -20 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame Die-cast aluminum

Blades Steel plate (black coating)

Bearings Ball bearings

Weight Approx. 330 g

Standards EN/IEC 60335 (CE marking compliant)

Certified standards UL

R87T-A[]A85
AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Lead wires

Insulation class IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -20 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Steel plate (black coating)

Bearings Ball bearings

Weight Approx. 440 g

Compliant standards EN/IEC 60335 (CE marking compliant)

Certified standards UL

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Terminals

Insulation class IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -20 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Impedance protection

Materials Frame: Die-cast aluminum
Blades: Steel plate (black coating)

Bearings Ball bearings

Weight Approx. 570 g

Compliant standards PSE, EN/IEC 60335 (CE marking compliant)

Certified standards UL

R87T-A[]A05
AC Axial Fans with Lead Wires (150-dia. × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Lead wires

Insulation class IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -20 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Thermal protection

Materials Frame: Die-cast aluminum
Blades: Steel plate (mat black baked coating)

Bearings Ball bearings

Weight Approx. 840 g

Compliant standards EN/IEC 60335 (CE marking compliant)

Certified standards UL

R87T-A[]A07
AC Axial Fans with Lead Wires (150-dia. × t55 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)

Terminal type Lead wires

Insulation class IEC class B (130°C)
UL class A (105°C)

Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.

Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.

Ambient operating temperature -20 to 70°C (no icing)

Ambient storage temperature -40 to 85°C (no icing)

Ambient humidity 25% to 85%

Protection Thermal protection

Materials Frame: Die-cast aluminum
Blades: Steel plate (black coating)

Bearings Ball bearings

Weight Approx. 1,200 g

Compliant standards EN/IEC 60335 (CE marking compliant)

Certified standards UL

R87T-A[]A15H-WR
Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

Motor type Single-phase shading coil induction motor (2-pole, open type)
Terminal type Lead wires
Insulation class IEC class B (130°C)
UL class A (105°C)
CSA class A (105°C)
Insulation resistance 100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Degree of protection IP X7
Ambient operating temperature -40 to 70°C (no icing)
Ambient storage temperature -40 to 85°C (no icing)
Ambient humidity 95% max.
Protection Impedance protection
Materials Frame Die-cast aluminum
Black coating
Blades Zinc die-cast
Bearings Ball bearings
Weight Approx. 650 g
Standards EN/IEC 60335 (CE marking compliant)
Certified standards _CUL

last update: January 7, 2019

OMRON R87F / R87T catalog
R87F / R87T AC Axial Fans/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

R87F, R87T Data Sheet -
[5246KB] Jan 07, 201920190107 R87F, R87T Data Sheet

Axial Fans Series Catalog X076-E1-03
[15784KB] Feb 07, 201920190207 Axial Fans Series Catalog

OMRON R87F / R87T lineup
R87F / R87T AC Axial Fans/Lineup
last update: January 7, 2019
Model Number Structure

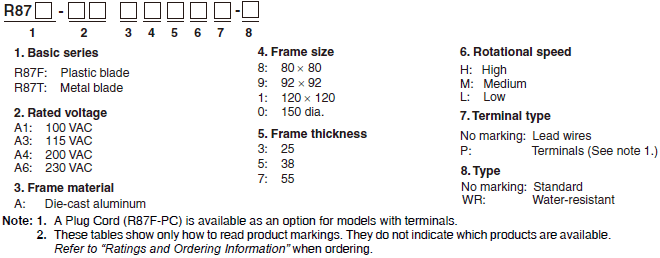

Model Number Legend

Ordering Information
Available Models
AC Axial Fans

Series Size (mm) Model
R87F
(plastic blades) 80 × 80 × t25 R87F-A[]A83
80 × 80 × t38 R87F-A[]A85
92 × 92 × t25 R87F-A[]A93
120 × 120 × t25 R87F-A[]A13
120 × 120 × t38 R87F-A[]A15
R87T
(metal blades) 80 × 80 × t25 R87T-A[]A83
80 × 80 × t38 R87T-A[]A85
120 × 120 × t38 R87T-A[]A15
150-dia. × t38 R87T-A[]A05
150-dia. × t55 R87T-A[]A07
120 × 120 × t38 R87T-A[]A15H-WR

Options (Order Separately)

Product name Model
Plug Cord R87F-PC
Finger Guard R87F-FG[]
Filter R87F-FL[](S)

Note: Mounting screws are not provided.

R87F-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87F-A1A83H
R87F-A3A83H
R87F-A4A83H
R87F-A6A83H 100 VAC
115 VAC
200 VAC
230 VAC 0.097
0.085
0.048
0.046 0.080
0.070
0.041
0.039 7 6 2,600 3,000 0.6 0.7 39.2 53.9 32 36
R87F-A1A83L
R87F-A3A83L
R87F-A4A83L
R87F-A6A83L 100 VAC
115 VAC
200 VAC
230 VAC 0.063
0.055
0.033
0.028 0.055
0.048
0.030
0.024 5 4 1,900 2,100 0.4 0.5 19.5 23.5 28 30

R87F-A[]A85
AC Axial Fans with Terminals (80 × 80 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87F-A1A85HP
R87F-A3A85HP
R87F-A4A85HP
R87F-A6A85HP 100 VAC
115 VAC
200 VAC
230 VAC 0.140
0.120
0.080
0.060 0.115
0.100
0.060
0.050 10 9 2,700 3,200 0.8 0.9 42.1 58.8 32 36
R87F-A1A85LP
R87F-A3A85LP
R87F-A4A85LP
R87F-A6A85LP 100 VAC
115 VAC
200 VAC
230 VAC 0.090
0.080
0.050
0.040 0.080
0.070
0.040
0.040 7 6 2,200 2,500 0.6 0.7 25.0 32.0 26 29

R87F-A[]A93
AC Axial Fans with Terminals (92 × 92 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87F-A1A93HP
R87F-A3A93HP
R87F-A4A93HP
R87F-A6A93HP 100 VAC
115 VAC
200 VAC
230 VAC 0.150
0.125
0.070
0.055 0.130
0.100
0.060
0.050 13 11 2,550 3,050 0.9 1.0 49.0 68.6 33 36
R87F-A1A93LP
R87F-A3A93LP
R87F-A4A93LP
R87F-A6A93LP 100 VAC
115 VAC
200 VAC
230 VAC 0.100
0.090
0.050
0.045 0.085
0.075
0.043
0.040 7 6 1,900 2,200 0.7 0.8 24.5 34.3 29 32

R87F-A[]A13
AC Axial Fans with Terminals (120 × 120 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87F-A1A13HP
R87F-A3A13HP
R87F-A4A13HP
R87F-A6A13HP 100 VAC
115 VAC
200 VAC
230 VAC 0.180
0.160
0.096
0.085 0.150
0.130
0.078
0.068 14 12 2,400 2,800 1.9 2.2 44.1 42.2 39 43
R87F-A1A13LP
R87F-A3A13LP
R87F-A4A13LP
R87F-A6A13LP 100 VAC
115 VAC
200 VAC
230 VAC 0.140
0.130
0.070
0.052 0.110
0.100
0.055
0.045 12 10 1,700 2,000 1.3 1.5 19.6 23.5 32 34

R87F-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87F-A1A15HP
R87F-A3A15HP
R87F-A4A15HP
R87F-A6A15HP 100 VAC
115 VAC
200 VAC
230 VAC 0.230
0.200
0.110
0.100 0.220
0.180
0.100
0.085 15 14 2,750 3,200 2.7 3.1 93.1 99.0 42 46
R87F-A1A15MP
R87F-A3A15MP
R87F-A4A15MP
R87F-A6A15MP 100 VAC
115 VAC
200 VAC
230 VAC 0.210
0.190
0.100
0.085 0.180
0.160
0.090
0.075 15 14 2,450 2,700 2.2 2.5 63.7 63.7 39 42
R87F-A1A15LP
R87F-A3A15LP
R87F-A4A15LP
R87F-A6A15LP 100 VAC
115 VAC
200 VAC
230 VAC 0.170
0.150
0.080
0.072 0.150
0.130
0.070
0.064 11 10 2,100 2,250 2.0 2.1 44.1 44.1 36 38

R87T-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A83H
R87T-A3A83H
R87T-A4A83H
R87T-A6A83H 100 VAC
115 VAC
200 VAC
230 VAC 0.180
0.150
0.087
0.075 0.150
0.130
0.075
0.065 12 11 2,500 3,000 0.5 0.6 34.0 49.0 33 36

R87T-A[]A85
AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A85H
R87T-A3A85H
R87T-A4A85H
R87T-A6A85H 100 VAC
115 VAC
200 VAC
230 VAC 0.180
0.155
0.085
0.080 0.160
0.135
0.075
0.070 12 10 2,800 3,300 0.80 0.90 42 58 37 40

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A15HP
R87T-A3A15HP
R87T-A4A15HP
R87T-A6A15HP 100 VAC
115 VAC
200 VAC
230 VAC 0.250
0.215
0.130
0.105 0.210
0.190
0.110
0.095 20 18 2,700 3,100 2.6 3.0 66.6 58.8 42 46
R87T-A1A15MP
R87T-A3A15MP
R87T-A4A15MP
R87T-A6A15MP 100 VAC
115 VAC
200 VAC
230 VAC 0.220
0.200
0.110
0.100 0.190
0.170
0.100
0.085 16 14 2,350 2,750 1.7 2.0 36.7 37.3 36 40

R87T-A[]A05
AC Axial Fans with Lead Wires (150-dia. × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A05H
R87T-A3A05H
R87T-A4A05H
R87T-A6A05H 100 VAC
115 VAC
200 VAC
230 VAC 0.550
0.470
0.260
0.220 0.460
0.390
0.220
0.190 50 48 2,650 3,100 4.8 5.7 104 107 56 58

R87T-A[]A07
AC Axial Fans with Lead Wires (150-dia. × t55 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A07H
R87T-A3A07H
R87T-A4A07H
R87T-A6A07H 100 VAC
115 VAC
200 VAC
230 VAC 0.480
0.420
0.240
0.210 0.420
0.370
0.210
0.190 43 40 2,800 3,250 5.0 5.8 118 88 52 56

R87T-A[]A15H-WR
Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V) Rated
current
(A) * Rated
input
(W) * Rated
rotational
speed
(r/min) * Maximum
flow rate
(m³/min) * Maximum
static
pressure
(Pa) * Noise
(dB) *
50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz 50
Hz 60
Hz
R87T-A1A15H-WR
R87T-A3A15H-WR
R87T-A4A15H-WR
R87T-A6A15H-WR 100 VAC
115 VAC
200 VAC 0.350
0.300
0.170
0.145 0.280
0.240
0.135
0.115 22 20 2,550 2,900 2.7 3.2 75.0 80.0 42 46
200 to 230 VAC 15 to 22

Accessories (Order Separately)
R87F-PC
Plug Cord

Cord length Model number Weight (g)
1 m R87F-PC 39
2 m R87F-PC-20 69

R87F-FG
Finger Guards
Available Models

Size Model number Weight (g)
150 dia. R87F-FG150 Approx. 58
120 × 120 R87F-FG120 Approx. 45
92 × 92 R87F-FG90 Approx. 25
80 × 80 R87F-FG80 Approx. 20

Applicable Axial Fans

AC Axial Fan Finger Guard
Size Model
150 dia. R87T-A[]A0 Series R87F-FG150
120 × 120 R89F-DS1225[] series
R89F-DS1238[] series
R89F-MS1238HP R87F-FG120
R87F-A[]A1 Series
R87T-A[]A1 Series
90 × 90 R89F-MS0938[]P series R87F-FG90
92 × 92 R87F-A[]A9 Series R87F-FG90
80 × 80 R87F-A[]A8 Series
R87T-A[]A8 Series R87F-FG80

Note: Finger Guards reduce the flow rate by approximately 2% to 5%.

R87F-FL
Filters
Available Models
Filter

Size Model number Weight (g)
120 × 120 R87F-FL120 Approx. 43
92 × 92 R87F-FL90 Approx. 30
80 × 80 R87F-FL80 Approx. 21
120 × 120 R87F-FL120S Approx. 19

Note: The filter contains one medium.

Media

Size Model number
120 × 120 R87F-FL120-M120
92 × 92 R87F-FL90-M90
80 × 80 R87F-FL80-M80

Note: Use the following model number to order the Media only.
R87F-FL[]-M[] ([]: 120, 90, or 80)
(One set containing five Media, weight: 5 g max.)

Applicable Axial Fans

AC Axial Fan Filter
Size Model Plastic Aluminum
150 dia. R87T-A[]A0 Series --- ---
120 × 120 R89F-DS1225[] series R87F-FL120 R87F-FL120S
R89F-DS1238[] series
R89F-MS1238HP
R87F-A[]A1 Series
R87T-A[]A1 Series
92 × 92 R87F-A[]A9 Series R87F-FL90 ---
80 × 80 R87F-A[]A8 Series
R87T-A[]A8 Series R87F-FL80 ---

Note: Filters reduce the flow rate by approximately 20% to 40%.
Ensure that there is no clogging.

last update: January 7, 2019

NO. R87F / R87T

TYPE:Axial Fans Copyright Statement Copyright Statement

DATE:2021-06-10

Associated products:
S8BA Uninterruptible Power Supply (UPS)/Features R87B Box Fan/Features

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-30 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Glass polycarbonate
Bearings	Ball bearings
Weight	Approx. 230 g
Compliant standards	EN/IEC 60335 (CE marking compliant)
Certified standards	UL/CSA

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-30 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Glass polycarbonate
Bearings	Ball bearings
Weight	Approx. 280 g
Compliant standards	PSE, EN/IEC 60335 (CE marking compliant)
Certified standards	UL/CSA

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-30 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Glass polycarbonate
Bearings	Ball bearings
Weight	Approx. 300 g
Compliant standards	PSE, EN/IEC 60335 (CE marking compliant)
Certified standards	UL/CSA

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-30 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Glass polycarbonate
Bearings	Ball bearings
Weight	Approx. 350 g
Compliant standards	PSE, EN/IEC 60335 (CE marking compliant)
Certified standards	UL/CSA

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-30 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Glass polycarbonate
Bearings	Ball bearings
Weight	Approx. 540 g
Compliant standards	PSE, EN/IEC 60335 (CE marking compliant)
Certified standards	UL/CSA

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-20 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame	Die-cast aluminum
Blades	Steel plate (black coating)
Bearings	Ball bearings
Weight	Approx. 330 g
Standards	EN/IEC 60335 (CE marking compliant)
Certified standards	UL

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-20 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Steel plate (black coating)
Bearings	Ball bearings
Weight	Approx. 440 g
Compliant standards	EN/IEC 60335 (CE marking compliant)
Certified standards	UL

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Terminals
Insulation class	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-20 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Impedance protection
Materials	Frame: Die-cast aluminum Blades: Steel plate (black coating)
Bearings	Ball bearings
Weight	Approx. 570 g
Compliant standards	PSE, EN/IEC 60335 (CE marking compliant)
Certified standards	UL

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-20 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Thermal protection
Materials	Frame: Die-cast aluminum Blades: Steel plate (mat black baked coating)
Bearings	Ball bearings
Weight	Approx. 840 g
Compliant standards	EN/IEC 60335 (CE marking compliant)
Certified standards	UL

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Ambient operating temperature	-20 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	25% to 85%
Protection	Thermal protection
Materials	Frame: Die-cast aluminum Blades: Steel plate (black coating)
Bearings	Ball bearings
Weight	Approx. 1,200 g
Compliant standards	EN/IEC 60335 (CE marking compliant)
Certified standards	UL

Motor type	Single-phase shading coil induction motor (2-pole, open type)
Terminal type	Lead wires
Insulation class	IEC class B (130°C) UL class A (105°C) CSA class A (105°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between all power supply connections and uncharged metal parts.
Insulation withstand voltage	2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
Degree of protection	IP X7
Ambient operating temperature	-40 to 70°C (no icing)
Ambient storage temperature	-40 to 85°C (no icing)
Ambient humidity	95% max.
Protection	Impedance protection
Materials	Frame	Die-cast aluminum Black coating
Blades	Zinc die-cast
Bearings	Ball bearings
Weight	Approx. 650 g
Standards	EN/IEC 60335 (CE marking compliant)
Certified standards	_CUL

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
R87F, R87T Data Sheet	- [5246KB]	Jan 07, 201920190107	R87F, R87T Data Sheet
Axial Fans Series Catalog	X076-E1-03 [15784KB]	Feb 07, 201920190207	Axial Fans Series Catalog

Series	Size (mm)	Model
R87F (plastic blades)	80 × 80 × t25	R87F-A[]A83
80 × 80 × t38	R87F-A[]A85
92 × 92 × t25	R87F-A[]A93
120 × 120 × t25	R87F-A[]A13
120 × 120 × t38	R87F-A[]A15
R87T (metal blades)	80 × 80 × t25	R87T-A[]A83
80 × 80 × t38	R87T-A[]A85
120 × 120 × t38	R87T-A[]A15
150-dia. × t38	R87T-A[]A05
150-dia. × t55	R87T-A[]A07
120 × 120 × t38	R87T-A[]A15H-WR

Product name	Model
Plug Cord	R87F-PC
Finger Guard	R87F-FG[]
Filter	R87F-FL[](S)

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87F-A1A83H R87F-A3A83H R87F-A4A83H R87F-A6A83H	100 VAC 115 VAC 200 VAC 230 VAC	0.097 0.085 0.048 0.046	0.080 0.070 0.041 0.039	7	6	2,600	3,000	0.6	0.7	39.2	53.9	32	36
R87F-A1A83L R87F-A3A83L R87F-A4A83L R87F-A6A83L	100 VAC 115 VAC 200 VAC 230 VAC	0.063 0.055 0.033 0.028	0.055 0.048 0.030 0.024	5	4	1,900	2,100	0.4	0.5	19.5	23.5	28	30

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87F-A1A85HP R87F-A3A85HP R87F-A4A85HP R87F-A6A85HP	100 VAC 115 VAC 200 VAC 230 VAC	0.140 0.120 0.080 0.060	0.115 0.100 0.060 0.050	10	9	2,700	3,200	0.8	0.9	42.1	58.8	32	36
R87F-A1A85LP R87F-A3A85LP R87F-A4A85LP R87F-A6A85LP	100 VAC 115 VAC 200 VAC 230 VAC	0.090 0.080 0.050 0.040	0.080 0.070 0.040 0.040	7	6	2,200	2,500	0.6	0.7	25.0	32.0	26	29

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87F-A1A93HP R87F-A3A93HP R87F-A4A93HP R87F-A6A93HP	100 VAC 115 VAC 200 VAC 230 VAC	0.150 0.125 0.070 0.055	0.130 0.100 0.060 0.050	13	11	2,550	3,050	0.9	1.0	49.0	68.6	33	36
R87F-A1A93LP R87F-A3A93LP R87F-A4A93LP R87F-A6A93LP	100 VAC 115 VAC 200 VAC 230 VAC	0.100 0.090 0.050 0.045	0.085 0.075 0.043 0.040	7	6	1,900	2,200	0.7	0.8	24.5	34.3	29	32

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87F-A1A13HP R87F-A3A13HP R87F-A4A13HP R87F-A6A13HP	100 VAC 115 VAC 200 VAC 230 VAC	0.180 0.160 0.096 0.085	0.150 0.130 0.078 0.068	14	12	2,400	2,800	1.9	2.2	44.1	42.2	39	43
R87F-A1A13LP R87F-A3A13LP R87F-A4A13LP R87F-A6A13LP	100 VAC 115 VAC 200 VAC 230 VAC	0.140 0.130 0.070 0.052	0.110 0.100 0.055 0.045	12	10	1,700	2,000	1.3	1.5	19.6	23.5	32	34

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87F-A1A15HP R87F-A3A15HP R87F-A4A15HP R87F-A6A15HP	100 VAC 115 VAC 200 VAC 230 VAC	0.230 0.200 0.110 0.100	0.220 0.180 0.100 0.085	15	14	2,750	3,200	2.7	3.1	93.1	99.0	42	46
R87F-A1A15MP R87F-A3A15MP R87F-A4A15MP R87F-A6A15MP	100 VAC 115 VAC 200 VAC 230 VAC	0.210 0.190 0.100 0.085	0.180 0.160 0.090 0.075	15	14	2,450	2,700	2.2	2.5	63.7	63.7	39	42
R87F-A1A15LP R87F-A3A15LP R87F-A4A15LP R87F-A6A15LP	100 VAC 115 VAC 200 VAC 230 VAC	0.170 0.150 0.080 0.072	0.150 0.130 0.070 0.064	11	10	2,100	2,250	2.0	2.1	44.1	44.1	36	38

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A83H R87T-A3A83H R87T-A4A83H R87T-A6A83H	100 VAC 115 VAC 200 VAC 230 VAC	0.180 0.150 0.087 0.075	0.150 0.130 0.075 0.065	12	11	2,500	3,000	0.5	0.6	34.0	49.0	33	36

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A85H R87T-A3A85H R87T-A4A85H R87T-A6A85H	100 VAC 115 VAC 200 VAC 230 VAC	0.180 0.155 0.085 0.080	0.160 0.135 0.075 0.070	12	10	2,800	3,300	0.80	0.90	42	58	37	40

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A15HP R87T-A3A15HP R87T-A4A15HP R87T-A6A15HP	100 VAC 115 VAC 200 VAC 230 VAC	0.250 0.215 0.130 0.105	0.210 0.190 0.110 0.095	20	18	2,700	3,100	2.6	3.0	66.6	58.8	42	46
R87T-A1A15MP R87T-A3A15MP R87T-A4A15MP R87T-A6A15MP	100 VAC 115 VAC 200 VAC 230 VAC	0.220 0.200 0.110 0.100	0.190 0.170 0.100 0.085	16	14	2,350	2,750	1.7	2.0	36.7	37.3	36	40

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A05H R87T-A3A05H R87T-A4A05H R87T-A6A05H	100 VAC 115 VAC 200 VAC 230 VAC	0.550 0.470 0.260 0.220	0.460 0.390 0.220 0.190	50	48	2,650	3,100	4.8	5.7	104	107	56	58

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A07H R87T-A3A07H R87T-A4A07H R87T-A6A07H	100 VAC 115 VAC 200 VAC 230 VAC	0.480 0.420 0.240 0.210	0.420 0.370 0.210 0.190	43	40	2,800	3,250	5.0	5.8	118	88	52	56

Model	Rated voltage (V)	Rated current (A) *	Rated input (W) *	Rated rotational speed (r/min) *	Maximum flow rate (m³/min) *	Maximum static pressure (Pa) *	Noise (dB) *
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
R87T-A1A15H-WR R87T-A3A15H-WR R87T-A4A15H-WR R87T-A6A15H-WR	100 VAC 115 VAC 200 VAC	0.350 0.300 0.170 0.145	0.280 0.240 0.135 0.115	22	20	2,550	2,900	2.7	3.2	75.0	80.0	42	46
200 to 230 VAC	15 to 22

Cord length	Model number	Weight (g)
1 m	R87F-PC	39
2 m	R87F-PC-20	69

Size	Model number	Weight (g)
150 dia.	R87F-FG150	Approx. 58
120 × 120	R87F-FG120	Approx. 45
92 × 92	R87F-FG90	Approx. 25
80 × 80	R87F-FG80	Approx. 20

AC Axial Fan	Finger Guard
Size	Model
150 dia.	R87T-A[]A0 Series	R87F-FG150
120 × 120	R89F-DS1225[] series R89F-DS1238[] series R89F-MS1238HP	R87F-FG120
R87F-A[]A1 Series R87T-A[]A1 Series
90 × 90	R89F-MS0938[]P series	R87F-FG90
92 × 92	R87F-A[]A9 Series	R87F-FG90
80 × 80	R87F-A[]A8 Series R87T-A[]A8 Series	R87F-FG80

Size	Model number	Weight (g)
120 × 120	R87F-FL120	Approx. 43
92 × 92	R87F-FL90	Approx. 30
80 × 80	R87F-FL80	Approx. 21
120 × 120	R87F-FL120S	Approx. 19

Size	Model number
120 × 120	R87F-FL120-M120
92 × 92	R87F-FL90-M90
80 × 80	R87F-FL80-M80

AC Axial Fan	Filter
Size	Model	Plastic	Aluminum
150 dia.	R87T-A[]A0 Series	---	---
120 × 120	R89F-DS1225[] series	R87F-FL120	R87F-FL120S
R89F-DS1238[] series
R89F-MS1238HP
R87F-A[]A1 Series R87T-A[]A1 Series
92 × 92	R87F-A[]A9 Series	R87F-FL90	---
80 × 80	R87F-A[]A8 Series R87T-A[]A8 Series	R87F-FL80	---

Return to OMRON

OMRON R87F / R87TPower Supplies / In Addition/ Axial Fans/Copyright Statement

OMRON R87F / R87T Dimensions

For economy type

AC Axial Fans R87F/R87T R87F Plastic blade type

For environmental resistance

AC Axial Fans R87T Metal blade type

Metal blade models deliver high environmental resistance

For less mounting effort

Box Fan R87B

Just open the cover to replace the filter

All-in-one structure makes it easier to install accessories

Conserves energy by responding to temperatures inside the panel

Electronic Thermostat E5L Series

Purchase the OMRON Copyright Statement Please fill in the following

OMRON R87F / R87T dimension

Accessories (Order Separately)

R87F-FG150

R87F-FG120

R87F-FG90

R87F-FG80

OMRON R87F / R87T specification

R87F-A[]A83AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87F-A[]A85AC Axial Fans with Terminals (80 × 80 × t38 mm)

R87F-A[]A93AC Axial Fans with Terminals (92 × 92 × t25 mm)

R87F-A[]A13AC Axial Fans with Terminals (120 × 120 × t25 mm)

R87F-A[]A15AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A83AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87T-A[]A85AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

R87T-A[]A15AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A05AC Axial Fans with Lead Wires (150-dia. × t38 mm)

R87T-A[]A07AC Axial Fans with Lead Wires (150-dia. × t55 mm)

R87T-A[]A15H-WRWater-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

OMRON R87F / R87T catalog

English

Global Edition

OMRON R87F / R87T lineup

Model Number Structure

Model Number Legend

Ordering Information

Available Models

AC Axial Fans

Options (Order Separately)

R87F-A[]A83AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87F-A[]A85AC Axial Fans with Terminals (80 × 80 × t38 mm)

R87F-A[]A93AC Axial Fans with Terminals (92 × 92 × t25 mm)

R87F-A[]A13AC Axial Fans with Terminals (120 × 120 × t25 mm)

R87F-A[]A15AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A83AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87T-A[]A85AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

R87T-A[]A15AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A05AC Axial Fans with Lead Wires (150-dia. × t38 mm)

R87T-A[]A07AC Axial Fans with Lead Wires (150-dia. × t55 mm)

R87T-A[]A15H-WRWater-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

Accessories (Order Separately)

R87F-PCPlug Cord

R87F-FGFinger Guards

Available Models

Applicable Axial Fans

R87F-FLFilters

Available Models

Filter

Media

Applicable Axial Fans

R87F-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87F-A[]A85
AC Axial Fans with Terminals (80 × 80 × t38 mm)

R87F-A[]A93
AC Axial Fans with Terminals (92 × 92 × t25 mm)

R87F-A[]A13
AC Axial Fans with Terminals (120 × 120 × t25 mm)

R87F-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87T-A[]A85
AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A05
AC Axial Fans with Lead Wires (150-dia. × t38 mm)

R87T-A[]A07
AC Axial Fans with Lead Wires (150-dia. × t55 mm)

R87T-A[]A15H-WR
Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

R87F-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87F-A[]A85
AC Axial Fans with Terminals (80 × 80 × t38 mm)

R87F-A[]A93
AC Axial Fans with Terminals (92 × 92 × t25 mm)

R87F-A[]A13
AC Axial Fans with Terminals (120 × 120 × t25 mm)

R87F-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

R87T-A[]A85
AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

R87T-A[]A05
AC Axial Fans with Lead Wires (150-dia. × t38 mm)

R87T-A[]A07
AC Axial Fans with Lead Wires (150-dia. × t55 mm)

R87T-A[]A15H-WR
Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

R87F-PC
Plug Cord

R87F-FG
Finger Guards

R87F-FL
Filters
