D4A-[]N General-purpose Limit Switch/Dimensions
D4A-[]N General-purpose Limit Switch/Catalog
D4A-[]N General-purpose Limit Switch/Specifications
D4A-[]N General-purpose Limit Switch/Lineup
Purchase the OMRON D4A-[]N General-purpose Vertical

OMRON D4A-[]N Dimensions

/Images/l_328-25-118647-198x198.jpg

last update: December 19, 2013

• A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13).

• Wide standard operating temperature range:
−40°C to +100°C (standard type).

• Models with fluoro-rubber available for greater resistance to chemicals.

• Block mounting method also reduces downtime for maintenance.

• DPDT, double-break models available for complex operations.

• Approved by UL, CSA, and CCC (Chinese standard). (Ask your OMRON representative for information on approved model.)

last update: December 19, 2013

Purchase the OMRON General-purpose Vertical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON D4A-[]N Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D4A-[]N We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D4A-[]NSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

3Z4S-LE VS-LLD Series Ultra-high-resolution Lens for C-mount Cameras/Features
A30NN / A30NL Pushbutton Switches/Features
H3CR-A Solid-state Multi-functional Timers/Features
EWS-DE10 Energy Savings Analysis Software/Features
K8DT-VS Single-phase Voltage Relay/Features

OMRON D4A-[]N dimension
D4A-[]N General-purpose Limit Switch/Dimensions
last update: November 06, 2012
Set Model Numbers

(The box in a model number indicates the switch box type.)

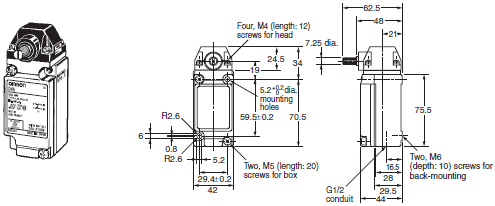

Roller Lever Switches

Note:Levers of the side rotary type are optionally available.

Standard
D4A-3[]01N, D4A-4[]01N
High-sensitivity
D4A-3[]02N, D4A-4[]02N
Low-torque
D4A-3[]03N, D4A-4[]03N

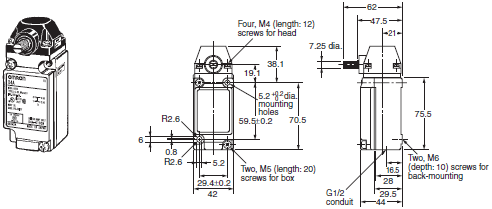

High-sensitivity/Low-torque
D4A-3[]04N, D4A-4[]04N
Sequential Operation
D4A-4[]17N
Center Neutral Operating
D4A-4[]18N

Maintained
D4A-3[]05N, D4A-4[]05N

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note:The figures in the parentheses are average values.

Side Plunger Switches
Standard

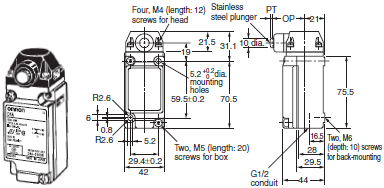

D4A-3[]06N, D4A-4[]06N

Horizontal Roller
D4A-3[]07-HN, D4A-4[]07-HN

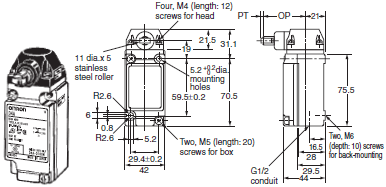

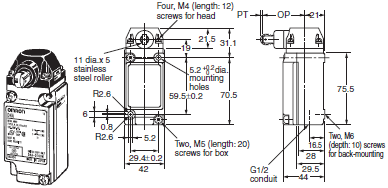

Vertical Roller
D4A-3[]07-VN, D4A-4[]07-VN

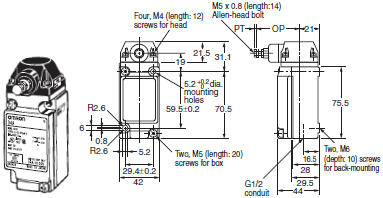

Adjustable
D4A-3[]08N, D4A-4[]08N

Top Plunger Switches

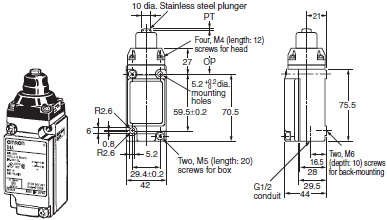

Standard

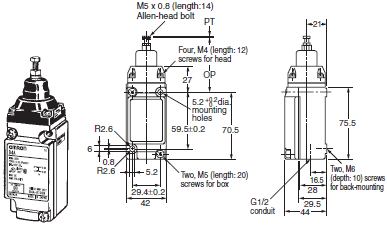

D4A-3[]09N, D4A-4[]09N

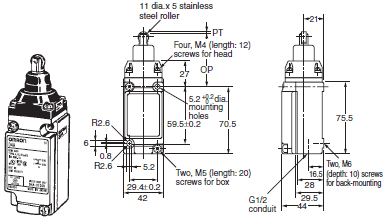

Roller Plunger
D4A-3[]10N, D4A-4[]10N

Adjustable
D4A-3[]11N, D4A-4[]11N

Note:A Fork Lever Lock can be used with D4A-[][]05N models only.

Flexible Rod

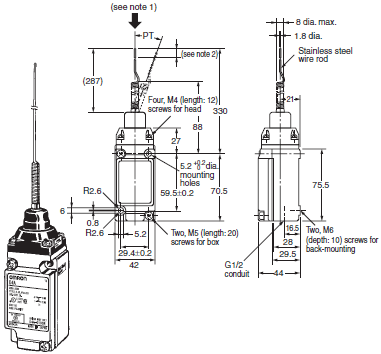

Spring Wire
D4A-3[]12N, D4A-4[]12N

Note:
1. The stainless rod can be operated from any direction except the axial direction (i.e., from the top).
2. The optimum operating range of the stainless rod is within 1/3 of the entire length from the top end.

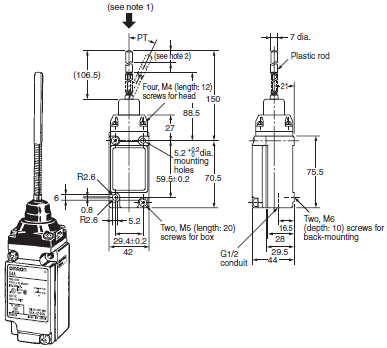

Plastic Rod
D4A-3[]14N, D4A-4[]14N

Note:
1. The plastic rod can be operated from any direction except the axial direction (i.e., from the top).
2. The optimum operating range of the plastic rod is within 1/3 of the entire length from the top end.

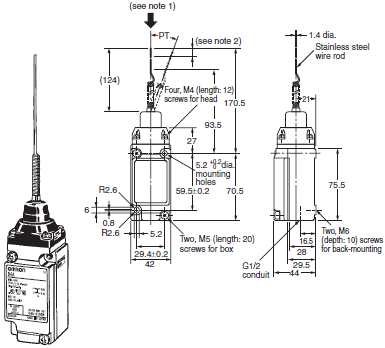

Cat Whisker
D4A-3[]15N, D4A-4[]15N

Note:
1. The stainless rod can be operated from any direction except the axial direction (i.e., from the top).
2.The optimum operating range of the stainless rod is within 1/3 of the entire length from the top end.

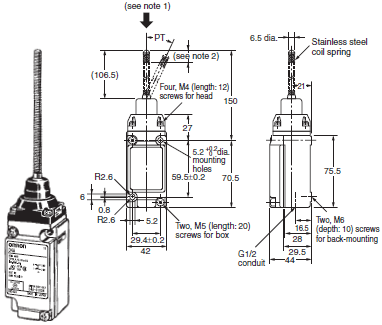

Coil Spring
D4A-3[]16N, D4A-4[]16N

Note:
1. The coil spring rod can be operated from any direction except the axial direction (i.e., from the top).
2.The optimum operating range of the coil spring rod is within 1/3 of the entire length from the top end.

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Levers (for Roller Lever Switches)

Note:No D4A-0003N or D4A-0004N head should be used with the adjustable roller lever or mechanical malfunctioning could result because the total weight of the adjustable roller lever is comparatively large. Use a standard-load head (D4A-0001N or D4A-0002N) instead. A Fork Lever Lock can be used with D4A-[][]05N models only.

Roller Lever
D4A-A00

Roller Lever
D4A-A10

Roller Lever
D4A-A20

Roller Lever
D4A-A30

Roller Lever
D4A-B06

Adjustable Roller Lever
D4A-C00

Adjustable Rod Lever
D4A-D00

Fork Lever Lock
D4A-E30

Fork Lever Lock
D4A-E20

Fork Lever Lock
D4A-E10

Fork Lever Lock
D4A-E00

Nylon Loop Lever
D4A-F00

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Head and Lever Positions

The operating head can be positioned and locked in any of four 90° positions and a lever can lock in any position through 360° around the shaft of the Limit Switch. Furthermore, the lever can be reversed and attached to the shaft (refer to the figures below on the right hand side). Therefore the roller is compatible with a wide movement range of a dog.

A Fork Lever Lock can be used with maintained models (D4A-0005N) only.

Lever Position

D4A-A00

D4A-A10

D4A-A20

D4A-A30

last update: November 06, 2012

OMRON D4A-[]N catalog
D4A-[]N General-purpose Limit Switch/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

D4A-[]N Data Sheet -
[2247KB] Aug 29, 201220120829 D4A-[]N Data Sheet

OMRON D4A-[]N specification
D4A-[]N General-purpose Limit Switch/Specifications
last update: November 06, 2012
Ratings

Type Rated voltage Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
SPDT double-break
(with/without indicator) 125 VAC *
250 VAC *
480 VAC
600 VAC 10
10
10
3 10
10
10
1 3
2
1.5
1 1.5
1
0.8
0.5 10
10
3
1.5 5
3
1.5
1 2.5
1.5
0.8
0.5
8 VDC
14 VDC
30 VDC
125 VDC *
250 VDC * 10
10
6
0.8
0.4 6
6
4
0.2
0.1 3
3
3
0.2
0.1 10
10
6
0.8
0.4 6
6
4
0.2
0.1
DPDT double-break
(without indicator) 125 VAC
250 VAC
480 VAC
600 VAC 5
3
1.5
1 2
1
0.5
0.4 4
2
1
0.7 3
1.5
0.8
0.5
14 VDC
30 VDC
125 VDC
250 VAC 5
3
0.4
0.2 2
1
0.1
0.05 4
2
0.4
0.2 3
1.5
0.1
0.05
DPDT double-break
(with in-dicator) 125 VAC
250 VAC 5
3 2
1 4
2 3
1.5
12 VDC
24 VDC
48 VDC 5
3
1 --- --- --- ---

* For those with indicators, refer to the following rated voltages.

Item Type SPDT, Double-break DPDT, Double-break
Without indicator With indi-cator Without indicator With in-dicator
Inrush current Normally closed 30 A max.
Normally open 20 A max.

Note:
1. The above current ratings are for steady-state current.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp loads have an inrush current of 10 times the steady-state current.
4. Motor loads have an inrush current of 6 times the steady-state current.

Ratings for Indicators

Classi-fication Indicator Model Rated voltage Leakage current Internal resistance
SPDT double-break Neon lamp D4A-0300N 125 VAC, 250 VAC Approx. 0.47 mA 150 k Ω
LED D4A-0E00N 24 VDC Approx. 1.3 mA 15 k Ω
DPDT double-break Neon lamp D4A-0L00N 125 VAC, 250 VAC Approx. 0.28 mA 240 k Ω
LED D4A-0P00N 48 VDC Approx. 1.4 mA ---

Characteristics

Degree of protection
(reference standards) IP67 and NEMA 1, 2, 3, 4X, 5, 6P, 12, and 13
Durability
*2 Mechanical *1 SPDT, double-break, roller lever: 50,000,000 operations min.
DPDT, double-break, roller lever: 30,000,000 operations min.
Electrical SPDT, double-break: for 125 VAC, 10 A resistive load: 1,000,000 operations min.
DPDT, double-break: for 125 VAC, 5 A resistive load: 750,000 operations min.
Operating speed 1 mm/s to 2 m/s (in case of D4A-3101N roller lever model)
Operating
frequency Mechanical 300 operations/minute
Electrical 30 operations/minute
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC) between terminals of the same polarity, between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal part
Contact resistance 25 mΩ max. (initial value)
Temperature rise 50°C max.
Dielectric
strength Between terminals of same
polarity 1,000 VAC, 50/60 Hz for 1 min.
Between current-carrying
metal parts and ground 2,200 VAC, 50/60 Hz for 1 min. *3
Between each terminal and
non-current-carrying metal
part 2,200 VAC, 50/60 Hz for 1 min. *3
Pollution degree (operating environment) 3
Protection against electric shock Class I (with grounding terminal)
Vibration
resistance Malfunction *4 10 to 55 Hz, 1.5-mm double amplitude
Shock
resistance Destruction 1,000 m/s² max.
Malfunction *4 SPDT, double-break, roller lever: 600 m/s² max.
DPDT, double-break, roller lever: 300 m/s² max.
Ambient operating humidity 35% to 95%RH (with no icing)
Weight Approx. 290 g (in case of D4A-3101N)

Note:The above figures are initial values.
*1. Excluding maintained models.
*2. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.
*3. 1,500 VAC is applied to the indicator lamp type.
*4. Not including Flexible rods (cat whisker, plastic rod, coil spring, and spring wire types).

Type Roller lever * 1 Plunger, flexible rod * 2 With indicator
Ambient tempera-ture -40°C to +100°C -20°C to +100°C -10 ° C to +80 ° C

*1. Excluding low-torque and high-sensitivity models.
*2. Including roller lever low-torque and high-sensitivity operating models.

last update: November 06, 2012

OMRON D4A-[]N lineup
D4A-[]N General-purpose Limit Switch/Lineup
last update: November 06, 2012
List of Models
Set model number
SPDT, Double-break Switches

Receptacle box G 1/2 Conduit
Indicator Without indicator With neon lamp
indicator (AC) With LED
indicator (DC)
Actuator Model Approved
standards Model Approved
standards Model
Roller
lever *1 Standard D4A-3101N UL,
CSA D4A-3301N UL,
CSA D4A-3E01N
High-
sensitivity D4A-3102N UL,
CSA D4A-3302N UL,
CSA D4A-3E02N
Low-torque D4A-3103N UL,
CSA --- --- ---
High-
sensitivity,
Low-
torque D4A-3104N UL,
CSA D4A-3304N UL,
CSA ---
Maintained *2 D4A-3105N UL,
CSA D4A-3305N UL,
CSA D4A-3E05N
Side
plunger Standard D4A-3106N UL,
CSA --- UL,
CSA ---
Vertical
roller D4A-3107-VN UL,
CSA D4A-3307-VN UL,
CSA D4A-3E07-VN
Horizontal
roller D4A-3107-HN UL,
CSA D4A-3307-HN UL,
CSA ---
Adjustable D4A-3108N UL,
CSA D4A-3308N UL,
CSA D4A-3E08N
Top
plunger Standard D4A-3109N UL,
CSA D4A-3309N UL,
CSA ---
Roller D4A-3110N UL,
CSA D4A-3310N UL,
CSA ---
Adjustable D4A-3111N UL,
CSA D4A-3311N UL,
CSA ---
Flexible
rod Spring wire D4A-3112N UL,
CSA D4A-3312N UL,
CSA D4A-3E12N
Plastic rod D4A-3114N UL,
CSA D4A-3314N UL,
CSA D4A-3E14N
Cat whisker D4A-3115N UL,
CSA D4A-3315N UL,
CSA D4A-3E15N
Coil spring D4A-3116N UL,
CSA D4A-3316N UL,
CSA D4A-3E16N

Note:
1. Switches are also available with []1/2-14 NPT conduits. The model numbers correspond as follows:
(Examples)

G 1/2 Conduits
D4A-3[][][]N
D4A-4[][][]N

1/2-14 NPT Conduits
D4A-1[][][]N
D4A-2[][][]N

2. Switches are also available with fluoro-rubber seals for higher resistance to chemicals. (The operating temperature range for these Switches, however, is −10 to +120°C.) Add "-F" to the model number. (Example: D4A-3101N becomes D4A-3101N-F.) Ask your nearest OMRON representative for details.
*1. The lever is not included with the Roller Level Models. Select the lever from those listed in this data sheet and order it separately (refer to Levers on Dimensions).
*2. The Maintained Switches have a lock mechanism for the switch operation and thus use a Fork Lever Lock.

DPDT, Double-break Switches

Receptacle box G 1/2 Conduit
Indicator Without indicator With neon lamp
indicator (AC) With LED
ndicator (DC)
Actuator Model Approved
standards Model Model
Roller
lever *1 Standard D4A-4501N UL,
CSA D4A-4L01N D4A-4P01N
High-
sensitivity D4A-4502N UL,
CSA --- ---
Low-
torque D4A-4503N UL,
CSA --- ---
High-
sensitivity,
Low-torque D4A-4504N UL,
CSA --- ---
Maintained * 2 D4A-4505N UL,
CSA --- ---
Sequential
operation D4A-4717N UL,
CSA --- ---
Center neutral
operation D4A-4918N UL,
CSA --- ---
Side
plunger Standard D4A-4506N UL,
CSA --- ---
Vertical roller D4A-4507-VN UL,
CSA --- ---
Horizontal roller D4A-4507-HN UL,
CSA --- ---
Adjustable D4A-4508N UL,
CSA --- ---
Top
plunger Standard D4A-4509N UL,
CSA --- ---
Roller D4A-4510N UL,
CSA D4A-4L10N D4A-4P10N
Adjustable D4A-4511N UL,
CSA --- ---
Flexible
rod Spring wire D4A-4512N UL,
CSA --- ---
Plastic rod D4A-4514N UL,
CSA --- ---
Cat whisker D4A-4515N UL,
CSA --- ---
Coil spring D4A-4516N UL,
CSA --- ---

Note:
1. Switches are also available with []1/2-14 NPT conduits. The model numbers correspond as follows:
(Examples)

G 1/2 Conduits
D4A-3[][][]N
D4A-4[][][]N

1/2-14 NPT Conduits
D4A-1[][][]N
D4A-2[][][]N

2. Switches are also available with fluoro-rubber seals for higher resistance to chemicals. (The operating temperature range for these Switches, however, is −10 to +120°C.) Add "-F" to the model number. (Example: D4A-4501N becomes D4A- 4501N-F.) Ask your nearest OMRON representative about delivery times and prices.
*1. The lever is not included with the Roller Level Models. Select the lever from those listed in this data sheet and order it separately (refer to Levers on Dimensions).
*2. The Maintained Switches have a lock mechanism for the switch operation and thus use a Fork Lever Lock.

Individual Parts
Receptacle box

Type G1/2 conduit * 1 1/2-14NPT conduit * 2
Appearance Model Approved standards Model Approved standards
SPDT double-break D4A-3000N UL, CSA D4A-1000N UL, CSA
DPDT double-break D4A-4000N UL, CSA D4A-2000N UL, CSA

*1. M6-screw mounting (standard mounting)
*2. 10-32UNF-screw mounting (standard mounting)

Switch Box

Indicator Without
indicator With neon lamp
indicator (AC) With LED
indicator (DC)
Appearance Model Approved
standards Model Approved
standards Model
SPDT
double-break
(Without indicator lamp) D4A-0100N UL,
CSA D4A-0300N UL,
CSA D4A-0E00N
DPDT
double-break
(Without indicator lamp) Simultaneous
operation D4A-0500N UL,
CSA D4A-0L00N --- D4A-0P00N
Sequential
operation D4A-0700N UL,
CSA --- --- ---
Center neutral
operation D4A-0900N UL,
CSA --- --- ---

Heads

Appearance Model Approved standards
Roller lever * 1 Standard D4A-0001N UL, CSA
High-sensitivity D4A-0002N UL, CSA
Low-torque * 2 D4A-0003N UL, CSA
Sequential operation: * 3 D4A-0017N UL, CSA
Center neutral operation: * 3 D4A-0018N UL, CSA
Maintained D4A-0005N UL, CSA
Side plunger Standard D4A-0006N UL, CSA
Vertical roller D4A-0007-VN UL, CSA
Horizontal roller D4A-0007-HN UL, CSA
Side adjustable D4A-0008N UL, CSA

*1. Levers for Roller Lever Switches are optionally available. Select the lever from those listed in this data sheet and order (refer to Levers on Dimensions).
*2. The D4A-C00 adjustable roller lever is too heavy and long for these heads and it should not be used or mechanical malfunction will result.
*3. These heads cannot be used for double break operations.

Appearance Type Model Approved standards
Top plunger Standard D4A-0009N UL, CSA
Roller D4A-0010N UL, CSA
Adjustable D4A-0011N UL, CSA
Flexible rod Spring wire D4A-0012N UL, CSA
Plastic rod D4A-0014N UL, CSA
Cat whisker D4A-0015N UL, CSA
Coil spring D4A-0016N UL, CSA

Levers

Actuator Model
Roller Lever D4A-A00
D4A-A10
D4A-A20
D4A-A30
D4A-B06
Adjustable Roller Lever D4A-C00
D4A-D00
Resin Loop Lever D4A-F00
Fork Lever Lock D4A-E30
D4A-E20
D4A-E10
D4A-E00

Note: Refer to Dimensions for Lever shapes and applicable models.

last update: November 06, 2012

NO. D4A-[]N

TYPE:Limit Switches General-purpose Vertical Copyright Statement

DATE:2021-06-14

Associated products:
HL-5000 General-purpose Limit Switch/Features WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
D4A-[]N Data Sheet	- [2247KB]	Aug 29, 201220120829	D4A-[]N Data Sheet

Type	Rated voltage	Non-inductive load (A)	Inductive load (A)
Resistive load	Lamp load	Inductive load	Motor load
NC	NO	NC	NO	NC	NO	NC	NO
SPDT double-break (with/without indicator)	125 VAC * 250 VAC * 480 VAC 600 VAC	10 10 10 3	10 10 10 1	3 2 1.5 1	1.5 1 0.8 0.5	10 10 3 1.5	5 3 1.5 1	2.5 1.5 0.8 0.5
8 VDC 14 VDC 30 VDC 125 VDC * 250 VDC *	10 10 6 0.8 0.4	6 6 4 0.2 0.1	3 3 3 0.2 0.1	10 10 6 0.8 0.4	6 6 4 0.2 0.1
DPDT double-break (without indicator)	125 VAC 250 VAC 480 VAC 600 VAC	5 3 1.5 1	2 1 0.5 0.4	4 2 1 0.7	3 1.5 0.8 0.5
14 VDC 30 VDC 125 VDC 250 VAC	5 3 0.4 0.2	2 1 0.1 0.05	4 2 0.4 0.2	3 1.5 0.1 0.05
DPDT double-break (with in-dicator)	125 VAC 250 VAC	5 3	2 1	4 2	3 1.5
12 VDC 24 VDC 48 VDC	5 3 1	---	---	---	---

Item	Type	SPDT, Double-break	DPDT, Double-break
Without indicator	With indi-cator	Without indicator	With in-dicator
Inrush current	Normally closed	30 A max.
Normally open	20 A max.

Classi-fication	Indicator	Model	Rated voltage	Leakage current	Internal resistance
SPDT double-break	Neon lamp	D4A-0300N	125 VAC, 250 VAC	Approx. 0.47 mA	150 k Ω
LED	D4A-0E00N	24 VDC	Approx. 1.3 mA	15 k Ω
DPDT double-break	Neon lamp	D4A-0L00N	125 VAC, 250 VAC	Approx. 0.28 mA	240 k Ω
LED	D4A-0P00N	48 VDC	Approx. 1.4 mA	---

Degree of protection (reference standards)	IP67 and NEMA 1, 2, 3, 4X, 5, 6P, 12, and 13
Durability *2	*Mechanical 1**	SPDT, double-break, roller lever: 50,000,000 operations min. DPDT, double-break, roller lever: 30,000,000 operations min.
Electrical	SPDT, double-break: for 125 VAC, 10 A resistive load: 1,000,000 operations min. DPDT, double-break: for 125 VAC, 5 A resistive load: 750,000 operations min.
Operating speed	1 mm/s to 2 m/s (in case of D4A-3101N roller lever model)
Operating frequency	Mechanical	300 operations/minute
Electrical	30 operations/minute
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC) between terminals of the same polarity, between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal part
Contact resistance	25 mΩ max. (initial value)
Temperature rise	50°C max.
Dielectric strength	Between terminals of same polarity	1,000 VAC, 50/60 Hz for 1 min.
Between current-carrying metal parts and ground	2,200 VAC, 50/60 Hz for 1 min. *3
Between each terminal and non-current-carrying metal part	2,200 VAC, 50/60 Hz for 1 min. *3
Pollution degree (operating environment)	3
Protection against electric shock	Class I (with grounding terminal)
Vibration resistance	*Malfunction 4**	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s² max.
*Malfunction 4**	SPDT, double-break, roller lever: 600 m/s² max. DPDT, double-break, roller lever: 300 m/s² max.
Ambient operating humidity	35% to 95%RH (with no icing)
Weight	Approx. 290 g (in case of D4A-3101N)

Type	*Roller lever 1**	*Plunger, flexible rod 2**	With indicator
Ambient tempera-ture	-40°C to +100°C	-20°C to +100°C	-10 ° C to +80 ° C

Receptacle box	G 1/2 Conduit
Indicator	Without indicator	With neon lamp indicator (AC)	With LED indicator (DC)
Actuator	Model	Approved standards	Model	Approved standards	Model
Roller lever *1	Standard		D4A-3101N	UL, CSA	D4A-3301N	UL, CSA	D4A-3E01N
High- sensitivity		D4A-3102N	UL, CSA	D4A-3302N	UL, CSA	D4A-3E02N
Low-torque		D4A-3103N	UL, CSA	---	---	---
High- sensitivity, Low- torque		D4A-3104N	UL, CSA	D4A-3304N	UL, CSA	---
*Maintained 2**		D4A-3105N	UL, CSA	D4A-3305N	UL, CSA	D4A-3E05N
Side plunger	Standard		D4A-3106N	UL, CSA	---	UL, CSA	---
Vertical roller		D4A-3107-VN	UL, CSA	D4A-3307-VN	UL, CSA	D4A-3E07-VN
Horizontal roller		D4A-3107-HN	UL, CSA	D4A-3307-HN	UL, CSA	---
Adjustable		D4A-3108N	UL, CSA	D4A-3308N	UL, CSA	D4A-3E08N
Top plunger	Standard		D4A-3109N	UL, CSA	D4A-3309N	UL, CSA	---
Roller		D4A-3110N	UL, CSA	D4A-3310N	UL, CSA	---
Adjustable		D4A-3111N	UL, CSA	D4A-3311N	UL, CSA	---
Flexible rod	Spring wire		D4A-3112N	UL, CSA	D4A-3312N	UL, CSA	D4A-3E12N
Plastic rod		D4A-3114N	UL, CSA	D4A-3314N	UL, CSA	D4A-3E14N
Cat whisker		D4A-3115N	UL, CSA	D4A-3315N	UL, CSA	D4A-3E15N
Coil spring		D4A-3116N	UL, CSA	D4A-3316N	UL, CSA	D4A-3E16N

Receptacle box	G 1/2 Conduit
Indicator	Without indicator	With neon lamp indicator (AC)	With LED ndicator (DC)
Actuator	Model	Approved standards	Model	Model
Roller lever *1	Standard		D4A-4501N	UL, CSA	D4A-4L01N	D4A-4P01N
High- sensitivity		D4A-4502N	UL, CSA	---	---
Low- torque		D4A-4503N	UL, CSA	---	---
High- sensitivity, Low-torque		D4A-4504N	UL, CSA	---	---
*Maintained 2**		D4A-4505N	UL, CSA	---	---
Sequential operation		D4A-4717N	UL, CSA	---	---
Center neutral operation		D4A-4918N	UL, CSA	---	---
Side plunger	Standard		D4A-4506N	UL, CSA	---	---
Vertical roller		D4A-4507-VN	UL, CSA	---	---
Horizontal roller		D4A-4507-HN	UL, CSA	---	---
Adjustable		D4A-4508N	UL, CSA	---	---
Top plunger	Standard		D4A-4509N	UL, CSA	---	---
Roller		D4A-4510N	UL, CSA	D4A-4L10N	D4A-4P10N
Adjustable		D4A-4511N	UL, CSA	---	---
Flexible rod	Spring wire		D4A-4512N	UL, CSA	---	---
Plastic rod		D4A-4514N	UL, CSA	---	---
Cat whisker		D4A-4515N	UL, CSA	---	---
Coil spring		D4A-4516N	UL, CSA	---	---

Type	*G1/2 conduit 1**	*1/2-14NPT conduit 2**
Appearance	Model	Approved standards	Model	Approved standards
SPDT double-break		D4A-3000N	UL, CSA	D4A-1000N	UL, CSA
DPDT double-break		D4A-4000N	UL, CSA	D4A-2000N	UL, CSA

Indicator	Without indicator	With neon lamp indicator (AC)	With LED indicator (DC)
Appearance	Model	Approved standards	Model	Approved standards	Model
SPDT double-break	(Without indicator lamp)	D4A-0100N	UL, CSA	D4A-0300N	UL, CSA	D4A-0E00N
DPDT double-break	(Without indicator lamp)	Simultaneous operation	D4A-0500N	UL, CSA	D4A-0L00N	---	D4A-0P00N
Sequential operation	D4A-0700N	UL, CSA	---	---	---
Center neutral operation	D4A-0900N	UL, CSA	---	---	---

Appearance	Model	Approved standards
*Roller lever 1**		Standard	D4A-0001N	UL, CSA
High-sensitivity	D4A-0002N	UL, CSA
*Low-torque 2**	D4A-0003N	UL, CSA
*Sequential operation: 3**	D4A-0017N	UL, CSA
*Center neutral operation: 3**	D4A-0018N	UL, CSA
	Maintained	D4A-0005N	UL, CSA
Side plunger		Standard	D4A-0006N	UL, CSA
	Vertical roller	D4A-0007-VN	UL, CSA
	Horizontal roller	D4A-0007-HN	UL, CSA
	Side adjustable	D4A-0008N	UL, CSA

Appearance	Type	Model	Approved standards
Top plunger		Standard	D4A-0009N	UL, CSA
	Roller	D4A-0010N	UL, CSA
	Adjustable	D4A-0011N	UL, CSA
Flexible rod		Spring wire	D4A-0012N	UL, CSA
	Plastic rod	D4A-0014N	UL, CSA
	Cat whisker	D4A-0015N	UL, CSA
	Coil spring	D4A-0016N	UL, CSA

Actuator	Model
Roller Lever	D4A-A00
D4A-A10
D4A-A20
D4A-A30
D4A-B06
Adjustable Roller Lever	D4A-C00
D4A-D00
Resin Loop Lever	D4A-F00
Fork Lever Lock	D4A-E30
D4A-E20
D4A-E10
D4A-E00

Return to OMRON

OMRON D4A-[]NSwitches/ Limit Switches/General-purpose Vertical

OMRON D4A-[]N Dimensions

Purchase the OMRON General-purpose Vertical Please fill in the following

OMRON D4A-[]N dimension

Set Model Numbers

Roller Lever Switches

StandardD4A-3[]01N, D4A-4[]01NHigh-sensitivityD4A-3[]02N, D4A-4[]02NLow-torqueD4A-3[]03N, D4A-4[]03NHigh-sensitivity/Low-torqueD4A-3[]04N, D4A-4[]04NSequential OperationD4A-4[]17NCenter Neutral OperatingD4A-4[]18N

MaintainedD4A-3[]05N, D4A-4[]05N

Side Plunger Switches

StandardD4A-3[]06N, D4A-4[]06N

Horizontal RollerD4A-3[]07-HN, D4A-4[]07-HN

Vertical RollerD4A-3[]07-VN, D4A-4[]07-VN

AdjustableD4A-3[]08N, D4A-4[]08N

Top Plunger Switches

StandardD4A-3[]09N, D4A-4[]09N

Roller PlungerD4A-3[]10N, D4A-4[]10N

AdjustableD4A-3[]11N, D4A-4[]11N

Flexible Rod

Spring WireD4A-3[]12N, D4A-4[]12N

Plastic RodD4A-3[]14N, D4A-4[]14N

Cat WhiskerD4A-3[]15N, D4A-4[]15N

Coil SpringD4A-3[]16N, D4A-4[]16N

Levers (for Roller Lever Switches)

Roller LeverD4A-A00

Roller LeverD4A-A10

Roller LeverD4A-A20

Roller LeverD4A-A30

Roller LeverD4A-B06

Adjustable Roller LeverD4A-C00

Adjustable Rod LeverD4A-D00

Fork Lever LockD4A-E30

Fork Lever LockD4A-E20

Fork Lever LockD4A-E10

Fork Lever LockD4A-E00

Nylon Loop LeverD4A-F00

Head and Lever Positions

Lever Position

D4A-A00

D4A-A10

D4A-A20

D4A-A30

OMRON D4A-[]N catalog

English

Global Edition

OMRON D4A-[]N specification

Ratings

Ratings for Indicators

Characteristics

OMRON D4A-[]N lineup

List of Models

Set model number

SPDT, Double-break Switches

DPDT, Double-break Switches

Individual Parts

Receptacle box

Switch Box

Heads

Levers

Standard
D4A-3[]01N, D4A-4[]01N
High-sensitivity
D4A-3[]02N, D4A-4[]02N
Low-torque
D4A-3[]03N, D4A-4[]03N
High-sensitivity/Low-torque
D4A-3[]04N, D4A-4[]04N
Sequential Operation
D4A-4[]17N
Center Neutral Operating
D4A-4[]18N

Maintained
D4A-3[]05N, D4A-4[]05N

Standard
D4A-3[]06N, D4A-4[]06N

Horizontal Roller
D4A-3[]07-HN, D4A-4[]07-HN

Vertical Roller
D4A-3[]07-VN, D4A-4[]07-VN

Adjustable
D4A-3[]08N, D4A-4[]08N

Standard
D4A-3[]09N, D4A-4[]09N

Roller Plunger
D4A-3[]10N, D4A-4[]10N

Adjustable
D4A-3[]11N, D4A-4[]11N

Spring Wire
D4A-3[]12N, D4A-4[]12N

Plastic Rod
D4A-3[]14N, D4A-4[]14N

Cat Whisker
D4A-3[]15N, D4A-4[]15N

Coil Spring
D4A-3[]16N, D4A-4[]16N

Roller Lever
D4A-A00

Roller Lever
D4A-A10

Roller Lever
D4A-A20

Roller Lever
D4A-A30

Roller Lever
D4A-B06

Adjustable Roller Lever
D4A-C00

Adjustable Rod Lever
D4A-D00

Fork Lever Lock
D4A-E30

Fork Lever Lock
D4A-E20

Fork Lever Lock
D4A-E10

Fork Lever Lock
D4A-E00

Nylon Loop Lever
D4A-F00
