OMRON G70D-VSOC16 / VFOM16 lineup

last update: April 10, 2017

Relay Terminals

Classification	Points	Internal I/O common	Rated voltage	Model
Relay outputs	16 points (SPST-NO × 16)	NPN (+common)	24 V DC	G70D-VSOC16
Power MOSFET relay outputs				G70D-VFOM16

Note: These are all non-standard model and require a special order. Contact your OMRON representative for details on
         availability.

Accessories (Order Separately)

Cables for I/O Relay Terminals XW2Z-R

• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu connectors (1:1): XW2Z-R[]C
• Fujitsu connectors (1:2):
XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
• Fujitsu connectors (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1):
XW2Z-RI[]C
XW2Z-RO[]C
• MIL connectors (1:2):
XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Refer to the XW2Z-R Datasheet (Cat. No. G126) for details.

Expansion Terminal Block

Applicable Output Relay Terminals	Appearance	Model
G70D-VSOC16		G70D-ET *
G70D-VFOM16

* This is a non-standard model and requires a special order.
  Contact your OMRON representative for details on availability.

Short Bar

Applicable Output Relay Terminals	Appearance	Model
G70D-VSOC16		G6D-4-SB
G70D-VFOM16

Replacement Relays

Applicable Output Relay Terminals	Rated voltage	Model
G70D-VSOC16	24 V DC	G6D-1A-ASI-AP DC24 *
G70D-VFOM16		G3DZ-2R6PL DC24 *

* This is a non-standard model and requires a special order.
  Contact your OMRON representative for details on availability.

Accessories for DIN Track Mounting

Refer to your OMRON website for details on the PFP-[].

last update: April 10, 2017

OMRON G70D-VSOC16 / VFOM16 dimension

last update: April 10, 2017

(Unit: mm)

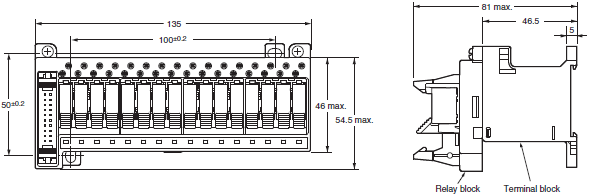

Relay Terminals

G70D-VSOC16
G70D-VFOM16

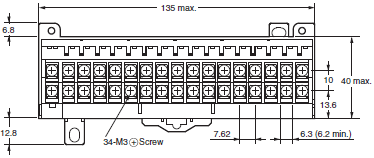

Terminal block (without expansion terminals)

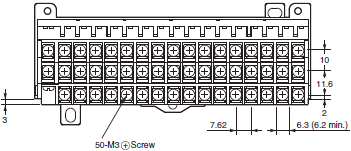

Terminal block (expansion terminal block connected)

Mounting Hole Dimensions

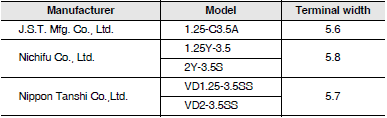

Examples of compatible Y fork type crimp terminals for M3.5

Accessories (Order Separately)

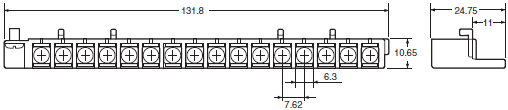

Expansion Terminal Block

G70D-ET

Short Bar

G6D-4-SB

last update: April 10, 2017

OMRON G70D-VSOC16 / VFOM16 specification

last update: April 10, 2017

Ratings

Relay Specifications

The following specifications apply to G6D Relays mounted in a G70D Relay Terminal and not the G6D Relay itself.

Coil Ratings (per G6D Relay)

Rated voltage	24 V DC
Rated current	10.5 mA
Coil resistance	2,880 Ω
Must-operate voltage	70% max. of rated voltage
Must release voltage	10% min. of rated voltage
Max. voltage	130% of rated voltage
Power consumption	Approx. 200 mW

Note: 1. The must-operate voltage is 75% or less of the rated voltage if the relay is mounted upside down.
         2. Rated current and coil resistance were measured at a coil temperature of 23° C with a tolerance of ±10%.
         3. Operating characteristics were measured at a coil temperature of 23° C.
         4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating
             power supply. There is no continuous allowance.
         5. The rated current includes the terminal’s LED current.

Contact Ratings (per G6D Relay)

Load		Resistive load (cosφ = 1)
Rated load		3 A at 250 V AC, 3 A at 30 V DC
Rated carry current		5 A *1
Max. switching voltage		250 V AC, 30 V DC
Max. switching current		5 A
Max. switching capacity (reference value)		1,250 VA, 150 W
Min. permissible load (reference value) *1		5 V DC, 1 mA
Endurance	Electrical	100,000 operations min. (under and at the rated load at 1,800 operations/h)
	Mechanical	20,000,000 operations min. (at 18,000 operations/h)

*1. Up to 5 A can be carried when 8 or fewer outputs are ON.
*2. This value is for a switching frequency of 120 times per minute.

Power MOSFET Relay Specifications

The following values apply to G3DZ Relays mounted in a G70D Output Block and not the G3DZ Relay itself.

Input (per G3DZ Power MOSFET Relay)

Rated voltage		24 V DC
Operating voltage		19.2 to 28.8 V DC
Voltage level	Must-operate	19.2 V DC max.
	Must release	1 V DC min.
Input impedance		4 kΩ±20%
Rated current		8.2 mA±20%

Note: The rated current includes the current consumption of the operation indicator.

Output (per G3DZ Power MOSFET Relay)

Load voltage	3 to 264 V AC, 3 to 125 V DC
Load current	100 μA to 0.3 A
Inrush current	6 A (10 ms)

Characteristics

Item	G70D-VSOC16	G70D-VFOM16
	Relay outputs	Power MOSFET Relay outputs
Contact configuration	16 points (SPST-NO × 16)
Contact structure	Single	---
Contact resistance	100 mΩ max. *1	---
Isolation method	---	Photocoupler
Must-operate time	10 ms max. *2	10 ms max.
Release time	10 ms max. *2	15 ms max.
Output ON-resistance	---	2.4 Ω max.
Open-circuit leakage current	---	10 μA max. (at 125 V DC)
Max. switching frequency	Mechanical: 18,000 operations/h Rated load: 1,800 operations/h	---
Insulation resistance	100 MΩ min. (at 500 V DC)
Dielectric strength	2,000 V AC for 1 min between coil and contact	2,000 V AC for 1 min between input and output terminals
Noise immunity	Power input (normal mode): 600 V for 10 min with a pulse width of 100 ns to 1 μs Power input (common mode): 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs Input cable (coiling): 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs Unit body (coiling): 600 V for 10 min with a pulse width of 100 ns to 1 μs
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double) Malfunction: 10 to 55 to 10 Hz, 0.375-mm amplitude (0.75-mm double)
Shock resistance	Destruction: 300 m/s2, Malfunction: 100 m/s2
Operating voltage range	24 V DC +10%/-15%
Current consumption	Approx. 170 mA at 24 V DC *3	Approx. 125 mA at 24 V DC *4
Cable length	Between block and controller: 5 m max. (reference value for AWG28) Between block and external device: Dependent on load
LED color	Operation indicator: orange
Coil surge absorber	Diode (600 V, 1 A)
Ambient temperature	Operating: -25 to 55°C (with no icing or condensation)
Ambient humidity	Operating: 45% to 85%
Mounting strength	No damage when 49 N pull load was applied for 1 s in all directions (except for 9.8 N in direction of rail)
Terminal strength	Tightening torque: 0.78 to 118 N·m Pull strength: 49 N for 1 min
Weight *5	Approx. 280 g

Note: These values are initial values.
*1. Measurement: 1 A at 5 V DC
*2. Ambient temperature: 23°C
*3. Current consumption is when all points are ON and includes G6D Relay coil current but does not include any external
     load current.
*4. Current consumption is when all points are ON and includes G3DZ input current but does not include any external load
      current.
*5. The Unit weighs approximately 315 g with the Expansion Terminal Block mounted.
