• Mount to DIN Track or via screws.
• MIL Flat Cable Connectors and Multi-pole, Square Connectors are standard.
• Terminal blocks available with either M3 or M3.5 screws.
• Connecting Cables for Programmable Controllers available (sold separately).
last update: December 19, 2013
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2B (Standard-type) Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2B (Standard-type) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2B (Standard-type)Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3NX-CA Color Fiber Amplifier Unit/Features
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
GI-SMD / SID Safety I/O Terminal GI-S series/Features
H3DT-H Power OFF-delay Timer/Features
H5S Digital Time Switch/Features
OMRON XW2B (Standard-type) lineup
XW2B (Standard-type) Standard-type Connector-Terminal Block Conversion Units/Lineuplast update: June 22, 2017
Connectors
| Type | Terminal Block | Connector | No. of poles | Appearance | Model |
|---|---|---|---|---|---|
| Flat Cable | Terminal block with M3 screws | Flat Cable Connectors *1 | 20 |  | XW2B-20G4 |
| 34 | XW2B-34G4 | ||||
| 40 | XW2B-40G4 | ||||
| 50 | XW2B-50G4 | ||||
| 60 | XW2B-60G4 | ||||
| Terminal block with M3.5 screws | 20 |  | XW2B-20G5 | ||
| 34 | XW2B-34G5 | ||||
| 40 | XW2B-40G5 | ||||
| 50 | XW2B-50G5 | ||||
| 60 | XW2B-60G5 | ||||
| Twin-connector | Terminal block with M3.5 screws | 40 |  | XW2B-40G5-T | |
| Daisy Chain | 20 |  | XW2B-20G5-D | ||
| Multi-pole, Square Connector | Terminal block with M3 screws | Multi-pole, Square Connector Plugs *2 | 20 |  | XW2B-20Y4 |
| 34 | XW2B-34Y4 | ||||
| 50 | XW2B-50Y4 | ||||
| Terminal block with M3.5 screws | 50 |  | XW2B-50Y5 |
*1. Flat Cable Connectors have one polarity slot.
*2. These Plugs and Sockets are made by Honda Tsushin Kogyo.
Accessories (Order Separately)
Connecting Cables for Connector-Terminal Block Conversion Units
For details on the Connecting Cable used between XW2B Daisy Chain-type Connectors, refer to the XW2Z datasheet.
last update: June 22, 2017
OMRON XW2B (Standard-type) dimension
XW2B (Standard-type) Standard-type Connector-Terminal Block Conversion Units/Dimensionslast update: June 22, 2017
(Unit: mm)

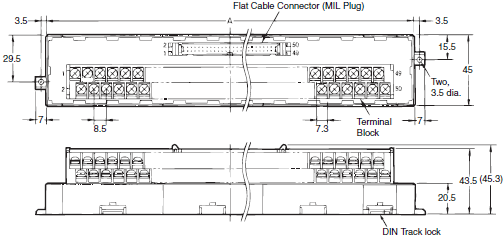

Flat Cable Units with a Terminal Block with M3 Screws

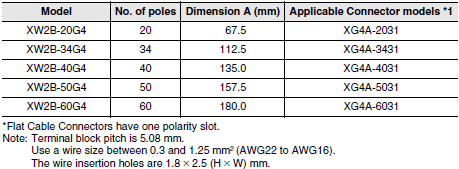

XW2B-[][]G4

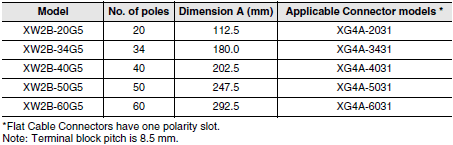

Flat Cable Units with a Terminal Block with M3.5 Screws
XW2B-[][]G5

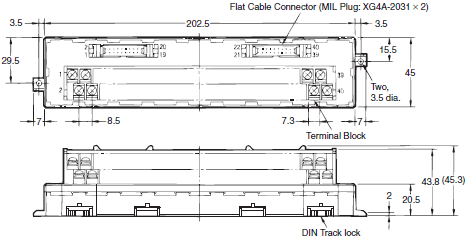

Twin-connector Units with a Terminal Block with M3.5 Screws
XW2B-40G5-T

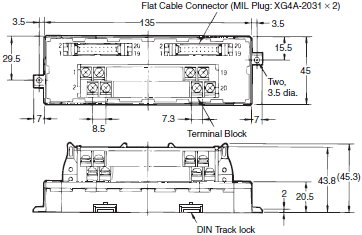

Daisy Chain Units with a Terminal Block with M3.5 Screws
XW2B-20G5-D

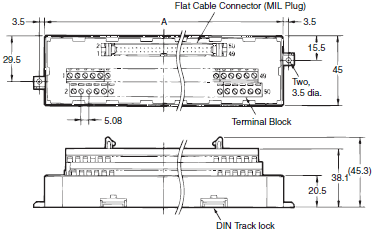

Multi-pole, Square-connector Plug Units with a Terminal Block with M3 Screws

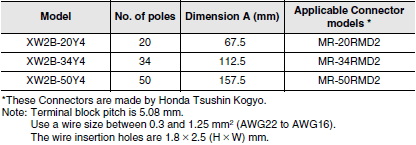

XW2B-[][]Y4

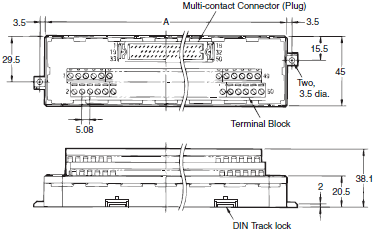

Multi-pole, Square-connector Plug Units with a Terminal Block with M3.5 Screws
XW2B-50Y5

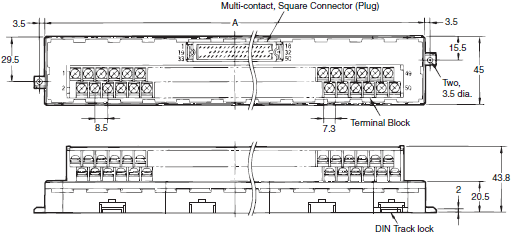

Multi-pole, Square Connector Socket Units with a Terminal Block with M3.5 Screws

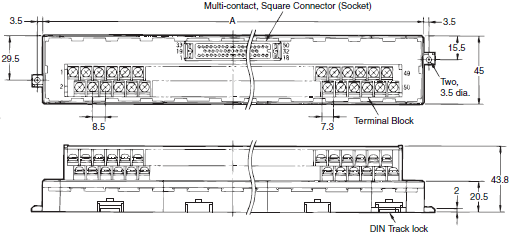

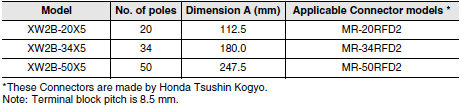

XW2B-[][]X5

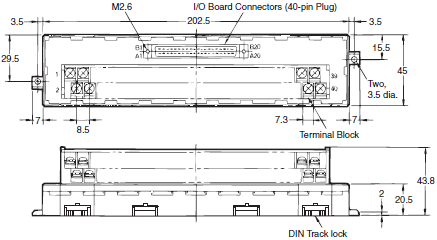

Board I/O Units with a Terminal Block with M3.5 Screws
