• Downsizing achieved through optimum design of heat sink.

• Mounting possible via screws or via DIN track.

• Close mounting possible for linking terminals. (Except for G3PA-260B-VD and G3PA-450B-VD-2.)

• Applicable with 3-phase loads.

• Replaceable power element cartridges.

• Comply with VDE 0160 (finger protection), with a dielectric strength of 4,000 V between input and load.

• Certified by UL, CSA, and VDE (reinforced insulation). *

* Only UL and CSA certification applies to model numbers that end in -VD-X.

last update: January 5, 2017

Purchase the OMRON For Heater Control Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3PA Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PARelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3S-LS3[] PCB Sensors/Features
E39-VA Hand-held Checker/Features
D4SL-N, D4SL-NSK10-LK[] Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key/Features
MM Power Relay/Features
CRT1B-[]D02S(-1) Bit Slave Units with e-CON Connectors/Features

OMRON G3PA specification
G3PA Solid State Relays/Specifications
last update: May 18, 2017
Ratings (at an Ambient Temperature of 25°C)
Input

Model Rated
voltage Operating Voltage
range Input current
impedance Voltage level
Must operate
voltage Must release
voltage
G3PA-210B-VD-X 5 to 24 VDC 4 to 30 VDC 7 mA max. 4 VDC max. 1 VDC min.
G3PA-220B-VD-X
G3PA-240B-VD
G3PA-260B-VD
G3PA-210BL-VD 5 to 24 VDC 4 to 30 VDC 20 mA max. 4 VDC max. 1 VDC min.
G3PA-220BL-VD
G3PA-240BL-VD
G3PA-260BL-VD
G3PA-210B-VD 24 VAC 19.2 to 26.4 VAC 1.4 kΩ±20% 19.2 VAC max. 4.8 VAC min.
G3PA-220B-VD
G3PA-240B-VD
G3PA-260B-VD
G3PA-420B-VD 12 to 24 VDC 9.6 to 30 VDC 7 mA max. 9.2 VDC max. 1 VDC min.
G3PA-430B-VD
G3PA-420B-VD-2
G3PA-430B-VD-2
G3PA-450B-VD-2

Output

Model Rated load
voltage Load voltage
range Load current Inrush current V_DRM
(reference value)
G3PA-210B(L)-VD(-X) 24 to 240 VAC
(50/60 Hz) 19 to 264 VAC
(50/60 Hz) 0.1 to 10 A at 40°C 150 A (60 Hz, 1 cycle) 600 V (V_DRM)
G3PA-220B(L)-VD(-X) 0.1 to 20 A at 40°C 220 A (60 Hz, 1 cycle)
G3PA-240B(L)-VD 0.5 to 40 A at 40°C 440 A (60 Hz, 1 cycle)
G3PA-260B(L)-VD 0.5 to 60 A at 40°C 440 A (60 Hz, 1 cycle)
G3PA-420B-VD 200 to 400 VAC
(50/60 Hz) 180 to 440 VAC
(50/60 Hz) 0.5 to 20 A at 30°C 220 A (60 Hz, 1 cycle) 1,000 V (V_DRM)
G3PA-430B-VD 0.5 to 30 A at 30°C 440 A (60 Hz, 1 cycle)
G3PA-420B-VD-2 200 to 480 VAC
(50/60 Hz) 180 to 528 VAC
(50/60 Hz) 0.5 to 20 A at 30°C 220 A (60 Hz, 1 cycle) 1,200 V (V_DRM)
G3PA-430B-VD-2 0.5 to 30 A at 30°C 440 A (60 Hz, 1 cycle)
G3PA-450B-VD-2 0.5 to 50 A at 30°C 440 A (60 Hz, 1 cycle)

Refer to Engineering Data for further details.

Characteristics

Item G3PA-
210B(L)
-VD(-X) G3PA-
220B(L)
-VD(-X) G3PA-
240B(L)
-VD G3PA-
260B(L)
-VD G3PA-
420B
-VD G3PA-
420B
-VD-2 G3PA-
430B
-VD G3PA-
430B
-VD-2 G3PA-
450B
-VD-2
Operate time 1/2 of load power source cycle + 1 ms max. (DC Input, -B models)
1 1/2 of load power source cycle + 1 ms max. (AC Input)
1 ms max. (-BL models)
Release time 1/2 of load power source cycle + 1 ms max. (DC Input)
1 1/2 of load power source cycle + 1 ms max. (AC Input)
Output ON
voltage drop 1.6 V (RMS) max. 1.8 V (RMS) max.
Leakage
current 5 mA max.
(at 100 VAC)
10 mA max.
(at 200 VAC) 10 mA max.
(at 100 VAC)
20 mA max.
(at 200 VAC) 20 mA max.
(at 400 VAC) 20 mA max.
(at 480 VAC) 20 mA max.
(at 400 VAC) 20 mA max.
(at 480 VAC)
I²t 260 A²s 1,260 A²s 260 A²s 1,800 A²s 1,800 A²s 1,800 A²s
Insulation
resistance 100 MΩ min. (at 500 VDC)
Dielectric
strength 4,000 VAC, 50/60 Hz for 1 min
Vibration
resistance Destruction: 10 to 55 to 10 Hz, 0.375-mm single amplitude (Mounted to DIN track)
Shock
resistance Destruction: 300 m/s² (mounted to DIN track)
Ambient
temperature Operating: -30°C to 80°C (with no icing or condensation)
Storage: -30°C to 100°C (with no icing or condensation)
Certified
standards UL508, CSA C22.2 (No.14, No.950),
EN60950-1 File No. 5915ÜG UL508,
CSA C22.2
(No.14),
EN60947-4-3
File No.
6642ÜG UL508,
CSA C22.2
(No.14),
EN60947-4-3
File No.
133127ÜG UL508,
CSA C22.2
(No.14),
EN60947-4-3
File No.
6642ÜG UL508,
CSA C22.2
(No.14),
EN60947-4-3
File No.
133127ÜG
EMC Emission: EN55011 Group 1 Class A
Immunity: EN61000-6-2
Ambient
humidity Operating: 45% to 85%
Weight Approx.
260 g Approx.
340 g Approx.
460 g Approx.
900 g Approx.
290 g Approx.
290 g Approx.
410 g Approx.
410 g Approx.
900 g

last update: May 18, 2017

OMRON G3PA lineup
G3PA Solid State Relays/Lineup
last update: May 18, 2017

Model Isolation Zero cross
function Indicator Rated output load Rated input
voltage
G3PA-210B-VD-X Phototriac
coupler Yes Yes 10 A at 24 to 240 VAC 5 to 24 VDC
G3PA-210B-VD *
G3PA-220B-VD-X 20 A at 24 to 240 VAC
G3PA-220B-VD *
G3PA-240B-VD 40 A at 24 to 240 VAC
G3PA-260B-VD 60 A at 24 to 240 VAC
G3PA-210BL-VD No 10 A at 24 to 240 VAC
G3PA-220BL-VD 20 A at 24 to 240 VAC
G3PA-240BL-VD 40 A at 24 to 240 VAC
G3PA-260BL-VD 60 A at 24 to 240 VAC
G3PA-210B-VD Yes 10 A at 24 to 240 VAC 24 VAC
G3PA-220B-VD 20 A at 24 to 240 VAC
G3PA-240B-VD 40 A at 24 to 240 VAC
G3PA-260B-VD 60 A at 24 to 240 VAC
G3PA-420B-VD 20 A at 200 to 400 VAC 12 to 24 VDC
G3PA-430B-VD 30 A at 200 to 400 VAC
G3PA-420B-VD-2 20 A at 200 to 480 VAC
G3PA-430B-VD-2 30 A at 200 to 480 VAC
G3PA-450B-VD-2 50 A at 200 to 480 VAC

Note: When ordering, specify the rated input voltage.
* Manufacture will be discontinued at the end of March 2017.

Replacement Parts

Name Carry
current Load voltage
range Model Applicable SSR VDE
certification
Power Device
Cartridge 10 A 19 to 264 VAC G32A-A10-VD-X DC5-24 G3PA-210B-VD DC5-24
G3PA-210B-VD-X DC5-24 No
G32A-A10-VD DC5-24 * G3PA-210B-VD DC5-24 Yes
G32A-A10L-VD DC5-24 G3PA-210BL-VD DC5-24
G32A-A10-VD AC24 G3PA-210B-VD AC24
20 A G32A-A20-VD-X DC5-24 G3PA-220B-VD DC5-24
G3PA-220B-VD-X DC5-24 No
G32A-A20-VD DC5-24 * G3PA-220B-VD DC5-24 Yes
G32A-A20L-VD DC5-24 G3PA-220BL-VD DC5-24
G32A-A20-VD AC24 G3PA-220B-VD AC24
40 A G32A-A40-VD DC5-24 G3PA-240B-VD DC5-24
G32A-A40L-VD DC5-24 G3PA-240BL-VD DC5-24
G32A-A40-VD AC24 G3PA-240B-VD AC24
60 A G32A-A60-VD DC5-24 G3PA-260B-VD DC5-24
G32A-A60L-VD DC5-24 G3PA-260BL-VD DC5-24
G32A-A60-VD AC24 G3PA-260B-VD AC24
20 A 180 to 440 VAC G32A-A420-VD DC12-24 G3PA-420B-VD DC12-24
30 A G32A-A430-VD DC12-24 G3PA-430B-VD DC12-24
20 A 180 to 528 VAC G32A-A420-VD-2 DC12-24 G3PA-420B-VD-2 DC12-24
30 A G32A-A430-VD-2 DC12-24 G3PA-430B-VD-2 DC12-24
50 A G32A-A450-VD-2 DC12-24 G3PA-450B-VD-2 DC12-24

* Manufacture will be discontinued at the end of March 2017.

Other Units (Order Separately)
Units that Enable 2-line Switching of 3-phase Power

Name Current flow Model Applicable SSR
Short-circuit Unit 10 A G32A-D20 G3PA-210B-VD-X, G3PA-210BL-VD
20 A G3PA-220B-VD-X, G3PA-220BL-VD
G3PA-420B-VD, G3PA-420B-VD-2
30 A G32A-D40 G3PA-430B-VD, G3PA-430B-VD-2
40 A G3PA-240B-VD, G3PA-240BL-VD

Note: Refer to List of Certified Models for a list of products that comply with safety standards.

last update: May 18, 2017

OMRON G3PA catalog
G3PA Solid State Relays/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3PA Data Sheet -
[1576KB] May 18, 201720170518 G3PA Data Sheet

OMRON G3PA dimension
G3PA Solid State Relays/Dimensions
last update: January 05, 2017

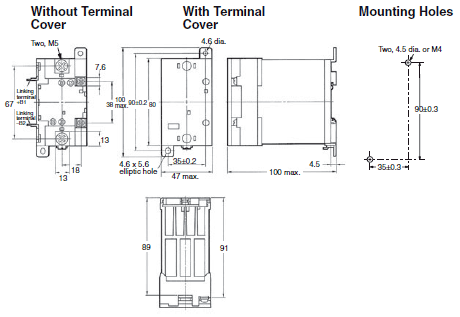

G3PA-210B(L)-VD(-X)

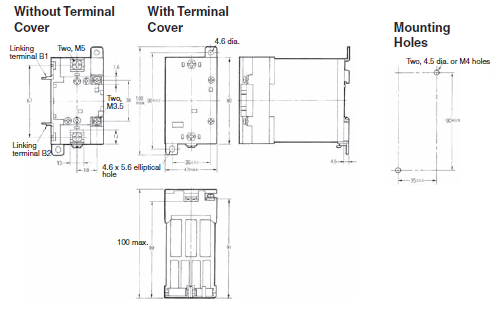

G3PA-220B(L)-VD(-X)

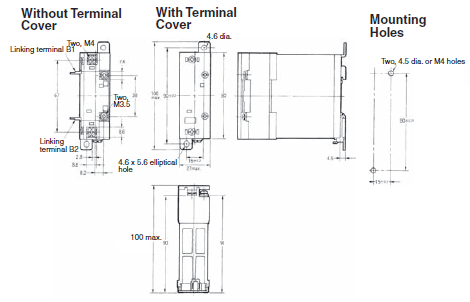

G3PA-240B(L)-VD

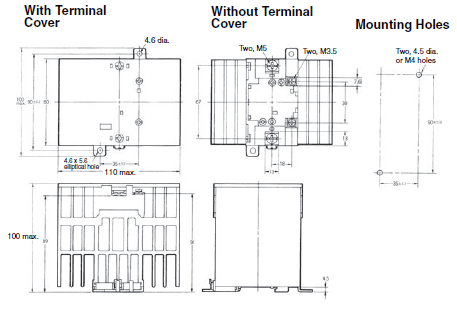

G3PA-260B(L)-VD
G3PA-450B-VD-2

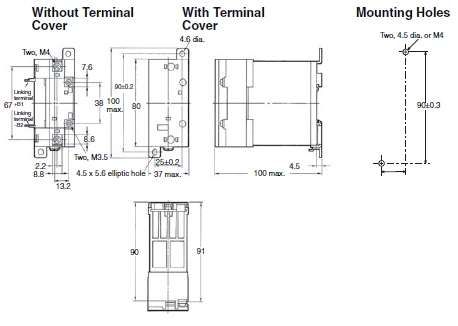

G3PA-420B-VD, G3PA-420B-VD-2

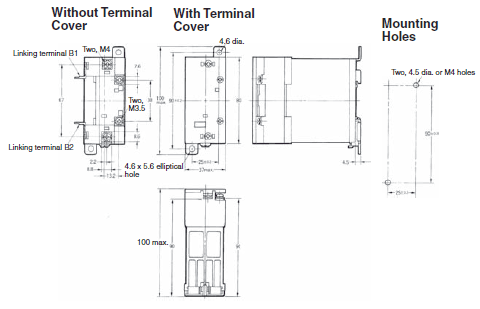

G3PA-430B-VD, G3PA-430B-VD-2

last update: January 05, 2017

NO. G3PA

TYPE:Solid-state Relays For Heater Control Copyright Statement

DATE:2021-06-17

Associated products:
G3PE (Three-phase) Solid State Contactors for Heaters/Features G3PC Solid State Relays with Failure Detection Function/Features

Model	Rated voltage	Operating Voltage range	Input current impedance	Voltage level
Must operate voltage	Must release voltage
G3PA-210B-VD-X	5 to 24 VDC	4 to 30 VDC	7 mA max.	4 VDC max.	1 VDC min.
G3PA-220B-VD-X
G3PA-240B-VD
G3PA-260B-VD
G3PA-210BL-VD	5 to 24 VDC	4 to 30 VDC	20 mA max.	4 VDC max.	1 VDC min.
G3PA-220BL-VD
G3PA-240BL-VD
G3PA-260BL-VD
G3PA-210B-VD	24 VAC	19.2 to 26.4 VAC	1.4 kΩ±20%	19.2 VAC max.	4.8 VAC min.
G3PA-220B-VD
G3PA-240B-VD
G3PA-260B-VD
G3PA-420B-VD	12 to 24 VDC	9.6 to 30 VDC	7 mA max.	9.2 VDC max.	1 VDC min.
G3PA-430B-VD
G3PA-420B-VD-2
G3PA-430B-VD-2
G3PA-450B-VD-2

Model	Rated load voltage	Load voltage range	Load current	Inrush current	V_DRM (reference value)
G3PA-210B(L)-VD(-X)	24 to 240 VAC (50/60 Hz)	19 to 264 VAC (50/60 Hz)	0.1 to 10 A at 40°C	150 A (60 Hz, 1 cycle)	600 V (V_DRM)
G3PA-220B(L)-VD(-X)	0.1 to 20 A at 40°C	220 A (60 Hz, 1 cycle)
G3PA-240B(L)-VD	0.5 to 40 A at 40°C	440 A (60 Hz, 1 cycle)
G3PA-260B(L)-VD	0.5 to 60 A at 40°C	440 A (60 Hz, 1 cycle)
G3PA-420B-VD	200 to 400 VAC (50/60 Hz)	180 to 440 VAC (50/60 Hz)	0.5 to 20 A at 30°C	220 A (60 Hz, 1 cycle)	1,000 V (V_DRM)
G3PA-430B-VD	0.5 to 30 A at 30°C	440 A (60 Hz, 1 cycle)
G3PA-420B-VD-2	200 to 480 VAC (50/60 Hz)	180 to 528 VAC (50/60 Hz)	0.5 to 20 A at 30°C	220 A (60 Hz, 1 cycle)	1,200 V (V_DRM)
G3PA-430B-VD-2	0.5 to 30 A at 30°C	440 A (60 Hz, 1 cycle)
G3PA-450B-VD-2	0.5 to 50 A at 30°C	440 A (60 Hz, 1 cycle)

Item	G3PA- 210B(L) -VD(-X)	G3PA- 220B(L) -VD(-X)	G3PA- 240B(L) -VD	G3PA- 260B(L) -VD	G3PA- 420B -VD	G3PA- 420B -VD-2	G3PA- 430B -VD	G3PA- 430B -VD-2	G3PA- 450B -VD-2
Operate time	1/2 of load power source cycle + 1 ms max. (DC Input, -B models) 1 1/2 of load power source cycle + 1 ms max. (AC Input) 1 ms max. (-BL models)
Release time	1/2 of load power source cycle + 1 ms max. (DC Input) 1 1/2 of load power source cycle + 1 ms max. (AC Input)
Output ON voltage drop	1.6 V (RMS) max.	1.8 V (RMS) max.
Leakage current	5 mA max. (at 100 VAC) 10 mA max. (at 200 VAC)	10 mA max. (at 100 VAC) 20 mA max. (at 200 VAC)	20 mA max. (at 400 VAC)	20 mA max. (at 480 VAC)	20 mA max. (at 400 VAC)	20 mA max. (at 480 VAC)
I²t	260 A²s	1,260 A²s	260 A²s	1,800 A²s	1,800 A²s	1,800 A²s
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	4,000 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.375-mm single amplitude (Mounted to DIN track)
Shock resistance	Destruction: 300 m/s² (mounted to DIN track)
Ambient temperature	Operating: -30°C to 80°C (with no icing or condensation) Storage: -30°C to 100°C (with no icing or condensation)
Certified standards	UL508, CSA C22.2 (No.14, No.950), EN60950-1 File No. 5915ÜG	UL508, CSA C22.2 (No.14), EN60947-4-3 File No. 6642ÜG	UL508, CSA C22.2 (No.14), EN60947-4-3 File No. 133127ÜG	UL508, CSA C22.2 (No.14), EN60947-4-3 File No. 6642ÜG	UL508, CSA C22.2 (No.14), EN60947-4-3 File No. 133127ÜG
EMC	Emission: EN55011 Group 1 Class A Immunity: EN61000-6-2
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 260 g	Approx. 340 g	Approx. 460 g	Approx. 900 g	Approx. 290 g	Approx. 290 g	Approx. 410 g	Approx. 410 g	Approx. 900 g

Model	Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage
G3PA-210B-VD-X	Phototriac coupler	Yes	Yes	10 A at 24 to 240 VAC	5 to 24 VDC
G3PA-210B-VD *
G3PA-220B-VD-X	20 A at 24 to 240 VAC
G3PA-220B-VD *
G3PA-240B-VD	40 A at 24 to 240 VAC
G3PA-260B-VD	60 A at 24 to 240 VAC
G3PA-210BL-VD	No	10 A at 24 to 240 VAC
G3PA-220BL-VD	20 A at 24 to 240 VAC
G3PA-240BL-VD	40 A at 24 to 240 VAC
G3PA-260BL-VD	60 A at 24 to 240 VAC
G3PA-210B-VD	Yes	10 A at 24 to 240 VAC	24 VAC
G3PA-220B-VD	20 A at 24 to 240 VAC
G3PA-240B-VD	40 A at 24 to 240 VAC
G3PA-260B-VD	60 A at 24 to 240 VAC
G3PA-420B-VD	20 A at 200 to 400 VAC	12 to 24 VDC
G3PA-430B-VD	30 A at 200 to 400 VAC
G3PA-420B-VD-2	20 A at 200 to 480 VAC
G3PA-430B-VD-2	30 A at 200 to 480 VAC
G3PA-450B-VD-2	50 A at 200 to 480 VAC

Name	Carry current	Load voltage range	Model	Applicable SSR	VDE certification
Power Device Cartridge	10 A	19 to 264 VAC	G32A-A10-VD-X DC5-24	G3PA-210B-VD DC5-24 G3PA-210B-VD-X DC5-24	No
G32A-A10-VD DC5-24 *	G3PA-210B-VD DC5-24	Yes
G32A-A10L-VD DC5-24	G3PA-210BL-VD DC5-24
G32A-A10-VD AC24	G3PA-210B-VD AC24
20 A	G32A-A20-VD-X DC5-24	G3PA-220B-VD DC5-24 G3PA-220B-VD-X DC5-24	No
G32A-A20-VD DC5-24 *	G3PA-220B-VD DC5-24	Yes
G32A-A20L-VD DC5-24	G3PA-220BL-VD DC5-24
G32A-A20-VD AC24	G3PA-220B-VD AC24
40 A	G32A-A40-VD DC5-24	G3PA-240B-VD DC5-24
G32A-A40L-VD DC5-24	G3PA-240BL-VD DC5-24
G32A-A40-VD AC24	G3PA-240B-VD AC24
60 A	G32A-A60-VD DC5-24	G3PA-260B-VD DC5-24
G32A-A60L-VD DC5-24	G3PA-260BL-VD DC5-24
G32A-A60-VD AC24	G3PA-260B-VD AC24
20 A	180 to 440 VAC	G32A-A420-VD DC12-24	G3PA-420B-VD DC12-24
30 A	G32A-A430-VD DC12-24	G3PA-430B-VD DC12-24
20 A	180 to 528 VAC	G32A-A420-VD-2 DC12-24	G3PA-420B-VD-2 DC12-24
30 A	G32A-A430-VD-2 DC12-24	G3PA-430B-VD-2 DC12-24
50 A	G32A-A450-VD-2 DC12-24	G3PA-450B-VD-2 DC12-24

Name	Current flow	Model	Applicable SSR
Short-circuit Unit	10 A	G32A-D20	G3PA-210B-VD-X, G3PA-210BL-VD
20 A	G3PA-220B-VD-X, G3PA-220BL-VD G3PA-420B-VD, G3PA-420B-VD-2
30 A	G32A-D40	G3PA-430B-VD, G3PA-430B-VD-2
40 A	G3PA-240B-VD, G3PA-240BL-VD
