OMRON GT1-AD / DAAutomation Systems/ Networks/DeviceNet
OMRON GT1-AD / DA Automation Systems
OMRON GT1-AD / DA Dimensions
/Images/l_1081-25-118894-198x198.jpglast update: December 19, 2013
• Input block incorporates connectors that can be easily mounted or dismounted. (GT1-AD08MX, GT1-DA04MX)
• 8 or 4 inputs.
• 4 outputs.
• High resolution of 1/6,000.
• High conversion speed of 8 ms/8 points or 4 ms/4 points.
• DIN track mounting.
last update: December 19, 2013
Purchase the OMRON DeviceNet Please fill in the following
If you have just landed here, this product OMRON GT1-AD / DA Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GT1-AD / DA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GT1-AD / DAAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
H7CX-A Multifunction Preset Counter/Features
CJ1W-EIP21 CJ-series EtherNet/IP Unit/Features
SRT2-VID / VOD(-1) Transistor Remote I/O Terminals with Connectors (8/16 Points)/Features
SRT2-ID16P / OD16P Remote I/O Modules/Features
K8DT-PZ Three-phase Voltage, Asymmetry, and Phase-sequence Phase-loss Relay/Features
OMRON GT1-AD / DA dimension
GT1-AD / DA Analog I/O Units/Dimensionslast update: November 12, 2012

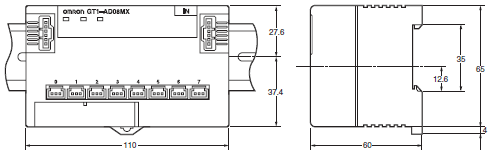

GT1-AD08MX
GT1-DA04MX
(Molex Connector Models)
Note: Accessory cable included.

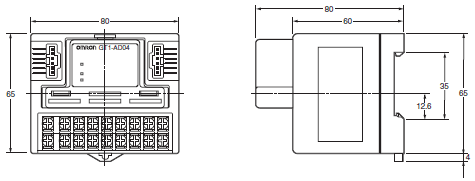

GT1-AD04
GT1-DA04
(Terminal Block Models)
Note: Accessory cable included.
last update: November 12, 2012
OMRON GT1-AD / DA catalog
GT1-AD / DA Analog I/O Units/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 DeviceNet Catalog | Q102-E1-14 [30569KB] | Aug 03, 201820180803 | DeviceNet Catalog |
OMRON GT1-AD / DA lineup
GT1-AD / DA Analog I/O Units/Lineuplast update: September 24, 2012
| I/O classification | I/O points | I/O connections | Power supply voltage | I/O specification | Model |
|---|---|---|---|---|---|
| Analog input | 8 | Molex connector | 24 VDC | 4 to 20 mA, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V | GT1-AD08MX |
| 4 | Terminal block | GT1-AD04 | |||
| Analog output | 4 | Molex connector | 24 VDC | 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V | GT1-DA04MX |
| Terminal block | 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA | GT1-DA04 |
last update: September 24, 2012
OMRON GT1-AD / DA specification
GT1-AD / DA Analog I/O Units/Specificationslast update: September 24, 2012
General Specifications
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) * | |
|---|---|---|
| Current consumption | I/O Unit interface | Internal circuitry power supply |
| 50 mA max. | GT1-AD08MX: 100 mA max. GT1-AD04: 100 mA max. GT1-DA04MX: 100 mA max. GT1-DA04: 150 mA max. | |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line) | |
| Vibration resistance | 10 to 150 Hz, 1.0-mm double amplitude or 70 m/s2 | |
| Shock resistance | 200 m/s2 | |
| Dielectric strength | 500 VAC | |
| Mounting method | DIN 35 mm-track mounting | |
| Mounting strength | No damage when 100 N pull load was applied in all directions (10 N min. in the DIN track direction) | |
| Terminal strength | No damage when 100 N pull load was applied | |
| Ambient operating temperature | -10°C to 55°C | |
| Ambient operating humidity | 25% to 85% (with no condensation) | |
| Ambient storage temperature | -25°C to 65°C | |
| Accessories | I/O Unit Connecting Cable (40 mm) | |
* Power for analog I/O is provided from the internal power supply.
Input Specifications
| Specifications | Voltage input | Current input | |
|---|---|---|---|
| Input type | 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V | 0 to 20 mA, 4 to 20 mA | |
| Maximum signal input | ± 15V | ± 30 mA | |
| Input impedance | 1M Ω min. | Approx. 250 Ω | |
| Resolution | 1/6,000 (FS) | ||
| Overall accuracy | 25°C | ±0.3% FS | ±0.4% FS |
| -10°C to 55°C | ±0.6% FS | ±0.8% FS | |
| Conversion speed | 8 ms/8 points, 4 ms/4 points | ||
| Conversion output data | Binary data -10 to 10-V range: F448 to 0BB8 full scale Other signal ranges: 0000 to 1770 full scale | ||
| Insulation method | Transistor or photocoupler insulation between inputs and power lines. | ||
Output Specifications
| Specifications | Voltage output | Current output | |
|---|---|---|---|
| Output type | 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V | 4 to 20 mA | |
| Output permissible load resistance | 5k Ω min. | 600 Ω max. | |
| Output impedance | 0.5 Ω max. | --- | |
| Resolution | 1/6,000 (FS) | ||
| Overall accuracy | 25°C | ±0.4% FS | |
| -10°C to 55°C | ±0.8% FS | ||
| Conversion speed | 4 ms/4 points | ||
| DA output data | Binary data -10 to 10 V range: F448 to 0BB8 full scale Other signal ranges: 0000 to 1770 full scale | ||
| Insulation method | Transistor or photocoupler insulation between outputs and power lines. | ||
last update: September 24, 2012
