• Compact size at 60 x 16 x 35 (W x H x D)
• Lineup now includes the 16-point input model and 16-point output model.
last update: November 27, 2013
Purchase the OMRON CompoBus/S Please fill in the following
If you have just landed here, this product OMRON SRT2-ID16P / OD16P Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the SRT2-ID16P / OD16P We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON SRT2-ID16P / OD16PAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
M22 Indicator (Cylindrical 22/25-dia.)/Features
E5AR Digital Controller/Features
H7CX-A Multifunction Preset Counter/Features
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw T...
SRT2-VID / VOD(-1) Transistor Remote I/O Terminals with Connectors (8/16 Points)/Features
OMRON SRT2-ID16P / OD16P lineup
SRT2-ID16P / OD16P Remote I/O Modules/Lineuplast update: November 27, 2013
| I/O classification | Internal I/O circuit common | I/O points | Rated voltage | I/O rated voltage | Model |
|---|---|---|---|---|---|
| Input | NPN (+ common) | 16 | 24 VDC | 24 VDC | SRT2-ID16P |
| Output | NPN (- common) | SRT2-OD16P |
last update: November 27, 2013
OMRON SRT2-ID16P / OD16P catalog
SRT2-ID16P / OD16P Remote I/O Modules/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CompoBus/S Catalog | Q103-E1-07 [6048KB] | Aug 02, 200320030802 | CompoBus/S Catalog |
OMRON SRT2-ID16P / OD16P dimension
SRT2-ID16P / OD16P Remote I/O Modules/Dimensionslast update: November 27, 2013

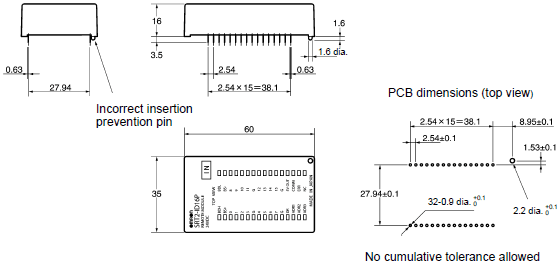

SRT2-ID16P
SRT2-OD16P
last update: November 27, 2013
OMRON SRT2-ID16P / OD16P specification
SRT2-ID16P / OD16P Remote I/O Modules/Specificationslast update: November 27, 2013
Ratings
Input (SRT2-ID16P)
| Input current | 2 mA max./point |
|---|---|
| ON delay time | 1.5 ms max. |
| OFF delay time | 1.5 ms max. |
| ON voltage | 15 VDC min. between each input terminal and BS+ terminal |
| OFF voltage | 5 VDC max. between each input terminal and BS + terminal |
Output (SRT2-OD16P)
| Rated output current | 0.2 A/point, 0.6 A/common |
|---|---|
| Residual voltage | 0.6 V max. between each output terminal and G terminal at 0.2 A |
| Leakage current | 0.1 mA max. between each output terminal and G terminal at 24 VDC |
Characteristics
| Communications power supply voltage | 20.4 to 26.4 VDC |
|---|---|
| I/O power supply voltage | 24 VDC +10%/-15% |
| Current consumption * | 60 mA max. |
| Connection method | Multi-drop method and T-branch method |
| Connecting Units | 8 Input Terminals and 8 Output Terminals per Master |
| Dielectric strength | 500 VAC for 1 min (1-mA sensing current between insulated circuits) |
| 5-V output current | 20 mA max. (5 V 0.5 V) |
| LED drive current (COMM, ERR) | 10 mA max. (5 VDC) |
| SW carry current (ADR0 to 3, HOLD) | 1 mA max. |
| Ambient temperature | Operating: 0°C to 55°C (with no icing or condensation) Storage: -20°C to 65°C (with no icing or condensation) |
| Ambient humidity | Operating: 35% to 85% |
| Weight | 35 g max. |
* The above current consumption is the value with all points turned ON excluding the current consumption of the external
sensor connected to the input model and the current consumption of the load connected to the output model.
last update: November 27, 2013
