OMRON M2P lineup

last update: November 9, 2018

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.

M2PJ (Rectangular) Single Screen Models

Case color		Black	Light gray	Display color symbol
LED	5 VDC	M2PJ-90A11-05E(1)	M2PJ-90A12-05E(1)	R O G W
	12 VDC	M2PJ-90A11-12E(1)	M2PJ-90A12-12E(1)
	24 VDC	M2PJ-90A11-24E(1)	M2PJ-90A12-24E(1)
Chameleon	12 VDC	M2PJ-90AG1-12EK	M2PJ-90AG2-12EK	*1
	24 VDC	M2PJ-90AG1-24EK	M2PJ-90AG2-24EK
Incandescent lamp	6 VDC/VAC	M2PJ-90A11-06	M2PJ-90A12-06	*2
	14 VDC/VAC	M2PJ-90A11-14	M2PJ-90A12-14
	28 VDC/VAC	M2PJ-90A11-28	M2PJ-90A12-28

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

*1. You can change the screen colors of chameleon models between red, green, and orange by changing the terminal
       wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
       white and transparent). Use the appropriate combination.

Case color		Black	Light gray	Display color symbol
LED	24 VDC	M2PJ-90A21-24E(1)(2)	M2PJ-90A22-24E(1)(2)	R O G W
Incandescent lamp	6 VDC/VAC	M2PJ-90A21-06	---	*
	14 VDC/VAC	M2PJ-90A21-14	M2PJ-90A22-14
	28 VDC/VAC	M2PJ-90A21-28	M2PJ-90A22-28

Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

* Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
   white and transparent). Use the appropriate combination.

M2PA (Square) Single Screen Models

Case color		Black	Light gray	Display color symbol
LED	5 VDC	M2PA-90A11-05E(1)	M2PA-90A12-05E(1)	R O G W
	12 VDC	M2PA-90A11-12E(1)	M2PA-90A12-12E(1)
	24 VDC	M2PA-90A11-24E(1)	M2PA-90A12-24E(1)
Chameleon	12 VDC	M2PA-90AG1-12EK	---	*1
	24 VDC	M2PA-90AG1-24EK	M2PA-90AG2-24EK
Incandescent lamp	6 VDC/VAC	M2PA-90A11-06	M2PA-90A12-06	*2
	14 VDC/VAC	M2PA-90A11-14	M2PA-90A12-14
	28 VDC/VAC	M2PA-90A11-28	M2PA-90A12-28

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

*1. You can change the screen colors of chameleon models between red, green, and orange, by changing the terminal
       wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
       white and transparent). Use the appropriate combination.

Case color		Black	Light gray	Display color symbol
LED	24 VDC	M2PA-90A21-24E(1)(2)	M2PA-90A22-24E(1)(2)	R O G W
Incandescent lamp	6 VDC/VAC	M2PA-90A21-06	M2PA-90A22-06	*
	14 VDC/VAC	M2PA-90A21-14	M2PA-90A22-14
	28 VDC/VAC	M2PA-90A21-28	M2PA-90A22-28

Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

* Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
   white and transparent). Use the appropriate combination.

M2PT (Round) Single Screen Models

Case color		Light gray	Display color symbol
LED	5 VDC	M2PT-90A12-05C(1)	R O G W
	12 VDC	M2PT-90A12-12C(1)
	24 VDC	M2PT-90A12-24C(1)
Incandescent lamp	28 VDC/VAC	M2PT-90A12-28	*

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

* Incandescent lamps are supplied with a colored plates (white, red, green, blue, and orange). Use the appropriate
    combination. Models A3PT and M2PT (round models), however, are not supplied with legend plates.

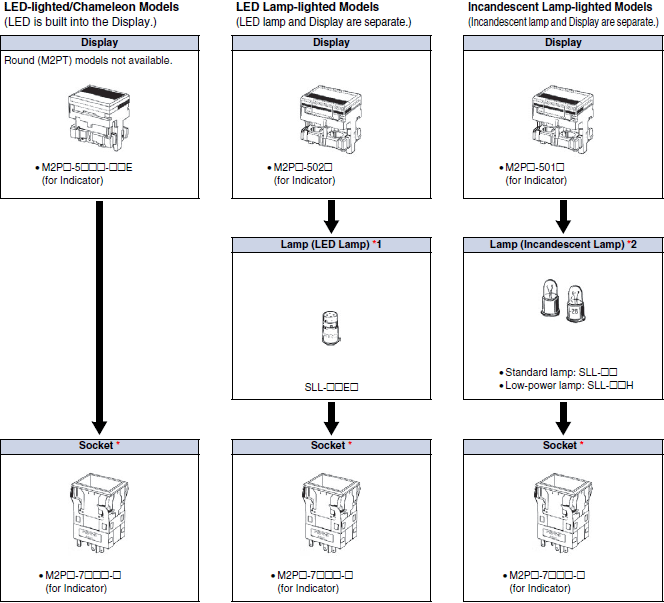

Ordering Individually

Displays, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.

* The Socket is compatible with LED-lighted, LED lamp-lighted, and incandescent lamp-lighted models.

*1. Number of necessary LED lamps.

Screen pattern	M2PJ	M2PA	M2PT
Single screen	4	2	2
Horizontal 2-split screen		2	---
Vertical 2-split screen		---	---
Vertical 3-split screen Horizontal 3-split screen		---	---
4-split screen		---	---

*2. Number of necessary incandescent lamps.

Screen pattern	M2PJ	M2PA	M2PT
Single screen	2	1	2
Horizontal 2-split screen	4 (low-power incandescent lamp)	2	---
Vertical 2-split screen		---	---
Vertical 3-split screen Horizontal 3-split screen		---	---
4-split screen		---	---

Display

LED-lighted Models (LED is built-in.)

Appearance	Split-screen color (color symbol)		White (W)	Red (R)	Green (G)	Orange (O)	Selection precautions
Rectangular models	Single screen		M2PJ-5701-[][]E	M2PJ-5702-[][]E	M2PJ-5703-[][]E	M2PJ-5706-[][]E	Enter the voltage to be used in the [][] at the end of the model number. Examples of voltage used: Horizontal 2-split screen models support only 24V. For the color of the shaded part, select the model according to the colors given at the top of the table.
	Horizontal 2- 2 split screen		M2PJ-5711-[][]E	M2PJ-5712-[][]E	M2PJ-5713-[][]E	M2PJ-5716-[][]E
			M2PJ-5721-[][]E	M2PJ-5722-[][]E	M2PJ-5723-[][]E	M2PJ-5726-[][]E
			M2PJ-5731-[][]E	M2PJ-5732-[][]E	M2PJ-5733-[][]E	M2PJ-5736-[][]E
			M2PJ-5741-[][]E	M2PJ-5742-[][]E	M2PJ-5743-[][]E	M2PJ-5746-[][]E
Square models	Single screen		M2PA-5701-[][]E	M2PA-5702-[][]E	M2PA-5703-[][]E	M2PA-5706-[][]E
	Horizontal 2-split screen		M2PA-5711-[][]E	M2PA-5712-[][]E	M2PA-5713-[][]E	M2PA-5716-[][]E
			M2PA-5721-[][]E	M2PA-5722-[][]E	M2PA-5723-[][]E	M2PA-5726-[][]E
			M2PA-5731-[][]E	M2PA-5732-[][]E	M2PA-5733-[][]E	M2PA-5736-[][]E
			M2PA-5741-[][]E	M2PA-5742-[][]E	M2PA-5743-[][]E	M2PA-5746-[][]E

Note: 1. A cap, legend plate (transparent), colored plate, white plunger case, and LED (with a current-limiting resistor) are
              built into the standard lighting unit.
          2. Split-screen coloring configurations are given with the "OMRON" mark on the Sockets facing down.

LED Lamp-lighted Models (LED is not built-in.)

Model	Rectangular models		Square models		Round models		Selection precautions
Screen pattern	Screen	Model	Screen	Model	Screen	Model
Single screen		M2PJ-5021		M2PA-5021		M2PT-5021	Colored plates (white, red, green, and orange), a legend plate (transparent), and a light baffle (split-screen models only) are included. Use the appropriate combination for the LED coloring required. The number of white colored plates required to enable colored illumination for the corresponding screen-split configuration is included. (For example, 4-split screen models include 4 white colored plates). The number of colored plates included for each model are shown in the following table.
Horizontal 2- split screen		M2PJ-5022		M2PA-5022	---
Vertical 2- split screen		M2PJ-5023	---		---
Horizontal 3- split screen		M2PJ-5024	---		---
Vertical 3- split screen		M2PJ-5025	---		---
4-split screen		M2PJ-5026	---		---

* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
　　White: One colored plate for a 2-split screen and two colored plates for a 4-split screen.
　　Red, green, or orange: One colored plate for a 2-split screen and one colored plates for a 4-split screen.

Incandescent Lamp-lighted Models (Incandescent lamp is not built-in.)

Model	Rectangular models		Square models		Round models		Selection precautions
Screen pattern	Screen	Model	Screen	Model	Screen	Model
Single screen		M2PJ-5011		M2PA-5011		M2PT-5011 *	Colored plates (white, red, green, orange, and blue), a legend plate (transparent), and a light baffle (split- screen models only) are supplied. *M2PT (round) models do not contain a legend plate. The number of colored plates supplied is shown in the following table.
Horizontal 2-split screen		M2PJ-5012		M2PA-5012	---
Vertical 2-split screen		M2PJ-5013	---		---
Horizontal 3-split screen		M2PJ-5014	---		---
Vertical 3-split screen		M2PJ-5015	---		---
4-split screen		M2PJ-5016	---		---

* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
　　All colors: One colored plate for a 2-split screen and one colored plate for a 4-split screen.

Chameleon Models (with Built-in LED)

Shape		Rated voltage	Chameleon indicator
Rectangular		12 VDC	M2PJ-5800-12E
		24 VDC	M2PJ-5800-24E
Square		12 VDC	M2PA-5800-12E
		24 VDC	M2PA-5800-24E

Note: 1. With the chameleon models, the whole screen lights red, green, or orange (i.e., red and green simultaneously).
           2. A cap, legend plate (transparent), white colored plate, and LED (with a current-limiting resistor) are built into the
                Display.

Lamp

LED Lamp

Voltage	5 VDC	12 VDC	24 VDC	Applicable cap (color) (colored plate)	Selection precautions
Color	Model (DC only)	Model (DC only)	Model (DC only)
Red	SLL-05ER	SLL-12ER	SLL-24ER	Red	In the standard setup, 4 LED lamps are used with M2PJ models and 2 LED lamps are used with M2PA and M2PT models.
Yellow	SLL-05EY	SLL-12EY	SLL-24EY	Orange
Green	SLL-05EG	SLL-12EG	SLL-24EG	Green
White	SLL-05EW	SLL-12EW	SLL-24EW	White

Incandescent Lamp

Lamp type	Standard lamp	Low-voltage lamp	Selection precautions
5 VAC/VDC	SLL-06	SLL-06H	In the standard setup for M2PJ models, 2 lamps are used with single screen models, and 4 lamps are used with split-screen models. If 3 or 4 lamps are lit continuously, use low-power lamps. In the standard setup for M2PA models, 1 lamp is used with single screen models, and 2 lamps are used with split-screen models. In the standard setup for M2PT models, 2 lamps are used.
12 VAC/VDC	SLL-14	SLL-14H
24 VAC/VDC	SLL-28	SLL-28H

Socket

(common to both incandescent lamp-lighted and LED-lighted models)

Rectangular	Square	Round	Selection precautions
Model	Model	Model
M2PJ-7010-1	M2PA-7010-1	M2PT-7010-2	The end digit denotes the color of the flange: -1 denotes a black flange, and -2 denotes a light gray flange. Round switches are available only in light gray, and not in black.

last update: November 9, 2018

OMRON M2P specification

last update: September 24, 2012

No information is provided on the ratings and specifications of this product.

last update: September 24, 2012

OMRON M2P dimension

last update: November 12, 2012

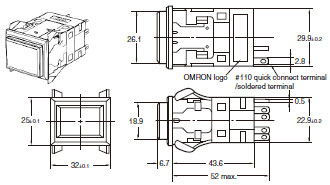

M2PJ (Rectangular) Models

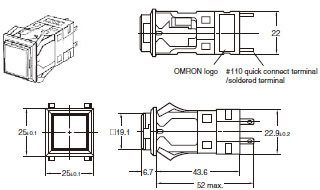

M2PA (Square) Models

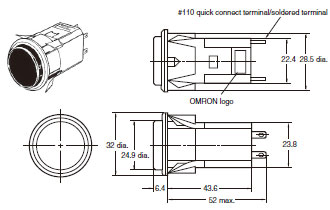

M2PT (Round) Models

Note: Use a panel thickness of 0.5 mm for tab terminals #110 and solder terminals.

Accessory Mounting Dimensions

Dimensions for mounting accessories are the same as those for the A3P Lighted Pushbutton Switches. Refer to the A3P.

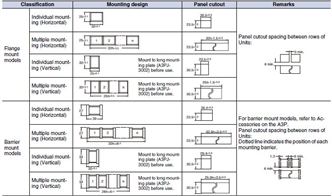

Panel Cutout

M2PJ (Rectangular) Models

Note: 1. n: Number of Units
           2. Recommended panel thickness: 1 to 5 mm
           3. Mount the panel before mounting the Switch Guard.
           4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the
                coating.

M2PA (Square) Models

Note: 1. n: Number of Units
           2. Recommended panel thickness: 1 to 5 mm
           3. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the
                coating.

M2PT (Round) Models

Note: 1. Recommended panel thickness: 1 to 5 mm
           2. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the
                coating
