OMRON E6C3-A specification

last update: September 24, 2012

Model		E6C3- AG5C-C	E6C3- AG5C	E6C3- AN5C	E6C3- AB5C	E6C3- AG5B	E6C3- AN5B	E6C3- AB5B	E6C3- AN1E	E6C3- AN2E
Power supply voltage		12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.							5 VDC ±5%	12 VDC ±10%
Current consumption *1		70 mA max.
Resolution *2 (pulses/rotation)		256 , 360, 720	256, 360, 720, 1,024	32, 40	6, 8, 12	256, 360, 720, 1,024	32, 40	6, 8, 12	256
Output code		Gray code		Binary	BCD	Gray code	Binary	BCD	Binary
Output configuration		NPN open-collector output				PNP open-collector output			Voltage output
Output capacity		Applied voltage: 30 VDC max. Sink current: 35 mA max. Residual voltage: 0.4 V max. (at sink current of 35 mA)				Source current: 35 mA max. Residual voltage: 0.4 V max. (at source current of 35 mA)			Output resistance: 2.4 kΩ	Output resistance: 8.2 kΩ
									Sink current: 35 mA max. Residual voltage: 0.4 V max. (at sink current of 35 mA)
Rise and fall times of output		1 μs max. (Cable length: 2 m, Sink current: 35 mA)							Rise: 3 μs max., Fall: 1 μs max.	Rise: 10 μs max., Fall: 1 μs max.
Maximum response frequency *3		20 kHz							10 kHz
Logic		Negative logic (high = 0, low = 1)				Positive logic (high = 1, low = 0)
Direction of rotation *4		Output code increases for CW (as viewed from end of shaft).							Switched using rotation direction input.
Strobe signal		None		Supported		None	Supported		None
Positioning signal		None			Supported	None		Supported	None
Parity signal		None		Supported (even)	None		Supported (even)	None
Starting torque		10 mNm max. at room temperature, 30 mNm max. at low temperature
Moment of inertia		2.3 × 10-6 kgm2
Shaft loading	Radial	80 N
	Thrust	50 N
Maximum permissible speed		5,000 r/min
Ambient temperature range		Operating: -10 to 70°C (with no icing), Storage: -25 to 85°C (with no icing)
Ambient humidity range		Operating/Storage: 35% to 85% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 500 Hz, 150 m/s2 or 2-mm double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance		Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP65, in-house standards: oilproof
Connection method		Connector Models *6	Pre-wired Models (Standard cable length: 1 m)
Material		Case: Aluminum, Main unit: Aluminum, Shaft: SUS303
Weight (packed state)		Approx. 300 g
Accessories		Instruction manual Note: Coupling, mounting bracket and hex-head spanner are sold separately.

*1. An inrush current of approximately 6 A will flow for approximately 0.8 ms when the power is turned ON.
*2. The code is as follows:

Output code	Resolution	Code No.
Binary	32	1 to 32
	40	1 to 40
	256	0 to 255
BCD	6	0 to 5
	8	0 to 7
	12	0 to 11
Gray	256	0 to 255
	360	76 to 435 (gray after 76)
	720	152 to 871 (gray after 152)
	1024	0 to 1,023

*3. The maximum electrical response speed is determined by the resolution and maximum response frequency as
       follows:

*4. For the E6C3-AN1E and E6C3-AN2E, the rotation direction input (wire color: pink) can be connected to high (Vcc) to
       increase the output code for CW rotation and connected to low (0 V) to decrease the output code for CW rotation.
       E6C3-AN1E: High = 1.5 to 5 V, Low = 0 to 0.8 V
       E6C3-AN2E: High = 2.2 to 12 V, Low = 0 to 1.2 V
       Read the code 10 μs or more after the LSB (20) of the code changes for the E6C3-AN1E or E6C3-AN2E.
*5. The minimum address of the absolute code is output when cut face D on the shaft and the cable connection direction
       are as shown in the diagram at the right (output position range: ±15°).
*6. Resolution of 360 or 720: Standard cable length: 2 m
       Resolution of 256: Standard cable length: 1 m

last update: September 24, 2012

OMRON E6C3-A lineup

last update: September 24, 2012

Encoders

Power supply voltage	Output configuration	Output code	Resolution (pulses/rotation)	Connection method	Model
12 to 24 VDC	Open-collector output (NPN)	Gray	256, 360, (720) *2	Pre-wired Connector Model (1 m)	E6C3-AG5C-C (resolution) 1M Example: E6C3-AG5C-C 256P/R 1M
			256, 360, 720, 1,024	Pre-wired Model (1 m) *1	E6C3-AG5C (resolution) 1M Example: E6C3-AG5C 256P/R 1M
		Binary	32, 40		E6C3-AN5C (resolution) 1M Example: E6C3-AN5C 32P/R 1M
		BCD	6, 8, 12		E6C3-AB5C (resolution) 1M Example: E6C3-AB5C 6P/R 1M
	Open-collector output (PNP)	Gray	256, 360, 720, 1,024		E6C3-AG5B (resolution) 1M Example: E6C3-AG5B 256P/R 1M
		Binary	32, 40		E6C3-AN5B (resolution) 1M Example: E6C3-AN5B 32P/R 1M
		BCD	6, 8, 12		E6C3-AB5B (resolution) 1M Example: E6C3-AB5B 6P/R 1M
5 VDC	Voltage output	Binary	256		E6C3-AN1E 256P/R 1M
12 VDC					E6C3-AN2E 256P/R 1M

*1. Standard models are also available with 2-m cables. When ordering, specify the cable length at the end of the model
       number (example: E6C3-AG5C 360P/R 2M).
*2. When connecting to the H8PS, use the E6C3-AG5C-C 256, 360, 720P/R. (Only a 2-m cable is available for the 720P/R
       Model.)
       For the 360/720 resolutions, 2-m cables are standard in-stock.

Accessories (Order Separately)

Name	Model	Remarks
Couplings	E69-C08B	---
	E69-C68B	Different end diameter (6 to 8 mm)
Flanges	E69-FCA03	---
	E69-FCA04	E69-2 Servo Mounting Bracket provided.
Servo Mounting Bracket	E69-2	Provided with E69-FCA04 Flange.
Extension Cable	E69-DF5	5 m	Applicable to the E6C3-AG5C-C. Models are also available with 15-m and 98-m cables.
	E69-DF10	10 m
	E69-DF20	20 m

Refer to Accessories for details.

last update: September 24, 2012

OMRON E6C3-A dimension

last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Encoder

E6C3-A[]5[]
E6C3-AN[]E

Note: The E69-C08B Coupling is sold separately.

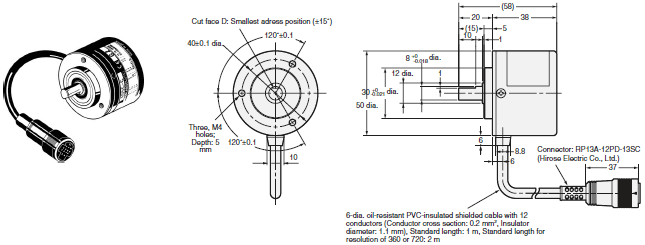

E6C3-AG5C-C

Note: The E69-C08B Coupling is sold separately.

Accessories (Order Separately)

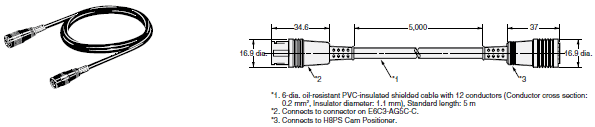

Extension Cable
E69-DF5

Note: 1. The E69-DF5 (5 m) is also available with the following cable lengths: 10 m, 15 m, 20 m, and 98 m.
           2. Cable can be extended to 100 m when the H8PS Cam Positioner is connected.

last update: November 12, 2012
