• Easily connect a M7E Digital Display without soldering.
• Two-, three- and four-digit Mother Boards are available for connecting M7E Digital Displays and, by using two Mother Boards, two- to eight-digit displays are possible.
• The depth of the Mother Board with M7E Digital Display Units is only 58 mm, ideal for mounting to compact or thin control panels.
• Connecting to OMRON's PLCs via dedicated PLC cables (sold separately) (refer to M7E Options).
last update: December 19, 2013
Purchase the OMRON Single digit Type Please fill in the following
If you have just landed here, this product OMRON M7E (Mother Board) Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the M7E (Mother Board) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON M7E (Mother Board)Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CX-Designer FA Integrated Tool Package CX-One/Features
VB Multiple Limit Switch/Features
E5AC-800 Digital Temperature Controller (Simple Type) (96 × 96 mm)/Features
K3HB-R Rotary Pulse Indicator/Features
DRT2-ROS16 Remote I/O Terminal with Relay Outputs/Features
OMRON M7E (Mother Board) lineup
M7E (Mother Board) Mother Board for Display Units (Character Height: 14 mm)/Lineuplast update: April 3, 2017
| Type | Number of digits | Model |
|---|---|---|
| Static | 4 | M7E-01MB4-S2 |
| Static | 3 | M7E-01MB3-S2 |
| Static | 2 | M7E-01MB2-S2 |
| Dynamic * | 4 | M7E-01MB4-D |
* Cannot be used with the M7E-01D[]D2 (Models with Zero Suppression).
Accessories (Order Separately)
Cable with Connectors (1 to 1)
| L Dimension | Model |
|---|---|
| 1,000 mm | XW2Z-R100C |
| 1,500 mm | XW2Z-R150C |
| 2,000 mm | XW2Z-R200C |
| 3,000 mm | XW2Z-R300C |
| 5,000 mm | XW2Z-R500C |
Cable with Crimp-style Terminals
| L Dimension | Model |
|---|---|
| 1,000 mm | XW2Z-RY100C |
| 1,500 mm | XW2Z-RY150C |
| 2,000 mm | XW2Z-RY200C |
| 3,000 mm | XW2Z-RY300C |
| 5,000 mm | XW2Z-RY500C |
Cable with Connectors (1 to 2)
| L Dimension | Model (for output) | |
|---|---|---|
| A | B | Model |
| 1,000 | 750 | XW2Z-RO100C-75 |
| 1,500 | 1,250 | XW2Z-RO150C-125 |
| 2,000 | 1,750 | XW2Z-RO200C-175 |
| 3,000 | 2,750 | XW2Z-RO300C-275 |
| 5,000 | 4,750 | XW2Z-RO500C-475 |
last update: April 3, 2017
OMRON M7E (Mother Board) catalog
M7E (Mother Board) Mother Board for Display Units (Character Height: 14 mm)/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 M7E (Mother Board) Data Sheet | - [927KB] | Apr 03, 201720170403 | M7E (Mother Board) Data Sheet |
| M7E Options Data Sheet | - [600KB] | Apr 03, 201720170403 | M7E Options Data Sheet |
OMRON M7E (Mother Board) specification
M7E (Mother Board) Mother Board for Display Units (Character Height: 14 mm)/Specificationslast update: September 24, 2012
No information is provided on the ratings and specifications of this product.
last update: September 24, 2012
OMRON M7E (Mother Board) dimension
M7E (Mother Board) Mother Board for Display Units (Character Height: 14 mm)/Dimensionslast update: November 12, 2012
M7E-01MB4-S2
_dm_125-119241.jpg)
M7E-01MB3-S2
_dm_225-119242.jpg)
M7E-01MB2-S2
_dm_325-119243.jpg)
Note: 1. Dotted lines indicate the mounting dimensions of the M7E.
2. Tolerance is ±0.4 mm unless otherwise specified.

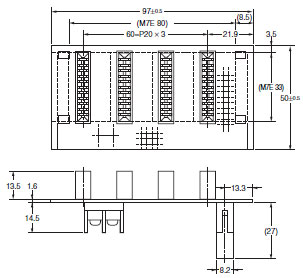

M7E-01MB4-D
