• Used for the sequential control of a variety of engineering machines and belt conveyor lines.
• Built-in oil filter shuts out oil and water.
• Approved by EN, IEC (Ground terminal models only.) and CCC (Chinese standard). Ask your OMRON representative for information on approved models.
• Ground terminal models bear the CE mark.
last update: December 19, 2013
Purchase the OMRON Multi-pole Switches Please fill in the following
If you have just landed here, this product OMRON VB Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the VB We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON VBSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NX701-1[]20 NX-Series NX701 Database Connection CPU Units/Features
E3S-CL Distance-settable Photoelectric Sensor with Metal Case/Features
EE-[] Photomicro Sensors Accessories/Features
K8AK-AW Single-phase Overcurrent/Undercurrent Relay/Features
K8DS-PM Three-phase Voltage and Phase-sequence Phase-loss Relay/Features
OMRON VB specification
VB Multiple Limit Switch/Specificationslast update: September 24, 2012
Ratings
Standard Model
Micro Load Ratings
| Rated voltage | Resistive load | |
|---|---|---|
| NC | NO | |
| 125 VAC 250 VAC | 10 A 10 A | |
| 125 VDC 250 VDC | 0.6 A 0.3 A | |
| Rated voltage | Resistive load |
|---|---|
| 125 VAC | 0.1 A |
| 8 VDC 30 VDC |
Note:The above currents are steady-state currents.
| Inrush current | NC | 24 A max. |
|---|---|---|
| NO | 24 A max. |
Characteristics
| Degree of protection | IP67 | |
|---|---|---|
| Durability * | Mechanical | 5,000,000 operations min. |
| Electrical | 300,000 operations min. (10 A at 250 VAC, resistive load) | |
| Operating speed | 0.1 mm to 0.5 m/s | |
| Operating frequency | Mechanical | 120 operations min. |
| Electrical | 30 operations min. | |
| Rated frequency | 50/60 Hz (AC) | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 15 mΩ max. (initial value) | |
| Dielectric strength | Between terminals of same polarity | 1,000 VAC/Uimp 4,000 VAC |
| Between current-carrying metal parts and ground | 1,500 VAC/Uimp 4,000 VAC | |
| Between each terminal and non- current-carrying metal part | 1,500 VAC/Uimp 4,000 VAC | |
| Between terminals of different polarity | Uimp 4 kV (EN60947-5-1) | |
| Rated insulation voltage (Ui) | 300 VAC (EN60947-5-1) | |
| Switching overvoltage | 1,000 V max. (EN60947-5-1) | |
| Pollution degree (operating environment) | 3 (EN60947-5-1) | |
| Short-circuit protective device (SCPD) | 10 A fuse type gG or gI (IEC269) | |
| Conditional short-circuit current | 100 A (EN60947-5-1) | |
| Conventional enclosed thermal current (Ithe) | 5 A, 0.5 A (EN60947-5-1) | |
| Protection against electric shock | Insulation class I (Use the grounding terminal or ground on the machine side.) | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction | 1,000 m/s2 min. |
| Malfunction | 200 m/s2 min. | |
| Ambient operating temperature | -10°C to 80°C (with no icing) | |
| Ambient operating humidity | 35% to 95% | |
| Weight | Approx. 580 g (in the case of VB-4211) | |
Note:The above values are initial values.
Note:The values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40% to 70%. Contact your OMRON sales representative for more detailed information on other operating environments.
last update: September 24, 2012
OMRON VB catalog
VB Multiple Limit Switch/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 VB Data Sheet | - [664KB] | Nov 19, 200920091119 | VB Data Sheet |
OMRON VB lineup
VB Multiple Limit Switch/Lineuplast update: September 24, 2012
| Shape of box | With flange  | Without flange  | |
|---|---|---|---|
| Conduit | Model | ||
| Roller plunger (with a 6.8-dia. roller)  | Two on the side | VB-2211 | VB-2241 |
| VB-3211 | VB-3241 | ||
| VB-4211 | VB-4241 | ||
| VB-5211 | VB-5241 | ||
| VB-6211 | VB-6241 | ||
| Four | VB-2221 | VB-2251 | |
| VB-3221 | VB-3251 | ||
| VB-4221 | VB-4251 | ||
| VB-5221 | VB-5251 | ||
| VB-6221 | VB-6251 | ||
Bevel plunger  | Two on the side | VB-2111 | VB-2141 |
| VB-3111 | VB-3141 | ||
| VB-4111 | VB-4141 | ||
| VB-5111 | VB-5141 | ||
| VB-6111 | --- | ||
| Four | VB-2121 | VB-2151 | |
| VB-3121 | VB-3151 | ||
| VB-4121 | VB-4151 | ||
| VB-5121 | --- | ||
| VB-6121 | --- | ||
Note:Note:
Note:Other than the above models, minute load models switching 0.1 A are available. When ordering a minute load model, add the suffix A to the model number (i.e., VB-2211A for example).
Note:SC connectors can be connected to VB models.
Note:Models with ground terminals are also available. When ordering a ground terminal model, add the suffix E to the model number (i.e., VB-2211E for example).
Note:Since the actuator is incorporated into the monoblock switch, the actuator cannot be replaced.
Replaceable Switch Unit
| Rating | Model |
|---|---|
| Standard load model | VB-S101N |
last update: September 24, 2012
OMRON VB dimension
VB Multiple Limit Switch/Dimensionslast update: September 24, 2012
Switches
Note:The actual model numbers of each of the above VB models have a figure 2 to 6, which indicate the number of plungers.
Bevel Plunger
VB-[]111

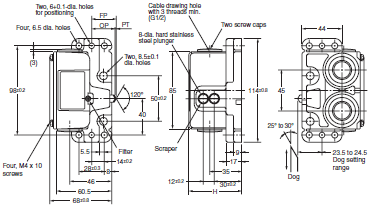

![VB Dimensions 4 VB-[]111_Dim](/images/8767/338_dm_125-111846.gif)
Bevel Plunger
VB-[]141

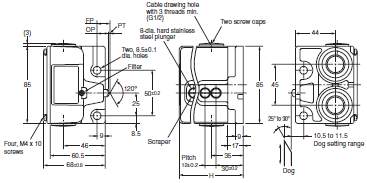

![VB Dimensions 6 VB-[]141_Dim](/images/8767/338_dm_225-111848.gif)
Roller Plunger
VB-[]211

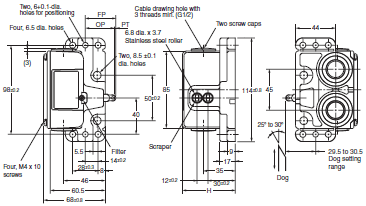

![VB Dimensions 8 VB-[]211_Dim](/images/8767/338_dm_325-111849.gif)
Roller Plunger
VB-[]241

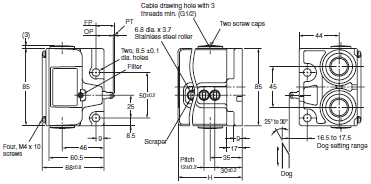

![VB Dimensions 10 VB-[]241_Dim](/images/8767/338_dm_425-111852.gif)
Note:Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

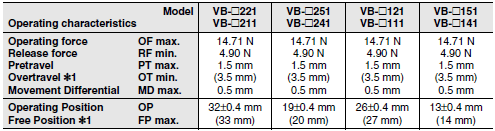

Note:The operating characteristic values apply to a single switch.
