• Visual confirmation of judgement results through display colors that switch between red and green. *1

• Measures High-speed Pulses at 50 kHz.
Provides high-speed pulse measurements up to 50 kHz of rotary encoder or ON/OFF pulse signals and can perform rotating measurement of high-speed rotating objects.

Note: No-voltage contacts of up to 30 Hz are supported.

• Six Measurement Operations Including Rotation (rpm)/Circumferential Speed, Ratio, and Cumulative
One Rotary Pulse Meter has 6 rotary pulse measurement functions to support a variety of pulse measurement applications. Select the best function for your application from the following: Rotation (rpm)/circumferential speed/instantaneous flowrate (value proportional to frequency), absolute ratio, error ratio, error, flow rate ratio, and passing speed (value inversely proportional to frequency).

• DeviceNet models added to the series. *2

*1 Visual confirmation of judgement results is not supported on models that do not have an output or models that do not
support DeviceNet.
You can change the display color by setting it, but you cannot switch it based on the judgement results.
*2 DeviceNet models have a depth of 97 mm.

last update: September 5, 2013

Purchase the OMRON Pulse Input Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON K3HB-R Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the K3HB-R We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON K3HB-RControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

61F-GPN-BT / -BC Conductive Level Controller/Features
CPM2C Compact PLC series/Features
CRT1-AD04 / DA02 Analog I/O Slave Units/Features
WS02-DIPC1 Device Inspector/Features
Cobra 650 SCARA Robots/Features

OMRON K3HB-R dimension
K3HB-R Rotary Pulse Indicator/Dimensions
last update: October 15, 2012

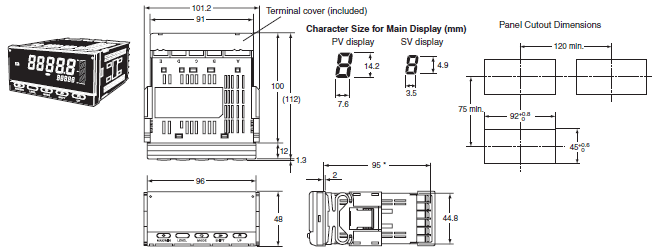

K3HB-R
