OMRON G7S-[]-E Safety Components

OMRON G7S-[]-E Dimensions

/Images/l_1446-25-118876-198x198.jpg

• Relays with forcibly guided contacts (EN50205 Class A, certified by VDE).

• Supports the CE marking of machinery (Machinery Directive).

• Helps avoid hazardous machine status when used as part of an interlocking circuit.

• Track-mounting and Back-mounting Sockets are available.

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON G7S-[]-E Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G7S-[]-E We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G7S-[]-ESafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZX1 Smart Sensor Laser Sensor with Built-in Amplifier/Features
EE-SPX613 Pipe-mounting Liquid Level Photomicrosensor with Built-in Amplifier/Features
A2A Subminiature Pushbutton Switch (Cylindrical 10.5-dia.)/Features
K3HB-V Weighing Indicator/Features
CJ1W-OC / OA / OD CJ-series Output Units/Features


OMRON G7S-[]-E specification

G7S-[]-E Relays with Forcibly Guided Contacts/Specifications

Specifications

Ratings

Safety Relay Unit

Coil

Rated voltageRated current (mA)Coil resistance (Ω)Max. voltage (V)Power consumption (W)
24 VDC30800110%Approx. 0.8
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.
           2. The maximum voltage is based on an ambient operating temperature of 23°C maximum.

Contacts

LoadResistive load
Rated loadNO contact10 A at 250 VAC
10 A at 30 VDC
NC contact6 A at 250 VAC
6 A at 30 VDC
Rated carry currentNO contact10 A
NC contact6 A
Maximum switching voltage250 VAC, 30 VDC
Maximum switching currentNO contact10 A
NC contact6 A

Characteristics

Safety Relay Unit

Contact resistance *1100 mΩ max.
Operating time *250 ms max.
Release time *250 ms max.
Must operate voltage80% max.
Must release voltage10% min.
Maximum operating
frequency
Mechanical18,000 operations/h
Rated load1,800 operations/h
Insulation resistance *3100 MΩ min.
Dielectric strength *4 *5Between coil and contacts:
Between coil and pole 3 or coil and pole 4: 4,000 VAC, 50/60 Hz for 1 min
Other than the above:2,500 VAC, 50/60 Hz for 1 min
Between different poles:
Between pole 1, 3, or 5 and pole 2, 4, or 6: 4,000 VAC, 50/60 Hz for 1 min
Other than the above:2,500 VAC, 50/60 Hz for 1 min
Between contacts of same polarity:1,500 VAC, 50/60 Hz for 1 min
Vibration resistanceDestruction10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistanceDestruction1,000 m/s2
Malfunction100 m/s2
Durability *6Mechanical10,000,000 operations min. (at approx. 18,000 operations/h)
Electrical100,000 operations min. (at the rated load and approx. 1,800 operations/h)
Inductive load
switching capability *7
(IEC60947-5-1)
NO ContactAC15 AC240V 5A
DC13 DC24V 2A
NC ContactAC15 AC240V 3A
DC13 DC24V 2A
Failure rate (P level)
(reference value *8)
5 VDC, 1 mA
Ambient operating temperature-25 to 70°C (with no icing or condensation)
Ambient operating humidity5% to 85%
WeightApprox. 65 g
Note: 1. The above values are initial values.
           2. Performance characteristics are based on a coil temparature of 23°C.
*1. Measurement conditions: 5 VDC, 10 mA, voltage drop method.
*2. Measurement conditions: Rated voltage operation
         Ambient operating temperature: 23°C
         Contact bounce time is not included.
*3. The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric
        strength was measured.
*4. When using a P7S Socket, the dielectric strength between coil and contacts and between different poles is 2,000 VAC,
        50/60 Hz for 1 min.
*5. The coil refers to terminals 0-1, pole 1 refers to terminals 13−14, pole 2 refers to terminals 23−24, pole 3 refers to
        terminals 33−34, pole 4 refers to terminals 41−42 or 43−44, pole 5 refers to terminals 51−52, and pole 6 refers to
        terminals 61−62.
*6. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%.
*7. AC15: cosφ = 0.3, DC13: L/R = 96-ms
*8. The failure rate is based on an operating frequency of 60 operations/min.

Options (order separately)

Sockets

ModelP7S-14F-ENDP7S-14P-E
Continuous current10 A
Dielectric
strength
Between contact terminals of different polarity2000 VAC for 1 min.
Between contact terminals of same polarity1500 VAC for 1 min.
Between coil and contact terminals2000 VAC for 1 min.
Insulation resistance1000 MΩ min. *
WeightApprox. 110gApprox. 25g

Note: Use the P7S-14F-END in the ambient humidity range of 25 to 85%, the P7SA-14P-E in the ambient humidity range of 5 to 85%.
* Measurement conditions: Measurement of the same points as for the dielectric strength at 500 VDC.

Certified Standards

Safety Relay Unit

EN Standards, VDE Certified

ModelsRatingsStandard numberCertification No.Operating coilContact ratings
G7S-3A3B-E
G7S-4A2B-E
24 VDCEN61810-1
IEC61810-3
4001195124 VDCNO Contact:
10 A 250 VAC (Resistive)
10 A 30 VDC (Resistive)
NC Contact:
6 A 250 VAC (Resistive)
6 A 30 VDC (Resistive)

UL Standards Certification (File No. E41515) Industrial Control Devices

ModelsStandard numberCategoryListed/
Recognized
Contact ratingsOperating Coil
ratings
G7S-3A3B-E
G7S-4A2B-E
UL508NRNT2RecognizedNO Contact:
10 A per pole, 20 A total,
277 VAC (Resistive)
NC Contact:
6 A per pole, 20 A total,
277 VAC (Resistive)
24 VDC

CSA standard CSA C22.2 No.14 Industrial Control Devices

ModelsClass numberFile No.Contact ratingsOperating Coil ratings
G7S-3A3B-E
G7S-4A2B-E
3211-07LR35535NO Contact:
10 A per pole, 20 A total,
277 VAC (Resistive)
NC Contact:
6A per pole, 20 A total,
277 VAC (Resistive)
24 VDC

Sockets

CE Marking Compliance

ModelsEMC DirectiveLow Voltage
Directive
Machinery
Directive
Safety Category
P7S-14F-END
P7S-14P-E
Not applicableNot applicable1

The CE compliance declaration was made in combination with the Safety Relay.
Note: 1. The Safety Category refers to the maximum applicable category selected when constructing control system
          safety components. The category does not apply to individual components.
          2. Details and other information on conformity levels are issued as part of the "EU Declaration of Conformity".
          Please contact your OMRON representative for more information.

EN Standards, VDE Certified

ModelsStandard numberCertification No.
P7S-14F-END
P7S-14P-E
EN6198440007595

UL Standards Certification (File No. E87929) Industrial Control Devices

ModelsStandard numberCategoryListed/Recognized
P7S-14F-END
P7S-14P-E
UL508SWIV2Recognized

CSA standard CSA C22.2 No.14 and CSA C22.2 No. 158 Industrial Control Devices

ModelsClass numberFile No.
P7S-14F-END
P7S-14P-E
3211 07LR35535


OMRON G7S-[]-E dimension

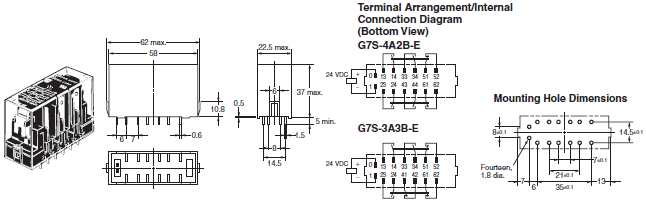

G7S-[]-E Relays with Forcibly Guided Contacts/Dimensions

Relays with Forcibly Guided Contacts

G7S-4A2B-E
G7S-3A3B-E

G7S-[]-E Dimensions 2

Sockets

Track-mounting Socket
P7S-14F-END

G7S-[]-E Dimensions 4

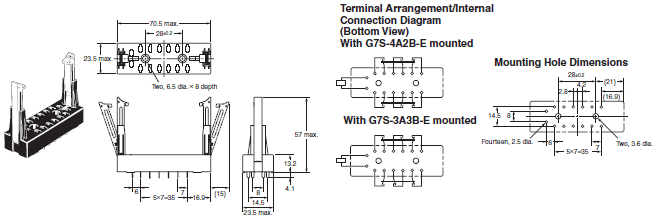

Back-mounting Socket (PCB Terminals)
P7S-14P-E

G7S-[]-E Dimensions 5


OMRON G7S-[]-E catalog

G7S-[]-E Relays with Forcibly Guided Contacts/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size]
Last Update
G7S-[]-E Data Sheet -
[863KB]
Jun 25, 201820180625 G7S-[]-E Data Sheet


OMRON G7S-[]-E lineup

G7S-[]-E Relays with Forcibly Guided Contacts/Lineup

Main unit

Relays with Forcibly Guided Contacts

TypePolesContact configurationRated voltageModel
Standard6 poles4PST-NO, DPST-NC24 VDCG7S-4A2B-E
3PST-NO, 3PST-NCG7S-3A3B-E

Options (order separately)

Sockets

Type4Rated voltageModel
Track-mountingCommon for track mounting and screw mounting24 VDCP7S-14F-END
Back-mountingPCB terminals---P7S-14P-E
