• The ES1B has an electromotive output as high as that of a thermocouple, thus connecting directly to the thermocouple input terminal of the Temperature Controller is possible.
• Four temperature ranges are available to cover a wide range of temperature measurement needs, including those in the food processing, packaging, molding, and electronics industries.
• High-accuracy temperature measurement is ensured by a high-speed response of 300 ms (for a 63% response) and an indication reproducibility of ±1% PV.
• Unlike thermocouples, the Thermosensor does not deteriorate.
Therefore, stable, real-time temperature control can be maintained.
last update: December 19, 2013
Purchase the OMRON Input Equipments Please fill in the following
If you have just landed here, this product OMRON ES1B Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ES1B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ES1BControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A General-purpose Basic Switch/Features
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Features
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features
K3HB-H Temperature Indicator/Features
WS02-ALDC1 DeviceNet Analyzer/Features
OMRON ES1B lineup
ES1B Infrared Thermosensor/Lineuplast update: August 05, 2015
When your order, specify the temperature range.
| Appearance and sensing characteristic | Specification (temperature range) | Model |
|---|---|---|
 | 10 to 70°C | ES1B |
| 60 to 120°C | ||
| 115 to 165°C | ||
| 140 to 260°C |
last update: August 05, 2015
OMRON ES1B specification
ES1B Infrared Thermosensor/Specificationslast update: August 05, 2015
| Item | ES1B | |
|---|---|---|
| Power supply voltage | 12/24 VDC | |
| Operating voltage range | 90% to 110% of the power supply voltage | |
| Current consumption | 20 mA max. | |
| Measuring temperature range | 10 to 70°C, 60 to 120°C, 115 to 165°C, 140 to 260°C | |
| Accuracy (See note 1.) | ±5°C (See note 2.) | ±2% PV or ±2°C, whichever is larger |
| ±10°C (See note 2.) | ±4% PV or ±4°C, whichever is larger | |
| ±30°C (See note 2.) | ±6% PV or ±6°C, whichever is larger | |
| ±40°C (See note 2.) | ±8% PV or ±8°C, whichever is larger | |
| Reproducibility | ±1% PV or ±1°C, whichever is larger | |
| Temperature drift | 0.4°C/°C max. | |
| Influence of EMS | Radiated electromagnetic field immunity | ±10°C max. (80 - 800 MHz) |
| ±30°C max. (800 - 1000 MHz) | ||
| Imunity Conducted Disturbance | ±10°C max. | |
| Sensing distance vs. sensing diameter | 1:1 typ. | |
| Measurement wavelength | 6.5 to 14.0 μm | |
| Receiver element | Thermopile | |
| Response speed | Approximately 300 ms at response rate of 63% | |
| Output impedance | 1 to 4 kΩ | |
| Operating temperature | -25°C to 70°C (with no icing or condensation) | |
| Allowable ambient humidity | 35% to 85% | |
| Vibration resistance (destruction) | 98 m/s2 for 2 hours each in X, Y, and Z directions at 10 to 55 Hz | |
| Shock resistance (destruction) | 300 m/s2 for 3 times each in X, Y, and Z directions | |
| Casing material | ABS resin | |
| Degree of protection | IP65 | |
| Applicable safety standards | CE Making (See note 3.) | |
| Weight | Approx. 120 g | |
| Cable | Compensating conductor: 3 m | |
| PVC-covered cable with a shield wire resisting 70°C | ||
Note: 1. Based on characteristics of K-type thermocouple and radiation rate of 0.98.
2. The accuracy is given as the change in temperature from any reference temperature of the sensing object. For
example, if the reference temperature is 50°C, the accuracy at 55°C would be ±2% PV or ±2°C, whichever is larger
and the accuracy at 60°C would be ±4% PV or ±4°C, whichever is larger.
3. EN 61326-1 : Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
last update: August 05, 2015
OMRON ES1B catalog
ES1B Infrared Thermosensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ES1B Data Sheet | - [532KB] | Aug 01, 201720170801 | ES1B Data Sheet |
OMRON ES1B dimension

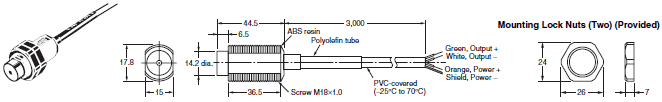

ES1B Infrared Thermosensor/Dimensionslast update: September 24, 2012
