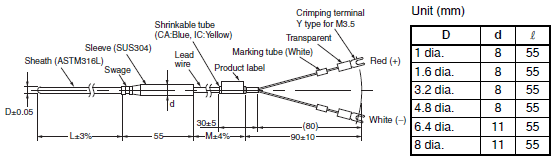

OMRON E52 (General purpose Models) Dimensions
/Images/l_3150-25-147262-198x198.jpglast update: April 1, 2016
• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.
• Ideal for the thermal input devices of Temperature Controllers.
• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.
last update: April 1, 2016
Purchase the OMRON Input Equipments Please fill in the following
If you have just landed here, this product OMRON E52 (General purpose Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 (General purpose Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 (General purpose Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G9SA Safety Relay Unit/Features
CJ1W-TC CJ Series Temperature Control Unit/Features
H3CA Solid-state Timer/Features
CJ1W-IDP01 CJ-series Quick-response Input Units/Features
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Features
OMRON E52 (General purpose Models) lineup
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Lineuplast update: June 15, 2016
| Description | Model and appearance | Tem- perature range (See note 2.) | Element type | Conductor type | Class | Protective tubing material | Terminal type | |
|---|---|---|---|---|---|---|---|---|
| Sheathed platinum resistance thermometer | E52-P[]AY |  | -196°C to 450°C | Pt100 | 3- conductor system | B | SUS316 | Exposed lead wires |
| E52-P[]C-N |  | -196°C to 450°C | ASTM316L | Enclosed terminals | ||||
| E52-P[]B-N |  | Exposed terminals | ||||||
| Standard platinum resistance thermometer | E52-P[]C-N |  | 0°C to 450°C | SUS316 | Enclosed terminals | |||
| Sheathed thermocouple | E52-CA[]AY E52-IC[]AY |  | 0°C to 900°C | K (CA) J (IC) | Non- grounded type | 2 (0.75) | ASTM316L | Exposed lead wires |
| E52-CA[]B-N E52-IC[]B-N |  | Exposed terminals | ||||||
| E52-CA[]C-N E52-IC[]C-N |  | Enclosed terminals | ||||||
| Standard thermocouple | E52-CA[]B-N E52-IC[]B-N |  | SUS316 | Exposed terminals | ||||
| E52-CA[]C-N E52-IC[]C-N |  | Enclosed terminals | ||||||
| E52-PR[]C-N |  | 0°C to 1,400°C | R (PR) | 2 (0.25) | JIS ceramic JIS special ceramic | Enclosed terminals | ||
before use.
2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.
Sheathed Platinum Resistance Thermometers

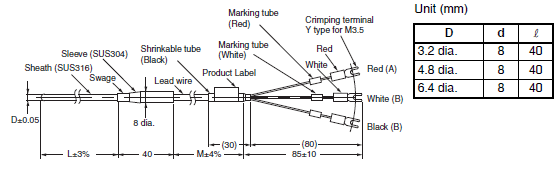

Exposed-lead Models
E52-P[]AY
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 1 | 2 | ||||
| Model | |||||
| Exposed- lead Models | 3.2 dia. | 15 | Standard | E52-P15AY D=3.2 1M | E52-P15AY D=3.2 2M |
| Heat resistive | E52-P15AY D=3.2 NETU 1M | E52-P15AY D=3.2 NETU 2M | |||
| 20 | Standard | E52-P20AY D=3.2 1M | E52-P20AY D=3.2 2M | ||
| Heat resistive | E52-P20AY D=3.2 NETU 1M | E52-P20AY D=3.2 NETU 2M | |||
| 35 | Standard | E52-P35AY D=3.2 1M | E52-P35AY D=3.2 2M | ||
| Heat resistive | E52-P35AY D=3.2 NETU 1M | E52-P35AY D=3.2 NETU 2M | |||
| 4.8 dia. | 20 | Standard | E52-P20AY D=4.8 1M | E52-P20AY D=4.8 2M | |
| Heat resistive | E52-P20AY D=4.8 NETU 1M | E52-P20AY D=4.8 NETU 2M | |||
| 35 | Standard | E52-P35AY D=4.8 1M | E52-P35AY D=4.8 2M | ||
| Heat resistive | E52-P35AY D=4.8 NETU 1M | E52-P35AY D=4.8 NETU 2M | |||
| 50 | Standard | E52-P50AY D=4.8 1M | E52-P50AY D=4.8 2M | ||
| Heat resistive | E52-P50AY D=4.8 NETU 1M | E52-P50AY D=4.8 NETU 2M | |||
| 6.4 dia. | 20 | Standard | E52-P20AY D=6.4 1M | E52-P20AY D=6.4 2M | |
| Heat resistive | E52-P20AY D=6.4 NETU 1M | E52-P20AY D=6.4 NETU 2M | |||
| 35 | Standard | E52-P35AY D=6.4 1M | E52-P35AY D=6.4 2M | ||
| Heat resistive | E52-P35AY D=6.4 NETU 1M | E52-P35AY D=6.4 NETU 2M | |||
| 50 | Standard | E52-P50AY D=6.4 1M | E52-P50AY D=6.4 2M | ||
| Heat resistive | E52-P50AY D=6.4 NETU 1M | E52-P50AY D=6.4 NETU 2M | |||
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 4 | 8 | ||||
| Model | |||||
| Exposed- lead Models | 3.2 dia. | 15 | Standard | E52-P15AY D=3.2 4M | E52-P15AY D=3.2 8M |
| Heat resistive | E52-P15AY D=3.2 NETU 4M | E52-P15AY D=3.2 NETU 8M | |||
| 20 | Standard | E52-P20AY D=3.2 4M | E52-P20AY D=3.2 8M | ||
| Heat resistive | E52-P20AY D=3.2 NETU 4M | E52-P20AY D=3.2 NETU 8M | |||
| 35 | Standard | E52-P35AY D=3.2 4M | E52-P35AY D=3.2 8M | ||
| Heat resistive | E52-P35AY D=3.2 NETU 4M | E52-P35AY D=3.2 NETU 8M | |||
| 4.8 dia. | 20 | Standard | E52-P20AY D=4.8 4M | E52-P20AY D=4.8 8M | |
| Heat resistive | E52-P20AY D=4.8 NETU 4M | E52-P20AY D=4.8 NETU 8M | |||
| 35 | Standard | E52-P35AY D=4.8 4M | E52-P35AY D=4.8 8M | ||
| Heat resistive | E52-P35AY D=4.8 NETU 4M | E52-P35AY D=4.8 NETU 8M | |||
| 50 | Standard | E52-P50AY D=4.8 4M | E52-P50AY D=4.8 8M | ||
| Heat resistive | E52-P50AY D=4.8 NETU 4M | E52-P50AY D=4.8 NETU 8M | |||
| 6.4 dia. | 20 | Standard | E52-P20AY D=6.4 4M | E52-P20AY D=6.4 8M | |
| Heat resistive | E52-P20AY D=6.4 NETU 4M | E52-P20AY D=6.4 NETU 8M | |||
| 35 | Standard | E52-P35AY D=6.4 4M | E52-P35AY D=6.4 8M | ||
| Heat resistive | E52-P35AY D=6.4 NETU 4M | E52-P35AY D=6.4 NETU 8M | |||
| 50 | Standard | E52-P50AY D=6.4 4M | E52-P50AY D=6.4 8M | ||
| Heat resistive | E52-P50AY D=6.4 NETU 4M | E52-P50AY D=6.4 NETU 8M | |||

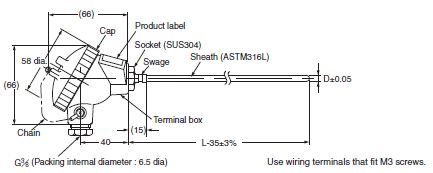

Enclosed-terminal Models
E52-P[]C-N
| Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |||
|---|---|---|---|---|---|
| 3.2 dia. | 4.8 dia. | 6.4 dia. | 8 dia. | ||
| Model | |||||
| Enclosed- terminal Models | 20 | E52-P20C-N D=3.2 | E52-P20C-N D=4.8 | E52-P20C-N D=6.4 | E52-P20C-N D=8 |
| 35 | E52-P35C-N D=3.2 | E52-P35C-N D=4.8 | E52-P35C-N D=6.4 | E52-P35C-N D=8 | |
| 50 | E52-P50C-N D=3.2 | E52-P50C-N D=4.8 | E52-P50C-N D=6.4 | E52-P50C-N D=8 | |
| 75 | --- | E52-P75C-N D=4.8 | E52-P75C-N D=6.4 | --- | |

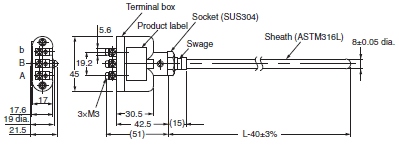

Exposed-terminal Models
E52-P[]B-N
| Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) |
|---|---|---|
| 8 dia. | ||
| Model | ||
| Exposed-terminal Models | 20 | E52-P20B-N D=8 |
| 35 | E52-P35B-N D=8 | |
| 50 | E52-P50B-N D=8 |

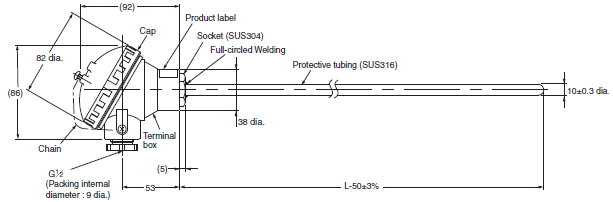

Standard Platinum Resistance Thermometers
Enclosed-terminal Models
E52-P[]C-N
| Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) |
|---|---|---|
| 10 dia. | ||
| Model | ||
| Enclosed-terminal Models | 35 | E52-P35C-N D=10 |
| 50 | E52-P50C-N D=10 | |
| 75 | E52-P75C-N D=10 | |
| 100 | E52-P100C-N D=10 |
Sheathed Thermocouples

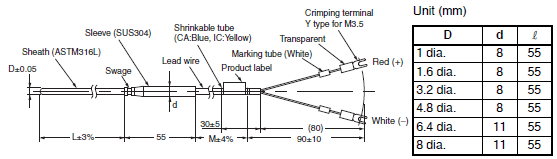

Exposed-lead Models
E52-CA[]AY
K (CA) Model Information (E52-CA[]AY)
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 1 | 2 | ||||
| Model | |||||
| Exposed- lead Models | 1 dia. | 15 | Standard | E52-CA15AY D=1 1M | E52-CA15AY D=1 2M |
| Heat resistive | E52-CA15AY D=1 NETU 1M | E52-CA15AY D=1 NETU 2M | |||
| 20 | Standard | E52-CA20AY D=1 1M | E52-CA20AY D=1 2M | ||
| Heat resistive | E52-CA20AY D=1 NETU 1M | E52-CA20AY D=1 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=1 1M | E52-CA35AY D=1 2M | ||
| Heat resistive | E52-CA35AY D=1 NETU 1M | E52-CA35AY D=1 NETU 2M | |||
| 1.6 dia. | 15 | Standard | E52-CA15AY D=1.6 1M | E52-CA15AY D=1.6 2M | |
| Heat resistive | E52-CA15AY D=1.6 NETU 1M | E52-CA15AY D=1.6 NETU 2M | |||
| 20 | Standard | E52-CA20AY D=1.6 1M | E52-CA20AY D=1.6 2M | ||
| Heat resistive | E52-CA20AY D=1.6 NETU 1M | E52-CA20AY D=1.6 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=1.6 1M | E52-CA35AY D=1.6 2M | ||
| Heat resistive | E52-CA35AY D=1.6 NETU 1M | E52-CA35AY D=1.6 NETU 2M | |||
| 3.2 dia. | 15 | Standard | E52-CA15AY D=3.2 1M | E52-CA15AY D=3.2 2M | |
| Heat resistive | E52-CA15AY D=3.2 NETU 1M | E52-CA15AY D=3.2 NETU 2M | |||
| 20 | Standard | E52-CA20AY D=3.2 1M | E52-CA20AY D=3.2 2M | ||
| Heat resistive | E52-CA20AY D=3.2 NETU 1M | E52-CA20AY D=3.2 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=3.2 1M | E52-CA35AY D=3.2 2M | ||
| Heat resistive | E52-CA35AY D=3.2 NETU 1M | E52-CA35AY D=3.2 NETU 2M | |||
| 50 | Standard | E52-CA50AY D=3.2 1M | E52-CA50AY D=3.2 2M | ||
| Heat resistive | E52-CA50AY D=3.2 NETU 1M | E52-CA50AY D=3.2 NETU 2M | |||
| 4.8 dia. | 20 | Standard | E52-CA20AY D=4.8 1M | E52-CA20AY D=4.8 2M | |
| Heat resistive | E52-CA20AY D=4.8 NETU 1M | E52-CA20AY D=4.8 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=4.8 1M | E52-CA35AY D=4.8 2M | ||
| Heat resistive | E52-CA35AY D=4.8 NETU 1M | E52-CA35AY D=4.8 NETU 2M | |||
| 50 | Standard | E52-CA50AY D=4.8 1M | E52-CA50AY D=4.8 2M | ||
| Heat resistive | E52-CA50AY D=4.8 NETU 1M | E52-CA50AY D=4.8 NETU 2M | |||
| 6.4 dia. | 20 | Standard | E52-CA20AY D=6.4 1M | E52-CA20AY D=6.4 2M | |
| Heat resistive | E52-CA20AY D=6.4 NETU 1M | E52-CA20AY D=6.4 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=6.4 1M | E52-CA35AY D=6.4 2M | ||
| Heat resistive | E52-CA35AY D=6.4 NETU 1M | E52-CA35AY D=6.4 NETU 2M | |||
| 50 | Standard | E52-CA50AY D=6.4 1M | E52-CA50AY D=6.4 2M | ||
| Heat resistive | E52-CA50AY D=6.4 NETU 1M | E52-CA50AY D=6.4 NETU 2M | |||
| 8 dia. | 20 | Standard | E52-CA20AY D=8 1M | E52-CA20AY D=8 2M | |
| Heat resistive | E52-CA20AY D=8 NETU 1M | E52-CA20AY D=8 NETU 2M | |||
| 35 | Standard | E52-CA35AY D=8 1M | E52-CA35AY D=8 2M | ||
| Heat resistive | E52-CA35AY D=8 NETU 1M | E52-CA35AY D=8 NETU 2M | |||
| 50 | Standard | E52-CA50AY D=8 1M | E52-CA50AY D=8 2M | ||
| Heat resistive | E52-CA50AY D=8 NETU 1M | E52-CA50AY D=8 NETU 2M | |||
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | |
|---|---|---|---|---|---|
| 4 | 8 | ||||
| Model | |||||
| Exposed- lead Models | 1 dia. | 15 | Standard | E52-CA15AY D=1 4M | E52-CA15AY D=1 8M |
| Heat resistive | E52-CA15AY D=1 NETU 4M | E52-CA15AY D=1 NETU 8M | |||
| 20 | Standard | E52-CA20AY D=1 4M | E52-CA20AY D=1 8M | ||
| Heat resistive | E52-CA20AY D=1 NETU 4M | E52-CA20AY D=1 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=1 4M | E52-CA35AY D=1 8M | ||
| Heat resistive | E52-CA35AY D=1 NETU 4M | E52-CA35AY D=1 NETU 8M | |||
| 1.6 dia. | 15 | Standard | E52-CA15AY D=1.6 4M | E52-CA15AY D=1.6 8M | |
| Heat resistive | E52-CA15AY D=1.6 NETU 4M | E52-CA15AY D=1.6 NETU 8M | |||
| 20 | Standard | E52-CA20AY D=1.6 4M | E52-CA20AY D=1.6 8M | ||
| Heat resistive | E52-CA20AY D=1.6 NETU 4M | E52-CA20AY D=1.6 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=1.6 4M | E52-CA35AY D=1.6 8M | ||
| Heat resistive | E52-CA35AY D=1.6 NETU 4M | E52-CA35AY D=1.6 NETU 8M | |||
| 3.2 dia. | 15 | Standard | E52-CA15AY D=3.2 4M | E52-CA15AY D=3.2 8M | |
| Heat resistive | E52-CA15AY D=3.2 NETU 4M | E52-CA15AY D=3.2 NETU 8M | |||
| 20 | Standard | E52-CA20AY D=3.2 4M | E52-CA20AY D=3.2 8M | ||
| Heat resistive | E52-CA20AY D=3.2 NETU 4M | E52-CA20AY D=3.2 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=3.2 4M | E52-CA35AY D=3.2 8M | ||
| Heat resistive | E52-CA35AY D=3.2 NETU 4M | E52-CA35AY D=3.2 NETU 8M | |||
| 50 | Standard | E52-CA50AY D=3.2 4M | E52-CA50AY D=3.2 8M | ||
| Heat resistive | E52-CA50AY D=3.2 NETU 4M | E52-CA50AY D=3.2 NETU 8M | |||
| 4.8 dia. | 20 | Standard | E52-CA20AY D=4.8 4M | E52-CA20AY D=4.8 8M | |
| Heat resistive | E52-CA20AY D=4.8 NETU 4M | E52-CA20AY D=4.8 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=4.8 4M | E52-CA35AY D=4.8 8M | ||
| Heat resistive | E52-CA35AY D=4.8 NETU 4M | E52-CA35AY D=4.8 NETU 8M | |||
| 50 | Standard | E52-CA50AY D=4.8 4M | E52-CA50AY D=4.8 8M | ||
| Heat resistive | E52-CA50AY D=4.8 NETU 4M | E52-CA50AY D=4.8 NETU 8M | |||
| 6.4 dia. | 20 | Standard | E52-CA20AY D=6.4 4M | E52-CA20AY D=6.4 8M | |
| Heat resistive | E52-CA20AY D=6.4 NETU 4M | E52-CA20AY D=6.4 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=6.4 4M | E52-CA35AY D=6.4 8M | ||
| Heat resistive | E52-CA35AY D=6.4 NETU 4M | E52-CA35AY D=6.4 NETU 8M | |||
| 50 | Standard | E52-CA50AY D=6.4 4M | E52-CA50AY D=6.4 8M | ||
| Heat resistive | E52-CA50AY D=6.4 NETU 4M | E52-CA50AY D=6.4 NETU 8M | |||
| 8 dia. | 20 | Standard | E52-CA20AY D=8 4M | E52-CA20AY D=8 8M | |
| Heat resistive | E52-CA20AY D=8 NETU 4M | E52-CA20AY D=8 NETU 8M | |||
| 35 | Standard | E52-CA35AY D=8 4M | E52-CA35AY D=8 8M | ||
| Heat resistive | E52-CA35AY D=8 NETU 4M | E52-CA35AY D=8 NETU 8M | |||
| 50 | Standard | E52-CA50AY D=8 4M | E52-CA50AY D=8 8M | ||
| Heat resistive | E52-CA50AY D=8 NETU 4M | E52-CA50AY D=8 NETU 8M | |||
Exposed-lead Models
E52-IC[]AY
| Terminal type | Protective tubing diameter D (mm) | Protective tubing length L (cm) | Lead wire type | Lead wire length M (m) | ||
|---|---|---|---|---|---|---|
| 1 | 2 | 4 | ||||
| Model | ||||||
| Exposed- lead Models | 1 dia. | 15 | Standard | E52-IC15AY D=1 1M | E52-IC15AY D=1 2M | E52-IC15AY D=1 4M |
| Heat resistive | E52-IC15AY D=1 NETU 1M | E52-IC15AY D=1 NETU 2M | E52-IC15AY D=1 NETU 4M | |||
| 20 | Standard | E52-IC20AY D=1 1M | E52-IC20AY D=1 2M | E52-IC20AY D=1 4M | ||
| Heat resistive | E52-IC20AY D=1 NETU 1M | E52-IC20AY D=1 NETU 2M | E52-IC20AY D=1 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=1 1M | E52-IC35AY D=1 2M | E52-IC35AY D=1 4M | ||
| Heat resistive | E52-IC35AY D=1 NETU 1M | E52-IC35AY D=1 NETU 2M | E52-IC35AY D=1 NETU 4M | |||
| 1.6 dia. | 15 | Standard | E52-IC15AY D=1.6 1M | E52-IC15AY D=1.6 2M | E52-IC15AY D=1.6 4M | |
| Heat resistive | E52-IC15AY D=1.6 NETU 1M | E52-IC15AY D=1.6 NETU 2M | E52-IC15AY D=1.6 NETU 4M | |||
| 20 | Standard | E52-IC20AY D=1.6 1M | E52-IC20AY D=1.6 2M | E52-IC20AY D=1.6 4M | ||
| Heat resistive | E52-IC20AY D=1.6 NETU 1M | E52-IC20AY D=1.6 NETU 2M | E52-IC20AY D=1.6 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=1.6 1M | E52-IC35AY D=1.6 2M | E52-IC35AY D=1.6 4M | ||
| Heat resistive | E52-IC35AY D=1.6 NETU 1M | E52-IC35AY D=1.6 NETU 2M | E52-IC35AY D=1.6 NETU 4M | |||
| 3.2 dia. | 15 | Standard | E52-IC15AY D=3.2 1M | E52-IC15AY D=3.2 2M | E52-IC15AY D=3.2 4M | |
| Heat resistive | E52-IC15AY D=3.2 NETU 1M | E52-IC15AY D=3.2 NETU 2M | E52-IC15AY D=3.2 NETU 4M | |||
| 20 | Standard | E52-IC20AY D=3.2 1M | E52-IC20AY D=3.2 2M | E52-IC20AY D=3.2 4M | ||
| Heat resistive | E52-IC20AY D=3.2 NETU 1M | E52-IC20AY D=3.2 NETU 2M | E52-IC20AY D=3.2 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=3.2 1M | E52-IC35AY D=3.2 2M | E52-IC35AY D=3.2 4M | ||
| Heat resistive | E52-IC35AY D=3.2 NETU 1M | E52-IC35AY D=3.2 NETU 2M | E52-IC35AY D=3.2 NETU 4M | |||
| 50 | Standard | E52-IC50AY D=3.2 1M | E52-IC50AY D=3.2 2M | E52-IC50AY D=3.2 4M | ||
| Heat resistive | E52-IC50AY D=3.2 NETU 1M | E52-IC50AY D=3.2 NETU 2M | E52-IC50AY D=3.2 NETU 4M | |||
| 4.8 dia. | 20 | Standard | E52-IC20AY D=4.8 1M | E52-IC20AY D=4.8 2M | E52-IC20AY D=4.8 4M | |
| Heat resistive | E52-IC20AY D=4.8 NETU 1M | E52-IC20AY D=4.8 NETU 2M | E52-IC20AY D=4.8 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=4.8 1M | E52-IC35AY D=4.8 2M | E52-IC35AY D=4.8 4M | ||
| Heat resistive | E52-IC35AY D=4.8 NETU 1M | E52-IC35AY D=4.8 NETU 2M | E52-IC35AY D=4.8 NETU 4M | |||
| 50 | Standard | E52-IC50AY D=4.8 1M | E52-IC50AY D=4.8 2M | E52-IC50AY D=4.8 4M | ||
| Heat resistive | E52-IC50AY D=4.8 NETU 1M | E52-IC50AY D=4.8 NETU 2M | E52-IC50AY D=4.8 NETU 4M | |||
| 6.4 dia. | 20 | Standard | E52-IC20AY D=6.4 1M | E52-IC20AY D=6.4 2M | E52-IC20AY D=6.4 4M | |
| Heat resistive | E52-IC20AY D=6.4 NETU 1M | E52-IC20AY D=6.4 NETU 2M | E52-IC20AY D=6.4 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=6.4 1M | E52-IC35AY D=6.4 2M | E52-IC35AY D=6.4 4M | ||
| Heat resistive | E52-IC35AY D=6.4 NETU 1M | E52-IC35AY D=6.4 NETU 2M | E52-IC35AY D=6.4 NETU 4M | |||
| 50 | Standard | E52-IC50AY D=6.4 1M | E52-IC50AY D=6.4 2M | E52-IC50AY D=6.4 4M | ||
| Heat resistive | E52-IC50AY D=6.4 NETU 1M | E52-IC50AY D=6.4 NETU 2M | E52-IC50AY D=6.4 NETU 4M | |||
| 8 dia. | 20 | Standard | E52-IC20AY D=8 1M | E52-IC20AY D=8 2M | E52-IC20AY D=8 4M | |
| Heat resistive | E52-IC20AY D=8 NETU 1M | E52-IC20AY D=8 NETU 2M | E52-IC20AY D=8 NETU 4M | |||
| 35 | Standard | E52-IC35AY D=8 1M | E52-IC35AY D=8 2M | E52-IC35AY D=8 4M | ||
| Heat resistive | E52-IC35AY D=8 NETU 1M | E52-IC35AY D=8 NETU 2M | E52-IC35AY D=8 NETU 4M | |||
| 50 | Standard | E52-IC50AY D=8 1M | E52-IC50AY D=8 2M | E52-IC50AY D=8 4M | ||
| Heat resistive | E52-IC50AY D=8 NETU 1M | E52-IC50AY D=8 NETU 2M | E52-IC50AY D=8 NETU 4M | |||
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 3.2 dia. | 4.8 dia. | |||
| Model | ||||
| K (CA) | Exposed-terminal Models | 20 | E52-CA20B-N D=3.2 | E52-CA20B-N D=4.8 |
| 35 | E52-CA35B-N D=3.2 | E52-CA35B-N D=4.8 | ||
| 50 | E52-CA50B-N D=3.2 | E52-CA50B-N D=4.8 | ||
| 75 | --- | E52-CA75B-N D=4.8 | ||
| J (IC) | Exposed-terminal Models | 20 | E52-IC20B-N D=3.2 | E52-IC20B-N D=4.8 |
| 35 | E52-IC35B-N D=3.2 | E52-IC35B-N D=4.8 | ||
| 50 | E52-IC50B-N D=3.2 | E52-IC50B-N D=4.8 | ||
| 75 | --- | E52-IC75B-N D=4.8 | ||
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 6.4 dia. | 8 dia. | |||
| Model | ||||
| K (CA) | Exposed-terminal Models | 20 | E52-CA20B-N D=6.4 | --- |
| 35 | E52-CA35B-N D=6.4 | E52-CA35B-N D=8 | ||
| 50 | E52-CA50B-N D=6.4 | E52-CA50B-N D=8 | ||
| 75 | E52-CA75B-N D=6.4 | E52-CA75B-N D=8 | ||
| J (IC) | Exposed-terminal Models | 20 | E52-IC20B-N D=6.4 | --- |
| 35 | E52-IC35B-N D=6.4 | E52-IC35B-N D=8 | ||
| 50 | E52-IC50B-N D=6.4 | E52-IC50B-N D=8 | ||
| 75 | E52-IC75B-N D=6.4 | E52-IC75B-N D=8 | ||
Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 3.2 dia. | 4.8 dia. | |||
| Model | ||||
| K (CA) | Enclosed-terminal Models | 20 | E52-CA20C-N D=3.2 | E52-CA20C-N D=4.8 |
| 35 | E52-CA35C-N D=3.2 | E52-CA35C-N D=4.8 | ||
| 50 | E52-CA50C-N D=3.2 | E52-CA50C-N D=4.8 | ||
| 75 | --- | E52-CA75C-N D=4.8 | ||
| J (IC) | Enclosed-terminal Models | 20 | E52-IC20C-N D=3.2 | E52-IC20C-N D=4.8 |
| 35 | E52-IC35C-N D=3.2 | E52-IC35C-N D=4.8 | ||
| 50 | E52-IC50C-N D=3.2 | E52-IC50C-N D=4.8 | ||
| 75 | --- | E52-IC75C-N D=4.8 | ||
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 6.4 dia. | 8 dia. | |||
| Model | ||||
| K (CA) | Enclosed-terminal Models | 20 | E52-CA20C-N D=6.4 | --- |
| 35 | E52-CA35C-N D=6.4 | E52-CA35C-N D=8 | ||
| 50 | E52-CA50C-N D=6.4 | E52-CA50C-N D=8 | ||
| 75 | E52-CA75C-N D=6.4 | E52-CA75C-N D=8 | ||
| J (IC) | Enclosed-terminal Models | 20 | E52-IC20C-N D=6.4 | --- |
| 35 | E52-IC35C-N D=6.4 | E52-IC35C-N D=8 | ||
| 50 | E52-IC50C-N D=6.4 | E52-IC50C-N D=8 | ||
| 75 | E52-IC75C-N D=6.4 | E52-IC75C-N D=8 | ||
Standard Thermocouples
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 10 dia. | 12 dia. | |||
| Model | ||||
| K (CA) | Exposed-terminal Models | 35 | E52-CA35B-N D=10 | E52-CA35B-N D=12 |
| 50 | E52-CA50B-N D=10 | E52-CA50B-N D=12 | ||
| 75 | E52-CA75B-N D=10 | E52-CA75B-N D=12 | ||
| 100 | E52-CA100B-N D=10 | E52-CA100B-N D=12 | ||
| J (IC) | Exposed-terminal Models | 35 | E52-IC35B-N D=10 | E52-IC35B-N D=12 |
| 50 | E52-IC50B-N D=10 | E52-IC50B-N D=12 | ||
| 75 | E52-IC75B-N D=10 | E52-IC75B-N D=12 | ||
| 100 | E52-IC100B-N D=10 | E52-IC100B-N D=12 | ||
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 15 dia. | 22 dia. | |||
| Model | ||||
| K (CA) | Exposed-terminal Models | 35 | E52-CA35B-N D=15 | --- |
| 50 | E52-CA50B-N D=15 | E52-CA50B-N D=22 | ||
| 75 | E52-CA75B-N D=15 | E52-CA75B-N D=22 | ||
| 100 | E52-CA100B-N D=15 | E52-CA100B-N D=22 | ||
| J (IC) | Exposed-terminal Models | 35 | E52-IC35B-N D=15 | --- |
| 50 | E52-IC50B-N D=15 | E52-IC50B-N D=22 | ||
| 75 | E52-IC75B-N D=15 | E52-IC75B-N D=22 | ||
| 100 | E52-IC100B-N D=15 | E52-IC100B-N D=22 | ||
Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 10 dia. | 12 dia. | |||
| Model | ||||
| K (CA) | Enclosed-terminal Models | 35 | E52-CA35C-N D=10 | E52-CA35C-N D=12 |
| 50 | E52-CA50C-N D=10 | E52-CA50C-N D=12 | ||
| 75 | E52-CA75C-N D=10 | E52-CA75C-N D=12 | ||
| 100 | E52-CA100C-N D=10 | E52-CA100C-N D=12 | ||
| J (IC) | Enclosed-terminal Models | 35 | E52-IC35C-N D=10 | E52-IC35C-N D=12 |
| 50 | E52-IC50C-N D=10 | E52-IC50C-N D=12 | ||
| 75 | E52-IC75C-N D=10 | E52-IC75C-N D=12 | ||
| 100 | E52-IC100C-N D=10 | E52-IC100C-N D=12 | ||
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) | |
|---|---|---|---|---|
| 15 dia. | 22 dia. | |||
| Model | ||||
| K (CA) | Enclosed-terminal Models | 35 | E52-CA35C-N D=15 | --- |
| 50 | E52-CA50C-N D=15 | E52-CA50C-N D=22 | ||
| 75 | E52-CA75C-N D=15 | E52-CA75C-N D=22 | ||
| 100 | E52-CA100C-N D=15 | E52-CA100C-N D=22 | ||
| J (IC) | Enclosed-terminal Models | 35 | E52-IC35C-N D=15 | --- |
| 50 | E52-IC50C-N D=15 | E52-IC50C-N D=22 | ||
| 75 | E52-IC75C-N D=15 | --- | ||
| 100 | E52-IC100C-N D=15 | --- | ||
Enclosed-terminal Models (High-temperature Use)
E52-PR[]C-N
| Element type | Terminal type | Protective tubing length L (cm) | Protective tubing diameter D (mm) |
|---|---|---|---|
| 15 dia. | |||
| Model | |||
| R (See note 1.) | Enclosed-terminal Models | 50 | E52-PR50C-N D=15 PT1 |
| 75 | E52-PR75C-N D=15 PT1 | ||
| 100 | E52-PR100C-N D=15 PT1 | ||
| R (See note 2.) | Enclosed-terminal Models | 50 | E52-PR50C-N D=15 PT0 |
| 75 | E52-PR75C-N D=15 PT0 | ||
| 100 | E52-PR100C-N D=15 PT0 |
| Standard | Protective tubing material | Permissible temperature in dry air |
|---|---|---|
| Note 1: JIS ceramic Cat.1 (PT1) | Mullite, high alumina, etc. | 1,500°C (See note.) |
| Note 2: JIS special ceramic (PT0) | Recrystallized alumina, fused alumina, etc. | 1,600°C (See note.) |
Note: The permissible temperature given for the protective tubing is higher than 1,400°C, but the permissible temperature of the thermocouple element wire is only 1,400°C. Therefore, the protective tubing of the E52-PR[]C-N can withstand high temperatures momentarily to the levels given in the table as exceptions, but the element wire will deteriorate quickly if the thermocouple is used regularly at temperatures that exceed the permissible temperature for the element wire.
last update: June 15, 2016
OMRON E52 (General purpose Models) catalog
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E52 Data Sheet | - [7536KB] | Feb 08, 201820180208 | E52 Data Sheet |
OMRON E52 (General purpose Models) dimension
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Dimensionslast update: April 01, 2016
Sheathed Platinum Resistance Thermometers
Exposed-lead Models
E52-P[]AY
Lead Wire• Standard (-20°C to 70°C): Fully vinyl-covered with twelve 0.18-dia conductors (0.3 mm thick) and 4.8 mm in outer dia.
The sleeve resists a temperature range between 0°C and 70°C.
• Heat Resistive (0°C to 180°C): Fully glass-wool-covered with thirty 0.12-dia. conductors (0.3 mm thick) externally
shielded with stainless steel, 4 mm in outer dia. The sleeve resists a temperature range between 0°C and 100°C.
• Lead Wire Length (M): 1, 2, 4, or 8 m
Enclosed-terminal Models
E52-P[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.Note: 1. The terminals in the cap indicate polarity (A, B, b).
2. The length L is in centimeters, but “35” is 35 millimeters.
Therefore, for the E52-P35C-N: L = 35 (cm), the sheath length L - 35 = 350 - 35 = 315 mm.
Exposed-terminal Models
E52-P[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-P35B-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.
Standard Platinum Resistance Thermometers
Enclosed-terminal Models
E52-P[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.Note: 1. The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-P75C-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Note: The terminals in the cap indicate polarity (A, B, B).
Sheathed Thermocouples
Exposed-lead Models
E52-CA[]AY
Note: 1. Lead Wire (Compensating Conductor)
• Standard ( -20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.
Exposed-lead Models
E52-IC[]AY
Note: 1. Lead Wire (Compensating Conductor)
• Standard (-20°C to 70°C): Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external
dimensions of 2.4 × 4.1.
• Heat Resistive (0°C to 150°C): Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with
external shield of stainless steel and external dimensions of 2.8 × 4.6 The heat-resistive lead wires cannot
be used in locations exposed to water or other liquids.
• Lead Wire Length (M): 1, 2, 4, or 8 m
2. The sleeve resists temperatures ranging between -20°C and 70°C for standard models and 0°C and 100°C for
heat-resistive models.

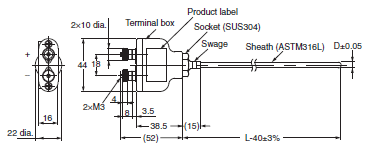

Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-CA50B-N: L = 50 (cm), the sheath length L - 40 = 500 - 40 = 460 mm.

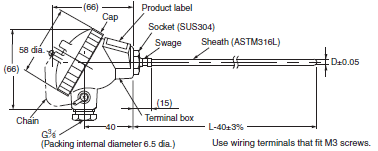

Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.Note: The length L is in centimeters, but “40” is 40 millimeters.
Therefore, for the E52-CA35C-N: L = 35 (cm), the sheath length L - 40 = 350 - 40 = 310 mm.

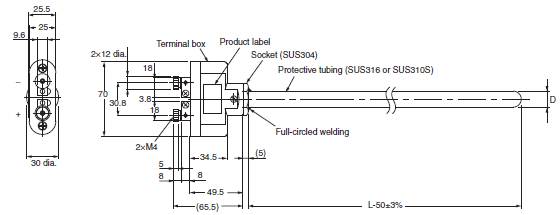

Standard Thermocouples
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-CA75B-N: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-CA50C-N: L = 50 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.
Enclosed-terminal Models (High-temperature Use)
E52-PR[]C-N
Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
Note: The length L is in centimeters, but “150” is 150 millimeters.
Therefore, for the E52-PR75C-N: L = 75 (cm), the protective tubing length L - 150 = 750 - 150 = 600 mm.
last update: April 01, 2016
OMRON E52 (General purpose Models) specification
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Specificationslast update: June 15, 2016
Sheathed Platinum Resistance Thermometers
| Element type | Pt100 |
|---|---|
| Class | JIS class B |
| Sheath material | SUS316 (E52-P[]AY) ASTM316L (E52-P[]B-N, E52-P[]C-N) |
| Sheath outer diameter | 3.2 dia., 4.8 dia., 6.4 dia., 8 dia |
| Conductor type | 3-conductor system |
| Temperature range | -196°C to 450°C (in dry air) |
Standard Platinum Resistance Thermometers
| Element type | Pt100 |
|---|---|
| Class | JIS class B |
| Protective tubing material | SUS316 |
| Conductor type | 3-conductor system |
| Temperature range | 0°C to 450°C (in dry air) |
Note: 1. Use the sheathed platinum resistance thermometer if condensation is likely to result.
Sheathed Thermocouples
| Element type | K (CA), J(IC) |
|---|---|
| Class | JIS class 2 (0.75) |
| Thermal contact | Non-grounded type |
| Sheath material | CA: ASTM316L |
| IC: ASTM316L |
Permissible Temperature in Dry Air
| D | Element wire | |
|---|---|---|
| K (CA) ASTM316L | J (IC) ASTM316L | |
| 1 dia. | 650°C | 450°C |
| 1.6 dia. | 650°C | 450°C |
| 3.2 dia. | 750°C | 650°C |
| 4.8 dia. | 800°C | 750°C |
| 6.4 dia. | 800°C | 750°C |
| 8.0 dia. | 900°C | 750°C |
Exposed-lead Models
E52-CA[]AY
Permissible Temperature in Dry Air
| D | Element wire |
|---|---|
| K (CA) ASTM316L | |
| 1 dia. | 650°C |
| 1.6 dia. | 650°C |
| 3.2 dia. | 750°C |
| 4.8 dia. | 800°C |
| 6.4 dia. | 800°C |
| 8.0 dia. | 900°C |
Exposed-lead Models
E52-IC[]AY
Permissible Temperature in Dry Air
| D | Element wire |
|---|---|
| J (IC) ASTM316L | |
| 1 dia. | 450°C |
| 1.6 dia. | 450°C |
| 3.2 dia. | 650°C |
| 4.8 dia. | 750°C |
| 6.4 dia. | 750°C |
| 8.0 dia. | 750°C |
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Permissible Temperature in Dry Air
| D | Element wire | |
|---|---|---|
| K (CA) ASTM316L | J (IC) ASTM316L | |
| 3.2 dia. | 750°C | 650°C |
| 4.8 dia. | 800°C | 750°C |
| 6.4 dia. | 800°C | 750°C |
| 8.0 dia. | 900°C | 750°C |
Terminal box: The permissible temperature is 0°C to 100°C.
Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Permissible Temperature in Dry Air
| D | Element wire | |
|---|---|---|
| K (CA) ASTM316L | J (IC) ASTM316L | |
| 3.2 dia. | 750°C | 650°C |
| 4.8 dia. | 800°C | 750°C |
| 6.4 dia. | 800°C | 750°C |
| 8.0 dia. | 900°C | 750°C |
Terminal box: The permissible temperature is 0°C to 90°C.
Standard Thermocouples
| Element wire | K (CA), J(IC), R(PR) | |
|---|---|---|
| Class | K (CA), J (IC) JIS class 2 (0.75) | |
| R(PR), JIS class 2 (0.25) | ||
| Protective tubing material | K (CA) | SUS316 |
| J (IC) | SUS316 | |
| R (See note.) | JIS ceramic cat. 1 (PT1) | |
| JIS special ceramic (PT0) | ||
| Thermal contact | Non-grounded type | |
Note: Specify PT1 or PT0 if the element is R.
Permissible Temperature in Dry Air (See note.)
| D | Element wire | |
|---|---|---|
| K (CA) SUS316 | J (IC) SUS316 | |
| 10 dia. | 750°C | 450°C |
| 12 dia. | 850°C | 500°C |
| 15 dia. | 900°C | 550°C |
| 22 dia. | 900°C | 600°C |
Note: For details on the permissible temperature, refer to Technical Guide for Temperature Sensors.
| D | Element wire |
|---|---|
| R | |
| 15 dia. | 0°C to 1,400°C |
Exposed-terminal Models
E52-CA[]B-N
E52-IC[]B-N
Permissible Temperature in Dry Air
| D | Element wire | |
|---|---|---|
| K (CA) SUS316 | J (IC) SUS316 | |
| 10 dia. | 750°C | 450°C |
| 12 dia. | 850°C | 500°C |
| 15 dia. | 850°C | 550°C |
| 22 dia. | 900°C | 600°C |
Enclosed-terminal Models
E52-CA[]C-N
E52-IC[]C-N
Permissible Temperature in Dry Air
| D | Element wire | |
|---|---|---|
| K (CA) SUS316 | J (IC) SUS316 | |
| 10 dia. | 0 to 750°C | 0 to 450°C |
| 12 dia. | 0 to 850°C | 0 to 500°C |
| 15 dia. | 0 to 850°C | 0 to 550°C |
| 22 dia. | 0 to 900°C | 0 to 600°C |
Terminal box: The permissible temperature is 0°C to 90°C.
Enclosed-terminal Models (High-temperature Use)
E52-PR[]C-N
Permissible Temperature in Dry Air
| D | Element wire |
|---|---|
| R | |
| 15 dia. | 0°C to 1,400°C |
Terminal box: The permissible temperature is 0°C to 90°C.
last update: June 15, 2016
- NO. E52 (General purpose Models)
- TYPE:Temperature Controllers Input Equipments
Copyright Statement - DATE:2021-06-14
- Associated products:
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Features
