OMRON CJ1W-INT01 Dimensions

/Images/l_1642-25-118574-198x198.jpg

last update: September 24, 2012

• High-speed ON response of 0.05 ms

• Use up to 32 interrupt inputs with up to two Units per CPU Unit.

• Applicable with both NPN and PNP output devices. Polarity selection is not required. *

* The same polarity is used for the same common.

last update: September 24, 2012

Purchase the OMRON CJ1 Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CJ1W-INT01 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CJ1W-INT01 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CJ1W-INT01Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NX-SL Safety CPU Unit/Features
ES1B Infrared Thermosensor/Features
CJ1W-ECT21 CJ-series EtherCAT® Slave Unit/Features
GX-[]D16[]1 / OC1601 Digital I/O Terminal 2-tier Terminal Block Type/Features
DeviceNet Multi-vendor Network/Features

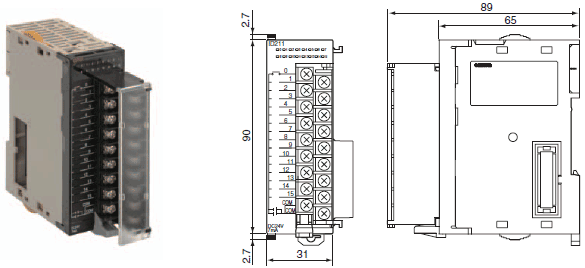

OMRON CJ1W-INT01 dimension
CJ1W-INT01 CJ-series Interrupt Input Units/Dimensions
last update: September 24, 2012
CJ1W-INT01

last update: September 24, 2012

OMRON CJ1W-INT01 lineup
CJ1W-INT01 CJ-series Interrupt Input Units/Lineup
last update: September 24, 2012
International Standards

The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
Contact your OMRON representative for further details and applicable conditions for these standards.

Interrupt Input Units

Unit type: CJ1 Basic I/O Units
No. of words allocated: 1 word
Standards: UC1, N, L, CE

Product
name Specifications Current
consumption (A) Model

I/O points Input
voltage
current Commons Input pulse
width
conditions Max. Units
mountable
per Unit External
connection 5 V 24 V

Interrupt
Input Unit 16 inputs 24 VDC,
7 mA 16 points,
1 common ON time:
0.05 ms max.
OFF time:
0.5 ms max. 2 Removable
terminal block 0.08 --- CJ1W-INT01

Note: 1. Can be used only on CPU Racks, and not on Expansion Racks.
2. The locations where the Units can be mounted depend on the CPU Rack and the CPU Unit model.
CJ2H-CPU6[]-EIP: From the slot next to the CPU Unit until the fourth slot.
CJ1G, CJ1H: From the slot next to the CPU Unit until the fifth slot.
CJ1M: From the slot next to the CPU Unit until the third slot.
3. With the SYSMAC NJ-series Controllers,Interrupt Input Units can be used as normal Basic Input Units. They
cannot be used to start I/O interrupt tasks.

Accessories

There is no accessory for the CJ series Interrupt Input Units.

last update: September 24, 2012

OMRON CJ1W-INT01 catalog
CJ1W-INT01 CJ-series Interrupt Input Units/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CJ1W-INT01 Data Sheet -
[511KB] Nov 14, 201120111114 CJ1W-INT01 Data Sheet

OMRON CJ1W-INT01 specification
CJ1W-INT01 CJ-series Interrupt Input Units/Specifications
last update: September 24, 2012
CJ1W-INT01 Interrupt Input Unit (16 Points)

Name 16-point Interrupt Input Unit with Terminal Block
Model CJ1W-INT01
Rated Input Voltage 24 VDC
Rated Input Voltage Range 20.4 to 26.4 VDC
Input Impedance 3.3 kΩ
Input Current 7 mA typical (at 24 VDC)
ON Voltage/ON Current 14.4 VDC min./3 mA min.
OFF Voltage/OFF Current 5 VDC max./1 mA max.
ON Response Time 0.05 ms max.
OFF Response Time 0.5 ms max.
Number of Circuits 16 (16 points/common, 1 circuit)
Number of Simultaneously
ON Points 100% (16 points/common) simultaneously ON (24 VDC)
Insulation Resistance 20 MΩ between external terminals and GR terminal (at 100 VDC)
DielectrQic Strength 1,000 VAC between external terminals and GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current
Consumption 80 mA max.
Weight 110 g max.
Accessories None
Circuit Configuration Up to two Interrupt Input Units can be mounted to the
CPU Rack. They must be connected as one of the five
Units immediately next to the CPU Unit. If an Interrupt
Input Unit is connected in any other position, an Incorrect
Unit/Expansion Rack Connection error will occur.
Set the pulse width of signals input to the Interrupt Input
Unit so they satisfy the following conditions.
The signal names of the terminals are the device variable
names.
The device variable names are the names that use "Jxx"
as the device name.

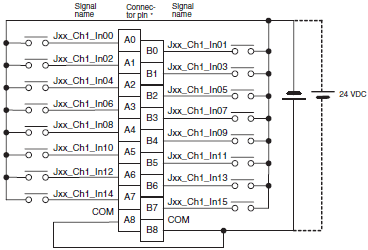

External connection and
terminal-device variable
diagram
The polarity can be connected in either direction.
The signal names of the terminals are the device variable names. The device variable names are the names
that use "Jxx" as the device name.

Note: With NJ-series Controllers, Interrupt Input Units can be used as normal Basic Input Units.
They cannot be used to start I/O interrupt tasks.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.

last update: September 24, 2012

NO. CJ1W-INT01

TYPE:Programmable Controllers CJ1 Basic I/O Units

DATE:2021-06-13

Associated products:
CJ1W-MD CJ-series Mixed I/O Units/Features CJ1W-IDP01 CJ-series Quick-response Input Units/Features

Product name	Specifications	Current consumption (A)	Model
I/O points	Input voltage current	Commons	Input pulse width conditions	Max. Units mountable per Unit	External connection	5 V	24 V
Interrupt Input Unit	16 inputs	24 VDC, 7 mA	16 points, 1 common	ON time: 0.05 ms max. OFF time: 0.5 ms max.	2	Removable terminal block	0.08	---	CJ1W-INT01

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CJ1W-INT01 Data Sheet	- [511KB]	Nov 14, 201120111114	CJ1W-INT01 Data Sheet

Name	16-point Interrupt Input Unit with Terminal Block
Model	CJ1W-INT01
Rated Input Voltage	24 VDC
Rated Input Voltage Range	20.4 to 26.4 VDC
Input Impedance	3.3 kΩ
Input Current	7 mA typical (at 24 VDC)
ON Voltage/ON Current	14.4 VDC min./3 mA min.
OFF Voltage/OFF Current	5 VDC max./1 mA max.
ON Response Time	0.05 ms max.
OFF Response Time	0.5 ms max.
Number of Circuits	16 (16 points/common, 1 circuit)
Number of Simultaneously ON Points	100% (16 points/common) simultaneously ON (24 VDC)
Insulation Resistance	20 MΩ between external terminals and GR terminal (at 100 VDC)
DielectrQic Strength	1,000 VAC between external terminals and GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current Consumption	80 mA max.
Weight	110 g max.
Accessories	None
Circuit Configuration		Up to two Interrupt Input Units can be mounted to the CPU Rack. They must be connected as one of the five Units immediately next to the CPU Unit. If an Interrupt Input Unit is connected in any other position, an Incorrect Unit/Expansion Rack Connection error will occur. Set the pulse width of signals input to the Interrupt Input Unit so they satisfy the following conditions. The signal names of the terminals are the device variable names. The device variable names are the names that use "Jxx" as the device name.
External connection and terminal-device variable diagram	The polarity can be connected in either direction. The signal names of the terminals are the device variable names. The device variable names are the names that use "Jxx" as the device name.
