OMRON GX-[]D16[]1 / OC1601 dimension

last update: December 20, 2012

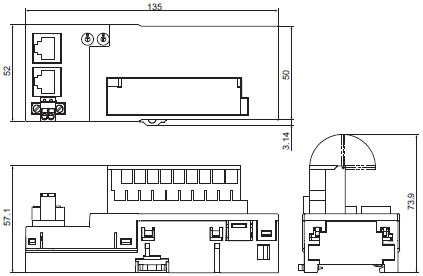

GX-ID1611/ID1621
GX-OD1611/OD1621

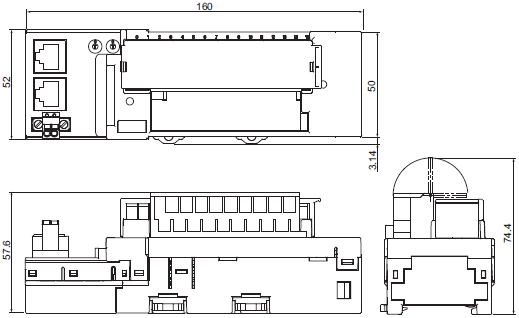

GX-OC1601

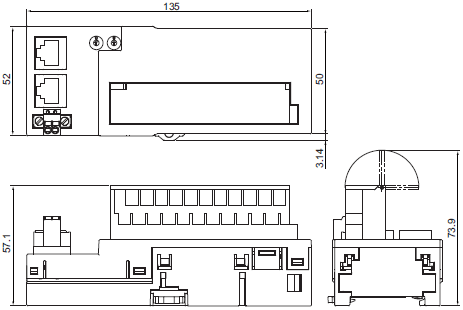

GX-MD1611/MD1621

last update: December 20, 2012

OMRON GX-[]D16[]1 / OC1601 lineup

last update: January 06, 2017

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA,
   UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EU
   Directives, RCM: RCM mark, and KC: KC Registration.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Name	Specifications			Model	Standards
2-tier terminal blocks	Inputs	16 inputs	NPN	GX-ID1611	CE
			PNP	GX-ID1621	CE
	Outputs	16 outputs	NPN	GX-OD1611	CE
			PNP	GX-OD1621	CE
	Outputs	16 outputs	Relay	GX-OC1601	CE
	Inputs/Outputs	8 inputs/8 outputs	NPN	GX-MD1611	CE
			PNP	GX-MD1621	CE

last update: January 06, 2017

OMRON GX-[]D16[]1 / OC1601 specification

last update: April 13, 2017

General Specifications

Item	Specification
Unit power supply voltage	20.4 to 26.4 VDC (24 VDC -15% to +10%)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15% to +10%)
Noise resistance	Conforms to IEC 61000-4-4, 2 kV (power line)
Vibration resistance	Malfunction 10 to 60 Hz with amplitude of 0.7 mm, 60 to 150Hz and 50 m/s2 in X, Y, and Z directions for 80 minutes ＜Relay Output Unit GX-OC1601 only＞ 10 to 55 Hz with double-amplitude of 0.7 mm
Impact resistance	150 m/s2 with amplitude of 0.7 mm ＜Relay Output Unit GX-OC1601 only＞ 100 m/s2 (3 times each in 6 directions on 3 axes)
Dielectric strength	600 VAC (between isolated circuits)
Isolation resistance	20 MΩ or more (between isolated circuits)
Ambient operating temperature	-10 to 55 °C
Operating humidity	25% to 85% (with no condensation)
Operating atmosphere	No corrosive gases
Storage temperature	-25 to 65 °C
Storage humidity	25% to 85% (with no condensation)
Terminal block screws tightening torque *	M3 wiring screws: 0.5 Nm M3 terminal block mounting screws: 0.5 Nm
Mounting method	35-mm DIN track mounting

* Applicable only to 2-tier terminal block and 3-tier terminal block type slaves.

Input Section Specifications

16-point Input Terminals

Item	Specification
	GX-ID1611	GX-ID1621
Input capacity	16 points
Internal I/O common	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)
OFF current	1.0 mA max.
Input current	6.0 mA max./input (at 24-VDC) 3.0 mA min./input (at 17-VDC)
ON delay	0.1 ms max.
OFF delay	0.2 ms max.
Input filter value	Without filter, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms (Default setting: 1 ms)
Number of circuits per common	16 inputs/common
Input indicators	LED display (yellow)
Isolation method	Photocoupler isolation
I/O power supply method	Supply by I/O power supply
Unit power supply current consumption	90 mA max. (for 20.4 to 26.4-VDC power supply voltage)
I/O power supply current consumption	5 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight	180 g max.
Expansion functions	Enabled
Short-circuit protection function	No

Note: For the I/O power supply current value to V and G terminals, refer to GX Series Operation Manual (Cat. No. W488).

Output Section Specifications

16-point Output Terminals

Item	Specification
	GX-OD1611	GX-OD1621
Output capacity	16 points
Rated current (ON current)	0.5 A/output, 4.0 A/common
Internal I/O common	NPN	PNP
Residual voltage	1.2 V max. (0.5 ADC, between each output terminal and the G terminal)	1.2 V max. (0.5 ADC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	16 points/common
Output indicators	LED display (yellow)
Isolation method	Photocoupler isolation
I/O power supply method	Supply by I/O power supply
Unit power supply current consumption	90 mA max. (for 20.4 to 26.4-VDC power supply voltage)
I/O power supply current consumption	5 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight	180 g max.
Expansion functions	Enabled
Output handling for communications errors	Select either hold or clear
Short-circuit protection function	No

Note: For the I/O power supply current value to V and G terminals, refer to GX Series Operation Manual (Cat. No. W488).

Relay 16-point Output Terminals

Item	Specification
	GX-OC1601
Output capacity	16 points
Mounted relays	DRTA-NY5W-K
Rated load	Resistance load 250 VAC 2 A/output, common 8 A 30 VDC 2 A/output, common 8 A
Rated ON current	3 A/output
Maximum contact voltage	250 VAC, 125 VDC
Maximum contact current	3 A/output
Maximum switching capacity	750 VAAC, 90 WDC
Minimum applicable load (reference value)	5 VDC 1mA
Mechanical service life	20,000,000 operations min.
Electrical service life	100,000 operations min.
Number of circuits per common	8 points/common
Output indicators	LED display (yellow)
Isolation method	Relay isolation
I/O power supply method	The relay drive power is supplied from the unit power supply.
Unit power supply current consumption	210 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight	290 g max.
Expansion functions	Enabled
Output handling for communications errors	Select either hold or clear
Short-circuit protection function	No

Precautions for Correct Use

• With a current of between 2 and 3 A (8 to 10 A per common), either ensure that the number of points per common that simultaneously turn ON does not exceed 4 or ensure that the ambient temperature does not exceed 45 °C. Also, there are no restrictions if the current does not exceed 2 A (8 A per common).
• The rated current is the value for assuring normal operation, and not for assuring durability of the relays. The relay service life depends greatly on factors such as the operating temperature, the type of load, and switching conditions. The actual equipment must be checked under actual operating conditions.

Input and Output Section Specifications

8-point Input and 8-point output Terminals

General Specifications

Item	Specification
	GX-MD1611	GX-MD1621
Internal I/O common	NPN	PNP
I/O indicators	LED display (yellow)
Unit power supply current consumption	80 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight	190 g max.
Expansion functions	No
Short-circuit protection function	No

Input Section

Item	Specification
	GX-MD1611	GX-MD1621
Input capacity	8 points
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)
OFF current	1.0 mA max.
Input current	6.0 mA max./input (at 24-VDC) 3.0 mA min./input (at 17-VDC)
ON delay	0.1 ms max.
OFF delay	0.2 ms max.
Input filter value	Without filter, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms (Default setting: 1 ms)
Number of circuits per common	8 points/common
Isolation method	Photocoupler isolation
I/O power supply method	Supply by I/O power supply
I/O power supply current consumption	5 mA max. (for 20.4 to 26.4-VDC power supply voltage)

Output Section

Item	Specification
	GX-MD1611	GX-MD1621
Output capacity	8 points
Rated output current	0.5 A/output, 2.0 A/common
Residual voltage	1.2 V max. (0.5 ADC, between each output terminal and the G terminal)	1.2 V max. (0.5 ADC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 points/common
Isolation method	Photocoupler isolation
I/O power supply method	Supply by I/O power supply
I/O power supply current consumption	5 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Output handling for communications errors	Select either hold or clear

Note: For the I/O power supply current value to V and G terminals, refer to GX Series Operation Manual (Cat. No. W488).
