OMRON CS1W-FLN22Automation Systems/ Programmable Controllers/CS1
OMRON CS1W-FLN22 Automation Systems
OMRON CS1W-FLN22 Dimensions
/Images/l_1683-25-118631-198x198.jpglast update: December 19, 2013
• Conforms to FL-net, a quickly spreading standard.
• FL-net is a multivendor FA network at the controller/machine level that is based on Ethernet. (It uses UDP/IP.)
• FL-net supports message transmissions and cyclic data transmissions. (Message transmissions are also possible using FINS communications.)
• A CS-series PLC can be used to interface communications between Ethernet information networks, OMRON's Controller Link FA network, and DeviceNet field bus.
last update: December 19, 2013
Purchase the OMRON CS1 Please fill in the following
If you have just landed here, this product OMRON CS1W-FLN22 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CS1W-FLN22 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CS1W-FLN22Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CXONE-AL[][]D-V4 FA Integrated Tool Package/Features
A22NN / A22NL Pushbutton Switches/Features
CJ1W-PDC15 CJ-series Process Analog I/O Unit/Features
CS1G, CS1H CS1G, CS1H Overview/Features
VT-S730-H PCB Inspection System/Features

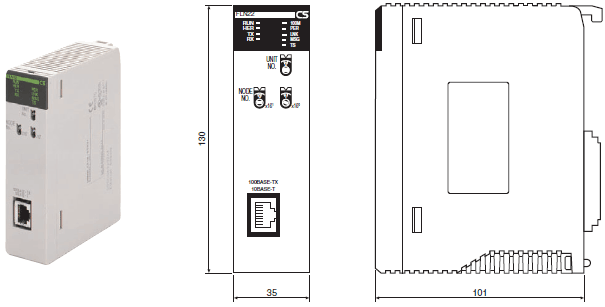

OMRON CS1W-FLN22 dimension
CS1W-FLN22 CS-series FL-net Unit/Dimensionslast update: September 24, 2012
CS1W-FLN22
last update: September 24, 2012
OMRON CS1W-FLN22 lineup
CS1W-FLN22 CS-series FL-net Unit/Lineuplast update: September 24, 2012
International Standards
- The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
- Contact your OMRON representative for further details and applicable conditions for these standards.
FL-net Unit
| Unit type | Product name | Specifications | No. of unit numbers allocated | Current consumption (A) | Model | Standards | |||
|---|---|---|---|---|---|---|---|---|---|
| Communications interface | Communications functions | Max. Units mountable per CPU Units | 5V | 26V | |||||
| CS1 CPU Bus Unit | FL-net Unit  | 100BASE-TX | With FL-net Ver. 2.0 specifications (OPCN-2) Data links and message service | 4 | 1 | 0.38 | - | CS1W-FLN22 | UC1, CE |
Note: There is no accessory for the CS-series Ethernet Unit.
Recommended Network Devices
The following products are recommended for use with the FL-net Unit.
| Part | Maker | Model number | Specification |
|---|---|---|---|
| Twisted-pair cable | 100BASE-TX | ||
| Fujikura | F-LINE-E 0.5mm × 4P | STP (shielded twisted-pair) cable: Category 5,5e Note: Impedance is limited 100 Ω. | |
| Fujikura | CTP-LAN5 0.5mm × 4P | UTP (unshielded twisted-pair) cable: Category 5,5e | |
| 100BASE-TX | |||
| Fujikura | F-LINE-E 0.5mm × 4P | STP (shielded twisted-pair) cable: Category 3,4,5,5e Note: Impedance is limited 100 Ω. | |
| Fujikura | CTP-LAN5 0.5mm × 4P | UTP (unshielded twisted-pair) cable: Category 3,4,5,5e | |
| Connector (Modular plug) | STP Plug | ||
| Panduit Corp | MPS588 | - | |
| UTP Plug | |||
| Panduit Corp | MP588-C | - | |
last update: September 24, 2012
OMRON CS1W-FLN22 specification
CS1W-FLN22 CS-series FL-net Unit/Specificationslast update: September 24, 2012
FL-net Unit Specifications
| Item | Specifications | ||
|---|---|---|---|
| Model number | CS1W-FLN22 | ||
| Type | 100Base-TX (10Base-T is also possible) | ||
| Applicable PLCs | CS-series PLCs | ||
| Unit classification | CS-series CPU Bus Unit | ||
| Mounting location | CPU Rack or Expansion Rack | ||
| Number of Units that can be mounted | 4 max. (including Expansion Racks) | ||
| Transfer specifications | Media access method | CSMA/CD | |
| Modulation | Baseband | ||
| Transmission paths | Star | ||
| Baud rate | 100 Mbps (100Base-TX) | 10 Mbps (10Base-T) | |
| Transmission media | Unshielded twisted-pair (UTP) cable Categories: 5, 5e Shielded twisted-pair (STP) cable Categories: 100 Ω at 5, 5e | Unshielded twisted-pair (UTP) cable Categories: 3, 4, 5, 5e Shielded twisted-pair (STP) cable Categories: 100 Ω at 3, 4, 5, 5e | |
| Transmission distance | 100 m max. (distance between hub and node) | ||
| Number of cascade connections with repeater hub | 2 | 4 | |
| Current consumption (Unit) | 380 mA max. at 5 VDC | ||
| Vibration resistance | Conforms to JIS 0040. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each (Time coefficient; 8 minutes × coefficient factor 10 = total time 80 minutes) | ||
| Shock resistance | Conforms to JIS 0041. 147 m/s2 three times each in X, Y, and Z directions | ||
| Ambient temperature | Operating: 0 to 55°C Storage: -20 to 75°C | ||
| Humidity | 10% to 90% (with no condensation) | ||
| Atmosphere | Must be free from corrosive gas. | ||
| Weight | 200 g max. | ||
| Dimensions | 35 × 130 ×101 mm (W × H × D) | ||
last update: September 24, 2012
OMRON CS1W-FLN22 catalog
CS1W-FLN22 CS-series FL-net Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CS1W-FLN22 Data Sheet | - [448KB] | May 11, 201620160511 | CS1W-FLN22 Data Sheet |
- NO. CS1W-FLN22
- TYPE:Programmable Controllers CS1 CPU Bus Units
- DATE:2021-06-09
