last update: October 03, 2016

Easy to Use

• Improved wiring visibility through to a modified wiring direction. (Push-In Plus terminal block type)
• Screw terminal block structure is compatible with round crimp terminals. (Screw terminal block type)
• The terminals can be secured even when a contact block is mounted. (Screw terminal block type)
• Contact Blocks can be attached in any direction for easy assembly.

Miniaturization

• No need for extra lateral space because of the modified wiring direction. (Push-In Plus terminal block type)
• Compact design.
• A22NL (lighted models) are the same size as A22NN (non-lighted models).

Safety

• Easy-to-operate lock lever for secure locking.
• Easy-mounting Contact Blocks provide finger protection.
• No loose connections of wiring means maintenance-free use. (Push-In Plus terminal block type)

Product Lineup

• Meet global safety standards.
• Can be installed in two types of panel hole dimensions: 22.3 and 25.5 dia.
• The buttons and bezels come in a wide variety of colors, shapes, and materials.
• Standard-feature degree of protection: IP66, NEMA 4X, and NEMA 13.

last update: October 03, 2016

Purchase the OMRON φ22(φ25) Type Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON A22NN / A22NL Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22NN / A22NL We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22NN / A22NLSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3ZM-V Color Mark Detection Compact Photoelectric Sensor/Features
ZW-8000 / 7000 / 5000 Series Confocal Fiber Displacement Sensor/Features
A3S (Super Luminosity Type) Lighted Pushbutton Switch (Square) Ultra Bright LED Type/Features
CS1W-CRM21 CS-series CompoNet Master Units/Features
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Term...

OMRON A22NN / A22NL lineup
A22NN / A22NL Pushbutton Switches/Lineup
last update: August 1, 2017

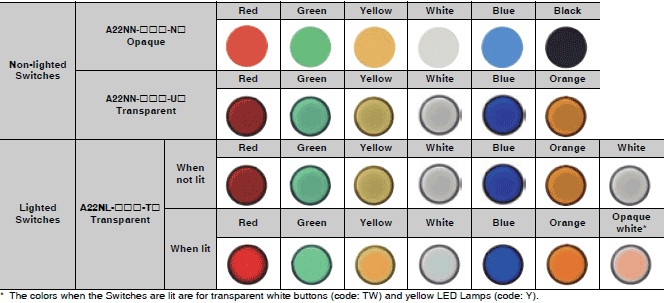

Button Colors

List of Models

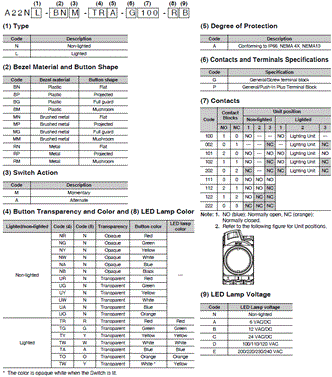

Model Number Structure
Model Number Legend

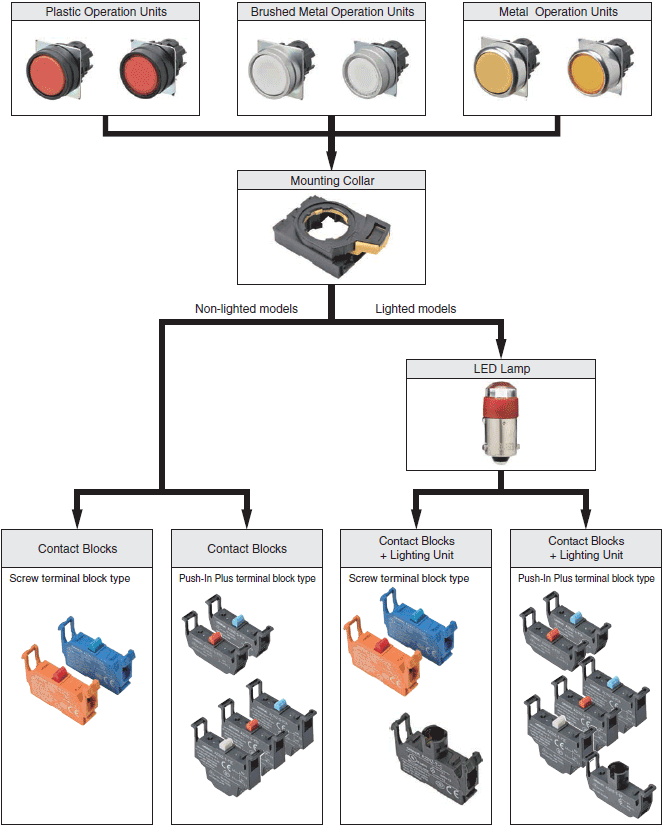

Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).
For information on combinations, refer to Ordering Information on below.

Model Numbers for Sets

Ordering Information
Model Numbers for Sets

Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).

Non-lighted, Flat Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW:Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW:Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW:Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW:Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Flat Switches

Appearance Con-
tacts Momentary action
(self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BNM-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BNM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MNM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MNM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RNM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RNM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RNM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RNM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts Alternate action
(self-holding) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BNA-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BNA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MNA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MNA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RNA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RNA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RNA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RNA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Projected Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Projected Switches

Appearance Con-
tacts Momentary action
(self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BPM-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BPM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MPM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MPM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RPM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RPM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RPM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RPM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts Alternate action
(self-holding) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BPA-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BPA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MPA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MPA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RPA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RPA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RPA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RPA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Full-guard Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Full-guard Switches

Appearance Con-
tacts Momentary action
(self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BGM-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BGM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MGM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MGM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MGM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MGM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts Alternate action
(self-holding) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BGA-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BGA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MGA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MGA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MGA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MGA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Non-lighted, Mushroom Switches

Appearance Contacts Momentary action (self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN

Appearance Contacts Alternate action (self-holding) (4)(4)
Button color (7)(7)(7)
Contacts
Model
Plastic bezels
1 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN NR: Opaque, red
NG: Opaque, green
NY: Opaque, yellow
NW: Opaque, white
NA: Opaque, blue
NB: Opaque, black
UR: Transparent, red
UG: Transparent, green
UY: Transparent, yellow
UW: Transparent, white
UA: Transparent, blue
UO: Transparent, orange 100
002
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
1 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
1 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 100
002
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
2 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 101
102
202
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
3 A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN 111
112
122
222
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN

Lighted, Mushroom Switches

Appearance Con-
tacts Momentary action
(self-resetting) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BMM-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BMM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MMM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MMM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RMM-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RMM-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RMM-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RMM-
(4)(4)A-P(7)(7)(7)-(8)(9)

Appearance Con-
tacts Alternate action
(self-holding) (4)(4)
Button color (7)(7)(7)
Contacts (8)
LED
Lamp
color (9)
LED Lamp
voltage
Model
Plastic bezels
1 A22NL-BMA-
(4)(4)A-G(7)(7)(7)-(8)(9) TR: Transparent, red
TG: Transparent, green
TY: Transparent, yellow
TW: Transparent, white
TA: Transparent, blue
TO: Transparent, orange 100
002 R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NL-BMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-BMA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-BMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal
bezels
1 A22NL-MMA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-MMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-MMA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-MMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels
1 A22NL-RMA-
(4)(4)A-G(7)(7)(7)-(8)(9) 100
002
A22NL-RMA-
(4)(4)A-P(7)(7)(7)-(8)(9)
2 A22NL-RMA-
(4)(4)A-G(7)(7)(7)-(8)(9) 101
102
202
A22NL-RMA-
(4)(4)A-P(7)(7)(7)-(8)(9)

Note: Normally, the Button and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Button and yellow LED. A22N[]-[][][]-TWA-[][][][]-Y[]

Switch Structure

You can order Operation Units, LED Lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

Subassemblies

You can order Operation Units, LED Lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

Operation Units

Bezel material and button shape Plastic, flat
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BNM-NRA A22NZ-BNA-NRA
Opaque Green A22NZ-BNM-NGA A22NZ-BNA-NGA
Opaque Yellow A22NZ-BNM-NYA A22NZ-BNA-NYA
Opaque White A22NZ-BNM-NWA A22NZ-BNA-NWA
Opaque Blue A22NZ-BNM-NAA A22NZ-BNA-NAA
Opaque Black A22NZ-BNM-NBA A22NZ-BNA-NBA
Transparent Red A22NZ-BNM-URA A22NZ-BNA-URA
Transparent Green A22NZ-BNM-UGA A22NZ-BNA-UGA
Transparent Yellow A22NZ-BNM-UYA A22NZ-BNA-UYA
Transparent White A22NZ-BNM-UWA A22NZ-BNA-UWA
Transparent Blue A22NZ-BNM-UAA A22NZ-BNA-UAA
Transparent Orange A22NZ-BNM-UOA A22NZ-BNA-UOA
Lighted Transparent Red A22NZ-BNM-TRA A22NZ-BNA-TRA
Transparent Green A22NZ-BNM-TGA A22NZ-BNA-TGA
Transparent Yellow A22NZ-BNM-TYA A22NZ-BNA-TYA
Transparent White A22NZ-BNM-TWA A22NZ-BNA-TWA
Transparent Blue A22NZ-BNM-TAA A22NZ-BNA-TAA
Transparent Orange A22NZ-BNM-TOA A22NZ-BNA-TOA

Bezel material and button shape Plastic, projected
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BPM-NRA A22NZ-BPA-NRA
Opaque Green A22NZ-BPM-NGA A22NZ-BPA-NGA
Opaque Yellow A22NZ-BPM-NYA A22NZ-BPA-NYA
Opaque White A22NZ-BPM-NWA A22NZ-BPA-NWA
Opaque Blue A22NZ-BPM-NAA A22NZ-BPA-NAA
Opaque Black A22NZ-BPM-NBA A22NZ-BPA-NBA
Transparent Red A22NZ-BPM-URA A22NZ-BPA-URA
Transparent Green A22NZ-BPM-UGA A22NZ-BPA-UGA
Transparent Yellow A22NZ-BPM-UYA A22NZ-BPA-UYA
Transparent White A22NZ-BPM-UWA A22NZ-BPA-UWA
Transparent Blue A22NZ-BPM-UAA A22NZ-BPA-UAA
Transparent Orange A22NZ-BPM-UOA A22NZ-BPA-UOA
Lighted Transparent Red A22NZ-BPM-TRA A22NZ-BPA-TRA
Transparent Green A22NZ-BPM-TGA A22NZ-BPA-TGA
Transparent Yellow A22NZ-BPM-TYA A22NZ-BPA-TYA
Transparent White A22NZ-BPM-TWA A22NZ-BPA-TWA
Transparent Blue A22NZ-BPM-TAA A22NZ-BPA-TAA
Transparent Orange A22NZ-BPM-TOA A22NZ-BPA-TOA

Bezel material and button shape Plastic, full-guard
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BGM-NRA A22NZ-BGA-NRA
Opaque Green A22NZ-BGM-NGA A22NZ-BGA-NGA
Opaque Yellow A22NZ-BGM-NYA A22NZ-BGA-NYA
Opaque White A22NZ-BGM-NWA A22NZ-BGA-NWA
Opaque Blue A22NZ-BGM-NAA A22NZ-BGA-NAA
Opaque Black A22NZ-BGM-NBA A22NZ-BGA-NBA
Transparent Red A22NZ-BGM-URA A22NZ-BGA-URA
Transparent Green A22NZ-BGM-UGA A22NZ-BGA-UGA
Transparent Yellow A22NZ-BGM-UYA A22NZ-BGA-UYA
Transparent White A22NZ-BGM-UWA A22NZ-BGA-UWA
Transparent Blue A22NZ-BGM-UAA A22NZ-BGA-UAA
Transparent Orange A22NZ-BGM-UOA A22NZ-BGA-UOA
Lighted Transparent Red A22NZ-BGM-TRA A22NZ-BGA-TRA
Transparent Green A22NZ-BGM-TGA A22NZ-BGA-TGA
Transparent Yellow A22NZ-BGM-TYA A22NZ-BGA-TYA
Transparent White A22NZ-BGM-TWA A22NZ-BGA-TWA
Transparent Blue A22NZ-BGM-TAA A22NZ-BGA-TAA
Transparent Orange A22NZ-BGM-TOA A22NZ-BGA-TOA

Bezel material and button shape Plastic, mushroom
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-BMM-NRA A22NZ-BMA-NRA
Opaque Green A22NZ-BMM-NGA A22NZ-BMA-NGA
Opaque Yellow A22NZ-BMM-NYA A22NZ-BMA-NYA
Opaque White A22NZ-BMM-NWA A22NZ-BMA-NWA
Opaque Blue A22NZ-BMM-NAA A22NZ-BMA-NAA
Opaque Black A22NZ-BMM-NBA A22NZ-BMA-NBA
Transparent Red A22NZ-BMM-URA A22NZ-BMA-URA
Transparent Green A22NZ-BMM-UGA A22NZ-BMA-UGA
Transparent Yellow A22NZ-BMM-UYA A22NZ-BMA-UYA
Transparent White A22NZ-BMM-UWA A22NZ-BMA-UWA
Transparent Blue A22NZ-BMM-UAA A22NZ-BMA-UAA
Transparent Orange A22NZ-BMM-UOA A22NZ-BMA-UOA
Lighted Transparent Red A22NZ-BMM-TRA A22NZ-BMA-TRA
Transparent Green A22NZ-BMM-TGA A22NZ-BMA-TGA
Transparent Yellow A22NZ-BMM-TYA A22NZ-BMA-TYA
Transparent White A22NZ-BMM-TWA A22NZ-BMA-TWA
Transparent Blue A22NZ-BMM-TAA A22NZ-BMA-TAA
Transparent Orange A22NZ-BMM-TOA A22NZ-BMA-TOA

Bezel material and button shape Brushed metal, flat
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MNM-NRA A22NZ-MNA-NRA
Opaque Green A22NZ-MNM-NGA A22NZ-MNA-NGA
Opaque Yellow A22NZ-MNM-NYA A22NZ-MNA-NYA
Opaque White A22NZ-MNM-NWA A22NZ-MNA-NWA
Opaque Blue A22NZ-MNM-NAA A22NZ-MNA-NAA
Opaque Black A22NZ-MNM-NBA A22NZ-MNA-NBA
Transparent Red A22NZ-MNM-URA A22NZ-MNA-URA
Transparent Green A22NZ-MNM-UGA A22NZ-MNA-UGA
Transparent Yellow A22NZ-MNM-UYA A22NZ-MNA-UYA
Transparent White A22NZ-MNM-UWA A22NZ-MNA-UWA
Transparent Blue A22NZ-MNM-UAA A22NZ-MNA-UAA
Transparent Orange A22NZ-MNM-UOA A22NZ-MNA-UOA
Lighted Transparent Red A22NZ-MNM-TRA A22NZ-MNA-TRA
Transparent Green A22NZ-MNM-TGA A22NZ-MNA-TGA
Transparent Yellow A22NZ-MNM-TYA A22NZ-MNA-TYA
Transparent White A22NZ-MNM-TWA A22NZ-MNA-TWA
Transparent Blue A22NZ-MNM-TAA A22NZ-MNA-TAA
Transparent Orange A22NZ-MNM-TOA A22NZ-MNA-TOA

Bezel material and button shape Brushed metal, flat
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MPM-NRA A22NZ-MPA-NRA
Opaque Green A22NZ-MPM-NGA A22NZ-MPA-NGA
Opaque Yellow A22NZ-MPM-NYA A22NZ-MPA-NYA
Opaque White A22NZ-MPM-NWA A22NZ-MPA-NWA
Opaque Blue A22NZ-MPM-NAA A22NZ-MPA-NAA
Opaque Black A22NZ-MPM-NBA A22NZ-MPA-NBA
Transparent Red A22NZ-MPM-URA A22NZ-MPA-URA
Transparent Green A22NZ-MPM-UGA A22NZ-MPA-UGA
Transparent Yellow A22NZ-MPM-UYA A22NZ-MPA-UYA
Transparent White A22NZ-MPM-UWA A22NZ-MPA-UWA
Transparent Blue A22NZ-MPM-UAA A22NZ-MPA-UAA
Transparent Orange A22NZ-MPM-UOA A22NZ-MPA-UOA
Lighted Transparent Red A22NZ-MPM-TRA A22NZ-MPA-TRA
Transparent Green A22NZ-MPM-TGA A22NZ-MPA-TGA
Transparent Yellow A22NZ-MPM-TYA A22NZ-MPA-TYA
Transparent White A22NZ-MPM-TWA A22NZ-MPA-TWA
Transparent Blue A22NZ-MPM-TAA A22NZ-MPA-TAA
Transparent Orange A22NZ-MPM-TOA A22NZ-MPA-TOA

Bezel material and button shape Brushed metal, full-guard
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MGM-NRA A22NZ-MGA-NRA
Opaque Green A22NZ-MGM-NGA A22NZ-MGA-NGA
Opaque Yellow A22NZ-MGM-NYA A22NZ-MGA-NYA
Opaque White A22NZ-MGM-NWA A22NZ-MGA-NWA
Opaque Blue A22NZ-MGM-NAA A22NZ-MGA-NAA
Opaque Black A22NZ-MGM-NBA A22NZ-MGA-NBA
Transparent Red A22NZ-MGM-URA A22NZ-MGA-URA
Transparent Green A22NZ-MGM-UGA A22NZ-MGA-UGA
Transparent Yellow A22NZ-MGM-UYA A22NZ-MGA-UYA
Transparent White A22NZ-MGM-UWA A22NZ-MGA-UWA
Transparent Blue A22NZ-MGM-UAA A22NZ-MGA-UAA
Transparent Orange A22NZ-MGM-UOA A22NZ-MGA-UOA
Lighted Transparent Red A22NZ-MGM-TRA A22NZ-MGA-TRA
Transparent Green A22NZ-MGM-TGA A22NZ-MGA-TGA
Transparent Yellow A22NZ-MGM-TYA A22NZ-MGA-TYA
Transparent White A22NZ-MGM-TWA A22NZ-MGA-TWA
Transparent Blue A22NZ-MGM-TAA A22NZ-MGA-TAA
Transparent Orange A22NZ-MGM-TOA A22NZ-MGA-TOA

Bezel material and button shape Brushed metal, mushroom
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-MMM-NRA A22NZ-MMA-NRA
Opaque Green A22NZ-MMM-NGA A22NZ-MMA-NGA
Opaque Yellow A22NZ-MMM-NYA A22NZ-MMA-NYA
Opaque White A22NZ-MMM-NWA A22NZ-MMA-NWA
Opaque Blue A22NZ-MMM-NAA A22NZ-MMA-NAA
Opaque Black A22NZ-MMM-NBA A22NZ-MMA-NBA
Transparent Red A22NZ-MMM-URA A22NZ-MMA-URA
Transparent Green A22NZ-MMM-UGA A22NZ-MMA-UGA
Transparent Yellow A22NZ-MMM-UYA A22NZ-MMA-UYA
Transparent White A22NZ-MMM-UWA A22NZ-MMA-UWA
Transparent Blue A22NZ-MMM-UAA A22NZ-MMA-UAA
Transparent Orange A22NZ-MMM-UOA A22NZ-MMA-UOA
Lighted Transparent Red A22NZ-MMM-TRA A22NZ-MMA-TRA
Transparent Green A22NZ-MMM-TGA A22NZ-MMA-TGA
Transparent Yellow A22NZ-MMM-TYA A22NZ-MMA-TYA
Transparent White A22NZ-MMM-TWA A22NZ-MMA-TWA
Transparent Blue A22NZ-MMM-TAA A22NZ-MMA-TAA
Transparent Orange A22NZ-MMM-TOA A22NZ-MMA-TOA

Bezel material and button shape Metal, flat
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RNM-NRA A22NZ-RNA-NRA
Opaque Green A22NZ-RNM-NGA A22NZ-RNA-NGA
Opaque Yellow A22NZ-RNM-NYA A22NZ-RNA-NYA
Opaque White A22NZ-RNM-NWA A22NZ-RNA-NWA
Opaque Blue A22NZ-RNM-NAA A22NZ-RNA-NAA
Opaque Black A22NZ-RNM-NBA A22NZ-RNA-NBA
Transparent Red A22NZ-RNM-URA A22NZ-RNA-URA
Transparent Green A22NZ-RNM-UGA A22NZ-RNA-UGA
Transparent Yellow A22NZ-RNM-UYA A22NZ-RNA-UYA
Transparent White A22NZ-RNM-UWA A22NZ-RNA-UWA
Transparent Blue A22NZ-RNM-UAA A22NZ-RNA-UAA
Transparent Orange A22NZ-RNM-UOA A22NZ-RNA-UOA
Lighted Transparent Red A22NZ-RNM-TRA A22NZ-RNA-TRA
Transparent Green A22NZ-RNM-TGA A22NZ-RNA-TGA
Transparent Yellow A22NZ-RNM-TYA A22NZ-RNA-TYA
Transparent White A22NZ-RNM-TWA A22NZ-RNA-TWA
Transparent Blue A22NZ-RNM-TAA A22NZ-RNA-TAA
Transparent Orange A22NZ-RNM-TOA A22NZ-RNA-TOA

Bezel material and button shape Metal, projected
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RPM-NRA A22NZ-RPA-NRA
Opaque Green A22NZ-RPM-NGA A22NZ-RPA-NGA
Opaque Yellow A22NZ-RPM-NYA A22NZ-RPA-NYA
Opaque White A22NZ-RPM-NWA A22NZ-RPA-NWA
Opaque Blue A22NZ-RPM-NAA A22NZ-RPA-NAA
Opaque Black A22NZ-RPM-NBA A22NZ-RPA-NBA
Transparent Red A22NZ-RPM-URA A22NZ-RPA-URA
Transparent Green A22NZ-RPM-UGA A22NZ-RPA-UGA
Transparent Yellow A22NZ-RPM-UYA A22NZ-RPA-UYA
Transparent White A22NZ-RPM-UWA A22NZ-RPA-UWA
Transparent Blue A22NZ-RPM-UAA A22NZ-RPA-UAA
Transparent Orange A22NZ-RPM-UOA A22NZ-RPA-UOA
Lighted Transparent Red A22NZ-RPM-TRA A22NZ-RPA-TRA
Transparent Green A22NZ-RPM-TGA A22NZ-RPA-TGA
Transparent Yellow A22NZ-RPM-TYA A22NZ-RPA-TYA
Transparent White A22NZ-RPM-TWA A22NZ-RPA-TWA
Transparent Blue A22NZ-RPM-TAA A22NZ-RPA-TAA
Transparent Orange A22NZ-RPM-TOA A22NZ-RPA-TOA

Bezel material and button shape Metal, mushroom
Switch Action Momentary Alternate
Lighted/non-lighted Transparency Color Model Model
Non-lighted Opaque Red A22NZ-RMM-NRA A22NZ-RMA-NRA
Opaque Green A22NZ-RMM-NGA A22NZ-RMA-NGA
Opaque Yellow A22NZ-RMM-NYA A22NZ-RMA-NYA
Opaque White A22NZ-RMM-NWA A22NZ-RMA-NWA
Opaque Blue A22NZ-RMM-NAA A22NZ-RMA-NAA
Opaque Black A22NZ-RMM-NBA A22NZ-RMA-NBA
Transparent Red A22NZ-RMM-URA A22NZ-RMA-URA
Transparent Green A22NZ-RMM-UGA A22NZ-RMA-UGA
Transparent Yellow A22NZ-RMM-UYA A22NZ-RMA-UYA
Transparent White A22NZ-RMM-UWA A22NZ-RMA-UWA
Transparent Blue A22NZ-RMM-UAA A22NZ-RMA-UAA
Transparent Orange A22NZ-RMM-UOA A22NZ-RMA-UOA
Lighted Transparent Red A22NZ-RMM-TRA A22NZ-RMA-TRA
Transparent Green A22NZ-RMM-TGA A22NZ-RMA-TGA
Transparent Yellow A22NZ-RMM-TYA A22NZ-RMA-TYA
Transparent White A22NZ-RMM-TWA A22NZ-RMA-TWA
Transparent Blue A22NZ-RMM-TAA A22NZ-RMA-TAA
Transparent Orange A22NZ-RMM-TOA A22NZ-RMA-TOA

Subassemblies (Common)
Subassemblies

You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

LED Lamps

Appearance Rated
voltage Model
Color 6 VAC/DC 12 VAC/DC 24 VAC/DC 100/110/120
VAC 200/220/230/
240 VAC
Red A22NZ-L-RA A22NZ-L-RB A22NZ-L-RC A22NZ-L-RD A22NZ-L-RE
Green A22NZ-L-GA A22NZ-L-GB A22NZ-L-GC A22NZ-L-GD A22NZ-L-GE
Yellow A22NZ-L-YA A22NZ-L-YB A22NZ-L-YC A22NZ-L-YD A22NZ-L-YE
White A22NZ-L-WA A22NZ-L-WB A22NZ-L-WC A22NZ-L-WD A22NZ-L-WE
Blue A22NZ-L-AA A22NZ-L-AB A22NZ-L-AC A22NZ-L-AD A22NZ-L-AE
Orange A22NZ-L-OA A22NZ-L-OB A22NZ-L-OC A22NZ-L-OD A22NZ-L-OE

Mounting Collar

Appearance Model
A22NZ-H-01

Contact Blocks

Appearance Terminals Specifications Contacts Model
Screw terminal block SPST-NO (blue) A22NZ-S-G1A
SPST-NC (orange) A22NZ-S-G1B
Push-In Plus terminal block SPST-NO (blue) A22NZ-S-P1A
SPST-NC (red) A22NZ-S-P1B
Push-In Plus terminal block DPST-NO (blue) A22NZ-S-P2A
DPST-NC (red) A22NZ-S-P2B
SPST-NO/SPST-NC (white) A22NZ-S-P2C

Lighting Units

Appearance Terminals Specifications Rated voltage Model
Screw terminal block 6 VAC/DC A22NZ-T-A
12 VAC/DC A22NZ-T-B
24 VAC/DC A22NZ-T-C
100/110/120 VAC A22NZ-T-D
200/220/230/240 VAC A22NZ-T-E
Push-In Plus terminal block 6 VAC/DC A22NZ-T-AP
12 VAC/DC A22NZ-T-BP
24 VAC/DC A22NZ-T-CP
100/110/120 VAC A22NZ-T-DP
200/220/230/240 VAC A22NZ-T-EP

last update: August 1, 2017

OMRON A22NN / A22NL accessory
A22NN / A22NL Pushbutton Switches/Accessory
last update: April 2, 2018
Ordering Information
Accessories and Tools (Order Separately)

Item Appearance Classification Model Remarks
Protective Cover
--- A22NZ-A-303 A protector designed to prevent
incorrect operation.
Cannot be used together with other
accessories.
(Rubber seal included.)
For 22.3 and 25.5-mm panel holes
diameter.
Key-type selector switches cannot
be used.
Plastic Hole Plug
Round A22NZ-A-401 Can be plugged into precut panel
holes for future expansion.
Applicable panel thickness:
0.8 to 3.0 mm
For 22.3-mm panel hole diameter.
Metal Hole Plug
Round A22NZ-A-402 Can be plugged into precut panel
holes for future expansion.
Applicable panel thickness:
0.8 to 6.0 mm
(Rubber seal included.)
For 22.3-mm panel hole diameter.
Lock Ring
Round A22NZ-A-403 Used when a more secure lock is
required to prevent rotation inside
the Operation Unit.
(Rubber seal included.)
For 22.3-mm panel hole diameter.
Can be used together with the
A22NZ-A-50501 Lock Ring.
Lock Ring
--- A22NZ-A-50501 Used when a more secure lock is
required to prevent rotation of the
Operation Unit.
Can be used together with the
A22NZ-A-403 Lock Ring.
Can be used with the A22N Series
and the A30N Series.
Reinforcement
Plate
--- A22NZ-A-C01 Used to reinforce Contact Blocks
and Lighting Units, Refer to catalog
for mounting instructions.
Key
--- A22NZ-K-01 Used with a key-type selector switch.
Control Box
1 hole A22NZ-A-B01Y Applicable Range
• Type with Screw Terminal Block
　One Switch can be linked.
• Type with Push-in Plus Terminal
　Block Compatible only with
　Switches with a Single-contact Unit.
For 22.3-mm panel hole diameter.
Connector
Suitable
Cable
Diameter
(mm) 7 to 9 dia. A22Z-3500-1 Plastic connector used to extend
a cable from the switch box.
Refer to catalog for details.
9 to 11 dia. A22Z-3500-2
Sealing Caps
For flat models A22Z-3600F Used to prevent dust or water from
entering the Operation Unit.
Color: opaque
Material: silicon
For 22.3 and 25.5-mm panel holes
diameter.
Knob-type and key-type selector
switches cannot be used.
For projection models A22Z-3600T
For full-guard models A22Z-3600G
Resin
Attachment
for 30 dia.
Round A22Z-A30 Use when mounting to a panel with
a 30-dia. hole.
Refer to catalog for details.
Purchase and mount a separate
Lock Ring when using an indicator.
Small Legend
Plate Frame
Black A22NZ-A-50103 Legend Plate with no text on black
background included.
For 22.3-mm panel hole diameter.
Small Legend
Plates
(Standard Size)
Without text A22Z-3443B Black
A22Z-3443R Red
A22Z-3443W White
A22Z-3443C Transparent
○ A22Z-3443R-2 White text on red background
STOP A22Z-3443R-4
| A22Z-3443B-1 White text on black background
START A22Z-3443B-3
ON A22Z-3443B-5
OFF A22Z-3443B-6
UP A22Z-3443B-7
DOWN A22Z-3443B-8
POWER ON A22Z-3443B-9
OFF-ON A22Z-3443B-10
Large Legend
Plate Frame
Black A22NZ-A-51103 Legend Plate with no text on black
background included.
For 22.3-mm panel hole diameter.
Large Legend
Plates
Without text A22Z-3453B Black
A22Z-3453R Red
A22Z-3453W White
A22Z-3453C Transparent
Tightening
Wrench
--- A22NZ-A-301 Used to tighten Mounting Nuts from
the back of the panel.
LED Lamp
Extractor
--- A22NZ-A-302 Made of rubber and used to easily
remove and attach LED Lamps.
Cap Tightening
Wrench --- A22Z-3908 Used to replace the Caps on Flat,
Projected, and Fullguard Pushbutton
Switches.

last update: April 2, 2018

OMRON A22NN / A22NL specification
A22NN / A22NL Pushbutton Switches/Specifications
last update: October 03, 2016
Certified Safety Standard Ratings
UL 508 (File No. E76675), CSA C22.2 No.14

6 A 240 VAC, 10 A 120 VAC

TÜV (EN60947-5-1)

AC-15 3 A 240 VAC
DC-13 4 A 24 VDC

CCC (GB14048.5)

AC-15 3 A 240 VAC
DC-13 4 A 24 VDC

Application Standards

UL1059 and UL486E (Push-In Plus terminal block type)

Ratings
Contacts (Standard Load)

Rated insulation voltage 600 V
Rated carry current 10 A
Rated voltage 24 V 120 V 240 V 380 V 440 V
AC at 50/60 Hz Resistive load (AC-12) 10 A 10 A 6 A 2 A 2 A
Inductive load (AC-15) 10 A 6 A 3 A 1.9 A 1.6 A
DC Resistive load (DC-12) 8 A 2.2 A 1.1 A --- ---
Inductive load (DC-13) 4 A 1.1 A 0.55 A --- ---

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20 ±2°C
(2) Ambient humidity: 65% ±5% RH
(3) Operating frequency: 30 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC.

LED Lamps

Rated voltage Applied voltage Rated current
6 VAC/DC 6 VAC/DC ±10% Approx. 11 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
12 VAC/DC 12 VAC/DC ±10% Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
24 VAC/DC 24 VAC/DC ±10% Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
100 VAC 100 VAC ±10% Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
110 VAC 110 VAC ±10%
120 VAC 100 to 130 VAC
200 VAC 200 VAC ±10% Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
220 VAC 220 VAC ±10%
230 VAC 230 VAC ±10%
240 VAC 220 to 250 VAC

Characteristics

Type Pushbutton Switches
Item Non-lighted models Lighted models
Allowable
operating
frequency Mechanical 60 operations/minute max.
Electrical 30 operations/minute max.
Insulation resistance 100 MΩ min. (at 500 VDC) Not available for lighting units
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength Between terminals of same
polarity 2,500 VAC at 50/60 Hz for 1 min.
(initial value) Not available for lighting units
Between each terminal and
ground 2,500 VAC at 50/60 Hz for 1 min. (initial value)
Vibration
resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms)
Shock
resistance Malfunction 1,000 m/s² max. (malfunction within 1 ms)
Durability Mechanical Momentary action: 5,000,000 operations min.
Alternate action: 500,000 operations min.
Electrical 500,000 operations min.
(250 VAC, 3 A, with an inductive load having power factor cos θ = 0.4)
Ambient operating temperature *1 -25 to 70°C -25 to 55°C
Ambient operating humidity 35% to 85% RH
Ambient storage temperature *1 -40 to 80°C
Degree of protection *2 Conforming to IP66, NEMA 4X, NEMA13
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination (application
environment) 3 (EN 60947-5-1)
Weight Approx. 50 g (for 1NC/1NO) Approx. 65 g (for 1NC/1NO)

*1. With no icing or condensation.
*2.Degree of protection from the front of the panel.

Operating Characteristics (for SPST-NO/SPST-NC)

Type Pushbutton Switches
Item Lighted/non-lighted
Total travel force (torque) (maximum TTF) 18 N
Total travel (TT) 6 mm max.
Resetting force (torque) (RF) ---

Examples of Linked Contact Blocks (Screw terminal block type)

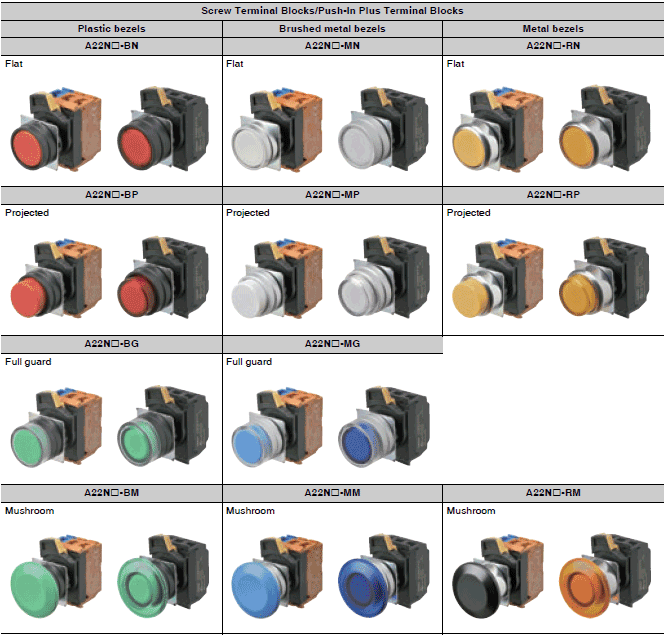

Pushbutton Switches
Momentary Alternate
Lighted Non-lighted Lighted Non-lighted
Linking example

Note: If you increase the number of Contact Blocks, evaluate the Switch under actual working conditions before
permanent installation and use the Switch within a number of switching operations that will not adversely affect the
Switch's performance.

last update: October 03, 2016

OMRON A22NN / A22NL dimension
A22NN / A22NL Pushbutton Switches/Dimensions
last update: August 1, 2017

(Unit: mm)

Lighted and Non-lighted Pushbutton Switches

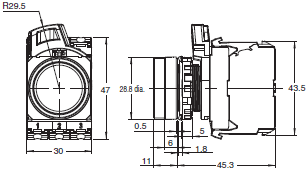

Flat Switches with Plastic Bezels

A22NN-BN[]-N[]A-G[]-NN

A22NN-BN[]-N[]A-P[]-NN

A22NL-BN[]-T[]A-G[]-[][]
A22NN-BN[]-U[]A-G[]-NN

A22NL-BN[]-T[]A-P[]-[][]
A22NN-BN[]-U[]A-P[]-NN

Projected Switches with Plastic Bezels

A22N[]-BP[]-[]A-G[]-[][]

A22N[]-BP[]-[]A-P[]-[][]

Full-guard Switches with Plastic Bezels

A22N[]-BG[]-[]A-G[]-[][]

A22N[]-BG[]-[]A-P[]-[][]

Mushroom Switches with Plastic Bezels

A22N[]-BM[]-[]A-G[]-[][]

A22N[]-BM[]-[]A-P[]-[][]

Flat Switches with Brushed Metal Bezels

A22NN-MN[]-N[]A-G[]-NN

A22NN-MN[]-N[]A-P[]-NN

A22NL-MN[]-T[]A-G[]-[][]
A22NN-MN[]-U[]A-G[]-NN

A22NL-MN[]-T[]A-P[]-[][]
A22NN-MN[]-U[]A-P[]-NN

Projected Switches with Brushed Metal Bezels

A22N[]-MP[]-[]A-G[]-[][]

A22N[]-MP[]-[]A-P[]-[][]

Full-guard Switches with Brushed Metal Bezels

A22N[]-MG[]-[]A-G[]-[][]

A22N[]-MG[]-[]A-P[]-[][]

Mushroom Switches with Brushed Metal Bezels

A22N[]-MM[]-[]A-G[]-[][]

A22N[]-MM[]-[]A-P[]-[][]

Flat Switches with Metal Bezels

A22NN-RN[]-N[]A-G[]-NN

A22NN-RN[]-N[]A-P[]-NN

A22NL-RN[]-T[]A-G[]-[][]
A22NN-RN[]-U[]A-G[]-NN

A22NL-RN[]-T[]A-P[]-[][]
A22NN-RN[]-U[]A-P[]-NN

Projected Switches with Metal Bezels

A22N[]-RP[]-[]A-G[]-[][]

A22N[]-RP[]-[]A-P[]-[][]

Mushroom Switches with Metal Bezels

A22N[]-RM[]-[]A-G[]-[][]

A22N[]-RM[]-[]A-P[]-[][]

Depth with Linked Units

(Screw terminal block type)

Depth when a double-contact unit is mounted

(Push-In Plus terminal block type)

Subassemblies (Common)
LED Lamps

A22NZ-L-[][]

Mounting Collar

A22NZ-H-01

Screw terminal block
Contact Blocks

A22NZ-S-G1[]

Lighting Units

A22NZ-T-[]

Push-In Plus Terminal Blocks
Contact Blocks (Single Contact)

A22NZ-S-P1[]

Contact Blocks (Double Contact)

A22NZ-S-P2[]

Lighting Units

A22NZ-T-[]P

Accessories and Tools
Protective Cover

A22NZ-A303

Plastic Hole Plug

A22NZ-A-401

Metal Hole Plug

A22NZ-A-402

Lock Ring

A22NZ-A-403

Lock Ring

A22NZ-A-50501

Reinforcement Plate

A22NZ-A-C01

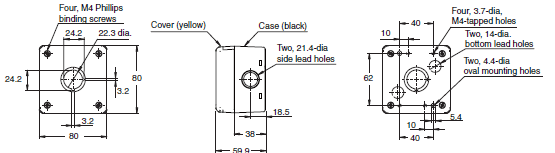

Control Box

A22NZ-A-B01Y

Sealing cap

For Flat Models A22Z-3600F

For projection models A22Z-3600T

For full-guard models A22Z-3600G

Resin Attachment for 30 dia.

A22Z-A30

Legend Plate Frames

General A22NZ-A-50103

Large A22NZ-A-51103

Legend Plates

General A22Z-3443[]-[]

Large A22Z-3453[]

Tightening Wrench

A22NZ-A-301

LED Lamp Extractor

A22NZ-A-302

Cap Tightening Wrench

A22Z-3908

last update: August 1, 2017

OMRON A22NN / A22NL catalog
A22NN / A22NL Pushbutton Switches/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

A22N/M22N/A30N Data Sheet A254-E1-01
[55488KB] Jan 15, 201920190115 A22N/M22N/A30N Data Sheet

A22N-P/A30N-P, M22N-P, A22NE-P Catalog A253-E1-04
[4664KB] Dec 03, 201820181203 A22N-P/A30N-P, M22N-P, A22NE-P Catalog

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

NO. A22NN / A22NL

TYPE:Push Buttons / Indicator Lamps φ22(φ25) Type Copyright Statement

DATE:2021-06-09

Associated products:
A22NK Key-type Selector Switches/Features A22NS / A22NW Selector Switches/Features

Appearance	Contacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW:Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BNM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BNM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MNM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MNM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RNM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RNM-(4)(4)A-P(7)(7)(7)-NN

Appearance	Contacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW:Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW:Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BNA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BNA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MNA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MNA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RNA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RNA-(4)(4)A-P(7)(7)(7)-NN

Appearance	Con- tacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BNM- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BNM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BNM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BNM- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MNM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MNM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MNM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MNM- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RNM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RNM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RNM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RNM- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Con- tacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BNA- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BNA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BNA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BNA- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MNA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MNA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MNA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MNA- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RNA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RNA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RNA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RNA- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Contacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BPM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BPM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MPM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MPM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RPM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RPM-(4)(4)A-P(7)(7)(7)-NN

Appearance	Contacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BPA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BPA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MPA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MPA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RPA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RPA-(4)(4)A-P(7)(7)(7)-NN

Appearance	Con- tacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BPM- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BPM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BPM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BPM- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MPM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MPM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MPM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MPM- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RPM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RPM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RPM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RPM- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Con- tacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BPA- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BPA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BPA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BPA- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MPA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MPA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MPA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MPA- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RPA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RPA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RPA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RPA- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Contacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BGM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BGM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MGM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MGM-(4)(4)A-P(7)(7)(7)-NN

Appearance	Contacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BGA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BGA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MGA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MGA-(4)(4)A-P(7)(7)(7)-NN

Appearance	Con- tacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BGM- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BGM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BGM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BGM- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MGM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MGM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MGM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MGM- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Con- tacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BGA- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BGA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BGA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BGA- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MGA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MGA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MGA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MGA- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Contacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BMM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BMM-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MMM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MMM-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RMM-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RMM-(4)(4)A-P(7)(7)(7)-NN

Appearance	Contacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts
Model
Plastic bezels	1	A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN	NR: Opaque, red NG: Opaque, green NY: Opaque, yellow NW: Opaque, white NA: Opaque, blue NB: Opaque, black UR: Transparent, red UG: Transparent, green UY: Transparent, yellow UW: Transparent, white UA: Transparent, blue UO: Transparent, orange	100 002
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-BMA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-BMA-(4)(4)A-P(7)(7)(7)-NN
Brushed metal bezels	1	A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-MMA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-MMA-(4)(4)A-P(7)(7)(7)-NN
Metal bezels	1	A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN	100 002
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
2	A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN	101 102 202
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN
3	A22NN-RMA-(4)(4)A-G(7)(7)(7)-NN	111 112 122 222
A22NN-RMA-(4)(4)A-P(7)(7)(7)-NN

Appearance	Con- tacts	Momentary action (self-resetting)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BMM- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BMM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BMM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BMM- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MMM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MMM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MMM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MMM- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RMM- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RMM- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RMM- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RMM- (4)(4)A-P(7)(7)(7)-(8)(9)

Appearance	Con- tacts	Alternate action (self-holding)	(4)(4) Button color	(7)(7)(7) Contacts	(8) LED Lamp color	(9) LED Lamp voltage
Model
Plastic bezels	1	A22NL-BMA- (4)(4)A-G(7)(7)(7)-(8)(9)	TR: Transparent, red TG: Transparent, green TY: Transparent, yellow TW: Transparent, white TA: Transparent, blue TO: Transparent, orange	100 002	R: Red G: Green Y: Yellow W: White A: Blue O: Orange	A: 6 VAC/DC B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC
A22NL-BMA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-BMA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-BMA- (4)(4)A-P(7)(7)(7)-(8)(9)
Brushed metal bezels	1	A22NL-MMA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-MMA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-MMA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-MMA- (4)(4)A-P(7)(7)(7)-(8)(9)
Metal bezels	1	A22NL-RMA- (4)(4)A-G(7)(7)(7)-(8)(9)	100 002
A22NL-RMA- (4)(4)A-P(7)(7)(7)-(8)(9)
2	A22NL-RMA- (4)(4)A-G(7)(7)(7)-(8)(9)	101 102 202
A22NL-RMA- (4)(4)A-P(7)(7)(7)-(8)(9)

Bezel material and button shape	Plastic, flat

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-BNM-NRA	A22NZ-BNA-NRA
Opaque	Green	A22NZ-BNM-NGA	A22NZ-BNA-NGA
Opaque	Yellow	A22NZ-BNM-NYA	A22NZ-BNA-NYA
Opaque	White	A22NZ-BNM-NWA	A22NZ-BNA-NWA
Opaque	Blue	A22NZ-BNM-NAA	A22NZ-BNA-NAA
Opaque	Black	A22NZ-BNM-NBA	A22NZ-BNA-NBA
Transparent	Red	A22NZ-BNM-URA	A22NZ-BNA-URA
Transparent	Green	A22NZ-BNM-UGA	A22NZ-BNA-UGA
Transparent	Yellow	A22NZ-BNM-UYA	A22NZ-BNA-UYA
Transparent	White	A22NZ-BNM-UWA	A22NZ-BNA-UWA
Transparent	Blue	A22NZ-BNM-UAA	A22NZ-BNA-UAA
Transparent	Orange	A22NZ-BNM-UOA	A22NZ-BNA-UOA
Lighted	Transparent	Red	A22NZ-BNM-TRA	A22NZ-BNA-TRA
Transparent	Green	A22NZ-BNM-TGA	A22NZ-BNA-TGA
Transparent	Yellow	A22NZ-BNM-TYA	A22NZ-BNA-TYA
Transparent	White	A22NZ-BNM-TWA	A22NZ-BNA-TWA
Transparent	Blue	A22NZ-BNM-TAA	A22NZ-BNA-TAA
Transparent	Orange	A22NZ-BNM-TOA	A22NZ-BNA-TOA

Bezel material and button shape	Plastic, projected

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-BPM-NRA	A22NZ-BPA-NRA
Opaque	Green	A22NZ-BPM-NGA	A22NZ-BPA-NGA
Opaque	Yellow	A22NZ-BPM-NYA	A22NZ-BPA-NYA
Opaque	White	A22NZ-BPM-NWA	A22NZ-BPA-NWA
Opaque	Blue	A22NZ-BPM-NAA	A22NZ-BPA-NAA
Opaque	Black	A22NZ-BPM-NBA	A22NZ-BPA-NBA
Transparent	Red	A22NZ-BPM-URA	A22NZ-BPA-URA
Transparent	Green	A22NZ-BPM-UGA	A22NZ-BPA-UGA
Transparent	Yellow	A22NZ-BPM-UYA	A22NZ-BPA-UYA
Transparent	White	A22NZ-BPM-UWA	A22NZ-BPA-UWA
Transparent	Blue	A22NZ-BPM-UAA	A22NZ-BPA-UAA
Transparent	Orange	A22NZ-BPM-UOA	A22NZ-BPA-UOA
Lighted	Transparent	Red	A22NZ-BPM-TRA	A22NZ-BPA-TRA
Transparent	Green	A22NZ-BPM-TGA	A22NZ-BPA-TGA
Transparent	Yellow	A22NZ-BPM-TYA	A22NZ-BPA-TYA
Transparent	White	A22NZ-BPM-TWA	A22NZ-BPA-TWA
Transparent	Blue	A22NZ-BPM-TAA	A22NZ-BPA-TAA
Transparent	Orange	A22NZ-BPM-TOA	A22NZ-BPA-TOA

Bezel material and button shape	Plastic, full-guard

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-BGM-NRA	A22NZ-BGA-NRA
Opaque	Green	A22NZ-BGM-NGA	A22NZ-BGA-NGA
Opaque	Yellow	A22NZ-BGM-NYA	A22NZ-BGA-NYA
Opaque	White	A22NZ-BGM-NWA	A22NZ-BGA-NWA
Opaque	Blue	A22NZ-BGM-NAA	A22NZ-BGA-NAA
Opaque	Black	A22NZ-BGM-NBA	A22NZ-BGA-NBA
Transparent	Red	A22NZ-BGM-URA	A22NZ-BGA-URA
Transparent	Green	A22NZ-BGM-UGA	A22NZ-BGA-UGA
Transparent	Yellow	A22NZ-BGM-UYA	A22NZ-BGA-UYA
Transparent	White	A22NZ-BGM-UWA	A22NZ-BGA-UWA
Transparent	Blue	A22NZ-BGM-UAA	A22NZ-BGA-UAA
Transparent	Orange	A22NZ-BGM-UOA	A22NZ-BGA-UOA
Lighted	Transparent	Red	A22NZ-BGM-TRA	A22NZ-BGA-TRA
Transparent	Green	A22NZ-BGM-TGA	A22NZ-BGA-TGA
Transparent	Yellow	A22NZ-BGM-TYA	A22NZ-BGA-TYA
Transparent	White	A22NZ-BGM-TWA	A22NZ-BGA-TWA
Transparent	Blue	A22NZ-BGM-TAA	A22NZ-BGA-TAA
Transparent	Orange	A22NZ-BGM-TOA	A22NZ-BGA-TOA

Bezel material and button shape	Plastic, mushroom

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-BMM-NRA	A22NZ-BMA-NRA
Opaque	Green	A22NZ-BMM-NGA	A22NZ-BMA-NGA
Opaque	Yellow	A22NZ-BMM-NYA	A22NZ-BMA-NYA
Opaque	White	A22NZ-BMM-NWA	A22NZ-BMA-NWA
Opaque	Blue	A22NZ-BMM-NAA	A22NZ-BMA-NAA
Opaque	Black	A22NZ-BMM-NBA	A22NZ-BMA-NBA
Transparent	Red	A22NZ-BMM-URA	A22NZ-BMA-URA
Transparent	Green	A22NZ-BMM-UGA	A22NZ-BMA-UGA
Transparent	Yellow	A22NZ-BMM-UYA	A22NZ-BMA-UYA
Transparent	White	A22NZ-BMM-UWA	A22NZ-BMA-UWA
Transparent	Blue	A22NZ-BMM-UAA	A22NZ-BMA-UAA
Transparent	Orange	A22NZ-BMM-UOA	A22NZ-BMA-UOA
Lighted	Transparent	Red	A22NZ-BMM-TRA	A22NZ-BMA-TRA
Transparent	Green	A22NZ-BMM-TGA	A22NZ-BMA-TGA
Transparent	Yellow	A22NZ-BMM-TYA	A22NZ-BMA-TYA
Transparent	White	A22NZ-BMM-TWA	A22NZ-BMA-TWA
Transparent	Blue	A22NZ-BMM-TAA	A22NZ-BMA-TAA
Transparent	Orange	A22NZ-BMM-TOA	A22NZ-BMA-TOA

Bezel material and button shape	Brushed metal, flat

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-MNM-NRA	A22NZ-MNA-NRA
Opaque	Green	A22NZ-MNM-NGA	A22NZ-MNA-NGA
Opaque	Yellow	A22NZ-MNM-NYA	A22NZ-MNA-NYA
Opaque	White	A22NZ-MNM-NWA	A22NZ-MNA-NWA
Opaque	Blue	A22NZ-MNM-NAA	A22NZ-MNA-NAA
Opaque	Black	A22NZ-MNM-NBA	A22NZ-MNA-NBA
Transparent	Red	A22NZ-MNM-URA	A22NZ-MNA-URA
Transparent	Green	A22NZ-MNM-UGA	A22NZ-MNA-UGA
Transparent	Yellow	A22NZ-MNM-UYA	A22NZ-MNA-UYA
Transparent	White	A22NZ-MNM-UWA	A22NZ-MNA-UWA
Transparent	Blue	A22NZ-MNM-UAA	A22NZ-MNA-UAA
Transparent	Orange	A22NZ-MNM-UOA	A22NZ-MNA-UOA
Lighted	Transparent	Red	A22NZ-MNM-TRA	A22NZ-MNA-TRA
Transparent	Green	A22NZ-MNM-TGA	A22NZ-MNA-TGA
Transparent	Yellow	A22NZ-MNM-TYA	A22NZ-MNA-TYA
Transparent	White	A22NZ-MNM-TWA	A22NZ-MNA-TWA
Transparent	Blue	A22NZ-MNM-TAA	A22NZ-MNA-TAA
Transparent	Orange	A22NZ-MNM-TOA	A22NZ-MNA-TOA

Bezel material and button shape	Brushed metal, flat

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-MPM-NRA	A22NZ-MPA-NRA
Opaque	Green	A22NZ-MPM-NGA	A22NZ-MPA-NGA
Opaque	Yellow	A22NZ-MPM-NYA	A22NZ-MPA-NYA
Opaque	White	A22NZ-MPM-NWA	A22NZ-MPA-NWA
Opaque	Blue	A22NZ-MPM-NAA	A22NZ-MPA-NAA
Opaque	Black	A22NZ-MPM-NBA	A22NZ-MPA-NBA
Transparent	Red	A22NZ-MPM-URA	A22NZ-MPA-URA
Transparent	Green	A22NZ-MPM-UGA	A22NZ-MPA-UGA
Transparent	Yellow	A22NZ-MPM-UYA	A22NZ-MPA-UYA
Transparent	White	A22NZ-MPM-UWA	A22NZ-MPA-UWA
Transparent	Blue	A22NZ-MPM-UAA	A22NZ-MPA-UAA
Transparent	Orange	A22NZ-MPM-UOA	A22NZ-MPA-UOA
Lighted	Transparent	Red	A22NZ-MPM-TRA	A22NZ-MPA-TRA
Transparent	Green	A22NZ-MPM-TGA	A22NZ-MPA-TGA
Transparent	Yellow	A22NZ-MPM-TYA	A22NZ-MPA-TYA
Transparent	White	A22NZ-MPM-TWA	A22NZ-MPA-TWA
Transparent	Blue	A22NZ-MPM-TAA	A22NZ-MPA-TAA
Transparent	Orange	A22NZ-MPM-TOA	A22NZ-MPA-TOA

Bezel material and button shape	Brushed metal, full-guard

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-MGM-NRA	A22NZ-MGA-NRA
Opaque	Green	A22NZ-MGM-NGA	A22NZ-MGA-NGA
Opaque	Yellow	A22NZ-MGM-NYA	A22NZ-MGA-NYA
Opaque	White	A22NZ-MGM-NWA	A22NZ-MGA-NWA
Opaque	Blue	A22NZ-MGM-NAA	A22NZ-MGA-NAA
Opaque	Black	A22NZ-MGM-NBA	A22NZ-MGA-NBA
Transparent	Red	A22NZ-MGM-URA	A22NZ-MGA-URA
Transparent	Green	A22NZ-MGM-UGA	A22NZ-MGA-UGA
Transparent	Yellow	A22NZ-MGM-UYA	A22NZ-MGA-UYA
Transparent	White	A22NZ-MGM-UWA	A22NZ-MGA-UWA
Transparent	Blue	A22NZ-MGM-UAA	A22NZ-MGA-UAA
Transparent	Orange	A22NZ-MGM-UOA	A22NZ-MGA-UOA
Lighted	Transparent	Red	A22NZ-MGM-TRA	A22NZ-MGA-TRA
Transparent	Green	A22NZ-MGM-TGA	A22NZ-MGA-TGA
Transparent	Yellow	A22NZ-MGM-TYA	A22NZ-MGA-TYA
Transparent	White	A22NZ-MGM-TWA	A22NZ-MGA-TWA
Transparent	Blue	A22NZ-MGM-TAA	A22NZ-MGA-TAA
Transparent	Orange	A22NZ-MGM-TOA	A22NZ-MGA-TOA

Bezel material and button shape	Brushed metal, mushroom

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-MMM-NRA	A22NZ-MMA-NRA
Opaque	Green	A22NZ-MMM-NGA	A22NZ-MMA-NGA
Opaque	Yellow	A22NZ-MMM-NYA	A22NZ-MMA-NYA
Opaque	White	A22NZ-MMM-NWA	A22NZ-MMA-NWA
Opaque	Blue	A22NZ-MMM-NAA	A22NZ-MMA-NAA
Opaque	Black	A22NZ-MMM-NBA	A22NZ-MMA-NBA
Transparent	Red	A22NZ-MMM-URA	A22NZ-MMA-URA
Transparent	Green	A22NZ-MMM-UGA	A22NZ-MMA-UGA
Transparent	Yellow	A22NZ-MMM-UYA	A22NZ-MMA-UYA
Transparent	White	A22NZ-MMM-UWA	A22NZ-MMA-UWA
Transparent	Blue	A22NZ-MMM-UAA	A22NZ-MMA-UAA
Transparent	Orange	A22NZ-MMM-UOA	A22NZ-MMA-UOA
Lighted	Transparent	Red	A22NZ-MMM-TRA	A22NZ-MMA-TRA
Transparent	Green	A22NZ-MMM-TGA	A22NZ-MMA-TGA
Transparent	Yellow	A22NZ-MMM-TYA	A22NZ-MMA-TYA
Transparent	White	A22NZ-MMM-TWA	A22NZ-MMA-TWA
Transparent	Blue	A22NZ-MMM-TAA	A22NZ-MMA-TAA
Transparent	Orange	A22NZ-MMM-TOA	A22NZ-MMA-TOA

Bezel material and button shape	Metal, flat

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-RNM-NRA	A22NZ-RNA-NRA
Opaque	Green	A22NZ-RNM-NGA	A22NZ-RNA-NGA
Opaque	Yellow	A22NZ-RNM-NYA	A22NZ-RNA-NYA
Opaque	White	A22NZ-RNM-NWA	A22NZ-RNA-NWA
Opaque	Blue	A22NZ-RNM-NAA	A22NZ-RNA-NAA
Opaque	Black	A22NZ-RNM-NBA	A22NZ-RNA-NBA
Transparent	Red	A22NZ-RNM-URA	A22NZ-RNA-URA
Transparent	Green	A22NZ-RNM-UGA	A22NZ-RNA-UGA
Transparent	Yellow	A22NZ-RNM-UYA	A22NZ-RNA-UYA
Transparent	White	A22NZ-RNM-UWA	A22NZ-RNA-UWA
Transparent	Blue	A22NZ-RNM-UAA	A22NZ-RNA-UAA
Transparent	Orange	A22NZ-RNM-UOA	A22NZ-RNA-UOA
Lighted	Transparent	Red	A22NZ-RNM-TRA	A22NZ-RNA-TRA
Transparent	Green	A22NZ-RNM-TGA	A22NZ-RNA-TGA
Transparent	Yellow	A22NZ-RNM-TYA	A22NZ-RNA-TYA
Transparent	White	A22NZ-RNM-TWA	A22NZ-RNA-TWA
Transparent	Blue	A22NZ-RNM-TAA	A22NZ-RNA-TAA
Transparent	Orange	A22NZ-RNM-TOA	A22NZ-RNA-TOA

Bezel material and button shape	Metal, projected

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-RPM-NRA	A22NZ-RPA-NRA
Opaque	Green	A22NZ-RPM-NGA	A22NZ-RPA-NGA
Opaque	Yellow	A22NZ-RPM-NYA	A22NZ-RPA-NYA
Opaque	White	A22NZ-RPM-NWA	A22NZ-RPA-NWA
Opaque	Blue	A22NZ-RPM-NAA	A22NZ-RPA-NAA
Opaque	Black	A22NZ-RPM-NBA	A22NZ-RPA-NBA
Transparent	Red	A22NZ-RPM-URA	A22NZ-RPA-URA
Transparent	Green	A22NZ-RPM-UGA	A22NZ-RPA-UGA
Transparent	Yellow	A22NZ-RPM-UYA	A22NZ-RPA-UYA
Transparent	White	A22NZ-RPM-UWA	A22NZ-RPA-UWA
Transparent	Blue	A22NZ-RPM-UAA	A22NZ-RPA-UAA
Transparent	Orange	A22NZ-RPM-UOA	A22NZ-RPA-UOA
Lighted	Transparent	Red	A22NZ-RPM-TRA	A22NZ-RPA-TRA
Transparent	Green	A22NZ-RPM-TGA	A22NZ-RPA-TGA
Transparent	Yellow	A22NZ-RPM-TYA	A22NZ-RPA-TYA
Transparent	White	A22NZ-RPM-TWA	A22NZ-RPA-TWA
Transparent	Blue	A22NZ-RPM-TAA	A22NZ-RPA-TAA
Transparent	Orange	A22NZ-RPM-TOA	A22NZ-RPA-TOA

Bezel material and button shape	Metal, mushroom

Switch Action	Momentary	Alternate
Lighted/non-lighted	Transparency	Color	Model	Model
Non-lighted	Opaque	Red	A22NZ-RMM-NRA	A22NZ-RMA-NRA
Opaque	Green	A22NZ-RMM-NGA	A22NZ-RMA-NGA
Opaque	Yellow	A22NZ-RMM-NYA	A22NZ-RMA-NYA
Opaque	White	A22NZ-RMM-NWA	A22NZ-RMA-NWA
Opaque	Blue	A22NZ-RMM-NAA	A22NZ-RMA-NAA
Opaque	Black	A22NZ-RMM-NBA	A22NZ-RMA-NBA
Transparent	Red	A22NZ-RMM-URA	A22NZ-RMA-URA
Transparent	Green	A22NZ-RMM-UGA	A22NZ-RMA-UGA
Transparent	Yellow	A22NZ-RMM-UYA	A22NZ-RMA-UYA
Transparent	White	A22NZ-RMM-UWA	A22NZ-RMA-UWA
Transparent	Blue	A22NZ-RMM-UAA	A22NZ-RMA-UAA
Transparent	Orange	A22NZ-RMM-UOA	A22NZ-RMA-UOA
Lighted	Transparent	Red	A22NZ-RMM-TRA	A22NZ-RMA-TRA
Transparent	Green	A22NZ-RMM-TGA	A22NZ-RMA-TGA
Transparent	Yellow	A22NZ-RMM-TYA	A22NZ-RMA-TYA
Transparent	White	A22NZ-RMM-TWA	A22NZ-RMA-TWA
Transparent	Blue	A22NZ-RMM-TAA	A22NZ-RMA-TAA
Transparent	Orange	A22NZ-RMM-TOA	A22NZ-RMA-TOA

Appearance	Rated voltage	Model
Color	6 VAC/DC	12 VAC/DC	24 VAC/DC	100/110/120 VAC	200/220/230/ 240 VAC
	Red	A22NZ-L-RA	A22NZ-L-RB	A22NZ-L-RC	A22NZ-L-RD	A22NZ-L-RE
Green	A22NZ-L-GA	A22NZ-L-GB	A22NZ-L-GC	A22NZ-L-GD	A22NZ-L-GE
Yellow	A22NZ-L-YA	A22NZ-L-YB	A22NZ-L-YC	A22NZ-L-YD	A22NZ-L-YE
White	A22NZ-L-WA	A22NZ-L-WB	A22NZ-L-WC	A22NZ-L-WD	A22NZ-L-WE
Blue	A22NZ-L-AA	A22NZ-L-AB	A22NZ-L-AC	A22NZ-L-AD	A22NZ-L-AE
Orange	A22NZ-L-OA	A22NZ-L-OB	A22NZ-L-OC	A22NZ-L-OD	A22NZ-L-OE

Appearance	Model
	A22NZ-H-01

Appearance	Terminals Specifications	Contacts	Model
	Screw terminal block	SPST-NO (blue)	A22NZ-S-G1A
SPST-NC (orange)	A22NZ-S-G1B
	Push-In Plus terminal block	SPST-NO (blue)	A22NZ-S-P1A
SPST-NC (red)	A22NZ-S-P1B
	Push-In Plus terminal block	DPST-NO (blue)	A22NZ-S-P2A
DPST-NC (red)	A22NZ-S-P2B
SPST-NO/SPST-NC (white)	A22NZ-S-P2C

Appearance	Terminals Specifications	Rated voltage	Model
	Screw terminal block	6 VAC/DC	A22NZ-T-A
12 VAC/DC	A22NZ-T-B
24 VAC/DC	A22NZ-T-C
100/110/120 VAC	A22NZ-T-D
200/220/230/240 VAC	A22NZ-T-E
	Push-In Plus terminal block	6 VAC/DC	A22NZ-T-AP
12 VAC/DC	A22NZ-T-BP
24 VAC/DC	A22NZ-T-CP
100/110/120 VAC	A22NZ-T-DP
200/220/230/240 VAC	A22NZ-T-EP

Item	Appearance	Classification	Model	Remarks
Protective Cover		---	A22NZ-A-303	A protector designed to prevent incorrect operation. Cannot be used together with other accessories. (Rubber seal included.) For 22.3 and 25.5-mm panel holes diameter. Key-type selector switches cannot be used.
Plastic Hole Plug		Round	A22NZ-A-401	Can be plugged into precut panel holes for future expansion. Applicable panel thickness: 0.8 to 3.0 mm For 22.3-mm panel hole diameter.
Metal Hole Plug		Round	A22NZ-A-402	Can be plugged into precut panel holes for future expansion. Applicable panel thickness: 0.8 to 6.0 mm (Rubber seal included.) For 22.3-mm panel hole diameter.
Lock Ring		Round	A22NZ-A-403	Used when a more secure lock is required to prevent rotation inside the Operation Unit. (Rubber seal included.) For 22.3-mm panel hole diameter. Can be used together with the A22NZ-A-50501 Lock Ring.
Lock Ring		---	A22NZ-A-50501	Used when a more secure lock is required to prevent rotation of the Operation Unit. Can be used together with the A22NZ-A-403 Lock Ring. Can be used with the A22N Series and the A30N Series.
Reinforcement Plate		---	A22NZ-A-C01	Used to reinforce Contact Blocks and Lighting Units, Refer to catalog for mounting instructions.
Key		---	A22NZ-K-01	Used with a key-type selector switch.
Control Box		1 hole	A22NZ-A-B01Y	Applicable Range • Type with Screw Terminal Block 　One Switch can be linked. • Type with Push-in Plus Terminal 　Block Compatible only with 　Switches with a Single-contact Unit. For 22.3-mm panel hole diameter.
Connector		Suitable Cable Diameter (mm)	7 to 9 dia.	A22Z-3500-1	Plastic connector used to extend a cable from the switch box. Refer to catalog for details.
9 to 11 dia.	A22Z-3500-2
Sealing Caps		For flat models	A22Z-3600F	Used to prevent dust or water from entering the Operation Unit. Color: opaque Material: silicon For 22.3 and 25.5-mm panel holes diameter. Knob-type and key-type selector switches cannot be used.
For projection models	A22Z-3600T
For full-guard models	A22Z-3600G
Resin Attachment for 30 dia.		Round	A22Z-A30	Use when mounting to a panel with a 30-dia. hole. Refer to catalog for details. Purchase and mount a separate Lock Ring when using an indicator.
Small Legend Plate Frame		Black	A22NZ-A-50103	Legend Plate with no text on black background included. For 22.3-mm panel hole diameter.
Small Legend Plates (Standard Size)		Without text	A22Z-3443B	Black
A22Z-3443R	Red
A22Z-3443W	White
A22Z-3443C	Transparent
○	A22Z-3443R-2	White text on red background
STOP	A22Z-3443R-4
\|	A22Z-3443B-1	White text on black background
START	A22Z-3443B-3
ON	A22Z-3443B-5
OFF	A22Z-3443B-6
UP	A22Z-3443B-7
DOWN	A22Z-3443B-8
POWER ON	A22Z-3443B-9
OFF-ON	A22Z-3443B-10
Large Legend Plate Frame		Black	A22NZ-A-51103	Legend Plate with no text on black background included. For 22.3-mm panel hole diameter.
Large Legend Plates		Without text	A22Z-3453B	Black
A22Z-3453R	Red
A22Z-3453W	White
A22Z-3453C	Transparent
Tightening Wrench		---	A22NZ-A-301	Used to tighten Mounting Nuts from the back of the panel.
LED Lamp Extractor		---	A22NZ-A-302	Made of rubber and used to easily remove and attach LED Lamps.
Cap Tightening Wrench		---	A22Z-3908	Used to replace the Caps on Flat, Projected, and Fullguard Pushbutton Switches.

Rated insulation voltage	600 V
Rated carry current	10 A
Rated voltage	24 V	120 V	240 V	380 V	440 V
AC at 50/60 Hz	Resistive load (AC-12)	10 A	10 A	6 A	2 A	2 A
Inductive load (AC-15)	10 A	6 A	3 A	1.9 A	1.6 A
DC	Resistive load (DC-12)	8 A	2.2 A	1.1 A	---	---
Inductive load (DC-13)	4 A	1.1 A	0.55 A	---	---

Rated voltage	Applied voltage	Rated current
6 VAC/DC	6 VAC/DC ±10%	Approx. 11 mA (red, orange, yellow, or blue) Approx. 5 mA (white or green)
12 VAC/DC	12 VAC/DC ±10%	Approx. 12 mA (red, orange, yellow, or blue) Approx. 5 mA (white or green)
24 VAC/DC	24 VAC/DC ±10%	Approx. 12 mA (red, orange, yellow, or blue) Approx. 5 mA (white or green)
100 VAC	100 VAC ±10%	Approx. 12 mA (red, orange, yellow, or blue) Approx. 5 mA (white or green)
110 VAC	110 VAC ±10%
120 VAC	100 to 130 VAC
200 VAC	200 VAC ±10%	Approx. 12 mA (red, orange, yellow, or blue) Approx. 5 mA (white or green)
220 VAC	220 VAC ±10%
230 VAC	230 VAC ±10%
240 VAC	220 to 250 VAC

Type	Pushbutton Switches
Item	Non-lighted models	Lighted models
Allowable operating frequency	Mechanical	60 operations/minute max.
Electrical	30 operations/minute max.
Insulation resistance	100 MΩ min. (at 500 VDC)	Not available for lighting units
Contact resistance	100 mΩ max. (initial value)
Dielectric strength	Between terminals of same polarity	2,500 VAC at 50/60 Hz for 1 min. (initial value)	Not available for lighting units
Between each terminal and ground	2,500 VAC at 50/60 Hz for 1 min. (initial value)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms)
Shock resistance	Malfunction	1,000 m/s² max. (malfunction within 1 ms)
Durability	Mechanical	Momentary action: 5,000,000 operations min. Alternate action: 500,000 operations min.
Electrical	500,000 operations min. (250 VAC, 3 A, with an inductive load having power factor cos θ = 0.4)
*Ambient operating temperature 1**	-25 to 70°C	-25 to 55°C
Ambient operating humidity	35% to 85% RH
*Ambient storage temperature 1**	-40 to 80°C
*Degree of protection 2**	Conforming to IP66, NEMA 4X, NEMA13
Electric shock protection class	Class II
PTI (tracking characteristic)	175
Degree of contamination (application environment)	3 (EN 60947-5-1)
Weight	Approx. 50 g (for 1NC/1NO)	Approx. 65 g (for 1NC/1NO)

Type	Pushbutton Switches
Item	Lighted/non-lighted
Total travel force (torque) (maximum TTF)	18 N
Total travel (TT)	6 mm max.
Resetting force (torque) (RF)	---

	Pushbutton Switches
Momentary	Alternate
Lighted	Non-lighted	Lighted	Non-lighted
Linking example

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
A22N/M22N/A30N Data Sheet	A254-E1-01 [55488KB]	Jan 15, 201920190115	A22N/M22N/A30N Data Sheet
A22N-P/A30N-P, M22N-P, A22NE-P Catalog	A253-E1-04 [4664KB]	Dec 03, 201820181203	A22N-P/A30N-P, M22N-P, A22NE-P Catalog
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building

Return to OMRON
