High-speed 3D-SJI
New series VT-S730-H makes inspection time about 2 times faster than the conventional one in our company with a new high-speed imaging module, and realizes high quality and high productivity at the same time.
The example of comparison of inspection time for our retaining PCBs
Execute statistical survey ISO/TS16949 required.
MSA Control
ISO/TS16949 requires statistical surveys to analyze the differences of each measurement value.
VT-S730-H has MSA(Measurement System Analysis), which is a method to quantitatively evaluate them. It regularly measures and evaluates accuracy again and again by itself and leaves past records to keep the inspection accuracy.
The past records can be downloaded whenever it is necessary.
Strengthening Solder Shape Reconstruction Efficiency (In common with VT-S730)
Solder shape reconstruction method of VT-S7 series has been developed more. It contributes more to quality control conforming to international standards such as ISO/TS16949 by improving accuracy of quantitative inspection for solder bondability.
Objects Inspection Function (In common with VT-S730)
By specifying height of objects in the inspection standards, objects of the height can be detected.
last update: January 15, 2018
Purchase the OMRON PCB Inspection System Please fill in the following
If you have just landed here, this product OMRON VT-S730-H Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the VT-S730-H We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON VT-S730-HPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E5GN Basic-type Digital Temperature Controller (48 x 24 mm)/Features
CP1W-EIP61 EtherNet/IP Communication Module for CP1L/CP1H PLCs/Features
XS5, XS6 Industrial Ethernet Cables/Features
S82S Switch Mode Power Supply (3/7.5-W Models)/Features
K8DT-AS Single-phase Current Relay/Features
OMRON VT-S730-H specification
VT-S730-H PCB Inspection System/Specificationslast update: October 03, 2016
Hardware configuration
| Outer dimensions | 1100(W) ×1470(D)×1500(H)mm |
|---|---|
| Weight | 800kg |
| Power supply | 200 to 240 VAC (single phase), voltage fiuctuation range ±10% |
| Line height | 900±20mm |
| Air supply pressure | 0.3~0.6MPa |
Functional specifications
| Supported PCB size | 50(W) ×50(D)~510(W)×460(D)mm |
|---|---|
| Thickness | 0.4~4mm |
| Clearance | Above PCB:40mm; Below PCB:40mm |
| Height measurement range | 25mm |
last update: October 03, 2016
OMRON VT-S730-H catalog
VT-S730-H PCB Inspection System/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 VT-S730-H Catalog | Q328-E1-02 [1262KB] | Jan 15, 201820180115 | VT-S730-H Catalog |
OMRON VT-S730-H lineup
VT-S730-H PCB Inspection System/Lineuplast update: October 03, 2016
If you have a question about this product, please click on "Inquiry" above.
last update: October 03, 2016
OMRON VT-S730-H dimension

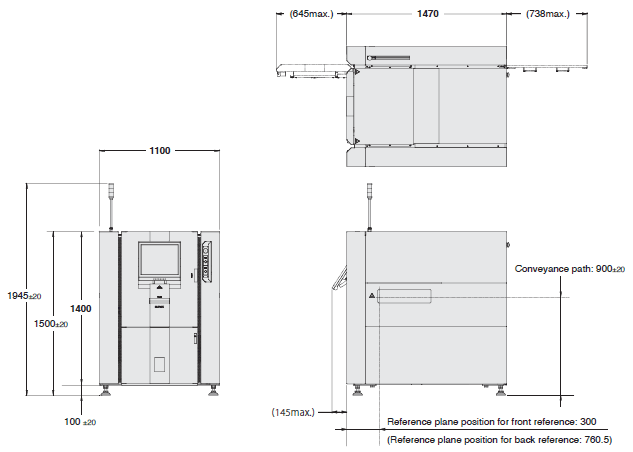

VT-S730-H PCB Inspection System/Dimensionslast update: October 03, 2016
